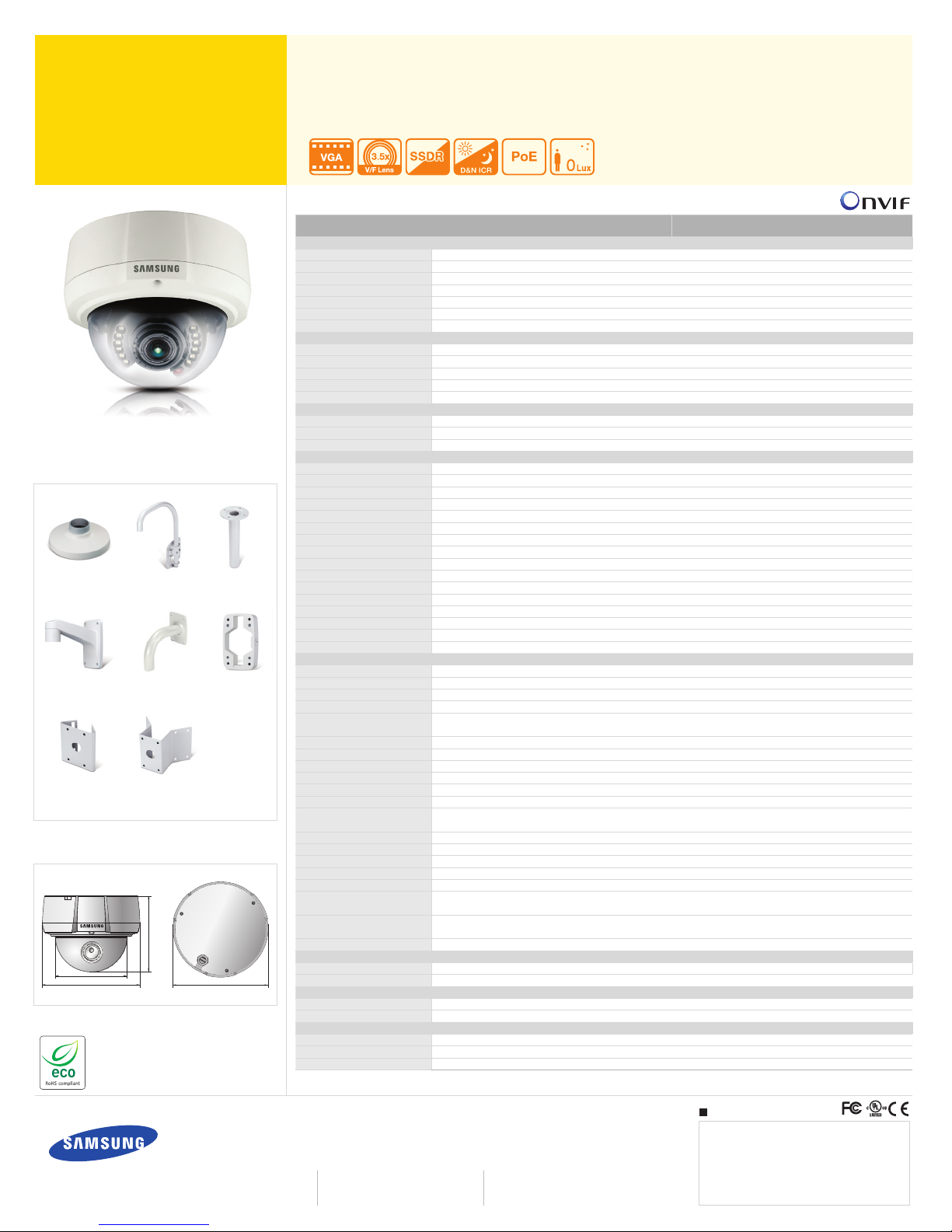

SNV-1080R
The SNV-1080R is a compact vandal-resistant VGA network dome
camera featuring built-in IR LEDs which make it suitable for use in
the most demanding applications. With the Samsung Techwin
WiseNetS DSP chipset at its core, the SNV-1080R delivers a host of
advanced features including face detection analytics, third
generation Samsung Super Noise Reduction (SSNR Ⅲ ) to eliminate
image noise in low light conditions, and Samsung Super Dynamic
Range (SSDR); it has an analogue video output port enabling
conventional analogue viewing to make set-up on site easy. Its
compact design makes the SNV-1080R especially suitable for small
applications such as convenience stores and retail shops.
VGA Vandal-Resistant Network IR Dome Camera
Compact and Affordable
Network Solution
FIRST EDITION 01-2012
• 30fps at VGA (640x480) resolution
•2.2~7.7mm (3.5x) varifocal lens
•H.264, MJPEG Dual Encoding
•Multiple Streaming
•Day and Night Function (ICR)
•SSDR, SSNR
Ⅲ
•PoE, Micro SD Slot, Bi-Directional Audio, IP66
•Motion Detection, Face Detection

The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
VGA Vandal-Resistant Network IR Dome Camera
Design and specifications are subject to change without notice.
M.E-1201
DISTRIBUTED BY
SAMSUNG TECHWIN CO., LTD.
701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : [phone]~8749, 8752~8760 Fax : [phone]
www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : [phone] Fax : [phone]
TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.
No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : [phone] Fax : [phone]
Specifications
Ø100.0 (3.93”)
Ø137.0 (5.39”) Ø137.0 (5.39”)
106 (4.17”)
Dimensions
Accessories
Unit : mm (inch)
SNV-1080R
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
www.samsungcctvusa.com
SNV-1080R N/P SNV-1080R
VIDEO
Imaging Device 1/4" PS CMOS
Total Pixels 680(H) x 512(V)
Effective Pixels 640(H) x 480(V)
Scanning System Progressive
Min. Illumination 0.7 lux (F1.2, Color mode), 0 lux (IR LED on, B /W Mode)
S / N Ratio 50dB
Video Out DIP connector type, for installation
LENS
Focal Length (Zoom Ratio) 2.2 ~ 7.7mm (3.5 x) varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 94°(Wide) ~ 26.5°(Tele), V : 70°(Wide) ~ 20°(Tele)
Min. Object Distance 500mm (1.64 ft)
Mount Type Board type (Ø14)
PAN / TILT / ROTATE
Pan Range 0° ~ 352°
Tilt Range 17° ~ 90°
Rotate Range 0° ~ 351°
OPERATIONAL
IR LED 12 ea
IR Range (Viewable Length) 15 m
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR)/ Color / B/W / External
Backlight Compensation Off / BLC
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNR III (2D+3D noise filter) (Off / On)
Motion Detection Off / On (4 programmable zones)
Privacy Masking Off / On (32ea 4 points polygonal)
Sens-up (Frame Integration) Off / Auto (2x ~ 60x)
Gain Control Off / Low / Medium / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Auto / A.FLK / Manual (60x ~ 1/12000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Face detection
Alarm I/O Input 1ea
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264, MJPEG
Resolution 4 : 3 Mode - 640 x 480 / 320 x 240 / 160 x 120
Max. Framerate Max. 30fps at all resolutions
Video Quality Adjustment
H.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
AUDIO I/O Mic/Line in , Line out
Audio Compression Format G.711 U-LAW
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP /IP, RTP(UDP), RTP( TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/ v3(MIB-2), ARP, DNS, DDNS, QoS
Security
HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Memory Slot Micro SD/SDHC memory slot
ONVIF Conformance Ye s
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 7.0 or Higher, Firefox, Google Chrome, Apple Safari
Central Management Software
NET-i viewer
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~
+50°C (+14°F ~ +122°F ) / 20% ~80% RH
Ingress Protection IP66 Grade (Waterproof)
ELECTRICAL
Input Voltage / Current 12V DC / PoE (IEEE802.3af )
Power Consumption Max. 5.9W (12V DC ), Max. 6.2W (PoE)
MECHANICAL
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø137.0 x 106 mm (Ø5.39" x 4.17")
Weight 786g (1.73 lb)
SBP-300HM2
Hanging Mount
SBP-300WM1
Wall Mount
SBP-300PM
Pole Mount
SBP-300KM
Corner Mount
SBP-300B
Wall Mount
Base
SBP-300WM
Wall Mount
(Swan-neck)
SBP-300LM
Parapet Mount
SBP-300CM
Ceiling Mount
