Samsung SCC-833 User manual

Super WDR & Low Light
Digital Color Camera
SCC-833(P)
SCC-835(P)
SCC-803P/805P
Part No.: AB68-00107A
Printed in Korea
Operating Instructions
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 44

1
Operating Instructions
Contents
1. Introduction..................................................... 2
2. Features........................................................... 3
3. Installation ...................................................... 5
Precautions in Installation and Use...................... 5
Connecting Auto Iris Lens Connector ................. 6
Mounting lens......................................................... 7
Setting Lens Selection Switch............................... 8
Adjusting Back Focus ............................................ 9
Connecting Cable ................................................. 11
4. Name and Functions of Parts...................... 14
Name and Functions of Camera Parts............... 14
Camera Setup........................................................ 19
5. Product Specifications................................. 39
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 1

2. Features
High Sensitivity
Adopting the Super-HAD CCD that has the latest
built-in microchip lens, the high sensitivity is
realized.
SWDR Function
With built-in SWDR (Super Wide Dynamic Range)
function using Dual Shutter method, distinction of
light and darkness is clear in areas where the
illumination levels differ greatly or the light source
is right behind the subject.
Low Illumination Function
It is possible to shoot in the worst situation where
there is no light by adopting a low illumination
function based on the Digital Signal Technology.
Excellent Back Light Compensation
Even when an intense light source or sunlight is in
the back of your subject, a clear image can be
provided due to the ideal combination of the
excellent performance of the high light
compression (Knee Compensation) function and
the BLC (Back Light Compensation) function.
3
Operating Instructions
1. Overview
Adopting the latest Super-HAD CCD (Charge
Coupled Device), the CCTV COLOR CAMERA
SCC-833(P)/835(P)/803P/805P are monitoring
camera which can provide the best monitoring
function when connected to the CCTV system
equipment by realizing SWDR (Super Wide
Dynamic Range) and low illumination function.
Broadcasting System
• SCC-833/835 : NTSC
• SCC-833P/835P/803P/805P : PAL
Number of CCD Pixel
• SCC-833 : 1/3" NTSC 410K
(High resolution type)
• SCC-835 : 1/2" NTSC 410K
(High resolution type)
• SCC-833P/803P : 1/3" PAL 470K
(High resolution type)
• SCC-835P/805P : 1/2" PAL 470K
(High resolution type)
Power Source
• SCC-833(P)/835(P): AC 24V, DC12V
• SCC-803P/805P : AC 220V ~ 240V
Operating Instructions
2
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 2

5
Operating Instructions
Digital Line-lock
The control and reliability has been enhanced due
to the Full Digital Line Lock, which allows users to
adjust the Line Sync Phase.
Resolution
High resolution is realized due to the Full Digital
Image Processing utilizing the best Digital Signal
Technology.
Output Signal Selection
Video output signal reverse function and frame
setting (horizontal, vertical) function are
incorporated.
Remote Control
The operation of the camera can be remotely
controlled due to the built-in remote control
protocol of the RS-485 Standards.
* Remote control using PC requires additional
RS485/232C Interface Jig.
Operating Instructions
4
3. Installation
Precautions in Installation and Use
1) Do not attempt to disassemble the camera
yourself.
2) Be cautious in handling the camera. Avoid
striking or shaking the camera. Make sure to
avoid damage on the camera caused by improper
storage or operation.
3) Do not expose the camera to rain or moisture.
Do not operate the camera on a wet place.
4) Do not use strong or abrasive detergents when
cleaning the camera body. Use a dry cloth to
clean the camera.
5) Keep the camera at a cool place away from the
direct sunlight. Leaving the camera under the
direct sunlight may result in a malfunction of the
unit.
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 4

7
Operating InstructionsOperating Instructions
6

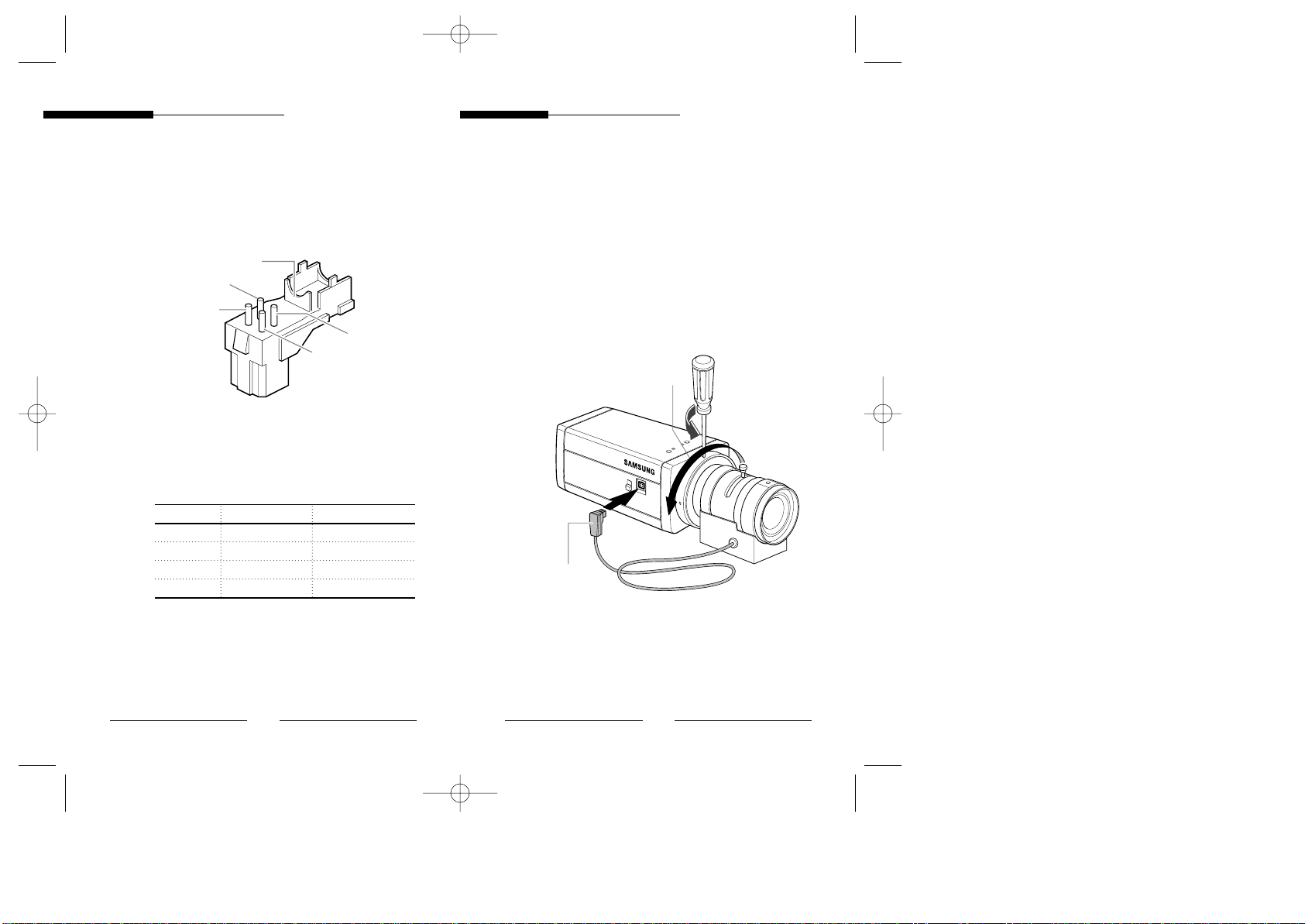

Connecting Auto Iris Lens Connector
Prepare the Auto Iris Lens Connector, which is
supplied along with the camera.
Connect the cable of the control cable, whose
covering is stripped, to the Auto Iris Lens
Connector as shown below.
Pin Number DC Control Type Video Control Type
1 Damp (–) Power (+9V)
2 Damp (+) Not used
3 Drive (+) Video signal
4 Drive (–) GND
Rib
Pin1
Pin2
Pin3
Pin4
Mounting the Lens
Loosen a screw fixing the Flange Back Adjustment
Ring by turning it counterclockwise and turn the
Adjustment Ring to the “C” direction
(counterclockwise) until it stops. Failure to do so
may result in a damage caused by a bump of the
lens against the image sensor part in the camera
when mounting the lens.
Auto Iris Control Cable
LENS
DC
VIDEO
C direction
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 6

9
Operating InstructionsOperating Instructions
8

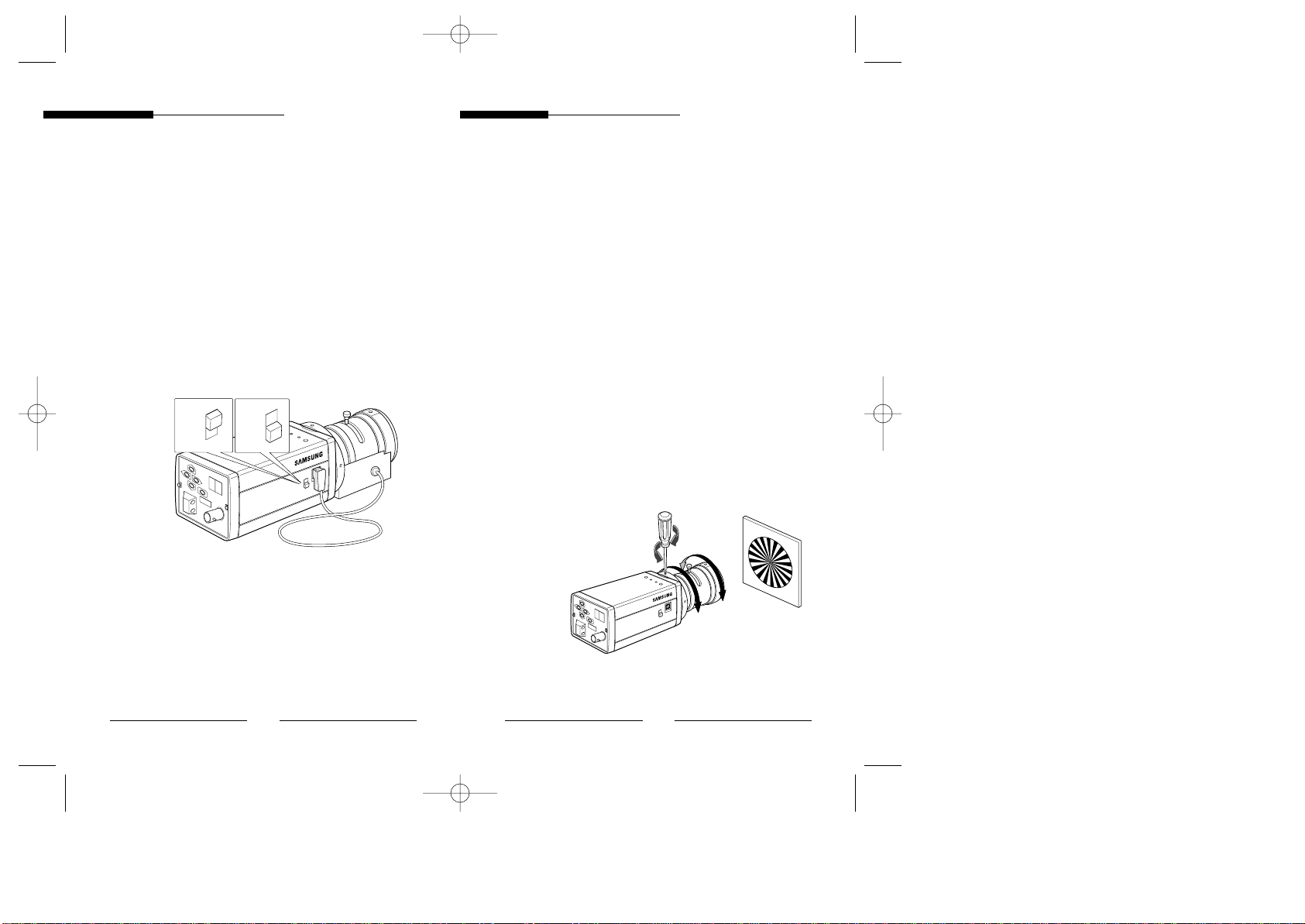

Setting Lens Selection Switch
When lens mounting is completed, set the Lens
Selection Switch on the lateral side of the camera
according to the type of lens mounted.
When the mounted lens is an Auto Iris Lens of DC
control type, set the Lens Selection Switch to “DC”.
When the mounted lens is an Auto Iris Lens of
video control type, set the Lens Selection Switch to
“VIDEO”.
LENS
DC
VIDEO
AI LENS AI LENS
DC DC
VIDEO VIDEO
Adjusting Back Focus
Although the Back Focus of the camera has been
adjusted in the factory before its shipment, the
focus may not be accurate for a certain type of lens.
In this case, follow the procedures below to adjust
the back focus. First, following is how to adjust the
Back Focus of the Fixed Focus Lens.
1) Lightly loosen up the screw fixing the Back
Focus Adjustment Ring using a screwdriver.
2) Image a vivid subject (with check patterns) at a
distance of more than 10m away and turn the
Focus Ring to the infinity ( ∞) position.
3) Adjust the Back Focus Adjustment Ring to obtain
the clearest image of the subject.
4) Fasten the screw fixing the Back Focus
Adjustment Ring.
LENS
DC
VIDEO
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 8

11
Operating InstructionsOperating Instructions
10
The following describes how to adjust the Back
Focus when using a Zoom Lens.
1) Lightly loosen up the screw fixing the Back
Focus Adjustment Ring using a screwdriver.
2) Image a vivid subject (with check patterns) at a
distance of 3 to 5 meters away and adjust the
zoom of the lens to TELE as far as it goes. Then
adjust the Focus Ring of the lens to obtain the
clearest image of the subject.
3)
Adjust the zoom of the lens to WIDE as far as it goes.
Then turn the Back Focus Ring of the camera to
obtain the clearest image of the subject.
4) Repeat the number 2) and 3) steps two to three
times to exactly coincide the zoom focus from
TELE with that from WIDE.
5) Fasten the screw fixing the Back Focus
Adjustment Ring.
Note:
Turning the Back Focus Adjustment Ring to the “C” direction
beyond the adjustable range makes a sound at the limit.
LENS
DC
VIDEO

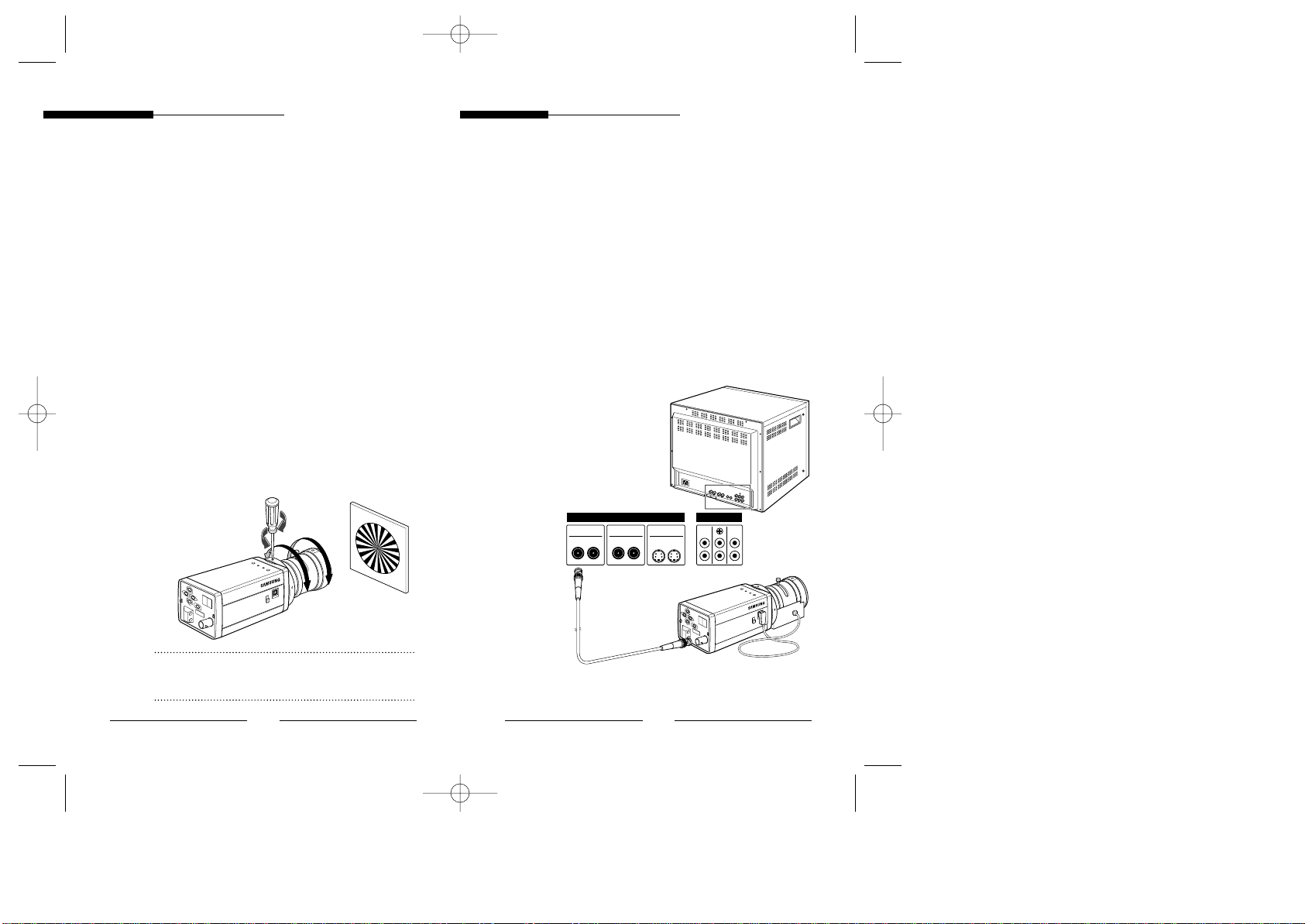

Connecting Cable
After mounting the lens and setting the Lens
Selection switch, connect the prepared cable to
each terminal of the camera.
1) First, connect one end of the BNC cable to the
Video Output Terminal (VIDEO OUT) of the
camera.
2) Then connect the other end of the BNC cable to
the Video Input Terminal of the camera.
LENS
IN
Video A
OUT IN
Video B
OUT IN IN
Video C
OUT
OUT
ABC
VIDEO LINE AUDIO LINE
DC
VIDEO
Video In Terminal
on the rear of the monitor
BNC cable
Video Out Terminal
(VIDEO OUT)
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 10

13
Operating InstructionsOperating Instructions
12
3) Then connect the power adapter.
As for SCC-833/P, 835/P, connect one end of two
lines of the power adapter using a screwdriver to
the Power In Terminal of the camera as shown
below.
* Connect to the AC 24V or DC 12V power
source, without the distinction of the polarity.
LENS
110
220
DC
VIDEO
AC24V
DC12V
4) Connect the power input cord to the AC 230V
power source. (SCC-803P/805P)
LENS
DC
VIDEO
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 12

15
Operating InstructionsOperating Instructions
14
4. Names and Functions of Parts
• Side View
Groove for Mount Adapter
Use this groove for fixing the mount adapter to be
connected to the bracket with screws when
mounting the camera on the bracket.
Auto Iris Lens (Option)
Lens to be mounted on the camera.
LENS
DC
VIDEO
Auto Iris Lens Connector
Auto Iris Lens
Control Cable
ALC Lens
Selection Switch
Groove for Mount Adapter
Camera lens
Flange-Back
Adjustment Ring
Note:
When the surface of the camera lens is contaminated, wipe the
surface gently with a tissue for lens or a cotton cloth applied
with ethanol.
Auto Iris Lens Connector
Used for supplying power, which is required to
control the iris of the lens, as well as control signal,
video signal, or DC signal to the Auto Iris Control
Lens
Auto Iris Lens Control Cable
Used for transmitting the control signals to the
camera to control the iris of the lens.
Flange-Back Adjustment Ring
Used for adjusting the Back Focus.
ALC Lens Selection Switch
Used when selecting the type of Auto Iris Lens to
use.
DC: Select this switch to DC when Auto Iris Lens
requiring DC control signal is mounted.
VIDEO: Select this switch to VIDEO when Auto Iris
Lens requiring VIDEO control signal is
mounted.
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 14

• Rear Panel
SCC-803P/805P
SCC-833(P), 835(P)
Operating Instructions
16 17
Operating Instructions
1) Power Indication LED
While the power is properly supplied to the
camera, the LED is turned on.
2) VIDEO Output Terminal
This is a terminal to be connected to the Input
Terminal of the monitor and others. Through
this terminal, video signal is output.
3) Remote Input Terminal (RS485 control)
This is a connection terminal used to adjust the
camera in the factory, and it can be controlled
remotely using RS485 Half Duplex.
4) Alarm Signal Output
Alarm signal is generated when Motion
Detection of camera occurs.
ALARM OUT
GND
PWR
AC 220-240V
REMOTE
VIDEO OUT
4
2
1
65
3
ALARM OUT GND
PWR
REMOTE
AC 24V
DC 12V VIDEO OUT
6
2
1
45
3
1 A(TXD)
2 B(RXD)
3 +5V
4 GND
ALARM Signal Open/Gnd
GND GND
12 43
REMOTE
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 16

19
Operating InstructionsOperating Instructions
18
5) Camera Control Switch
1. Up Switch
Used when moving the cursor upward.
2. Left Direction Switch
Used when moving the cursor to the left
direction, changing modes or adjusting levels.
3. Down Switch
Used when moving the cursor downward.
4. Right Direction Switch
Used when moving the cursor to the right
direction, changing modes or adjusting levels.
5. Setting Switch
Used when entering the sub menu or setting
changed menus (save, quit, or preset).
6) Power Connection Terminal
Terminal to be connected to the power (adapter)
cable.
SCC-803P/805P: Connect it to AC 230V
(power cable)
SCC-833(P)/835(P): Connect it to AC 24V/
DC 12V (power adapter)
42
1
35
Camera Setup
Setup menu is configured as follows:
S
E
T
U
P
M
E
N
U
CAMERA ID
OFF/ON--- ON---
Write an ID/Select the position
SENSE UP
OFF/FIX X2~32/
AUTO X2~32
ALC/ELC
ALC---/ELC---
ALC---
WDR OFF/AUTO/ON---
(Adjust Level)
SHUTTER OFF~100K
Adjust Iris
BLC
OFF/ON---
ON---
AREA POSITION---
(Adjust Position)
PRESET OFF/ON
MANU---
PRESET 3200K/
PRESET 5600K/
PRESET OFF(USER)--
(Adjust R/B)
LINE---
Adjust V-PHASE
MANU---
Set RS 485ADDR
Adjust H-DTL
Adjust V-DTL
Select Posi/Nega
Select Left/Right
Select Up/Down
ON---
AREA SET---
(Adjust Position)
PRESET OFF/ON
Adjust LEVEL
ELC---
Adjust LEVEL
AGC
ON/OFF
WHITE BAL.
ATW/AWC/MANU ---
SYNC
INT/LINE---
VIDEO CON.
FIX/MANU---
MOTION DET
OFF/ON---
EXIT
QUIT/SAVE/PRESET
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 18

21
Operating InstructionsOperating Instructions
20
Operation of the Setup Menu
Press the Setup Switch for two to three seconds to
switch from the general mode to the Setup Mode.
Then the Setup Menu pops up on the screen.
Setup menu shown on the monitor is as follows:
Setup Menu
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
Flickering
Indicates that
SUB-MENU
exists
1) Indication of the Main Menu
Press the Setup Switch for about two to three
seconds, then the Setup Menu (Main Menu) will
be shown as seen in the diagram below.
2) Indication of the Sub Menu
“---” mark next to the item indicates that there is
a sub-menu under the main.
Move the cursor to the item with “---” and press
the Setup Switch. Then the sub menu will pop up.
Select the Sub Menu to see the detailed menu as
follows:
(AWB/MANU)
OFF(USER)--
--------
PRESET
RED (00)
BLUE (00)
RET
--------
Implies that
there are
adjustment
items
(RED/BLUE).
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 20

23
Operating InstructionsOperating Instructions
22
(SET UP)
ON---
OFF
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
(CAMERA ID)
ABCDEFGHIJKL
MNOPQRSTUVWX
YZ0123456789
.;:?+-*()/
SP➝ SP
LOCATION
RET
............
➝
A total of 12 characters can be entered.
Move the character cursor to the position you want
using the up/down/right/left direction switch and
then press the Setup Switch.
Repeat this until you have the text you want. When
you want to enter a space between letters, move the
character cursor to “SP ® ¬ SP” and press the
Setup Switch.
When all the characters you want are entered, move
the cursor to “LOCATION” and press the Setup
Switch to have the menu that allows you to change
the location of camera ID.
The location of the camera ID can be changed and
fixed using the up/down/right/left direction switch.
Press the Setup Switch for 2 to 3 seconds after the
location is selected to return to the previous Sub
Menu screen. Place the selection cursor at “RET”
on Sub Menu screen and press the Setup Switch to
return to the Setup Menu screen.
Set “ON---” for the selected camera ID to be
displayed on the screen.
2) Sense Up Mode (Low Illumination Mode)
First, move the cursor to the “Sense Up” and
select the scale mode, which is suitable for the
camera environment using the right/left
direction switch.
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 22

25
Operating InstructionsOperating Instructions
24
3) ALC/ELC Mode
Move the cursor to “ALC/ELC” and select
“ALC---/ELC---” using the right/left direction
switch.
When “ALC---” is selected, ALC Menu details are
available.
When “ELC---” is selected, ELC Menu details are
available.
* When the Sense up Mode is fixed, ELC, Shutter
WDR mode is displayed as “---” and setting is not
to be changed.
(1) ALC Menu Setting
Move the cursor to “WDR” and select
“OFF/ON--” using the right/left direction
switch. (However, when the Sense up Mode is
fixed, “---” will be displayed and setting is not to
be changed.)
(SET UP)
OFF
AUTO X12
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
* When “ALC/ELC MODE” is set as “ALC---” (when WDR is off)
OFF ➝ AUTO X2 ➝ AUTO X4 ➝ AUTO X6 ➝ AUTO X8 ➝ AUTO X12 ➝ AUTO X16 ➝
AUTO X24 ➝ AUTO X32 ➝ OFF
➝ FIX X2 ➝ FIX X4 ➝ FIX X6 ➝ FIX X8 ➝ FIX X12 ➝ FIX X16 ➝ FIX X24 ➝ FIX X32
* When “ALC/ELC MODE” is set as “ALC---” (when WDR is AUTO)
OFF ➝ AUTO X2 ➝ AUTO X4 ➝ AUTO X6 ➝ AUTO X8 ➝ AUTO X12 ➝ AUTO X16 ➝
AUTO X24 ➝ AUTO X32
When the WDR on the ALC MENU is set “ON” (Sense Up Function cannot be
operated at the same time), Data is not switched to FIX. Only when WDR is
set “OFF” it can be switched to “FIX” and in this case WDR on the ALC LENS
MENU is indicated as “---” and WDR is not to be set anew.
* When “ALC/ELC MODE” is set as “ELC---”
OFF ➝ AUTO X2 ➝ AUTO X4 ➝ AUTO X6 ➝ AUTO X8 ➝ AUTO X12 ➝ AUTO X16 ➝
AUTO X24 ➝ AUTO X32
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
Functions are as follows:
First, sense up mode is not operated when it is
“Off”.
Off means 1/60 for NTSC and 1/50 for PAL.
In Fix Mode, designated scale mode is not operated
in any condition.
In Auto Mode, scale mode is operated automatically
within the range of the scale set according to the
brightness of the screen.
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 24

27
Operating InstructionsOperating Instructions
26
– Setting the Shutter Speed
First, move the cursor to the “SHUTTER” and
select the Shutter Speed (16phases “OFF ~ 100K”)
using the right/left direction switch.
Shutter speeds are as follows:
Off →100 →250 →500 →750 →1000 →1500 →
2000 →3000 →5000 →7000 →10K →20K →30K →
50K →100K (NTSC)
Off →120 →250 →500 →750 →1000 →1500 →
2000 →3000 →5000 →7000 →10K →20K →30K →
50K →100K (PAL)
When “OFF” is set, WDR function is not available
and level is not indicated.
When “ON--” is set, level is indicated. Move the
cursor to the Level item and use the right/left
direction switch to adjust WDR level.
(When WDR is ON--, Shutter is indicated as “---”
and its setting is not to be changed.)
When Auto is set, WDR function is automatically
made on or off based on the counter light status.
(ALC)
ON-- -------- WDR
LEVEL (0)
SHUTTER
IRIS (0)
RET
----
--------
(ALC)
OFFWDR
SHUTTER
IRIS
RET
OFF
--------
(0)
(ALC)
OFFWDR
SHUTTER
IRIS
RET
OFF
--------
(0)
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 26

29
Operating InstructionsOperating Instructions
28
BLC Range Setting
Select the BLC Menu and move the cursor to
“AREA SET---”. Then press the Setup Switch to
have the BLC Area displayed. Select the Area
Location using the right/left direction switch.
Press the Setup Switch on the designated spot to make the
BLC setting ON. Press it once more to turn it into OFF.
(*Location can be adjusted only when the PRESET is OFF.
When it is ON, it is fixed as it is set when shipment is made.)
Press the Setup Switch for longer than 2 seconds after the
location setting is completed to return to the previous Menu
(BLC Mode).
BLC is operated by the data for the areas selected when BLC is
“ON---”. (Areas with
■
mark indicate where IRIS DATA is set.)
– IRIS Setting
Move the cursor to “IRIS” and adjust the relevant
data using right/left direction switch.
Iris value of the DC lens is determined by the
selected data. (For Video lens, the iris value is
determined by the data value only when the BLC
motion is set “ON”.)
(2) Setting ELC Menu
First, select ELC on ALC/ELC Menu and select
the LEVEL. Target level can be adjusted using
the right/left direction switch. (ELC menu is
used only for non AI Lens.)
4) BLC Mode
Move the cursor to “BLC” and select “OFF/
ON---” using the right/left direction switch.
When “OFF” is set, BLC is not operated.
When “ON---” is set, BLC is operable.
* When WDR is ON---, BLC is indicated as “---”
and its setting is not to be changed.
(SET UP)
OFF
OFF
ALC---
ON---
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
(BLC)
AREA SET---
PRESET OFF
RET
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 28

31
Operating InstructionsOperating Instructions
30
5) AGC MODE
Move the cursor to “AGC” and select “ON/OFF”
using the right/left direction switch.
When it is set “OFF”, the camera set the AGC
gain DATA to “0”.
When it is set “ON”, AGC is operated.
6) WHITE BAL MODE
Move the cursor to “WHITE BAL” and select
“ATW/AWC/MANU---” using the right/left
direction switch.
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
(SET UP)
OFF
OFF
ALC---
OFF
ON
MANU---
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
- When “ATW” selected, Auto White Balance
Control is on.
- When “AWC” is selected, White Balance Control
memorized previously utilizing AWC is on. When
setting new AWC condition, press the Setup
Switch while AWC is selected. Then AWC
becomes flickering and White Balance Control is
operated to memorize the data. When the setting is
completed, the flickering stops.
* While “ATW” always calls White Balance, “AWC”
calls White Balance only once when the user
presses the Setup Switch.
- When “MANU---” is set, White Balance is called in
the condition, which is determined on
AWB/MANU MENU.
(1) Setting AWB/MANU MENU
Move the cursor to “PRESET” and select the
“PRESET 3200K/PRESET 5600K/PRESET OFF
(USER)--” using right/left direction switch.
(AWB/MANU)
PRESET 3200K
RET
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 30

33
Operating InstructionsOperating Instructions
32
- When “PRESET 3200K” is set, each Red and Blue
comes out in 3200°K.
- When “PRESET 5600K” is set, each RED and Blue
comes out in 5600°K.
- When “PRESET OFF (USER)--” is set, each Read
and Blue Gain can be adjusted by the user.
(AWB/MANU)
OFF(USER)--
--------
PRESET
RED (0)
BLUE (0)
RET
--------
(AWB/MANU)
OFF(USER)--
--------
PRESET
RED (0)
BLUE (0)
RET
--------
7) SYNC MODE
Move the cursor to “SYNC” and select the
“Power Sync (LINE---)/Internal Sync (INT)”
using right/left direction switch.
If the camera is set to INT (Internal Sync) mode
when monitoring in the Auto Switching mode with
more than one camera connected to a sequential
switcher, etc, the jump of the screen will occur each
time of screen switching.
To switch the screen gently without a jump, set the
camera to “L.L” and adjust the Vertical Sync Phase.
* However, L.L function can be used only when
using AC power. This setting is prohibited when
DC power is used. When DC power is used, only
INT is available.
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
FIX
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 32

35
Operating InstructionsOperating Instructions
34
- Move the selection cursor of the LINE LOCK
MENU to “V-PHASE” and adjust the line lock of
the camera by using right/left direction switch.
8) VIDEO CON MODE
Move the cursor to “VIDEO CON” and select the
“FIX/MANU---” using right/left direction
switch. When “FIX” is selected, the conditions at
the time of shipment are set.
When “MANU---” is selected, H-DTL, V-DTL,
posi/nega of the video signal can be changed by
the user on VIDEO CONTROL SUB MENU.
(LINE LOCK)
V-PHASE (00)
RET --------
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
MANU---
OFF
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
Setting the VIDEO CONTROL MENU
- Setting RS485 ADDR (refer to the diagram below)
Move the cursor to “RS 485 ADDR” and select the
“0~255” using right/left direction switch. (0~255: the
number of cameras that can be used). When a
multiple number of cameras is used, Address to
control each camera should be set using RS485
communications.
- Adjusting H-DTL (refer to the diagram on page 36)
Move the cursor to “H-DTL” (horizontal edge
adjustment) and change the value using the right/left
direction switch. The value can become + or – starting
from 0 using the right/left direction switch.
- Adjusting V-DTL (refer to the diagram on page 36)
Move the cursor to “V-DTL” (vertical edge
adjustment) and change the value using the right/ left
direction switch. The value can become + or – starting
from “0” using the right/left direction switch.
- Setting POSI/NEGA (refer to the diagram on page 36)
Move the cursor to “POSI/NEGA” and select
“POSI/NEGA” using the right/left direction switch.
When “POSI” is selected, video signals (Y, Chroma
signal) are generated in a normal way.
When “NEGA” is selected, video signals (Y, Chroma
signal) are generated in the opposite way.
(Often used when imaging film.)
Note: When using Video Al lens, normal operation is
not made even when “NEGA” is set.
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 34

37
Operating InstructionsOperating Instructions
36
– Setting H-REV (refer to the diagram below)
Move the cursor to “H-REV” and select “ON/ OFF”
using the right/left selection switch.
When “OFF” is selected, video signal is output normally.
When “ON” is selected, video signal is output in
right/left reverse.
– Setting V-REV (refer to the diagram below)
Move the cursor to “V-REV” and select “ON/ OFF”
using the right/left selection switch.
When “OFF” is selected, video signal is output normally.
When “ON” is selected, video signal is output in
up/down reverse.
9) MOTION DET MODE
Move the cursor to “MOTION DET” and select
“ON---/OFF” using the right/left selection switch.
When “OFF” is selected, motion detection is not made.
When “ON---” is selected, range and level for the
motion detection can be set.
When the MOTION is detected, ALARM OUT terminal
becomes Gnd and the ALARM is lifted automatically
about 30 seconds later. (GND/OPEN)
(VIDEO CONTROL)
0
POSI
OFF
OFF
RS485 ADDR
H-DTL
V-DTL
POSI/NEGA
H-REV
V-REV
RET
-------- --------
The setting of the MOTION DET MENU is as follows:
Move the MOTION DETECT range selection cursor
to “AREA SET---” and press the Setup Switch to see
the MOTION AREA. Select the AREA location using
the right/left direction switch and press the Setup
Switch. Then the range for MOTION detection is
turned off. Press it once more to turn it on.
(However, location can be set only when the PRESET
is OFF. When it is ON, the conditions are fixed to as
they are right before the shipment.)
When the location selection is completed, press the
Setup Switch for longer than 2 seconds to return to the
previous MOTION DET MENU.
(SET UP)
OFF
OFF
ALC---
OFF
ON
ATW
INT
FIX
ON---
QUIT?
CAMERA ID
SENSE UP
ALC/ELC
BLC
AGC
WHITE BAL
SYNC
VIDEO CON
MOTION DET
EXIT
00107A SCC-833P/855P - gb 11/22/00 3:36 PM Page 36
