Samsung STORY Station User manual

n
STORY Station
External Hard Disk Drive
User's manual
HX-DUOSODB
HX-DUO75DB
HX-DUO10EB
HX-DUO12EB
HX-DUO15EB

KS
User's Manual
Read Me First
About this Manual
Your product comes with a quick installation guide and a user's manual.
Following the instructions and precautions of this manual will ensure easier and more enjoyable use of your
STORY Station External Hard Disk Drive.
Quick Installation Guide
An installation guide is provided with the purchase of STORY Station External Hard Disk Drive.
The Quick Installation Guide explains product components and provides simple instructions on how to install the product.
User's Manual
The User's Manual contains detailed information about features and instructions on using your
STORY Station External Hard Disk Drive.
Using this Manual
Carefully read and understand the "Handling Precautions" section before using the product.
Failure to follow all the instructions as outlined in the Handling Precautions section could result in damage to you or to your
STORY Station External Hard Disk Drive.
= Refer to the Troubleshooting section first if you experience a problem with the product.
Icon Guide
Meaning
Precautions These must be read thoroughly before using any of the functions.
Caution This contains must-know information about functions. User must be careful.
Note This contains useful information about the functions.
Software and user manuals are available for download at the Samsung Hard Disk Drive website (www.samsunghdd.com).
The content of this User's Manual may change without prior notice for product improvement purposes.
STORY Station External Hard Drive 2

User's Manual
Handling Precautions
The following information serves to ensure user's safety and prevent damage to user's properties.
Carefully read the information provided and use your product correctly.
Handling Precautions
This product must be connected to a USB port or USB supporting system that is equipped with a compatible power supply unit.
Always Backup your Important Data
The external HDD manufacturer does not guarantee data stored in the external HDD and will not assume responsibility for any
mental or material damage incurred during data recovery.
Backup: Storing the original and a copy on two or more separate and accessible storage media.
Humidity
Moisture reacts with the oil on the surfaces of the disk and the head inside the HDD, contaminating the affected parts
and components and even corrupting the stored data. In addition, prolonged exposure to moisture can corrode various
parts and components.
Disassembly and Label Removal
Unauthorized disassembly of the product and unauthorized removal of the labeling will void your warranty.
Electrostatic
Do not touch the circuitry with your hands. Your HDD contains highly sensitive internal components.
Passing on static electricity to the circuitry will cause irreparable damage to the head.
STORY Station External Hard Drive 3

User's Manual
Shock
Protect the HDD from impact:
Your external HDD is very portable and is therefore highly vulnerable to damage from impact.
Protect the HDD from being dropped or tipped over during both use and storage.
Impact can make the read/write head to collide with the disk so it may cause bad sectors.
Depending on their location, bad sectors can cause various and potentially terminal disk read/write errors.
Magnets
Magnetic objects can cause various types of damage to the HDD, including data corruption.
Keep magnets and magnetic objects away from the HDD.
Regular Virus Scanning
Frequently scan the device for viruses and protect the device from virus infection.
Safely Remove Hardware
Always use the Safely Remove Hardware feature before shutting down the HDD or disconnecting the USB cable.
1MB-1,000,000bytes and 1GB=1,000,000,000bytes 1TB=1,000,000,000,000bytes
The storage capacity may differ depending on the drive formatting method, partition arrangement, and the type of operating
system used.
STORY Station External Hard Drive 4

Table of Contents
Read Me First
Handling Precautionst
Specifications
Connecting your STORY Station
Using your STORY Station
STORY Station Software
Troubleshooting
Appendix
STORY Station External Hard Drive
оо љо №№
PPPPWWWW
NNO
30
User’s Manual
About this Manual
Quick Installation Guide
User's Manual
Using this Manual
con Guide
Always Backup your Important Data
Humidity
Disassembly and Label Removal
Electrostatic
Shock
Magnets
Regular Virus Scanning
Safely Remove Hardware
System Requirements
Components
Overview
Installation
Windows
Macintosh
Copying/Moving Files
Removable Disk Method
Safely Removing your STORY Station
For Windows
For Macintosh
STORY Station External Hard Disk Drive Software
Samsung Auto Backup
Samsung Auto Backup Installation
Data Backup using Samsung Auto Backup
Quick Backup
Restoring Backup Data
Samsung SecretZone™
Virtual Drive with Samsung SecretZone™
FAQ
Partitioning and Changing File System Type
Reformat to FAT32
Reformat to NTFS
Format in Macintosh
Product Certifications
FCC
Warranty Information

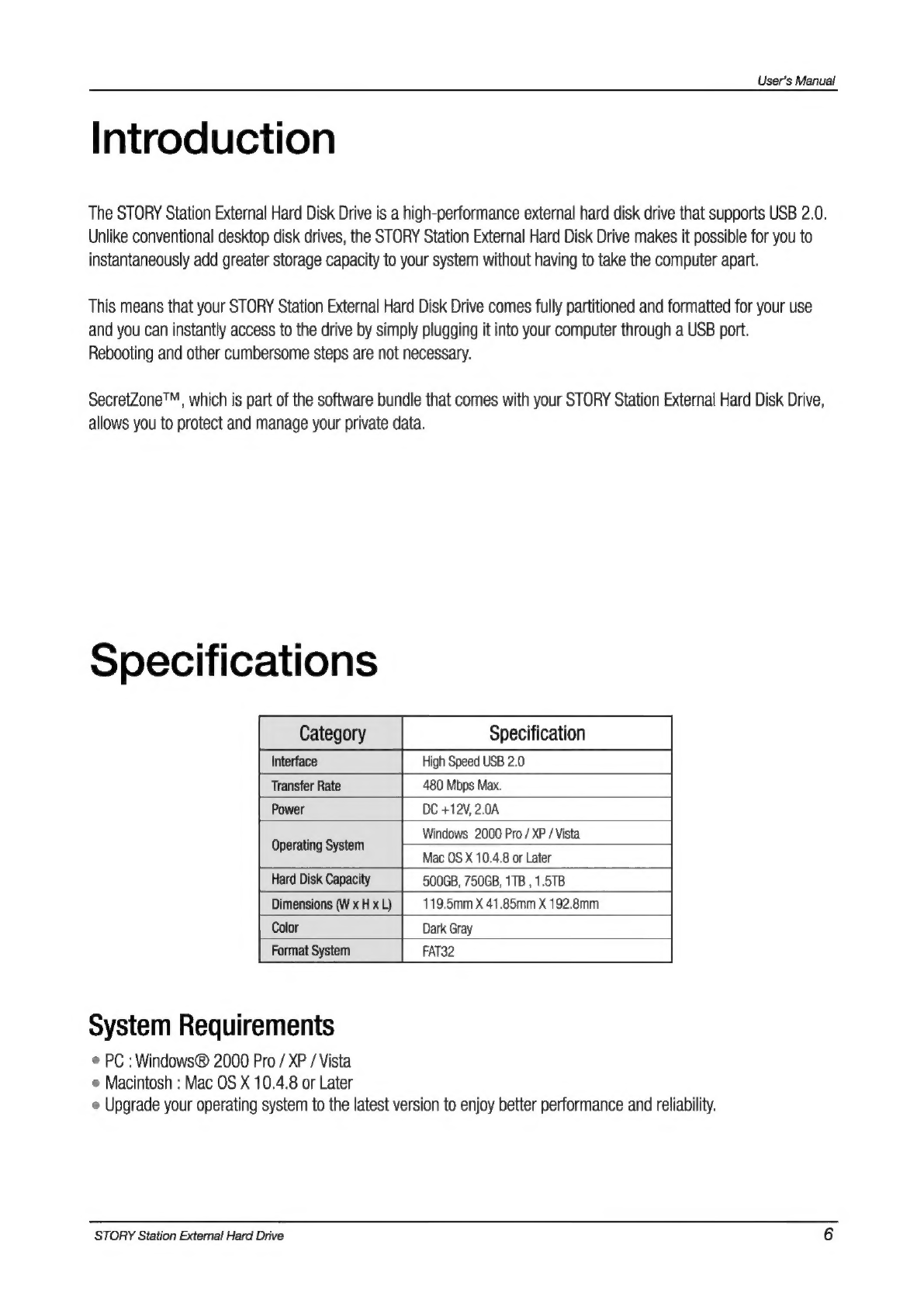

Introduction
The STORY Station External Hard Disk Drive is a high-performance external hard disk drive that supports USB 2.0.
Unlike conventional desktop disk drives, the STORY Station External Hard Disk Drive makes it possible for you to
instantaneously add greater storage capacity to your system without having to take the computer apart.
This means that your STORY Station External Hard Disk Drive comes fully partitioned and formatted for your use
and you can instantly access to the drive by simply plugging it into your computer through a USB port.
Rebooting and other cumbersome steps are not necessary.
SecretZone™, which is part of the software bundle that comes with your STORY Station External Hard Disk Drive,
allows you to protect and manage your private data.
Specifications
Interface High Speed USB 2.0
Transfer Rate 480 Mbps Max.
Power DC +12V, 2.0А
Windows 2000 Pro / XP / Vista
Mac OS X 10.4.8 or Later
Hard Disk Capacity 500GB, 750GB, 1TB , 1.5TB
Dimensions (W x H x L) 119.5mm X 41.85mm X 192.8mm
Color Dark Gray
Format System FAT32
Operating System
System Requirements
• PC : Windows® 2000 Pro / XP / Vista
e Macintosh : Mac OS X 10.4.8 or Later
* Upgrade your operating system to the latest version to enjoy better performance and reliability.
STORY Station External Hard Drive 6

User's Manual
Components
USB Cable Power Adapter
Samsung STORY Station External Hard Disk Drive Installation Guide
ж When you purchase a STORY STATION External Hard Disk Drive, make sure that all components have been included in your product package.
Overview
Power Dial There are ports to connect various cables including
USB on the backside of STORY Station
LOW LED
= How to Operate the Power Dial
1) Power ON / OFF : Turn the dial to operate ON / OFF. (A clicking sound can be heard when shifting between ON and OFF.)
2) LOW LED Operation : Turn the dial to the right when the power is turned ON, and the LED gets brighter.
STORY Station External Hard Drive 7

User's Manual
Connecting your STORY Station
Installation
Verify that the computer meets the minimum system requirements as outlined in #System Requirements.
Insert the USB cable to the desktop/laptop computer as shown in Figures 1 and 2:
€ Figure 1. Connecting a STORY Station
m Plug in the power adapter and connect the USB cable to the corresponding port on your desktop PC or notebook PC.
© Figure 2. Power on a STORY Station
ш Turn the power on your drive with power dial.
Now you can enjoy your drive.
> Your STORY Station External Hard Disk Drive will automatically activate once connected to the computer.
STORY Station External Hard Drive 8

User's Manual

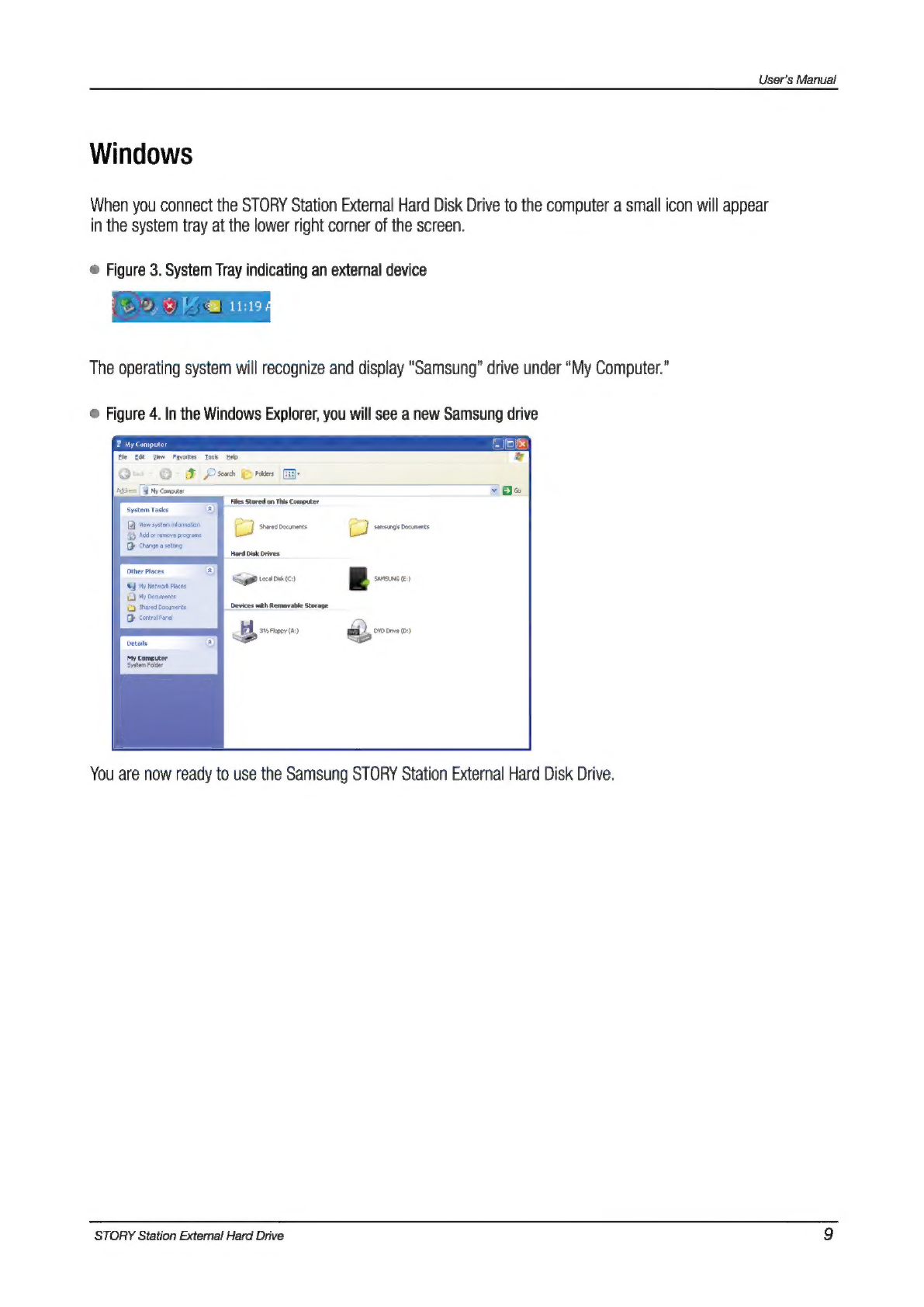

Windows
When you connect the STORY Station External Hard Disk Drive to the computer a small icon will appear
in the system tray at the lower right corner of the screen.
© Figure 3. System Tray indicating an external device
The operating system will recognize and display "Samsung" drive under "My Computer."
© Figure 4. In the Windows Explorer, you will see a new Samsung drive
Не Edt yew Favorites Tools Help
o D B Гуа Бн Gi).
Aires [ My Computer
Files Stored on This Computer
GD e
Hard Disk Drives
= SAMSUNG (E)
&j My Network Paces nd E
© My Doaments
© Suri Documents Devices with Removable Storage
зонд) {) owore o)
ue
@ Control panel
You are now ready to use the Samsung STORY Station External Hard Disk Drive.
STORY Station External Hard Drive

User's Manual
Macintosh
Connect your STORY Station External Hard Disk Drive to the computer.
Your Macintosh operating system will then generate a SAMSUNG.
ө Figure 5. Macintosh External HDD connection icon
é Finder File Edit View
m
14,
After clicking the SAMSUNG icon, the following folder will appear.
© Figure 6. Macintosh Folders
өө
E
SAMSUNG
c
киз
кш
а
T
[e
;
|
f
f
|
x
|
|
|
ДЇ
мал»
no
га
[Ж
[4
Ашо
Васкир
Secreizone
|
m
ии
и
(QS
меле
|
|
Р
Appinst.exe
Autorun.inf
A
Applications
|
[3
documents
[
Movies
|
|
&
music
|
|
[Pj
Pictures
|
1
of
5
selected,
148.95
GB
available
2,
You аге now ready їо use the Samsung STORY Station External Нага Disk Drive.
(Software included with your STORY Station External Hard Disk Drive does not support the Mac operating environment.)
STORY Station External Hard Drive 10

User's Manual
Using your STORY Station
Copying / Moving Files
Now that you have successfully installed your new STORY Station External Hard Disk Drive,
you copy or move files or whole folders from your new STORY Station to your computer and vice-versa.
It is important to understand the difference between Copy and Move.
Copy : is to make a duplicate folder or file and store it so that you have two copies.
Move : is to take a folder or file from one location and put it into another.
WHEN YOU MOVE A FOLDER OR FILE, YOU NO LONGER HAVE A BACKUP COPY.
Copy and paste files from the computer to the STORY Station External Hard Disk Drive (Removable Disk Method).
Removable Disk Method
For the purposes of this manual, we will make a copy of the Temp folder on the C drive of your computer and
copy it to the STORY Station External Hard Disk Drive.
From the Windows Desktop click:
Start —- Programs —— Accessories —- Windows Explorer
© Figure 7. Getting to the Windows Explorer
©) Program Compatibiity Wizard
SB Scanner and Camera Wizard
©) synchronize
© Tour Windows xP
Windows XP Professional
From the Windows Explorer, you will see various drive letters; A, C, your C drive is your local
Hard Disk Drive. The STORY Station Drive will most likely be the E drive however, it could be any drive letter.
For the purposes of this manual, we will assume that the STORY Station drive is the E drive.
As well, for practice copying folders and files, we will copy the Temp folder onto the STORY Station drive.
STORY Station External Hard Drive 11

From the Windows Explorer screen:
Click Local Disk C
From the right-hand pane:
Right-click the Temp folder — Click Copy
User's Manual
© Figure 8. When you Right-Click on a file or folder, you get another menu.
Бе Edt Мен Favorites Tools Help
| і ===
© = SF | sewer [E races XO
Address [че c
| Folders z
(9) Desktop
® ©) My Documents
E M My computer
9 d зу Floppy (А)
= бә Local Disk (C:)
® O del
_J1) From this side, click the
Local C drive.
Mar 22058
rayos 5:45PM
e |үз/җов 2:217
EWeek flod мато Aer > [2/2008 8:52PM
8 С) Doaments and Settings
@ C) Documentum
Cte
OM
© MyWorks
8 C3 Program Fies
8 O Tem
® © winoows
8 чё Samsung (Е:)
& Be contol Panel
My Sharing Folders
B] Xerox Network Scanners
з 8 my Network Places
2) Recyde Bn
2) From this side, right click on the
Temp folder and choose Copy.
Now, we will copy the Temp folder from the Local C drive, to the Samsung E drive. From the left pane in the
Windows Explorer : Right Click Samsung E — Click Paste
© Figure 9. Using a Right-Click again, we can paste the Temp file onto the STORY Station drive.
Ble Edt yew Favorites Tools Heb
Ou: O- P она [E rn |15 XM Am
AA шшш
Address |se CV
dos
Folders | = Date Modified = | Sze | Type >
BD desktop Pubs Bacup 3/19/2008 5:20PM
® @ My Doaments | o 6/25/2008 7:15PM
8 W My Computer Explore 7h08 7:20 PM
E $ 3v Floppy (A) Oen эв вори
EJ бе Local Disk (C:) Search... JeAcrobat7.0 7/2/2008 3:20 PM
$0 del Upload using Асеғтр Ps 7/15/2008 8:20 PM
8 С) Documents and Settings 2424/2008 5:694
8 (C) Documentum sand setings 9/8/2908 2:21 M
Geral 91272008 8:52PM
Ome 9/2/2008 2:24PM
[s 722008 «арм
i$ C) Program Fies
SQ Tep
® Ca windows
ER ШЕТ
® Qe Control Panel
= an Sharing Folders
Xerox Network Scanners
® 8 My network Paces
# Recydetn
| Right click on the Samsung E drive and choose Paste.
| t 2, 1 2n
NOTE : Detaching the USB cable while file transfer is in progress can damage your computer and/or STORY Station External
Hard Disk Drive. If you need to disconnect the USB cable, wait for the transfer process to complete first and then
disconnect using the "Safely Remove Hardware" option.
STORY Station External Hard Drive 12

User's Manual
Safely Removing your STORY Station
For Windows
Right-click the arrow icon from the system tray at the lower right corner of your screen.
* Figure 10. The taskbar is located at the bottom-right of the screen.
Click “Safely Remove Hardware.”
ө Figure 11. The 'Safely Remove Hardware' prompt will list every device that is attached to your system.
> Safely Remove Hardware
Select the device you want to unplug or eject. and then click Stop. When
‘Windows notifies you that it is safe to do so unplug the device from your
computer,
Hardware devices:
(.-JUSB Mass Storage Device
USB Mass Storage Device at Location 0
[ Properties
C Display device components
Click ‘Samsung STORY Station USB Device’
© Figure 12. This prompt will list all of the Mass Storage Devices like your Local Hard drive and your STORY Station
Hard drive
> Stop a Hardware device
Confirm devices to be stopped, Choose OK to continue.
Windows will attempt to stop the following devices. After the devices are
stopped they may be removed safely.
E USB Mass Storage Device
Sø Generic volume - (E:
S 5 jn USB Device
| OK ] Сапсе!
When you see the “Safely Remove Hardware” message, you may safely remove the device from the system.
STORY Station External Hard Drive 13

User's Manual
For Macintosh
Click the external hard disk drive icon and select “Eject “SAMSUNG.””
@ Figure 13. For the Macintosh click the USB icon and choose Eject "SAMSUNG"
E Open
Get Info
| " |
Duplicate
Make Alias
Copy "SAMSUNG"
Color Label:
x @©8e8eee6
Automator >
Disable Folder Actions
Configure Folder Actions...
Attach a Folder Action...
T”
This safely disconnects the drive. It is now safe to detach the drive from the computer.
m Do not disconnect STORY Station External Hard Disk Drive's USB cable from the computer while file transfer is in progress.
Interrupting the file transfer could lead to data corruption and / or damage to your STORY Station External Hard Disk Drive.
STORY Station External Hard Drive 14

User's Manual
STORY Station Software
STORY Station External Hard Disk Drive Software
Samsung STORY Station External Hard Disk Drive comes with Samsung Auto Backup and Samsung SecretZone™
These applications support the Windows only.
Connecting your STORY Station External Hard Disk Drive to the computer will automatically activate the installation wizard.
Select "Run Program" to install the applications.
Samsung Auto Backup and Samsung SecretZone™ will only be available when STORY Station External Hard Disk Drive is
connected to your computer.
For further information, please refer to the Auto Backup and SecretZone™ user's manuals that accompanied your
STORY Station External Hard Disk Drive.
Samsung Auto Backup
Samsung Auto Backup is a personal backup solution that enables you to backup individual files.
The application provides both manual and automatic (scheduled) backup features and includes various backup
options such as backup in compressed file format and use of filters for backup files.
Samsung Auto Backup Installation
SAMSUNG (E:)
This disk or device contains more than one type of
| content 1.You will see this dialog the first time you connect your
What do you want Windows to do? STORY Station External Hard Disk Drive to the computer.
2. Select "Install Samsung Tools" and the click "OK."
sil) Cont pictures to a folder on my computer
using Microsoft Scanner and Came 1
=. View a slideshow of the images
1 using Windows Picture and Fax Viewe
LÅ Print the pictures
using Photo Printing Wizard
BS Open folder to view files
using Windows Explorer
I rate nn action så
Cees]
3. Select “Install Samsung Auto Backup” to start the installation process.
Most Samsung Auto Backup
[ГЇ зә samsung SecretZone
ЧЇ. Read User's Manual
InstallShield Wizard
Samsung
Auto
Backup
Setup
is
preparing
the
InstallShield
4.
Once
the
preparation
process
is
complete,
InstallShield
E
Wind
wb
ter
м guide
you
throudh
ie
еа
ofthe
sok
Wizards’
greeting
dialog
will
display.
process. Please wait.
ILLTTTTITILITLLILLLLITLILILL] ) Cancel
STORY Station External Hard Drive 15

User's Manual
vases nux | 5. Click “Next,”
Текеш Wind vil iva Sonera Auto Backup on
To continue, cick N
to Backup Install Wizard
License Agreement
Please read the folowing license agreement carefully.
6. The dialog will display the end user license agreement.
Pres e PAGE DOWN ay o see ret ole pooner Carefully read the agreement. Select “Yes”.
|EndUser License Agreement (EndUser License Agreemer) =
Please read this doci document careluly, Lise pel Meere
it) By instaling,
‘oftware, you, you accept the terms in the EULA. If you do not agree wh the
Rame na EULA you carnai tao ine s vr.
D accept all the terms of the preceding Li Agreement? If.
SETS To ido Тад тала ылы Све)
Cae p xs Св)
в Auto Backup Install Wizard
Choose Destination Location
Select folder where setup wil install fles.
Setup нй install Samsung Auto Backup in the following folder.
To instal to this folder, click Next. To instal to а diferent folder, cick Browse and select
anciher folder,
7. Select the destination for Samsung Auto Backup
installation and then click “Next.”
Destination Folder
CAProgiam Files\Clarus\Samsung Auto Backup
Select Program Folder
Please select a program folder.
8. Select the folder under which you wish the Samsung
Eosdem M reete You may type a new folder
E Auto Backup icon to be registered. Then, click "Next."
ProgamFoker — =
EI ————————À4.
Асот
Administrative Tools
Ahnlab
Java Web Stat
"Micron Technology Cop
STORY Station External Hard Drive 16

User's Manual
Samsung Auto Backup Install Wizard

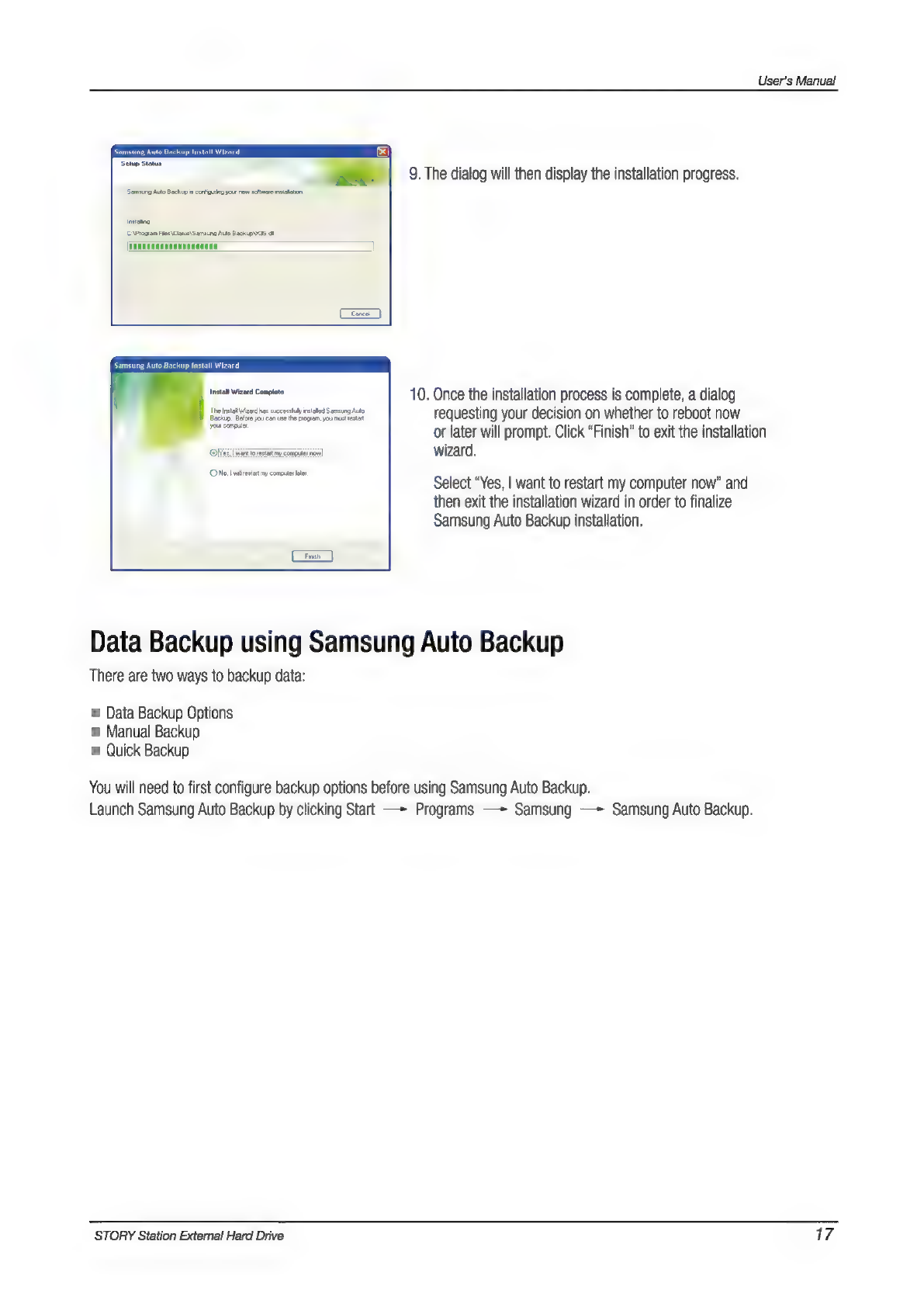

9. The dialog will then display the installation progress.
› Auto Backup Install Wizard
et inl ore 10. Once the installation process is complete, a dialog
deg бану ыш те оа romaine requesting your decision оп whether to reboot now
тел or later will prompt. Click "Finish” to exit the installation
A r comma wizard.
О No. I wil restart my computer later,
Select “Yes, | want to restart my computer now” and
then exit the installation wizard in order to finalize
Samsung Auto Backup installation.
Data Backup using Samsung Auto Backup
There are two ways to backup data:
ш Data Backup Options
в Manual Backup
ш Quick Backup
You will need to first configure backup options before using Samsung Auto Backup.
Launch Samsung Auto Backup by clicking Start —* Programs —* Samsung —— Samsung Auto Backup.
STORY Station External Hard Drive 17

User's Manual
ө Figure 14. Samsung Auto Back Screen
71812008 8:05:40 PM
6914/2008 3:04:04 AM
106/2006 4:06:18 M.
^ 7520/2008 5:23:24 M
« 10/20/2008 7:47:14 PM
10/30/2008 2:34:12 PM
1096/2008 6:37:56 PM.
@ Figure 15. Backup Destination Selection Dialog
B Samsung Auto Backup Settings Wizard
- Backup Destination
Select a backup destination.
| EY
-Set the password for encryption
Password for compression:
Unless you set the password for encryption, the default password will
be set automatically.
Designate the path to the backup device and then click "Next."
STORY Station External Hard Drive 18

User's Manual
© Figure 16. Optional Settings Dialog
ip Samsung Auto Backup Settings Wizard
Task Log Option
Sets options for the task.
Task Options
Compress files during backup
Store file backup history
1 $| Pieces -Maintain max, 1, 999 is unlimited Unlimited
Turn off the backup engine after completion
Minimize the backup engine during backup
Shut down the system on completion
Task Log Option
1|: .] Delete task logs written before this number of days
Configure the various backup options.
ө Figure 17. File Filter Configuration Dialog
Samsung Auto Backup Settings Wizard
File Filter
Specify the types of files to filter. карш е we
MÀ
File grouping | Extension
B pes Files]
[Office File]
[Document File] |
[Photo and Picture Fie] |
[Music File]
[Movie and Video File]
[Compressed files]
Add | Change || Delete
<< Previous EZEN) Finish Cancel
From the File Filter Configuration dialog, you will be able to select types of files you wish to backup and you wish to be
excluded from the backup process.
You can define these files by grouping or by specific file extensions. For file groups, the application provides preconfigured
groups and the ability to add user-defined groups.
Clicking “Next” without making any change in this dialog sets the application to backup all types of files from the source.
STORY Station External Hard Drive 19

User's Manual

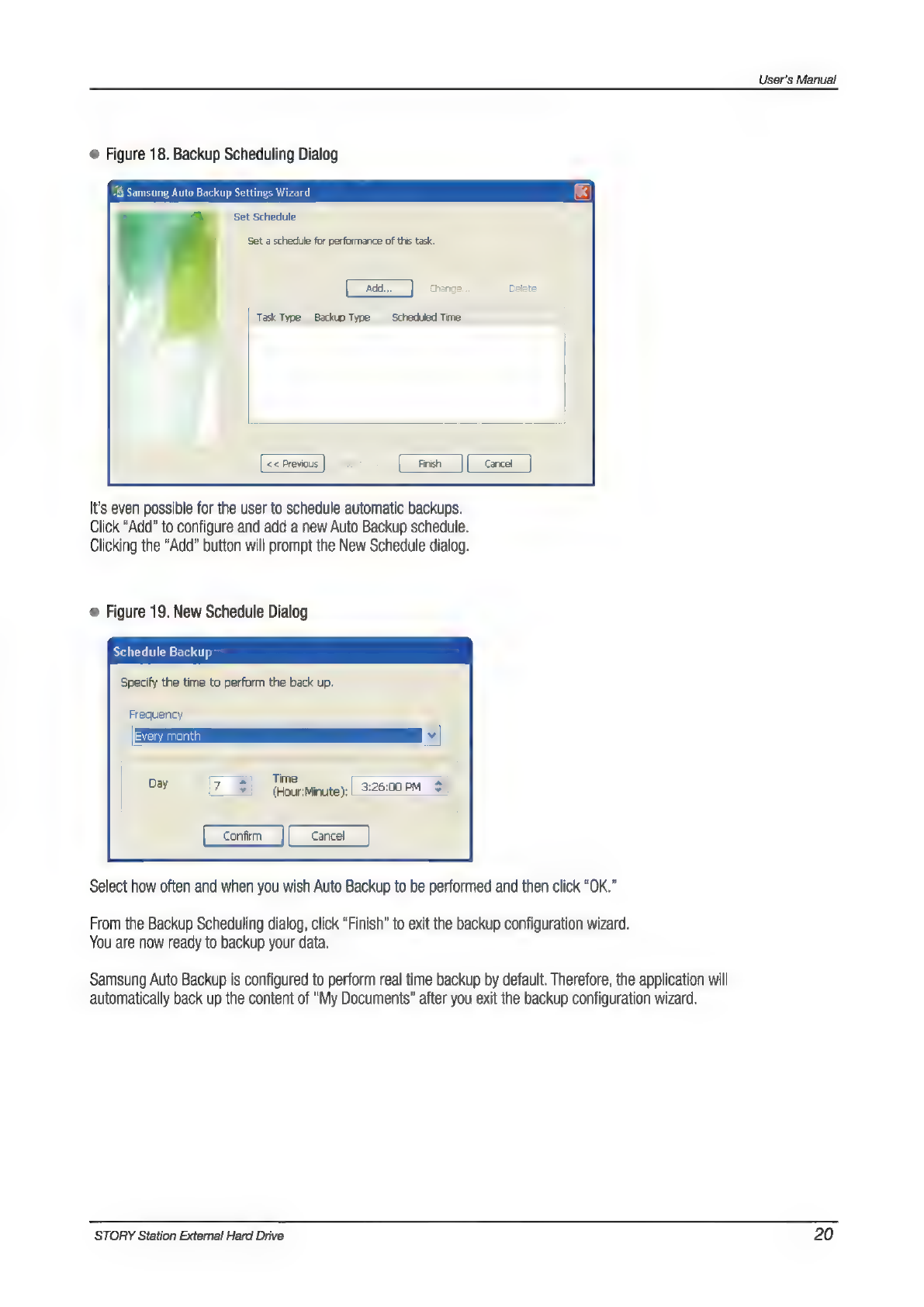

e Figure 18. Backup Scheduling Dialog
Б Samsung Auto Backup Settings Wizard
Set Schedule
Set a schedule for performance of this task.
cuum. =
Task Type Backup Type Scheduled Time
It's even possible for the user to schedule automatic backups.
Click "Add" to configure and add a new Auto Backup schedule.
Clicking the "Add" button will prompt the New Schedule dialog.
€ Figure 19. New Schedule Dialog
Schedule Backup
Specify the time to perform the back up.
Frequency
|
Every
month
Day 7 8 PE MAU) 3:26:00PM $
m me
Select how often and when you wish Auto Backup to be performed and then click “OK.”
From the Backup Scheduling dialog, click "Finish" to exit the backup configuration wizard.
You are now ready to backup your data.
Samsung Auto Backup is configured to perform real time backup by default. Therefore, the application will
automatically back up the content of "My Documents" after you exit the backup configuration wizard.
STORY Station External Hard Drive 20
