Samsung SV8004H - 80.0GB 5,400RPM Ultra ATA/100 User manual

3 Installation Guide
SAMSUNG
HARD DISK DRIVE
INSTALLATION GUIDE
Thank you for selecting the Samsung hard disk drive.
This manual will guide you through the installation process.

3 Installation Guide
Before You Start 2
Setting the umper pin 3
Installing the hard disk drive 5
Setting the system BIOS 7
Partitioning and formatting 8
Installing the operating system(OS) 8
Thank you for selecting the Samsung hard disk drive.
This manual will guide you through the installation process.
English 1

Before You Start
2 English
A_Handling precautions
This hard disk drive is a highly precisioned electro-mechanical device and is very sensitive to shock and electrostatic discharge (ESD).
Please avoid e posure to high temperatures and humidity. Use the original ESD protection package in which the product was
originally shipped. Please handle the product with care. Damaged or detached label on any of the components may directly
cause product malfunction and will void the warranty.
- Leave the hard disk drive in the static shield package until ready for use
- Handle multiple the hard disk drives one at a time
- Do not bump or drop the hard disk drive
C_Backing up your data
Make a backup copy of your files before installing the new hard disk drive.
Please refer to your computer and/or OS user's manual for more information.
B_Kit components
- Hard disk drive
- ATA interface cable
- Mounting screws
- Installation guide book

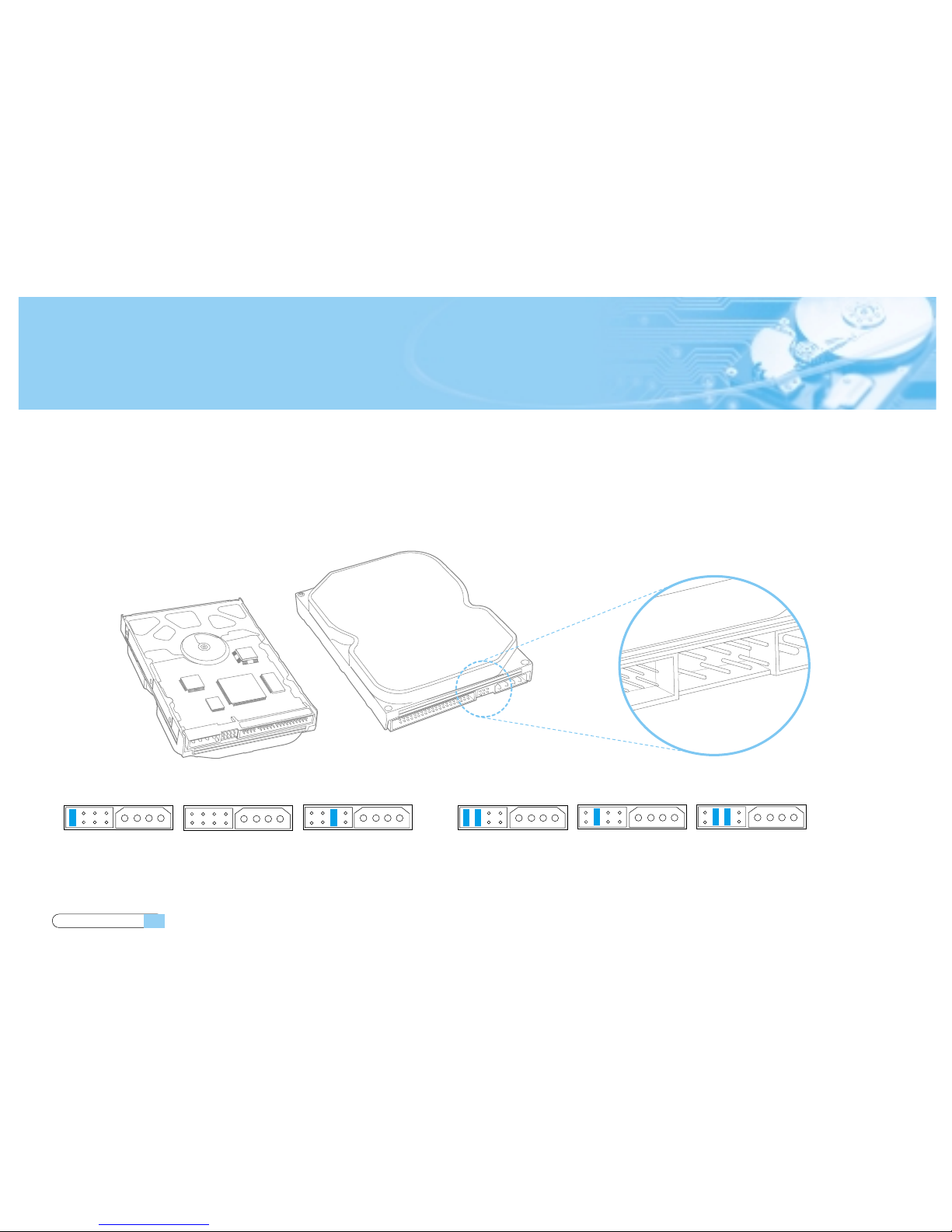

Setting the umper pin
Setting the jumper pin
Before installing the Samsung hard disk drive, the jumpers must be set to match the configuration of your computer system.
Refer to the following diagram for instructions on setting the jumper pins.
English 3
Master Slave Cable Select Master Slave Cable Select
32 B Clip Configurationeneral Configuration
*General configuration setting as "Slave" is "Remove the jumper" *32GB Clip Configuration "Slave" is set as above

Setting the umper pin
4 English
NOTE: A system hang condition occurs when the installation of a hard disk drive larger than 32GB is attempted into a
PC that incorporates certain older Basic Input-Output Systems (BIOS).
To remedy this problem:
First, upgrade the BIOS by contacting your PC or main board manufacturer.
Second, set the drive jumpers to the 32GB clip configuration and install the disk manager software available from our website
www.samsunghdd.com which can be downloaded free of charge.
Microsoft recommends that the Windows95 user who wants to use an HDD capacity of 32GB or higher should upgrade
to Windows98/NT/2000 or higher.

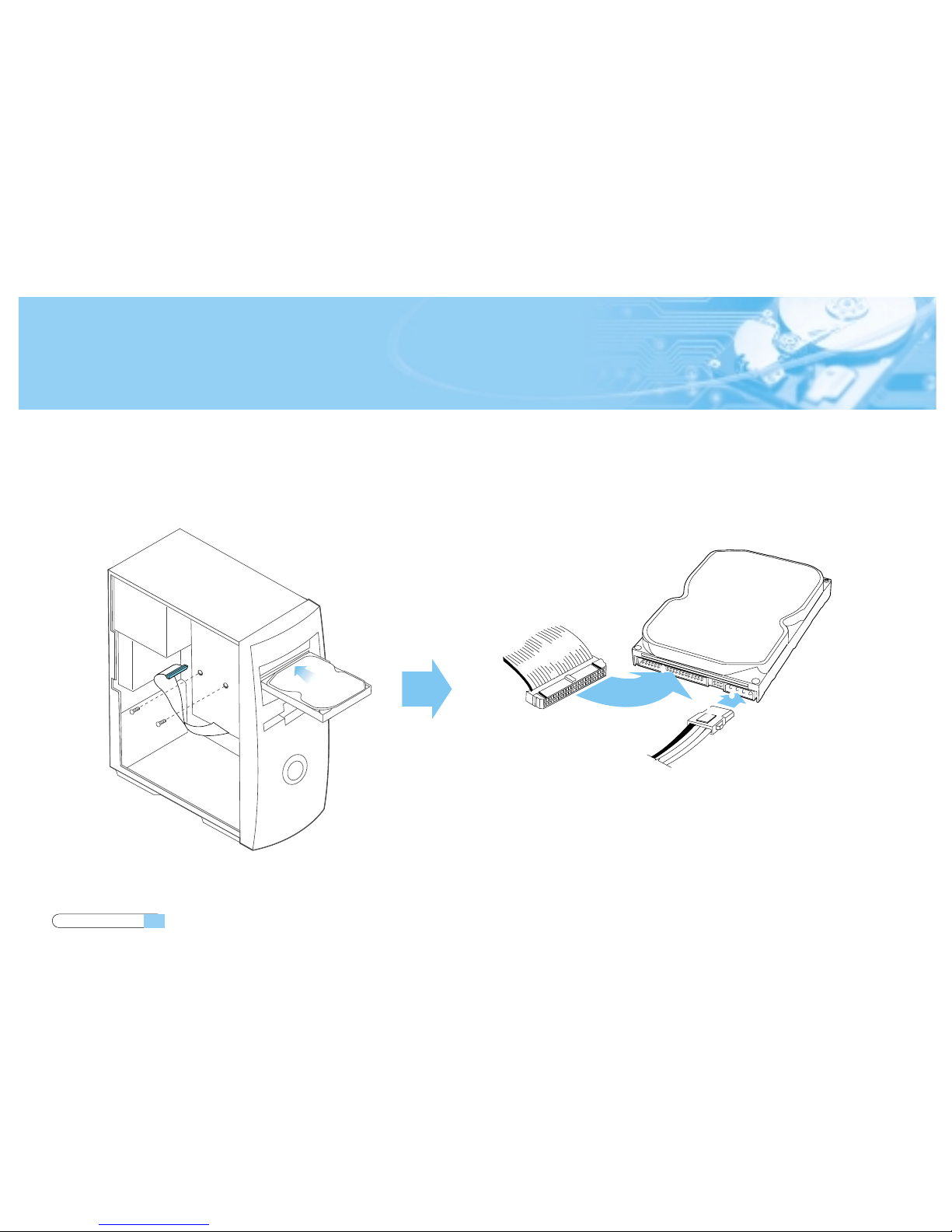

Installing the hard disk drive
English 5
Installing the hard disk drive
The followings are of typical computer systems and hard disk drive mounting styles.
❸❶
❷
❹
Red
Red
❶Key Slot
❷DC Power Receptor
❸ATA Interface Connector
❹Power Supply Cable from computer power supply (3-Pin or 4-Pin)

Installing the hard disk drive
6 English
a_Turn off the power of your computer
b_Unplug the external power cables to the computer.
c_Open the cover of your Computer
Cover opening mechanism and the location of the hard disk drive may vary from
one computer to another. (Consult your computer manual)
d_Insert the HDD into an available 3.5" bay in your computer and secure it to the chassis using the provided screws.
e_Connect Cables.
1.Attach the ATA interface cable to the interface connector on the hard disk drive.
2.Attach the power cable to the power receptor on the hard disk drive. The connector is keyed and will fit in only one way.
3.Check all other cable connections before turning on your computer.
CAUTION!: Do not force or rock the connectors into their sockets on the hard disk drive. Push them in straight
until they are seated.

Setting the system BIOS
Setting the system BIOS
A_Turn on your computer system. During the startup sequence, run the CMOS(BIOS) setup program. Newer systems will
typically display a message similar to "press DEL to enter SETUP", showing how to access the CMOS(BIOS) program.
(What is the CMOS Setup?)
It's a program that controls the computer's basic details such as Date and Time, memory capacity, and disk drive status.
Because this information gets recorded into the CMOS IC, these recorded details are not lost when
the computer is turned off.
B_Choose a device position within the BIOS where the hard disk drive will be installed.
C_To make the computer detect the hard disk drive, select the "auto-detect" option then save and exit the BIOS set up.
If your computer supports IDE HDD auto detection, the hard disk drive will automatically be detected. If you select the
type from the IDE Adapter Primary Master Slave section, "Autotype Fixed Disk: [Press Enter]" will appear on the screen.
If you press Enter, the hard disk drive will automatically be detected.
English 7

Partitioning and formatting
8 English
Partitioning and formatting
The newly installed hard disk drive must be partitioned and formatted before it is ready for use. If your operating system(OS)
is Windows 2000, XP, or higher, your OS will automatically recognize the hard drive. Follow the on screen directions when
installing your OS. Please refer to your OS and/or computer user's manual for more information.
If your OS is windows ME or earlier, take the following steps.
A_When the CMOS setup is completed, reboot the system with a booting diskette that has FDISK and FORMAT programs.
B_Run the FDISK program to set up the partitions.
If you only want to use a single partition, select all the disk space available by the hard disk drive. In order to use 2 or
more partitions, divide the disk space.
C_Reboot with a booting diskette.
D_Run the FORMAT program and format the hard disk drive. If you divided the drive into multiple partitions (D:, E:, etc.) ,
you must format all the drives.
CAUTION!: FDISK and FORMAT programs erase all the data on the hard disk drive.
To avoid inadvertent erasure, backup your data before running FDISK or FORMAT programs.
Installing the operating system(OS)
Refer to the operating system user's manual to install the operating system.
Installing the operating system(OS)
