Samsung SWL-3000AP Series User manual

SWL-3000AP Series
Access Point User’s Guide
* This User’s Guide can be used on SWL-3000AP, 3000AP(DA), 3300APand 3300AP(DA).

Notice when you establish
* We recommend you to avoid this places where may be cause of performance decline or trouble.
1. Places with high humidity or wet condition
2. Places with extreme temperature(too hot or too cold)
3. Places where change of temperature is extreme
4. Places with a lot of dusts
5. Places sealed with thick walls or still structure
Notice when you use
1. Do not disassemble on your own.
2. Do not drop the product or give excessive impact.
3. Do not twist or lengthen the power cord.
4. Do not place any object on the product.
5. Do not use any parts or components, which are not provided.
6. Use only the power adapter provided.
This Guide is a copyright of :
Samsung Electro-Mechanics Co., Ltd.
314 Maetan-3 Dong, Paldal-Gu
Suwon, Kyunggi-Do, 442-743
Korea.
SWL-3000APSeries Access Point User’s Guide
First Edition (November 2001)
Models subjected to this User’s Guide :
SWL-3000AP, 3000AP(DA), 3300AP, 3300AP(DA)
* DA : Dipole Antenna Type
* DA : Dipole Antenna Type* DA : Dipole Antenna Type
* DA : Dipole Antenna Type

1. Introduction⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 1
2. Installation⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 3
3. AP Basic Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 5
4. PTP Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 10
5. AML Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 14
6. Bridge Table and Protocol Management Using
AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅
19
7. NAT Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 22
8. DHCP Server Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 27
9. NAT and DHCP Server Simultaneous Setting Using
AP Manager ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅
32
10. ADSL and Cable Modem Connection Setting Using
AP Manager ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅
35
11. Encryption Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 44
12. User Access Control Setting Using AP Manager⋅⋅⋅⋅⋅⋅⋅⋅⋅ 47
Table of Contents

Also, this equipment is available for home use.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
13. Firmware Upgrade Using AP Manager ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 52
14. Data Transmission Status Check Using AP Manager⋅55
15. AP Setting Using Web Browser⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 58
16. AP Setting Using TELNET⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 60
17. HyperTerminal Setting for RS-232C(COM Port)
Communication⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅
61
18. AP Basic Setting Using RS-232C(COM Port)⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 62
19. Load Default Values Using RS-232C(COM Port)⋅⋅⋅⋅⋅⋅⋅⋅ 71
20. Firmware Upgrade Using RS-232C(COM Port)⋅⋅⋅⋅⋅⋅⋅⋅⋅ 72
APPENDIX Ⅰ.
Explanation of Basic Configuration to use AP Manager 76
APPENDIX Ⅱ.
Specification⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅
81

1
1. Introduction
Thank you for purchasing SAMSUNG SWL-3000AP Series Access Point(AP).
This guide describes the installation and basic configuration of the Access Point.
Standard Model is SWL-3300AP for example.
AP Components
! SWL-3000AP Series Access Point
! Wireless LAN Card (Internal for SWL-3300 and 3300(DA) models)
! RS-232C Serial Cable
! Power Adaptor
! Specific power cord for each country
! CD (AP Manager, User’s Guide)
AP View
! The Front and Rear View of SWL-3000AP
! The Front and Rear View of SWL-3000AP(DA)
Power
Wireless
Reset
Status
Ethernet DC in
PCMCIA Slot
RS-232C
RJ-45 Connector

2
! The Front and Rear View of SWL-3300AP
! The Front and Rear View of SWL-3300AP(DA)
DC in RS-232C
RJ-45 Connector
Power
Ethernet
Wireless
Status

3
2. Installation
①Choose the place with the consideration of power outlet and network
connection (RJ-45 Cable connection) to install the Access Point.
②Plug in the power cord to the power outlet and the power adapter.
Plug in the DC output to “DC in”. Make sure that the “Power”LED is on. If the
“Power”LED is not on, please check the connections of the power cord.
Notice : Use the supplied power adapter(DC 5V, 2A) only to prevent the
permanent failure of AP.
③Confirm that “Wireless”LED of AP blinks.
If not, confirm that Wireless LAN Card of AP is properly mounted in case for
3000AP and 3000AP(DA). For 3300AP and 3300AP(DA), contact where you
purchase the product. The card should be inserted or extracted when the power
is off, and we are not responsible for any product failure due to disassemble by
users.
Notice : Use the supplied Wireless LAN card(3.3V) only to prevent the
permanent failure of AP.
④Attach UTP Ethernet cable to the RJ-45 Connector.
Make sure that the “Ethernet” LED is on. If the “Ethernet” LED is on, you can
use the existing network with the Access Point; otherwise check the UTP cable
connections.
⑤Attach RS-232C serial cable to the Access Point and the PC.
The parameters of Access Point can be configured through the connection of
RS-232C serial cable to the PC(Refer to Chapter 17).
⑥When AP Manager is used, you may skip the step ⑤.
⑦Change settings of AP according to user’s selection referring User’s Guide.

4
⑧Insert Wireless LAN Card into your PC.
Wireless LAN Cards are available both for desktop and notebook PCs. PCI
Wireless LAN Card is used for the desktop PC where as the PCMCIA Wireless
LAN Card is for the notebook PC only. For more information about PCI and
PCMCIA Wireless LAN Cards, please visit http://www.magiclan.com.
⑨Enter the same ESSID that you have set for the Access Point, using the
Wireless LAN Card utility running on your PC.

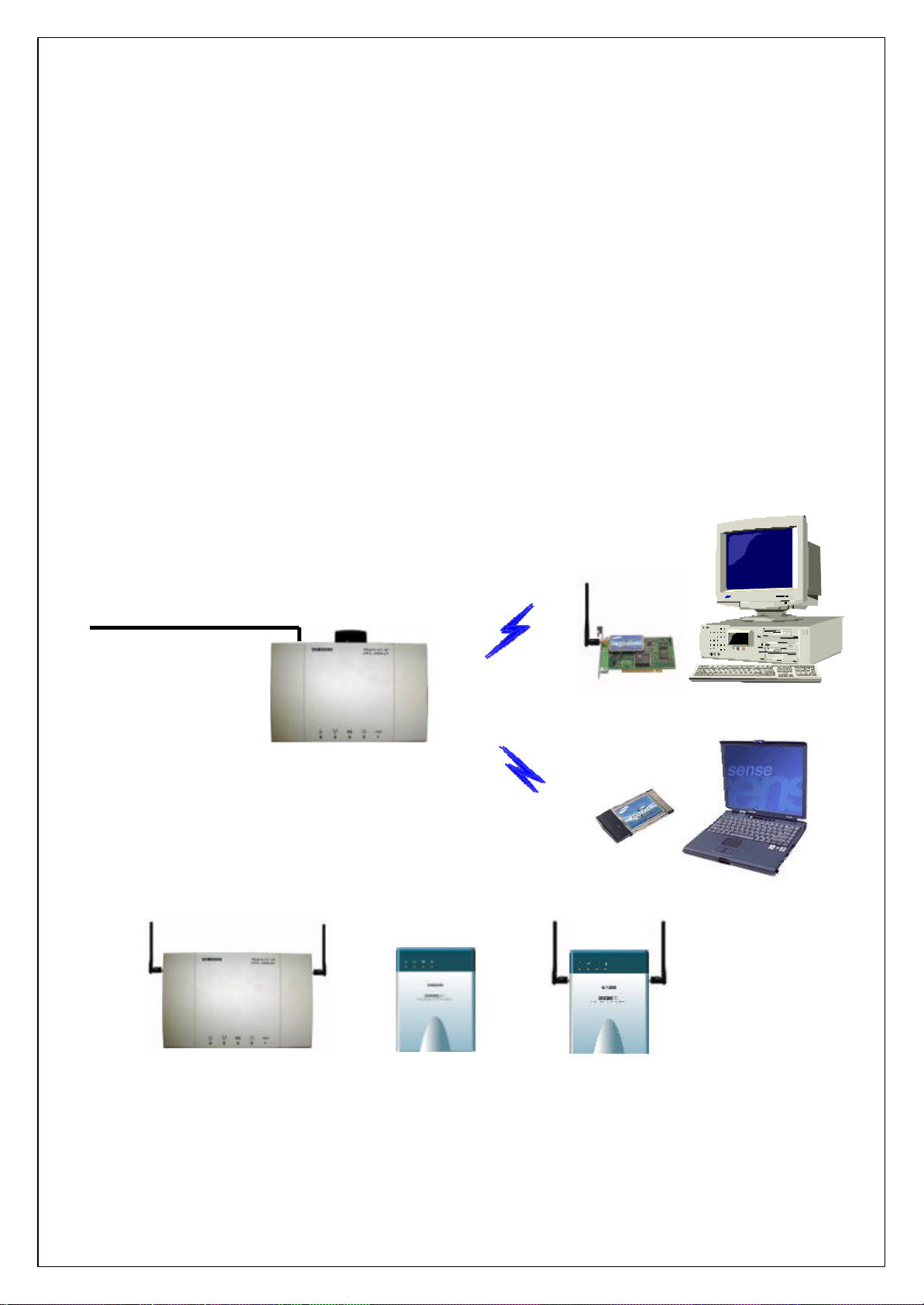

⑩Through AP, which is installed and set by the method above, you can
communicate between server and PC with installed Wireless LAN Card.
Ethernet, ADSL,
and Cable Modem
SWL-3000AP
SWL-3000AP(DA) SWL-3300AP(DA)SWL-3300AP
[Models subjected to this User’s Guide]

5
3
33
3. AP Basic Setting Using AP Manager
①Execute AP Manager(SWL-3000AP Series, 4000AP Series Management
Utility) under MS-Windows 95/98/Me/2000/NT/XP operating system.
②After choosing AP, which will be used by users, on “List Box” of AP Manager
using mouse, select [Basic] tab for any changes on setting.
③AP information of the selected AP will appear on [Selected AP’s Info] Group
Box. You may refer to APPENDIX Ⅰfor detailed explanation.

6
④TCP/IP address environment is set on [Basic] Dialogue Box.
♦Specify an IP address
After consulting with your system administrator, you enter IP Address,
Subnet Mask and Gateway Address.
♦Obtain an IP address automatically
This setting is possible when AP is used for DHCP Client.
⑤Set ESSID and Channel number. Description is a parameter not related with
any operation, and it is used only to record description or stored location of AP.
♦Set ESSID for AP use.
ESSID (Max. 32 Characters) must consist of alphabetic and numeric
characters excluding blank and special characters(Capital•Small letter
distinction).

7
♦Set Channel for AP use.
Channel index should be between 1 and 14(differs from country to country).
Notice : If you are operating two or more Access Points in the adjoining
cells, keep the appropriate channel distance to avoid the interference. We
recommend you to keep the distance of at least 4 channels in the adjoining
cells.
⑥Select “Change Password” on [File] menu if you want to change the password.
⑦After entering Current Password, New Password and Retype Password, click
[OK] button.
Please keep this password at a safe place or keep it where it may not get lost.

8

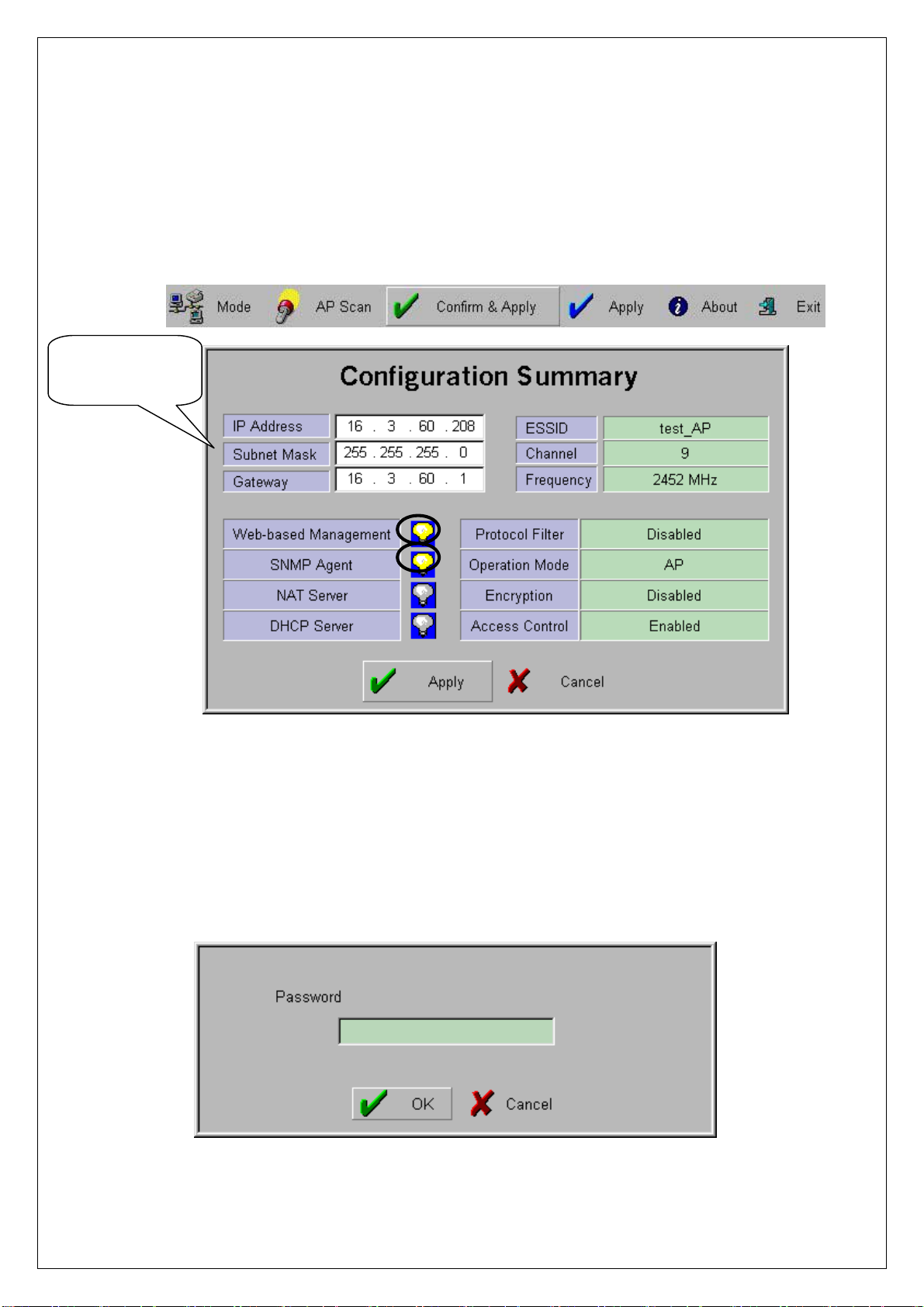

⑧When you click [Confirm & Apply] button to apply new configuration,
“Configuration Summary”window, which shows new configuration, will
appear.
⑨If new settings are entered correctly, click [Apply] button to apply new
configuration.
⑩When you click [Apply] button, “Password”window will appear. The default
password is “public”, and user can change password later.
Confirm Ne
w
Configuration

9
⑪After you enter the password, click [OK] button.
⑫If you want to set default values, click [Load Default values] button. Then, AP
Configuration will return to default setting.
Resetting to
Default Values

10
4. PTP Setting Using AP Manager
①PTP stands for Point to Point, and it is used to connect two divided networks
into one usingAP asWireless Bridge. Inthis case,AP cannot be usedfor
capabilities of Access Point.
②After executing AP Manager, select [Radio] tab on “Tab Bar”. Select AP to set
PTP on “List Box” using mouse, and confirm setting status on [Radio]
Dialogue Box.
Confirm AP O
p
eration Mode
“Default Values”
Recommended
(Hub)
<Point to Point Area>< Wired Network Using Hub> < Wireless Network Using AP>
MAC ID of Wireless LAN
Card on Selected AP
X-Cable
Internet Network

11
③When Operation Mode of AP is selected for “Point-to-Point” on [Radio]
Dialogue Box, [Remote ID (PTP)] Box will appear to enter MAC ID of
Wireless LAN Card on other AP, which will be connected by using PTP mode.
④When [Edit] button on [Remote ID (PTP)] Box is selected, [MAC ID] Box,
which is to enter(for entering) MAC ID of Wireless LAN Card of other AP to
be connected, will appear. After entering MAC ID, click [OK] button to
complete setting. MAC ID setting can be confirmed on [Remote ID (PTP)] Box.
Setting MAC ID of othe
r
Wireless LAN Card to be
Connected Using PTP Mode

12
⑤ESSID and Channel of two APs must be identical in PTP mode
⑥When you click [Confirm & Apply] button to apply new configuration,
“Configuration Summary”window, which shows new configuration, will
appear.
Confirm MAC ID Setting o
f
other Wireless LAN Card to be
connected usin
g
PTP Mode
Enter the Same ESSID and
Channel of two APs in PTP Mode

13
⑦If new settings are entered correctly, click [Apply] button to apply new
configuration.
⑧When you click [Apply] button, “Password”window will appear.
⑨After you enter the password, click [OK] button.
⑩When you click [Apply] button instead of [Confirm & Apply] button,
“Password”window will appear immediately skipping “Configuration
Summary”window. After you enter the password, click [OK] button to apply
Confirm AML
Mode Setting
Confirm Common
ESSID and
Channel for AML
Mode Setting

14
new configuration.
⑪After rebooting, choose selected proper AP on “List Box”. Then, the selected
AP set with PTP Mode can be confirmed on [Selected AP’s Info] Group Box
as shown below.
Confirm PTP
Mode Setting

15
5. AML Setting Using AP Manager
①AML stands for Automatic Multi-link. Using AP as Wireless Bridge, it is used
to connect several divided networks into one. It connects several [Slave]s with
one main [Master].
②After executing AP Manager, click [Radio] tab on “Tab Bar”. After selecting
AP to set AML on “List Box” using mouse, set Operation Mode with
“Automatic Multi-link” on [Radio] Dialogue Box.
③When “Automatic Multi-link” on [Radio] Dialogue Box is selected, [Automatic
Multi-link] Box, which sets AP status(Master or Slave) in AML mode, will
appear.
(Hub)
<AMLArea><Wire Network using Hub> <Wireless Network usingAP>
< Wired and Wireless Network using Hub andAP>
(Hub)
[Master]
[Slave][Slave]
X-Cable
Internet Network
Internet Network

16
④Select either “Master” or “Slave” for [Control Mode] on [Automatic Multi-link]
Box. Basically, AML Mode consists of two or more APs, and set one for
“Master” and the rest for “Slave”s.
Confirm AP Operation
Mode Setting
SettingAML Control Mode
Confirm AML Control Mode Setting
Default Value for “Monito
r
Interval” Recommended
