Sangean DPR-69B User manual

GB
DPR-69B & DPR-68
Version 1

1
Contents
Controls ............................................................................ 2-3
Battery operation .............................................................. 4-5
Using the AC adaptor .......................................................... 6
Lock switch .......................................................................... 6
Operating your radio - DAB ................................................. 7
Selecting a station - DAB .................................................... 8
Secondary services - DAB .................................................. 8
Display modes - DAB .......................................................... 9
Finding new stations - DAB ............................................... 10
Manual tuning - DAB ......................................................... 11
Dynamic range control - DAB ............................................ 12
Operating your radio - FM ................................................. 13
Manual tuning - FM ........................................................... 14
Display modes - FM .......................................................... 15
Presetting stations - DAB and FM ..................................... 16
Recalling a preset - DAB and FM ...................................... 16
Stereo / Mono setting - FM ................................................ 17
Scan sensitivity setting - FM .............................................. 18
Software version ................................................................ 19
System reset ..................................................................... 19
Headphone socket ............................................................ 20
Display backlight ............................................................... 20
USB socket for software upgrade ...................................... 20
Battery information ....................................................... 21-22
General ............................................................................. 23
Specications .................................................................... 23
Circuit features .................................................................. 23

2
GB

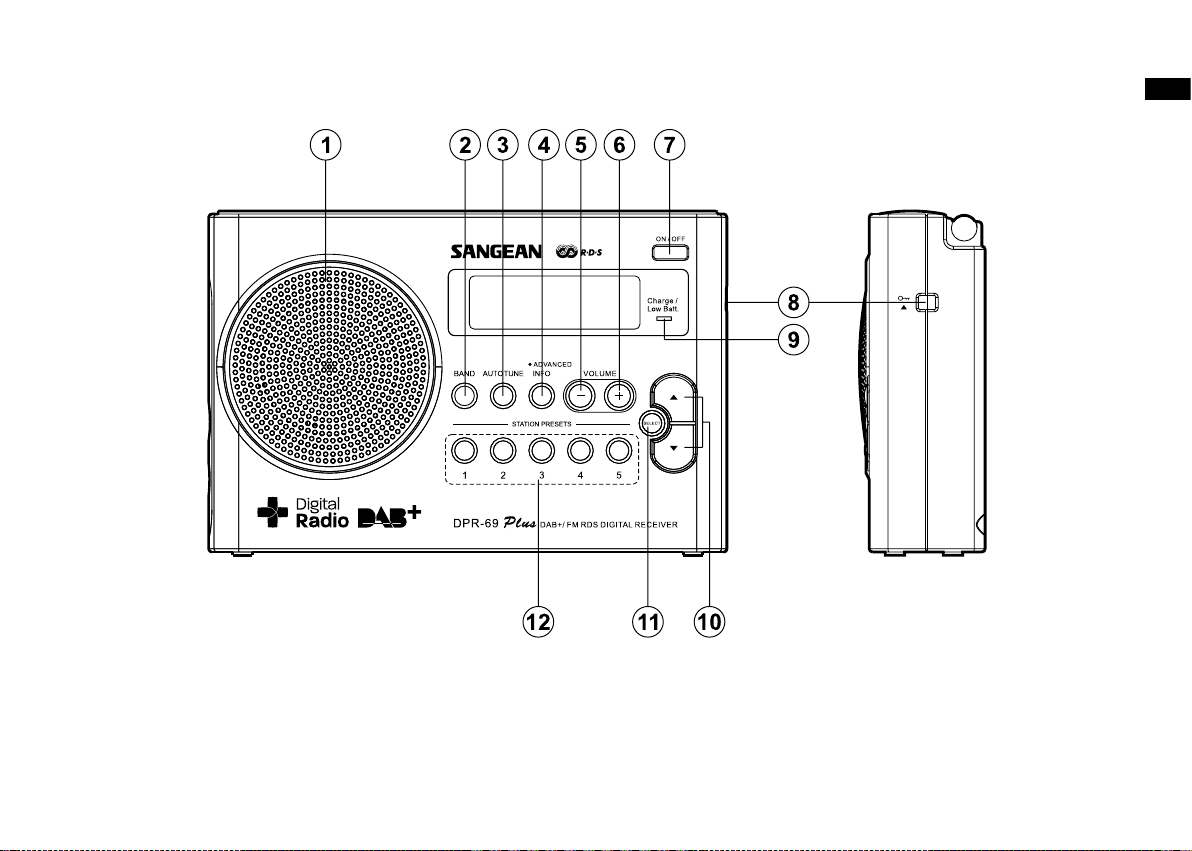

Controls
1. Speaker
2. Band button
3. Auto Tune button
4. Info button
9. Charge / Battery Low indicator
10. Tuning Up / Down buttons
11. Select button
12. Preset buttons
5. Volume Down button
6. Volume Up button
7. On / Off button
8. Lock switch
(Front)

3

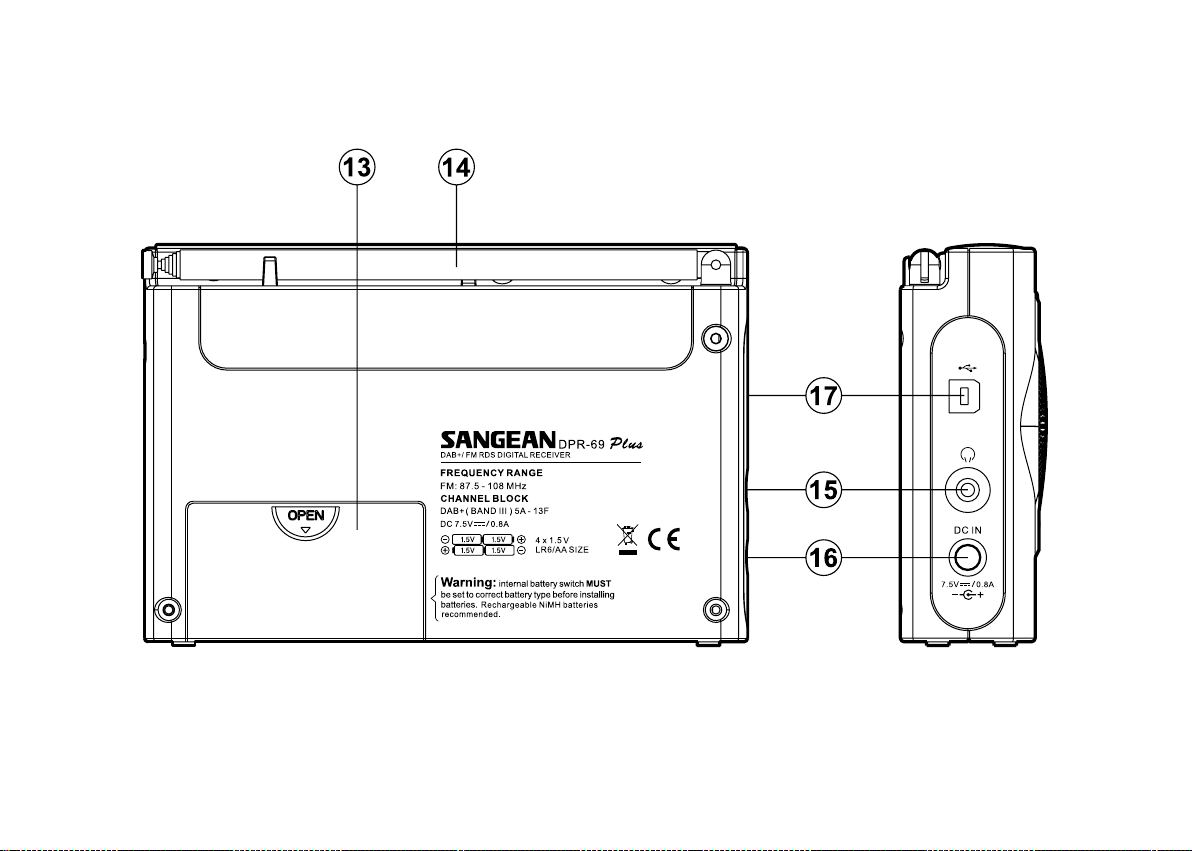

Controls
(Back)
13.Battery compartment
14.Telescopic aerial
15. Headphone socket
16. DC jack socket
17. USB socket for software upgrade

4
GB

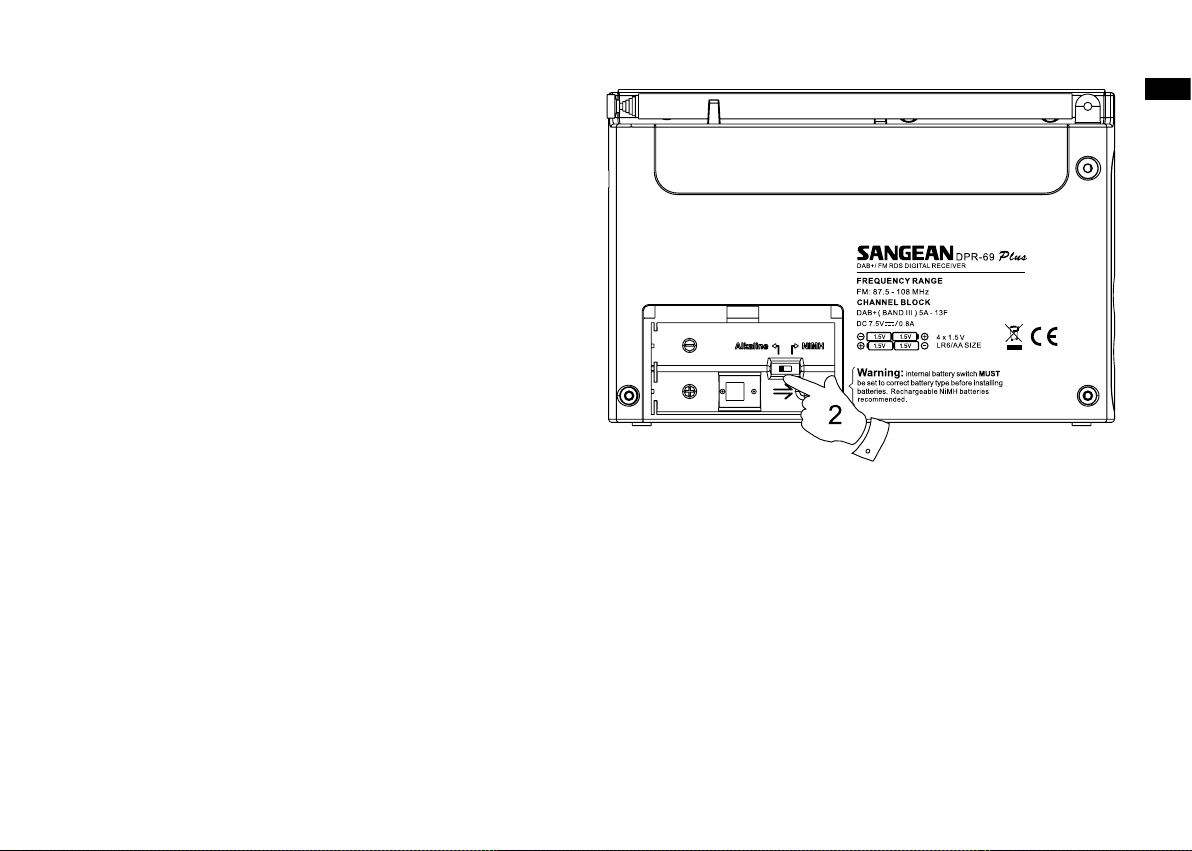

Battery operation using alkaline batteries
1. Remove the battery cover on the back of the unit by sliding the cover
in the direction of the arrow.
2. Slide the switch inside the battery compartment to the Alkaline position.
3. Insert four LR6 (AA size) alkaline batteries into the spaces in the
compartment. Take care to ensure all batteries are inserted with the
correct polarity as shown on the back of the radio. Then replace the
battery cover.
Important:
•when using alkaline batteries the battery switch must be placed
in the alkaline position. Failure to do so could result in serious
damage to the batteries or radio.
•When the batteries are exhausted, the battery light will show red for a
short while. The radio will then switch itself off. It may not be possible
to switch the radio back on until the batteries are replaced, or until the
radio is connected to the mains adaptor.
•If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
•We would recommend for economy that the ecologic 1 is used via the
AC adaptor whenever possible with battery operation for occasional or
stand-by use only. If extended listening using batteries is anticipated,
then the use of rechargeable batteries is recommended.

5
Battery operation using rechargeable batteries
1. Remove the battery cover on the back of the unit by sliding the cover
in the direction of the arrow.
2. Slide the switch inside the battery compartment to the NiMH position.
3. Insert four Rechargeable LR6 (AA size) batteries into the spaces in
the compartment. Take care to ensure all batteries are inserted with
the correct polarity as shown on the back of the radio. The radio is
designed to be used with Nickel Metal Hydride (NiMH) rechargeable
batteries.
4. Plug the mains adaptor into your radio and then plug the adaptor into
the mains.
5. The battery light will flash green indicating batteries are charging.
Batteries will be fully charged in around 7 hours. The battery light
shows a steady green light when the battery charging is complete.
•Important:
when using rechargeable batteries the battery switch must be
placed in the NiMH position. Batteries will only be charged when
the radio is switched off and connected to the AC adaptor.
•When the batteries are exhausted, the battery light will show red for
a short while. The radio will then switch itself off. It may not be
possible to switch the radio back on until the batteries are recharged,
or until the radio is connected to the mains adaptor.
•If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
IMPORTANT:
The batteries should not be exposed to excessive heat such as sunshnie,
re or the like. After use, disposable batteries should if possible be
taken to a suitable recycling centre. On no account should batteries
be disposed of by incineration.

6
GB

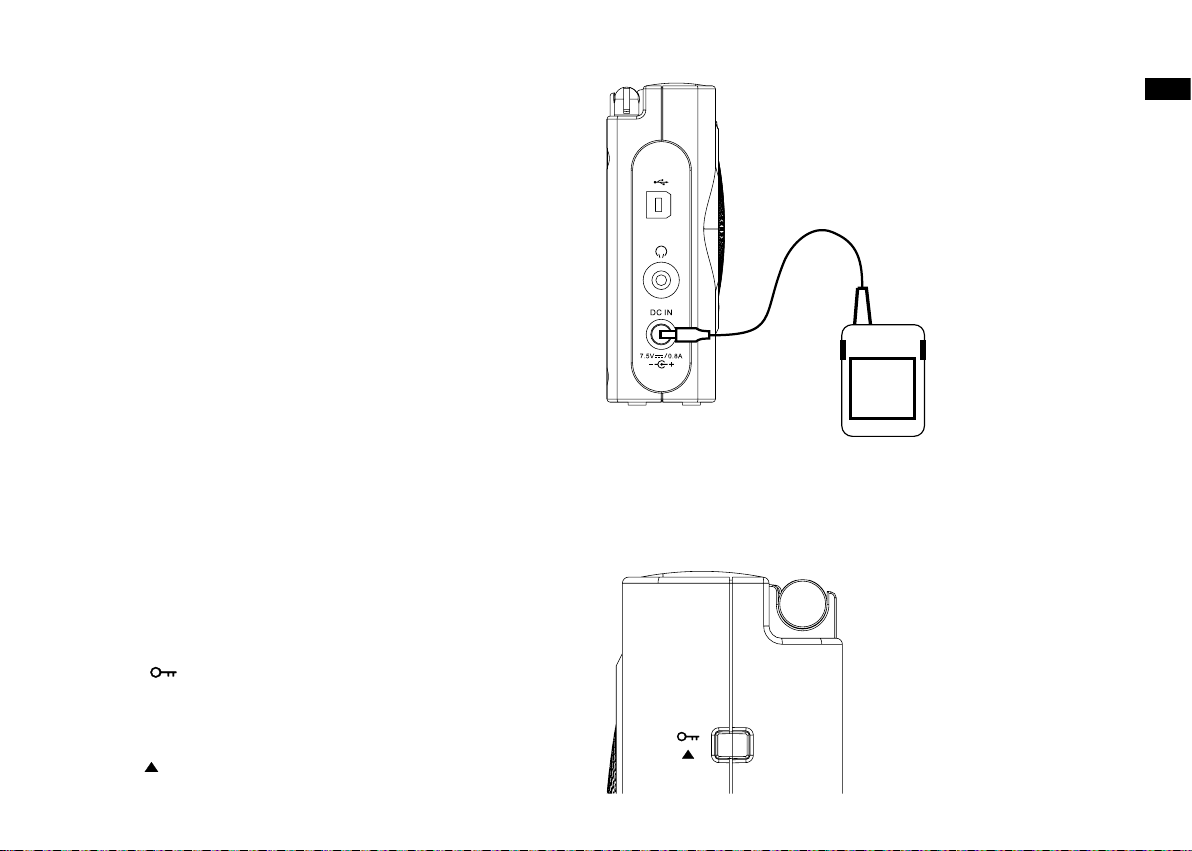

Using the AC adaptor
Your radio is supplied with a Mains Adaptor.
1. Place your radio on a at surface.
2. Insert the adaptor plug into the DC socket located on the left hand
side of your radio.
3. Plug the adaptor into a standard 13 amp mains socket outlet.
Whenever the adaptor is used with the radio, it will take power from
the mains rather than from the batteries.
The AC adaptor should be disconnected from the mains supply and
the radio when not in use.
•IMPORTANT:
The mains adaptor is used as the means of connecting the radio to
the mains supply. The mains socket used for the radio must remain
accessible during normal use. In order to disconnect the radio from
the mains completely, the mains adaptor should be removed from
the mains socket outlet completely.
Lock switch
The Lock switch is used to prevent unintentional operation of your radio.
1. Set the Lock switch located on the side of your radio to the ‘Lock’
position . The power and all other buttons will be disabled, this
will prevent accidental operation when your radio is packed in a
suitcase or travel bag.
2. To release the lock, slide the Lock switch down to the ‘Unlock’
position .

7

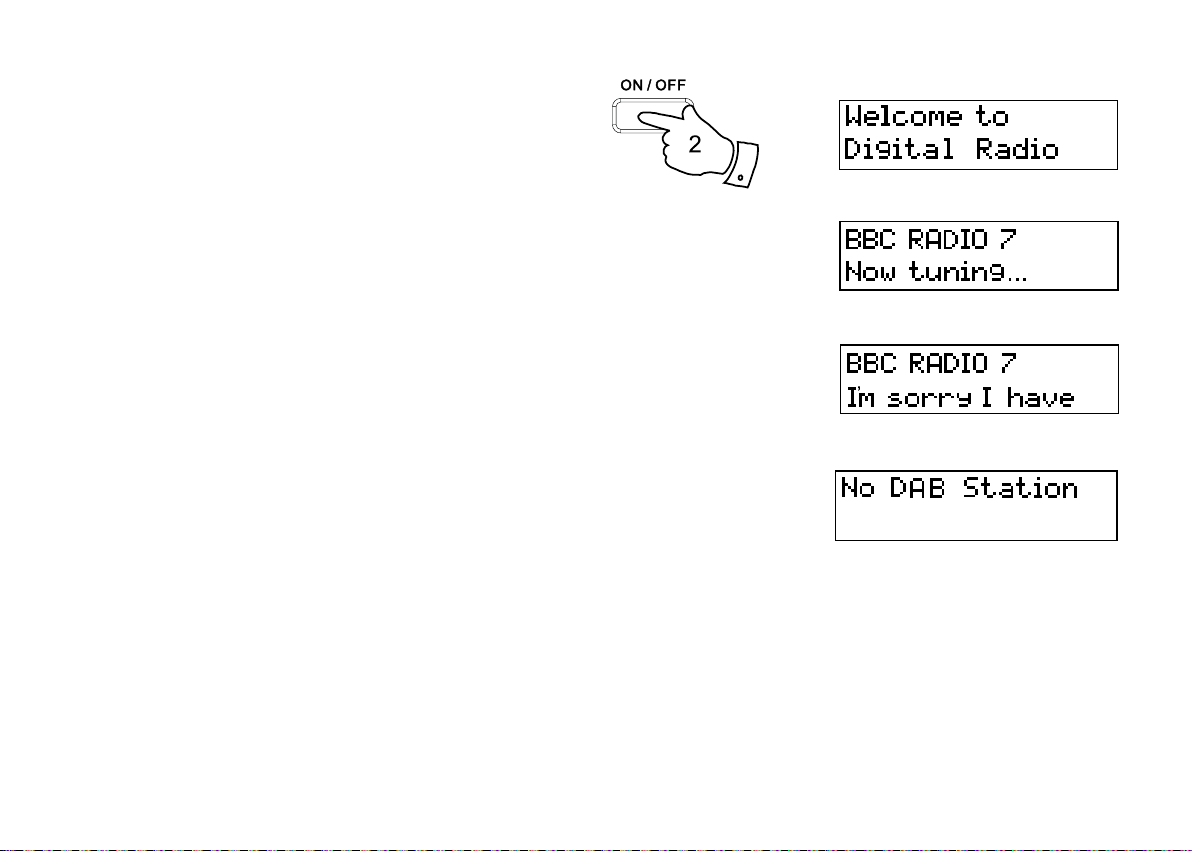

Operating your radio - DAB
1. Carefully extend the telescopic aerial.
2. Press the On/Off button to switch on your radio. The display will show
“Welcome to Digital Radio” for a few seconds.
3. If this is the first time the radio is used to scan of the Band III DAB
channels will be carried out. The display will show “Welcome to DAB”.
If the radio has been used before the last used station will be selected.
4. During the scanning process, as new stations are detected the station
counter on the right hand side of the display will increase and stations
will be added to the list. The lower line of the display shows a bar-graph
indicating progress of autotune.
5. When the scanning is completed the first station (in numeric-alpha
order 0...9...A....Z) will be selected.
6. If the station list is still empty after the scan, your radio will show “No
DAB Station“ for a moment.
7. If no signals are found it may be necessary to relocate your radio to a
position giving better reception.

8
GB
Selecting a station - DAB
1. The top line of the display shows the name of the station currently
selected.
2. Press the Tuning Up/Down buttons to scroll through the list of available
stations.
3. Press and release the Select button to select the station. The display
may show “Now tuning...” while your radio nds the new station.
4. Adjust the Volume up or Down buttons to the required setting.
Note:
If after selecting a station the display shows “Service not available“.
it may be necessary to relocate your radio to a position giving better
reception.
Secondary services - DAB
1. Certain radio stations have one or more secondary services associated
with them. If a station has a secondary service associated with it the
display will show “>>” next to the station name on the station list. The
secondary service will then appear immediately after the primary
service as you press the Tuning Up button.
2. Press the Select control to select the station.

9

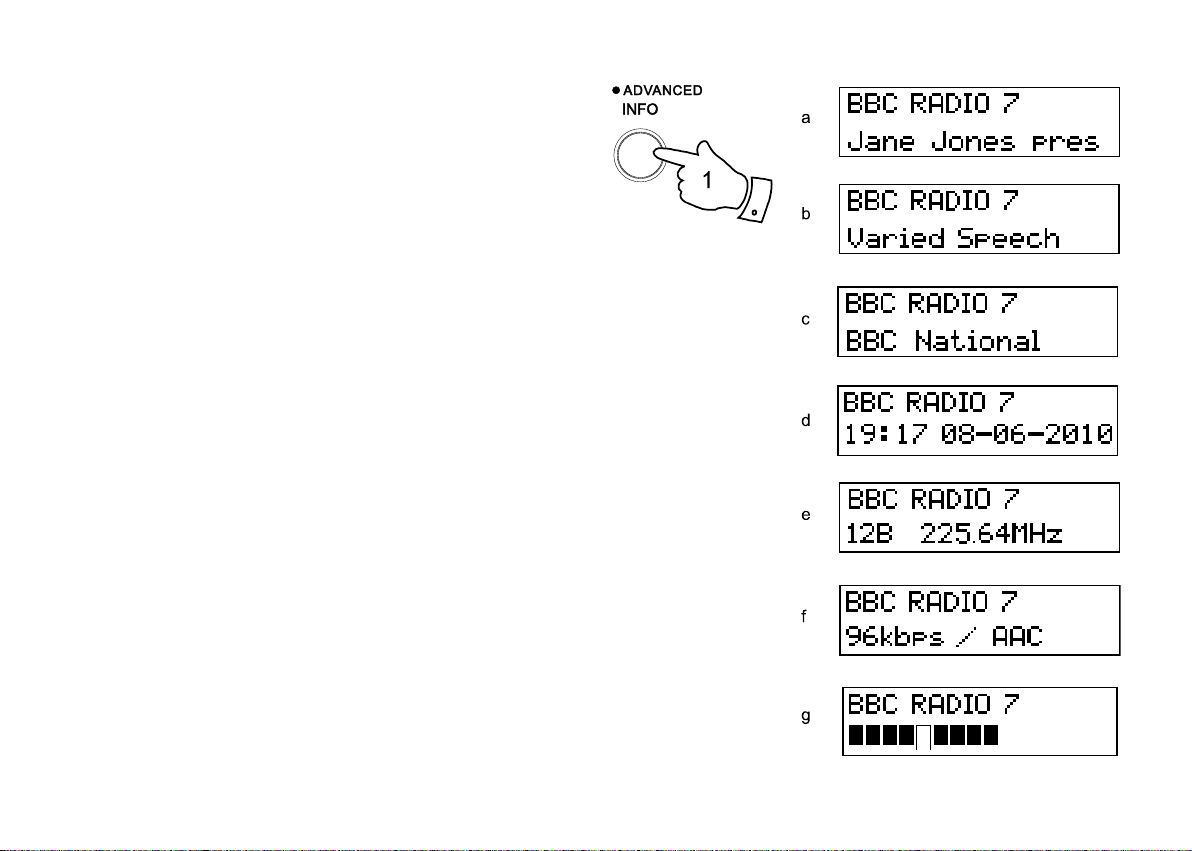

Display modes - DAB
Your radio has seven display modes:-
1. Press the Info button to cycle through the various modes.
a.
b.
c.
d.
e.
f.
g.
Scrolling text
Program Type
Multiplex Name
Time and date
Frequency
Bit rate & audio type
Signal Strength
Displays scrolling text messages such as art-
ist/track name, phone in number etc.
Displays the type of station being listened to
e.g. Pop, Classic, News etc.
Displays the name of DAB multiplex to which
the current station belongs.
Displays the current the time and date.
Displays the frequency of the DAB multiplex
for the station listened to.
Displays the digital bit rate & audio type for
the station being listened to.
Displays a graph showing the signal strength
for the station being received.

10
GB

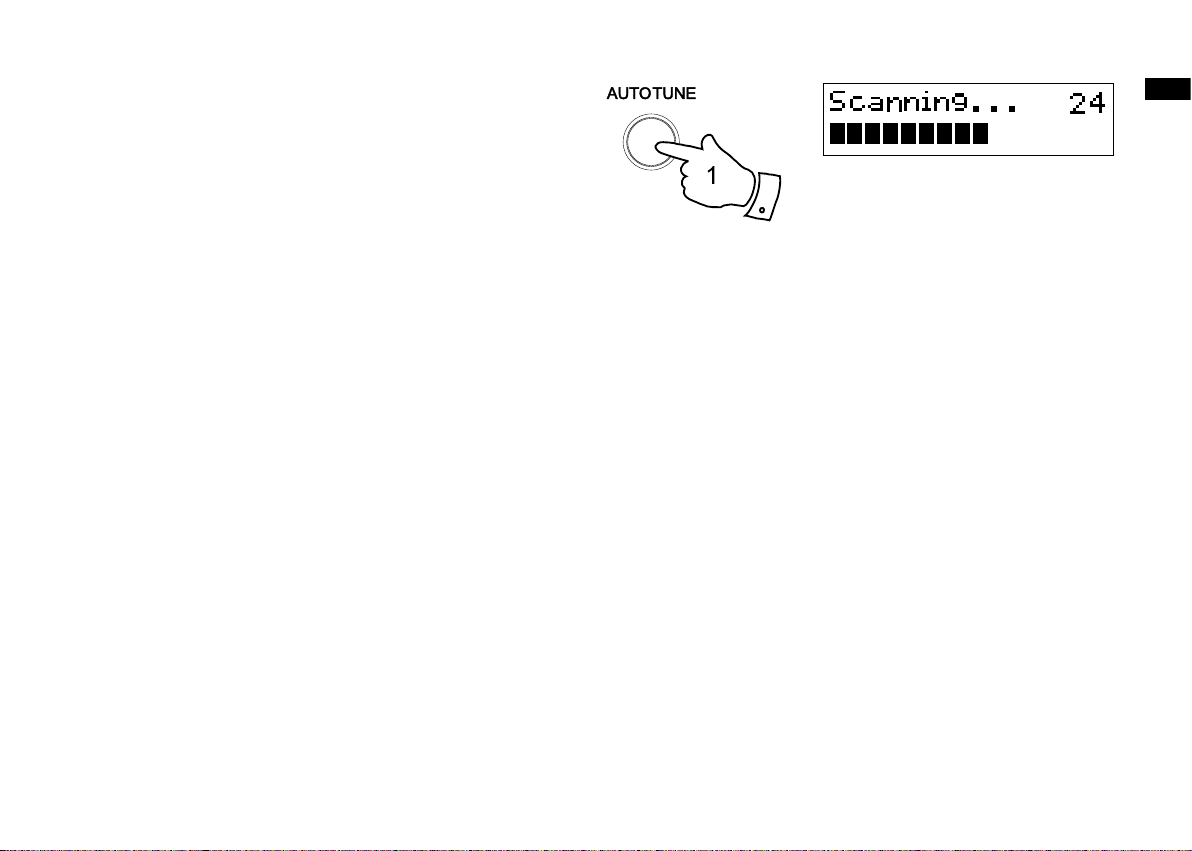

Finding new stations - DAB
As time passes new stations may become available. To nd new sta-
tions proceed as follows:-
1. With the radio switched on and in DAB mode, press and release the
Auto Tune button. The display will show "Scanning..." and your clock
radio will perform a scan of the Band III DAB channels. As new radio
stations are found the station counter on the right-hand side of the
display will increase and the radio stations will be added to the list
stored in the radio.

11

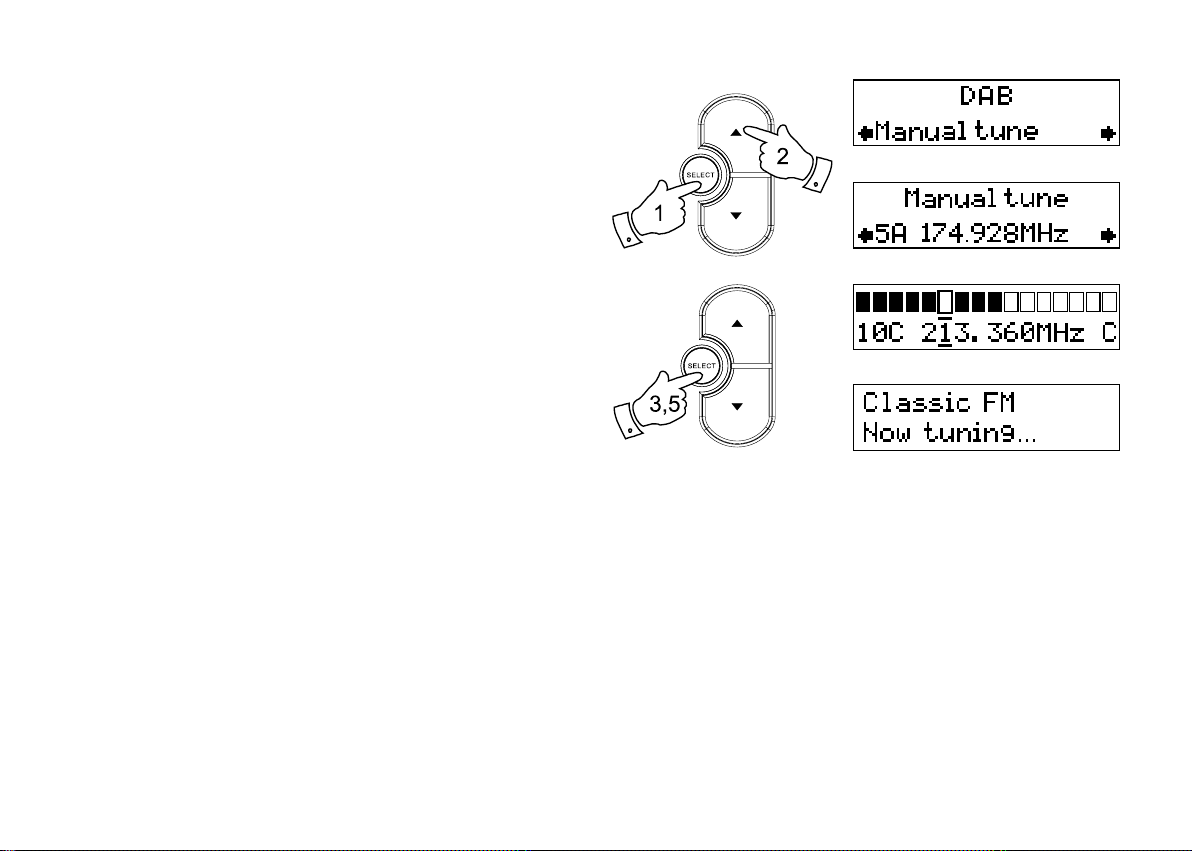

Manual Tuning - DAB
Manual tuning allows you to tune directly to the various DAB Band III
channels. Note that DAB stations are located in the range of 5A-13F.
1. Press and hold the Select button until the display shows “Manual
tune”. Release the Select button.
2. Press either of the Tuning Up/Down buttons to select the required
DAB channel.
3. Press and release the Select button to select the required DAB channel.
The clear unlled rectangle indicates the minimum signal level required
for satisfactory reception. The signal strength bar will go up and down
showing the changing signal strength as you adjust the telescopic
aerial on your radio.
4. When a DAB signal is found, the display will show the name of the
DAB multiplex. Any new radio stations found will be added to the list
stored in the radio.
5. Press and release the Select button to return to the normal DAB
tuning mode.

12
GB
Dynamic Range Control settings - DAB
Dynamic Range Control (also known as DRC) can make quieter sounds
easier to hear when your radio is used in a noisy environment.
1. Press the On/Off button to switch on your radio.
2. Press and hold in the Info button. The display will show “Station list.”
3. Press the Tuning Up/Down buttons until the display shows “DRC value”.
4. Press and release the Select button to enter adjustment mode.
5. Press the Tuning Up/Down buttons to select the required DRC setting
(the default is 0).
DRC 0 - DRC is switched off, Broadcast DRC will be ignored.
DRC 1 - DRC is set as sent by broadcaster.
DRC 1/2 - DRC level is set to 1/2 that sent by broadcaster.
6. Press and release the Select button to conrm the setting.
The display will return to normal tuning mode.
Note:
Not all DAB broadcasts are able to use the DRC function.
If the broadcast does not support DRC, then the DRC setting in the ra-
dio will have no effect.

13

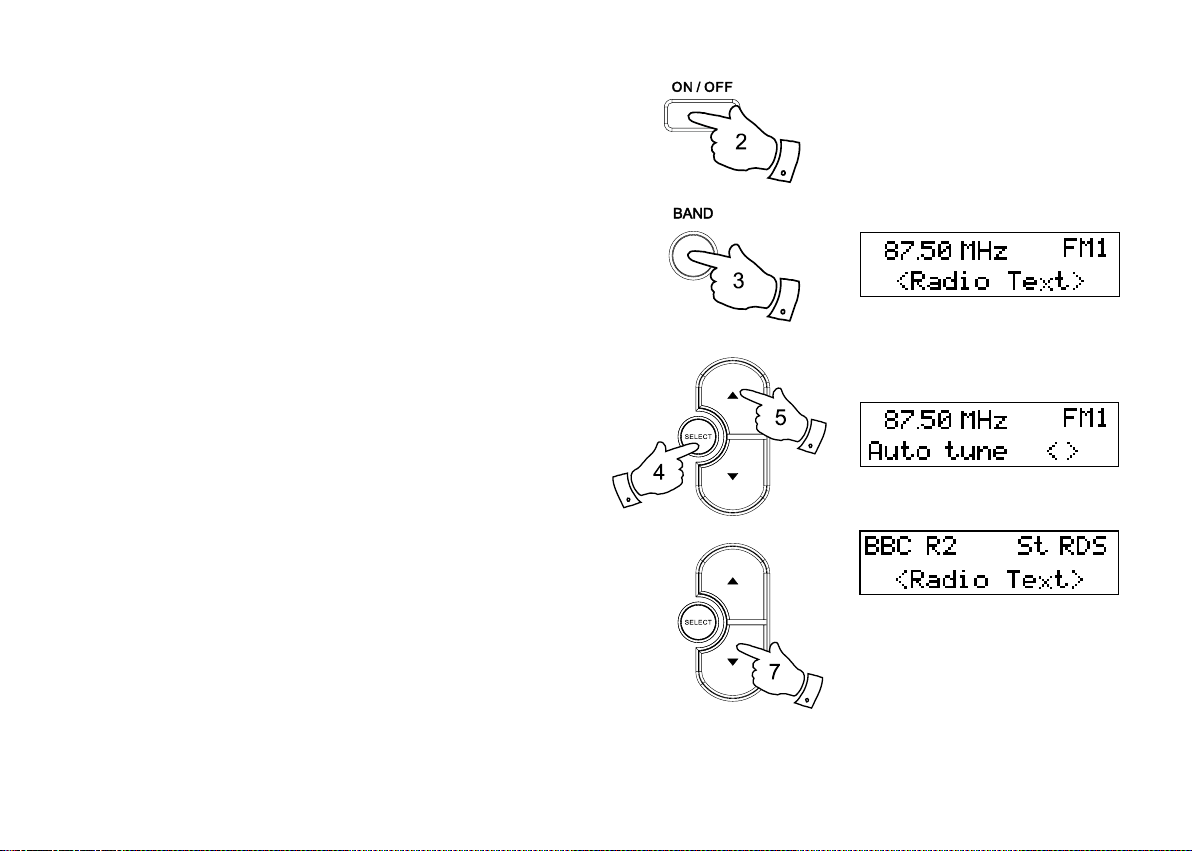

Operating your radio - FM
1. Carefully extend the telescopic aerial.
2. Press the On/Off button to switch on your radio. The display will show
“Welcome to Digital Radio” for a few seconds.
3. Press the Band button to select the FM band.
4. Press and release the Select button until the display shows “Auto
tune <>”.
5. Press the Tuning Up button. Your radio will scan from the currently
displayed frequency direction upwards and will stop scanning when it
nds a station of sufcient strength.
6. The display will show the frequency of the signal which has been
found. If RDS information is available, after a few seconds the display
will show the radio station name. The display will also show “St” and
“RDS” on the upper line if the station is received with stereo and RDS
information.
7. Press the Tuning Down button to scan the FM band in a downwards
direction (high frequency to low frequency).
8. When the end of the waveband is reached your radio will recommence
tuning from the opposite end of the waveband.
9. Adjust the Volume control to the required setting.
10. To switch off your radio press the On/Off button.

14
GB
Manual tuning - FM
1. Press the On/Off button to switch on your radio.
2. Press the Band button to select the FM band. Fully extend the Telescopic
aerial.
3. Press and release the Select button until the display shows “Manual
tune < >”.
4. Press either the Tuning Up or Down buttons to tune to a station.
The frequency will change in steps of 50kHz. Pressing and holding
one of the buttons will advance the frequency selection several times
each second.
5. When the end of the waveband is reached the radio will recommence
tuning from the opposite end of the waveband.
6. Adjust the Volume control to the required setting.
7. To cancel the Manual Tune option, press and release the Select button
again so that the display shows “Auto tune < >”.

15
Display modes - FM
In FM mode the bottom line of the display can be set any of four display
options.
1. Press the Info button to cycle through the various options.
Note:
These FM mode information displays are only available when the radio
is able to receive RDS information from the broadcaster.
Displays scrolling text messages such as
artist/track name, phone in number etc.
Displays the programme information for
the station being listened to e.g. Pop,
Classic, News, etc.
Displays the current time and date.
Displays the frequency of the station be-
ing listened to.
a. Radio text
b. Program Type
c. Time and date
d. Frequency

16
GB

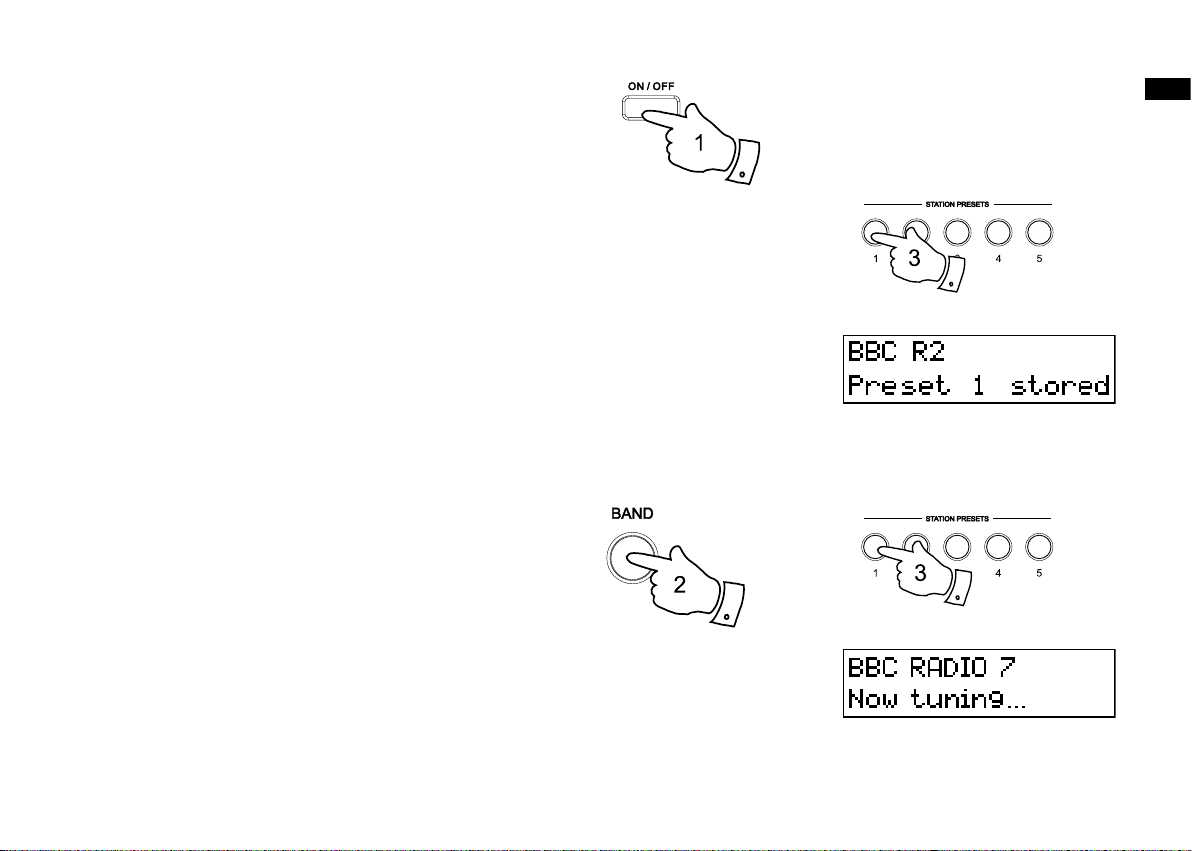

Presetting stations - DAB and FM
There are 5 memory presets for each of the two wavebands.
1. Press the On/Off button to switch on your radio.
2. Tune to the required station as previously described.
3. Press and hold the required Preset button until the display shows, for
example, “Preset 1 stored”. The station will be stored under the chosen
preset button. Repeat this procedure for the remaining presets.
4. Stations stored in the presets may be overwritten by following the
above procedure.
Recalling a preset - DAB and FM
1. Press the On/Off button to switch on your radio.
2. Select the required waveband.
3. Momentarily press the required Preset button. Your radio will then tune
to the station stored in preset memory.

17

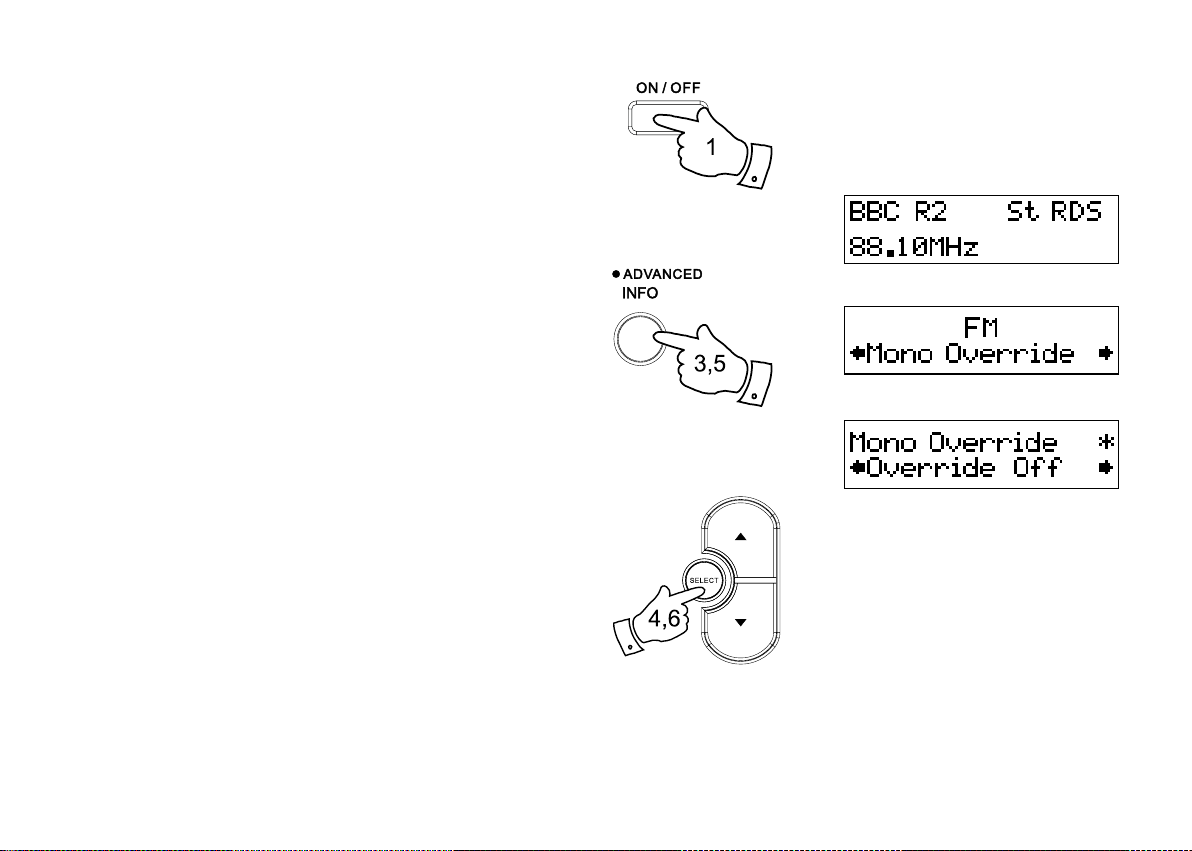

Stereo / Mono setting - FM
Your radio will play stereo broadcasts in stereo (via headphones) so
long as the received signal is of adequate strength. However, as a ste-
reo signal becomes weaker the audio signal will become poorer.
It may be preferable to force the radio to play the station in mono in or-
der to reduce the level of audio noise.
1. Press the On/Off button to switch on your radio.
2. Tune to the required FM radio station as previously described.
3. Press and hold the Info button until the display shows “Mono override”
on the lower line.
4. Press the Select button to enter Menu. The lower line of display will
show “Override Off“ if the radio is in the Auto-Stereo mode. Press the
Tuning Up or Down button to switch on the mono override. While this
setting is engaged, the radio will play the current station in mono
whether listening via headphones or the loudspeaker.
Mono Overide is a temporary setting and is applied to the currently
tuned station only. It is cancelled automatically by tuning to another
radio station.
5. If you wish to cancel Mono-Override while listening to the currently
tuned radio station, press and hold the Info button until the display
shows “Mono override“ on the lower line. Press the Select button to
enter the Mono override menu, the lower line will show “Override On“
if the radio is in the Mono-Override mode.
6. Press the Select button to switch off the Mono-Override. The radio
will play then play the current station in stereo through headphones if
the signal is sufciently strong.

18
GB

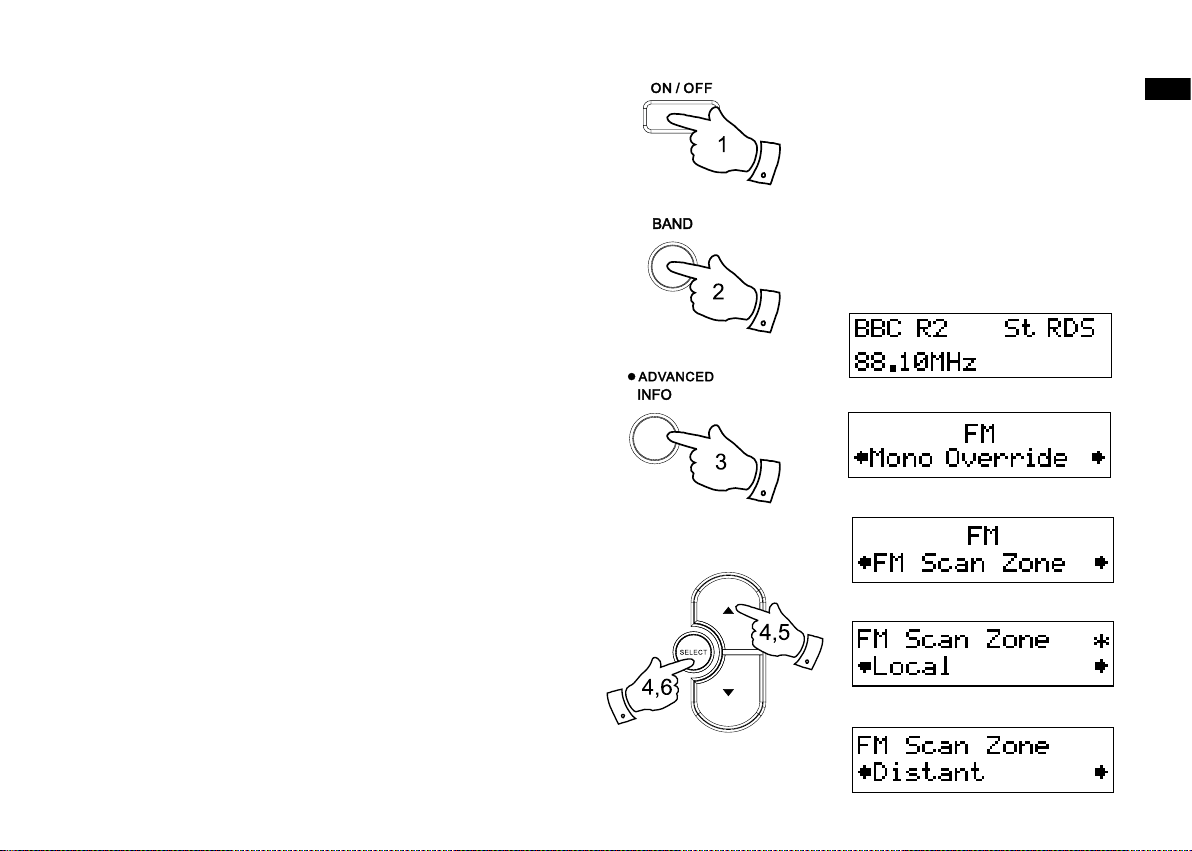

Scan sensitivity setting - FM
Your radio will normally scan for FM broadcasts which are strong
enough to give good reception. However, you may wish the Auto-scan
function to also be able to nd weaker signals, possibly from more dis-
tant radio transmitters. Your radio includes a local / distant option for the
Auto-scan function.
1. Press the On/Off button to switch on your radio.
2. If needed, press the Band button to select the FM band.
3. Press and hold the Info button until the display shows “Mono override”
on the lower line.
4. Press and release the Tuning up or down buttons until the display
shows “FM Scan Zone” then press the Select button to enter the scan
zone selection menu.
5. Press the Tuning up or down buttons to switch between Local and
Distant options on the lower line of the display. The Distant option will
allow the radio to nd weaker signals when scanning.
6. Press the Select button to conrm your selection. The radio will then
revert to the normal information display. The Local or Distant setting
is stored in the radio and remains in force until changed or until a
System Reset.
Note:
The intial setting (out of the box, or after a System Reset) causes the
radio to ignore weak (distant) signals.

19
Software version
The software display cannot be altered and is just for your reference.
Ensure your radio is switched on and in DAB mode.
1. To view the software version on the display press and hold the Info
button for 2 seconds.
2. Repeatedly press the Tuning Up/Down button until the display shows
“SW version“ on the lower line. Press the Select button to enter the
SW version. The version number is then shown on the lower line of
the display. Press and release the Info button to normal tuning mode.
System reset
If your radio fails to operate correctly, or some digits on the display are
missing or incomplete carry out the following procedure.
1. Press and hold down the Info button for 2 seconds
2. Repeatedly press the Tuning Up/Down buttons until the display shows
“Factory reset”, then press the Select button.
3. If you wish to perform the reset operation, press the Select button one
more time. A full reset of your radio will be performed. All presets and
station lists will be erased.
4. After a system reset a scan of the DAB band will be performed. In case
of malfunction due to electrostatic discharge, reset the product
(reconnection of power source may be required) to resume normal
operation.
