SANKO AQ-30 User manual

ELECTRIC MOISTURE METER
MOISTURE METER FOR BUILDING MATERIAL
ＡＱ ‑ ３０
‑ AQUA SERIES ‑
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
CAUTIONS:
● Before using the Meter, read this INSTRUCTION MANUAL thoroughly
and use the Meter correctly.
● Keep this INSTRUCTION MANUAL carefully and refer to this, when
necessary.
● In the event of any doubt arising, the original INSTRUCTION MANUAL
in Japanese is to be final authority.
SANKO ELECTRONIC LABORATORY CO.,LTD
(株式会社 サンコウ電子研究所)

-1-
CONTENTS
ITEM PAGE
１APPLICATION 2
２SPECIFICATIONS 2
３PARTS IDENTIFICATION 3
４OPERATING INSTRUCTIONS 4
4‑1 Power ON/OFF 4
4‑2 Converting the measuring mode 4
4‑3 Converting the hold mode 4
4‑4 Converting the key lock mode 4
4‑5 Measurement 4
4‑6 Auto power OFF 4
５TEMPERATURE COMPENSATION 5
６NOTES FOR THE MEASUREMENT 6
７BATTERY 6
7‑1 Indication of the voltage drop 6
7‑2 Handling while the Meter is not in use 6
８MAINTENANCE AND INSPECTION 6
９MISCELLANEOUS 7
9‑1 How to use the Moisture reading checker(option) 7
9‑2 Cover for the needle electrode 7

-2-
Before using the Meter, read this INSTRUCTION MANUAL thoroughly and use
the Meter correctly.
Keep this INSTRUCTION MANUAL carefully and refer to this, when necessary.
１．APPLICATIONS
Moisture measurement, inspection control and instraction of soft/hard wood and following paper,
mortar/concrete and plaster, etc.
Wood:
・Log, sewn lumber, seasoned wood, wood for buildings, fittings, panels and packings
・Plywood, veneer, texitile wood, laminated wood, various board, floorings, etc.
・Wooden works/parts such as desk, chair, furniture, etc.
Paper:
・High quality paper, craft paper, paper board, wall paper, other paper and products
・Corrugated paper, paper bag, paper vessel, internal paper, other paper products and semi-processed goods
・Moisture control and check of the old paper etc. such as used news paper and magazine
while storing and keeping.
Mortar and Concrete:
・Mortar, concrete, plaster, etc.
・Quality control of base materials for finish coating, tiling, clothing, etc.
・Quality control of various water proofing and decorating works, etc.
・Prevention of claim after completing the work
Moisture condition of various objects can be checked simply and quickly in the MC mode.
２．SPECIFICATIONS
Name and type Moisture meter for building material AQ-30
Measuring method DC electric resistance method
Measuring range Wood: 6.5 to 100% (SOFT(soft wood), HARD(hard wood) by conversion)
Paper: 6.5 to 30% (all paper products)
Mortar: 2 to 11% (concrete and plaster)
M/C mode: 1 to 50 division (no unit, comparison of moisture)
Resolusion 0.5%, 1%, 2%, 5%, 10%, 20% (Depend on measuring range and mode)
M/C mode: 1
Indication LCD digital with hold function
Temperature compensation Automatic temperature compensation (Available for ON/OFF)
Power source Alkaline dry batteries LR03(1.5V) × 2 pcs. With auto power off function
Operating temperature 0 to 40 ℃(except dew condensing condition)
Dimensions and Weight 56(W) × 123(H) × 34(D)mm, Approx.100g
Accessories Spare needles, Hexagonal wrench, Conductive rubber electrode,
Cover for needle electrode
Option(Attachment) SB wire gauze electrode, Roller electrode
Moisture reading checker
※Specifications and appearance are subject to modify for improvement without prior notice.

-3-
３．PARTS IDENTIFICATION
①Power key Key for power ON/OFF
②G key Key for converting the measurement mode
③℃ key Key for ON/OFF the automatic temperature compensation
④HOLD key Key for ON/OFF to hold the measured values
⑤LOCK key Key for locking all keys except ON/OFF key
⑥LCD display Indicating part of the measured values, mode, etc.
⑦Electrode part 2 needle electrode part
⑧Hand strap ※
⑨Lid of the battery case(Backside of the Meter)
⑩Conductive rubber electrode. Insert in the electrode part ⑦.
※Be sure to pass the hand strap ⑧around the wrist to prevent the Meter from dropping.

-4-
４．OPERATING INSTRUCTIONS
4-1 Power ON, OFF
・Remove the cover for the needle electrode of the electrode part ⑦and
press the「POWER」key ①.
・［LLL], measurement mode［TG-S ］and temperature compensation
［℃］are indicated on the LCD display ⑥.
・Press the「POWER ｣key ①again, then the power OFF.
※When the「POWER ｣①is repeated quickly the switching over ON/OFF,
it may cause malfunction. In this case, power ON again in 2 to 3 minutes.
4-2 Converting the measurement mode
・Press the「G」key ②and select the measurement mode.
TG-S: Soft wood TG-H: Hard wood Mo: Mortar and Concrete
Pℓ: Plaster KG: Paper MC-S: Moisture comparison mode
・The measurement mode is converted each press of the「G」key ②as follows.
TG-S →TG-H →Mo →Pℓ→KG →MC-S
・The selected mode is indicated in the upper part of the LCD display ⑥.
・When power ON again after power OFF once, the mode will automatically return back to
the［TG-S ］mode.
・Be sure to confirm the mode when the measurement is carried out.
4-3 Converting the hold mode
・When the「HOLD」key ④is pressed, the［HOLD ］is indicated in the lower right part of the
LCD display ⑥and the mode is switched over to the hold mode.
The indicated measured value will be held until the next measurement.
・The holding function of the measured value is released by pressing the「HOLD」key ④again and
the indicated［HOLD ］on the LCD ⑥disappears.
4-4 Converting the key lock mode
・When the「LOCK」key ⑤is pressed, all keys except the 「POWER」key ①are locked and
misoperation can be prevented.
The key lock mode is released by turning the power OFF.
4-5 Measurement
・Stab the 2 needle electrode ⑦into an object to be measured and read the indicated value after
settlement of the indication.
・When the needle electrode can not be used to an object to be measured, use the attached conductive
rubber electrode ⑩insertinginthe2electrodepart⑦. (Same for paper, mortar/concrete and plaster)
When the electrode is loose, tighten by turning the side screw with the hexagonal wrench.
・When the measured value exceeds or under the measuring range,［LLL］or［HHH］is indicated
on the LCD display.
4-6AutopowerOFF
・When new measured values are not inputted for about 3 minutes or more, the Meter is automatically
power OFF to prevent the consumption of the battery.
・When the electrode part ⑦is contacting with an object to be measured, auto power OFF function may
not work occasionally.
TG−S
℃ＬＬＬ

-5-
５．TEMPERATURE COMPENSATION
The automatic temperature compensating function is set ON at the initial setting condition of the Meter
and the indicated values is automatically temperature Ex: In case the temperature
compensated based on 20 ℃. compensation is set OFF
ON or OFF of the automatic temperature compensating function
is converted by pressing the「℃」key ③.
When this function is set ON, the［℃]is indicated on
the LCD display ⑥and is not indicated in case of setting OFF.
When the automatic temperature compensating function is set OFF, refer to the following list for
the temperature compensation.
◎For Wood
Moisture (%)
Temperature (℃) 4 to 11 12 to 20 21 and over
under 0 ＋2.0 ＋2.5 ＋3.0
0to1 ＋2.0 ＋2.5 ＋3.0
2to3 ＋2.0 ＋2.0 ＋3.0
4to5 ＋1.5 ＋2.0 ＋2.5
6to7 ＋1.5 ＋1.5 ＋2.0
8to9 ＋1.0 ＋1.5 ＋2.0
10 to 11 ＋1.0 ＋1.0 ＋1.5
12 to 13 ＋1.0 ＋1.0 ＋1.0
14 to 15 ＋0.5 ＋0.5 ＋1.0
16 to 17 ＋0.5 ＋0.5 ＋0.5
18 to 19 0 ＋0.5 ＋0.5
20 to 21 0 0 0
22 to 23 0 −0.5 −0.5
24 to 25 −0.5 −0.5 −0.5
26 to 27 −0.5 −0.5 −1.0
28 to 29 −1.0 −1.0 −1.0
30 to 31 −1.0 −1.0 −1.5
32 to 33 −1.0 −1.5 −2.0
34 to 35 −1.5 −1.5 −2.0
36 to 37 −1.5 −2.0 −2.5
38 to 39 −2.0 −2.0 −3.0
40 and over −2.0 −2.5 −3.0
◎For Paper, Mortar/Concrete and Plaster
Temperature in measurement Compensating values to the indication
Over 20 ℃−0.1% per temperature 1 ℃
20 ℃or under ＋0.1% per temperature 1 ℃
TG−S
１７.０％

-6-
６．NOTES FOR THE MEASUREMENT
Measuring values may disperse according to measuring circumstances.
Electric Resistor Type Moisture meters use the applications of sensitively electric characteristics of
measuring objects against the moisture contents and the corresponding relations never be a perfectly
correlative one-to-one.
In case of measurinf with different compositions ･combinations, albeit the same material, and with
changes in quality, salt, contamination, and furthermore with special processing, chemical treatments,
it may be necessary to avert measuring such unfavorable objects, and compensate or average
measured values. As for compensating, it is in general, based on moisture measurement methods
in accordance with a drying process.
７．BATTERY
7-1 Indication of the voltage drop
When [BAT ]showing the voltage drop is indicated
in the lower left of the LCD display ⑥, the batteries
close to the limit of use due to consumption.
・Open the battery case on back side by sliding the lid ⑨
sideward, take out the battery case of the Meter taking care
the wiring and replace all alkaline dry batteries LR03(1.5V)
2 pcs. with new ones. (ensure the limit of use).
When the Meter is continuously used after voltage drop mark
[BAT ]was indicated on the LCD display, following
condition will occur.
・Though it differs depending on the characteristics and
using condition of the dry batteries, the Meter can work for several hours.
(Replace all 2 batteries with fresh ones earlier.)
・When the Meter is continuously used as it is, measured values will become unstable.
・When the「POWER」key is turned ON, the buzzer continuously sounds and key operation become
impossible simultaneously. (Remove the batteries from the Meter.)
・When no indication is on the LCD display, the batteries are completely consumed.
7-2 Handling while the Meter is not in use
・Even if the「POWER」key OFF, the battey capacity has been slightly consumed.
・In case the Meter will be not used for 1 month or more, it is recommended to store the Meter after
removing the batteries from the case.
８．MAINTENANCE AND INSPECTION
・Wipe dirt off with soft cloths, etc. after using the Meter.
Specially care to keep the electrodes and groove between the electrodes, etc. clean and dry.
・Prevent the Meter from exposing to shock, direct sunlight, high temperature, high humidity, etc.
・Select a dust free, clean and well-dried place for storing the Meter.
・In case the Meter will be not used for 1 month or more, remove the batteries from the Meter.

-7-
９．MISCELLANEOUS

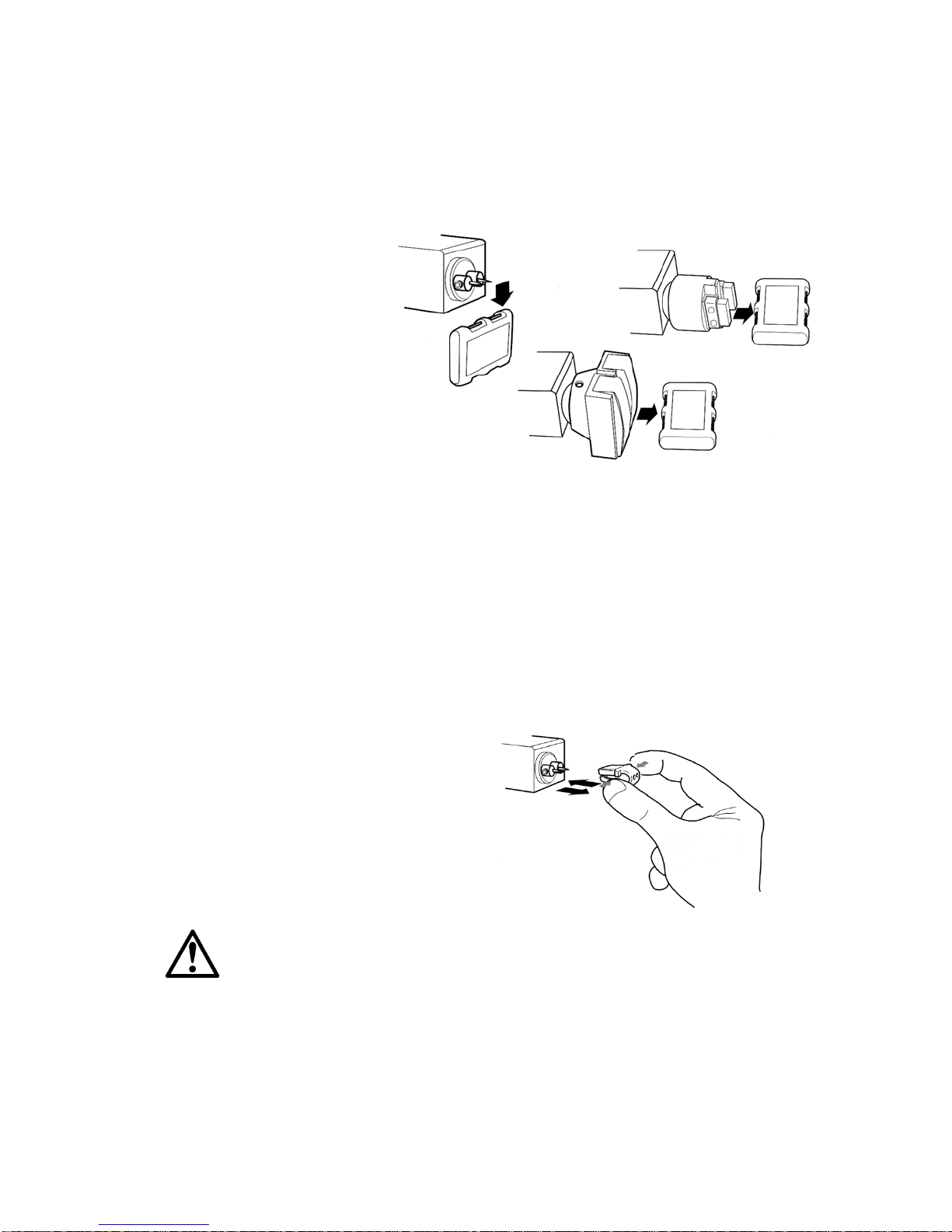

9-1 How to use the Moisture reading checker(option).
Press the electrode against the checker as shown in the following sketch in power ON condition.
When the reading of the Meter matches the figure on the checker, the Meter's reading is acceptable.
When the reading deviates from the checker's, please request our agent or the nearest our branch to
calibrate the Meter.
※An object for checking by the Moisture reading checker differs the face side from the back side.
Use after surely confirming model, type of the Meter and measurement mode.
※When checking the Meter, carry out after turning the temperature compensating function OFF.
Refer to " 5. TEMPERATURE COMPENSATION " in detail.
9-2 Cover for the needle electrode(Fitting/removing methods of the cover)
Fit the cover in the needle electrode spreading out by fingers holding both sides of the cover for
the electrode.
When the cover is tight, fit by force prying it.
Carry out the same procedure for removing the cover.
Fitting/removing the cover by force causes au injury occaisionally.
Be careful not to be injured with the Needle electrode
Ver.3 November 2007

Show rooms:
You are welcomed to the show rooms located at the
following places.
Tokyo show room near the Otemachi station of the subway･Osaka show room at Tenjinbashi-kitazume･Nagoya show room near the Kurokawa station of the subway･Fukuoka show room near the Gofukucho station of the subway･
Products sold: ,,Sales of Coating thickness meter Pinhole detector
,, ,Condensator Viscosity cup Moisture meter
Needle detector Iron piece detector,
Manufacturer:
Sanko Electronic Laboratory Co., Ltd.
.,264, , ,Tokyo branch Shibata Bldg - - Uchikanda Chiyoda-ku
Tokyo - Japan101 0047,
81 3 3254 5031 81 3 3254 5038Tel--- Fax---
., 2 3, , ,Osaka branch Konishi Bldg - Sugawara-cho Kita-ku
Osaka - Japan530 0046,
81 6 6362 7805 81 6 6365 7381Tel--- Fax---
.,31127, , ,Nagoya branch Meihoku Bldg - - Kinjo Kita-ku
Nagoya - Japan462 0847,
81 52 915 2650 81 52 915 7238Tel - - - Fax - - -
Fukuoka branch - Naraya-cho Hakata-ku11 11 ,
Fukuoka - Japan812 0023,
81 92 282 6801 81 92 282 6803Tel - - - Fax - - -
1677 , ,Head office Hisasue Takatsu-ku
Kawasaki - Japan213 0026,
81 44 751 7121 81 44 755 3212Tel - - - Fax - - -
