SantaMedical RY210 User manual

Model:RY210
Non-contact Infrared Thermometer

1
CONTENTS

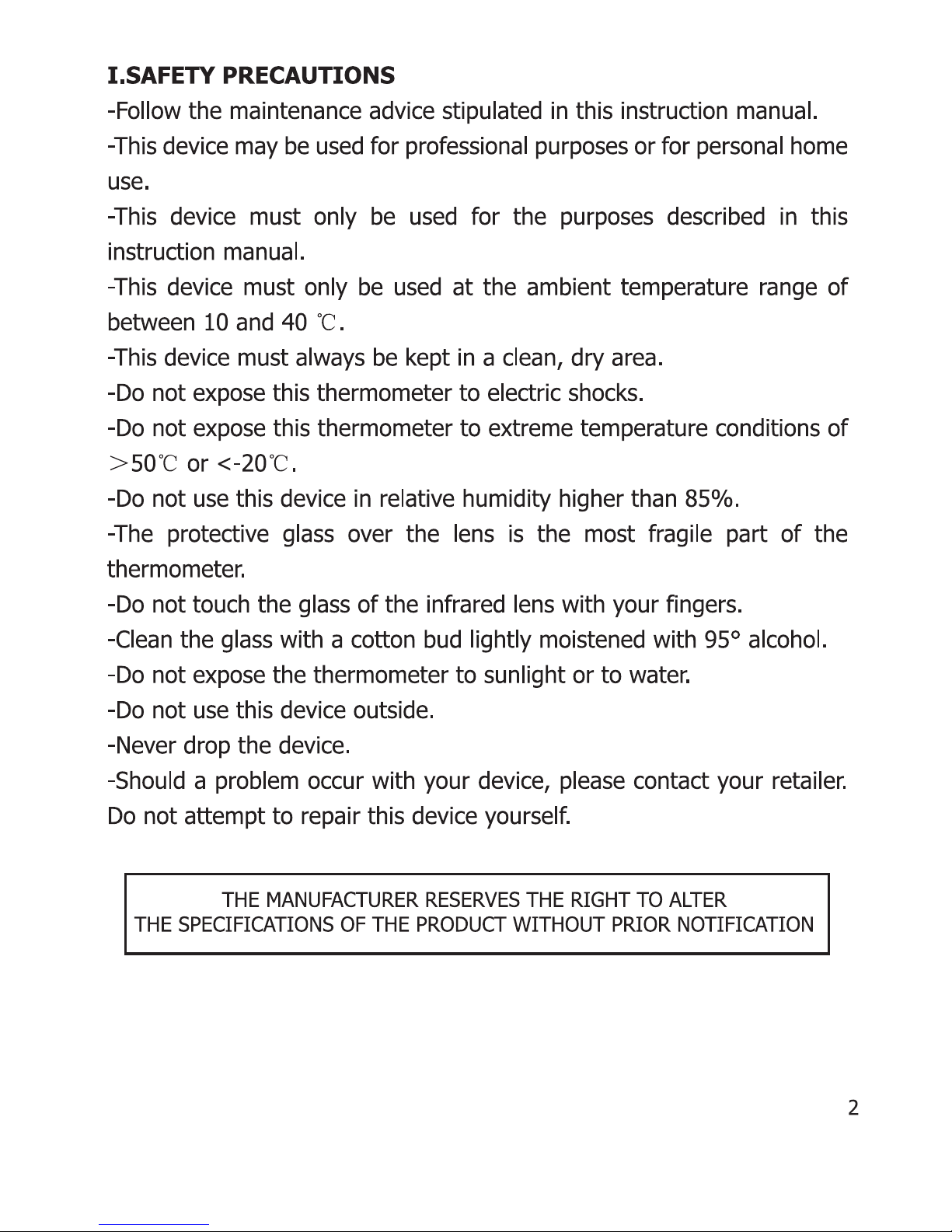

SAFETY PRECAUTIONS
INTRODUCTION
PRECAUTIONS BEFORE USE
OPERATING PRINCIPLE
THE DIFFERENT METHEODS OF TEMPERATURE MEASUREMENT
NORMAL TEMPERATURES ACCORDING TO MEASUREMENT METHOD
ADVANTAGES OF TEMPORAL ARTERY (TA) TEMPERATURE
NORMAL TEMPERATURE ACCORDING TO AGE
PRACTICAL CONSIDERATIONS WHEN TAKING A TEMPERATURE
HOW TO TAKE A TEMPERATURE
CONSIRAINTS
DESCRIPTION OF THE RY210
FUNCTIONS
USAGE
SETTING & FUNCTION OF MENU
1.SWITCH ON THE DEVICE
2.CHOOSING THE TEMPERATURE UNIT – F1 MENU
3.ALARM SETUP – F2 MENU
4.CHOICE OF DISPLAY MODE:BODY OR SURFACE TEMP – F3 MENU
5.TOTAL DIFFERENCE – F4 MENU
6.BUZZER ON/OFF – F5 MENU
7.EXITING THE SETTING MODE
8.DATA MEMORY
9.CHANGING THE BATTERIES
TECHNICAL CHARACTERISTICS & PRECISION
ADVICE
ACCESSORIES SUPPLIED

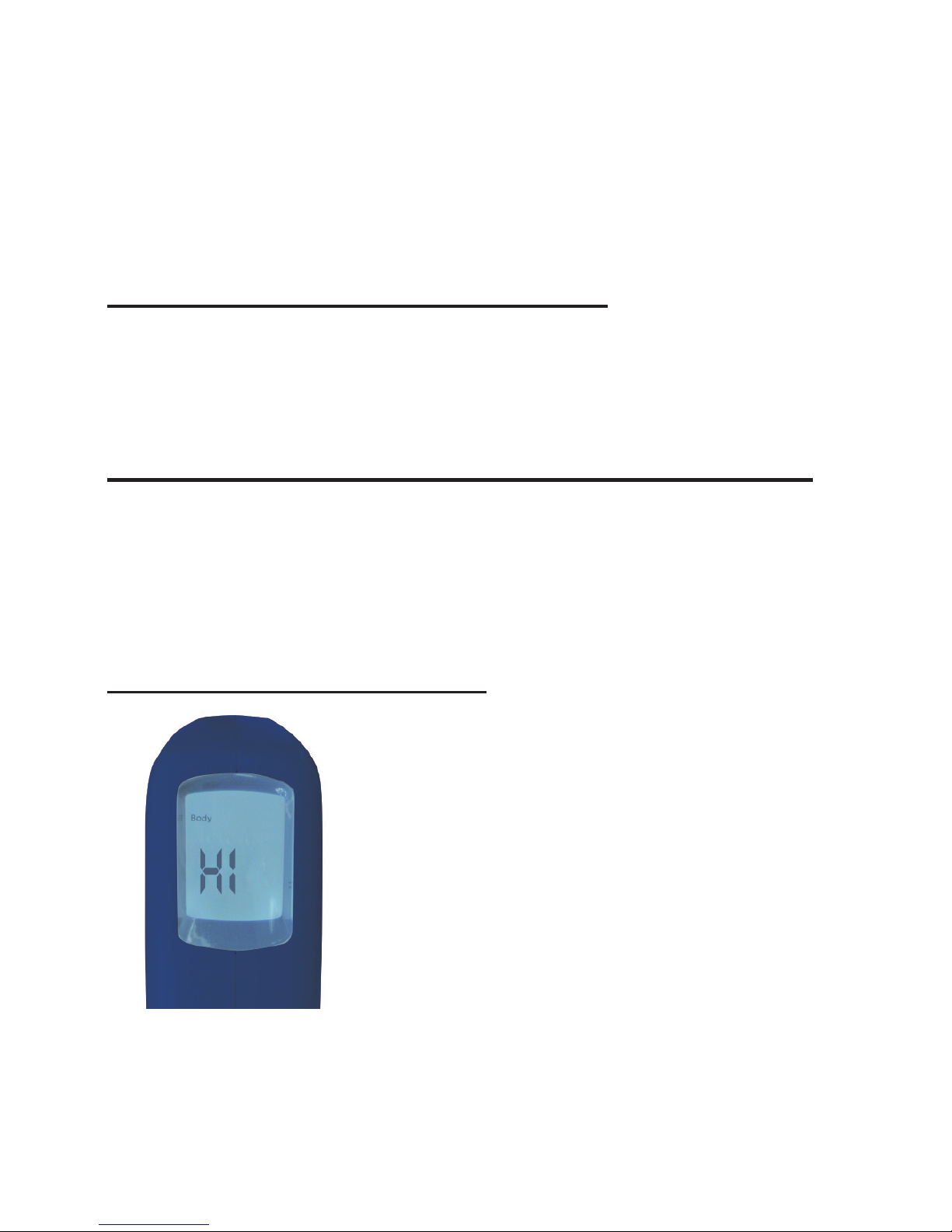

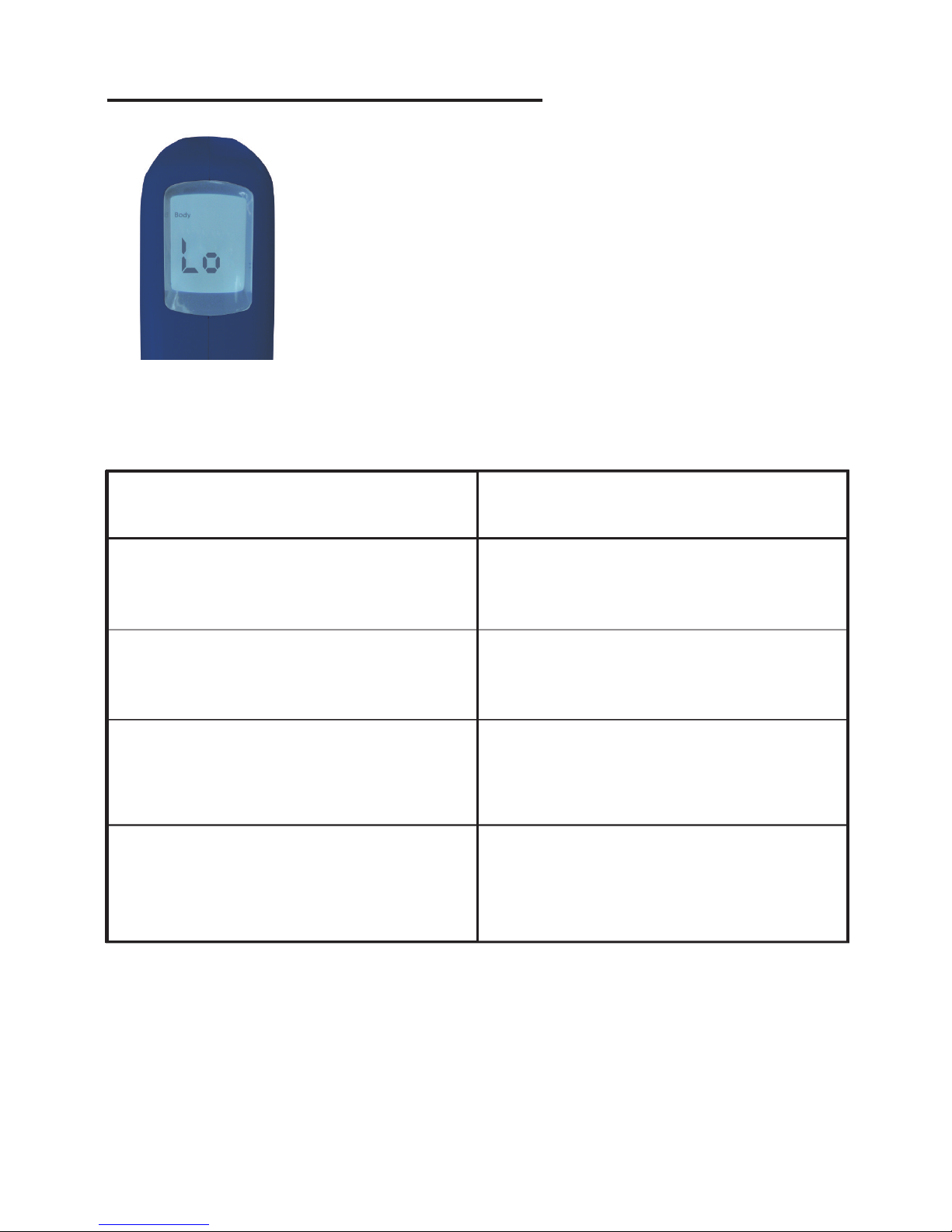

TROUBLESHOOTING
I.
II.
III.
IV.
V.
VI.
VII.
VIII.
IX.
X.
XI.
XII.
2
3
3
4
4
5
6
6
6
7
7
8
10
10
11
11
11
11
11
12
13
13
13
13
14
14
14
15
User Manual – English V.00

3
II.INTRODUCTION
The SantaMedical RY210 Non-contact Infrared thermometer has been
developed using latest infrared technology. This technology allows
temporal artery (TA) temperature to be taken at a distance of about
3~5cm away from the forehead. Precise, Instantaneous and without
Contact, the RY210 is , to date, the most suitable thermometer for no
risk temperature measurement. It has been demonstrated that this
method of TA temperature measurement is more precise than tympanic
thermometry and better tolerated than rectal thermometry (1).
However, as with other types of thermometer, it is essential to use the
SantaMedical RY210 properly in order to obtain reliable and stable results.
You are therefore advised to read this instruction manual and the
safety precautions carefully before use.
(1)Greenes D, Fleisher G. Accuracy of a Noninvasive Temporal Artery
Thermometer for Use in Infants. Arch Pediatr Adolesc Med
2001;155:376.
III.PRECAUTIONS BEFORE USE
In order to obtain reliable and stable results, you are advised each time
there is a significant change in the ambient temperature due to a
change in environment, to allow the SantaMedical RY210 to acclimatize to
this
ambient temperature for 15 to 20 minutes before using it.
It is important to allow 3-5 seconds interval between two
measurements.
The SantaMedical RY210 is pre-set at the factory.
It is not necessary to calibrate the device when starting it up.

4
IV.OPERATING PRINCPLE
All objects, solid, liquid or gas, emit energy by radiation. The intensity of
this energy depends on the temperature of the object. The SantaMedical
RY210 Non-contact infrared thermometer is therefore able to measure
the temperature of a person by the energy the person emits. This
measurement can be taken thanks to an external temperature probe on
the device which permanently analyses and registers the ambient
temperature. Therefore, as soon as the operator holds the thermometer
near the body and activates the radiation sensor, the measurement is
taken instantly by detection of the infrared heat generated by the
arterial blood flow. Body heat can therefore be measured without any
interference from the heat of the surrounding environment.
THE DIFFERENT METHODS OF TEMPERATURE MEASUREMENT
Core temperature
Core temperature is the most precise measurement and involves
measuring the temperature in the pulmonary artery by means of a
catheter equipped with a thermal probe which can read the temperature
in situ. The same method is employed for probes measuring the
oesophageal temperature. However, such invasive temperature
measurement methods require specific equipment and expertise.
Rectal thermometry
Rectal temperature adjusts slowly in comparison to the evolution of the
body’s internal temperature. It has been demonstrated that rectal
temperature remains raised long after the internal temperature of the
patient has started to drop and vice versa. Furthermore, rectal
perforations have been known to occur as a result of this method and
without appropriate sterilization techniques, rectal thermometry can
spread germs often found in Faeces.
Oral thermometry
Oral temperature is easily influenced by recent ingestion of food or
drinks and by breathing through the mouth. To measure oral
temperature, the mouth must remain closed and the tongue lowered for
three to four minutes which is a difficult task for young children to
accomplish.

6
ADVANTAGES OF TEMPORAL ARTERY (TA) TEMPERATUERE
Infrared arterial temperature can be measured using a device placed on
the forehead, in the Temporal artery region. It has been demonstrated
that this relatively new method of measuring temperature is more
precise than tympanic thermometry and better tolerated than rectal
thermometry.
The SantaMedical RY210 thermometer has been designed to produce an
instant forehead temperature reading without any contact with the
temporal artery. As artery is quite close to the surface of this skin and
therefore accessible and given the blood flow is permanent and regular,
it allows precise measurement of the temperature. This artery is linked
to the heart by the carotid artery which is directly linked to the aorta. It
forms part of the main trunk of the arterial system. The efficiency, speed
and comfort of taking a temperature from this area make it ideal
compared with other temperature measurements methods.
NORMAL TEMPERATURES ACCORDING TO AGE
PRACTICAL CONSIDERATIONS WHEN TAKING A TEMPERATURE
-In order to ensure that precise and accurate temperature
measurements are obtained, it is essential that each user has received
adequate information on and training in the temperature measurement
technique when using such a device.
-It is essential to remember that although procedures such as taking a
temperature may be simple they must not be trivialised.
Age °C °F
0-2 years 36.4-38.0 97.5-100.4
3-10 years 36.1-7.8 97.0-100.0
11-65 years 35.9-37.6 96.6-99.7
˚65 years 35.8-37.5 96.4-99.5

7
-Temperature should be taken in a neutral context. The patient must not
have undertaken vigorous physical activity prior to taking his/her
temperature and the room temperature must be moderate.
-Be aware of physiological variations in temperature which must be
taken into consideration when evaluating the results: temperature
increased by 0.5℃between 6am and 3pm. Women have a temperature
that is higher, on average, by around 0.2℃. Their temperature also
varies in accordance with their ovarian cycle. It rises by 0.5℃in the
second half of the cycle and at the early stages of pregnancy.
-When sitting, temperature is lower by about 0.3 to 0.4℃than when
standing.
HOW TO TAKE A TEMPERATURE
Aim at the FOREHEAD, over the
right temporal region, from a
distance of about 3~5cm
(1.2in~2in), press the
thermometer’s measurement
button and the temperature is
instantly Displayed.
The reliability of the measurement
cannot be guaranteed if the
temperature is measured over
another part of the body (e.g.
arm, torso…)
CONSTRAINTS
Please observe the following before any temperature measurement to
ensure a stable and reliable result:
-Push back hair from the forehead
-Wipe away any perspiration from the forehead
-Avoid any drafts (e.g. from nasal specs, air conditioning…)
-Allow 3-5 seconds interval between two measurements.
-Each time there is a significant change in the ambient temperature due
to a change in environment, to allow the to acclimatize to this ambient
temperature for at least 15 minutes before using it.

8
V. DESCRIPTION OF THE SantaMedical RY210
Infrared Lens
LCD screen
Measuring key
Battery compartment

RY210
SantaMedical
Non-Contact Infrared Thermometer
Model:RY210
Operating range:3cm-5cm
Power:DC 3V
&RQVXPSWLRQP:
SantaMedical
9

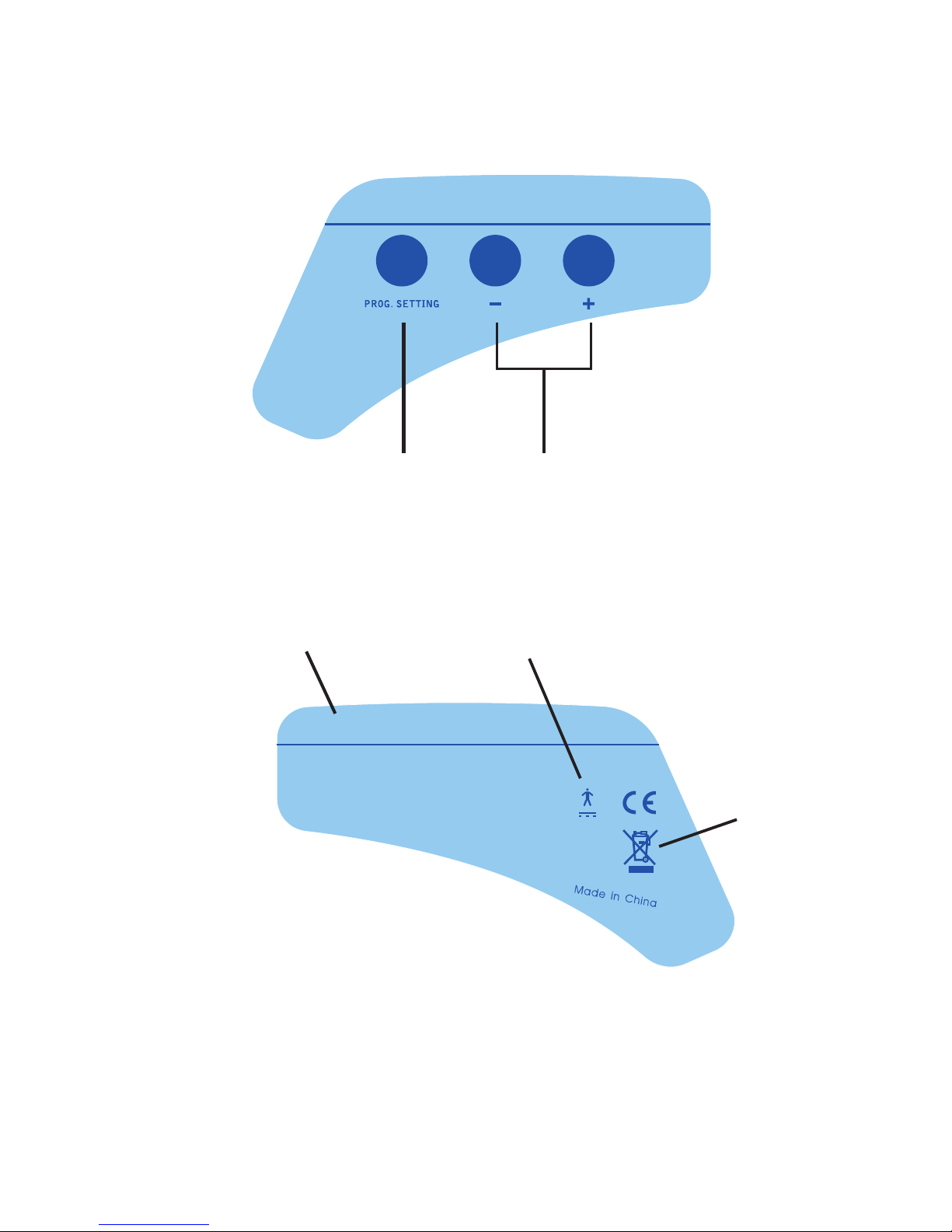

SETTING KEYSMENU BUTTON
WEEE
IEC60417-5840
Type B applied part
TRADEMARK

10
VI. FUNCTIONS
1.Specially designed to take the body temperature of a person
regardless of the room temperature.
2.Quick and reliable results as it uses the advantage infrared detection
system.
3.Sound alarm if temperature is exceeded.
4.Memorize 32 measures.
5.LCD backlit digital screen.
6.Data displayed in Celsius or Fahrenheit.
7.Automatic stop 30 seconds (energy saver).
8.Small, convenient, easy to use.
ADDITIONAL USAGE:
SantaMedical RY210 can also be used to measure the temperature of a
baby-bottle or bath, or room temperature (by using the Surface Temp
function). This function is in accordance with the Directive 89/336/EEC
Electromagnetic Compatibility.
VII. USAGE
1.Install battery
2.For the first usage or when inserting new
batteries wait between 10 minutes for the
warm-up of the apparatus and when
inserting the new batteries.
3.Aim towards the forehead (see the
diagram below for the RY210 positioning),
from a distance of 3cm~5cm(1.2in~2in)
press the measuring key, the temperature is
displayed in 1 second. The temperature can
also be taken behind the ear lobe.
4.Before taking the temperature, make sure to remove hair and
perspiration from the forehead. You can also take the temperature
behind the ear lobe.

12
You can also use the SantaMedical RY210 to measure the temperature
of an area or an object, a food, a liquid or a room temperature.
For this, use the SURFACE TEMP mode.
Measurement range for Surface TEMP mode: 0ć-60ć(32-140)
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press PROG SETTING button twice to get F3.
Select 0 by pressing “-” button to get the BODY mode.
Select 1 by pressing “+” button to get the SURFACE TEMP mode
Confirm by pressing PROG SETTING button.
5.TATAL DIFFERENCE – F4 MANU
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press PROG SETTING button three times to get F4.
Select “+” to increase the difference by 0.1ć(0.1), “-” to reduce it by
0.1ć(0.1).
Confirm by pressing PROG SETTING button.
If in doubt, you are advised to leave the total variance at + 0.0ć
(original setting).
Each time there is a significant change in the ambient temperature due
to a change in environment, to allow the RY210 to acclimatize to
this ambient temperature for at least 15 minutes before using it.
Note: The SantaMedical RY210 is automatically set to BODY
Important: The area temperature differs from the internal body
temperature. To obtain the internal temperature always use the
BODY mode.
Please make sure to select the BODY mode for an internal
temperature reading and the SURFACE TEMP mode for an external
area reading (bottle, bath, Room…).
To adjust total variation of your SantaMedical RY210

13
6.BUZZER ON/OFF – F5 MENU
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press four times PROG SETTING button to get F5.
Select “+” to open the buzzer ( a sound icon is displayed on the LCD
screen), press “-” to stop it (the icon disappear).
Confirm by pressing PROG SETTING button.
7.EXITING THE SETTING MODE
Press PROG SETTING button until the screen turns off.
8.DATA MEMORY
To display the last temperature measurement, press simultaneously the
“-” and “+” button.
You will obtain the last temperature measurement. To switch on the last
measurement, press the “+” button.
The number indicated in interval of two measures corresponds to the
number of measurements.
To exit data memory, press the measure key. The SantaMedical RY210
switches off in 30 seconds.
9.CHANGING THE BATTERIES
- +
Display: when the LCD screen displays
“Battery”, the battery is used.
Operation: Open the lid and change the
batteries, taking great care with the correct
positioning. A mistake with could cause damage
to the apparatus and compromise the guarantee
of your
SantaMedical RY210 .
Never use rechargeable batteries. Use only
batteries for single usage.

14
IX. TECHNICAL CHARACTERISTICS
1.Normal conditions of use
Operating temperature: 10℃~40℃(50℉~104℉)
Humidity rDWH
2.Power: DC 3V (2 batteries AA)
3.Package Size: 200×145×50mm (L×W×H)
4.Unit Weight: 136g (without batteries)
5.Display Resolution: 0.1℃(0.1℉)
6.Measuring range:
In Body mode: 32℃~42.9℃℉~109.2℉)
In Surface Temp mode: 0℃~60℃(32℉~104℉)
7.Precision: 32℃~36℃℉a℉)=±0.3℃(±0.6℉)
36℃~39℃℉~102.2℉)=±0.2℃(±0.4℉)
39℃~42.9℃(102.2℉~109.2℉)=±0.3℃(±0.6℉)
&RQVXPSWLRQP:
9.Measuring distance: 3cm-5cm(1.2in-2in)
10.Automatic stop: 30 sec
LONGEVITY USE
The SantaMedical RY210 is guaranteed for 40,000 takings.
X. ADVICE
-The protective glass over the lens is the most important and fragile
part of the thermometer, please take great care of it.
-Clean the glass with cotton fabric, wet with 95° alcohol
-Do not use other batteries than mentioned batteries, do not recharge
non rechargeable batteries, do not throw in fire.
-Remove the batteries when thermometer is not used for an extended
period of time.
-An impact will damage the product.
XI. ACCESSORIES SUPPLIED
User manual in English 1 pc
AA alkaline battery 2 pcs
pouch 1 pc

15
XII.TROUBLESHOOTING
If you have one of the following problems while using your SantaMedical
RY210, please refer to this breakdown service guide to help resolve
the problem. If the problem persists please contact our customer
service.
The screen displays temperature superior to 95°
The temperature is in Fahrenheit change the measurement to Celsius
(by pressing the Program Setting button to get the F1 function key)
The screen displays the body temperature inferior to 32℃(89.6℉)
To take a body temperature the function key F3 must be on Body
mode. If you’re on Surface Temp mode the 32℃(89.6℉) temperature
displayed is showing the external temperature that your body releases.
The screen displays the message HI
When using the SantaMedical RY210 the
message HI can show on the screen.
The analysis is above the measurement range
selected, either superior to 42.9℃(109.2℉)
in Body Mode or superior to 60℃(140℉) in
Surface Temp Mode.

16
THE SCREEN DISPLAYS THE MESSAGE LO
When using the SantaMedical RY210 the
message Lo can show on the screen.
The temperature analyzed is under the
measuring range selected, either less than 32
℃(89.6℉) in Body Mode or less than 0℃(32
℉) in Surface Temp Mode.
This message displays in various cases – please find below a list of the
main cases:
Reasons for LO
message display Advice
Make sure there is no air flux as
this could interfere with the
infrared system.
Make sure that there is no
obstruction prior to taking a
temperature.
Temperature hampered by an air
flux.
Temperature readings too close
together, the RY210 did not have
the chance to boot itself.
Respect the pause of 15 seconds
minimum between two readings
3~5 seconds pause is advised.
Please respect the measuring
distance (between 3 and 5
cm-1.2in and 2in)
Temperature reading hampered
by hair, perspiration…
The measuring distance is too far.
