Sanus BMT1 User manual

THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
BMT 1 Instruction Manual

2
BMT1
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 • Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 • We’re ready to help!

3
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
75 lbs
(34 kg)
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520.
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of? Drywall
with steel
studs? Unsure?
Drywall
with wood
studs?
Solid concrete
or concrete
block?
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone. For information on how to use this product with steel stud walls contact Customer
Service and ask about the steel stud mounting kit.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Call Customer Service: 1-800-359-5520
Perfect! Perfect!
Ready to
begin?
Steel stud kit required [NOT INCLUDED]
CAUTION:
DO NOT install
into drywall alone
Does your TV weigh
(including accessories)
more than 75 lbs.
(34 kg)?
Para Español ver página 35
Wood Stud Install
Steel Stud Install
Concrete Install
Pencil Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
1/2 in.
(13 mm)
Steel
Drill Bit Drill Bit
Electric
Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
1/2 in.
(13 mm)
Drywall
OPTIONAL
Single Stud Install
Drill Bit
Studfinder
Awl
Level

4
STEP 1 Attach Brackets to TV
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
M8 x 50mm
For concrete installations ONLY
2.5mm
22mm
M6 x 12mm M6 x 20mm M6 x 35mm
M8 x 40mm
M8 x 20mm
M8x30 mm
5mm
5/16 x 2¾in.
5/16 in.
Right TV
Bracket
Left TV
Bracket
TV Screws
TV Washers
Spacers
03 x4
04 x4
05 x4
01 x1 02 x1

5

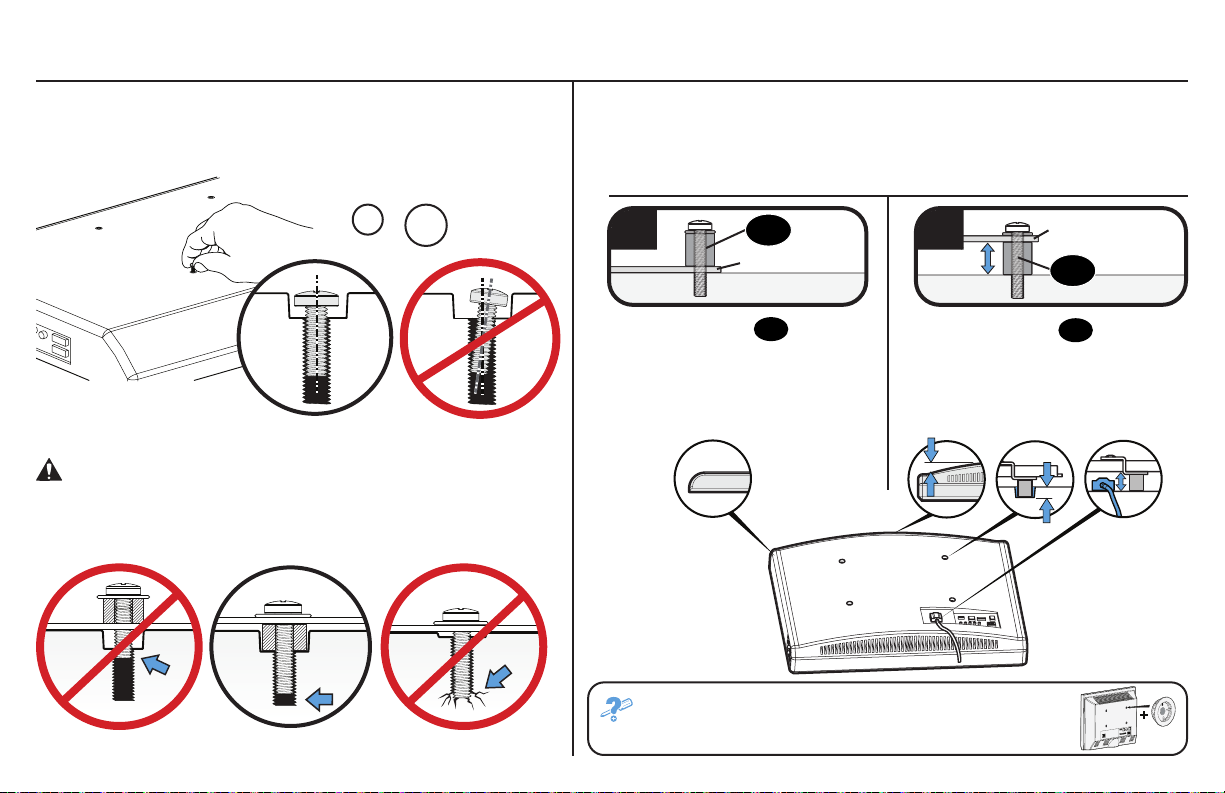

1.1 Select TV Screws
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M6 or M8) to use.
1.2 Spacers
M6 M8
If your TV included inset spacers or wall mount adapters,
see Troubleshooting on PAGE 31.
CAUTION: Verify adequate thread engagement of the
screw/washer/spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
Too Short Correct Too Long
Mount the spacers 05 above the
TV bracket, for flat back panels
(AND the TV closer to the wall).
Mount the spacers 05 under the
TV bracket to create extra space
needed for irregular shape TV backs
or large cables.
Spacers and screws are supplied to install your TV bracket.
Determine your preference for spacer configuration when
attaching your TV bracket.
Round Back CablesInset HolesFlat Back
TV Bracket
TV Bracket
05
05
ab

6
IMPORTANT: For
ease of access, straps
should be level with
the bottom of the TV.
1.3 Attach TV Brackets

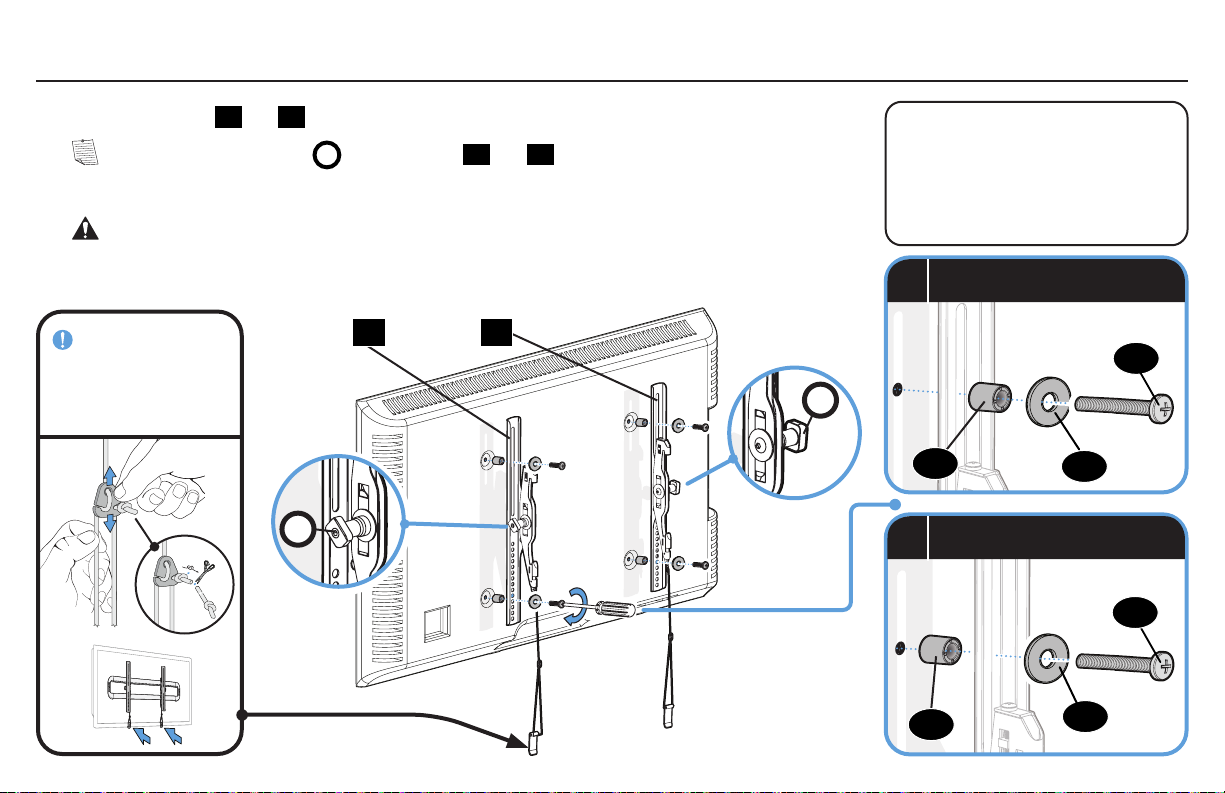

Center the TV brackets 01 and 02 over your TV hole pattern as shown - making sure the brackets are level.
NOTE: The tilt tension knob Ton TV brackets 01 and 02 should be oriented to the outside edges.
Install using the spacer, TV screw and washer combination you selected for your TV.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use a
power screwdriver for this step. Tighten screws only until TV Bracket is secured in place. aSpacer, screw and washer
bSpacer, screw and washer
05
05
04
04
03
0201
T
Standard configurations are shown.
For special applications, or if you
are uncertain about your hardware
selection, contact Customer Service
at 1-800-359-5520 .
T
03

7
For Wood Stud (Single Stud) installations,
follow STEP 2B on PAGE 13
For Wood Stud (Double Stud) installations,
follow STEP 2A on PAGE 9
For Concrete installations,
follow STEP 2C on PAGE 20
For Steel Stud installations,
follow STEP 2D on PAGE 23
STEP 2 Attach Wall Plate to Wall

8

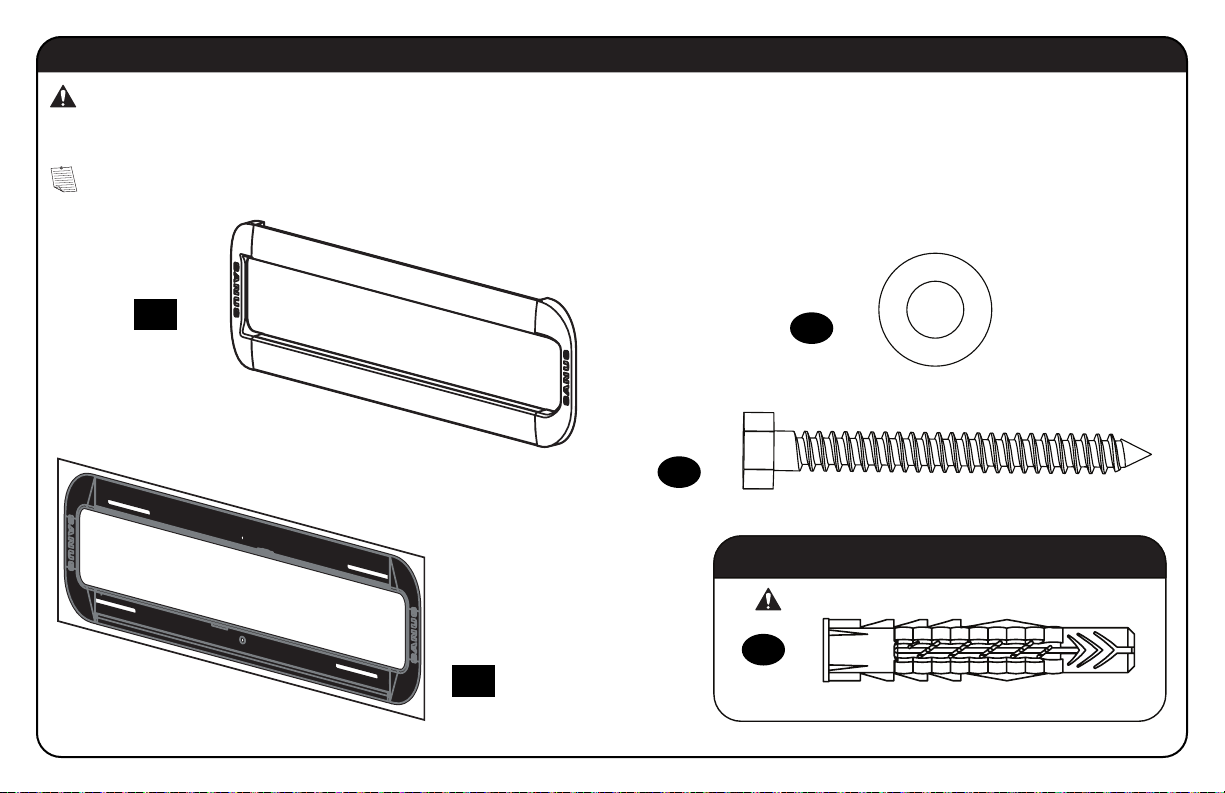

Parts and Hardware for STEP 2
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
M8 x 50mm
For concrete installations ONLY
2.5mm
22mm
M6 x 12mm M6 x 20mm M6 x 35mm
M8 x 40mm
M8 x 20mm
M8x30 mm
5mm
5/16 x 2¾in.
5/16 in.
Wall Plate
Wall Plate
Template
Lag Bolt
09 x4
10 x4
06 x1
07 x1
Concrete Anchor UX10 x 60R
CAUTION: Do not use in drywall or wood
Washer
08 x4

9
CAUTION: Avoid potential
personal injuries and property damage!
●Drywall covering the wall must not
exceed 5/8 in. (16 mm)
●Minimum wood stud size:
common 2 x 4 in. (51 x 102 mm)
nominal 1½ x 3½ in. (38 x 89 mm)
●Minimum horizontal space between
fasteners: 16 in. (406 mm)
●Stud centers must be verified – not all
walls have conventional 16 in. (406 mm)
or 24 in. (610 mm) stud spacing

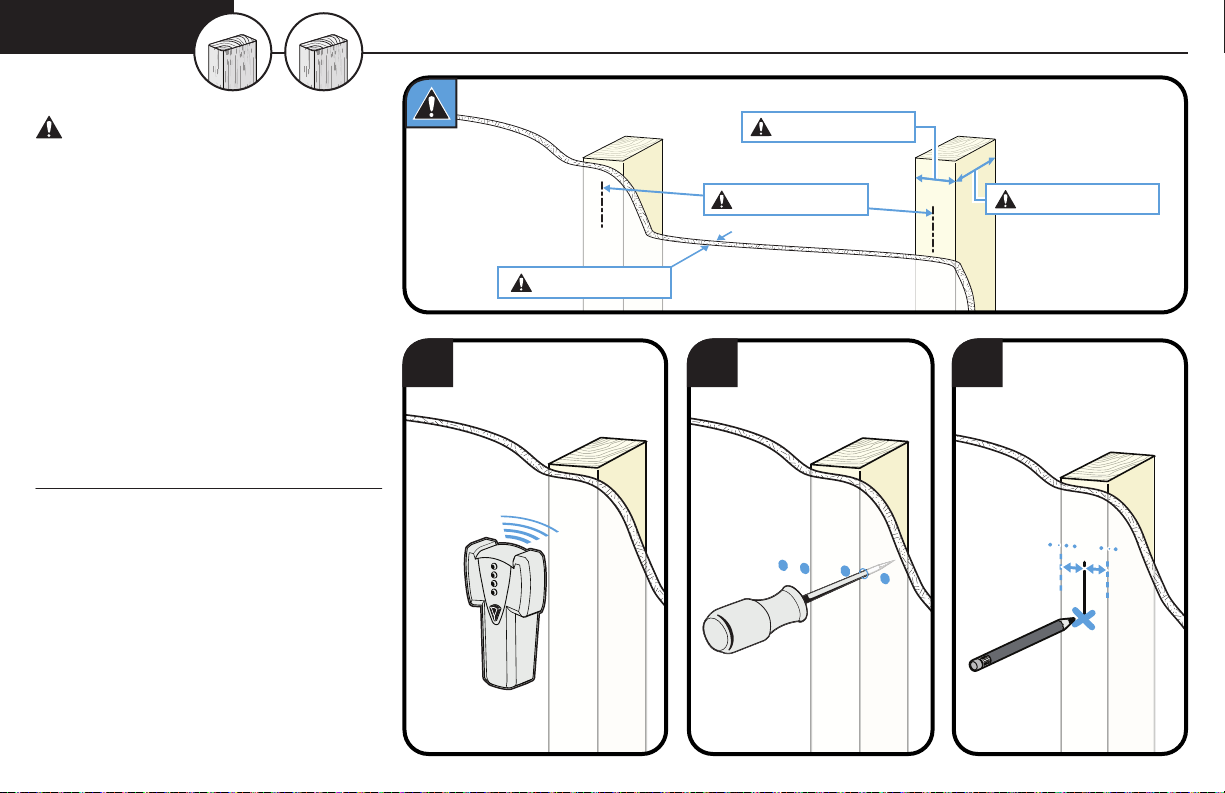

1. Locate the studs using a stud finder.
2. Find the edges of the studs using an
awl or small drill bit.
3. Mark the centers of the studs with
a pencil.
Max. 5/8 in. (16 mm)
Min. 16 in. (406 mm) Min. 3 1/2 in. (89 mm)
Min. 1 1/2 in. (38 mm)
STEP 2A Wood Stud Option (Double Stud Install)
1 2 3

10
4. Place the wall plate template 06 at your desired height and position the slotted holes over your stud center lines. Level the wall plate
template 06 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
0606
4 5 3 in. (75 mm)
7/32 in.
(5.5 mm)

11
6. Remove the wall plate template 06 .
7. Slide the covers Copen on the wall plate 07 to expose the mounting holes.
06
6
07
C
C
7

12

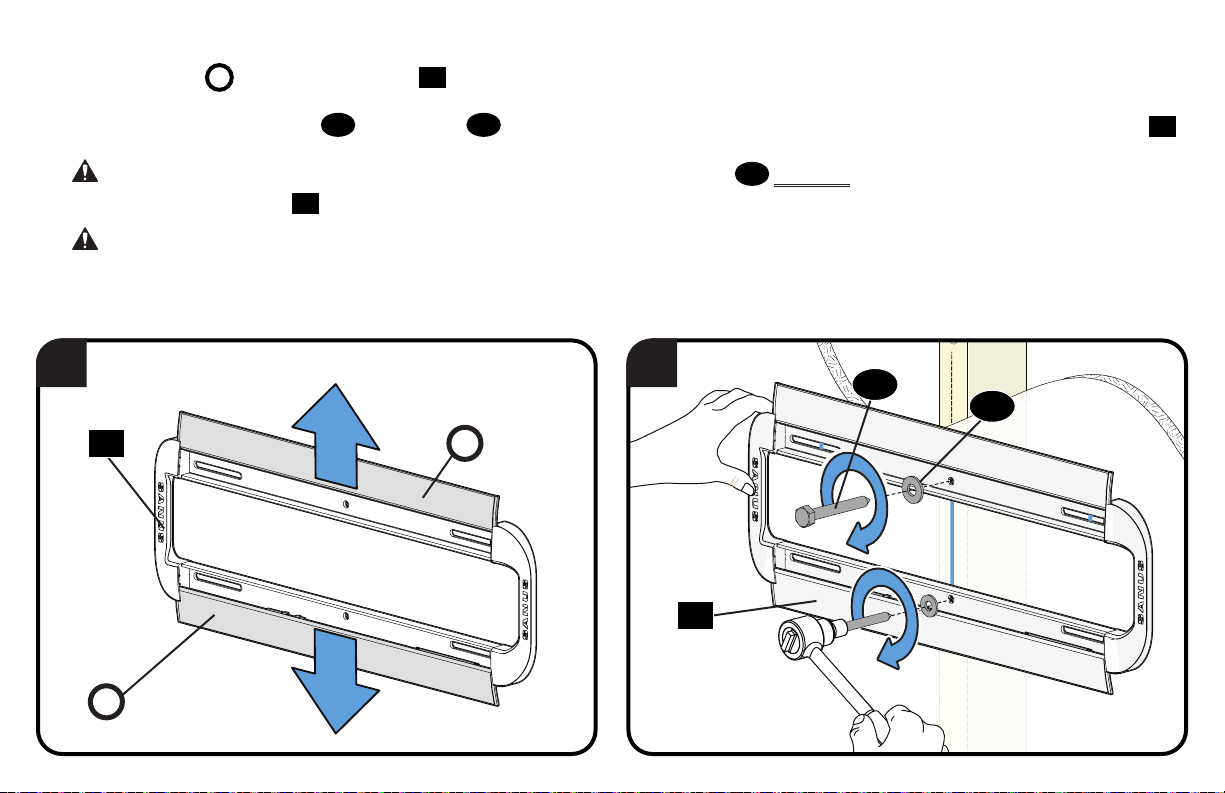

8. Install the wall plate 07 using four washers 08 and lag bolts 09 . Firmly tighten all four lag bolts 09 until they are pulled flush against
the wall plate 07 .
NOTE: Hold the wall plate 07 in place when tightening the first lag bolt 09 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! All four lag bolts 09 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 07 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
9. Slide the covers Cclosed on wall plate 07 .
Go to STEP 3 on PAGE 27.
07
C
C
9
09
8
08
07

13
Single Stud Installation Kit #VMTMK1 (NOT INCLUDED)
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm)
nominal 1½ x 3½ in. (38 x 89 mm)
●Stud center must be verified
●The middle two lag bolts MUST be installed into a wood stud
– this product was not designed to be used in drywall alone
1. Locate the studs using a stud finder.
2. Find the edges of the studs using an awl or small drill bit.
3. Mark the centers of the studs with a pencil.
1/4-20 x 1 ¾ in.
1/4 in.
x2
V1 x2
V2 x2
V3
1/4-20 SNAP Toggle BB .734 x .312 x .065 in.
*Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.
Max.
5/8 in.
(16 mm)
Min.
1 1/2 in.
(38 mm)
Min.
3 1/2 in.
(89 mm)
STEP 2B Wood Stud Option (Single Stud Install)
*
1 2 3

14
06 06
4. Place the wall plate template 06 at your desired height and position the MIDDLE HOLES over your stud center lines. Level the wall plate
template 06 and tape in place.
CAUTION: Avoid potential personal injury or property damage! You MUST install using the center holes in the stud as shown.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.

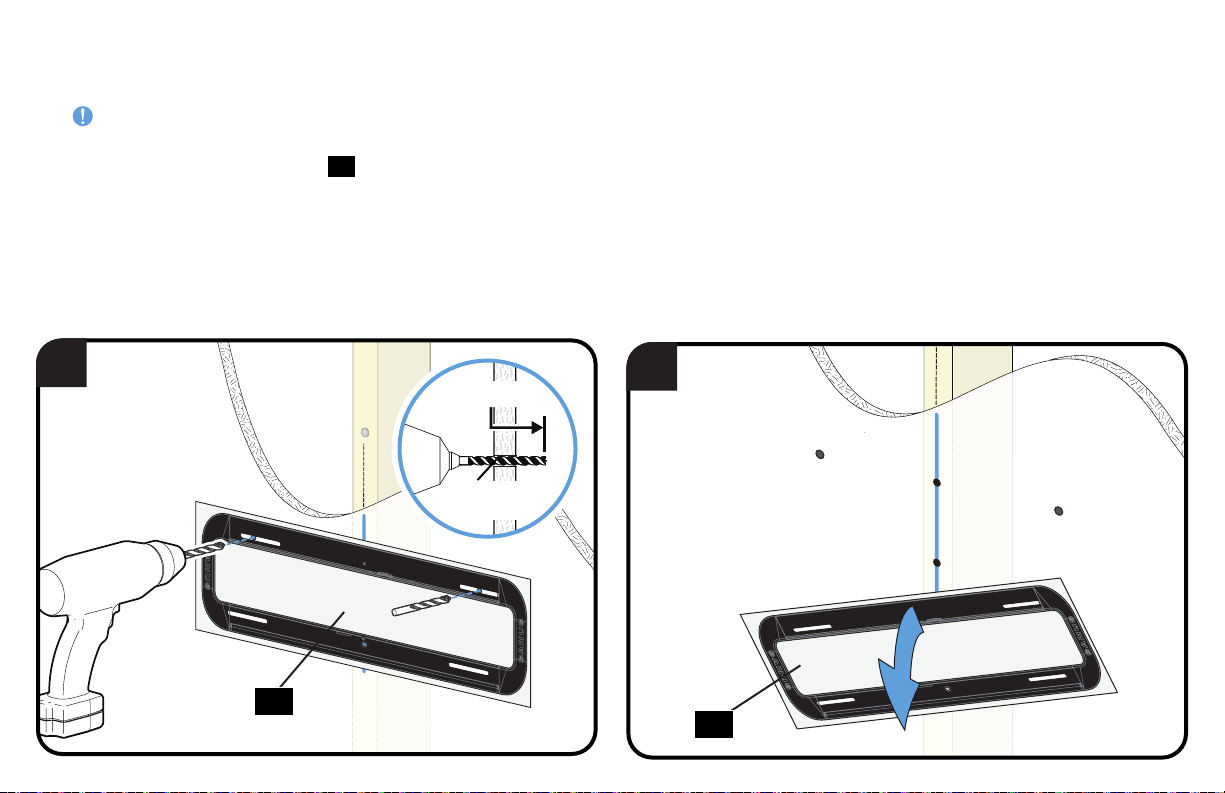

5. Drill the middle two pilot holes (into the stud) using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4 5
3 in. (75 mm)
7/32 in.
(5.5 mm)

15
06
6. Drill the outer top two pilot holes (into the drywall) using a 1/2 in. (13 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 1 in. (25 mm).
7. Remove the wall plate template 06 .
67
1/2 in.
(13 mm)
1 in. (25 mm)
06

16
8 9

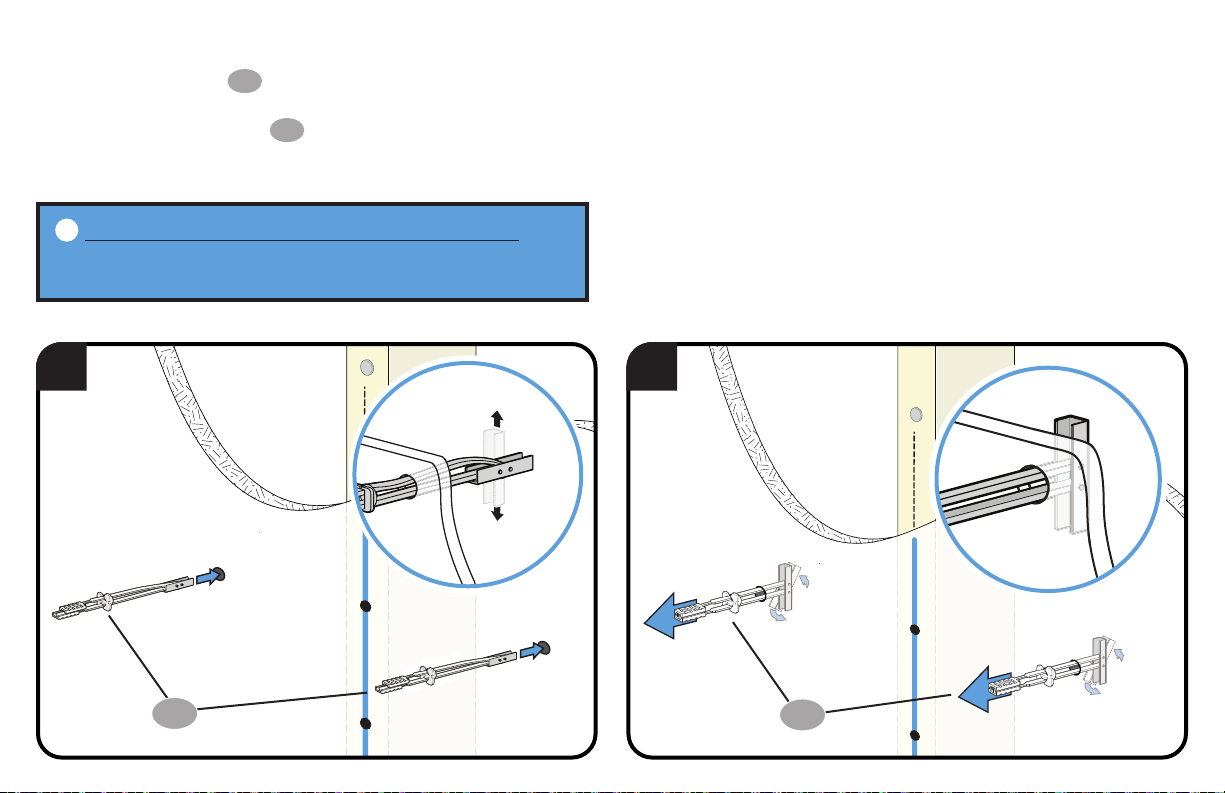

8. Insert two anchors V1 *into the outer top holes (into the drywall).
9. Pull to rotate the anchor V1 *inside the drywall.
V1
V1**
Single Stud Installation Kit VMTMK1 is not included
Contact Customer Service at 1-800-359-5520 to have
the additional hardware shipped directly to you.
*

17
11
10. Hold the end of the anchor V1 *, while sliding the cap Pagainst the drywall.
11. Snap off the ends of the anchor V1 *to lock in place.
CAUTION: Be sure the cap Pis seated against the drywall surface and the ends of the anchor do not extend beyond the cap P-
cut if neccessary.
10
V1
V1
*
*
P
P
P

18
07
C
C
12
12. Slide the covers Copen on the wall plate 07 to expose the mounting holes.
13. Install the middle two washers 08 and lag bolts 09 (into the stud), and firmly tighten until they are pulled flush against the wall plate 07 .
CAUTION: Avoid potential personal injury or property damage! Both lag bolts 09 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 07 .
CAUTION: Avoid potential personal injury or property damage! The middle two lag bolts MUST be installed into a wood stud – this
product was not designed to be used in drywall alone.
07
09
13
08

19
07
C
C
14 15
14. Install the top outer two bolts V2 *and washers V3 *(into the drywall anchors V1 *) and firmly tighten until the bolts are pulled flush
against the wall plate 07 .
CAUTION: Avoid potential personal injury or property damage! Both bolts V2 *MUST BE firmly tightened to prevent unwanted
movement of the wall plate 07 . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
15. Slide the covers Cclosed on wall plate 07 .
Go to STEP 3 on PAGE 27.
V3
V2
07
*
*

20
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate 07 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
●Minimum horizontal space between fasteners: 16 in. (406 mm)

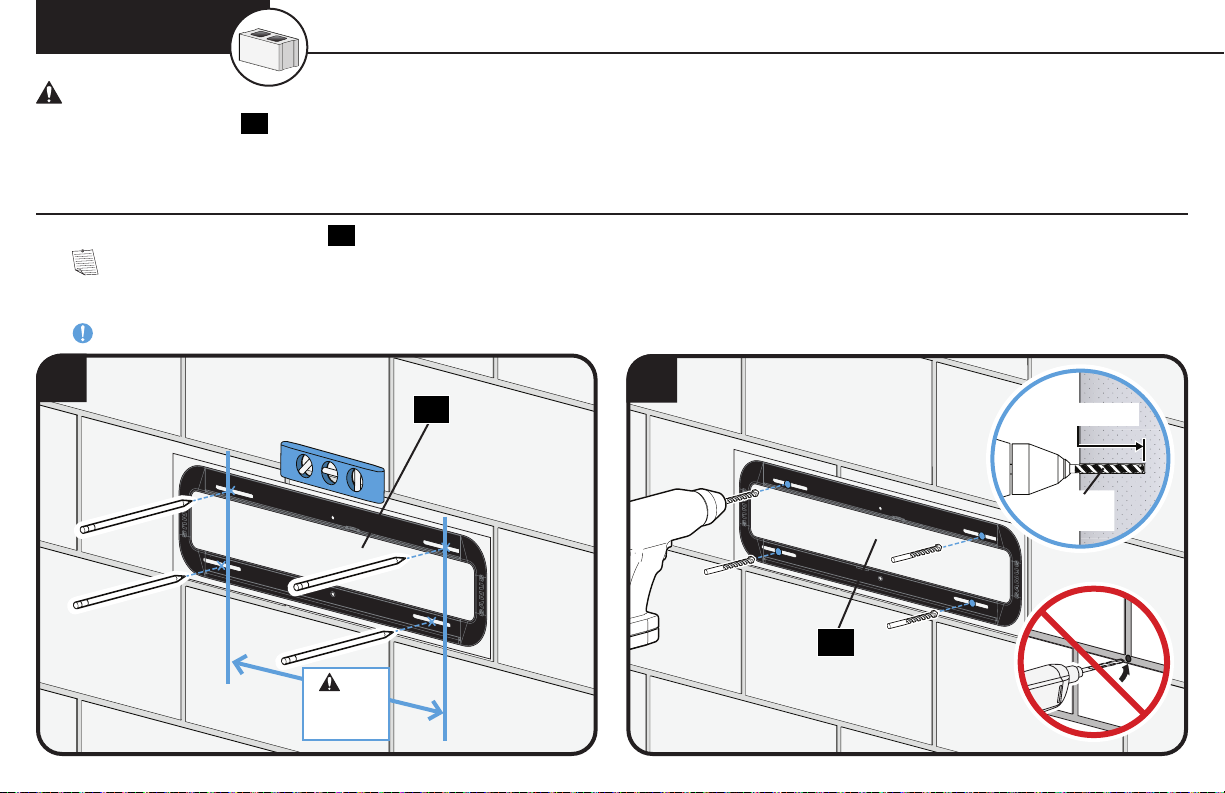

1. Position the wall plate template 06 on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
06
06
12
3/8 in.
(10 mm)
3 in. (75 mm)
Min.
16 in.
(406 mm)
STEP 2C Solid Concrete or Concrete Block Option
