Sanus LLT1 User manual

Para Español ver página 24
LLT1
INSTRUCTION MANUAL
Recommended placement Our US-based
install experts
are standing
by to help.
Call us at:
1-855-734-7805
Get it right the
first time.
HeightFinder™
shows you
where to drill.
Check it out at:
SANUS.com/2850
Want to watch a
video that shows
how easy this DIY
project will be?
Watch it now at:
SANUS.com/2846
WE’RE HERE TO HELP

125 lb
(56.6 kg) 110 lb (49.8 kg)
For walls with:
wood studs, solid concrete,
and concrete block walls
For walls with:
steel studs
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service 1-855-734-7805.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block. For information on how to use this product
with steel stud walls contact Customer Service and ask about the steel stud mounting kit
—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
●This product is designed for INDOOR USE ONLY.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV, plus accessories
weighs MORE than indicated,
this mount is NOT compatible.
Visit SANUS.com or call
customer service to find a
compatible mount.
1-855-734-7805
2

Call Customer Service
1-855-734-7805

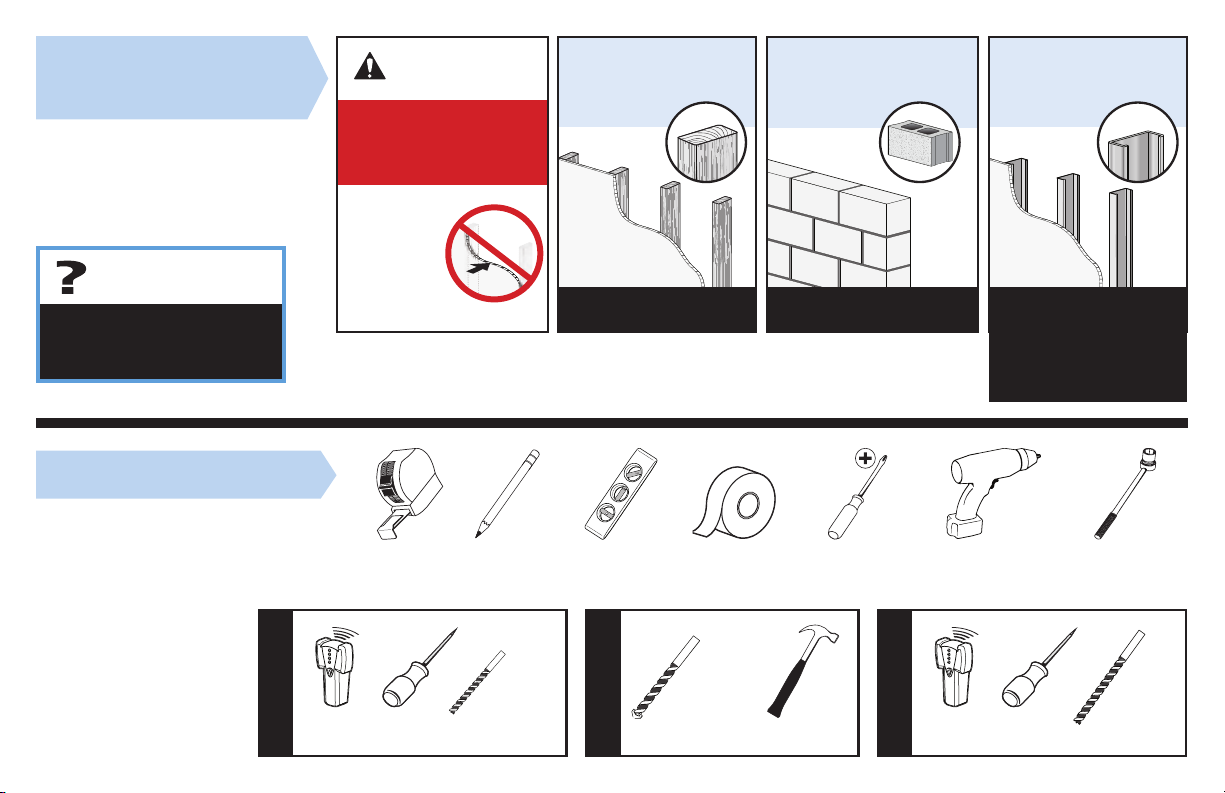

Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall
alone will
NOT hold
the weight
of your TV.
Unsure
wood studs Steel studsSolid concrete or
concrete block
ACCEPTABLE Steel Stud Kit #SSMK1
required (not included)
Call Customer Service to
inquire about the kit.
ACCEPTABLE
Wood Stud Install
Steel Stud Install
Concrete Install
Awl Awl
Pencil Level Tape
Stud
Finder Stud Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
1/2 in.
(13 mm)
Steel
Drill Bit Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
3

4

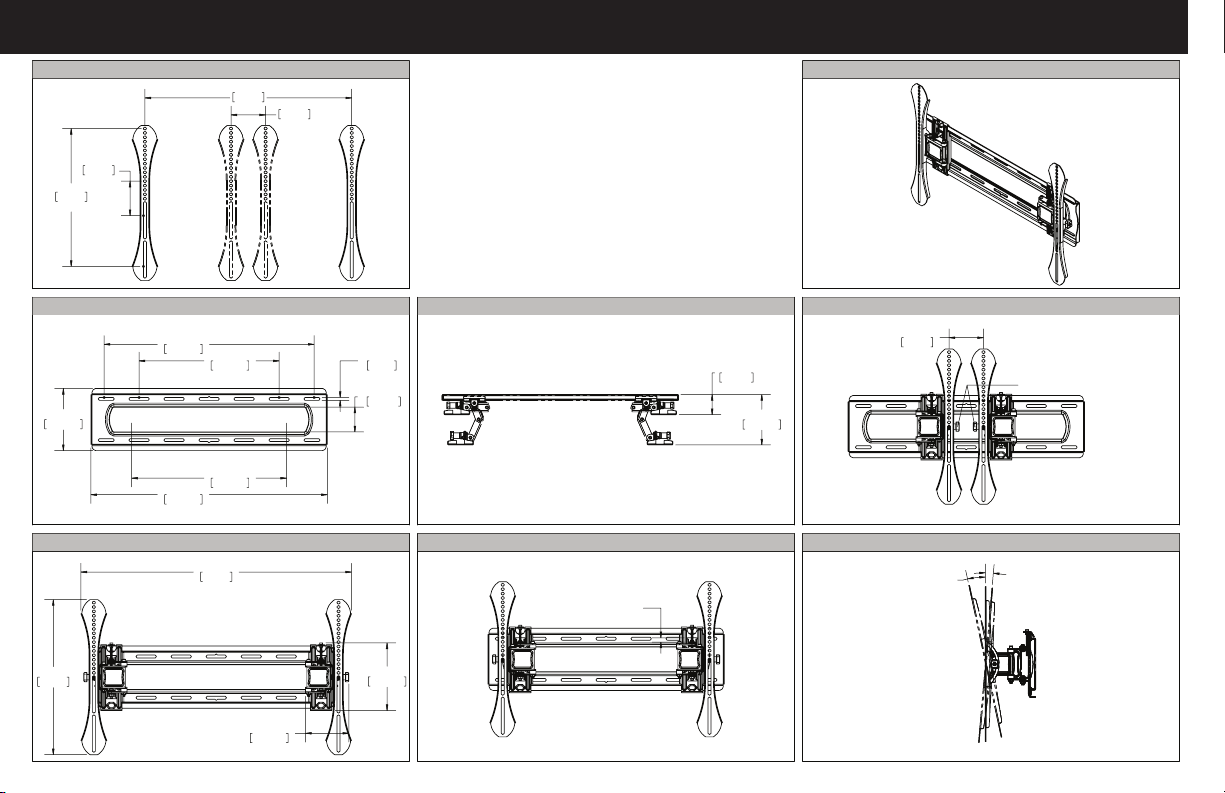

Dimensions in. [mm]
3.94in
100mm
MIN
23.62in
600mm
MAX
15.75in
400mm
MAX
3.94in
100mm
MIN
27.00in
685.9mm
7.10in
180.4mm
17.69in
449.2mm
2.83in
71.8mm
0.33in
8.4mm
16.00in
406.4mm
24.00in
609.6mm
30.91in
785mm
17.72in
450mm
4.95in
125.7mm
7.73in
196.2mm
1.00in
[25.4mm]
TOTAL HEIGHT
ADJUSTMENT
2.30in
58.3mm
5.75in
146.1mm
3.94in
100mm
KNOBS
KNOBS ARE TO ONLY FACE TO THE
INSIDE ONLY IF A 100 X 100 VESA
PATTERN IS REQUIRED FOR INSTALLATION
12deg
5deg
TV INTERFACE
WALL PLATE TOP VIEW
3-D
100 X 100 VESA PATTERN ORIENTATION
SIDE VIEW HEIGHT ADJUST FULLY ASSEMBLED MOUNT

Parts and Hardware for STEP 2
5
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!

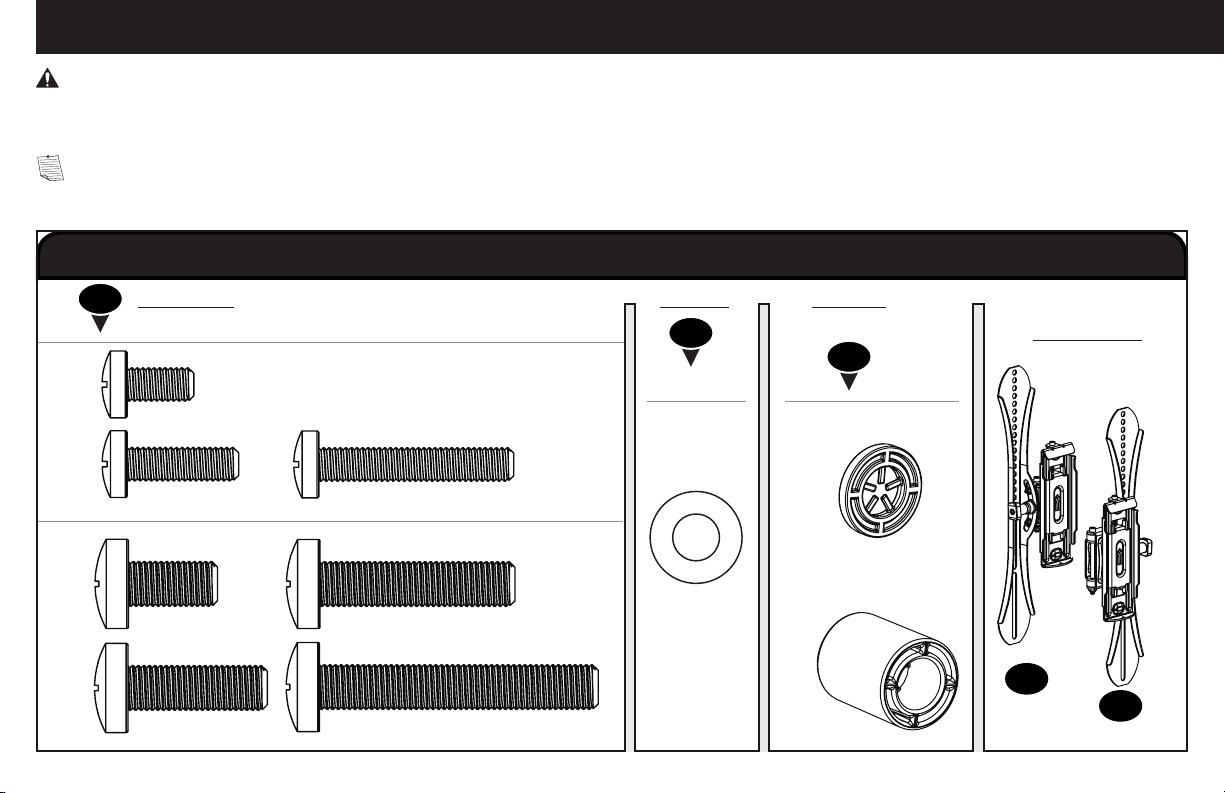

Supplied Parts and Hardware
5/16 x 2¾ in.
5/16 in.
Fischer UX10 x 60R
M5 x 25mm
M8 x 25mm M8 x 50mm
M6 x 12mm
M8 x 16mm
M6 x 35mmM6 x 20mm
M8 x 35mm
TV Brackets
TV Screws
(qty. 4 each) [Only one size fits your TV]
Washer Spacers
[If necessary]
03
02
01
M6/M8 M6/M8
2.5 mm
M6/M8
22 mm
M6
M8
(qty. 1)
04
(qty. 1)
05
(qty. 4)
(qty. 4)
(qty. 8)

M4 M6 / M8
5/16 x 2¾ in.
5/16 in.
Fischer UX10 x 60R
M4
M5 x 25mm
2.5mm
22mm
M8 x 50mm
M6 x 20mm
M6 x 12mm
M8 x 16mm M8 x 25mm
M8 x 20mm
M4 x 12mm
M6 x 35mm
M8 x 35mm
M4 x 35mm
M8 x 45mm
Parts and Hardware for STEP 2
Concrete Anchor
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
Fischer UX10 x 60R
6
(qty. 1)
06
(qty. 1)
07
(qty. 4)
08
(qty. 4)
09
(qty. 4)
10

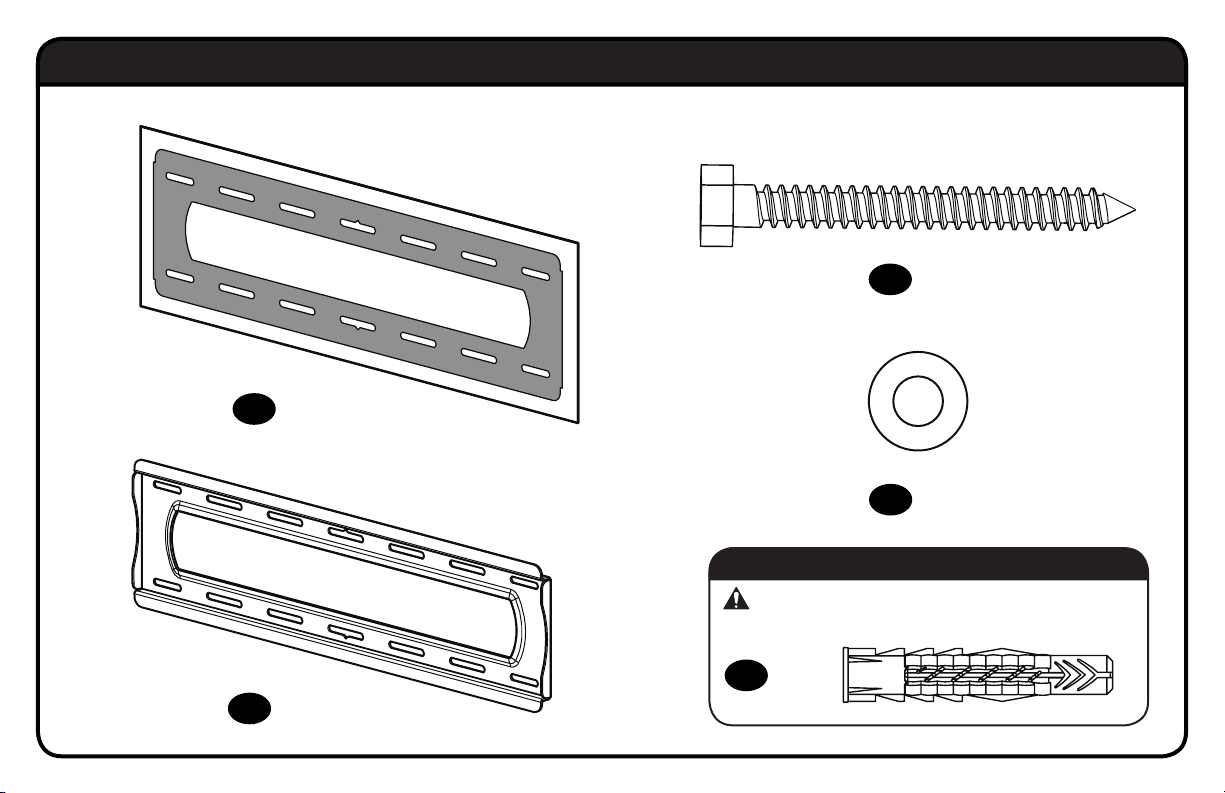

Wall Plate Template
Wall Plate
Lag Bolt
Lag Bolt Washer

Hardware for STEP 2C (not included)
Steel Stud Anchor Kit #SSMK1 (not included)
Contact Customer Service to inquire about the additional hardware.
M4 M6 / M8
5/16 x 2¾ in.
5/16 in.
Fischer UX10 x 60R
M4
M5 x 25mm
2.5mm
22mm
M8 x 50mm
M6 x 20mm
M6 x 12mm
M8 x 16mm M8 x 25mm
M8 x 20mm
M4 x 12mm
M6 x 35mm
M8 x 35mm
M4 x 35mm
M8 x 45mm
Hardware for STEP 3
7
1/4-20 x 1¾ in.
1/4 in.
1/4-20 SnapToggle BB
(qty. 4)
(qty. 4)
(qty. 4)
(qty. 1)
11
(qty. 2)
12
S1
S2 S3

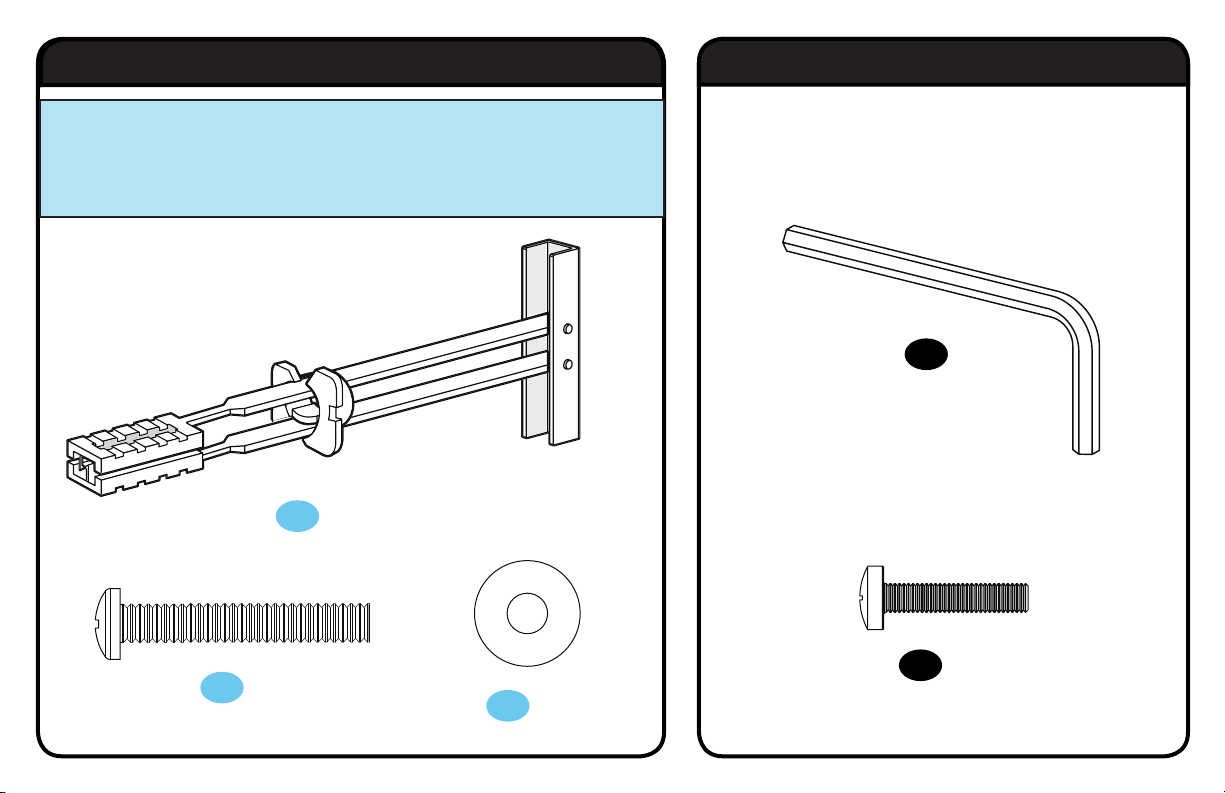

Hex Key
Securement Screw

STEP 1 Attach Brackets to TV
Inset Holes Cables Rounded Back
1.2 Select TV Screw Length and Spacers
• Flat Back TV
[TV brackets 04 /05
lay flat on your TV]
NO SPACER SPACER NEEDED
• Flat Back TV with
Extra Space Needed
[for deep inset holes
or cable interference]
• Rounded or
Irregular Back TV
[TV brackets 04 /05
NOT resting flat on your TV]
A B
Use short TV screws 01 .
Spacers 03 not needed.
Use long TV screws 01 and spacers 03 to
create extra space between the TV and TV bracket.
CAUTION: Verify adequate thread engagement with your
screw 01 , washer 02 , spacer 03 combination AND TV brackets 04 /05 .
—Too short will not hold your TV. —Too long will damage your TV.
Too Short
Too Long
Correct
1.1 Select TV Screw Diameter
Only one screw size fits your TV.
M6 M8
01
8

Center the TV brackets 04 and 05 over your TV hole pattern - making sure the brackets are level.
IMPORTANT:The tilt tension knob Ton TV brackets 04 and 05 should normally be oriented to the outside edges, EXCEPT for
TVs with 100 mm (4 in. wide) mounting hole spacing - these TVs require switching the TV brackets 04 and 05 .
Install using the spacer, TV screw and washer combination Aor Byou selected for your TV.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to
secure the TV bracket to the TV. DO NOT overtighten the screws.
1.3 Attach Brackets to TV
NO SPACER
SPACER NEEDED
A
B
05
04
02
02
01
01
ONLY for 100mm (4 in.)
TV mounting hole spacing,
switch the TV brackets 04
and 05 on your TV.
100mm (4 in.)
04
05
T
03
9
If your TV included
inset spacers or wall mount
adapters, use them
UNDER the
mount hardware.
T
T

10
12
≤16 mm
(5/8 in.)
406-610 mm
(16-24 in.)
06
STEP 2A Attach Wall Plate Wood Stud Installation
CAUTION: Avoid potential personal injury or property damage!
●Drywall covering the wall must not exceed 16 mm (5/8 in.)
●Minimum wood stud size: nominal 51 x 102 mm (2 x 4 in.) actual 38 x 89 mm (1 ½ x 3 ½ in.)
●Minimum horizontal space between fasteners: 406 mm (16 in.)
●Stud centers must be verified
NOTE: TV with brackets can be shifted to the left or right from
center. Consider this when selecting the location of your wall mount.

11
3 4
3 in. (75 mm)
7/32 in.
(5.5 mm)

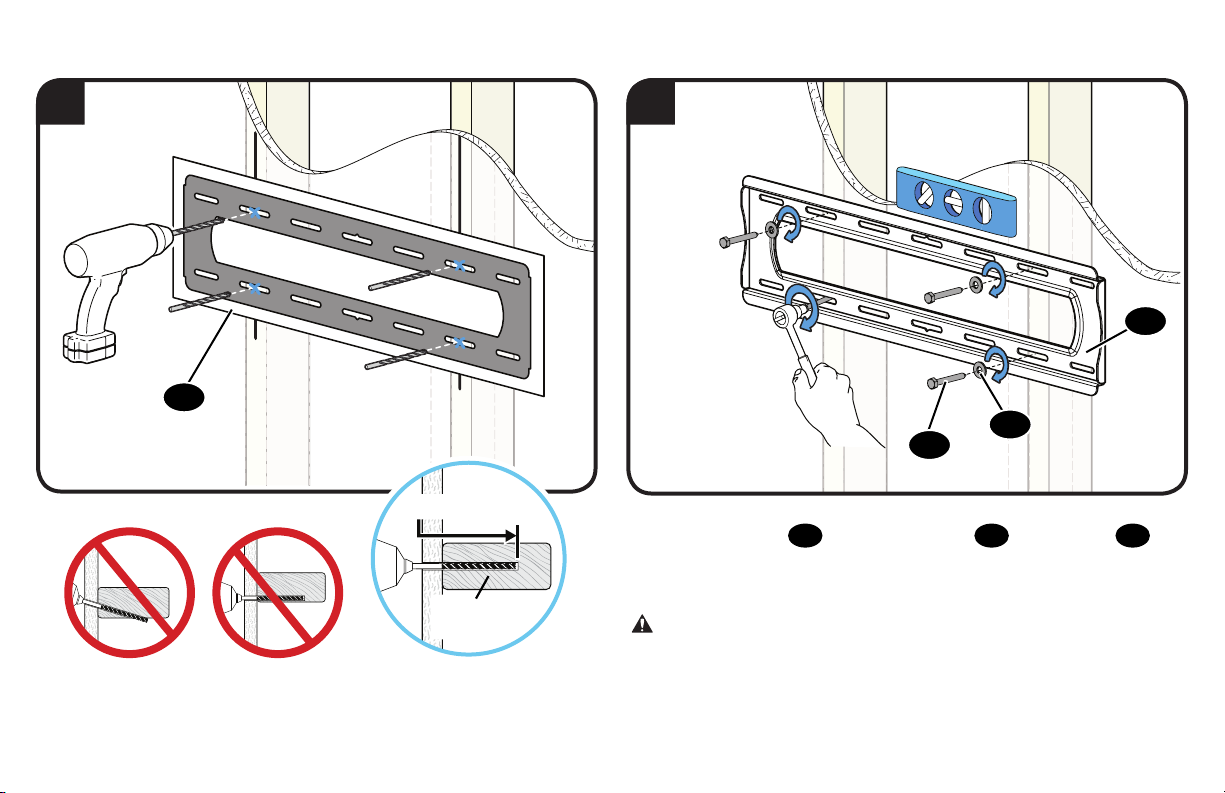

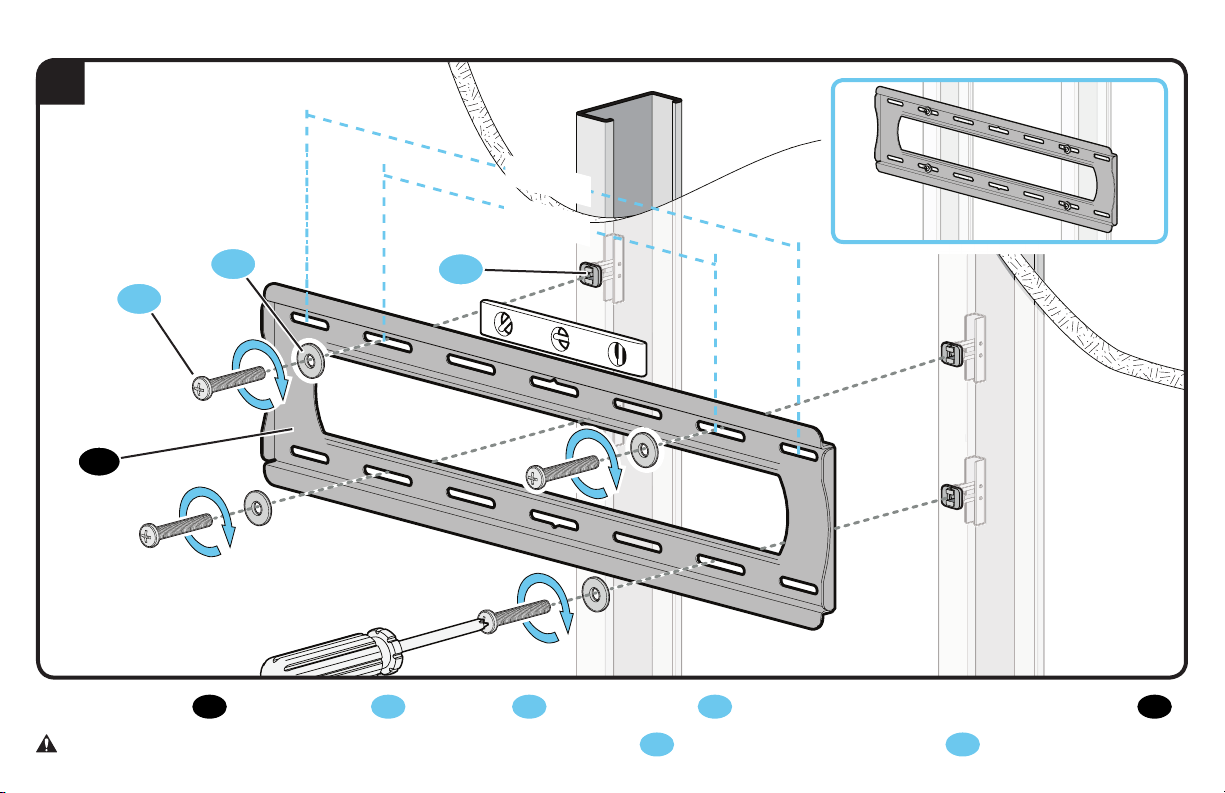

Install the wall plate 07 using four lag bolts 08 and washers 09 .
Tighten all lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the
lag bolt. DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 19.
06
08 09
07

12
1 2
3/8 in.
(10 mm)
3 in. (75 mm)
CAUTION: Avoid potential personal injury or property damage!
●Mount the wall plate 07 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
●Minimum horizontal space between fasteners: 24 in. (610 mm)
STEP 2B Attach Wall Plate
Solid Concrete or Concrete Block Installation
002862.eps
24 in.
(610 mm)
06
06
NOTE: TV with brackets can be shifted to the left or right from
center. Consider this when selecting the location of your wall mount.

13
3 4
Install the wall plate 07 using four lag bolts 08 and washers 09 .
Tighten all lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the
lag bolt. DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 19.
09
08
10
07

CAUTION: Avoid potential personal injuries and property damage!
●Studs must be at least 2x4 in. / 25 ga.
●If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount
●Drywall must be a minimum of 1/2 in. (13 mm) thick on each side of the studs, and a minimum clearance of 1 ⅞in. (48 mm) behind the wall is required
●Pilot holes MUST be drilled to a depth of 1 in. (26 mm), using a 1/2 in. (13 mm.) diameter drill bit
●This product must be centered on the studs
●Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural
Members [362 S 125 18, C-Shape, S - Stud Section]
●Drywall must be secured to studs with screws 12 in. (304.8 mm) on center

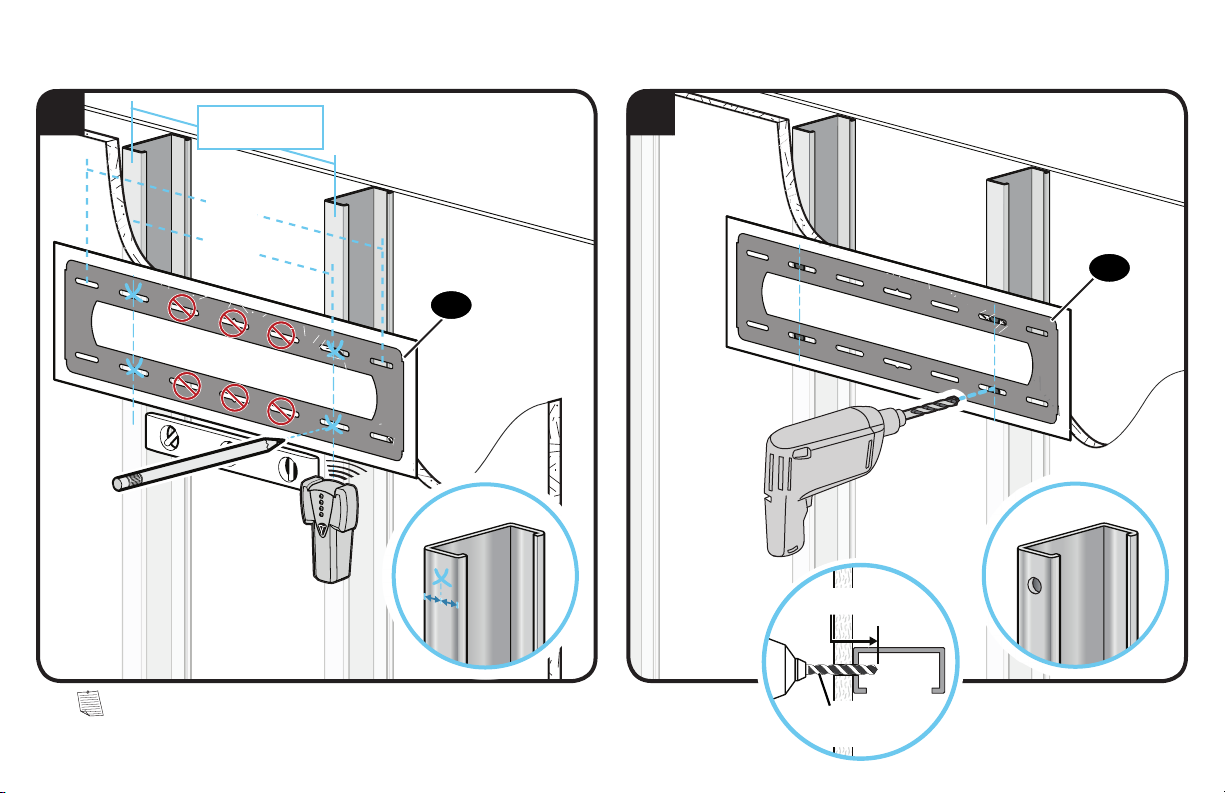

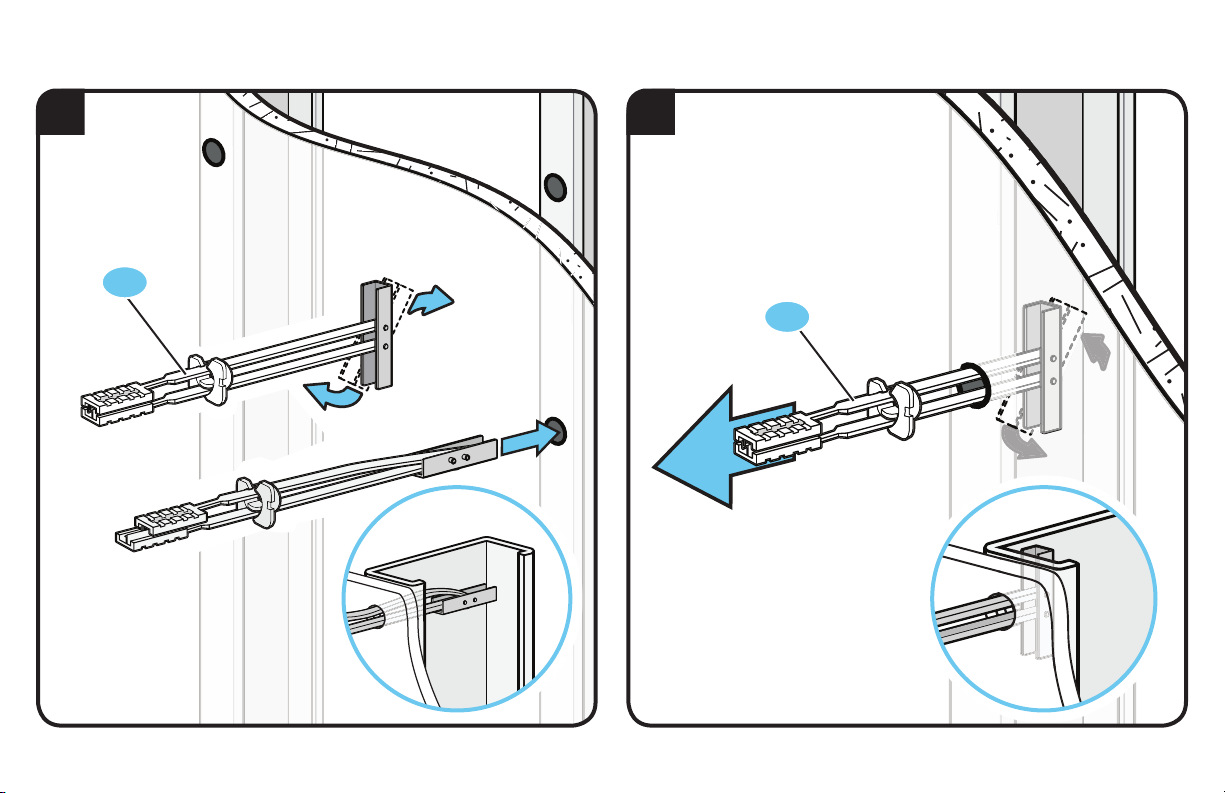

STEP 2C Attach Wall Plate
Steel Stud Installation
Steel Stud Anchor Kit (not included) - Contact Customer Service at 1-855-734-7805 to inquire about the additional hardware.
14
1/4-20 x 1¾ in.
1/4 in.
1/4-20 SnapToggle BB
S1 x4 S2 x4
S3 x4

24 in.
(609 mm)
16 in.
(406 mm)
24 in.
(609 mm)
16 in.
(406 mm)
21
24 in.
(609 mm)
16 in.
(406 mm)
24 in.
(609 mm)
16 in.
(406 mm)
16 in. (406 mm)
24 in. (609 mm)
1 in. (25 mm)
1/2 in.
(13 mm)
15
06
06
NOTE: TV with brackets can be shifted to the left or right from
center. Consider this when selecting the location of your wall mount.

3 4
S1
S1
16

56
S1
S1
17

24 in.
(609 mm)
16 in.
(406 mm)
7
S2
S3 S1
18
07
Install the wall plate 07 using four screws S2 and washers S3 . Tighten all screws S2 only until they are pulled firmly against the wall plate 07 .
CAUTION: Improper use could reduce the holding power of the screws S2 . DO NOT over-tighten the screws S2 .

19

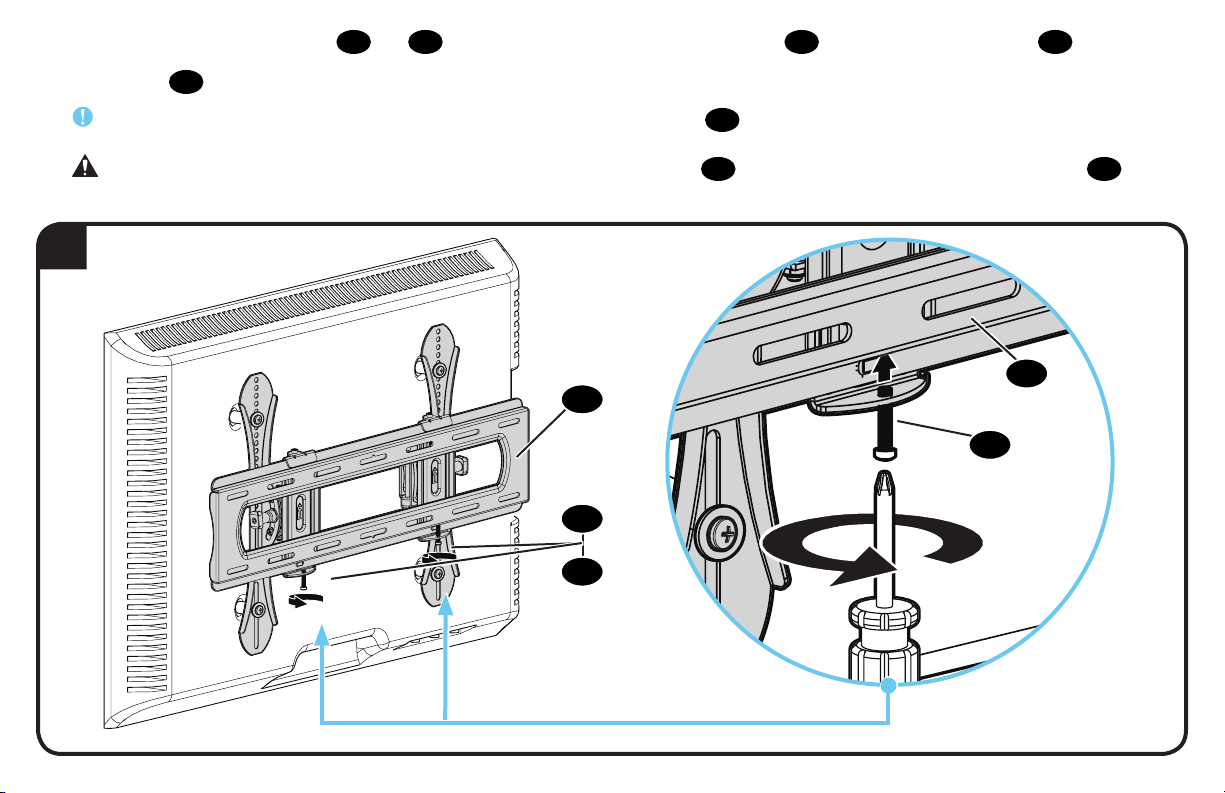

STEP 3 Hang TV onto Wall Plate
1

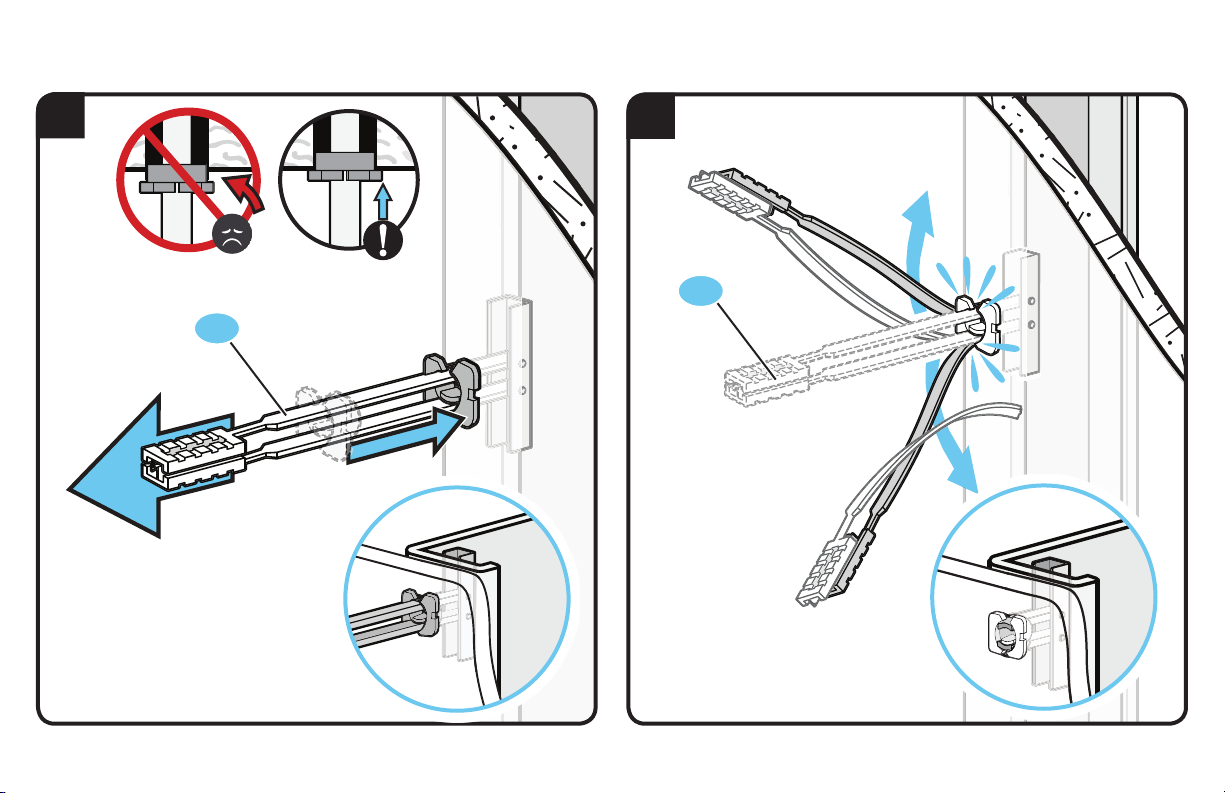

1. Install the TV / Bracket assembly by fitting the top hooks of BOTH TV brackets 04 and 05 over the top edge of the wall plate 07 .
TIP: Tilt TV brackets 04 and 05 as shown for ease of installation.
HEAVY! You may need assistance with this step.
07
07
07
04
04
05
05
04
04
04
05
05
05

20
2
12
07
2. Swing the TV/mounting brackets 04 and 05 down until they rest against the wall plate 07 . Install securement screws
12
to secure arm
to wall plate 07 .
IMPORTANT: BEFORE MOVING YOUR TV, securely tighten down screws 12 to properly install the assembly.
CAUTION: Avoid potential personal injuries or property damage! Screws 12 must be installed to secure arms to wall plate 07 .
Periodic tightening may be required.
05
04
07
