Sanus VMF518 User manual

THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
Scan for easy
install video
VMF 518 Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.

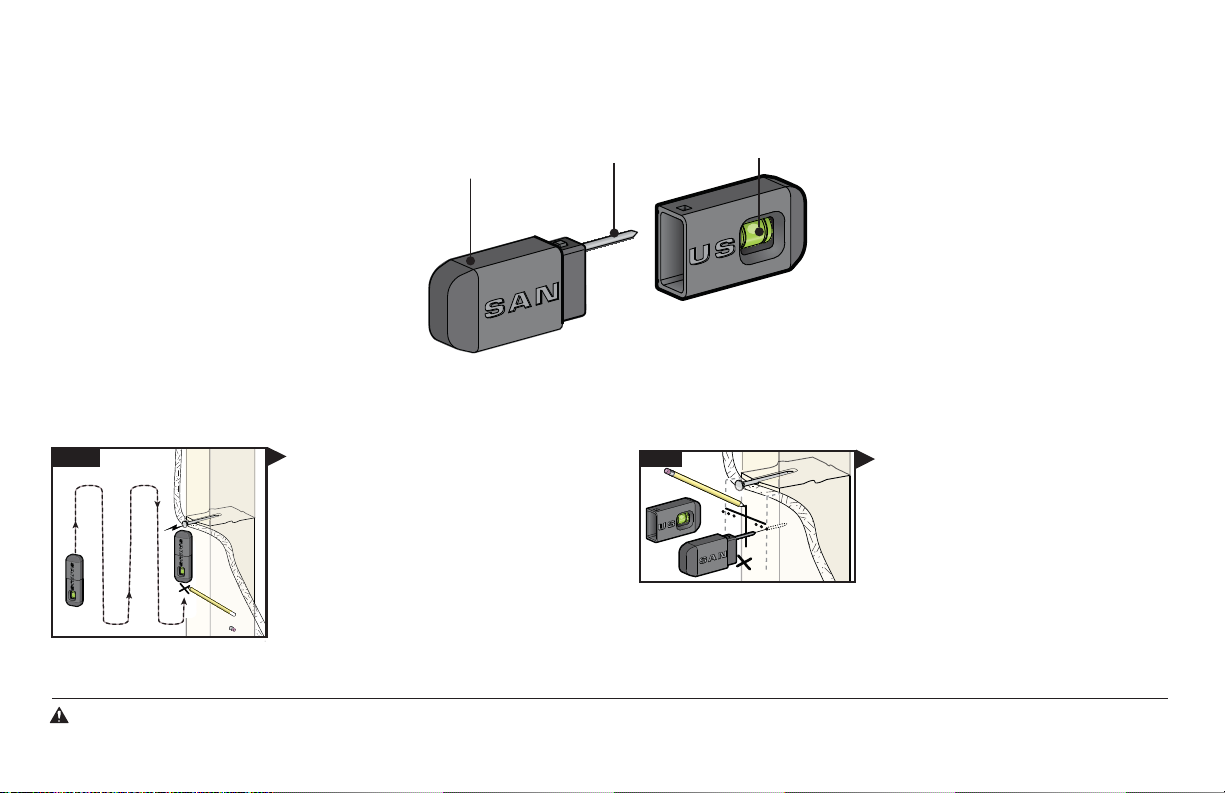

SANUS MAGNETIC STUD FINDER Designed to find your studs and make life easier– included in hardware kit.
TWO SIMPLE STEPS TO FINDING YOUR STUDS:
Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling

3
VMF518
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your
wall made of? Unsure?
Drywall with
wood studs?
Solid concrete or
concrete block?
75 lb
(34 kg)
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Call Customer Service:
1-800-359-5520 (UK: 0800-056-2853)
Perfect! Perfect!
Ready to
begin?
Does your TV weigh
more than 75 lb
(34 kg) including
accessories?
7/32 in.
(5.5 mm)
Wood
Screwdriver Tape Measure Drill Bit Drill Bit Electric Drill Hammer Socket Wrench
3/8 in.
(10 mm)
Concrete 1/2 in.
(13 mm)

5
STEP 1 Attach Bracket to TV
Horizontal TV Bracket
Vertical
TV Bracket
01 x2
02 x1
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
M4x35 mm
M5x35 mm
M6x35 mm
M8x35 mm
04
06
07
x4
x4
x4
03
05
08 09
x4 x4
x4
x4
TV Screws TV Washers
Spacers
M8x45 mm
S
10
11
x4
x4
Thumb Screws

6

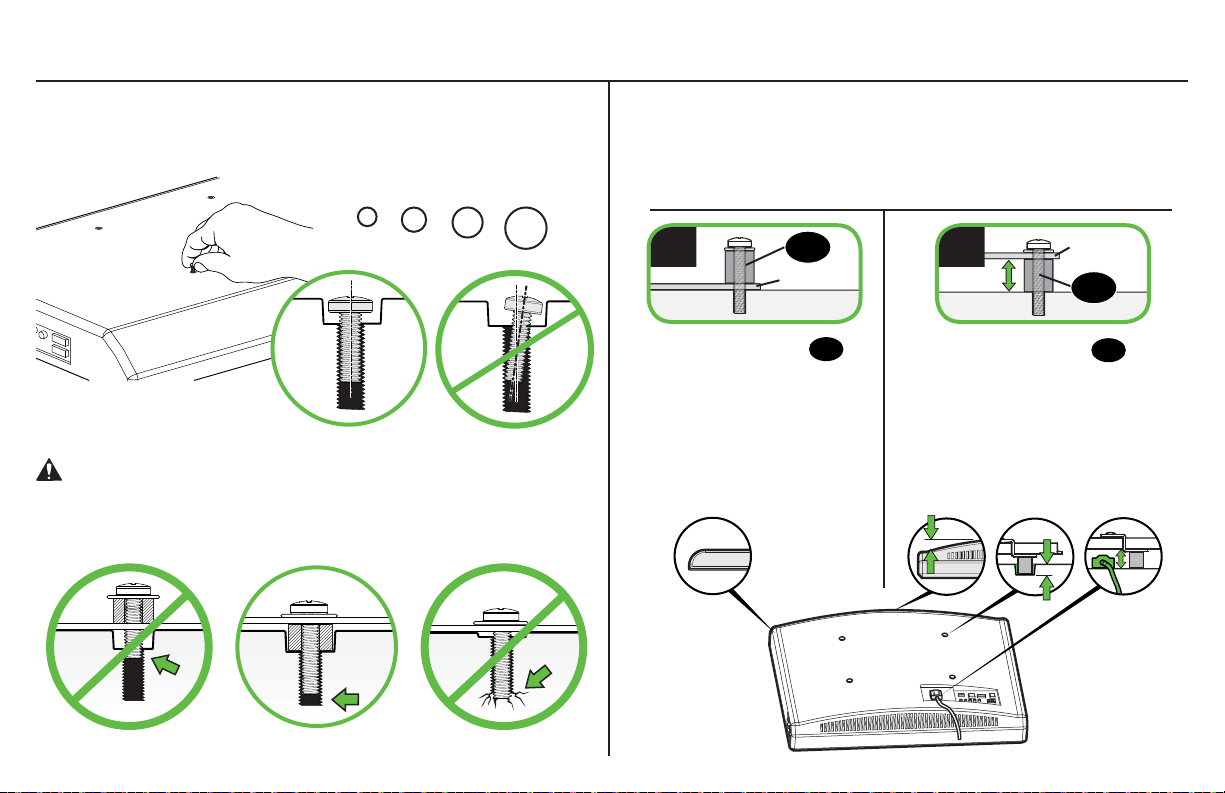

1-1 Select TV Screws
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M5, M6, or M8) to use.
1-2 Spacers
Mount the spacers 10
above the TV bracket,
so the TV bracket sits
close to the TV surface
for flat back panels.
Mount the spacers 10
under the TV bracket to
create extra space needed
for irregular shape TV
backs or large cables.
Spacers and screws are supplied to install your TV bracket.
Determine your preference for spacer configuration when
attaching your TV bracket.
Round Back CablesInset HolesFlat Back
TV Bracket
TV Bracket
10
10
ab
M4 M6 M8M5
CAUTION: Verify adequate thread engagment of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
Too Short Correct Too Long

7
1-3 Attach TV Brackets
0102 01 02
1. Slide the horizontal TV brackets 01 over the ends of the vertical TV bracket 02 .
NOTE: The horizontal and vertical TV brackets must be oriented in the positions shown.
2. Position TV bracket assembly over your TV hole pattern, center horizontally and loosely
install using the spacer, screw and washer combination you selected for your TV.
Pin
aSpacer, screw and washer
bSpacer, screw and washer
10
10
08
08
09
09
03
03
04
04
05
05
06
06
07
07
If your TV included inset spacers or wall mount adapters,
see Troubleshooting on PAGES 22-23.
Standard configurations are shown. For
special applications, or if you are uncertain
about your hardware selection, contact
Customer Service at 1-800-359-5520 .
1 2

8
02
Screws
0101
01 01
3. Vertically center TV bracket 02 .
4. Visually line up the locator holes Lin the horizontal TV brackets 01 with a hole in the vertical TV bracket 02 and install using four screws 11 .
5. Tighten the four screws (PAGE 7) on the horizontal TV brackets 01 .
01
01
02
02
L
L
11
11
345

9
STEP 2 Attach Arm Assembly/Wall Plate to Wall
For wood stud installations, follow STEP 2A on PAGE 10
For concrete installations, follow STEP 2B on PAGE 14
5⁄16 in. x 2 3⁄4 in.
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter
defibrillator (ICD) is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an
implanted medical device, keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.

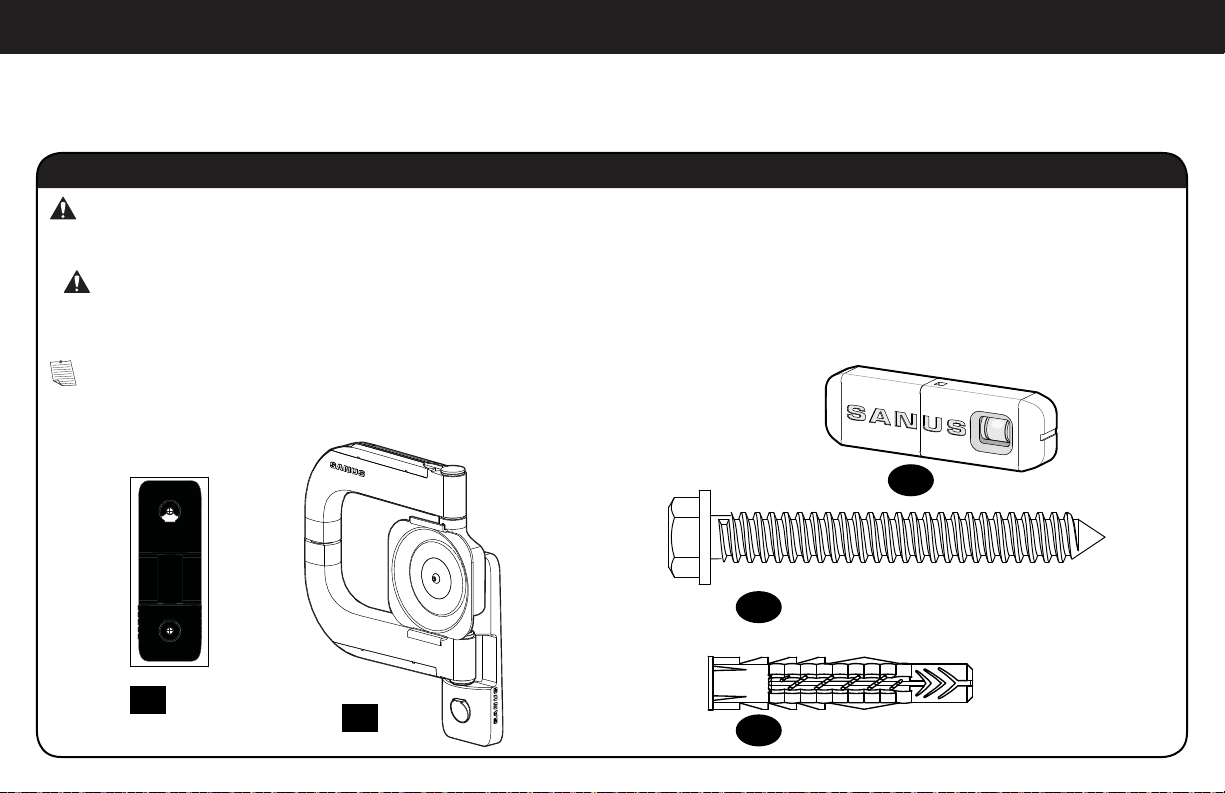

Parts and Hardware for STEP 2
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
*Sanus Magnetic Stud Finder
15 x2
12 x1 13 x1
14 x1
16 x2
Arm Assembly/Wall Plate
Wall Plate
Template
Lag Bolts
Concrete Anchors

10
2
3
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed
5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in.
(51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
●Stud center must be verified

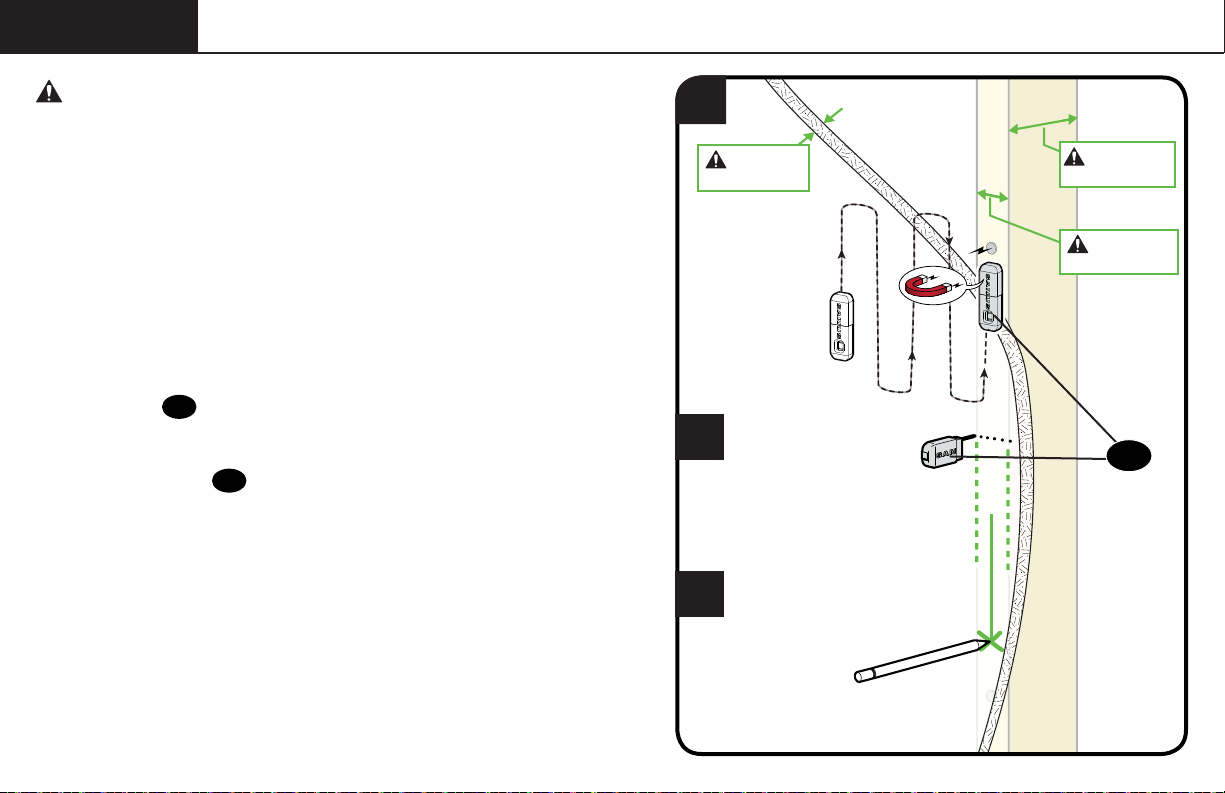

1. Locate a nail/screw in the stud using the Sanus magnetic
stud finder 14 provided.
2. Find the edges of the stud using the probe
of the stud finder 14 .
3. Mark the center of the stud with pencil.
14
STEP 2A Wood Stud Option
1
Max. 5/8 in.
(16 mm) Min. 3 1/2 in.
(89 mm)
Min. 1 1/2 in.
(38 mm)

11

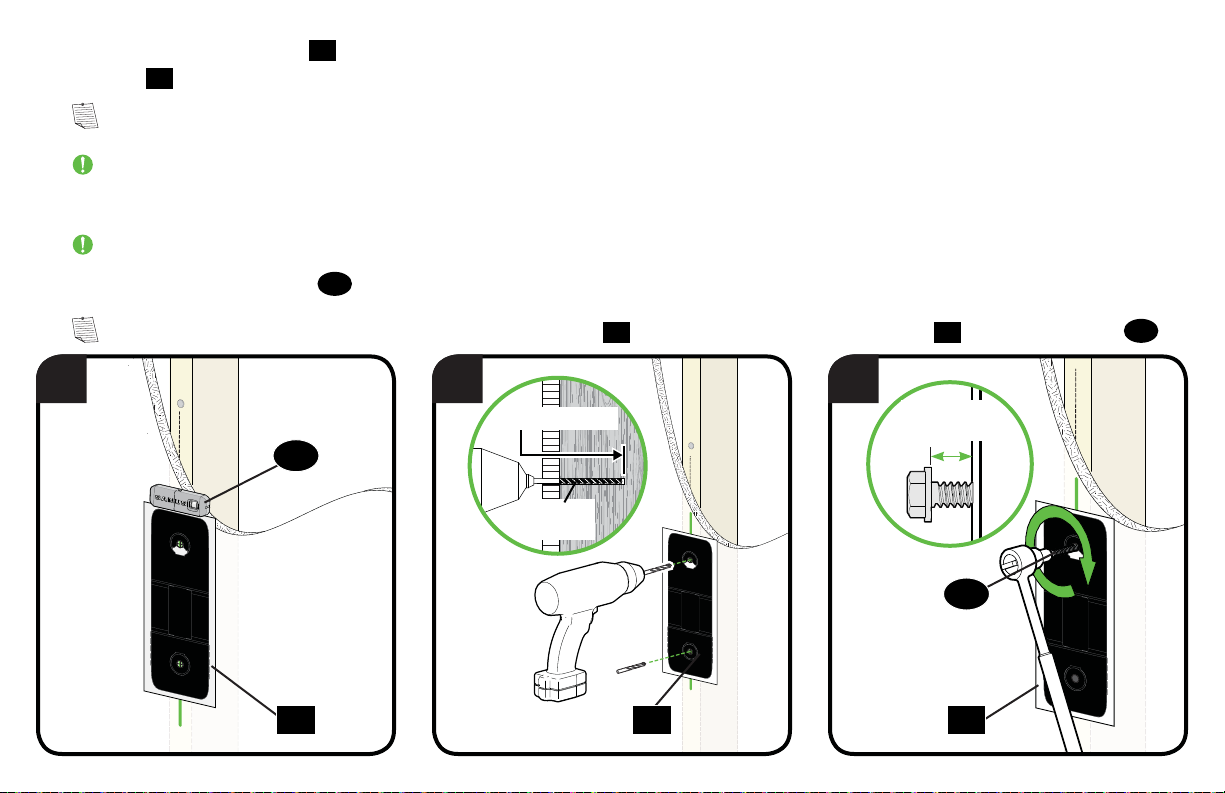

4. Place the wall plate template 12 at your desired height and position the slotted holes over your stud center line. Level the wall plate
template 12 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the two pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
6. Partially install the top lag bolt 15 ,leaving about 1/2 in. (13 mm) space from the wall.
NOTE: This space allows you to remove the wall plate template 12 and hang the arm assembly/wall plate 13 onto the top lag bolt 15 .
12
14
15
1212
4 5 6
3 in. (75 mm)
7/32 in.
(5.5 mm)
≈ 1/2 in.
(13 mm)

12

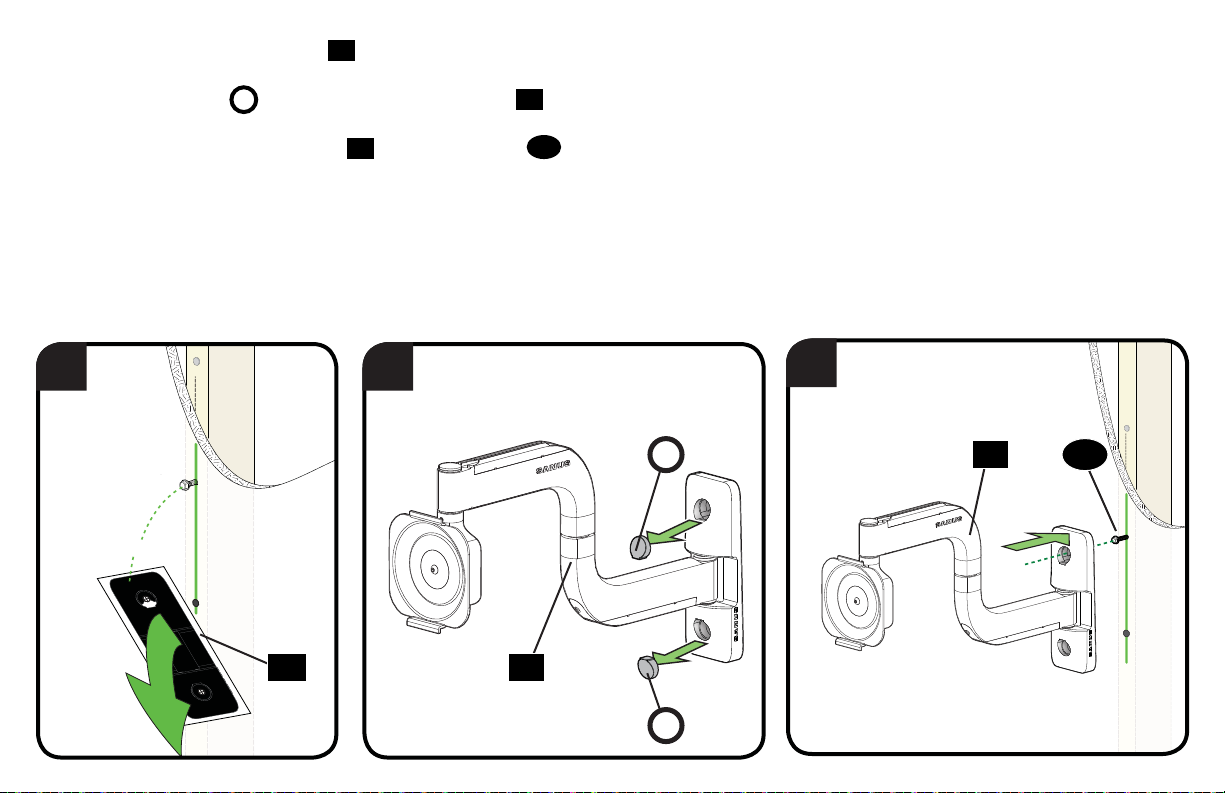

7. Remove the wall plate template 12 .
8. Remove the covers Con the arm assembly/wall plate 13 .
9. Hang the arm assembly/wall plate 13 on the top lag bolt 15 .
13
1312
15
C
7 8 9
C

13
10. Install the bottom lag bolt 15 . Firmly tighten both lag bolts 15 until they are pulled flush against the arm assembly/wall plate 13 .
NOTE: Hold the arm assembly/wall plate 13 in place when tightening the first lag bolt 15 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! Both lag bolts 15 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 13 . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
11. Install the covers Con arm assembly/wall plate 13 .
Go to STEP 3 on PAGE 17.
13
15 13
C
C
10 11

14
CAUTION: Avoid potential personal injuries and property damage!
●Mount the arm assembly/wall plate 13 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
1. Position the wall plate template 12 on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill two pilot holes using a 3/8 in. (10 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
3. Remove the wall plate template 12 and insert two anchors 16 .
Solid Concrete or Concrete Block OptionSTEP 2B
12
12
16
12
14
1 2 3
3/8 in.
(10 mm)
3 in. (75 mm)

15

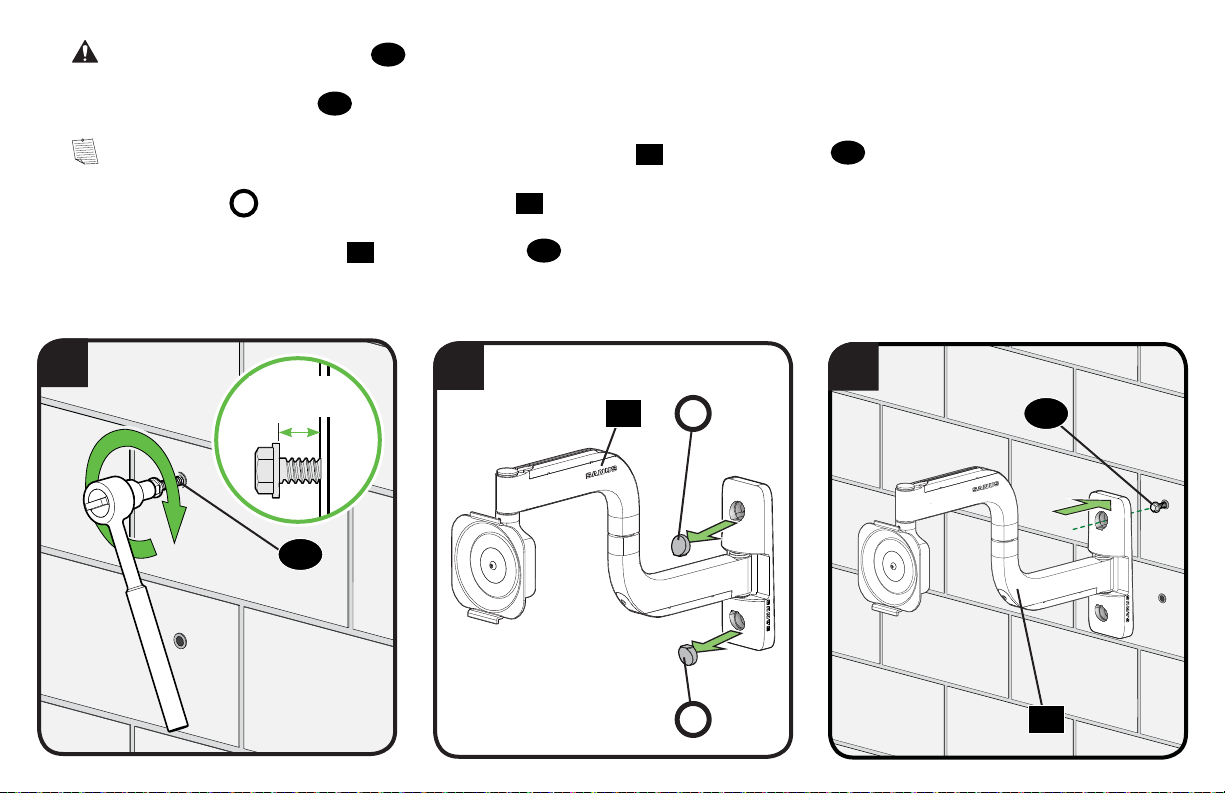

CAUTION: Be sure the anchors 16 are seated flush with the concrete surface.
4. Partially install the top lag bolt 15 , leaving about 1/2 in. (13 mm) space from the wall.
NOTE: This space allows you to hang the arm assembly/wall plate 13 onto the top lag bolt 15 .
5. Remove the covers Con the arm assembly/wall plate 13 .
6. Hang the arm assembly/wall plate 13 on the top lag bolt 15 .
15
13
13
15
C
C
456
≈ 1/2 in.
(13 mm)

16
7. Install the bottom lag bolt 15 . Firmly tighten both lag bolts 15 until they are pulled flush against the arm assembly/wall plate 13 .
NOTE: Hold the arm assembly/wall plate 13 in place when tightening the first lag bolt 15 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! Both lag bolts 15 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 13 . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
8. Install the covers Con arm assembly/wall plate 13 .
13
15
13
C
C
7 8

17
HEAVY! You may need assistance with this step.
STEP 3 Hang TV onto Arm Assembly/Wall Plate
1. Position the arm assembly/wall plate 13 so the elbow is pressed against the wall.
2. Pull out the release pin Pon vertical TV bracket 02 and turn counterclockwise until the pin locks in place.
13 02 P
1 2

18
3. Hang the TV onto the arm assembly/wall plate 13 by hooking onto the top support T.
4. Press the bottom of the TV into the arm assembly/wall plate 13 until the safety catch locks the TV in place.
5. Turn the release pin Pclockwise until the pin springs back into place and locks the release cord.
CAUTION: Avoid potential personal injury or property damage! Always make sure the release pin Pis fully seated and the release
cord is locked, so the TV is securely fastened to the arm assembly/wall plate 13 .
13
T
T P
13
02
P
3
4
5

19
Route your TV cables along the arm assembly/wall plate 13 and press into the channels in the arm as shown.
Manage Cables
Cables
13

20
Adjustments
TILTLEVEL
Your TV should adjust easily when
moved, then stay in place.
Adjust the tension screw Sif your
TV is too loose or too tight.
NOTE: Once your TV is in place, you
can tighten the tension screw Sto
prevent unwanted movement.
Your TV should adjust easily when moved, then
stay in place.
Adjust the tension screw Sif your TV naturally
tilts up or down.
NOTE: If you do not intend to adjust the tilt for
different viewing locations, you can , tighten the
tension screw Sto prevent unwanted movement.
Tighten
Loosen
S
