Sanus CLASSIC MLT14 User manual

MLT14 Instruction Manual

2
Unsure? Call 1-800-359-5520
(UK: 0800-056-2853)
Does your TV weigh more than 130 lb (58.9 kg) including accessories?
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
130 lb
(58.9 kg)
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
1
2
3
4

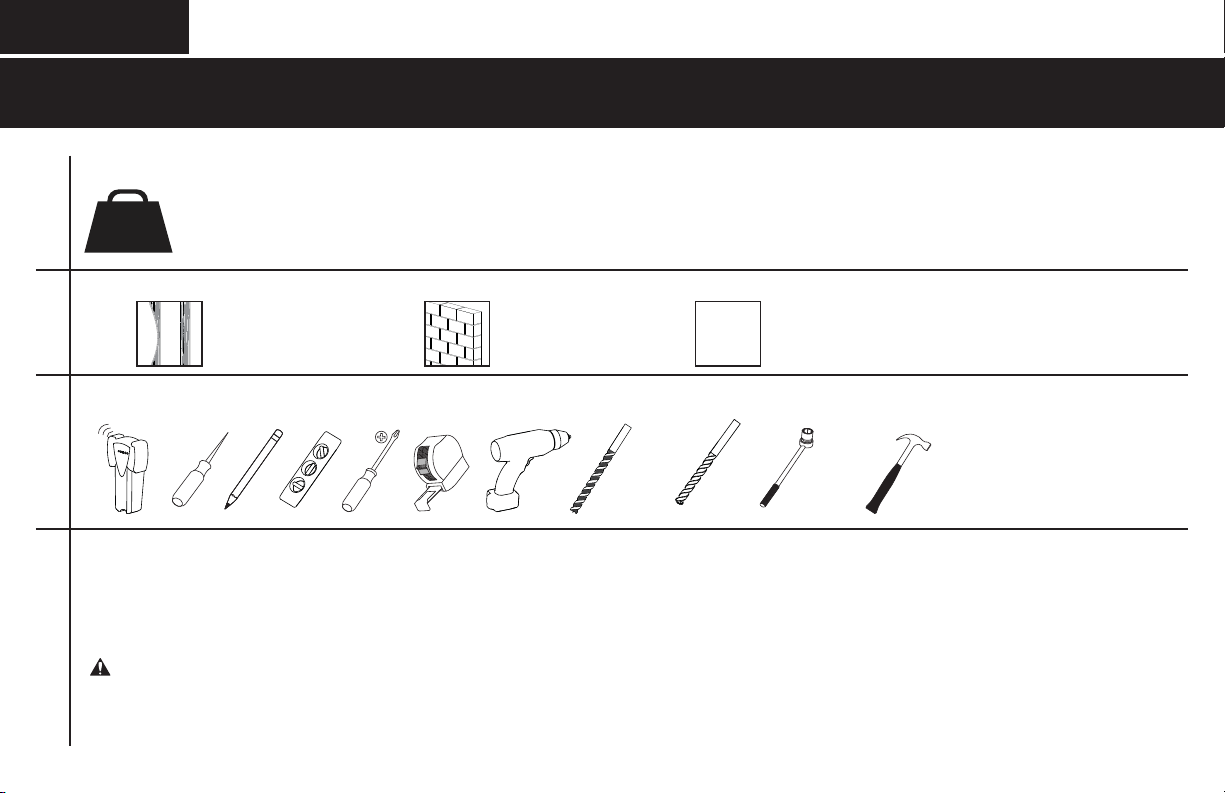

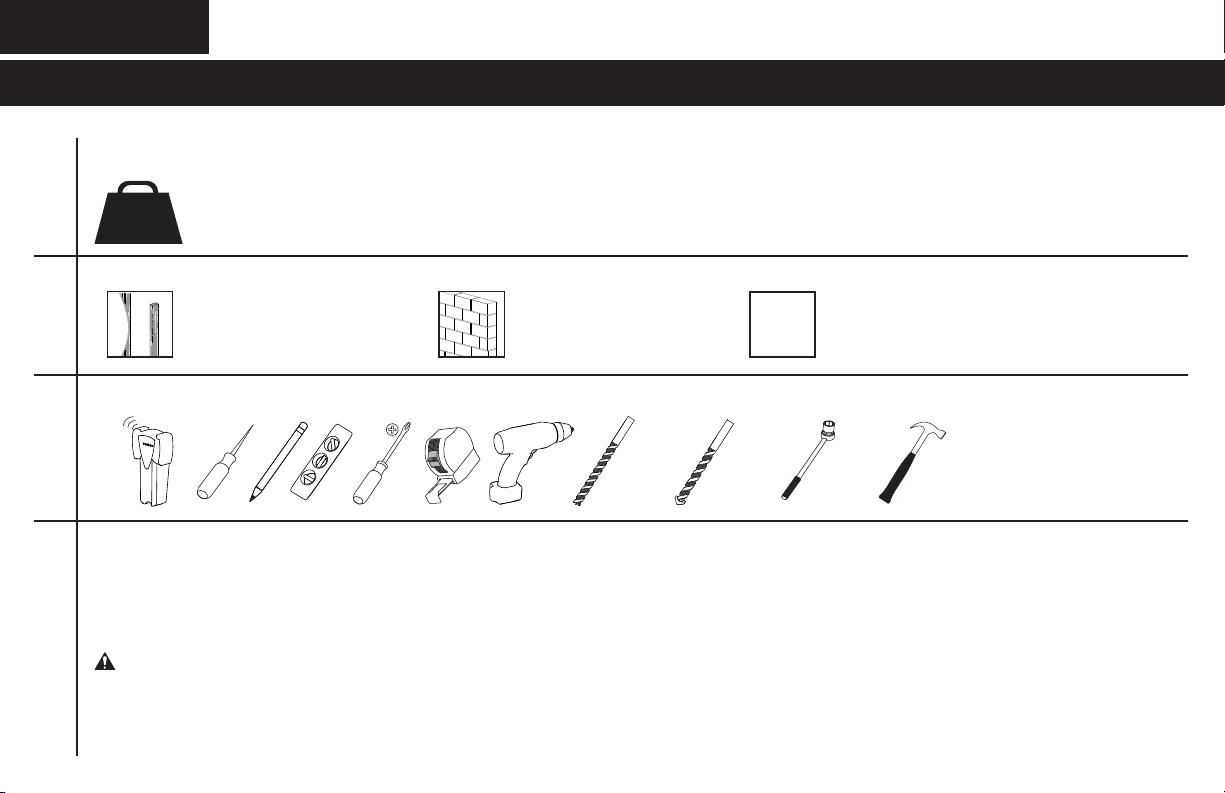

What is your wall made of?
Drywall with
wood studs? Perfect! Solid concrete or concrete block? Perfect! ?
CAUTION: Avoid potential personal injuries and property damage!
• This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
• The wall must be capable of supporting five times the weight of the TV and mount combined
• Do not use this product for any purpose not explicitly specified by manufacturer
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Do you have all of the tools needed?
7/32 in.
(5.5 mm)
Wood
1/2 in.
(13 mm)
3/8 in.
(10 mm)
Concrete

3

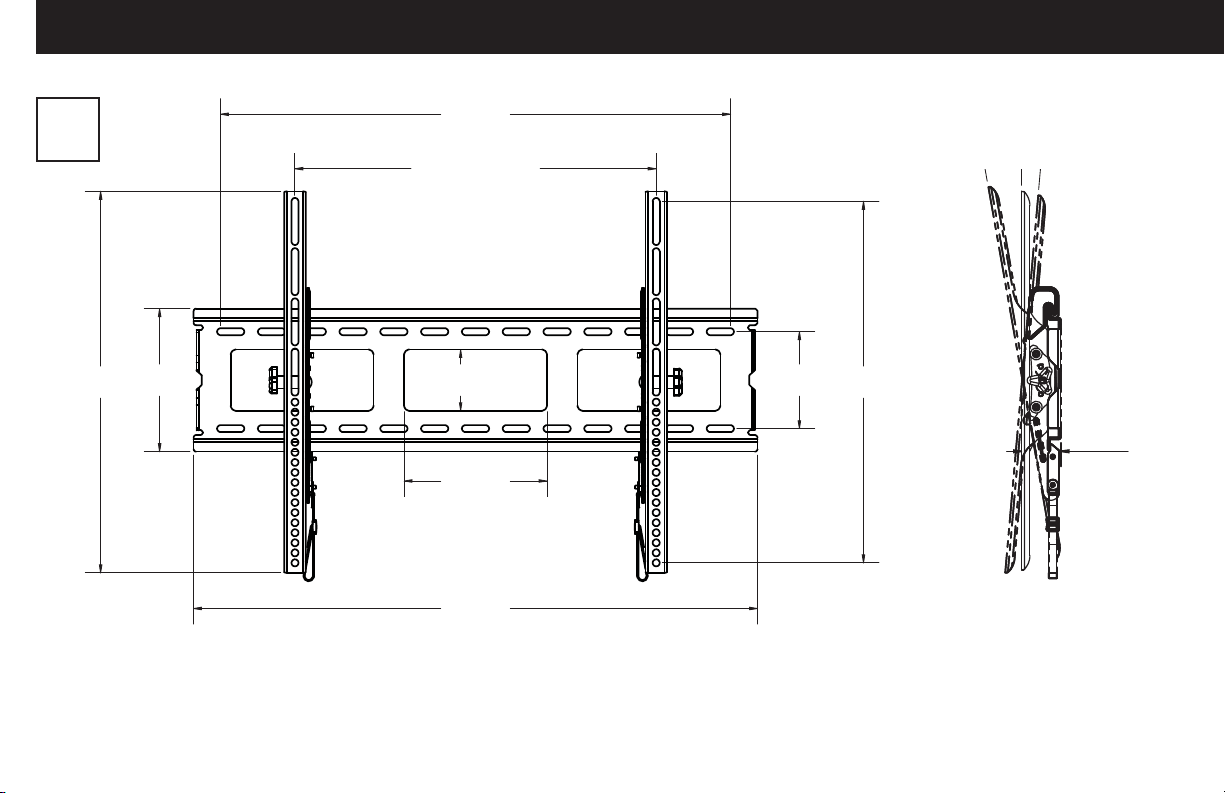

Dimensions
in.
[mm]
635 mm
25 in.
635 mm
25 in.
76.2 mm
3 in.
177.8 mm
7 in.
475 mm
18.7 in.
178 mm
7.01 in.
702.1 mm
27.64 in.
450 mm
17.72 in.
120.7 mm
4.75 in.
50 mm to 705 mm
48.8 mm
1.92 in.

4
Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
TV Brackets
Parts and Hardware for STEP 1
M5 x 12mm M5 x 35mm
M6 x 12mm M6 x 20mm M6 x 35mm
M8 x 16mm
M8 x 35mm
TV Screws Washers
Spacers
03 x4
04 x4
05 x4
06 x4
01 x1 02 x1
07 x4
08 x4
09 x4
10 x4
11 x4 12 x4
13 x4
M8 x 20mm
M5 M6/M8

5

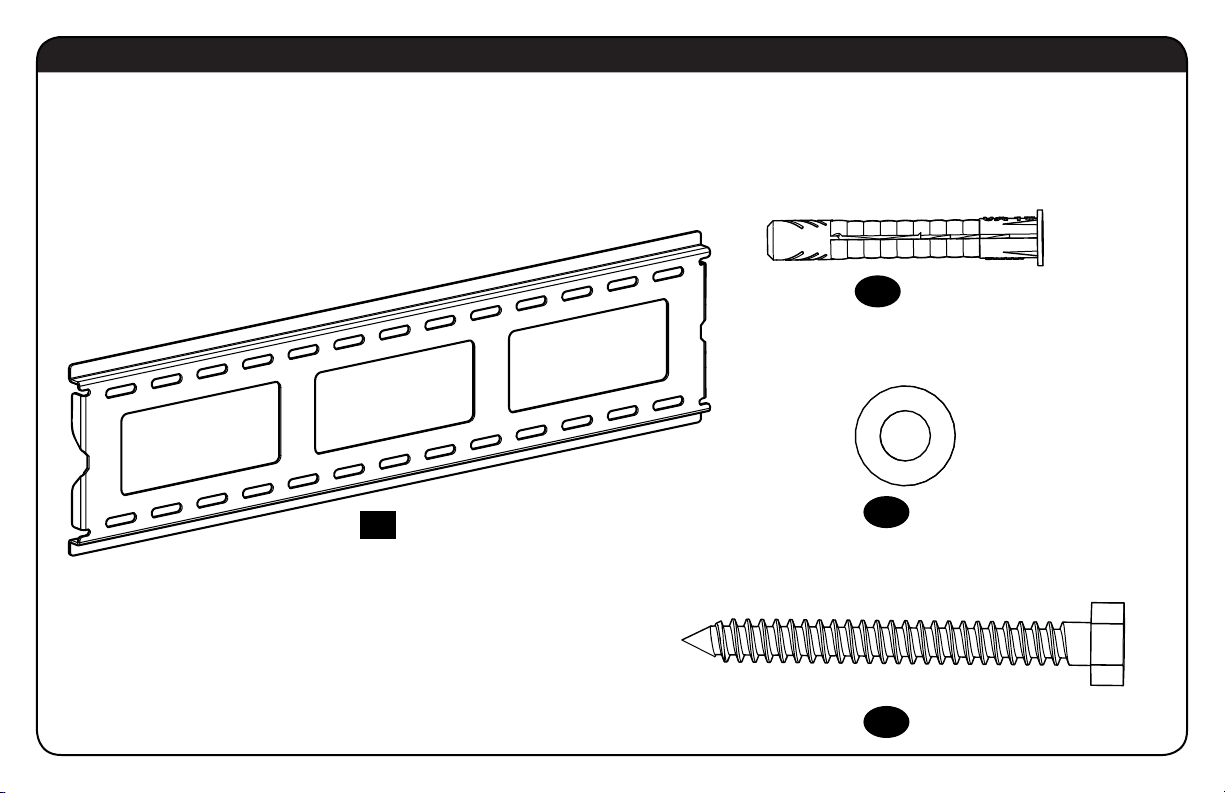

Parts and Hardware for STEP 2
5/16 x 2.75 in.
Wall Plate
Lag Bolts
Washers
Concrete Anchors
14 x1
15 x4
16 x4
17 x4
5/16 x 2 ¾ in.

6

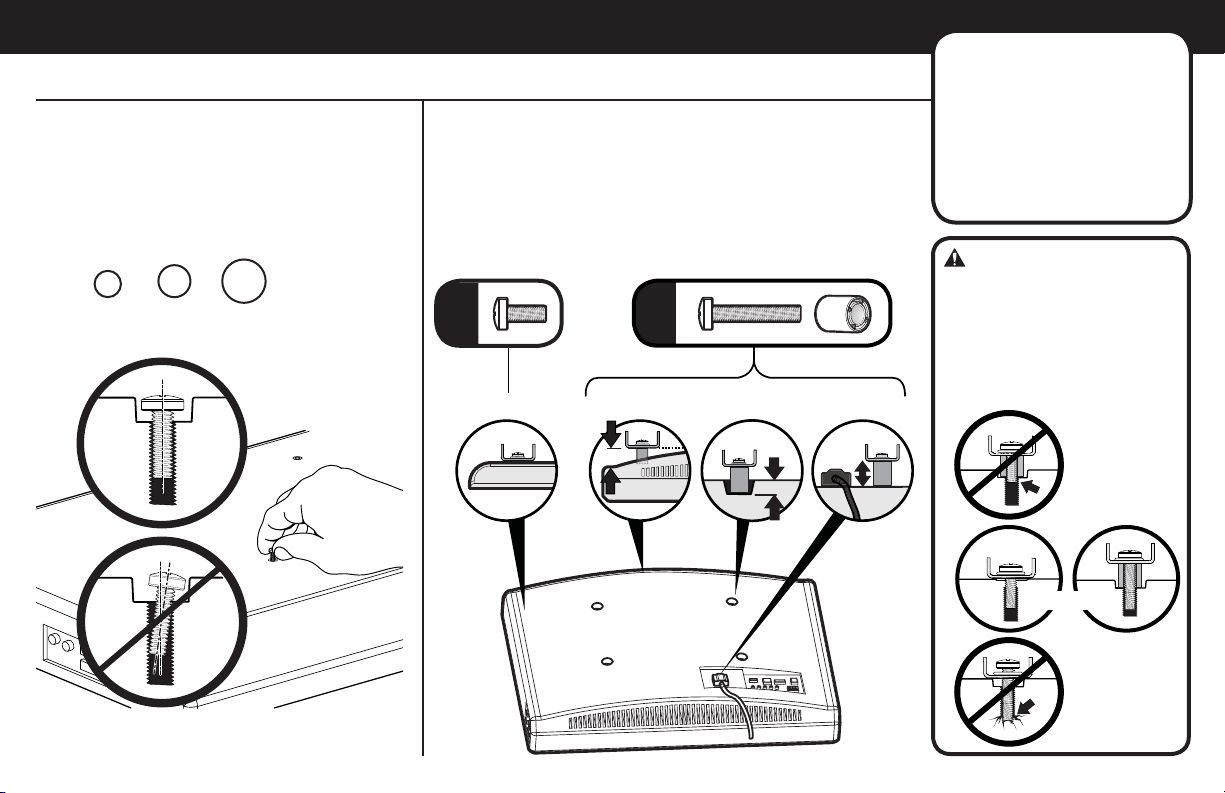

STEP 1 Attach Brackets to TV
FLAT BACK ROUND BACK CABLESINSET HOLES
1-1 Select TV Screw Diameter 1-2 Select TV Screw Length
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M5, M6, or M8) to use.
ab
If your TV has a flat back AND you want your TV closer to
the wall, use the shorter screws (a).
Use the spacers and longer screws (b) to accommodate:
• Round/irregular back TVs
• TVs with inset mounting holes
• Extra space needed for cables
Too Short
Too Long
CAUTION:
Verify adequate thread
engagment with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
contact Customer Service
at 1-800-359-5520.
M5 M6 M8

7

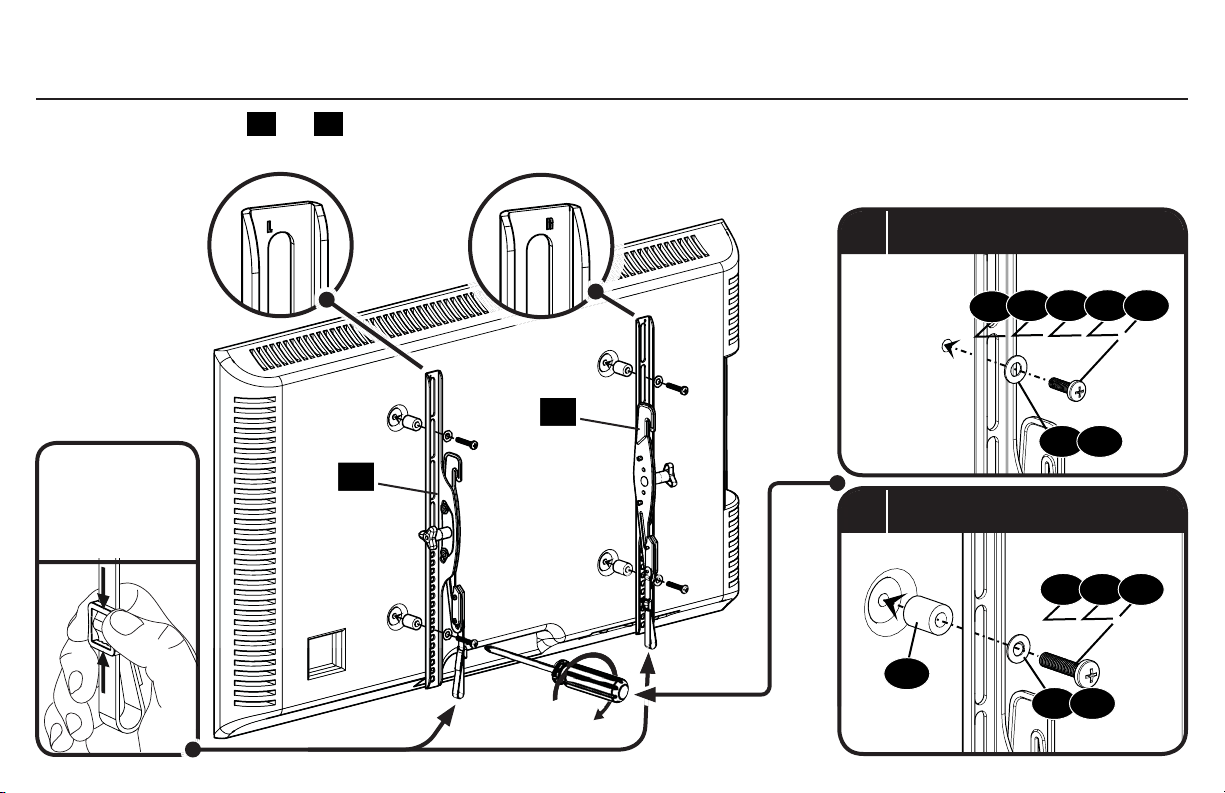

1-3 Attach TV Brackets
Ensure that your brackets 01 and 02 are level on the back of the TV. Standard configurations are shown. For special applications, or if you
are unsure about your hardware selection, contact Customer Service.
aFlat Back
bRound Back / Extra Space
03
08 09 10
11 12
13
11 12
01
02
04 05 06 07
For ease of
access, straps
should be level
with the bottom
of the TV.

8
STEP 2A Attach Wall Plate to Wall - Wood Stud
CAUTION: Avoid potential personal injuries and property damage!
• Drywall covering the wall must not exceed 5/8 in. (16 mm)
• Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
• Minimum horizontal space between fasteners: 16 in. (406 mm)
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Level the wall plate 14 and mark the hole locations.
1 2
16 - 24 in.
(41 - 61 cm)
≤ 5/8 in.
(16 mm)
14

9
34
3. Pilot holes MUST be drilled to a depth of 3 in. (75 mm), using a 7/32 in. (5.5 mm) diameter drill bit.
4. CAUTION: Avoid potential injuries or property damage! Improper use could reduce the holding power of the lag bolt 17 .
To avoid potential injuries or property damage. DO NOT over-tighten the lag bolts 17 .
3 in.
(75 mm)
7/32 in.
(5.5 mm) 14
17 16

10
1
STEP 2B Attach Wall Plate to Wall - Solid Concrete or Concrete Block
2
14
CAUTION: Avoid potential personal injuries and property damage!
• Mount the wall plate 14 directly onto the concrete surface
• Minimum solid concrete thickness: 8 in. (203 mm)
• Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
• Minimum horizontal space between fasteners: 16 in. (406 mm)
1. Level the wall plate 14 and mark the hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
3/8 in.
(10 mm)
3 in.
(75 mm)
16 in.
(406 mm)
