Sanus VLL5 User manual

THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
Scan for easy
install video
VLL 5 Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.
SANUS MAGNETIC STUD FINDER Designed to find your studs and make life easier– included in hardware kit.
TWO SIMPLE STEPS TO FINDING YOUR STUDS:
Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling

3
VLL5
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your
wall made of?
175 lb
(79.3 kg)
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Ready to
begin?
Wood Stud Install
Concrete Install
Pencil Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Does your TV weigh
(including accessories)
more than 175 lbs.
(79.3 kg)?
Para Español ver página 22
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Drywall
with wood
studs?
Solid concrete
or concrete
block?
Perfect! Perfect!
Unsure?
Call Customer Service:
1-800-359-5520 (UK: 0800-056-2853)
CAUTION:
DO NOT
install into
drywall alone

5
TV Bracket
01 x2
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
Spacer
M4 x 20mm M5 x 20mm
M6 x 25mm M8 x 25mm
03
05 06
x4
x4 x4
02
04
07 08
x4 x4
x4
x4
TV Screws
TV Washers Spacers
M8x30 mm
09 x4
9.5 mm
STEP 1 Attach Brackets to TV

6
1.1 Select TV Screws
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M5, M6, or M8) to use.
1.2 Spacers
M4 M6 M8M5
If your TV included inset spacers or wall mount adapters,
see Troubleshooting on PAGE 18.
CAUTION: Verify adequate thread engagement of the
screw/washer/spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
Too Short Correct Too Long
Mount the spacers 09 above the
TV bracket, for flat back panels
(AND the TV closer to the wall).
Mount the spacers 09 under the
TV bracket to create extra space
needed for irregular shape TV backs
or large cables.
Spacers and screws are supplied to install your TV bracket.
Determine your preference for spacer configuration when
attaching your TV bracket.
Round Back CablesInset HolesFlat Back
TV Bracket
TV Bracket
09
09
ab

7
IMPORTANT:
For ease of access,
straps should
be level with the
bottom of the TV.
1.3 Attach TV Brackets
Center the TV brackets 01 over your TV hole pattern as shown. Be sure to use the same holes and that the brackets are level.
NOTE: Loosen the adjustment screws Aon TV brackets 01 to extend the mounting holes over your TV hole pattern.
Install using the spacer, TV screw and washer combination you selected for your TV.
IMPORTANT: Tighten the adjustment screws Aon TV brackets 01 when finished.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use a
power screwdriver for this step. Tighten screws only until TV Bracket is secured in place.
DO NOT overtighten M4 screws 02 .
01
Loosen
Tighten
A
Standard
configurations are
shown. For special
applications, or if
you are uncertain
about your hardware
selection, contact
Customer Service at
1-800-359-5520 .
01
09
aSpacer, screw and washer
07 08
02 03 04 05 06
09
bSpacer, screw and washer
07 08
02 03 04 05 06

8
5⁄16 in. x 2 3⁄4 in.
Sanus Magnetic Stud Finder*
13 x4
10 x1
11 x1
12 x1
14 x4
Parts and Hardware for STEP 2
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Wall Plate
Wall Plate
Template
Lag Bolt
Concrete Anchor
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator
(ICD) is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device,
keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
STEP 2 Attach Wall Plate to Wall
UX10 x 60R

9
CAUTION: Avoid potential
personal injuries and property damage!
●Drywall covering the wall must not
exceed 5/8 in. (16 mm)
●Minimum wood stud size:
common 2 x 4 in. (51 x 102 mm)
nominal 1½ x 3½ in. (38 x 89 mm)
●Minimum horizontal space between
fasteners: 16 in. (406 mm)
●Stud centers must be verified – not all
walls have conventional 16 in. (406 mm)
or 24 in. (610 mm) stud spacing
1. Locate a nail/screw in the studs
using the Sanus magnetic stud
finder 12 provided.
2. Find the edges of the studs using the
probe of the stud finder 12 .
3. Mark the centers of the studs with
a pencil.
1 2 3
12
12
Max. 5/8 in. (16 mm)
Min. 16 in. (406 mm) Min. 3 1/2 in. (89 mm)
Min. 1 1/2 in. (38 mm)
STEP 2A Wood Stud Option

10
4. Place the wall plate template 10 at your desired height and position the slotted holes over your stud center lines. Level the wall plate
template 10 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
10 10
12
4 5
3 in. (75 mm)
7/32 in.
(5.5 mm)

11

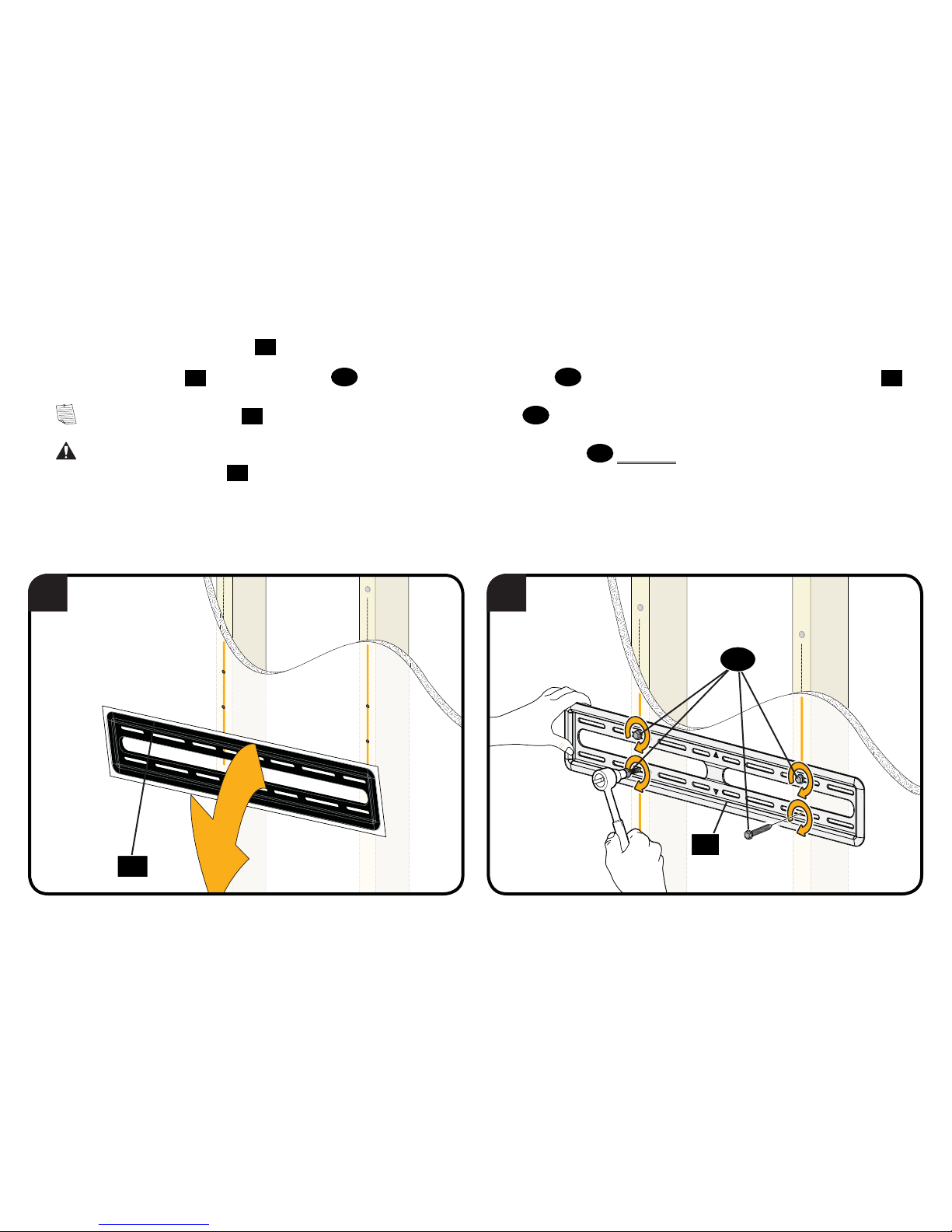

6. Remove the wall plate template 10 .
7. Install the wall plate 11 using four lag bolts 13 . Firmly tighten all four lag bolts 13 until they are pulled flush against the wall plate 11 .
NOTE: Hold the wall plate 11 in place when tightening the first lag bolt 13 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! All four lag bolts 13 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 11 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Go to STEP 3 on PAGE 14.
10
6
11
13
7

12

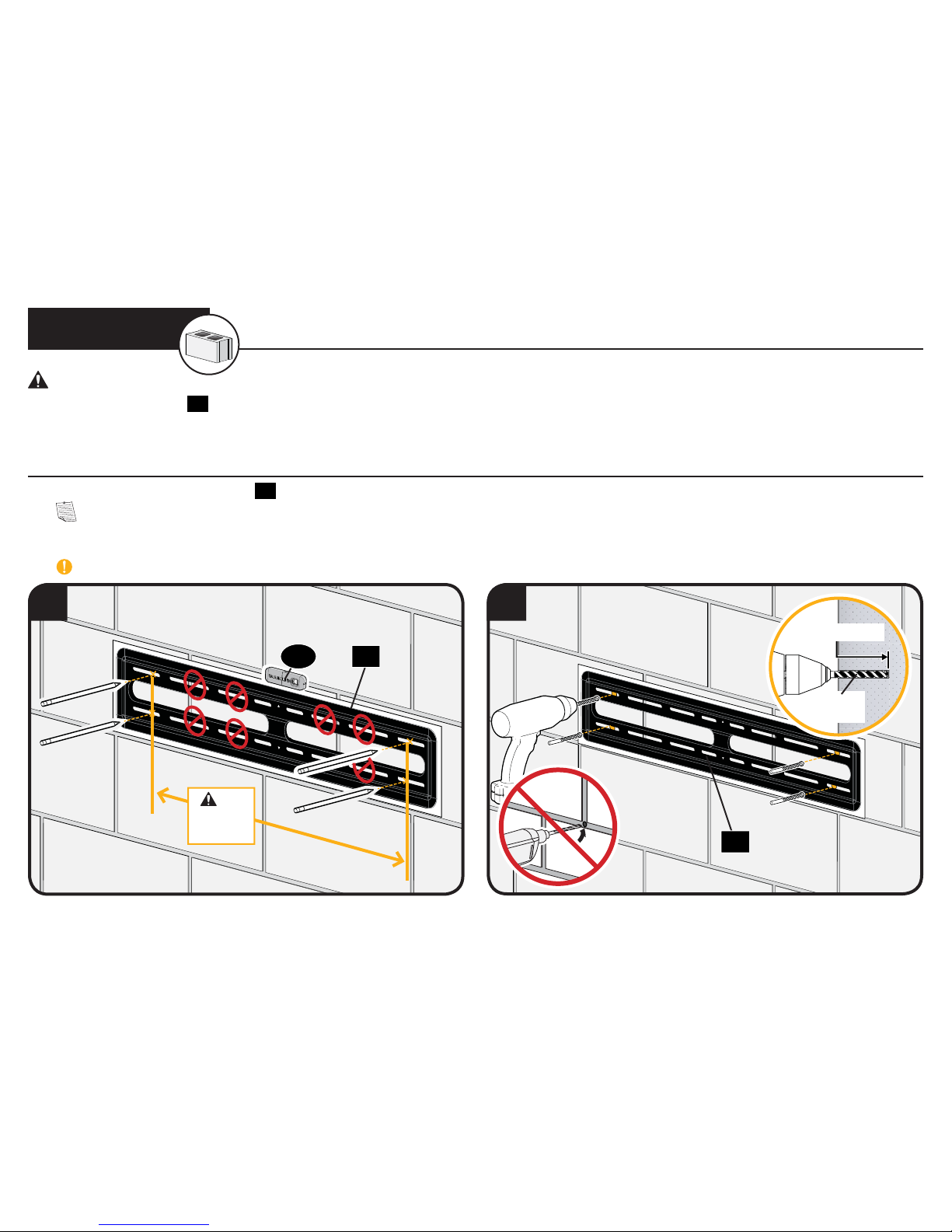

CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate 11 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
●Minimum horizontal space between fasteners: 24 in. (610 mm)
1. Position the wall plate template 10 on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
10
2
3/8 in.
(10 mm)
3 in. (75 mm)
1012
1
Min.
24 in.
(610 mm)
STEP 2B Solid Concrete or Concrete Block Option

13
3. Remove the wall plate template 10 and insert four anchors 14 .
CAUTION: Be sure the anchors 14 are seated flush with the concrete surface.
4. Install the wall plate 11 using four lag bolts 13 . Firmly tighten all four lag bolts 13 until they are pulled flush against the wall plate 11 .
NOTE: Hold the wall plate 11 in place when tightening the first lag bolt 13 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! All four lag bolts 13 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 11 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
10
14
11
13
34

14

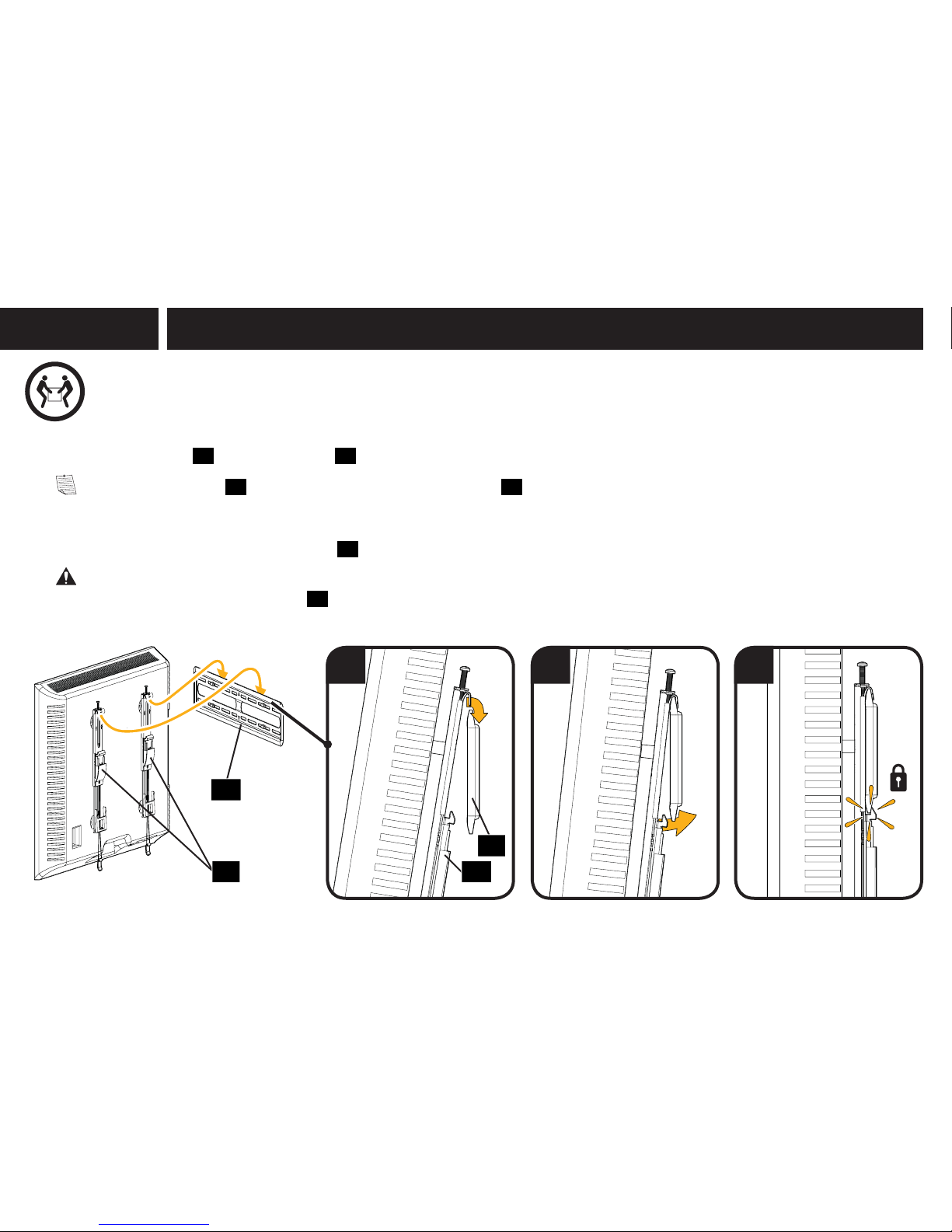

HEAVY! You may need assistance with this step.
1. Hook the TV brackets 01 onto the wall plate 11 .
NOTE: The TV brackets 01 can be slid anywhere along the wall plate 11 for optimal positioning of your TV.
2. Rest the TV into place against the wall. v
3. Press the bottom of the TV into the wall plate 11 to ensure the latches lock the TV in place.
CAUTION: Avoid potential personal injury or property damage! Always make sure your TV brackets are in the locked position so the
TV is securely fastened to the wall plate 11 .
11
0101
11
1 2 3
STEP 3 Attach TV to Wall Plate

15
1. Pull down and hold both release cords Rwhile gently pulling the bottom of the TV away from the wall until the kick stands fall into place.
CAUTION: To prevent breaking the locking latch: always pull and hold the release cords Rdown while pulling the TV away from the wall.
2. Temporarily rest the TV on the kick stands while assembling the cables on the TV.
CAUTION: TV is not secured to the wall when it is in the kick stand position. Assistance is recommended for this step.
3. Pull down and hold both release cords Rwhile gently pulling the bottom of the TV away from the wall to unlock the kick stands.
4. Gently rest the TV back until the brackets click and lock the TV in place.
Manage Cables
RR
1101
R
1 2 3 4

16
Adjustments
Slide the TV left or right along the
wall plate 11 to reposition.
HEAVY! You may need
assistance with this step.
11
To level your TV, turn the level
adjustment screw Son the top
of either TV bracket 01 to raise or
lower that respective side of the TV. Raise
Lower
01
S
LEVEL TV LATERAL SHIFT

17
1. Disconnect all cables from the TV (see Manage Cables on PAGE 15).
2. Pull the release cords Ron the TV brackets 01 while gently pulling the bottom of the TV away from the wall.
CAUTION: To prevent breaking the locking latch: always pull and hold the release cords Rdown while pulling the TV away from the wall.
3. Lift the TV up and off the wall plate 11 .
NOTE: To rehang the TV, follow the procedures in STEP 3 on PAGE 14.
HEAVY! You may need assistance with this step.
1101
R
1 2 3
REMOVING THE TV

18

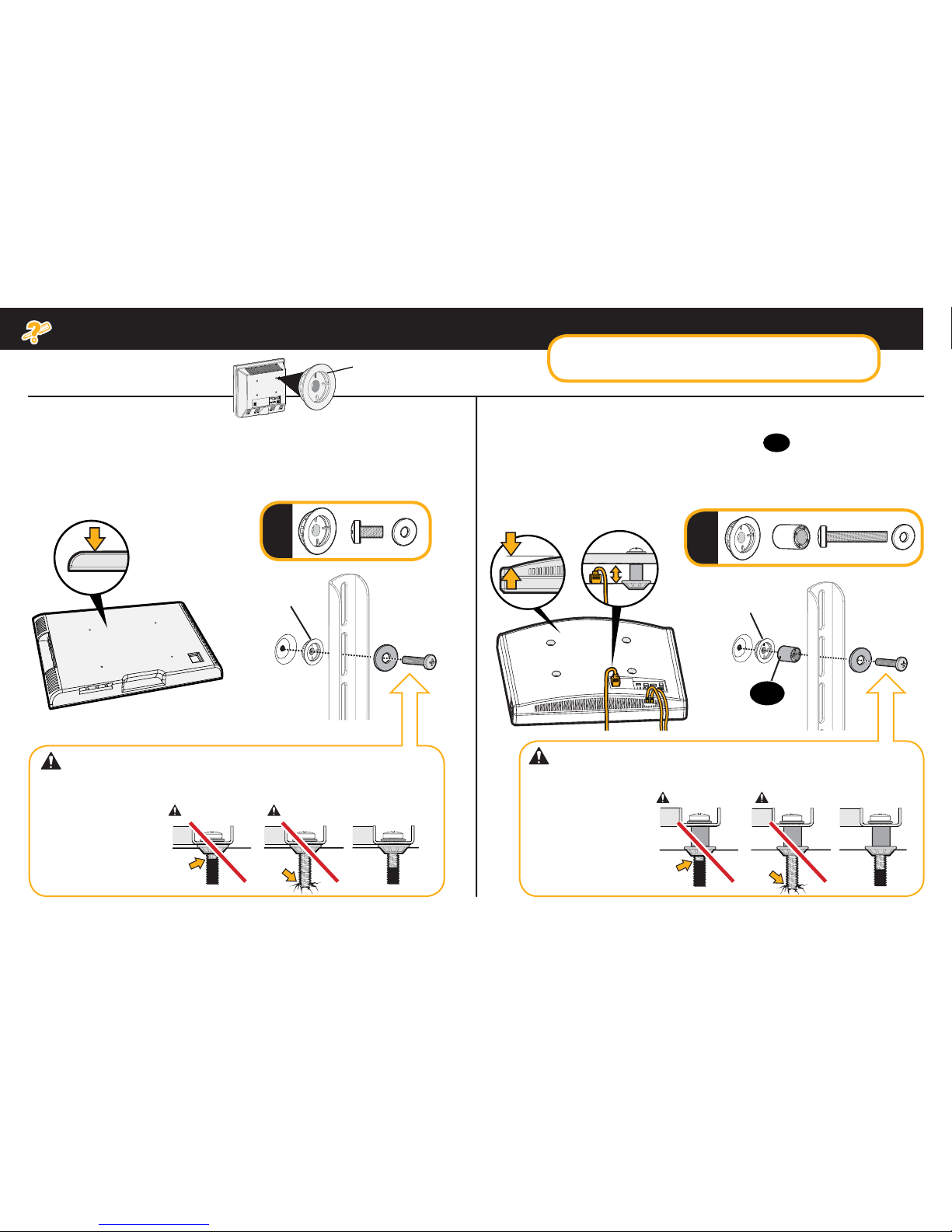

Troubleshooting
TV Supplied
Spacer TV Supplied
Spacer
TV supplied spacers
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
TV Supplied
Spacers
ab
FLAT BACK ROUND BACK CABLES
a:Use your TV supplied spacer for flat back TVs (AND you want
your TV closer to the wall). b:Use your TV supplied spacer and spacer 09 for:
●Round (irregular) back TVs ●Extra space needed for cables
– Too short will
not hold the TV.
– Too long will
damage the TV.
– Too short will
not hold the TV.
– Too long will
damage the TV.
Too Short
Too Short
Too Long
Too Long
Correct
Correct
If you are uncertain about your hardware selection,
contact Customer Service at 1-800-359-5520.
09

19
Features
TV bracket expands
to fit TV hole patterns
from 200 x 200 mm up
to 700 x 400 mm
Brackets adjust side to
side within the wall plate
for optimal positioning
Level
adjustments
create a
worry-free
installation
Kick Stands hold TV from wall to
create room to attach cables
Locking mechanisms
for added security

20
0.91
23.1
26.57
675.0
11.81
300.0
8.27
210.0
16.14
410.0
10.68
271.3
18.64
473.5
6.23°
0.91
23.1
2.82
71.7
TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
30.00 762.0
1.57
40.0
4.45
113.0
6.30
160.0
11.30 287.0
13.33 338.7
20.42 518.7
22.59 573.8
27.34 694.5
5.00
127.0
2.47
62.8
16.00
406.4
24.00
609.6
Dimensions
in. [mm]
