Sanus ALF113 User manual

ALF113 INSTRUCTION MANUAL
Scan for easy install video
san.us/396
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!

2
Does your TV weigh more than 100 lb (45.3 kg) including accessories?
No — Perfect!
Yes
— This mount is NOT compatible. Visit accents.sanus.com or call 1-800-359-5520 to find a compatible mount.
100 lb
(45.3 kg)
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
13 mm
(1/2 in.)
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-800-359-5520.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood studs only - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

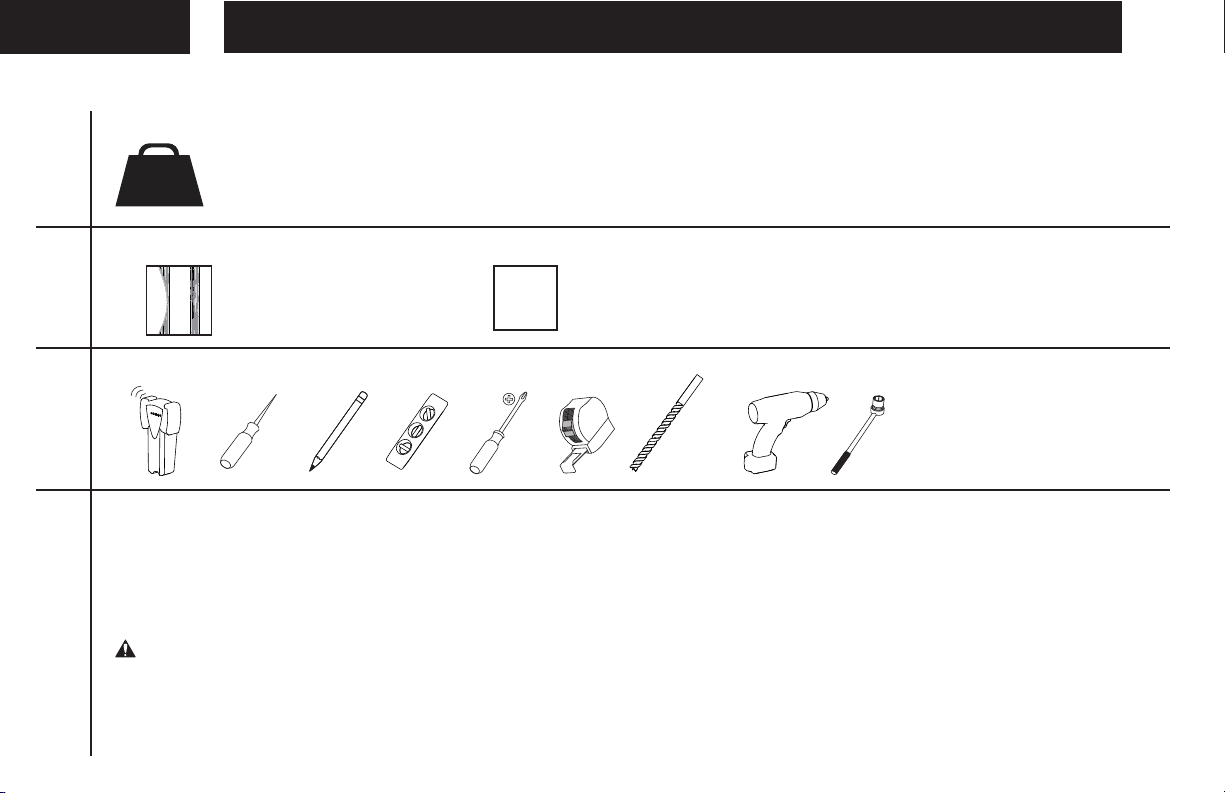

Do you have all of the tools needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your wall made of?
Unsure? Call 1-800-359-5520
Perfect!
Drywall with
wood studs
5.5 mm
(7/32 in.)
?

3
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item
to your dealer; contact Customer Service. Never use damaged parts!
Supplied Parts and Hardware
STEP 1 Parts and Hardware
L/R TV Interface Brackets
01 02
M6 x 12mm M8 x 16mm
M6 x 35mm M8 x 35mm
03 04 05
06 07
(4) (4) (4)
(4)
TV Screws
08 (4)
(4)
M5 x 12mm
M5 x 35mm

4
STEP 1 Parts and Hardware Cont.
Horizontal TV Interface Brackets
Horizontal Bracket Interface Screws
12
13
8-32 x ⁄ in
14 (4)
Washers
Spacers
M5 M6/M8
09 10
11
(4) (4)
(4)

5
STEP 2 Parts and Hardware
⁄ x2 ⁄ in.
⁄ in.
Wall Plate Template Wall Plate Lag Bolts
Washers
16
15
17
18
(4)
(4)

6
STEP 3 Parts and Hardware
Arm Assembly
19
(2)
WasherSafety Screw
21
22
8-32 in.
8-32 x ⁄ in
Safety Screws
20
5/16 -18 x 1 in.

7
Additional Hardware for TV Adjustments
Allen Keys
25 26
5/32 in.
3/16 in.
7/32 in. 3/16 in.
Parts and Hardware for Manage Cables
Cable Clips
Cable Ties
(4)
23 (5)
24

8
STEP 1 Attach TV Brackets to TV
1-1 Measure Your TV Hole Pattern
Measure the width and height of your TV hole pattern in mm.
Record your measurements:
Width_____________mm xHeight _______________mm
cm
inches
75 mm = 7.5 cm = 3 in.
100 mm = 10 cm = 4 in.
200 mm = 20 cm = 7 7/8 in.
inch dimensions approximate
1-2 Select TV Screw Diameter
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M5, M6, or M8) to use.
M6 M8
M5

9
1-3 Select TV Screw Length
FLAT BACK ROUND BACK CABLESINSET HOLES
If your TV has a flat back, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●irregular / round back TVs
●TVs with inset mounting holes
●extra space needed for cables
CAUTION:
Verify adequate thread
engagment with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
Correct
Too Long

10
1-4 Attach Vertical TV Brackets
Position your TV brackets over your TV hole pattern - making sure the brackets are vertically centered and level.
Install using either the short screw and washer or spacer, long screw and washer combination you selected for your TV.
01
01
02
02
Spacer, Washer, and Long Screw
Washer and Short Screw
06
03 07 04 08 05
09
09 10 10
11
