DMF 115 INSTRUCTION MANUAL
Scan for easy install video
san.us/18
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-888-333-9952. We’re ready to help!

2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you! Para Español ver página 20
No — Perfect!
Yes — This mount is NOT compatible.
Visit decora.sanus.com or call 1-888-333-9952 to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-888-333-9952.

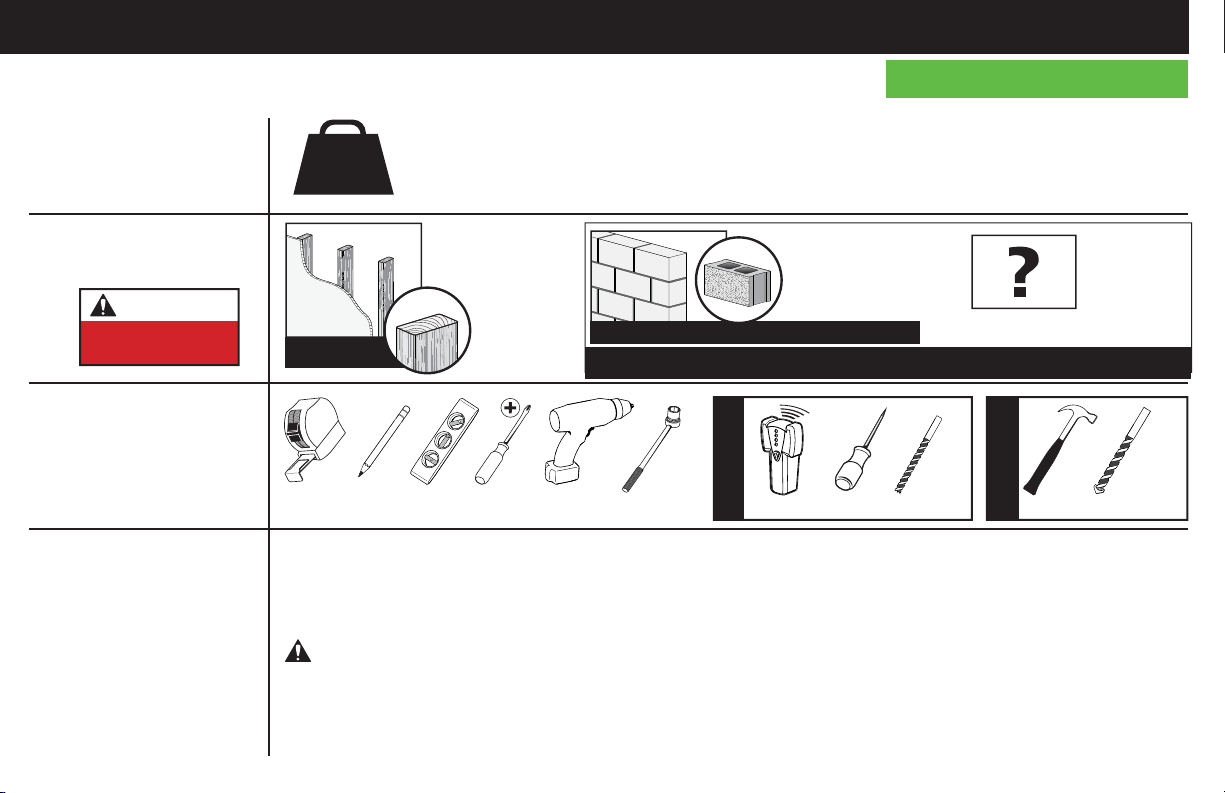

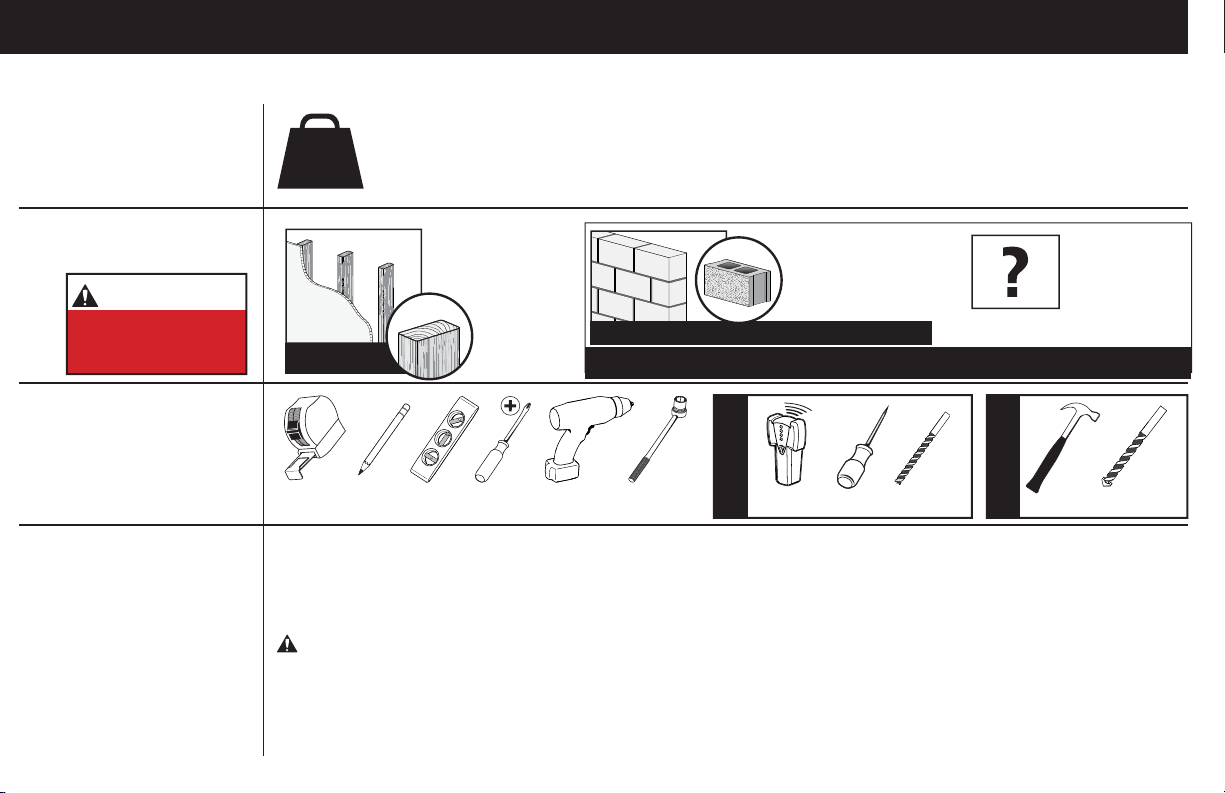

Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
60 lbs.
(27.2 kg)
Ready to begin?
Does your TV
(including accessories)
weigh more than
60 lbs. (27.2 kg)?
CAUTION:
DO NOT install
into drywall alone
Unsure?Drywall with
wood studs?
Solid concrete or
concrete block?
Call Customer Service: 1-888-333-9952 (UK: 0800-056-2853)
Perfect!
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Wood Stud Install
Concrete Install
Awl
Pencil Level Stud Finder Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Concrete Installation Kit Required (not included)

3
15.8
[40.0]
15.8
[40.0]
11.8
[30.0]
11.8
[30.0]
7.9
[20.0]
7.9
[20.0]
2.9
[7.5]
2.9
[7.5]
19.0
[48.3]
19.0
[48.3]
3.9
[10.0]
3.9
[10.0]
15°
15°
9.5
[24.1]
15.4
[39.1]
3.2
[8.2]
3.0
[7.6]
OFFSET
Dimensions
in.
[cm] NOTE: TV shifts 2.99 in. (7.59 cm) to
the right or left when in the home position.
Consider this when selecting the location of
your wall mount.

4
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!

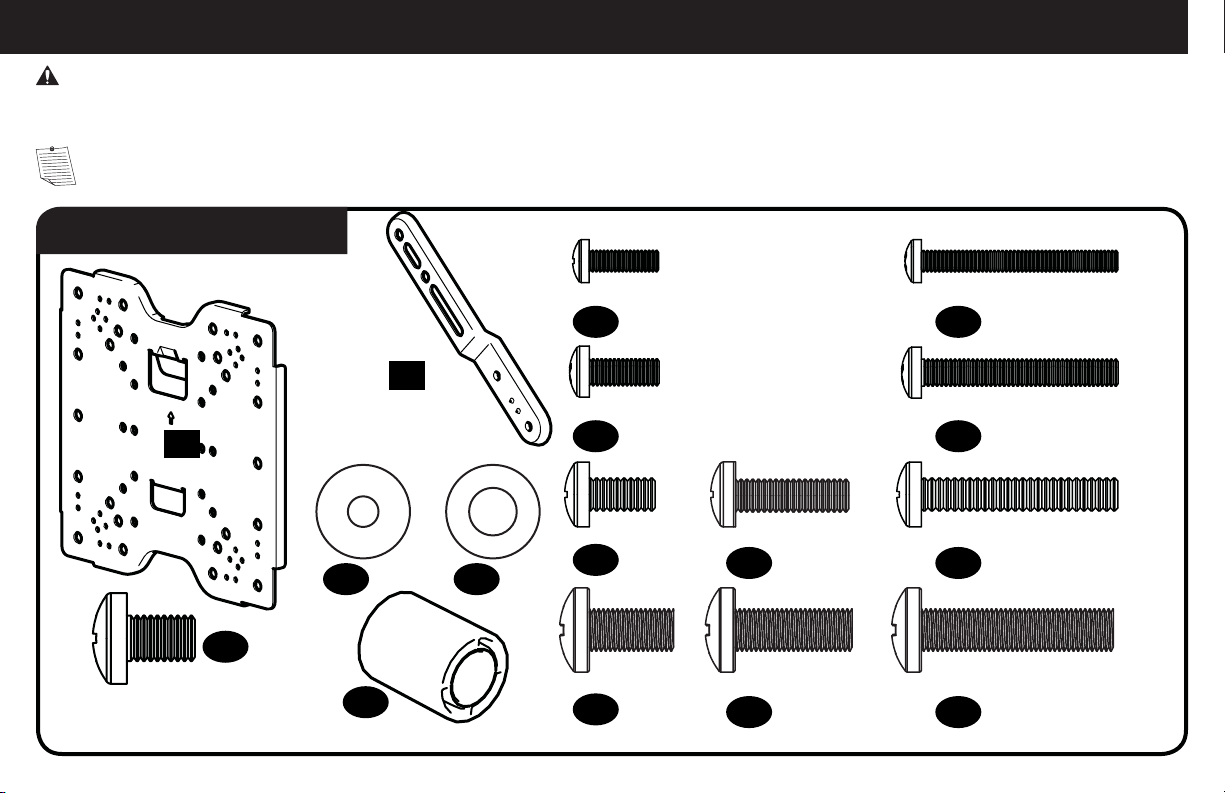

Supplied Parts and Hardware
M4 x 12mm
M5 x 12mm
M6 x 12mm M6 x 35mm
M5 x 35mm
M4 x 35mm
M6 x 20mm
M8 x 16mm
M8 x 12mm M8 x 35mm
M8 x 20mm
STEP 1 Parts and Hardware
01
TV Bracket
TV Screws
Washers
Spacers
TV Bracket
Extenders
Interface Screws (TV Bracket)
04
06
05
07 x4
x4
x4
x4
09 x4
11 x4
08 x4
10 x4
12 x4 13 x4
14 x4 15 x4 16 x4
03 x8
x1
02 x4
M
4
/
M
5
M
6
/
M
8

5
5/16 x 2¾ in.
.695 x .350 x .075 in.
Concrete Installation Kit CMK1 (not included)
1/4-20 x 3/4 in.
5/16 x 2¾ in.

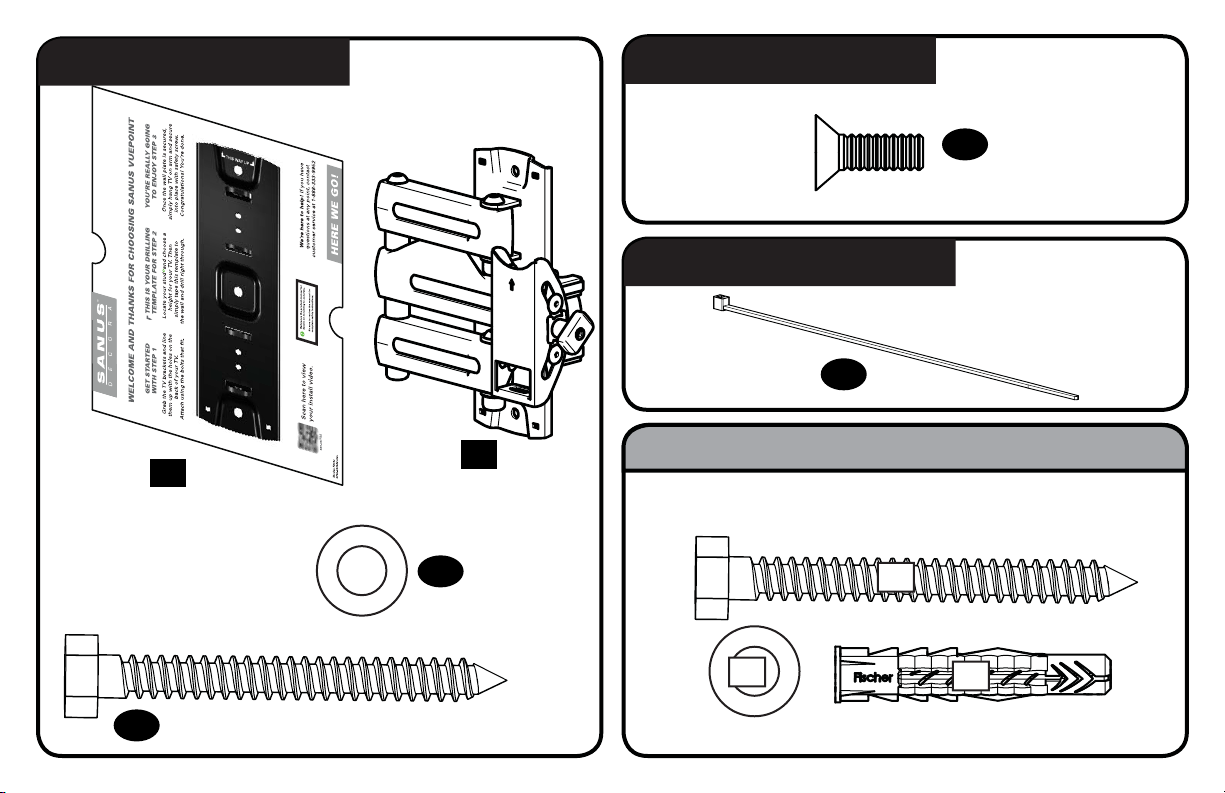

STEP 2 Parts and Hardware STEP 3 Parts and Hardware
Additional Parts and Hardware
Cable Ties
x3
22
17 x1 18 x1
Wall Plate Assembly
Wall Plate Template
Lag Bolts
Lag Bolt Washers
20 x2
x4
x4
x4
21 x1
Locking Screw
19 x2
.695 x .350 x.075 in.
5/16 x 2¾ in.
Contact Customer Service at 1-888-333-9952 to have these
additional pieces shipped directly to you.
Fischer UX 10 x 60 Anchor
5/16 x 2¾ in.
.695 x .350 x.075 in.

6
STEP 1 Attach TV Bracket to TV

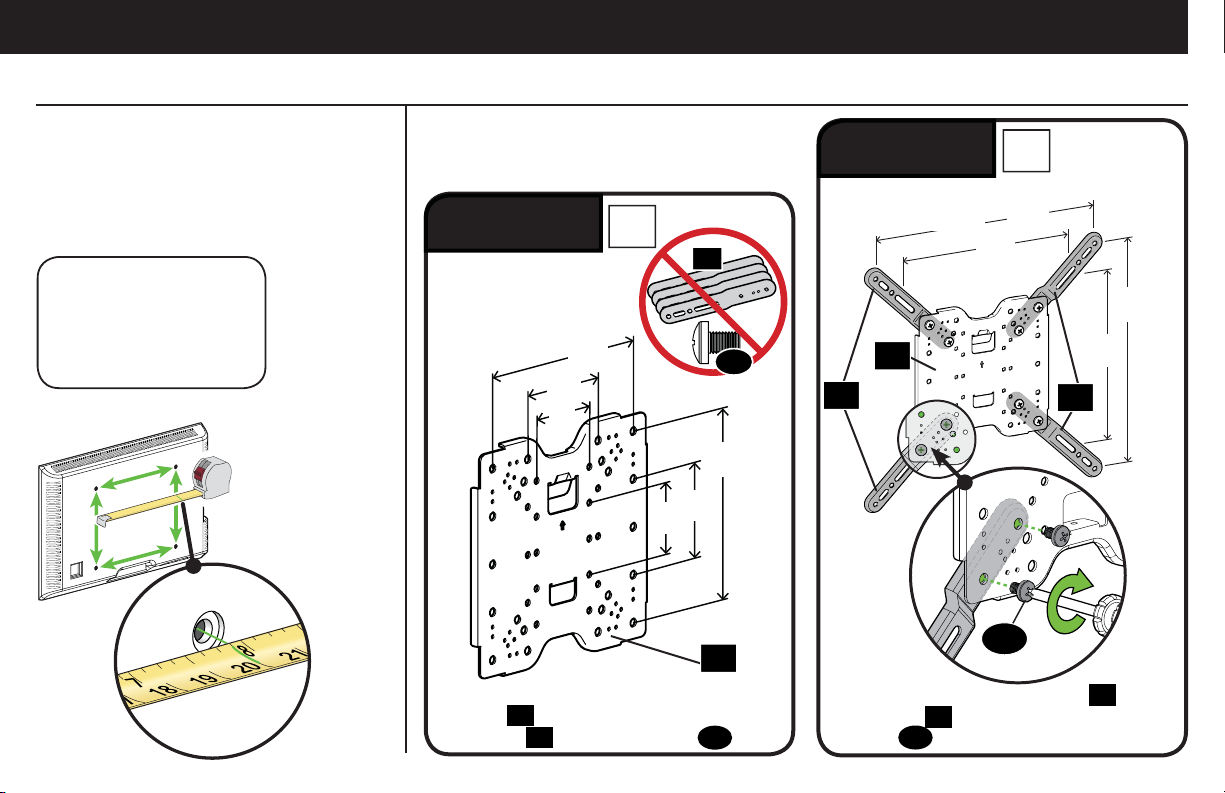

1.1 Measure Your TV Hole Pattern 1.2 Assemble Your TV Bracket
cm
inches
inch dimensions are approximate
Measure the width and height of your
TV hole pattern in cm.
Record your measurements:
Width_______cm x Height_______cm
75 mm = 7.5 cm ≈ 3 in.
100 mm = 10 cm ≈ 4 in.
200 mm = 20 cm ≈ 7 7/8 in.
300 mm = 30 cm ≈ 11 3/4 in.
400 mm = 40 cm ≈ 15 3/4 in.
Based on your TV hole pattern measurements
(Wcm x Hcm), determine your TV bracket
configuration: A, B, C, D or E.
A
7.87
[20.0]
15.75
[40.0]
15.75
[40.0]
2.95
[7.5]
in.
[cm]
in.
[cm]
B
These smaller hole patterns only use TV
bracket 01 . Do not use the four TV bracket
extenders 02 and eight screws 03 .
7.5 x 7.5 cm
10.0 x 10.0 cm
20.0 X 20.0 cm
02
2.95
[7.5]
3.94
[10.0]
7.87
[20.0]
3.94
[10.0]
03

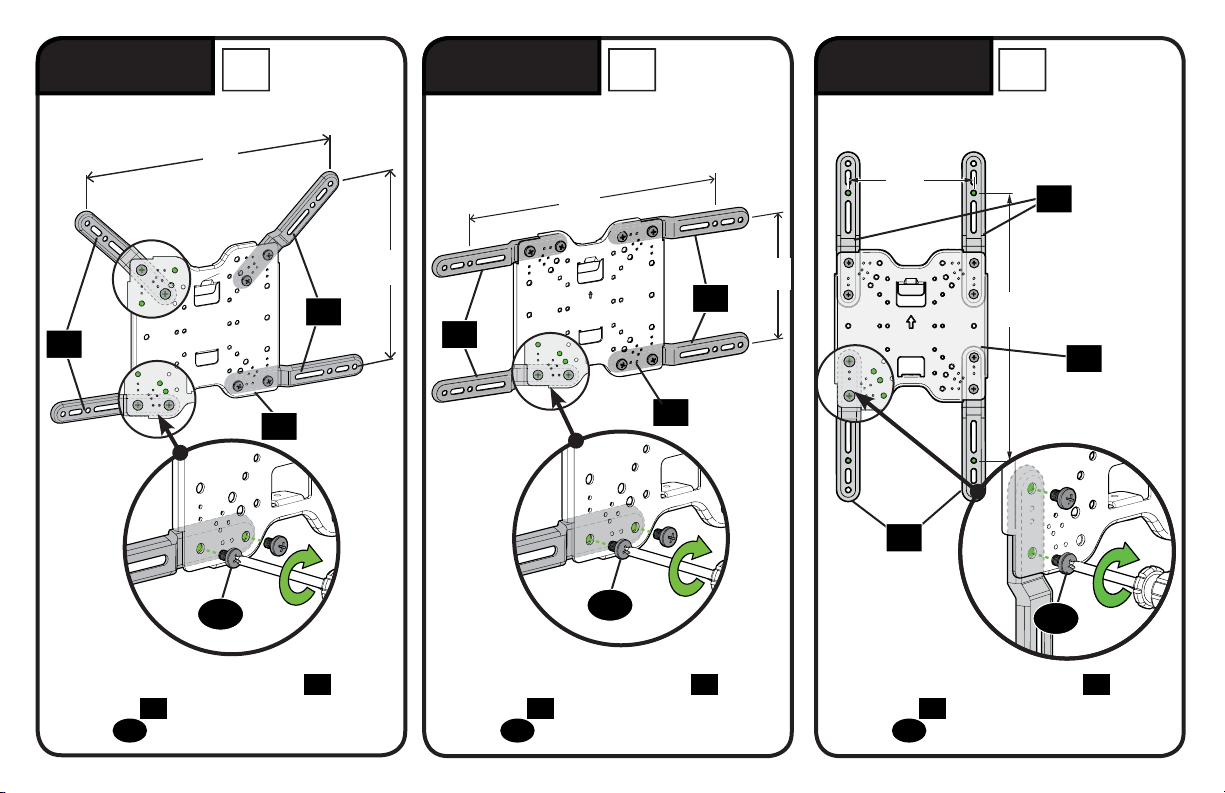

Assemble TV bracket extenders 02 onto
TV bracket 01 and secure using eight
screws 03 in the corner holes indicated.
02
01
01
03
11.81
[30.0]
11.81
[30.0]
02
30.0 x 30.0 cm
40.0 x 40.0 cm

7
03
in.
[cm] in. [cm]
40.0 x 20.0 cm 20.0 x 40.0 cm
D E
03
15.75
[40.0]
7.87
[20.0]
15.75
[40.0]
7.87
[20.0]
01
Assemble TV bracket extenders 02 onto
TV bracket 01 and secure using eight
screws 03 in the corner holes indicated.
Assemble TV bracket extenders 02 onto
TV bracket 01 and secure using eight
screws 03 in the corner holes indicated.
01
02
02
02
02
15.75
[40.0]
11.81
[30.0]
in.
[cm]
40.0 x 30.0 cm
C
03
Assemble TV bracket extenders 02 onto
TV bracket 01 and secure using eight
screws 03 in the corner holes indicated.
02
02
01

8
M5 M6 M8M4

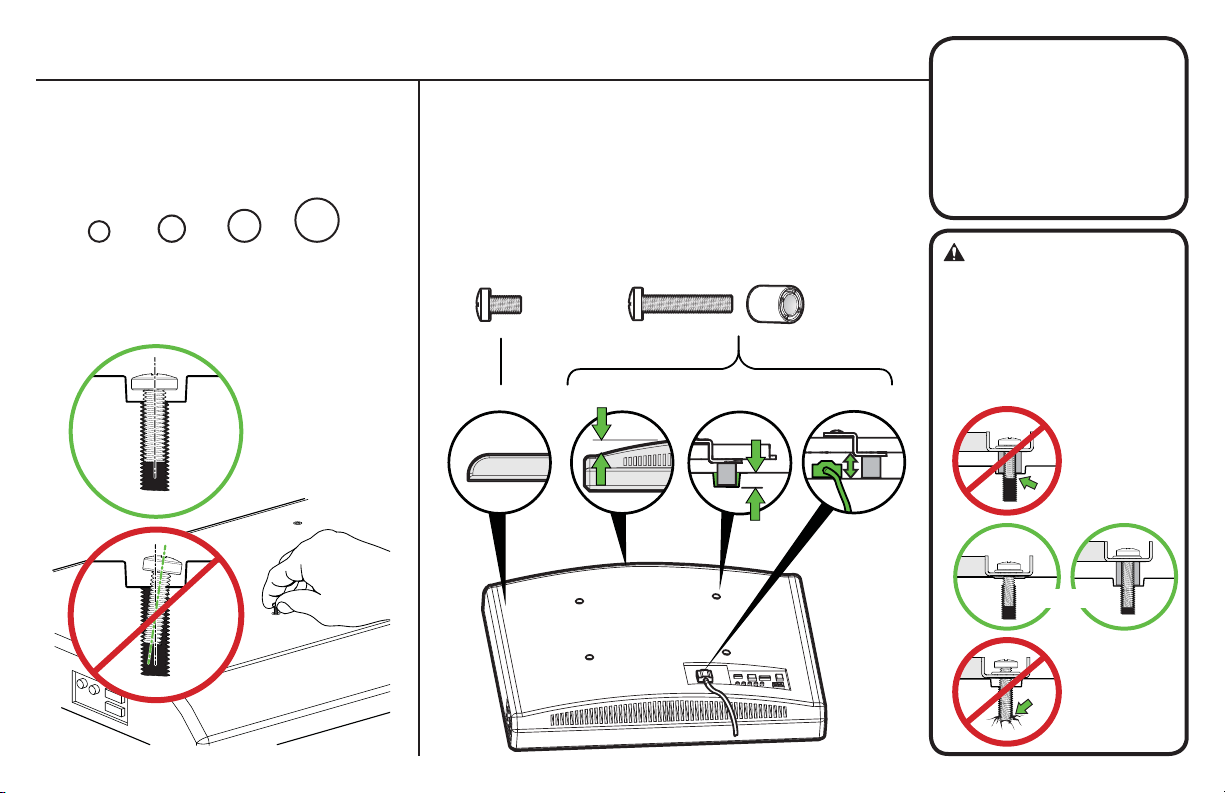

1.3 Select TV Screw Diameter 1.4 Select TV Screw Length
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M4, M5, M6, or M8) to use.
FLAT BACK ROUND BACK CABLESINSET HOLES
If your TV has a flat back AND you want your TV closer to the
wall, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●Round/irregular back TVs
●TVs with inset mounting holes
●Extra space needed for cables
Too Long
CAUTION:
Verify adequate thread
engagement with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection, contact
Customer Service at 1-888-
333-9952.

9

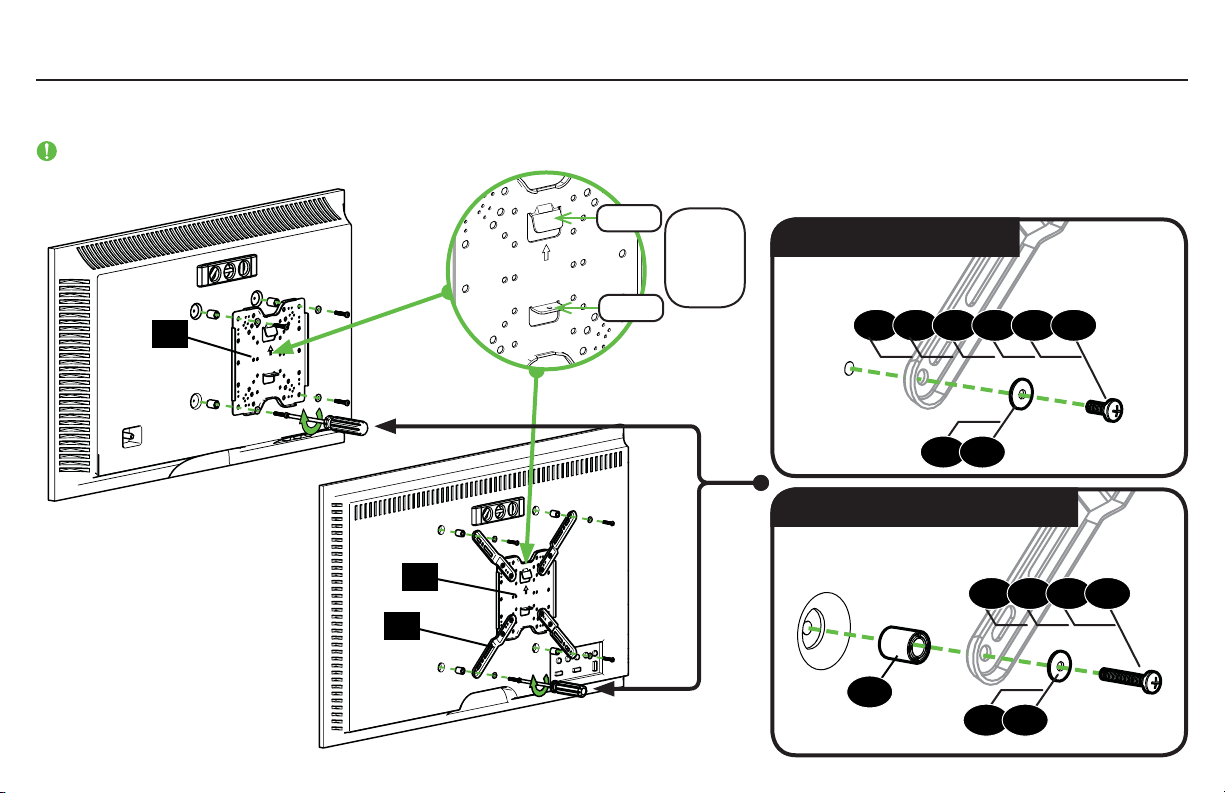

1.5 Attach TV Bracket
TV Bracket Configuration B
Illustrated (with spacers)
06
04 05
08
07 09 11 12
10
14
13
15
16
04 05
Note
orientation
of hanging
and locking
tabs
Hanging
Locking
Flat Back
Round Back / Extra Space
TV Bracket Configuration A
Illustrated (with spacers)
Position your TV bracket configuration (A, B, C, D or E) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern
and level. Secure bracket using your short screw/washer (Flat Back) or long screw/washer/spacer (Round Back / Extra Space) selection.
IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
01
01
02

10
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

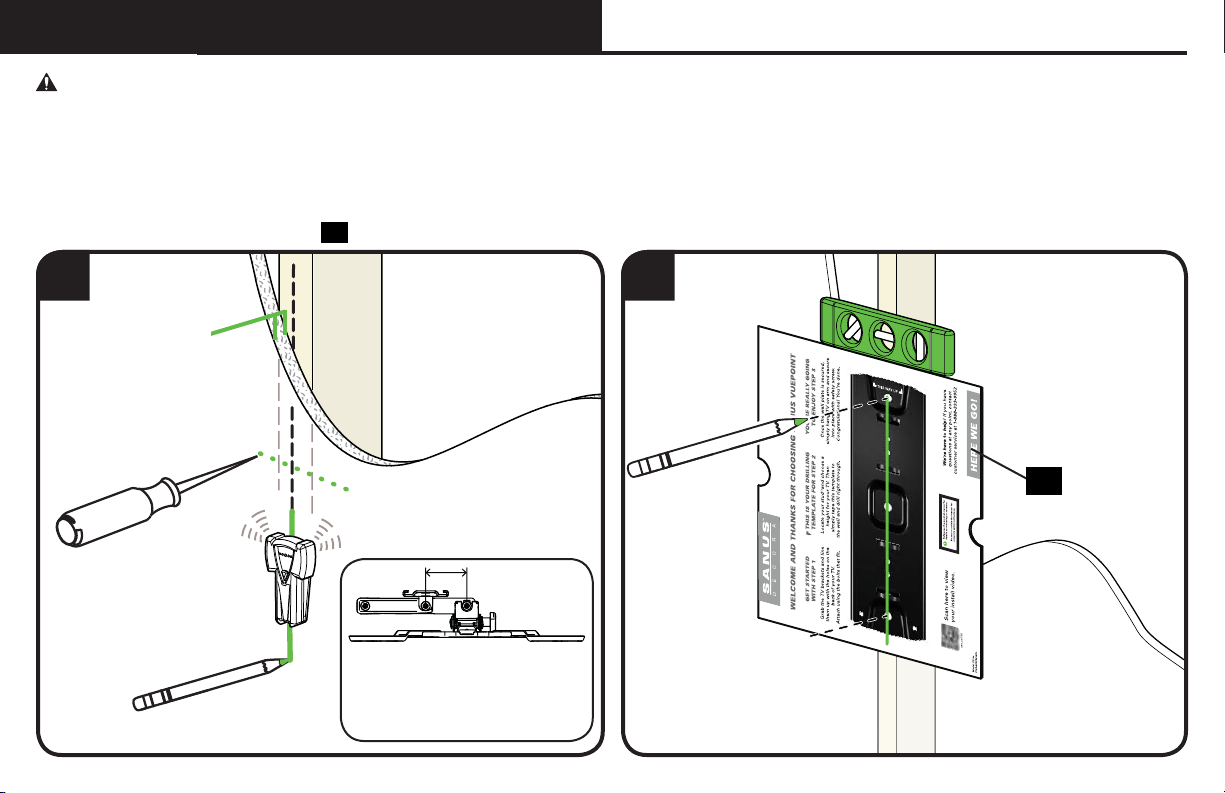

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate template 17 at your desired height and line up the holes with your stud center line. Level the template and tape in place.
17
≤ 5/8 in.
(16 mm)
NOTE: TV shifts 2.99 in. (7.59 cm) to
the right or left when in the home
position. Consider this when selecting
the location of your wall mount.
STEP 2A Attach Wall Plate to Wall Wood Stud Option
21

11
17

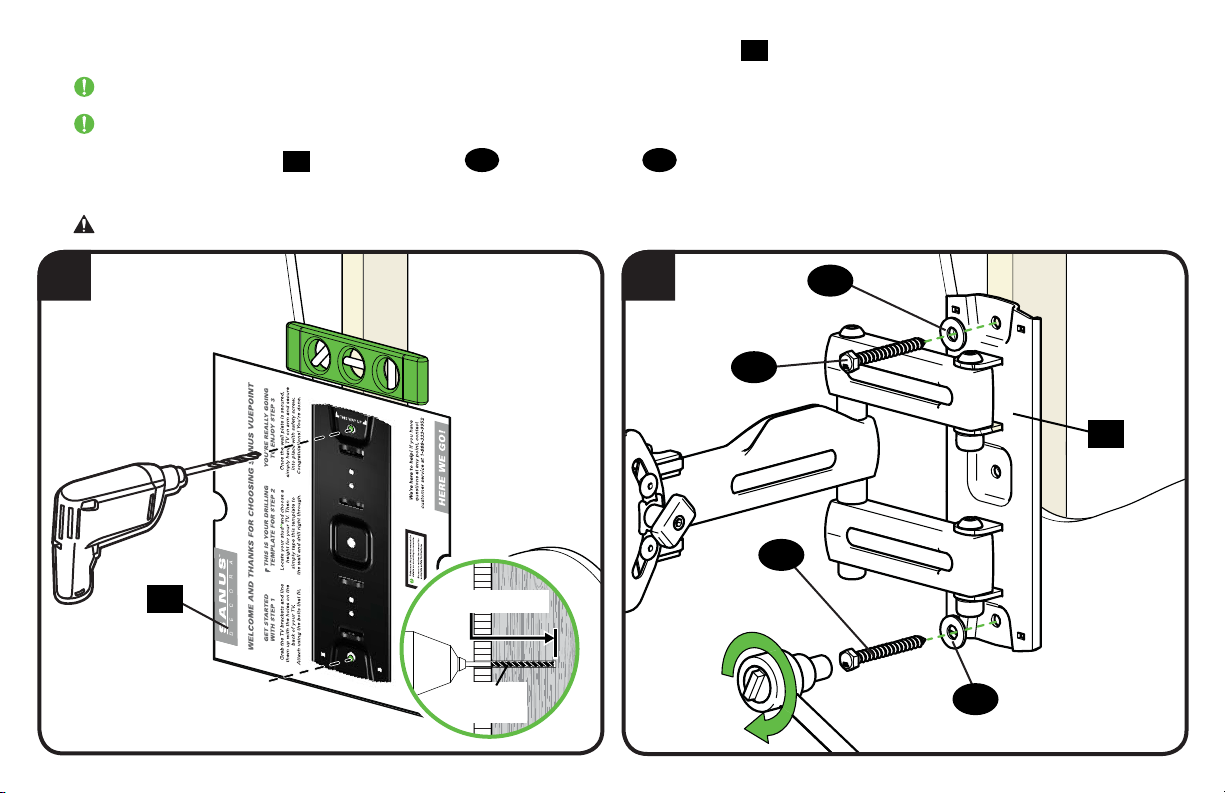

3. Drill pilot holes using a 7/32 in. (5 mm) diameter drill bit. Remove wall plate template 17 .
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install wall plate assembly 18 using two lag bolts 20 and two washers 19 . Tighten the lag bolts only until they are pulled firmly against the
wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
18
3 in. (75 mm)
7/32 in.
(5.5 mm)
43 19
19
20
20

12
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate assembly 18 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. ( 203 x 203 x 406 mm)

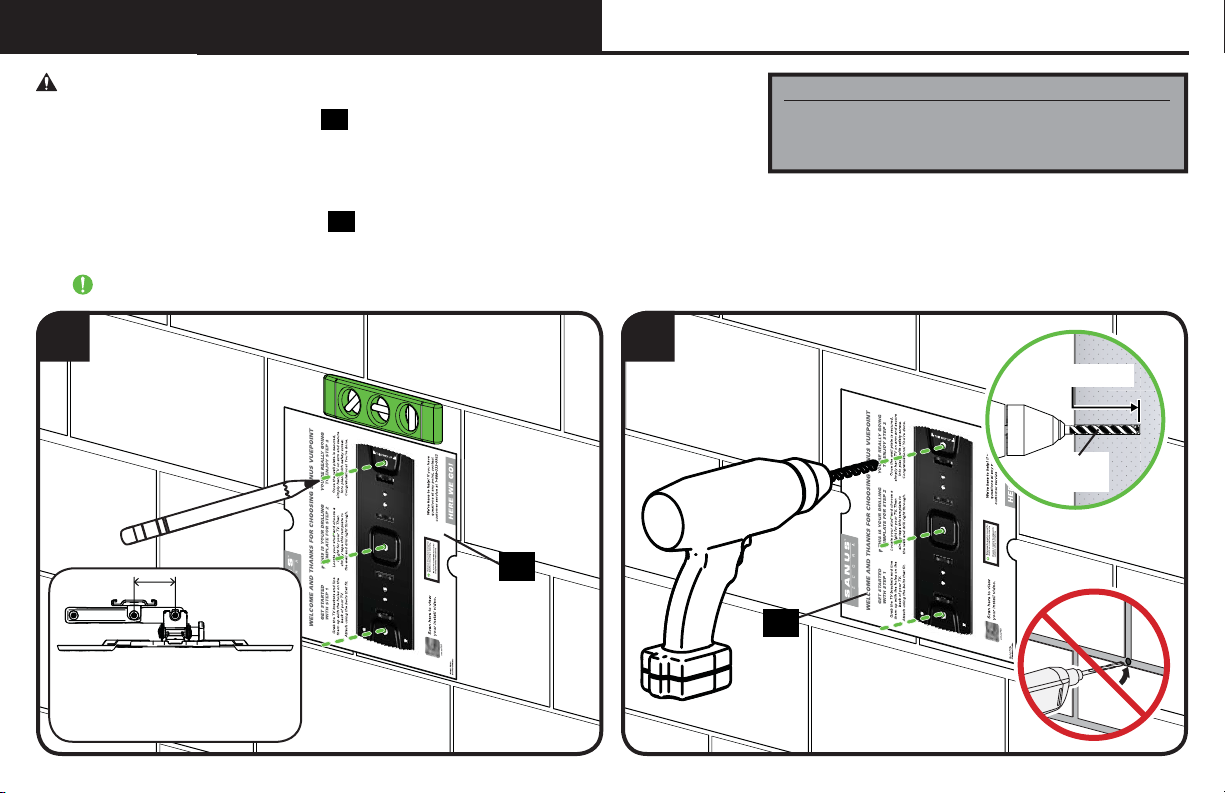

1. Position the wall plate template 17 on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill three pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
17
17
21
NOTE: TV shifts 2.99 in. (7.59 cm) to
the right or left when in the home
position. Consider this when selecting
the location of your wall mount.
Concrete Installation Kit CMK1 is not included
(see page 5) Contact Customer Service
at 1-888-333-9952 to have the additional
hardware shipped directly to you.
3/8 in.
(10 mm)
3 in. (75 mm)
STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option

13
43

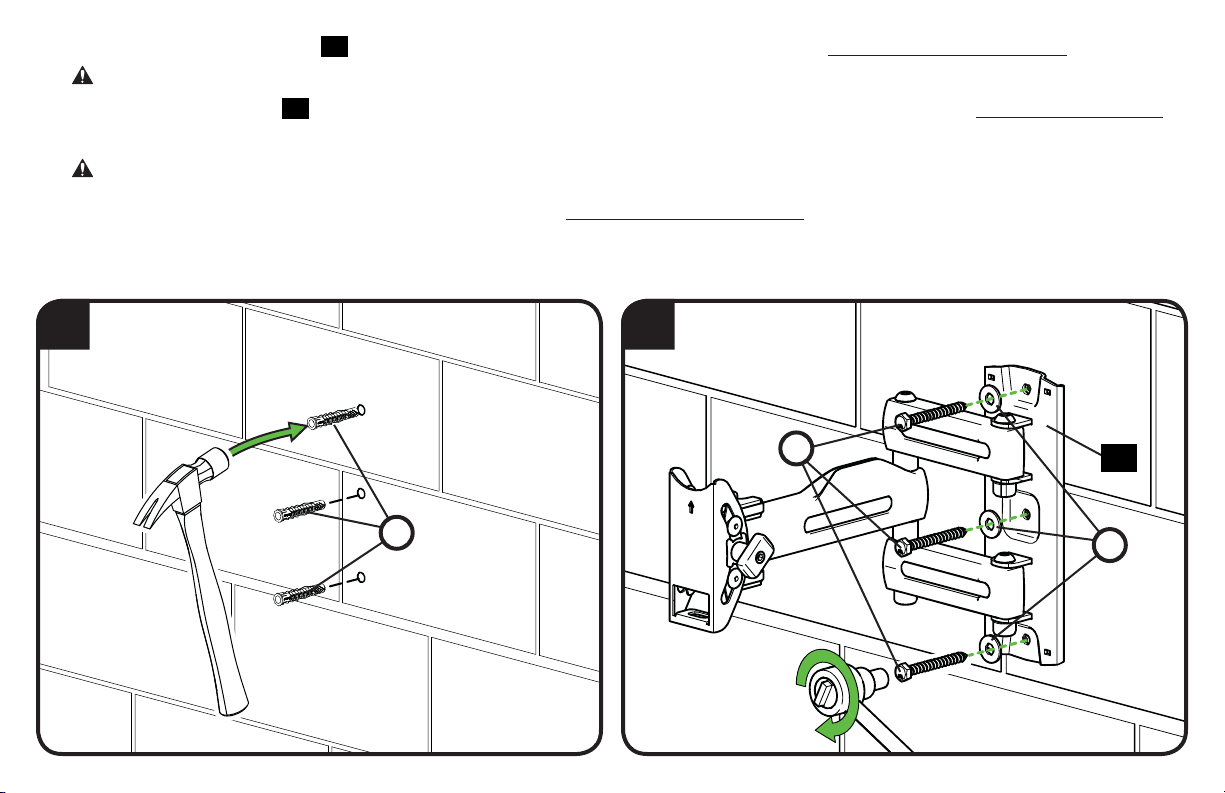

3. Remove the wall plate template 17 and insert three anchors (Fischer UX 10 x 60 - included in the Concrete Installation Kit CMK1*).
CAUTION: Be sure the anchors are seated flush with the concrete surface.
4. Install wall plate assembly 18 using three lag bolts and three washers (use only the lag bolts and washers from the Concrete Installation Kit*
CMK1). Tighten the lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
*Contact Customer Service at 1-888-333-9952 to have the Concrete Installation Kit CMK1 shipped directly to you.
*
**
18

14
HEAVY! You may need assistance with this step.

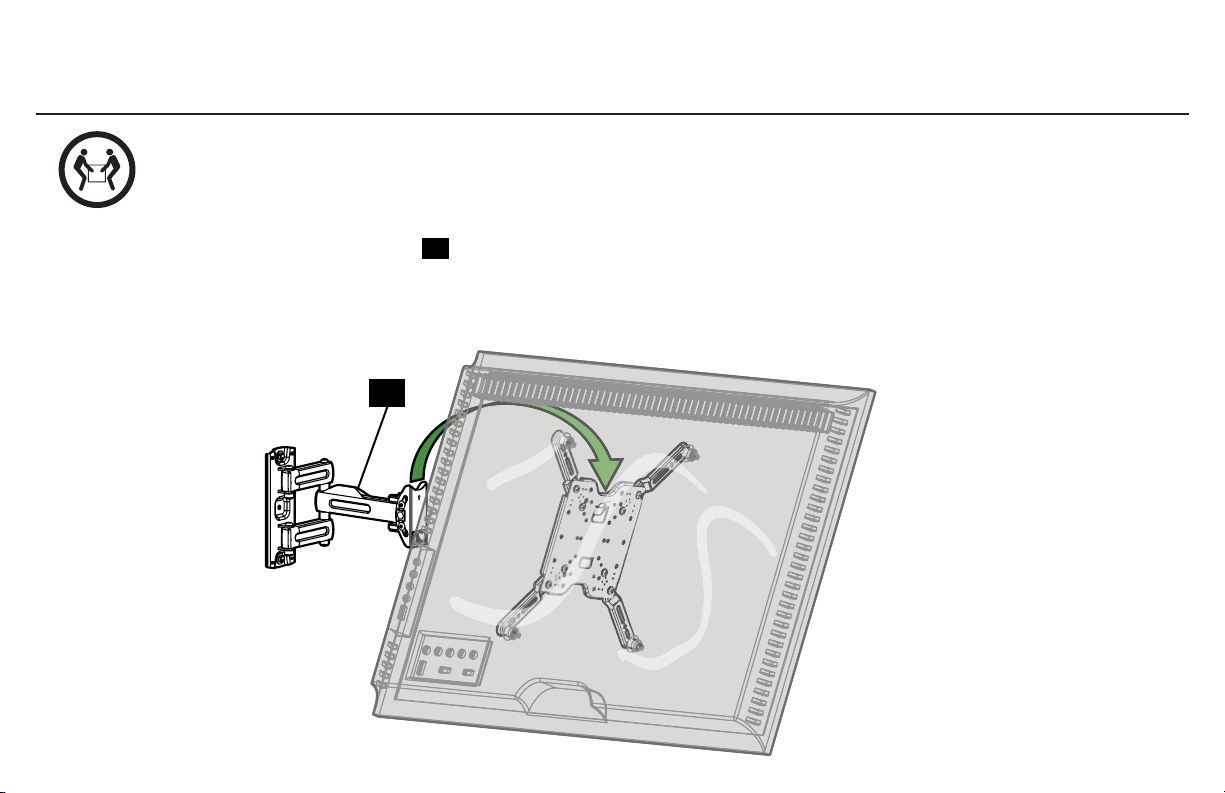

STEP 3 Hang TV onto Wall Plate
1. Fold first section of the arm of wall plate assembly 18 against the wall to provide stability.
2. Hang the TV onto the arm of wall plate assembly 18 by first hooking the top support, then resting the TV into place.
18
21
18

15

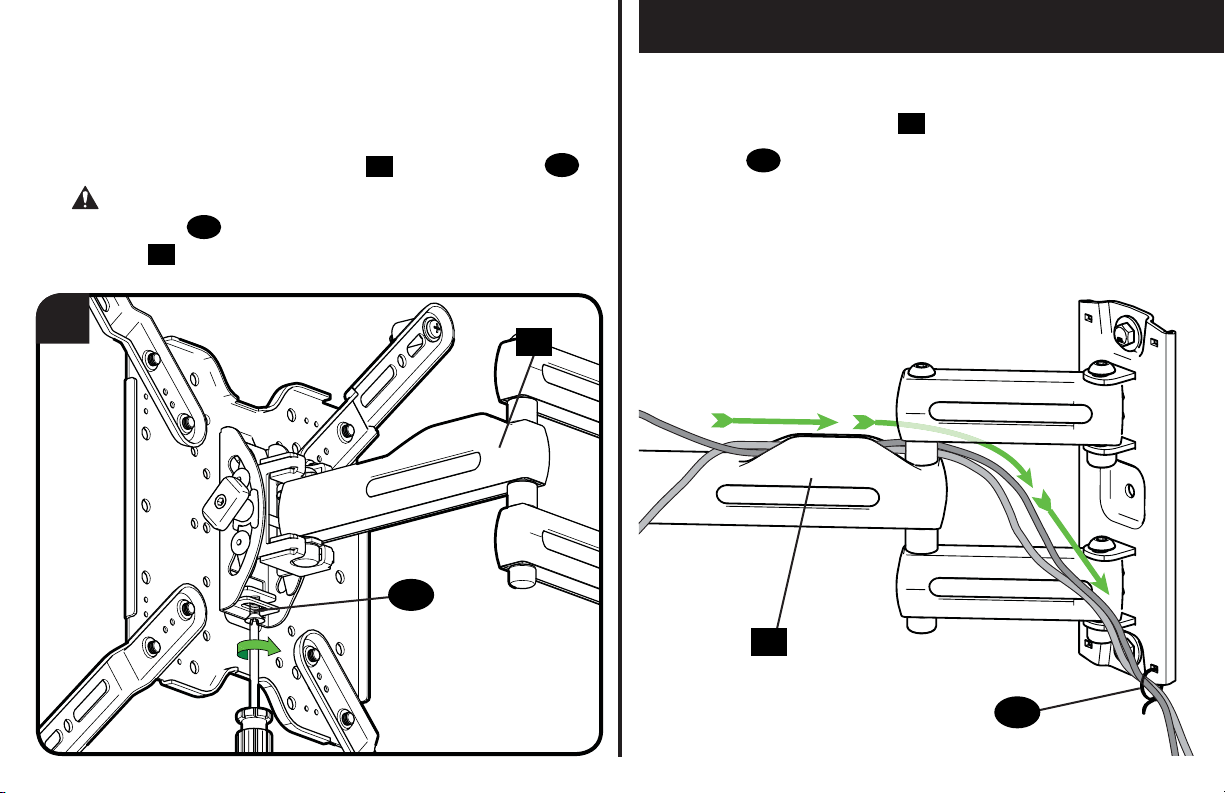

Manage Cables
Cables can be routed through the cable channel on the top of the
arm of the wall plate assembly 18 for a cleaner look.
Cables ties 22 can be used to secure the cables to the wall plate.
Route cables around the arm post and through the open area of the
arm as shown to prevent pinching the cables when folding the arm.
18
18
3
21
3. Lock the TV to the wall plate assembly 18 with locking screw 21 .
CAUTION: Avoid potential personal injury or property damage!
Locking screw 21 must be installed to secure the TV to the arm
assembly 18 .
22

16
L
o
o
s
e
n
T
i
g
h
t
e
n
T
i
g
h
t
e
n
L
o
o
s
e
n

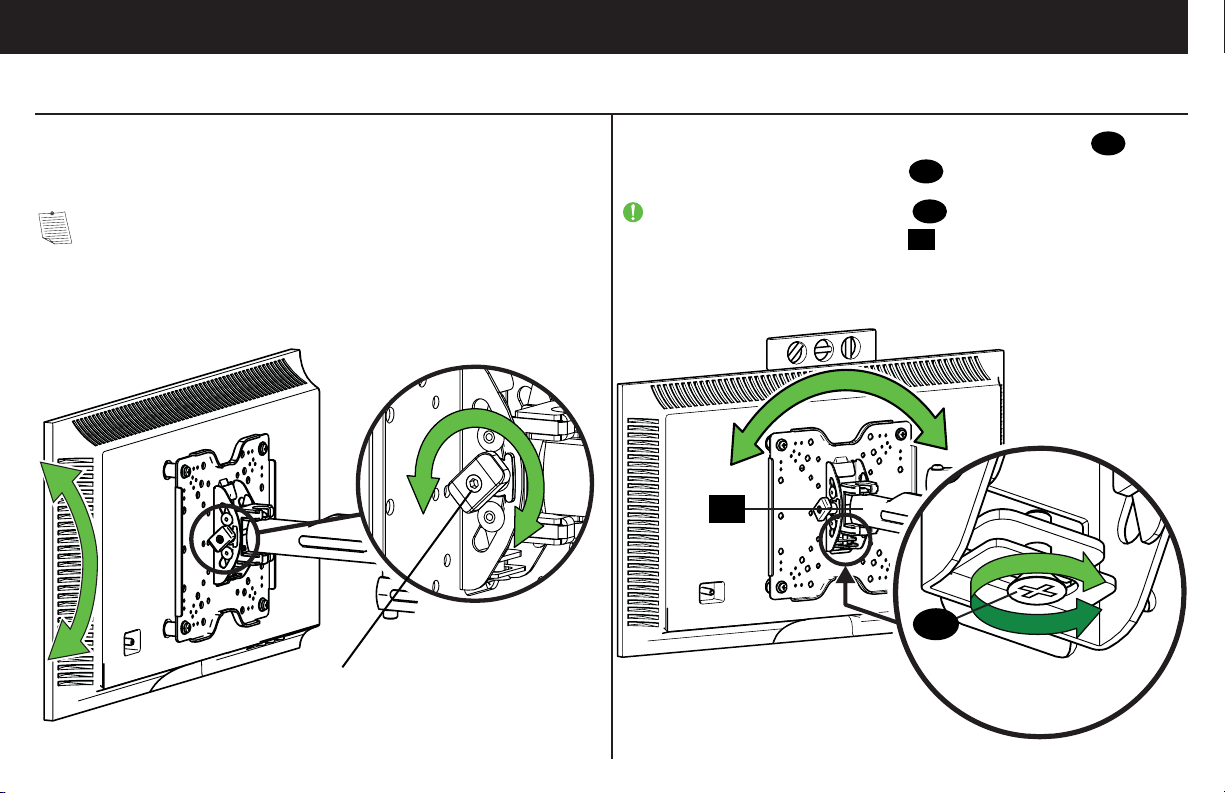

TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place.
If your TV is too loose or too tight, adjust the tilt tension knob by hand.
NOTE: Once your TV is in place, tighten the tilt tension knob to
prevent unwanted movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen the locking screw 21 , level
your TV, then tighten locking screw 21 .
IMPORTANT: This locking screw 21 must be installed to secure
the TV onto the wall plate assembly 18 .
Tilt Tension Knob
21
18

17
REMOVING THE TV
To remove your TV from the wall plate assembly 18 , disconnect all cables and then reverse the procedures in STEP 3.
18
HEAVY! You may need
assistance with this step.

18

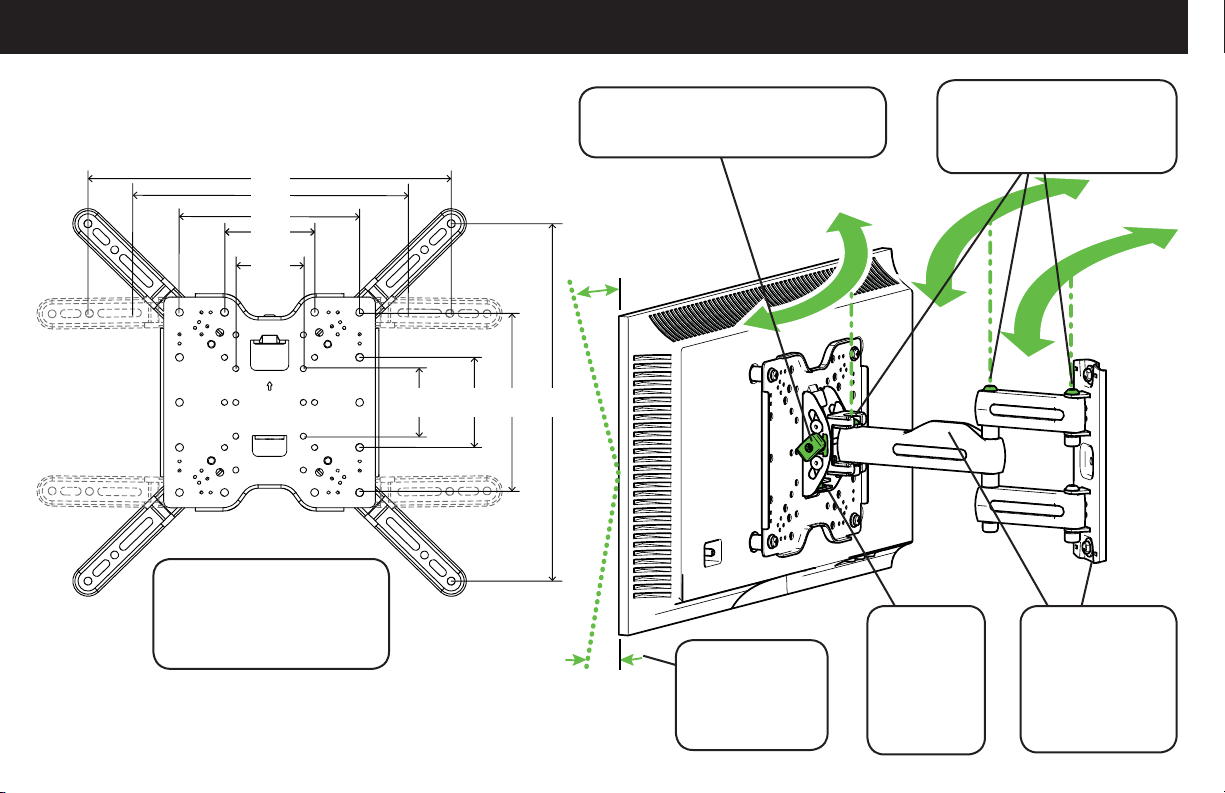

Features
20.0
10.07.5 40.0
40.0
20.0
30.0
7.5
10.0
15º
15º
TV bracket can be
configured to fit TV hole
patterns from 7.5 x 7.5 cm
up to 40.0 x 40.0 cm
Fully articulating arm with
three pivot points, creates
optimal viewing position(s)
TV tilts up or
down for the
perfect viewing
angle
Cable channel
and tie slots hold
cables along
mount arm for a
clean look
Level
adjustments
create a
worry-free
installation
Adjustments allow fingertip control
of TV or restriction of TV movement

19

20
¿No está
seguro?
Antes de comenzar, verifiquemos que este soporte sea el ideal para sus necesidades.
INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO.
5,5 mm
(7/32'')
Madera
10 mm
(3/8'')
Hormigón
No — ¡Perfecto!
Sí — Este soporte NO es compatible. Visite decora.sanus.com o llame al 1-888-333-9952
(Reino Unido: 0800-056-2853) para encontrar un soporte compatible.
¿Su televisor pesa
más de 27.2 kg
(60 lb), incluidos
los accesorios?
Lea estas instrucciones en su totalidad para estar seguro de sentirse cómodo con este fácil proceso de instalación. Consulte
también el manual del usuario de su televisor para ver si existe algún requisito especial para instalar su televisor en la pared.
Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, del ensamblado o del uso del
producto, póngase en contacto con el servicio de atención al cliente al 1-888-333-9952 (Reino Unido: 0800-056-2853).
¿Tiene
todas las
herramientas
necesarias?
1
2
3
4
¿De qué está
hecha su pared? ¿Hormigón sólido
o bloques de
cemento?
27.2 kg
(60 lb)
¿Listo para
comenzar?
13 mm
(1/2”)
¿Tabiques de yeso
con montantes de
madera?
¡Perfecto!
DestornilladorCinta métrica Broca Broca
Taladro
eléctrico MartilloLlave de tubo
PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
●Este producto incluye instrucciones y elementos de sujeción para su instalación en paredes con montantes de madera,
en superficies de hormigón y sobre bloques de cemento. NO lo instale en tabiques únicamente de yeso.
●La pared debe soportar cinco veces el peso del televisor y del soporte juntos.
●No utilice este producto para ningún otro propósito que no sea el explícitamente especificado por el fabricante.
●El fabricante no se responsabiliza por ningún daño o lesión resultante del montaje incorrecto o de uso indebido.
PunzónLápiz Nivel Localizador
de montantes
PRECAUCIÓN:
NO lo instale en
tabiques únicamente
de yeso
Paredes con
montantes de madera
paredes con de
hormigón
Llame al Servicio de Atención al Cliente: 1-888-333-9952 (Reino Unido: 0800-056-2853)
El Kit de instalación en hormigón (no está incluido)
ESPAÑOL
