Sanus Premium VLT5B1 User manual

VLT 5 INSTRUCTION MANUAL
Scan for easy install video
http://san.us/408
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!

2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Does your TV weigh more than 125 lb (56 kg) including accessories?
No — Perfect!
Yes
— This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have all of the tools needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your wall made of?
Perfect! Perfect! Call 1-800-359-5520 (UK: 0800-056-2853)
Unsure?
?
Drywall with
wood studs
Solid concrete or
concrete block
125 lb
(56 kg)
13 mm
(1/2 in.)
7/32 in.
(5.5 mm)
Wood
3/8 in.
(10 mm)
Concrete

3

4
M6x35 mm M8x35 mm
M4x35 mm M5x35 mm
Spacer
STEP 1 Attach Bracket to TV
TV Screws
TV Washers
04 x4
06 x4
09 x4 07 x4 08 x4
03 x4
05 x4
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
Right TV
Bracket
Left TV
Bracket 02 x1
01 x1

5
Too Short Correct Too Long
1-1 Select TV Screws
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M5, M6, or M8) to use.
1-2 Spacers
CAUTION: Verify adequate thread engagment of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4 M6 M8
M5
Mount the spacers 09
above the TV bracket,
so the TV bracket sits
close to the TV surface
for Flat Back Panels.
TV Bracket
TV Bracket
Mount the spacers 09
under the TV bracket to
create extra space needed
for irregular shape TV
backs or large cables.
Spacers and screws are supplied to install your TV bracket.
Determine your preference for spacer configuration when
attaching your TV bracket.
09
09
Round Back CablesInset HolesFlat Back

6

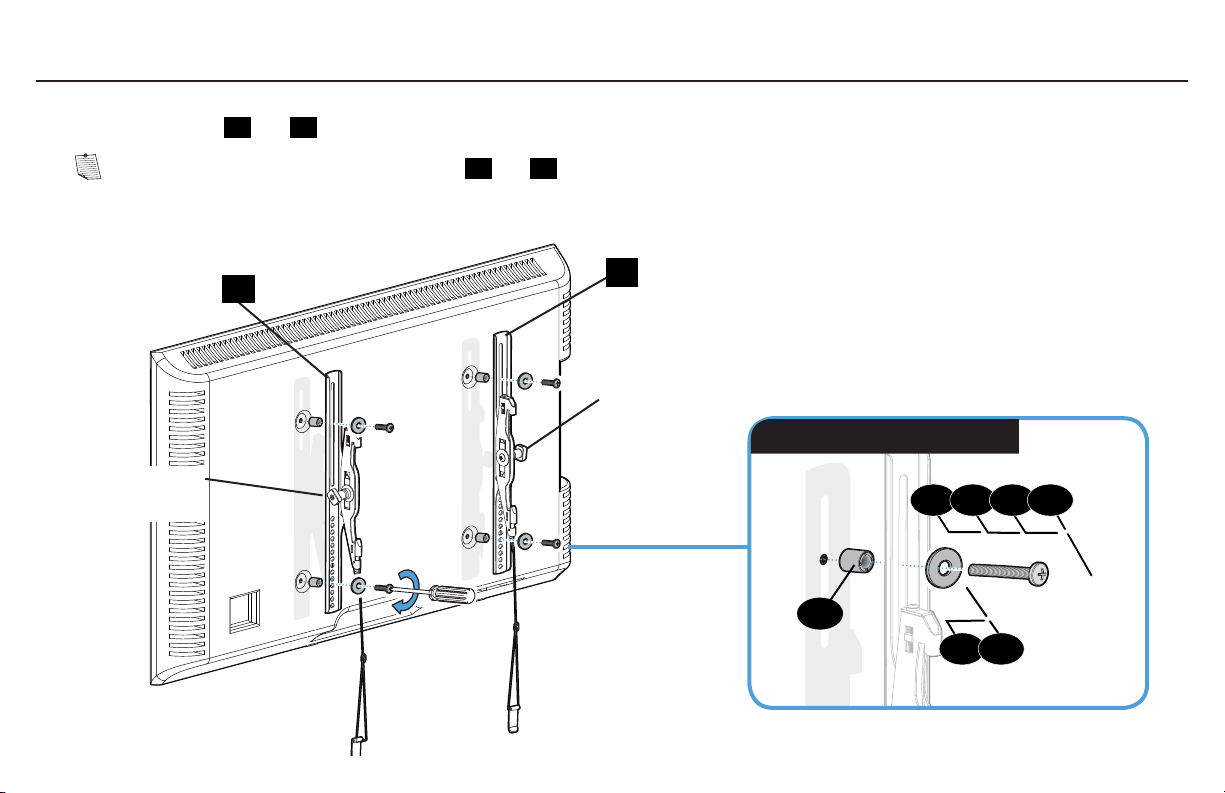

1-3 Attach TV Brackets
Spacer, screw and washer
Center the TV brackets 01 and 02 over your TV hole pattern as shown - making sure the brackets are level.
NOTE: The adjustment knobs on TV brackets 01 and 02 should be oriented to the outside edges.
Install using the spacer, screw and washer combination you selected for your TV.
09
07 08
03 04 05 06
Adjustment
Knob
Adjustment
Knob
02
01

7
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator
(ICD) is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device,
keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
STEP 2 Attach Wall Plate to Wall
5⁄16 x 3 ½ in.
Sanus Magnetic Stud Finder *
13 x4
10 x1
11 x1
12 x1
14 x4
Parts and Hardware for STEP 2
For wood stud installations, follow STEP 2A on PAGE 8
For concrete installations, follow STEP 2B on PAGE 13
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Wall Plate *
Wall Plate
Template Lag Bolt
Concrete Anchor

8
STEP 2A Wood Stud Option
1
2
3
CAUTION: Avoid potential personal injuries and
property damage!
●Drywall covering the wall must not exceed
16 mm (5/8 in.)
●Minimum wood stud size: common 51 x 102 mm
(2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.)
●Minimum horizontal space between fasteners:
406 mm (16 in.)
●Stud centers must be verified – not all walls have
conventional 406 mm (16 in.) or 610 mm (24 in.)
stud spacing
NOTE: See Introducing Sanus Magnetic Stud
Finder*located in your Welcome folder for more
detailed operation of stud finder.
1. Locate a nail/screw in the studs using the Sanus
magnetic stud finder 12 provided.
2. Find the edges of the studs using the probe
of the stud finder 12 .
3. Mark the centers of the studs with pencil.
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD)
is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at
least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
12
Min. 406 mm
(16 in.)
Max. 16 mm
(5/8 in.)
Min. 89 mm
(3 1/2 in.)
Min. 38 mm
(1 1/2 in.)

9
4 5
89 mm
(3 1/2 in.)
5.5 mm
(7/32 in.)
4. Place the wall plate template 10 at your desired height and position the slotted holes over your stud center lines. Level the wall plate
template 10 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the four pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 89 mm (3 1/2 in.).
10
10

10
6 7
≈ 13 mm
(1/2 in.)

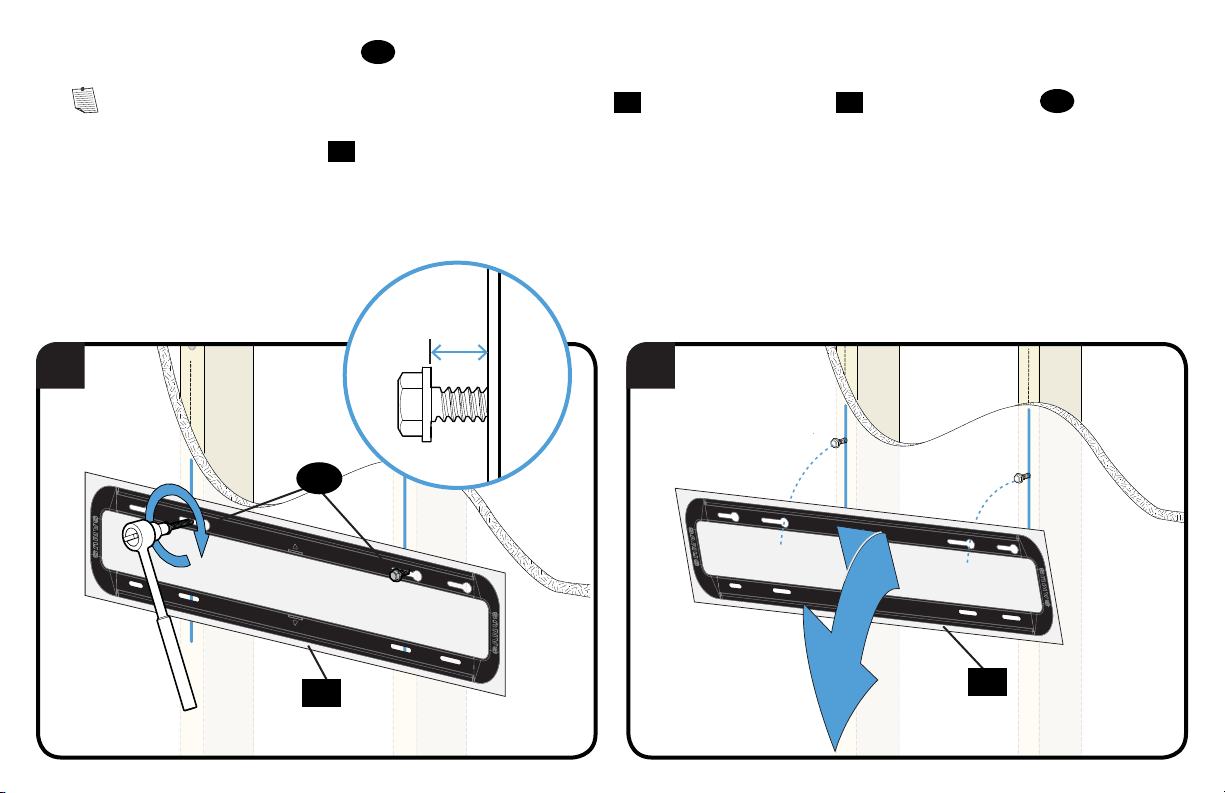

6. Partially install the top two lag bolts 13 ,leaving about 13 mm (1/2 in.) space from the wall.
NOTE: This space allows you to remove the wall plate template 10 and hang the wall plate 11 onto the top lag bolts 13 .
7. Remove the wall plate template 10 .
10
10
13

11
9

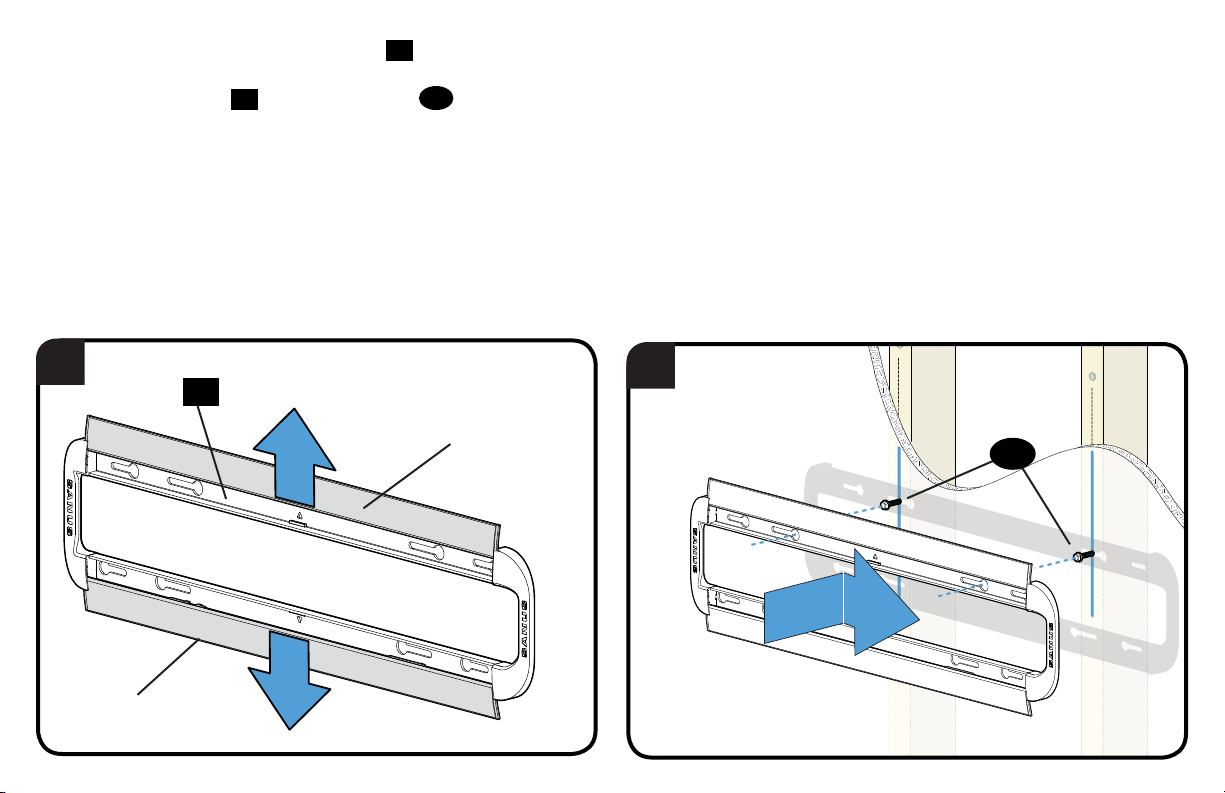

8. Slide the covers open on the wall plate 11 to expose the mounting holes.
9. Hang the wall plate 11 on the top lag bolts 13 .
13
8
Cover
Cover
11

12
11
10
Cover
Cover
11
13 11
10. Install the bottom two lag bolts 13 . Tighten all four lag bolts 13 only until they are pulled firmly against the wall plate 11 .
NOTE: Hold the wall plate 11 in place when tightening the first lag bolt 13 to keep the plate from shifting out of place.
CAUTION: Improper use could reduce the holding power of the lag bolt 13 . DO NOT over-tighten the lag bolts.
11. Slide the covers closed on wall plate 11 .
Go to STEP 3 on PAGE 17.

13
1 2
STEP 2B Solid Concrete or Concrete Block Option
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate 11 directly onto the concrete surface
●Minimum solid concrete thickness: 203 mm (8 in.)
●Minimum concrete block size: 203 x 203 x 406 mm (8 x 8x 16 in.)
●Minimum horizontal space between fasteners: 610 mm (24 in.)

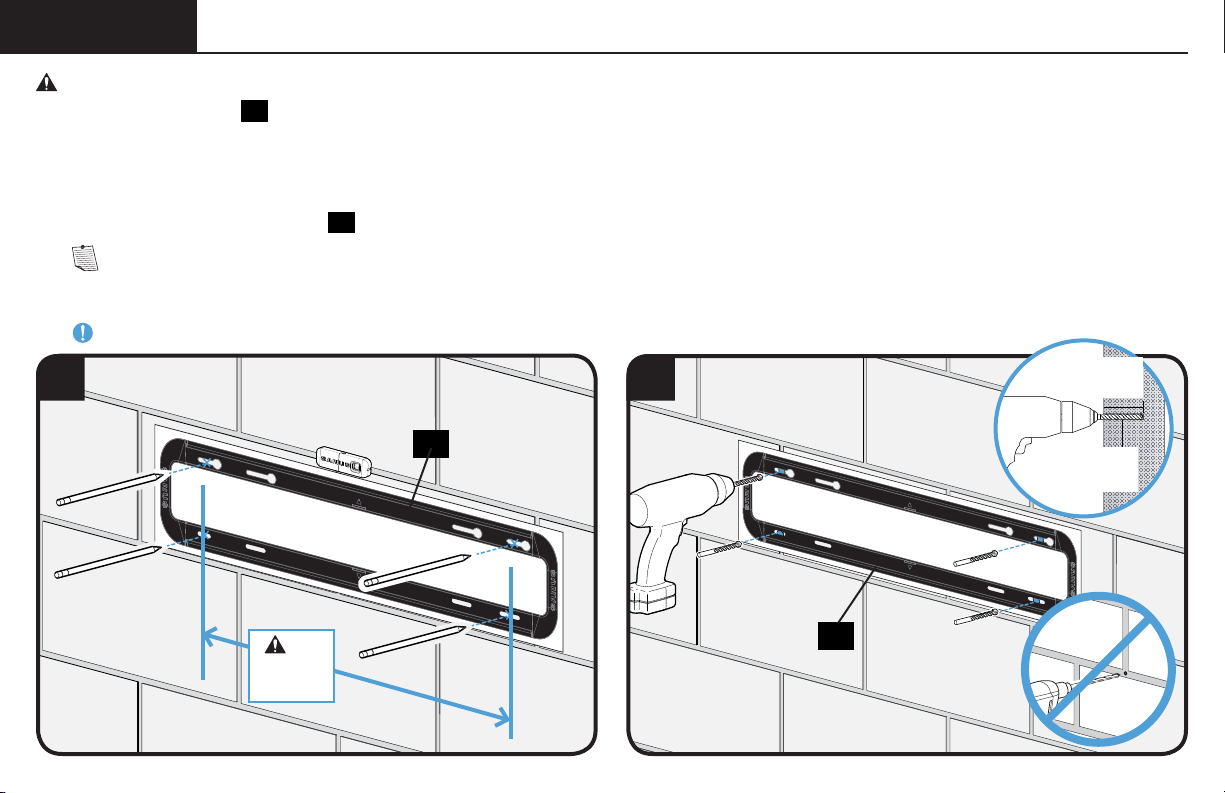

1. Position the wall plate template 11 on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill four pilot holes using a 10 mm (3/8 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 101 mm (4 in.). Never drill into the mortar between blocks.
10 mm
(3/8 in.)
101 mm
(4 in.)
10
10
Min.
610 mm
(24 in.)

14
3. Remove the wall plate template 10 and insert four anchors 14 .
CAUTION: Be sure the anchors 14 are seated flush with the concrete surface.
4. Partially install the top two lag bolts 13 , leaving about 13 mm (1/2 in.) space from the wall.
NOTE: This space allows you to hang the wall plate 11 onto the top lag bolts 13 .
34
≈13 mm
(1/2 in.)
13
14
10

15
6
5. Slide the covers open on the wall plate 11 to expose the mounting holes.
6. Hang the wall plate 11 on the top lag bolts 13 .
13
11
5
Cover
Cover
11

16
7
13
11
8
Cover
Cover
11

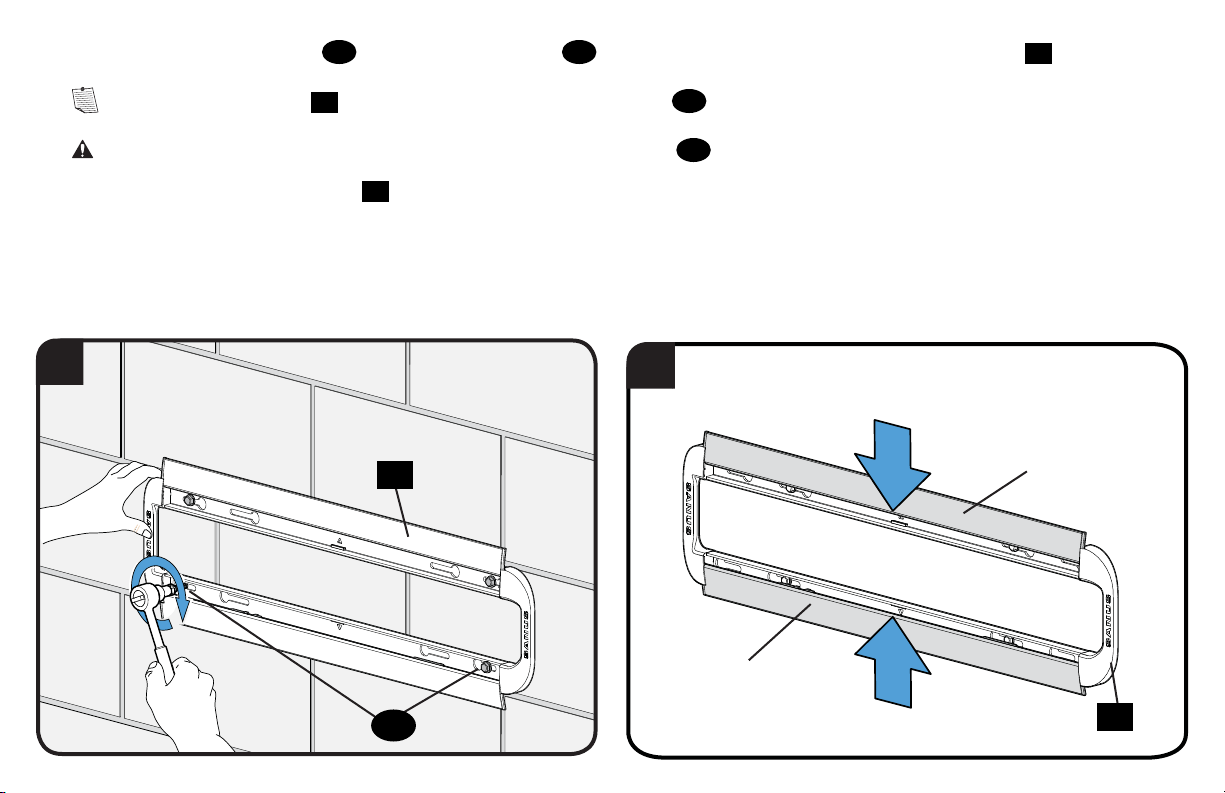

7. Install the bottom two lag bolts 13 . Tighten all four lag bolts 13 only until they are pulled firmly against the wall plate 11 .
NOTE: Hold the wall plate 11 in place when tightening the first lag bolt 13 to keep the wall plate from shifting out of place.
CAUTION: Improper use could reduce the holding power of the lag bolt 13 . DO NOT over-tighten the lag bolts.
8. Slide the covers closed on wall plate 11 .

17
HEAVY! You may need assistance with this step.

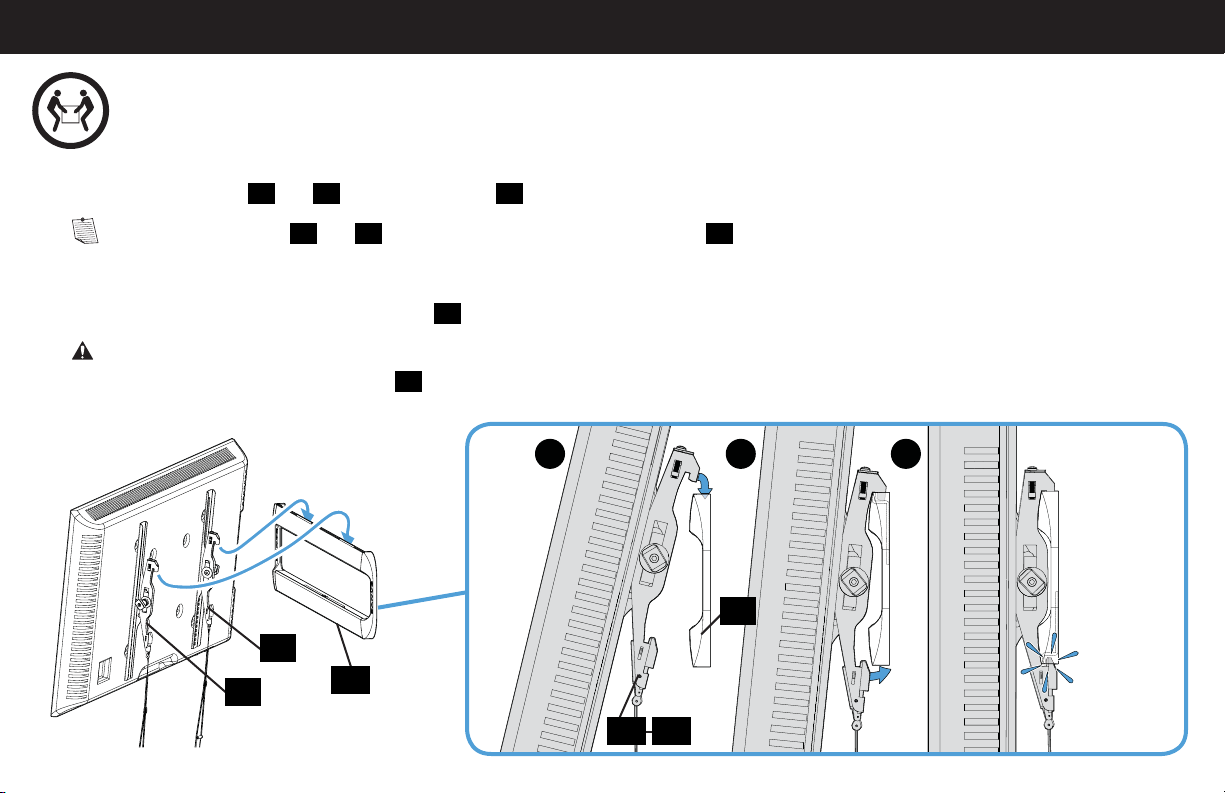

STEP 3 Attach TV to Wall Plate
1. Hook the TV brackets 01 and 02 onto the wall plate 11 .
NOTE: The TV brackets 01 and 02 can be slid anywhere along the wall plate 11 for optimal positioning of your TV.
2. Rest the TV into place against the wall.
3. Press the bottom of the TV into the wall plate 11 until the safety catches lock the TV in place.
CAUTION: Avoid potential personal injury or property damage! Always make sure your TV brackets are in the locked position so the
TV is securely fastened to the wall plate 11 .
1 2 3
01
02
0201
11
11

18

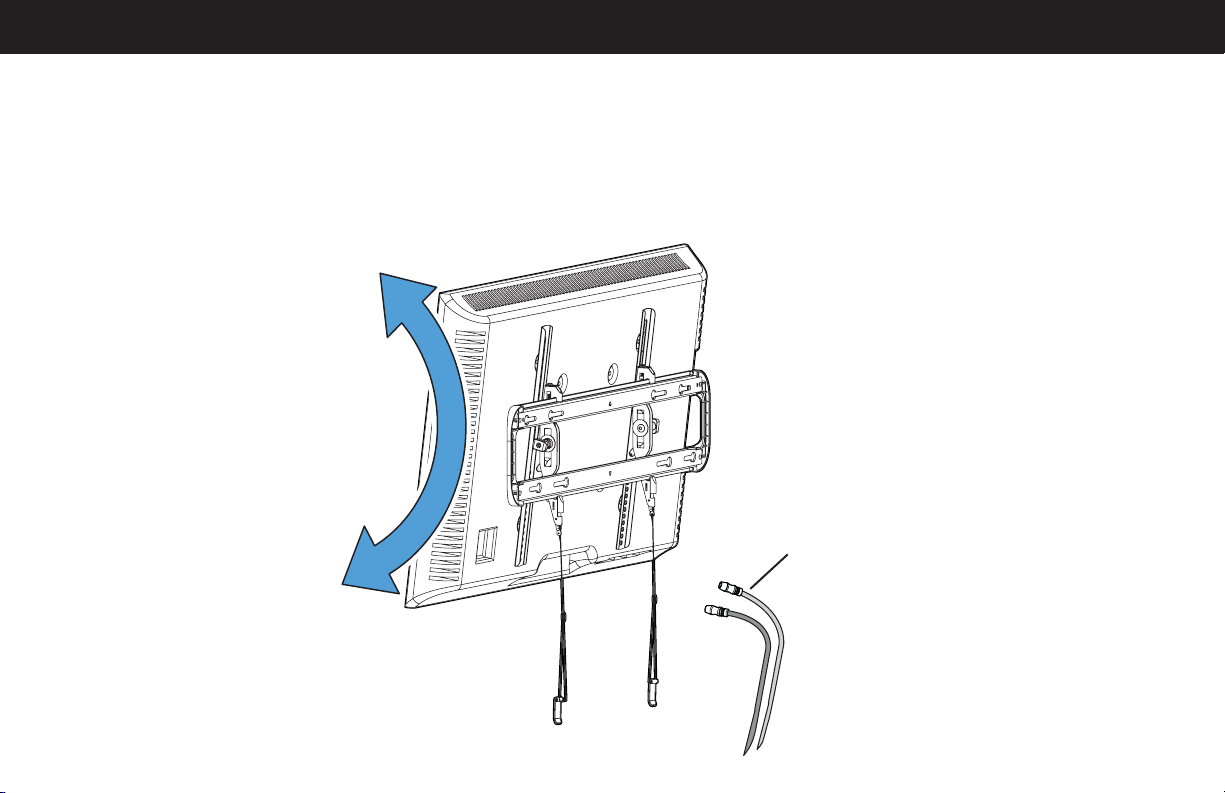

Manage Cables
Tilt the TV up or down to gain access to the back of the TV.
Attach your cables, then adjust the TV as desired.
Cables

19
Adjustments
LEVEL Tilt
To level your TV, turn the level adjustment screw on the top of
either TV bracket 01 or 02 to raise or lower that respective
side of the TV.
Your TV should adjust easily when moved, then stay in place.
Adjust the tilt tension knob if your TV naturally tilts up or down.
NOTE: If you do not intend to adjust the tilt for different
viewing locations, you can tighten the tilt tension knobs to
prevent unwanted movement.
Level
Screw
Tilt Tension
Knob
Raise
Lower
01
02
Tighten
Loosen

20

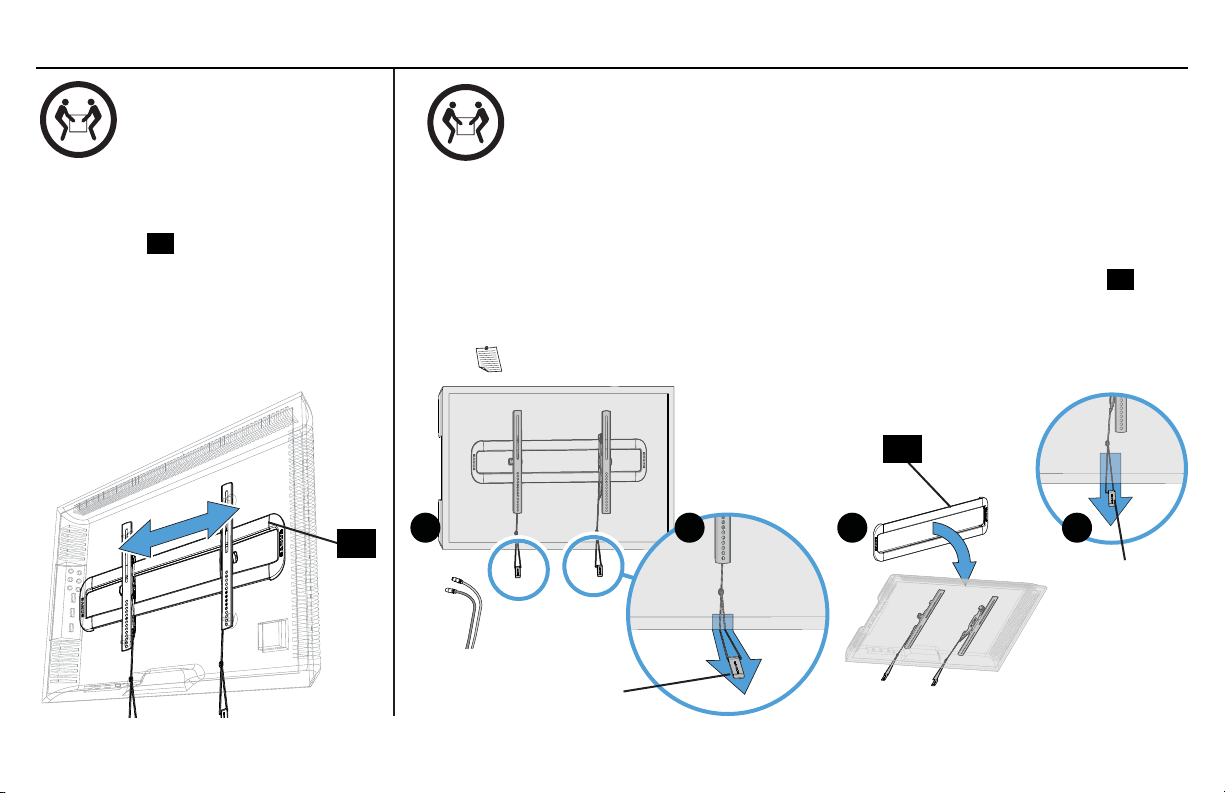

REMOVING THE TV
Slide the TV left or right along
the wall plate 11 to reposition.
TV LATERAL SHIFT
HEAVY! You may need assistance with this step.
11
HEAVY! You may need
assistance with this step.
1. Disconnect all cables from the TV.
2. To unlock the TV from the wall plate: pull both release cords down and toward the TV
(away from the wall).
3. Pull the bottom of the TV from the wall enough to lift the TV up and off of wall plate 11 .
4. Before rehanging the TV, pull the release cords straight down to unlock the safety catches.
NOTE: To rehang the TV, follow the procedures in STEP 3 on PAGE 17.
Release Cord
Release
Cord
1 2 3 4
11
