ASEPT.2X TROUBLESHOOTING GUIDE
Procedure
#2 1PS-1PCB
Before touching any electrical components located in the ASEPT.2X housing, always turn off the unit and
disconnect from the power outlet.
SANUVOX Technologies, Montréal QC, Canada
www.sanuvox.com
November 2016
WARNING

Table of Contents
ASEPT.2X ELECTRONIC COMPONENTS.......................................................................................................... 1
1. THE UNIT DOESN’T WORK.....................................................................................................................5
2. FAILURE TO START A DISINFECTION CYCLE (The start/stop buttons flash alternately or still red). ...14
3. STARTING A CYCLE, THE LAMPS DON’T LIGHT UP. .............................................................................20
4. STARTING A CYCLE, THE LAMPS LIGHT UP, THEN TURN OFF AFTER A FEW SECONDS.......................21
5. THE COOLING FAN DOESN’T WORK....................................................................................................23
6. ONLY THE PRIMARY TOWER WORKS, NOT THE SECONDARY TOWER................................................25
7. THE LAMPS DON’T SHUT OFF WHEN SOMEONE WALKS IN. ..............................................................26
8. CANNOT ACCESS THE WEB INTERFACE...............................................................................................27
SUMMARY TABLE........................................................................................................................................28

1
ASEPT.2X ELECTRONIC COMPONENTS

2

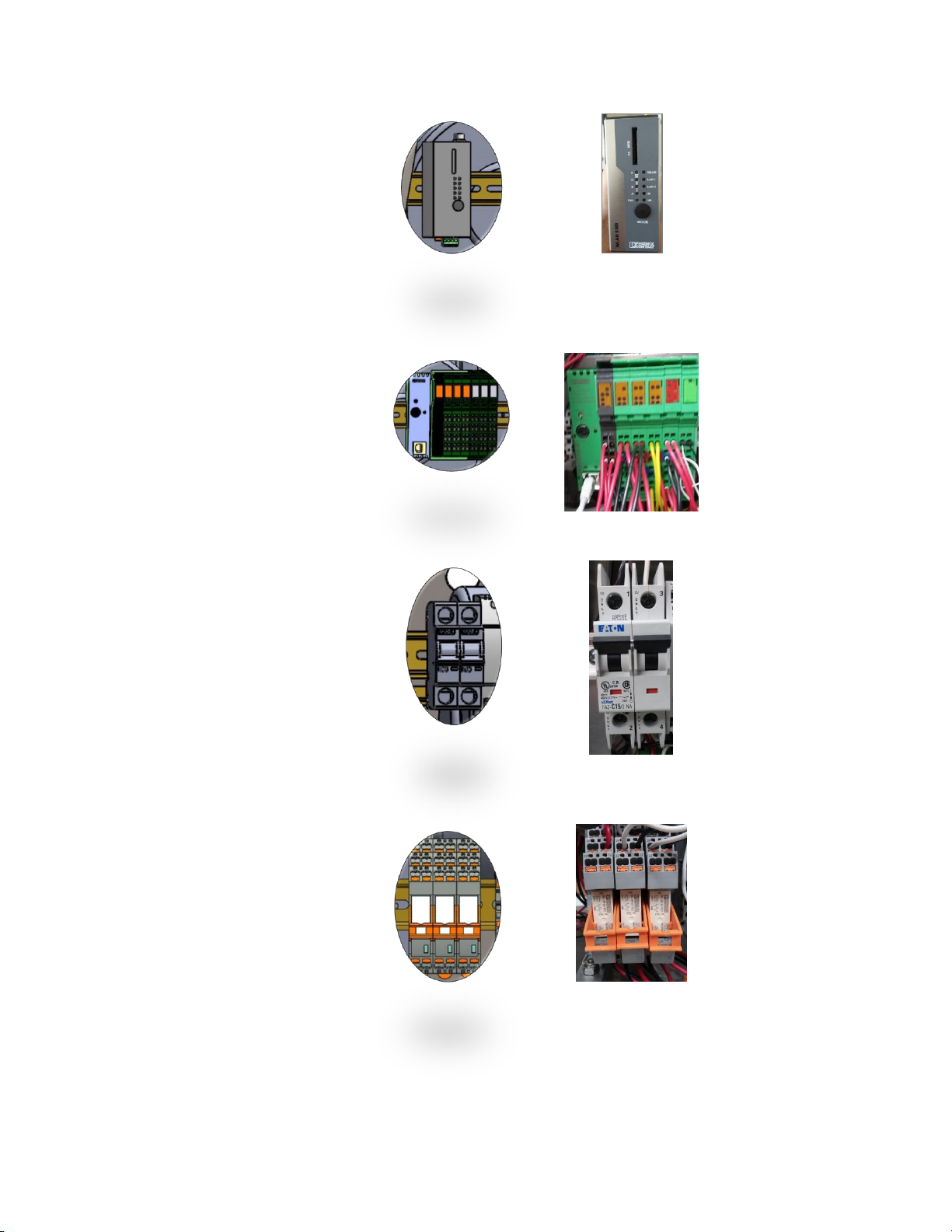

Router
PLC
Circuit breaker
Relays

3

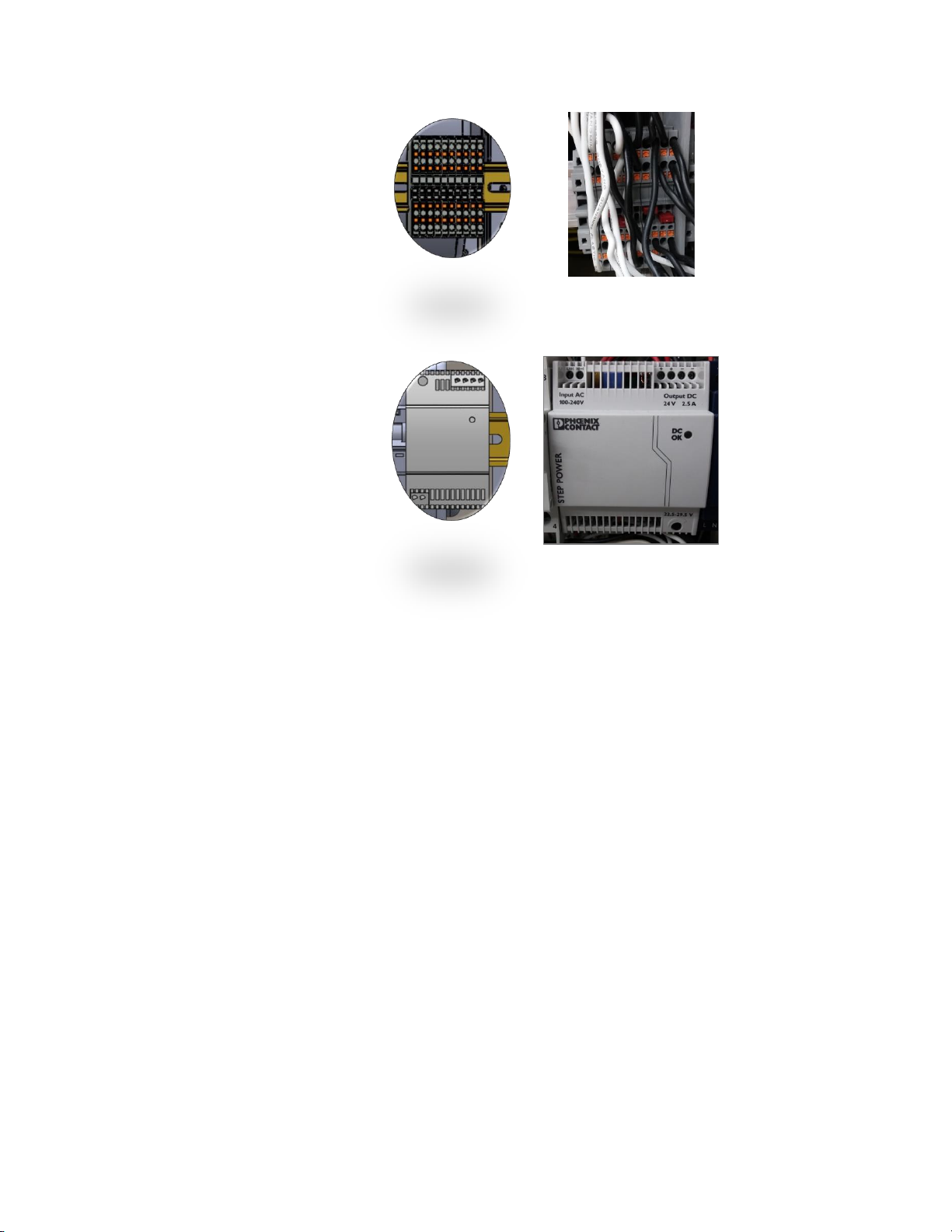

Terminal block
Power Supply

4
1. The unit does
not work
1.1 Is the unit plugged
into an electrical outlet?
1.2 Is the POWER switch
under the unit on the ON
position?
1.3 Is the electrical outlet
functional?
1.8 Can you detect any
loose wires?
1.5 Are any components
inside the unit lit up?
1.4
Open up the
2 access panels on
the unit
1.9 Are any components
inside the unit lit up?
1.10 Using the probe sensors of a
voltmeter on the power cord
terminals, do you detect the
appropriate voltage?
Plug the device into an
appropriate electrical
outlet.
Contact
SANUVOX
(replace the
power cord).
Push on the rocker
switch for the ON
position.
With an electrician,
find the problem’s
source.
1.6 Are the Start/Stop
buttons connected
tightly to the PLC?
Push back the
wires in their
sockets.
Push back the circuit
breaker
(red indicator).
1.7 Is the PLC
connected tightly to
the power supply?
Contact SANUVOX
(LEDs, PLC).
Contact SANUVOX
(Power Supply, PLC).
YES
YES
YES
YES YES
YES
YES
YES
NO
NO
NO
NON
NON
NON
NO
NO NO
YES
Figure 1: The unit does not work –Decision tree.

5
1. THE UNIT DOESN’T WORK.
1.1 Check if the unit is plugged to a functioning electrical source.

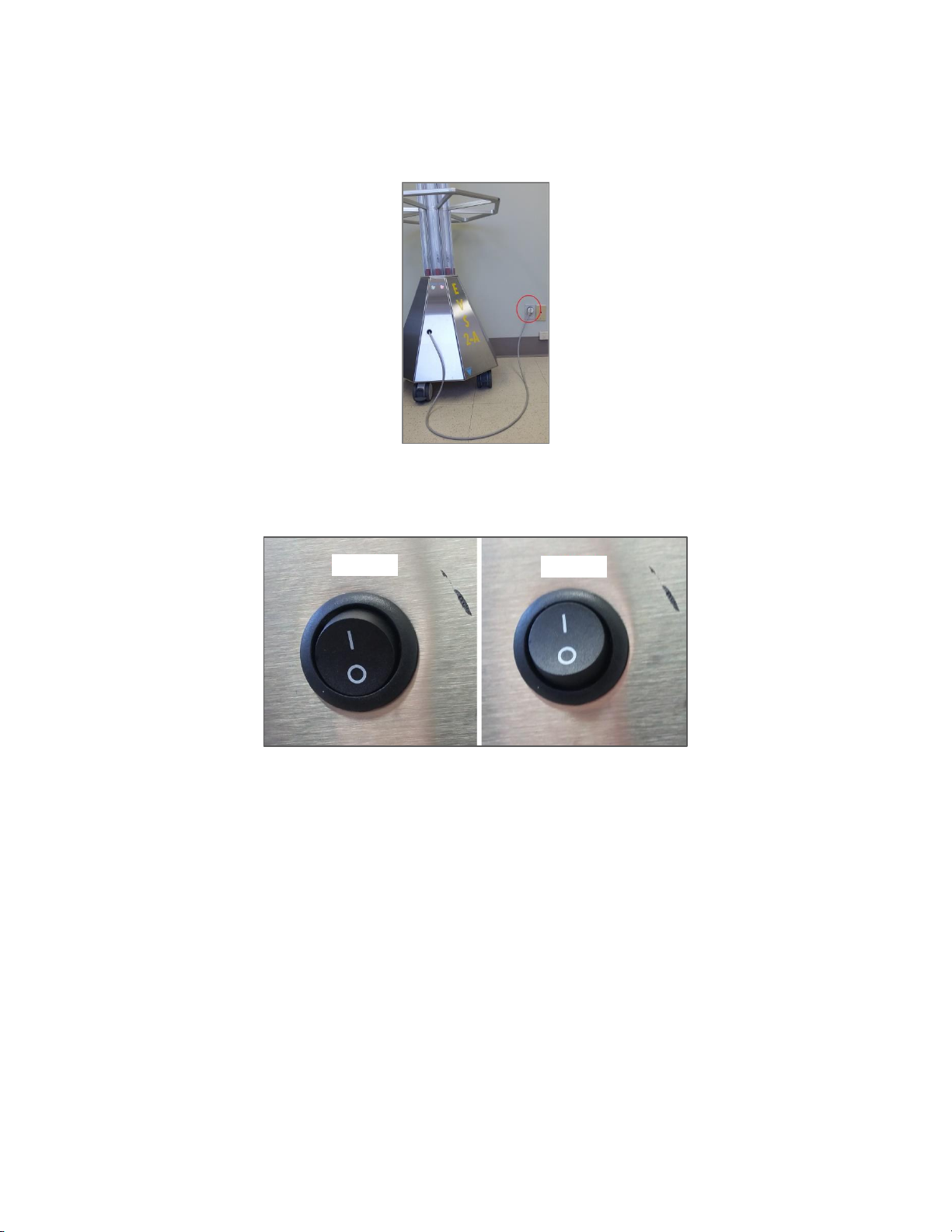

Figure 2: The unit is plugged in an electrical source.
1.2 Check if the power button under the unit is switched ON.
Figure 3 Powering up the unit.
1.3 Check if the power source is functional. It requires that you plug any other electrical
appliance in the outlet e.g. a corded lamp. If the appliance doesn’t work, have the wall
outlet checked by a qualified electrician.
1.4 Open up the two (2) front panels. The first access panel bares the ASEPT.2X blue decal. The
second access panel is the second to the left of the first one.
ON
OFF

6
Figure 4: Access panel to the unit.
1.4.1 Tools required:
-One 4 mm Allen key.
-One PHILIPS #3 screwdriver.
Figure 5: Tools required to remove the access panels.
1.4.2 Disconnect the power from the unit then carefully lower the unit on its side to
unscrew the panels from the underneath mounting plate.
2nd
d1S
t
1st
1St

7
Figure 6: The ASEPT.2X unit on its side.

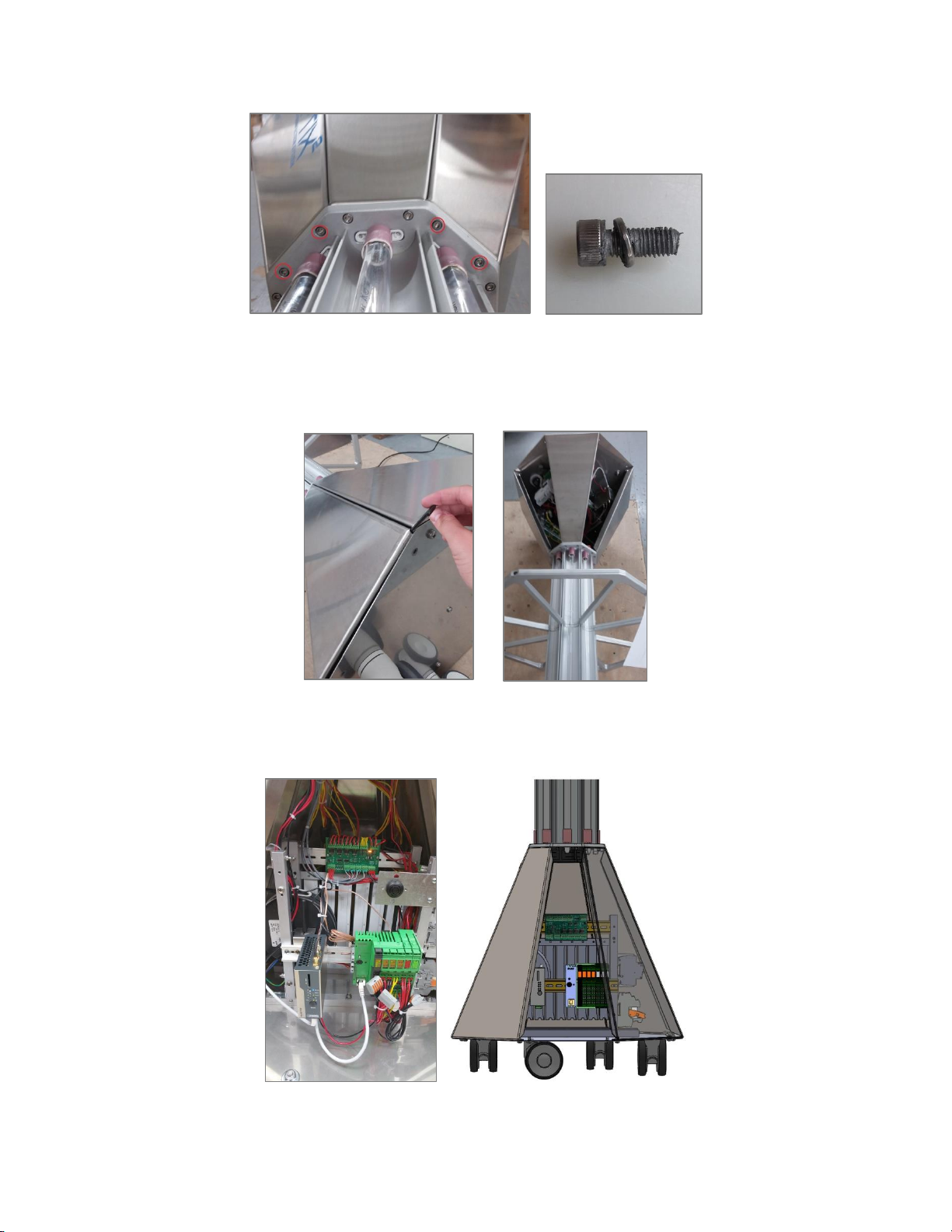

1.4.3 Using the PHILIPS #3 screwdriver, remove and put aside the 4 screws and the 4
washers for the two access panels.
Figure 7: Removing the bottom screws.
1.4.4 Using the 4mm Allen key, remove and put aside the top 4 screws and 4 washers for
the two access panels.

8
Figure 8: Removing the top screws.
1.4.5 Remove the panels and put back the unit vertically on its wheels. Use the ALLEN key
for extra help to remove panels. Plug in the unit and turn ON the power switch.
Figure 9: Access panel removal.
You now have access to the followings components:
Figure 10 : Access to router and PLC.

9

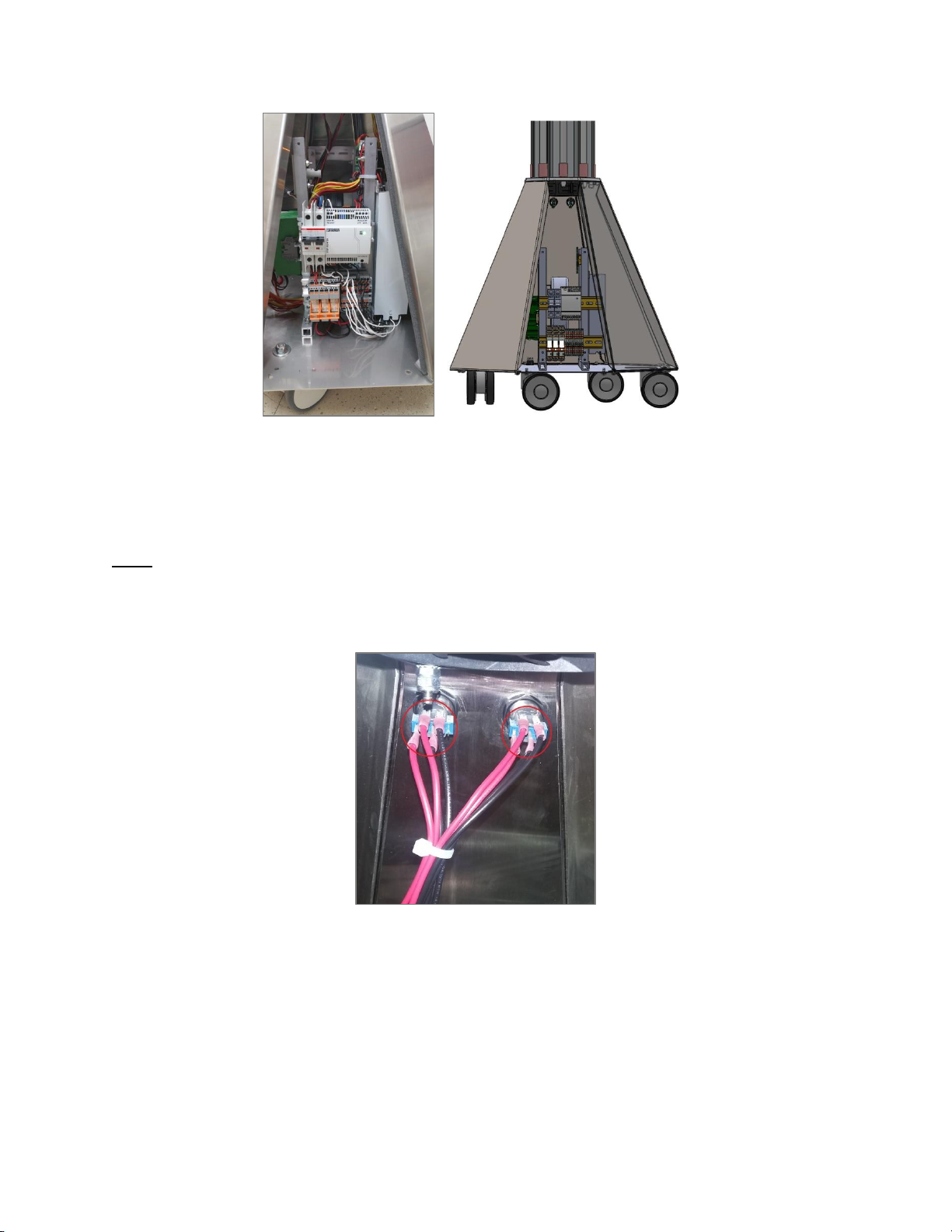

Figure 11: Access to circuit breaker, relays and power supply.
1.5 Check inside the unit: are any components lit up?
IF YES
1.6 Check if the wiring to the «start/stop» buttons is properly connected to the PLC.
1.6.1 Push/pull on the push buttons wiring to make sure that they are tightly connected.

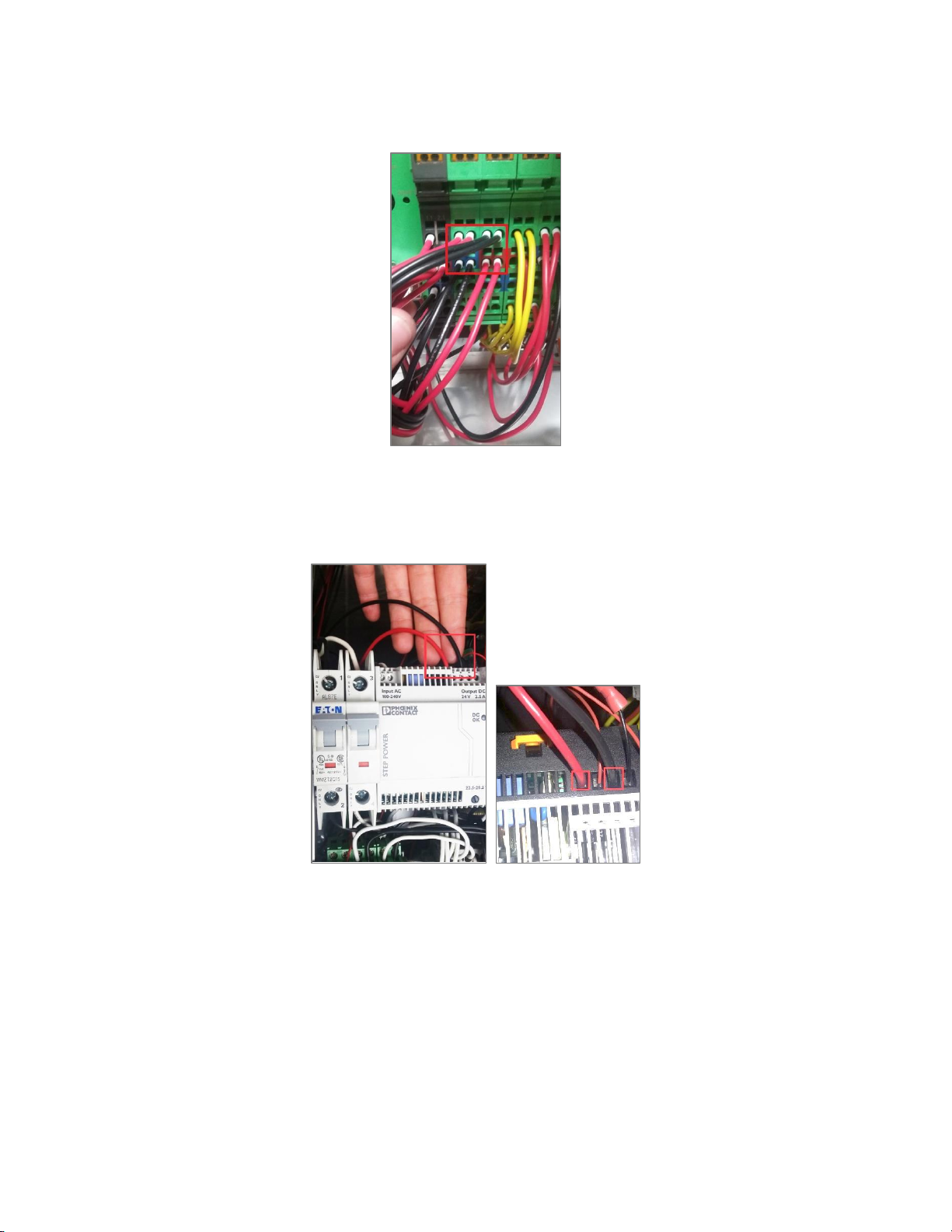

Figure 12: Connections to the start/stop push buttons.

10
1.6.2 Push/pull on the wiring to the PLC to make sure that there are no loose connections.
Figure 13: Connections to PLC..
1.7 Check if the PLC is well connected to the power supply.
1.7.1 Check first if the power supply is well connected.

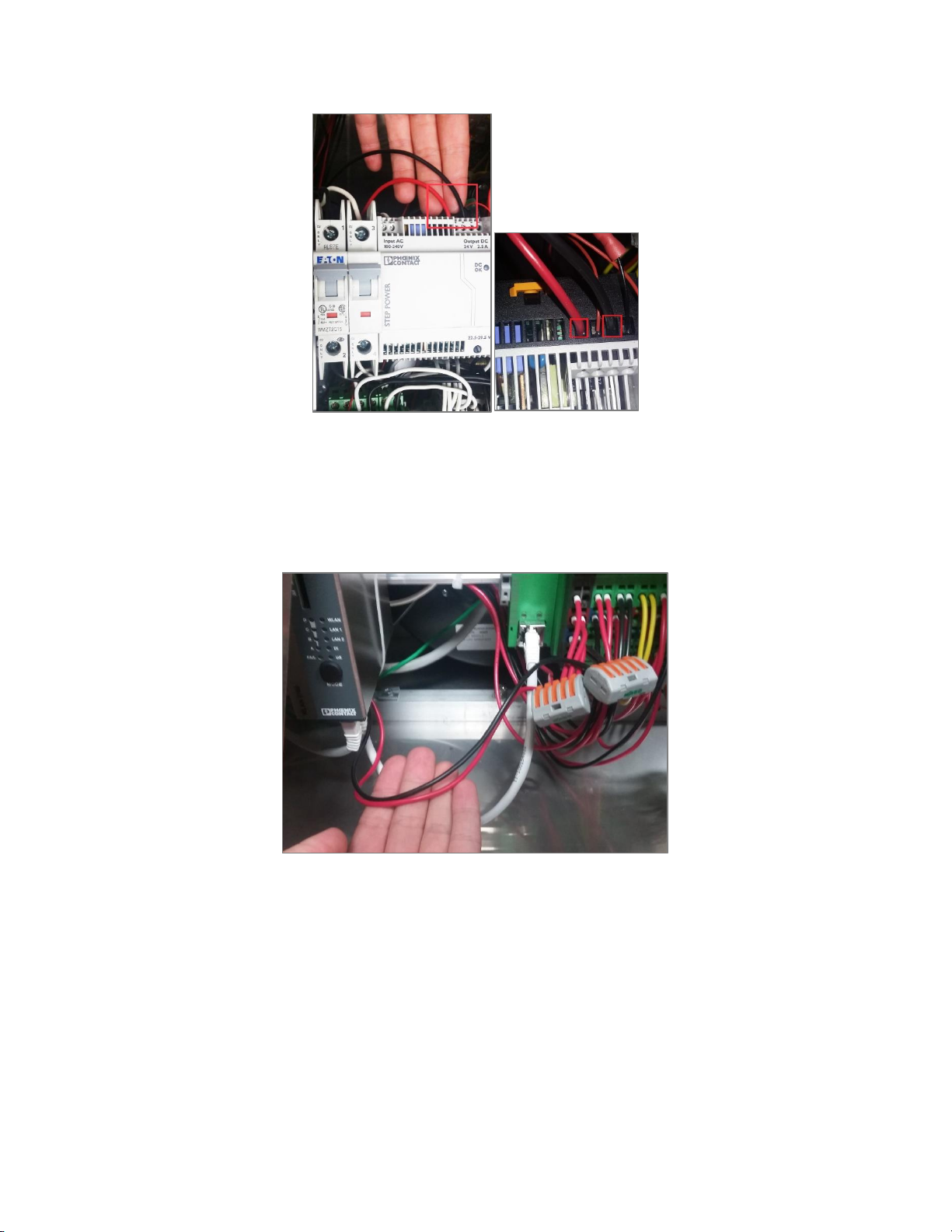

Figure 14: Connections to power supply.
1.7.2 Check if the connections to the PLC are firmly attached.
Wiring from the power supply is linked to connectors that share power between the
PLC and the router.

11
Figure 15: Connections to PLC.
IF NO
1.8 Check for loose or unconnected wires. Secure the connections if you find any. If you are not
sure, contact SANUVOX for any supplemental information.
1.9 Check if the circuit breaker is tripped.
If it is in the OPEN (green indicator, lowered position), rearm the breaker by pulling the lever
up.
Figure 16: Breaker position.
Circuit breaker is closed:
current can flow through.
Circuit breaker is opened:
current can’t flow through.

12
1.10 Check power feed.
1.10.1 Using a multi meter or voltmeter:

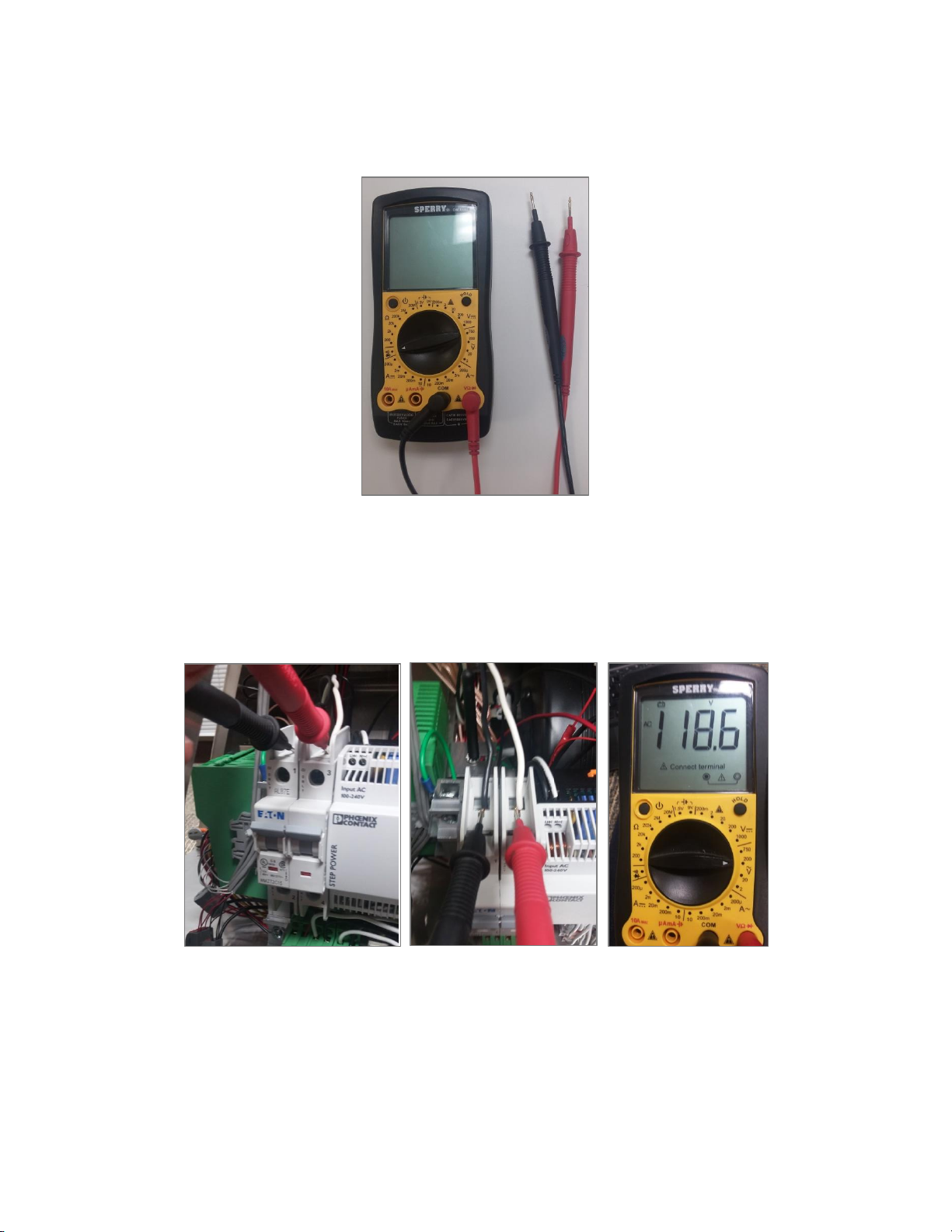

Figure 17: Multi meter for measuring voltage.
1.10.2 Put the two probes on the wiring terminals bringing power to the breaker. You
should expect a voltage reading from the multi meter almost the same as the source
power (e.g. 120V in North America). If the reading is zero, the power wiring may be
defective.
Figure 18: Probe reading on the breaker’s power terminal.

13
2. Disinfection cycle doesn’t start (start/stop buttons are
blinking red).
2.1 Are the two towers
plugged into a wall
outlet?
2.2 Has the start/stop
light buttons stop
flashing? Is the unit
working?
Plug in both units to
power them up.
Contact SANUVOX to
verify router
configuration.
YES
YES
NO
NO
2.21
Connect the towers
to each other using an
Ethernet cable
2.3 Are the units working
when used in another
space (away from other
instrument’s
interference)?
- Stop disturbance
sources.
- Change router's
frequency from
2.4 ghz to 5 ghz.
YES
2.5 Are you detecting the
routers?
2.5 Using a
computer connected to
the tower, PING the router’s
IPAddress with the
command
screen
NO
YES
2.6 Are you detecting the
PLC?
2.6 Using
a computer connected to
the tower, PING router PLC
address with the command
screen.
NO
2.6.2 Is the Ethernet
cable joining the PLC to
the router well
connected?
2.5.2 Is the router well
connected to the power
supply (24V)?
NO
2.5.3 Can you see any
wire disconnected?
YES
YES Connect them
back
NO
NO
YES
Contact SANUVOX
(router)
2.4 Open the
two access panels on
the main tower.
2.6.3 Can you see any
wire disconnected?
Contact SANUVOX
(PLC)
YES
YES
NO
NO
Figure 19: Inability to start a disinfection cycle –Decision tree.

14
2. FAILURE TO START A DISINFECTION CYCLE (The start/stop buttons
flash alternately or still red).
2.1 Make sure that both towers are connected to an electrical outlet. Unless in « Primary unit
only » mode, both towers can only work when paired.

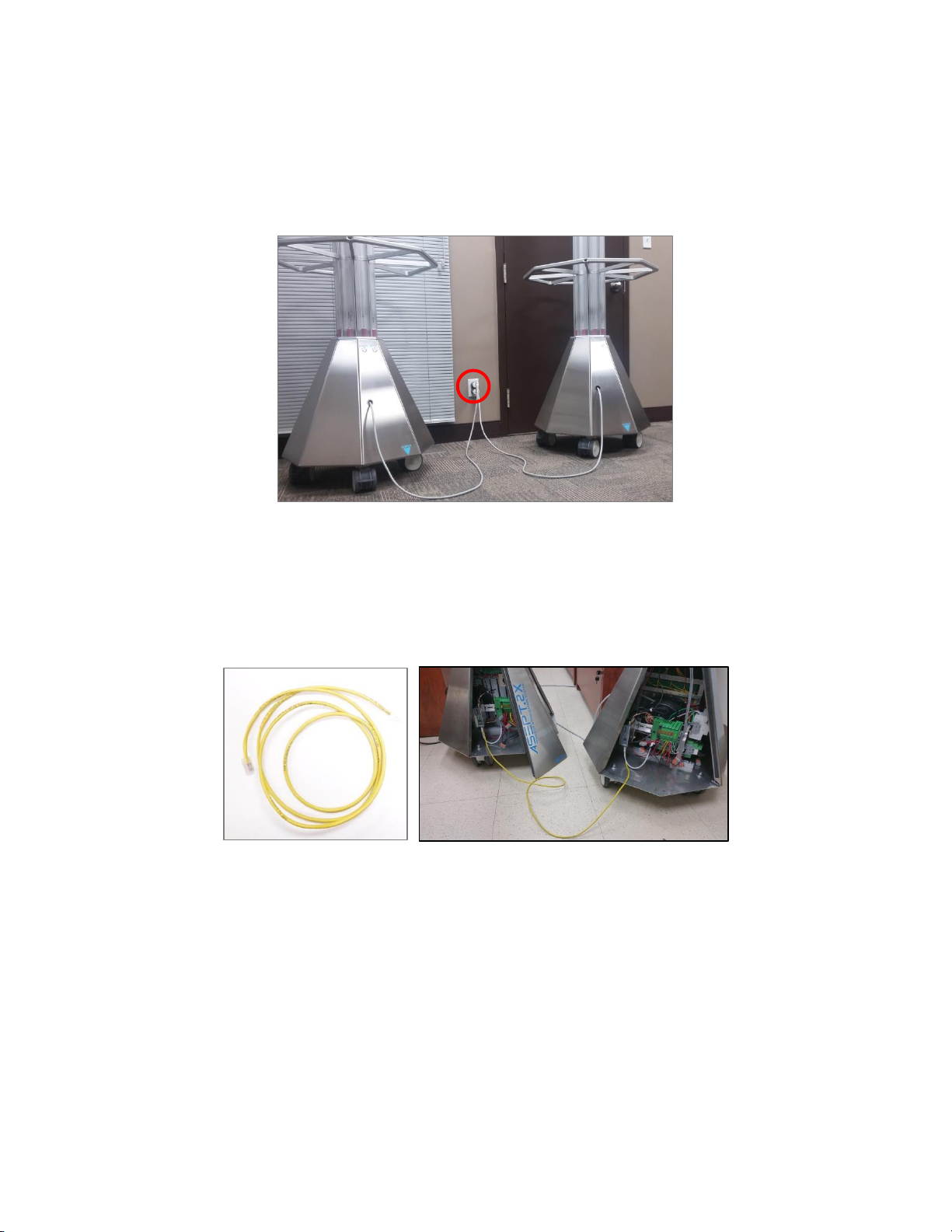

Figure 20: Both towers connected to electrical source outlet.
2.2 Check if towers are properly configured from one router to the other.
Link both towers together using the Ethernet cable.
If the «start/stop» buttons stop flashing alternately and are lit, please contact
SANUVOX to verify router's configuration.
Figure 21: Both towers connected by their internet port.
2.3 Nearby electronic devices may interfere. Move the machine away from potential sources of
interference and verify the functionality of the unit again.
2.4 Open the unit’s two access panels. (see step 1.4)
2.5 Check if routers are functional.
2.5.1 Using a computer, with Wi-Fi or cable connected, open the command window and
ping the router's IP addresses.

15

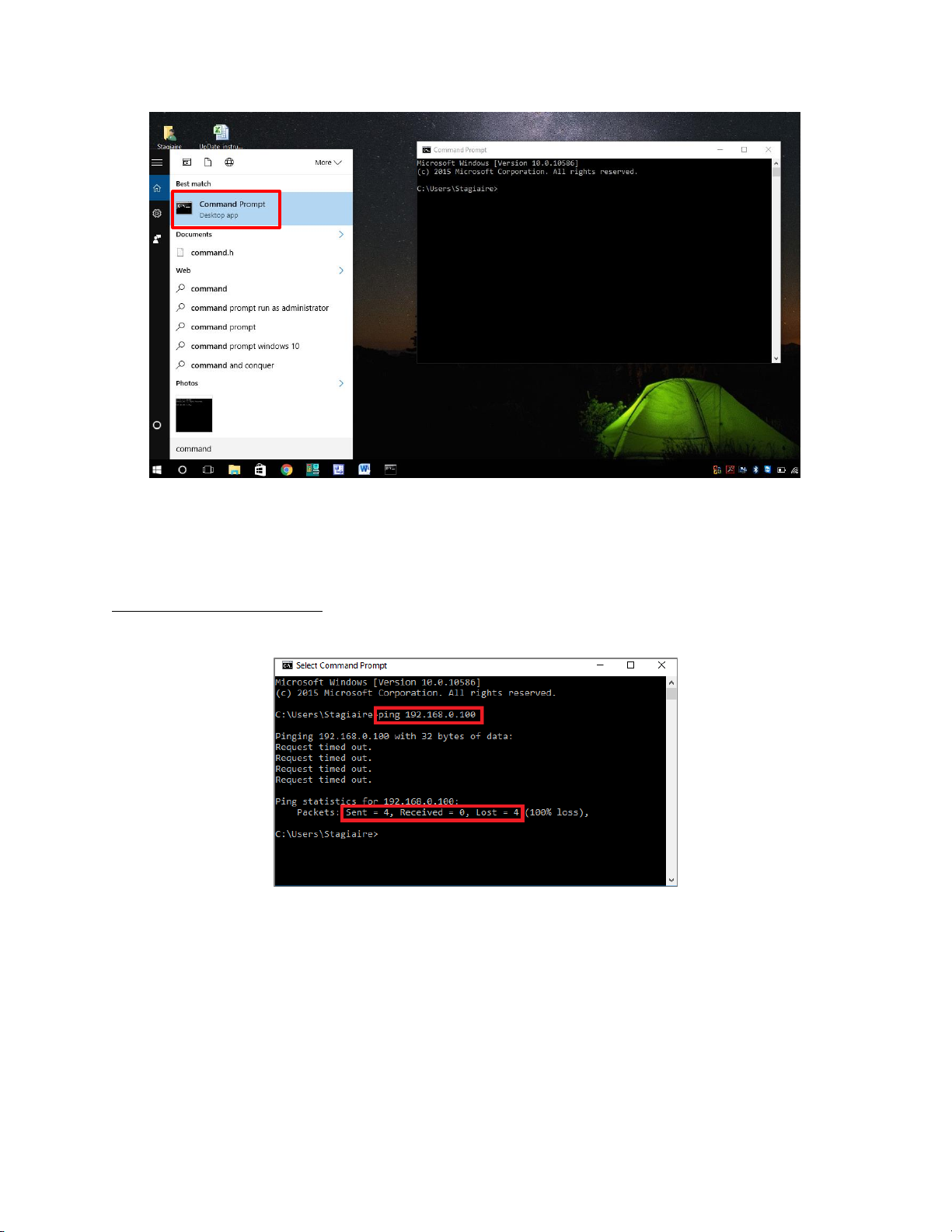

Figure 22: Command prompt on Windows 10.
Primary IP address: 192.168.0.100
Secondary IP address: 192.168.0.102
If you don’t detect the routers
(No request received)
Figure 23: Request failure; cannot access the router.
2.5.2 Check if the router is connected to the 24V power supply. In the case of a bad
connection, the router should emit no light signal.
2.5.2.1 Be sure that connections to 24V power supply are effective.

16
Figure 24: Connections to power supply 24V.
2.5.2.2 Check connections to the router.
(Wiring from the 24V power supply are fed to connectors that redistribute power to the
PLC and the router)
Figure 25: Router connections.
2.5.3 Check if any electrical wires are loose or disconnected. If this is the case, secure
tightly the appropriate connections. If unsure, contact SANUVOX for more
information.

17
If routers are detected :
(Request received)
Figure 26: Request success; router is available.
2.6 In the same way, check if the PLCs are functional.
2.6.1 Using a computer, with Wi-Fi or cable connected, open the command window and
ping the PLC's IP addresses.
Primary IP address: 192.168.0.1
Secondary IP address: 192.168.0.2
If the PLCs are not detected:
2.6.2 Check if the Ethernet cable between router and PLC is well connected.
Figure 27: Ethernet cable between PLC and router.

18
IF PLCs are detected:
2.6.3 Check if any electrical wires are loose or disconnected. If this is the case, secure
tightly the appropriate connections. If uncertain, contact SANUVOX for more
information.
