Sanyo DP23625 User manual

Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
95W (Avg), 1.8A (Max)
Antenna Input Impedance. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-125 (CATV)
Remote Ready . . . . . . . . . . 25 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 2.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V230W1-L02
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 692mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385mm
Depth including base. . . . . . . . . . . . . . . . 181mm
REFERENCE No. SM780104
DP23625, N2TE, PRODUCT CODE 111377004
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments. . . . . . . . . . . . . 3 - 10
Power Failure Circuit . . . . . . . . . . . . . . . 11

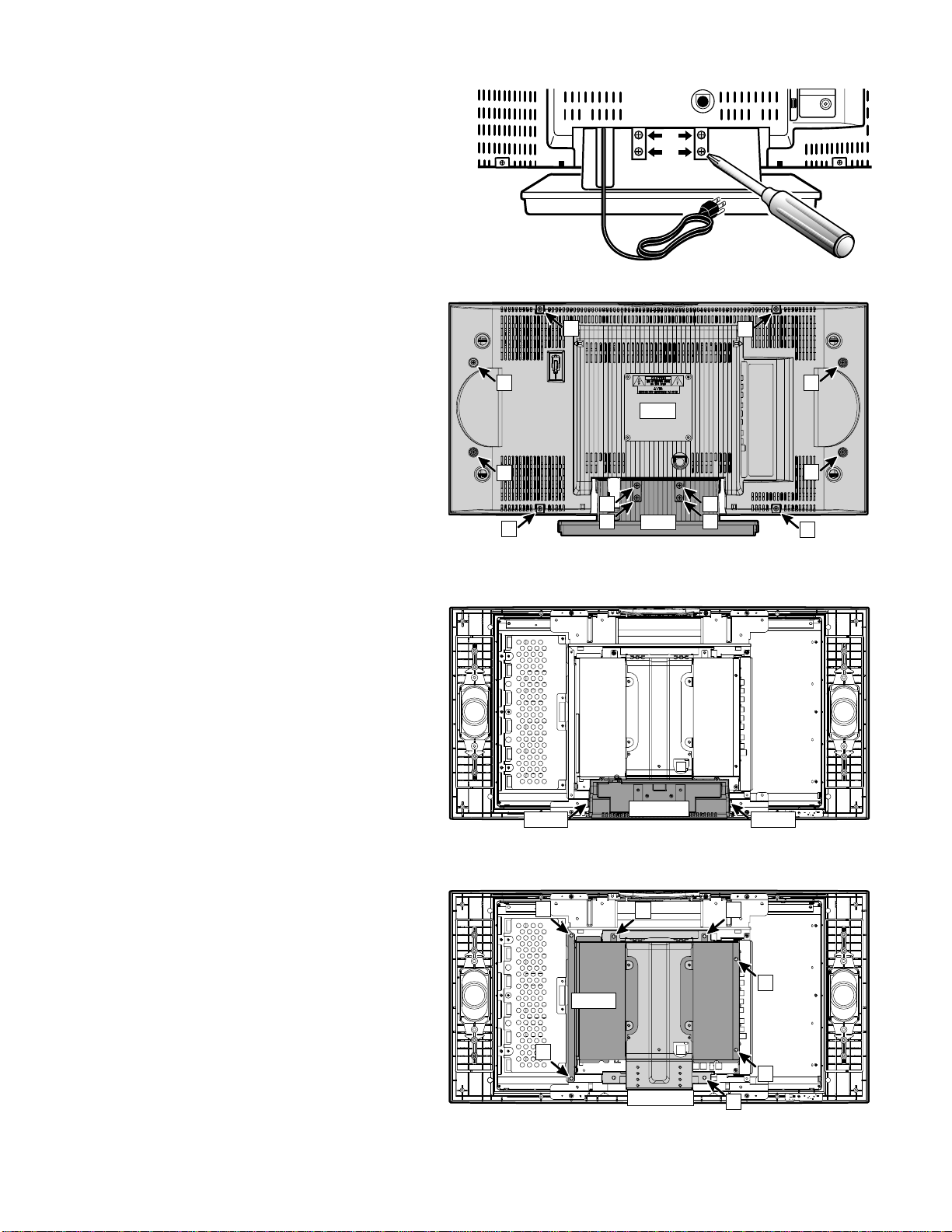

Mechanical Disassemblies. . . . . . . 12 – 13
Chassis Electrical Parts List . . . . . . 14 - 25
Cabinet Parts List . . . . . . . . . . . . . . . . . . 26
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 27 – 31
Block Diagrams . . . . . . . . . . . . . . . . 32 – 36
Trouble Shooting Flow Charts . . . . 37 – 39
Control Port Functions. . . . . . . . . . . 40 – 41
Schematic Notes . . . . . . . . . . . . . . . . . . . 42
Pin Layouts. . . . . . . . . . . . . . . . . . . . . . . . 42
Capacitor and Resistor Codes . . . . . . . . 43
Schematic Diagrams . . . . . . . . . . . . 45 - 56
AS
FILE NO.
SERVICE MANUAL Remote Control Digital
ColorTelevision DP23625 (U.S.A.)
(CANADA)
ORIGINALVERSION
Chassis No. 23625-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required.You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.

— 2 —
SAFETY INSTRUCTIONS
SAFETY PRECAUTIONS
1. Comply with all caution and safety-related notes provided
on the side of the cabinet, inside the cabinet, and on the
chassis,
2. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
3. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
star () in the parts list and in the schematic diagrams. To
ensure safe product operation, it is necessary to replace
those components with the exact same PARTS.
0.15 µF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUT ET
TE EVISION
RECEIVER
READING SHOU D NOT EXCEED 750 mV.
AC VO TMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.
Voltmeter Hook-up for Leakage Current Check.

GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the ser-
vice adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•While pressing the Volume (–) button on the televi-
sion, press the Number Key 1 on the remote control
unit. The Service Menu will now appear.
2. Service Adjustments:
•Press the or key to select the desired service
menu item you want to adjust. See page 4 for the
On-screen Service Menu.
Note: Press the Mute key to skip up 16 items.
•Use the + or – key or number keys to adjust the data.
The + or – keys will increase or decrease the data
sequentially. The number keys (0 ~ 7) toggle only
their respective bits between 1 and 0 and are used to
change the Sub-Address. For example to change bit
5 press the number 5 key. See below.
Note: Using the + or – is not recommended due to possi-
ble rapid changes.
3. Exit from the Service Menu:
•Press the MENU key to turn off
the Service Menu display.
255_ 255
255 / 255 / 255
255 : 255 : 255__00002
M037___S8A __TV____RC00
V_ENH__GAIN__TV
000____01__00000001
— 3 —
SERVICE ADJUSTMENTS
1 2 3
4 5 6
7 8 9
0
MUTE
MENU
CAPTION SLEEP
RECALL
RESETINPUT POWER
DISPLAY
V-GUIDE
123
456
789
0
CH
CH
VOL VOL
PIX SHAPE
Service Menu Display
tem No.Hexadecimal
Data Binary Data
Title
(b7) (b6) (b5) (b4) (b3) (b2) (b1) (b0)
0 1 0 1 0 1 1 0 BINARY DATA
(8 bit)
Menu:
Exit Service Menu
 :Select tem
Volume + / –:
Adjust Service Menu
Mute:
Skip Next 16 items
Numeric:
1:
Enter Service Menu
0, 1, 2, 3, 4, 5, 6, 7:
Change Binary Data
1, 3, 4, 6, 7, 9:
Adjust White Balance
POWER VOL
CH
▼▲
Volume – :Enter Service Menu

000 V ENH GAIN TV 01h RF input
001 V ENH GAIN OTHER 01h Except RF
002 V ENH MAX POINT TV 03h RF input
003 V ENH MAX POINT OTHER 03h Except RF
004 V ENH S ICE EVE TV 00h RF input
005 V ENH S ICE EVE OTHER 00h Except RF
006 FENH TV 01h RF input
007 FENH OTHER 01h Except RF
008 SHARPNESS GAIN TV 01h RF input
009 SHARPNESS GAIN OTHER 01h Except RF
00A SHARPNESS S ICE EVE TV 00h RF input
00B SHARPNESS S ICE EVE OTHER 00h Except RF
00C FBC MPEX 01h
00D NOISE CANCE TV 00h RF input
00E NOISE CANCE OTHER 00h Except RF
00F SET DE AY–TV 06h RF input
010 SET DE AY–Video 0Bh Composite Video input
011 SET DE AY–OTHER 08h Except RF and Composite Video input
012 TI GAIN TV 03h RF input
013 TI GAIN OTHER 03h Except RF
014 TI S ICE EVE TV 00h RF input
015 TI S ICE EVE OTHER 00h Except RF
016 CTI GAIN TV 03h RF input
017 CTI GAIN OTHER 03h Except RF
018 CTI S ICE EVE TV 00h RF input
019 CTI S ICE EVE OTHER 00h Except RF
01A CONTRAST TV 30h RF input, (See Service Adjustments)
01B CONTRAST AV 30h Video1/2, Composite, S input
01C CONTRAST 480i/p 30h 480i/p input
01D CR OUTPUT GAIN TV 03h RF input
01E CR OUTPUT GAIN AV 03h Video1/2, Composite, S input
01F CR OUTPUT GAIN 480i/p 03h 480i/p input
020 CB OUTPUT GAIN TV 03h RF input
021 CB OUTPUT GAIN AV 03h Video1/2, Composite, S input
022 CB OUTPUT GAIN 480i/p 03h 480i/p input
023 CR OFFSET–TV 00h RF input
024 CR OFFSET–AV 00h Video1/2, Composite, S input
025 CR OFFSET–480i 00h 480i input
026 CR OFFSET–480p 00h 480p input
027 CB OFFSET–TV 00h RF input
028 CB OFFSET–AV 00h Video1/2, Composite, S input
029 CB OFFSET–480i 01h 480i input
02A CB OFFSET–480p 01h 480p input
02B HUE–TV 00h RF input
02C HUE–AV 00h Video1/2, Composite, S input
— 4 —
ON-SCREEN SERVICE MENU
No. Name nitial Data Note
•All data except in gray box area is fixed. Do not change for correct operation.
•Data in gray box is initial. Can be set according to adjustment information.

02D HUE–480i/p 00h 480i/p input
02E TOF TV 01h RF input
02F TOF OTHER 01h Except RF
030 Y–C AMP–MAIN 00h Except 480i/p
031 Y–C AMP–480i 6Dh 480i input
032 Y–C AMP–480p 6Dh 480p input
033 C–C AMP–MAIN 00h Except 480i/p
034 C–C AMP–480i 00h 480i input
035 C–C AMP–480p 80h 480p input
036 C–C AMP F–MAIN 00h Except 480i/p
037 C–C AMP F–480i 6Fh 480i input
038 C–C AMP F–480p 6Dh 480p input
039 CO –KI ER TV 07h RF input
03A CO –KI ER AV 07h Video1/2, Composite, S input
03B ACC TV 08h RF input
03C ACC AV 08h Video1/2, Composite, S input
03D P –TV AMP1 00h RF input
03E P –TV AMP2 04h ↓
03F P –TV AMP3 05h ↓
040 P –TV GAIN1 0Eh ↓
041 P –TV GAIN2 05h ↓
042 P –TV GAIN3 06h ↓
043 P –AV AMP1 00h Video1/2, Composite, S input
044 P –AV AMP2 04h ↓
045 P –AV AMP3 05h ↓
046 P –AV GAIN1 0Eh ↓
047 P –AV GAIN2 05h ↓
048 P –AV GAIN3 06h ↓
049 P –480i/p AMP1 00h Video3, Component(480i/p) input
04A P –480i/p AMP2 04h ↓
04B P –480i/p AMP3 05h ↓
04C P –480i/p GAIN1 0Eh ↓
04D P –480i/p GAIN2 05h ↓
04E P –480i/p GAIN3 06h ↓
04F HDPH COMP 00h RF, Composite input
050 HDPH S 02h S input
051 HDPH 480i 0Eh 480i input
052 HDPH 480p 00h 480p input
053 Y NOISE IM TV 00h RF input
054 Y NOISE IM OTHER 00h Except RF
055 Y NOISE GAIN TV 01h RF input
056 Y NOISE GAIN OTHER 00h Except RF
057 Y NOISE TV 01h RF input
058 Y NOISE OTHER 00h Except RF
059 CO –KI ER GAIN TV 01h RF input
05A CO –KI ER GAIN OTHER 01h Except RF
05B C NOISE IM TV 01h RF input
05C C NOISE IM OTHER 01h Except RF
05D C NOISE GAIN TV 00h RF input
05E C NOISE GAIN OTHER 00h Except RF
05F C NOISE TV 01h RF input
— 5 —
No. Name nitial Data Note

060 C NOISE OTHER 00h Except RF
061 480i Sub–Cont 00h Component (480i) input (Difference)
062 480i Sub–Brightness 00h ↓
063 480i Sub–Color 00h ↓
064 480i Sub–Tint 00h ↓
065 480i Sub–Sharp 00h ↓
066 480p Sub–Cont 00h Component (480p) input (Difference)
067 480p Sub–Brightness 00h ↓
068 480p Sub–Color 00h ↓
069 480p Sub–Tint 00h ↓
06A 480p Sub–Sharp 00h ↓
06B AV Sub–Cont 00h Composite Video input (Standard)
06C AV Sub–Brightness 0Fh ↓
06D AV Sub–Color 08h ↓
06E AV Sub–Tint 0Ah ↓
06F AV Sub–Sharp 10h ↓
070 S Sub–Cont 00h S Video input (Difference)
071 S Sub–Brightness 00h ↓
072 S Sub–Color 00h ↓
073 S Sub–Tint 00h ↓
074 S Sub–Sharp 00h ↓
075 RF Sub–Cont 00h RF input (Difference)
076 RF Sub–Brightness 00h ↓
077 RF Sub–Color 00h ↓
078 RF Sub–Tint 00h ↓
079 RF Sub–Sharp 00h ↓
Composite, S, Component input, Picture: Auto
07A Auto Contrast 0Ah ↓(See Service Adjustments)
07B Auto Tint 22h ↓
07C Auto Color 28h
07D Auto Brightness 20h ↓
07E Auto Sharpness 10h ↓
Composite, S, Component input, Picture: Manual
07F Man. AV Contrast 2Fh ↓(See Service Adjustments)
080 Man. AV Tint 20h ↓
081 Man. AV Color 28h ↓
082 Man. AV Brightness 20h ↓
083 Man. AV Sharpness 10h ↓
Composite, S, Component input, Picture: Game
084 Game AV Contrast 10h ↓
085 Game AV Tint 20h ↓
086 Game AV Color 10h ↓
087 Game AV Brightness 20h ↓
088 Game AV Sharpness 07h ↓
089 White–RF–R 00h RF(TV) input, White Balance (Difference)
08A White–RF–G 00h ↓
08B White–RF–B 00h ↓
08C Black–RF–R 00h RF(TV) input, Black Balance (Difference)
08D Black–RF–G 00h ↓
08E Black–RF–B 00h ↓
— 6 —
No. Name nitial Data Note

— 7 —
No. Name nitial Data Note
08F White–AV–R 5Ch Composite (AV) input, White Balance (Standard)
090 White–AV–G 5Ah ↓
091 White–AV–B 5Ah ↓
092 Black–AV–R 30h Composite (AV) input, Black Balance (Standard)
093 Black–AV–G 30h ↓
094 Black–AV–B 30h ↓
095 White–S–R 00h S (AV) input, White Balance (Difference)
096 White–S–G 00h ↓
097 White–S–B 00h ↓
098 Black–S–R 00h S (AV) input, Black Balance (Difference)
099 Black–S–G 00h ↓
09A Black–S–B 00h ↓
09B White–480i–R 00h 480i(Component) input, White Balance (Difference)
09C White–480i–G 00h ↓
09D White–480i–B 00h ↓
09E Black–480i–R 00h 480i(Component) input, Black Balance (Difference)
09F Black–480i–G 00h ↓
0A0 Black–480i–B 00h ↓
0A1 White–480p–R 00h 480p (Component) input, White Balance (Difference)
0A2 White–480p–G 00h ↓
0A3 White–480p–B 00h ↓
0A4 Black–480p–R 00h 480p (Component) input, Black Balance (Difference)
0A5 Black–480p–G 00h ↓
0A6 Black–480p–B 00h ↓
0A7 CT–Cool–R F6h Color Enhancer: Cool
0A8 CT–Cool–G FBh ↓
0A9 CT–Cool–B 00h ↓
0AA CT–Norm–R 00h Color Enhancer: Normal
0AB CT–Norm–G 00h ↓
0AC CT–Norm–B 00h ↓
0AD CT–Warm–R 00h Color Enhancer: Warm
0AE CT–Warm–G F2h ↓
0AF CT–Warm–B 00h ↓
0B0 Sharp F0 RF 02h RF input, Sharpness: Center
0B1 Sharp F0 OTHER 02h Other input, Sharpness: Center
0B2 Sharp F0 480p 02h 480p input, Sharpness: Center
0B3 GAMMA1 01h Under AP setting value
0B4 GAMMA2 01h Beyond AP setting value
0B5 GAMMA AP 00h Gamma Threshold
0B6 NOSIG 00h Select Sync.
0B7 BCSB 00h Cut of Sub-Bass or Setup of Boost
0B8 BCST 00h Cut of Sub-Treble or Setup of Boost
0B9 SUB–BASS 00h Setup of Cut evel of Sub Bass and Boost evel
0BA SUB–TREB 00h Setup of Cut evel of Sub Treble and Boost evel
0BB BBE– ow 0Ah Setup of ow-Pass Boost evel ( o contour)
0BC BBE–High 08h Setup of High Region Boost evel (Process)
0BD AGC 00h AGC ON/OFF
0BE AGC– EVE 00h AGC evel Setup
0BF WB ** White Balance Adjustment
0C0 BB ** Black Balance Adjustment
0C1 AUTO B-Bright 00h Back ight Auto Bright (Absolute value)

0C2 B ight–Bright F0h Back ight Bright (PWM value)
0C3 B ight–Mid B0h Back ight Middle (PWM value)
0C4 B ight–Dark 60h Back ight Dark (PWM value)
0C5 AP –SW 01h AP Switch
0C6 AP –PER 10h AI Cycle (8ms/step)
0C7 AP – O 36h AP ow-Pass and Inside Region Threshold
0C8 AP –HI 48h AP Inside and High Region Threshold
0C9 AP –MIN 10h Gamma Minimum Value (Table No.)
0CA AP –CEN 24h Gamma Center Value (Table No.)
0CB AP –MAX 48h Gamma Maximum Value (Table No.)
0CC AP –READ–NUM 05h Number of AP Read-out Times
0CD AP –READ–PER 01h AP Read-out Cycle
0CE AP –0 70h AP Read-out Value (AP =0%: Black)
0CF AP –100 E0h AP Read-out Value (AP =100%: White)
0D0 POWER ERR 00h Power Failure History
0D1 OPTION **h Option Monitor (Read-out)
0D2 PANE TIME1 **h Used Time of CD Panel
0D3 PANE TIME2 **h Used Time of Unit
0D4 OSD HP 00h OSD H-Phase
0D5 CCD HP 00h CCD H-Phase
0D6 CCD Slicer evel 0Bh CCD Slicer evel
0D7 PASSWORD 00h Password
0D8 VUP FU 01h
0D9 VUP JUST 01h
0DA VUP ZOOM 01h
0DB VUP NORMA 01h
0DC VSC FU 0Ah
0DD VSC JUST 07h
0DE VSC ZOOM 04h
0DF VSC NORMA 0Ah
0E0 HSC1 N FU 0Fh
0E1 HSC1 N JUST 0Fh
0E2 HSC1 N ZOOM 0Fh
0E3 HSC1 N NORMA 0Bh
0E4 HSC1 D FU 1Eh
0E5 HSC1 D JUST 08h
0E6 HSC1 D ZOOM 1Eh
0E7 HSC1 D NORMA 10h
0E8 HSC2 N FU 13h
0E9 HSC2 N JUST 07h
0EA HSC2 N ZOOM 07h
0EB HSC2 N NORMA 0Ch
0EC HSC2 D FU 0Fh
0ED HSC2 D JUST 0Fh
0EE HSC2 D ZOOM 0Fh
0EF HSC2 D NORMA 11h
0F0 HST FU 76h
0F1 HST JUST 68h
0F2 HST ZOOM 76h
0F3 HST NORMA 2Fh
— 8 —
No. Name nitial Data Note

0F4 VST FU 44h
0F5 VST JUST 54h
0F6 VST ZOOM 7Eh
0F7 VST NORMA 44h
0F8 VUP FU 480p 01h
0F9 VUP JUST 480p 01h
0FA VUP ZOOM 480p 01h
0FB VUP NORMA 480p 01h
0FC VSC FU 480p 0Ah
0FD VSC JUST 480p 07h
0FE VSC ZOOM 480p 04h
0FF VSC NORMA 480p 0Ah
100 HSC1 N FU 480p 0Fh
101 HSC1 N JUST 480p 0Fh
102 HSC1 N ZOOM 480p 07h
103 HSC1 N NORMA 480p 04h
104 HSC1 D FU 480p 1Eh
105 HSC1 D JUST 480p 08h
106 HSC1 D ZOOM 480p 0Eh
107 HSC1 D NORMA 480p 06h
108 HSC2 N FU 480p 13h
109 HSC2 N JUST 480p 07h
10A HSC2 N ZOOM 480p 07h
10B HSC2 N NORMA 480p 0Ch
10C HSC2 D FU 480p 0Fh
10D HSC2 D JUST 480p 0Fh
10E HSC2 D ZOOM 480p 0Fh
10F HSC2 D NORMA 480p 11h
110 HST FU 480p 98h
111 HST JUST 480p 94h
112 HST ZOOM 480p 98h
113 HST NORMA 480p 8Ah
114 VST FU 480p 4Ch
115 VST JUST 480p 5Ch
116 VST ZOOM 480p 89h
117 VST NORMA 480p 4Fh
118 R001 00h ROM Correction Data
119 00h ROM Correction Data
11A 00h ROM Correction Data
↓↓↓
↓↓↓
↓↓↓
1B0 00h ROM Correction Data
1B1 00h ROM Correction Data
1B2 00h ROM Correction Data
— 9 —
No. Name nitial Data Note

— 10 —
SERVICE ADJUSTMENTS (Continued)
WHITE BALANCEADJUSTMENT
Composite (ExternalVideo Input)
1. Connect a color-bar generator to the external (compos-
ite) video input terminal.
2. Switch the generator to the white pattern.
3. Set the television to following conditions:
Picture: AUTO
Color Enhancer: Normal
Back Light: Bright
Display Area: 4:3
4. Enter the Service Mode. The Menu display will appear.
5. Select “White Balance Adjustment” Menu (No. 0BF).
6. Adjust Red, Green, and Blue Levels alternately with 1, 3,
4, 6, 7, or 9 keys to produce normal black and white
picture in highlight areas.
The White Balance Level adjustment data will be
written automatically in the Service Menu No. 08F(R),
No. 090(G), and No. 091(B).
Note: One or two data of RGB should be left at ”5C” for
normal contrast level. Do not change the data to
more than “5C.”
Other Inputs
Caution: White Balance Adjustment of Composite must
be completed before attempting other input
adjustments.
White Balance Adjustment for other modes [RF, S (Y/C),
Component (480i/ 480p)] may be unnecessary if the adjust-
ment of Composite is OK.
1. Connect a color-bar generator to the preferred video
input terminal.
2. Switch the generator to the white pattern.
3. Set the television to following conditions:
Picture: AUTO
Color Enhancer: Normal
Back Light: Bright
Display Area: 16:9
4. Enter the Service Mode.The Menu display will appear.
5. Select “White Balance Adjustment” Menu (No. 0BF).
6. Adjust Red, Green, and Blue Levels alternately with 1, 3,
4, 6, 7, or 9 key to produce normal black and white picture
in highlight areas.
The White Balance Level adjustment data will be written
automatically in the following Service Menu:
RF No 89 (R), 8A (G), 8B (B)
S (Y/C) No. 95 (R), 96 (G), 97 (B)
Component (480i) No. 9B (R), 9C (G), 9D (B)
Component (480p) No. A1 (R), A2 (G), A3 (B)
BLACK BALANCEADJUSTMENT
Black Balance Adjustment may be unnecessary if the White
Balance Adjustment of Composite is OK.
Composite (ExternalVideo Input)
1. Connect a color-bar generator to the external (compos-
ite) video input terminal.
2. Switch the generator to the dark grey pattern (“30%
white” recommended).
3. Set the television to following conditions:
Picture: AUTO
Color Enhancer: Normal
Back Light: Bright
Display Area: 16:9
4. Enter the Service Mode. The Menu display will appear.
5. Select “Black Balance Adjustment” Menu (No. 0C0).
6. Adjust Red, Green, and Blue Levels alternately with 1,
3, 4, 6, 7, or 9 key to produce normal black and white
picture in dark grey areas. The Black Balance Level
adjustment data will be written automatically in the
Service Menu No. 092(R), No. 093(G), and No. 094(B).
Other Inputs
Caution: Black Balance Adjustment of Composite must
be completed before attempting other input
adjustments.
1. Connect a color-bar generator to the preferred video
input terminal.
2. Switch the generator to the dark gray pattern.
3. Set the television to following conditions:
Picture: AUTO
Color Enhancer: Normal
Back Light: Bright
Display Area: 16:9
4. Enter the Service Mode.The Menu display will appear.
5. Select “Black Balance Adjustment” Menu (No. 0C0).
6. Adjust Red, Green, and Blue Levels alternately with 1,
3, 4, 6, 7, or 9 key to produce normal black and white
picture in dark grey areas. The Black Balance Level
adjustment data will be written automatically in the fol-
lowing Service Menu.
RF No 8C (R), 8D (G), 8E (B)
S (Y/C) No. 98 (R), 99 (G), 9A (B)
Component (480i) No. 9E (R), 9F (G), A0 (B)
Component (480p) No. A4 (R), A5 (G), A6 (B)
123
456
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
GD(–) (N/A) GD(+)
(N/A)

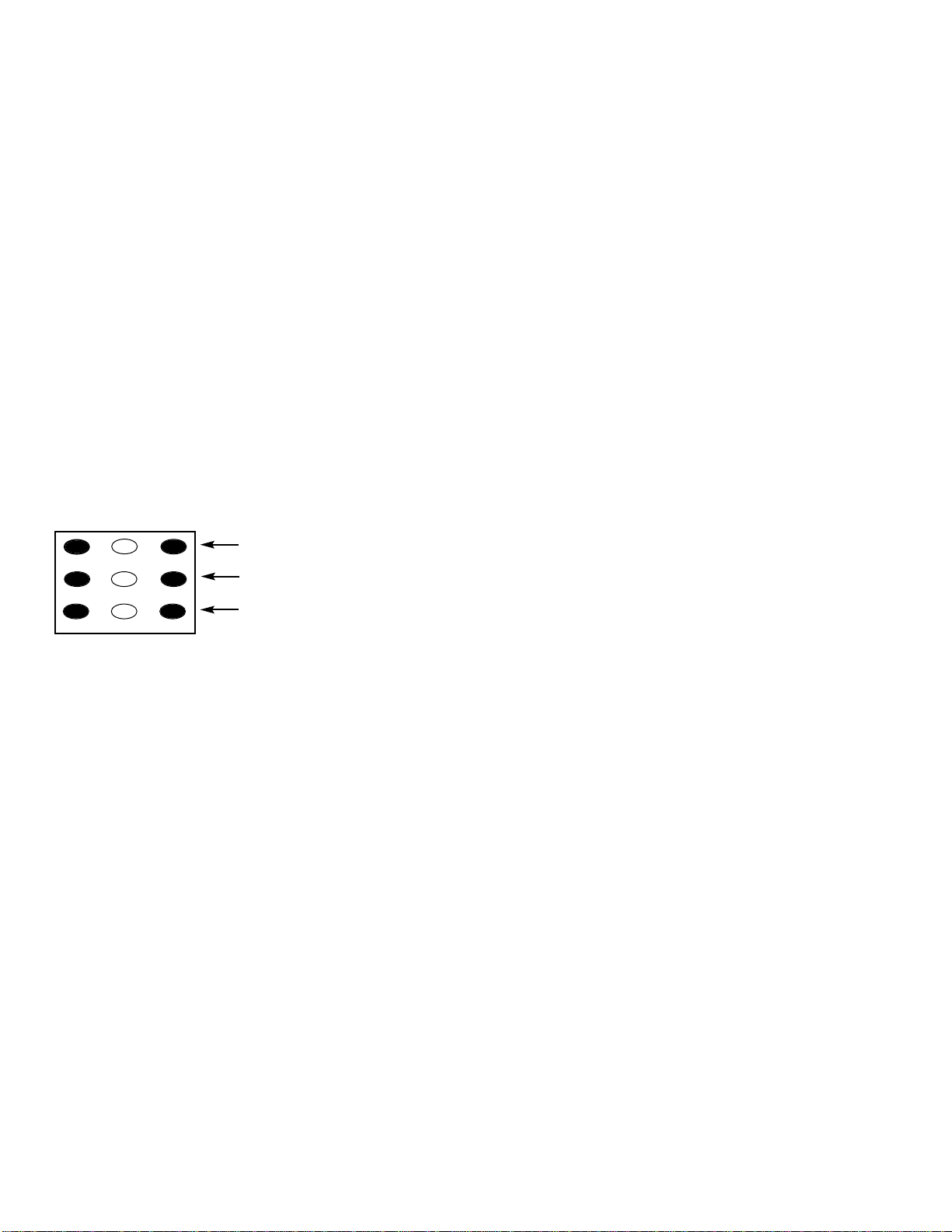

Remote Control Number keys’ functions inService Menu
“White Balance Adjustment”
FOR RED LEVEL ADJUSTMENT
FOR BLUE LEVEL ADJUSTMENT
FOR GREEN LEVEL ADJUSTMENT

— 11 —
CPU (IC801) is programmed so the set will go to the standby mode when there is circuit failure as described below.
(Refer to “Block Diagram Power Lines” and “Block Diagram Power Board”).
1. Power Failure 1: Detected voltage failure for digital circuit. (Connected to IC801 pin 1.)
2. Power Failure 2: Detected voltage failure for analog circuit. (Connected to IC801 pin 16.)
(Normal: High; Failure: Low)
POWER FAILURE CIRCUIT
Note: If power failure is detected 3 times in 15 minutes, the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the CPU it is necessary to disconnect the AC cord
or AC adapter for a short time.
History of Power Failure
When finishing the repair or stopping the Power Failure, the history of past failures can be checked.
To see the history
1. Enter the service mode. See “Service Adjustments” page 3.
2. Select Item No.0D0 POWER ERR from the Service Adjustment Data Table.
History of Power Failures (Item No. 0C9)
Note: If simultaneous failures have been detected, the sum of each data is displayed.
For example:
Power failures 1 & 2
01h + 02h = 03h(3)
Attention:
After finishing service, reset the data of Item No. 0D0 with the + or – keys to ““0000hh((00))..””
Failure Name Data
No Failure 00h(0)
Power Failure 1 01h(1)
Power Failure 2 02h(2)

— 12 —
STAND REMOVAL
Note: Position TV face down on a padded or cush-
ioned surface to protect the screen and finish.
Remove 4 screws to take the stand off.
MECHANICAL DISASSEMBLY
TUNER
VHF
UHF
CATV
CABINET BACK REMOVAL
Remove 6 screws (B: 4X14) to take the cabinet back
(C/B) off.
Note: The cabinet back can be removed without
removing the stand.
A
B
B
B
AA
B
B
B
B
A
STD
C/B
B
CABINET BOTTOM REMOVAL
Press 2 hooks inside to remove the cabinet bottom
(C/BTM).
C
C
C
C
D
C
C
M/BRKT
SH/B
Hook Hook
C/BTM
SHIELD BACK REMOVAL
Remove 6 screws (C: 3X10) to remove the shield back
(SH/B).
MOUNTING BRACKET REMOVAL
Remove a screw (D: 3X10) to remove the mounting
bracket (M/BRKT).
CAUTION: This LCD TV uses several different kinds of
screws. Using the correct screw is neces-
sary to prevent damage. Lead wires must
be redressed to their previous locations
after servicing.

— 13 —
MAIN BOARD REMOVAL
Remove 5 screws (E: 3X10) to remove the main board
with the terminal base (TMNL/B) and audio output jacks
(MO/JACK) (assembly parts).
RC BOARD REMOVAL
Remove a screw (F: 4X14) to remove the RC board.
POWER BOARD REMOVAL
Remove 4 screws (G: 3X10) to remove the power board
with the chassis holder (CH/HLD) (assembly parts).
CONTROL BOARD REMOVAL
Press 2 hooks inside to remove the control board with
the panel top and button assembly.
CH/HLD E
HookHook
F
EE
E
E
GG
GG
MA N
POWER
CONTROL
RC
TMNL/B
MO/JACK
Spacer
Spacer
Spacer
Spacer
H
LCD PANEL
HLD/PNL-T
HLD/PNL-B
H
H
DEC-RC
H
JJ
SP/HLD
SP/HLD
SP/HLD
SP/HLD
SPEAKER REMOVAL
Remove 4 holders (SP/HLD) to remove speakers.
LCD PANEL REMOVAL
1. Remove 4 screws (H: 3X10) to remove the LCD
panel with the top (HLD/PNL-T) and bottom
(HLD/PNL-B) panel holders.
2. Remove 2 screws (J: 3X10) to remove the top
panel holder (HLD/PNL-T).
3. Remove 2 screws (I: 3X10) to remove the bottom
panel holder (HLD/PNL-B).
CABINET FRONT REMOVAL
1. Complete previous disassembly procedures.
2. Remove spacer (Buffer tape) and DEC-RC
(Decoration for remote control receiver).
Note: The spacers can be reused.
Chassis Base

— 14 —
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A STAR () INTHIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BYA STAR. NO DEVIATIONS FROM RESISTANCE,WATTAGE,ANDVOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A STAR.
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V Rated Voltage
Tolerance Symbols:
less than 10PF
A . .Not specified
B . .±0.1PF C . .±0.25PF
D . .±0.5PF F . .±1PF
G . .±2PF R . .+0.25 - 0PF
S . .+0 - 0.25PF E . .+0 - 1PF
more than 10PF
A . .Not specified
B . .±0.1% C . .±0.25%
D . .±0.5% F . .±1%
G . .±2% H . .±3%
J . .±5% K . .±10%
L . .±15% M . .±20%
N . .±30% P . .+100 - 0%
Q . .+30 - 10% T . .+50 - 10%
U . .+75 - 10% V . .+20 - 10%
W .+100 - 10% X . .+40 - 20%
Y . .+150 - 10% Z . .+80 - 20%
Rated Value: P...Pico Farad U...Micro Farad
Material:
CERAMIC . . . . . .Ceramic
MT-PAPER . . . . .Metalized Paper
POLYESTER . . .Polyester
MT-POLYEST . .Metalized Polyester
POLYPRO . . . . .Polypropylene
MT-POLYPRO . .Metalized Polypropylene
COMPO-FILM . .Composite Film
MT-COMPO . . . .Metalized Composite
STYRENE . . . . . .Styrene
TA-SOLID . . . . . .Tantalum Solid
AL-SOLID . . . . . .Aluminum Solid
ELECT . . . . . . . .Electrolytic
NP-ELECT . . . . .Non-Polarized Electrolytic
OS-SOLID . . . . .Aluminum Solid with Organic
Semiconductive Electrolytic
C002 403 296 9502 ELECT 100U M 16V
403 391 5102 ELECT 100U M 16V
C003 403 184 8402 ELECT 4.7U M 25V
403 391 5706 ELECT 4.7U M 25V
C006 403 393 0006 ELECT 470U M 25V
403 420 1402 ELECT 470U M 25V
C007 403 393 0006 ELECT 470U M 25V
403 420 1402 ELECT 470U M 25V
C021 403 364 5801 CERAMIC 1U K 10V
C022 403 224 5903 CERAMIC 3300P K 50V
C023 403 364 5801 CERAMIC 1U K 10V
C024 403 224 5903 CERAMIC 3300P K 50V
C026 403 364 5900 CERAMIC 0.22U K 16V
C027 403 364 5900 CERAMIC 0.22U K 16V
C028 403 364 5900 CERAMIC 0.22U K 16V
C029 403 364 5900 CERAMIC 0.22U K 16V
C109 403 235 6203 CERAMIC 0.01U Z 50V
C112 403 224 6306 CERAMIC 0.033U Z 50V
C114 403 408 6207 NP-ELECT 10U M 16V
C601 403 175 7209 ELECT 10U M 16V
C601 403 391 5508 ELECT 10U M 16V
C603 403 224 6306 CERAMIC 0.033U Z 50V
C604 403 393 0006 ELECT 470U M 25V
403 420 1402 ELECT 470U M 25V
C605 403 224 6306 CERAMIC 0.033U Z 50V
C606 403 235 1109 CERAMIC 270P J 50V
C607 403 224 6009 CERAMIC 4700P K 50V
C608 403 224 6009 CERAMIC 4700P K 50V
C609 403 224 6009 CERAMIC 4700P K 50V
C618 403 296 9502 ELECT 100U M 16V
403 391 5102 ELECT 100U M 16V
C619 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C631 403 393 0006 ELECT 470U M 25V
403 420 1402 ELECT 470U M 25V

— 15 —
Schematic
Location Part No. Description
C632 403 393 0006 ELECT 470U M 25V
403 420 1402 ELECT 470U M 25V
C633 403 279 0106 CERAMIC 0.1U Z 25V
C634 403 279 0106 CERAMIC 0.1U Z 25V
C641 403 397 6707 ELECT 470U M 25V
C642 403 397 6707 ELECT 470U M 25V
C644 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C645TM 403 233 0807 ELECT 10U M 50V
C647 403 397 6004 ELECT 1000U M 10V
C656 403 279 0106 CERAMIC 0.1U Z 25V
C657 403 387 5109 ELECT 220U M 6.3V
403 394 9305 ELECT 220U M 6.3V
C658 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C659 403 279 0106 CERAMIC 0.1U Z 25V
C671 403 387 5109 ELECT 220U M 6.3V
403 394 9305 ELECT 220U M 6.3V
C672 403 279 0106 CERAMIC 0.1U Z 25V
C673 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C674 403 279 0106 CERAMIC 0.1U Z 25V
C676 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C677 403 279 0106 CERAMIC 0.1U Z 25V
C678 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C679 403 279 0106 CERAMIC 0.1U Z 25V
C682 403 387 5109 ELECT 220U M 6.3V
403 394 9305 ELECT 220U M 6.3V
C803 403 279 0106 CERAMIC 0.1U Z 25V
C804 403 279 0106 CERAMIC 0.1U Z 25V
C806 403 279 0106 CERAMIC 0.1U Z 25V
C851 403 235 0607 CERAMIC 100P J 50V
C852 403 345 6605 CERAMIC 1U Z 10V
C854 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C861 403 184 8402 ELECT 4.7U M 25V
403 391 5706 ELECT 4.7U M 25V
C876 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C877 403 279 0106 CERAMIC 0.1U Z 25V
C886 403 235 6203 CERAMIC 0.01U Z 50V
C1004 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C1007 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C1014 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C1022 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C1201 403 235 6203 CERAMIC 0.01U Z 50V
C1202 403 235 6203 CERAMIC 0.01U Z 50V
C1204 403 296 9502 ELECT 100U M 16V
403 391 5102 ELECT 100U M 16V
C1206 403 408 6207 NP-ELECT 10U M 16V
C1600 403 135 0707 CERAMIC 1U K 25V
C1601 403 135 0707 CERAMIC 1U K 25V
 C1602 404 096 0508 MT-POLYEST 0.1U M 275V
 C1603 404 096 0508 MT-POLYEST 0.1U M 275V
C1604 403 370 1507 CERAMIC 0.1U K 50V
C1605 403 222 1303 CERAMIC 1000P K 1K
403 271 9602 CERAMIC 1000P K 1K
403 262 1806 CERAMIC 1000P K 1K
C1606 403 222 1303 CERAMIC 1000P K 1K
403 271 9602 CERAMIC 1000P K 1K
403 262 1806 CERAMIC 1000P K 1K
C1607 403 370 1507 CERAMIC 0.1U K 50V
C1608 404 075 5005 ELECT 470U M 200V
404 096 2700 ELECT 470U M 200V
C1609 403 155 2101 CERAMIC 1500P K 50V
C1610 403 370 1507 CERAMIC 0.1U K 50V
C1611 403 154 8302 ELECT 47U M 25V
C1612 403 157 6602 CERAMIC 470P K 50V
C1613 403 222 1303 CERAMIC 1000P K 1K
403 271 9602 CERAMIC 1000P K 1K
403 262 1806 CERAMIC 1000P K 1K
C1614 403 363 3006 ELECT 1000U M 35V
C1615 403 363 3006 ELECT 1000U M 35V
C1617 403 363 3006 ELECT 1000U M 35V
C1618 403 222 1907 CERAMIC 2200P K 1K
403 263 6305 CERAMIC 2200P K 1K
403 232 0204 CERAMIC 2200P K 1K
C1619 403 222 1303 CERAMIC 1000P K 1K
403 271 9602 CERAMIC 1000P K 1K
403 262 1806 CERAMIC 1000P K 1K
C1620 403 222 1303 CERAMIC 1000P K 1K
403 271 9602 CERAMIC 1000P K 1K
403 262 1806 CERAMIC 1000P K 1K
C1621 403 180 1605 MT-POLYEST 0.1U K 400V
C1622 403 350 5006 ELECT 1000U M 25V
C1623 403 350 5006 ELECT 1000U M 25V
C1624 403 419 9402 ELECT 680U M 25V
 C1625 404 088 2909 CERAMIC 1000P M 250V
C1626 404 084 3405 ELECT 1000U M 25V
C1628 404 084 2408 ELECT 470U M 6.3V
 C1629 404 088 2909 CERAMIC 1000P M 250V
 C1630 404 088 2909 CERAMIC 1000P M 250V
C1632 403 233 0807 ELECT 10U M 50V
C1831 403 279 0106 CERAMIC 0.1U Z 25V
C1832 403 387 5307 ELECT 47U M 6.3V
403 392 1202 ELECT 47U M 6.3V
C1899 403 279 0106 CERAMIC 0.1U Z 25V
C1962 403 393 2109 CERAMIC 4.7U K 6.3V
C1963 403 393 2109 CERAMIC 4.7U K 6.3V
C2001 403 279 0106 CERAMIC 0.1U Z 25V
C2002 403 235 6203 CERAMIC 0.01U Z 50V
C2003 403 279 0106 CERAMIC 0.1U Z 25V
C2004 403 387 5307 ELECT 47U M 6.3V
C2004 403 392 1202 ELECT 47U M 6.3V
C2006 403 279 0106 CERAMIC 0.1U Z 25V
C2007 403 224 5804 CERAMIC 2200P K 50V
Schematic
Location Part No. Description

— 16 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C2008 403 387 5307 ELECT 47U M 6.3V
403 392 1202 ELECT 47U M 6.3V
C2009 403 235 6203 CERAMIC 0.01U Z 50V
C2011 403 279 0106 CERAMIC 0.1U Z 25V
C2012 403 224 5507 CERAMIC 22P J 50V
C2013 403 234 9809 CERAMIC 18P J 50V
C2014 403 224 5705 CERAMIC 1000P K 50V
C2016 403 235 6203 CERAMIC 0.01U Z 50V
C2017 403 235 6203 CERAMIC 0.01U Z 50V
C2018 403 279 0106 CERAMIC 0.1U Z 25V
C2019 403 387 5109 ELECT 220U M 6.3V
403 394 9305 ELECT 220U M 6.3V
C2021 403 279 0106 CERAMIC 0.1U Z 25V
C2022 403 235 6203 CERAMIC 0.01U Z 50V
C2023 403 235 6203 CERAMIC 0.01U Z 50V
C2024 403 235 6203 CERAMIC 0.01U Z 50V
C2026 403 279 0106 CERAMIC 0.1U Z 25V
C2027 403 387 5109 ELECT 220U M 6.3V
C2027 403 394 9305 ELECT 220U M 6.3V
C2028 403 279 0106 CERAMIC 0.1U Z 25V
C2029 403 235 6203 CERAMIC 0.01U Z 50V
C2031 403 235 6203 CERAMIC 0.01U Z 50V
C2032 403 235 6203 CERAMIC 0.01U Z 50V
C2033 403 235 6203 CERAMIC 0.01U Z 50V
C2034 403 235 6203 CERAMIC 0.01U Z 50V
C2036 403 235 6203 CERAMIC 0.01U Z 50V
C2037 403 235 0409 CERAMIC 68P J 50V
C2038 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C2039 403 279 0106 CERAMIC 0.1U Z 25V
C2041 403 235 6203 CERAMIC 0.01U Z 50V
C2042 403 235 6203 CERAMIC 0.01U Z 50V
C2043 403 235 6203 CERAMIC 0.01U Z 50V
C2044 403 279 0106 CERAMIC 0.1U Z 25V
C2046 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C2047 403 235 6203 CERAMIC 0.01U Z 50V
C2048 403 235 6203 CERAMIC 0.01U Z 50V
C2049 403 235 6203 CERAMIC 0.01U Z 50V
C2051 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C2052 403 279 0106 CERAMIC 0.1U Z 25V
C2053 403 235 6203 CERAMIC 0.01U Z 50V
C2054 403 387 4904 ELECT 100U M 6.3V
403 394 1309 ELECT 100U M 6.3V
C2056 403 279 0106 CERAMIC 0.1U Z 25V
C2057 403 279 0106 CERAMIC 0.1U Z 25V
C2058 403 279 0106 CERAMIC 0.1U Z 25V
C2061 403 235 0607 CERAMIC 100P J 50V
C2098 403 279 0106 CERAMIC 0.1U Z 25V
C2099 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C2101 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C2102 403 234 9700 CERAMIC 12P J 50V
C2103 403 234 9601 CERAMIC 15P J 50V
C2104 403 234 9908 CERAMIC 27P J 50V
C2106 403 364 7508 CERAMIC 10P J 50V
C2107 403 235 0409 CERAMIC 68P J 50V
C2108 403 396 6302 CERAMIC 0.47U Z 16V
C2121 403 345 9606 CERAMIC 0.47U K 10V
C2122 403 234 9700 CERAMIC 12P J 50V
C2123 403 234 9601 CERAMIC 15P J 50V
C2124 403 234 9908 CERAMIC 27P J 50V
C2126 403 364 7508 CERAMIC 10P J 50V
C2128 403 279 0106 CERAMIC 0.1U Z 25V
C2141 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C2142 403 364 7508 CERAMIC 10P J 50V
C2143 403 364 7508 CERAMIC 10P J 50V
C2144 403 234 9601 CERAMIC 15P J 50V
C2146 403 364 7508 CERAMIC 10P J 50V
C2148 403 396 6302 CERAMIC 0.47U Z 16V
C2161 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C2162 403 364 7508 CERAMIC 10P J 50V
C2163 403 364 7508 CERAMIC 10P J 50V
C2164 403 234 9601 CERAMIC 15P J 50V
C2166 403 364 7508 CERAMIC 10P J 50V
C2168 403 396 6302 CERAMIC 0.47U Z 16V
C2181 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C2182 403 364 7508 CERAMIC 10P J 50V
C2183 403 364 7508 CERAMIC 10P J 50V
C2184 403 234 9601 CERAMIC 15P J 50V
C2186 403 364 7508 CERAMIC 10P J 50V
C2188 403 396 6302 CERAMIC 0.47U Z 16V
C3001 403 345 6605 CERAMIC 1U Z 10V
C3002 403 345 6605 CERAMIC 1U Z 10V
C3003 403 345 6605 CERAMIC 1U Z 10V
C3004 403 345 6605 CERAMIC 1U Z 10V
C3006 403 224 6207 CERAMIC 0.022U Z 50V
C3007 403 224 5804 CERAMIC 2200P K 50V
C3008 403 279 0106 CERAMIC 0.1U Z 25V
C3009 403 345 6605 CERAMIC 1U Z 10V
C3011 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C3012 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C3013 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C3014 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C3016 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C3018 403 319 4804 CERAMIC 0.22U Z 16V
C3019 403 345 6605 CERAMIC 1U Z 10V
C3021 403 279 0106 CERAMIC 0.1U Z 25V
C3022 403 224 5804 CERAMIC 2200P K 50V
C3023 403 309 1400 CERAMIC 1U Z 10V
403 336 5600 CERAMIC 1.0U Z 10V
C3024 403 345 6605 CERAMIC 1U Z 10V

— 17 —
Schematic
Location Part No. Description
C3026 403 345 6605 CERAMIC 1U Z 10V
C3027 403 345 6605 CERAMIC 1U Z 10V
C3028 403 345 6605 CERAMIC 1U Z 10V
C3029 403 397 5809 ELECT 1000U M 10V
C3083 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C3084 403 175 7209 ELECT 10U M 16V
403 391 5508 ELECT 10U M 16V
C6234 403 234 8901 CERAMIC 4P C 50V
C7201 403 279 0106 CERAMIC 0.1U Z 25V
C7202 403 279 0106 CERAMIC 0.1U Z 25V
C7203 403 279 0106 CERAMIC 0.1U Z 25V
C7206 403 279 0106 CERAMIC 0.1U Z 25V
C7207 403 279 0106 CERAMIC 0.1U Z 25V
C7208 403 279 0106 CERAMIC 0.1U Z 25V
C7209 403 279 0106 CERAMIC 0.1U Z 25V
C7211 403 279 0106 CERAMIC 0.1U Z 25V
C7212 403 279 0106 CERAMIC 0.1U Z 25V
C7213 403 279 0106 CERAMIC 0.1U Z 25V
C7214 403 279 0106 CERAMIC 0.1U Z 25V
C7216 403 279 0106 CERAMIC 0.1U Z 25V
C7217 403 279 0106 CERAMIC 0.1U Z 25V
C7218 403 279 0106 CERAMIC 0.1U Z 25V
C7219 403 279 0106 CERAMIC 0.1U Z 25V
C7221 403 279 0106 CERAMIC 0.1U Z 25V
C7232 403 279 0106 CERAMIC 0.1U Z 25V
C7234 403 279 0106 CERAMIC 0.1U Z 25V
C7265 403 393 2109 CERAMIC 4.7U K 6.3V
C7266 403 393 2109 CERAMIC 4.7U K 6.3V
C7269 403 393 2109 CERAMIC 4.7U K 6.3V
C7271 403 393 2109 CERAMIC 4.7U K 6.3V
C7272 403 393 2109 CERAMIC 4.7U K 6.3V
C7273 403 393 2109 CERAMIC 4.7U K 6.3V
C7289 403 235 0607 CERAMIC 100P J 50V
C7298 403 279 0106 CERAMIC 0.1U Z 25V
C7299 403 279 0106 CERAMIC 0.1U Z 25V
C7552 403 279 0106 CERAMIC 0.1U Z 25V
C7554 403 279 0106 CERAMIC 0.1U Z 25V
C7557 403 279 0106 CERAMIC 0.1U Z 25V
C7558 403 393 2109 CERAMIC 4.7U K 6.3V
C7559 403 393 2109 CERAMIC 4.7U K 6.3V
C8061 403 392 1202 ELECT 47U M 6.3V
403 387 5307 ELECT 47U M 6.3V
DIODES
D612 407 149 0807 DIODE 1SS355 TE-17
D613 407 149 0807 DIODE 1SS355 TE-17
D614 407 228 4900 ZD UDZS33B-TE-17
D615 407 149 0807 DIODE 1SS355 TE-17
D617 407 149 0807 DIODE 1SS355 TE-17
D632 407 149 0807 DIODE 1SS355 TE-17
D641 407 213 8520 DIODE SPB-G56SVR
D642 407 149 0807 DIODE 1SS355 TE-17
D876 407 222 6306 ZD UDZS-TE-173.9B
407 187 7608 ZENER DIODE UDZ3.9B TE-17
D1600 407 007 7702 DIODE EU2A
D1601 407 007 7702 DIODE EU2A
 D1602 407 231 2801 PHOTO COUPLE PC123YC2
 D1603 407 231 2801 PHOTO COUPLE PC123YC2
D1604 407 207 4709 DIODE D5SBA60
407 199 1908 DIODE RBV-606 LF-B
D1605 407 149 0807 DIODE 1SS355 TE-17
D1606 407 190 4106 DIODE SFPL-52V
 D1607 407 231 2801 PHOTO COUPLE PC123YC2
D1608 407 190 4106 DIODE SFPL-52V
D1609 407 190 4106 DIODE SFPL-52V
D1610 407 244 6407 DIODE RF2001T2D
407 190 2805 DIODE YG906C2R
D1611 407 206 9824 DIODE SFPB-52V
D1612 407 007 7702 DIODE EU2A
D1613 407 075 5501 DIODE FML-12S
407 244 0702 DIODE RF601T2D
407 154 0502 DIODE YG901C2
D1623 404 047 7400 ZENER DIODE MTZJ5.6B
D1851 407 149 0807 DIODE 1SS355 TE-17
D1852 407 149 0807 DIODE 1SS355 TE-17
D3001 407 210 5403 DIODE RB551V-30 TE-17
INTEGRATED CIRCUITS
IC001 409 569 1907 IC LA42052-E
IC612 409 437 4702 IC L88M05TL-TL
IC631 409 497 6302 IC BA09FP-E2
IC641 409 550 1404 IC PQ1CY1032ZP
IC656 409 592 8508 IC BA15BC0FP
IC671 409 482 7505 IC BA25BC0FP
IC676 409 588 6303 IC BA33BC0FP
IC801 410 555 2105 IC TMP88PS38BFGN2TES
IC841 409 404 7200 IC TC7SET00FU
IC886 410 513 2901 IC CAT24WC16WI-TE13
IC1201 409 450 3102 IC NJM2535M
IC1202 409 304 6422 IC NJM2246M-TE2
IC1600 409 067 7203 IC L5431
409 054 1207 IC TL431CLP-B
409 180 2307 IC UPC1093J
IC1601 410 554 7200 IC STR-G9628 LF1129
IC1831 410 507 1903 IC TC74VHCT04AFT
IC1899 409 404 6322 IC M62320FP
IC2001 409 611 0209 IC TC90101FG
IC3001 409 564 4309 IC NJW1142M
IC7201 410 553 9007 IC EP1C6T144C7N
IC7232 409 439 8906 IC TC7WH125FU
IC7233 409 439 8906 IC TC7WH125FU
IC7299 409 648 3907 IC EPCS1SI8NAW
Schematic
Location Part No. Description

— 18 —
Schematic
Location Part No. Description Schematic Location Part No. Description
COILS
 LF1600 645 019 3873 LINE FILTER
L601 645 075 0564 INDUCTOR, 33U M
L606 645 073 9156 INDUCTOR, 1000U M
L607 645 075 7419 INDUCTOR, 390U J
L609 645 059 2782 INDUCTOR, 47U M
L612 645 040 6430 INDUCTOR, 2.2U M
L641 645 075 0564 INDUCTOR, 33U M
L1201 645 040 6430 INDUCTOR, 2.2U M
L1600 645 047 6556 INDUCTOR, 4.7U M
L1603 610 078 5946 PIPE CORE
L1604 610 078 5946 PIPE CORE
L1605 610 078 5946 PIPE CORE
L1606 610 078 5946 PIPE CORE
L1607 645 047 6556 INDUCTOR, 4.7U M
L1831 645 040 6430 INDUCTOR, 2.2U M
L2001 645 040 6430 INDUCTOR, 2.2U M
L2002 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L2003 645 040 6430 INDUCTOR, 2.2U M
L2004 645 059 1716 INDUCTOR, 1.5U J
L2006 645 040 6430 INDUCTOR, 2.2U M
L2007 645 040 6430 INDUCTOR, 2.2U M
L2008 645 040 6430 INDUCTOR, 2.2U M
L2009 645 040 6430 INDUCTOR, 2.2U M
L2011 645 040 6430 INDUCTOR, 2.2U M
L2012 645 040 6430 INDUCTOR, 2.2U M
L2013 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L2099 645 040 6430 INDUCTOR, 2.2U M
L2101 645 059 1730 INDUCTOR, 15U J
L2102 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L2121 645 059 1730 INDUCTOR, 15U J
L2122 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L2141 645 072 1397 INDUCTOR, 8.2U J
L2142 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L2161 645 072 1397 INDUCTOR, 8.2U J
L2162 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L2181 645 072 1397 INDUCTOR, 8.2U J
L2182 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
L7261 645 036 3894 INDUCTOR, 220 OHM
L7262 645 036 3894 INDUCTOR, 220 OHM
L7263 645 036 3894 INDUCTOR, 220 OHM
L7264 645 036 3894 INDUCTOR, 220 OHM
L7267 645 036 3894 INDUCTOR, 220 OHM
L7268 645 036 3894 INDUCTOR, 220 OHM
L7597 645 073 6407 IMPEDANCE, 100 OHM -
L7598 645 073 6407 IMPEDANCE, 100 OHM -
L7599 645 073 6407 IMPEDANCE, 100 OHM -
TRANSISTORS
Q002 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q101 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q613 405 211 0007 TR 2SC5730-Q
405 210 9902 TR 2SC5730-R
Q656 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q657 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q671 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q672 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q676 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB

— 19 —
Schematic
Location Part No. Description
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q677 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q851 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q876 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q1600 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1601 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1605 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1606 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1607 405 018 0507 TR 2SC3332-R
405 018 0606 TR 2SC3332-S
Q1608 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1609 405 202 7701 TR TPC8109
Q1610 405 202 7701 TR TPC8109
Q1611 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1612 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1851 405 045 8725 TR 2SK536
Q1852 405 045 8725 TR 2SK536
Q2001 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q2031 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Schematic
Location Part No. Description

— 20 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q2092 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q2101 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q2102 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q2121 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q2122 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q2141 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q2142 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q2161 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q2172 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q2181 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q3011 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q3012 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q3031 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
