SERVICE MANUAL
Real Time Video Cassette Recorder
FILE NO.
CONTENTS
MAINTENANCE TABLE ON THE MONITOR SCREEN ........... 3
1. DISASSEMBLY .................................................................... 6
2. ELECTRICAL ADJUSTMENT ............................................ 10
3. TEST POINTS FOR TAPE PATH ADJUSTMENT ............. 12
4. PARTS LIST
ACCESSORIES & PACKING MATERIALS ........................ 13
CABINET & CHASSIS PARTS ........................................... 13
MECHANISM PARTS ......................................................... 14
ELECTRICAL PARTS ........................................................ 16
CIRCUIT DIAGRAM & PRINTED WIRING BOARDS ............. C1
Please see other materials with Reference
number given in table below.
REFERENCE No.SM5310422
NOTE: 1. Parts order must contain model number, part number, and description.
2. Substitute parts may be supplied as the service parts.
3. N.S.P. : Not available as service parts.
Design and specifications are subject to change without notice.
RQ4QR/EX, E, EX2, E2
SRT-8960P
(Product Code : 175 700 72)
(Europe)
Materials Model No. Reference No.
MM5310380
VP-R/VP-N
Mechanism
Mechanism
Manual
SRT-8960P
(Product Code : 175 700 88)
(U.K.)
SRT-8040P
(Product Code : 175 700 73)
(Europe)
SRT-8040P
(Product Code : 175 700 89)
(U.K.)
PRODUCT SAFETY NOTICE
The components designated by a symbol ( ) in this schematic diagram designates components whose value are of special
significance to product safety. Should any component designated by a symbol need to be replaced, use only the part designated
in the parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.

– 3 –
MAINTENANCE TABLE ON THE MONITOR SCREEN
VIDEO: Used time of the video head (cylinder) total
hours.
Note : Reset when the cylinder is replaced.
POWER: Hours of the power supply being.
ALARM: Number of ALARM REC.
Note: The data for the maintenance tables are memoried
in E2PROM, and the memory can be kept if the timer
microcomputer is reset.
To display the maintenance table, press “MENU” key with “ ” key while the fourth MENU <POWER FAILURE> is displayed.
POWER FAILURE
Normal screen
Maintenance table 1
Maintenance table 2
Press “MENU” key with “ ” key
“MENU” key“MENU” key
Maintenance table 1 Maintenance table 2
MAINTENANCE TABLE 1
< USED TIME / ALARM >
VIDEO 0 0 0 0 0 H
POWER 0 0 0 0 0 H
ALARM 0 0 0 0 0 0
MAINTENANCE TABLE 2
<ERROR>
1 31 - 12 - 02 E01 08
2 - - - - - - - - - - - - -
3 - - - - - - - - - - - - -
4 - - - - - - - - - - - - -
5 - - - - - - - - - - - - -
6 - - - - - - - - - - - - -
7 - - - - - - - - - - - - -
8 - - - - - - - - - - - - -
When the “MENU RESET” key is pressed during display and
resetting all data.
<ERROR> : The newest data is displayed in the first line, and
the old ones are moved down one by one. Not-
displayed old data is cleared automatically.
The used time of each mode (part) is displayed, and can be
reset by items.
Access the maintenance-screen according to the above,
and then Fig. below is displayed.
Move the blinking to the item to be reset with JOG dial and
press the “MENU RESET” key, and then the used time for the
item will be reset.
As shown in Fig. below Maintenance Table 2, <ERROR> is
displayed on the screen.

– 4 –
E01
The take-up reel does not rotate.
The capstan motor does not rotate.
The tape can be loaded with the cassette inserted.
But unloading can not be performed or the loading and
unloading cannot be performed with the cassette in-
serted. (The tape guide is caught.)
Front unloading cannot be performed when ejecting
the cassette. (Front loading can be performed.)
Front loading and front unloading cannot be per-
formed when ejecting the cassette. (The cassette is
caught in the mechanism front.)
The mechanism becomes 7 (INITIAL) while moving
from 1 (BRAKE), 2 (STOP), 3 (PLAY), 4 (STILL/
SLOW), and to 5 (REVERSE FRAME ADVANCE).
(The mechanism mode switch is faulty.)
The capstan motor does not rotate, or the capstan
motor and the cylinder motor does not rotate with the
cassette inserted.
The cylinder motor does not rotate with the
cassette inserted.
The supply reel does the tape eject when tape
unloading.
The tape cannot be loaded with the cassette
inserted.
The tape cannot be loaded normally.
The mechanism does not move to the correct
position after tape loading.
Mechanism position “3” cannot be used during
intermittent recording.
No. Problem Mechanism Operations and State After Occurrence
Shift to the STOP mode.
Unload forcibly.
E02
E03
The cylinder does not rotate.
The tape winds around the cylinder.
Shift to the STOP mode.
Shift to the STOP mode.
E04 The tape can not be loaded.
(But unloading can be performed.)
Unload, shift to the ST-BY mode, and the power goes
off.
E05
E06
E07
E09
E10
E11
E12
E13
E14
E15
E16
The power is forcibly turned off with the mechanism
at its current position.
Front loading, shift to the STOP mode or ST-BY mode.
The power is forcibly turned off with the mechanism
at its current position.
Carry out the tape take-up operations, and shift to
STOP mode.
Shift to the EJECT mode.
Shift to the EJECT mode.
Shift to the EJECT mode.
Shift to the EJECT mode.
Shift to the EJECT mode.
The power is forcibly turned off with the mechanism
at its current position.
Shift to the STOP mode.
Mechanism Mode Display Contents
00
01
02
03
04
06
08
CASSETTE OUT
STAND-BY
STOP
STILL
REC-PAUSE
FRAME ADVANCE
PLAY
09
12
13
14
15
30
31
REC
CUE
REVIEW
FAST FORWARD
REWIND
REVERSE PLAY
REVERSE FRAME ADVANCE
32
33
INTERMITTENT REC
REVERSE STILL
Mode. No. Mechanism mode Mode. No. Mechanism mode Mode. No. Mechanism mode
Error Codes (Self-Diagnosis Contents)

– 5 –
8000H Notes
ASSY, BRAKE BAND
ASSY, LEVER BT (tape guide)
FULL ERASE HEAD
ASSY, ROLLER CLEANER
ASSY, GUIDE ROLLER
ASSY, MOUNTING INCLNE S
ASSY, MOUNTING INCLNE T
ACE HEAD
ASSY, LEVER PINCH ROLLER
MOUNTING, LIFT PINCH
CAM, LIFT PINCH
GEAR, CAM PINCH
EARTH CHIP CYLINDER
COMPL, CYLINDER
ASSY, CYLINDER UPPER
ASSY, BRAKE S
ASSY, BRAKE T
ASSY, BRAKE CAPSTAN
ASSY, BRAKE SOFT T
ASSY, REEL SUPPLY
ASSY, REEL TAKEUP
GEAR, REEL S
GEAR, REEL T
PULLEY, REEL
SPECIAL, WASHER 2.4 X 6 X 0.25
COMPL, MOUNTING CLUTCH
BELT, REEL
MOTOR, CAPSTAN
ASSY, GEAR FRICTION
ASSY, LOADING MOTOR
DAMPER
COMPL, GEAR WORM
CAM, MAIN
SPECIAL WASHER 3.6 X 0.5
GEAR, WHEEL 1
GEAR, WHEEL 2
SLIDE, CRECENT
GEAR, LOAD S
GEAR, RACK FRONT
GEAR, RACK START
GEAR, PINON
BACK TENSION TORQUE
FWD, REW TORQUE
PLAY TORQUE
REV TORQUE
: Cleaning : Confirmation : Lubrication : Exchange
Maintenance Table
PB BACK TENSION TORQUE 25 ~ 50 g ⋅cm
FWD, REW TORQUE ≥600 g ⋅cm
PLAY 55 ~ 110 g ⋅cm
REV 100 ~ 210 g ⋅cm
Tape path
system
Reel drive
system
Brake
Loading drive
system
Performance
check
6000H
4000H2000H
1. This table shows the maintenance for up to 8000 hours. After this, repeat from the start or the table.
2. For places with symbols such as ( ) and ( ), carry out checking and cleaning, aand replace if necessary.
3. This periodic maintenace check table changes considerably according to the using conditions and environment.
4. Refer to the (POWER FAILURE/DEW/USED TIME) menu for the length of time the unit has been used.
5. As the life of parts may be shortened if foreign particles and dusts remain accumulated on the tape guides and rotating and
contacting poritions, clean if dirty.
6. Dusts and other foreign particles on the tape guides may also shorten the tape life and lower picture quality, therefore clean
throughly.

– 6 –
1. DISASSEMBLY
1-1. REMOVAL OF CABINET, MECHANISM UNIT, AND MAIN BOARD
REMOVING THE CABINET PARTS (Fig. 1-1-1)
1. Remove the cabinet and bottom cover by removing the
four screws (1) and five screws (2).
2. Remove the front panel by removing the locks of the
clamps (A) using a screwdriver, etc. and slightly rotating
the bottom part in the direction of the arrow.
Notes: • Electrical adjustments for the this model can be
performed with only the cabinet removed.
• When replacing the bottom cover, do not tighten the
screws (2) too much. Excess tightness may damage
the screws taps on the chassis.
REMOVING THE MECHANISM MAIN UNIT AND THE
CP-1 PWB ASSEMBLY (Fig. 1-1-2 and 1-1-3)
Fig. 1-1-1
M-RQ4Q/EX-1
1. Spread out the lock clamps (B) and (C) in the arrow
direction slightly and remove the TM-1 PWB and TM-2
PWB as shown in Fig. 1-1-2.
2. Remove the screws (3) and (4) and (5) at the chassis.
3. Remove the screw (6) at the PW-1 PWB.
4. Remove the two screws (7) at the CP-1 board.
4. Remove the two screws (8) of the mechanism unit. The
two screws (8) of the cassette tray can be removed easily
by pushing the tray lock lever in the arrow direction to
remove the lock as shown in the enlarge view A and by
pushing the lid opener lever in the arrow direction to
remove the lock as shown in the enlarge view B.
5. Lift up the whole mechanism unit and main board (CP-1
PWB assembly), and as shown in Fig. 1-1-3, push the two
lock clamps (D) of the chassis in the arrow direction so that
they can be removed from the chassis.
(2)
(2)
(2)
(2)
(2)
(1)
(1)
(1)
Front Panel
Clamps(A)
Cabinet
Main Unit
Bottom Cover
(1)

–7 –
Fig. 1-1-3
Fig. 1-1-2
M-RQ4Q/EX-3
M-RQ4Q/EX-2
Chassis
CP-1 PWB Assembly
Mechanism Main Unit
Clamp(D)
TM-1 PWB
PW-1 PWB
PW-2 PWB
TM-2 PWB
(B)
(B)
(B)
(B)
(B)
Tray Lock Lever
(C)
(C)
Lid Opener Lever
Holder
Terminal Board
TM-2 PWB
TM-1 PWB
PW-1 PWB
Chassis
Cassette Tray
A
B
(8) (4)
(7)
(7)
(8)
(5)
(3)
(6)
(B)
(B)
(C)

–8 –
1-3. INSTALLATION OF THE FRONT PANEL
When installing the front panel to the chassis after repaires and adjustments.
1. Pressing down the door opener lever of the mechanism
main unit.
2. Set the cassette door to half-opened state as shown in Fig.
1-1-5, and install the front panel to the chassis.
Fig. 1-1-5
Note:Opened cassette door position does not install the front
panel to the chassis.
Fig. 1-1-4
M-RQ4Q/EX-5
1-2. TEMPORARILY SETTING UP AND CONNECTING CP-1 PWB ASSEMBLY
The following is an example of how to place and connect the main board without a jig, when repairing the CP-1 PWB assembly.
1. Place the mechanism unit and main board up side down as
a whole on a flat surface with foil side of the main board
facing up.
2. Operete the unit using the buttons on CP-1 PWB or the
remote control.
M-RF4QR/NA-4
PW-1 PWB
Screws
CP-1 PWB Assembly (Foil side)
TM-1 PWB
Mechanism Main Unit
Terminal Board
Cassette Compartment
TM-2 PWB
Jutted part of
Cassette Holder
Door Opener Lever
Front Panel
Cassette Door
(Position B)
Cassette Door
(Position A)

–9 –
1-4. CIRCUIT BOARD LOCATIONS
L-RQ4Q/EX
CP-1 PWB Assembly
TM-1 PWB
TB-1 PWB for TLS-1960P
TM-2 PWB
PW-1 PWB
PW-2 PWB
for TLS-1960P
SRT-8960P
SRT-8960P

–10 –
2. ELECTRICAL ADJUSTMENT
2-1. SERVO CIRCUIT ADJUSTMENT
•These adjustments should be carried out upon completion of the tape transport adjustments.
•If the tape transport adjustments (except the tilt adjustment) are done after these adjustments, follow the procedures again in
section 2-1-3. “SWITCHING POSITION ADJ.”
•When a cassette tape is loaded, auto-tracking will be set immediately after starting the first playback. As this will deviate the
tracking center set, be sure to tracking center position after starting playback to prevent auto-tracking from being set.
2-1-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Color Bar Signal Generator PAL color bar signal with 100% white level (color bar signal)
Alignment Tape
Blank Tape
Monitor TV
Oscilloscope
VHJ-0052 : LP mode, monoscope, 3 kHz
VHS cassette tape
Vertical sensitivity : 5 mV/DIV, external trigger
Bandwidth : more than 10 MHz
2-1-2. LOCATION OF ADJUSTMENT POINTS
CP-1 PWB (Foil side) Fig. 2-1-1
VR141
VR131
TP101
TP141
TP183
TP142
TP182

–11 –
REC button, TRACKING
buttons, EJECT button
Adj. Condition
TP101(VIDEO
OUT terminal)
TP183 (SW-P)
6.5 H ±0.5 H
Notes :
•Set the REC/PLAY SPEED button to indicator panel to the
8 H (8 hours) mode.
•Self-recoding means “Record any broadcasting or video
signal and play back the just-recorded portion”.
1. Play back the alignment tape. Press the TRACKING buttons
(+) and (–) simultaneously. (TRACKING center position)
2. Press the REC button three times within 10 seconds after
the display is shown. All three presses must be carried out
within 3 seconds. For the third time, press the REC button
more than 0.5 seconds as shown in Fig. 2-1-2.
3. The automatic adjustment mode is set, the numerals of
Indicator display “P 0 : 00”changes automatically and the
unit stops at the point the adjustment value becomes
approx. 6.5 H.
4. In the same adjustment mode, trigger at the edge of the
RF SW pulse, and check that the front edge of the V sync
signal from the fall edge of the RF SW pulse is delayed by
6.5 H ±0.5 H as shown in Fig. 2-1-3. If it is not 6.5 H ±0.5
H, manually perform fine adjustments for the TRACKING
buttons (+) or (–) to satisfy the specification.
5. After completing adjustments, press the EJECT button (more
than 1 second) and check the Indicator shows “P ––” at
this time.
Note : Repeat steps 1 to 4 if the adjustment takes more then
20 seconds.
2-1-3. SWITCHING POSITION ADJ.
Measuring Point
Measuring Equipment
Adj. Condition
Oscilloscope PLAY (8H) mode
Alignment tape
VHJ-0052
Adj. Condition
Start of play
back display
REC button
ON
OFF
within
10 sec.
within
2 sec.
more
then
0.5
sec.
adjusting
period 10 sec.
Fig. 2-1-2
Fig. 2-1-3
T=6.5H 0.5H
0.5H1H
Front edge of
vertical sync signal
RF.SW.PULSE
Fall
–
Adj. Value
Adj. Condition
Self-recording
(8H) mode, PLAY
mode, Blank tape
Adj. Location
REC button, TRACKING
buttons, EJECT button
Picture of
monitor TV
2-1-5. F. SLOW TRACKING CONFIRM AND ADJ.
Measuring Point
Measuring Equipment
Color bar generator
(Monoscope pattern
signal), Monitor TV
1. Insert blank VHS cassette tape and record monoscope pat-
tern on the 8H mode.
2. Play back the self-recorded tape and then set the VCR in
the STILL mode.
3. Change to F. Slow play back mode by pressing REC button
3 times. These 3-push must be done within 3 seconds, and
last push must be kept pressed for 0.5 seconds.
4. Set the tracking control position to the center by pressing
TRACKING (+) and (–) buttons simultaneously, and con-
firm the absence of noise in the slow playback image on
the monitor screen at this centered tracking position. Start-
ing from this centered tracking position, push the (+) and
(–) buttons and confirm that no noise appears before the
fifth push in either direction.
If noise appears before the fifth push, fine-tune with the
front tracking adjustment button so that no noise appears
before the fifth push, then press the EJECT button to make
this point the new tracking center. (When pressing the
EJECT button to enter this new tracking center, the track-
ing should be displayed.)
The FLD counter readout changes to “P ––” for approxi-
mately 1 second in order to confirm that data has been
entered.
3
Adj. Value
Adj. Condition
Self-recording
(8H) mode
24H PLAY mode
Blank tape
Adj. Location
TRACKING buttons
REC button
Picture of
monitor TV
2-1-4. 24H PLAY TRACKING CONFIRM AND ADJ.
Measuring Point
Measuring Equipment
Color bar generator
(Monoscope pattern
signal)
Monitor TV
1. Insert blank VHS cassette tape and record monoscope pat-
tern on the 8H mode.
2. Play back the self-recorded tape and then set the VCR in
the 24H mode.
3. Use the front tracking adjustment button to fine-tune to the
optimum position so that the positions of noise on the moni-
tor screen at the tracking center are vertically symmetrical.
Then press the REC button more than 1 second to enter
this position as the new tracking center. Then the indication
changes to “P –: –” for approximately 1 second.
4. If vertical shaking occurs at the tracking center, read just by
pushing the TRACKING buttons (no more than 3 times),
then enter this new tracking position as the tracking center.

–12 –
2-2. VIDEO CIRCUIT ADJUSTMENT
Before making the following adjustments, complete the adjustments described in section 2-1. “Servo Circuit.”
2-2-1. TEST EQUIPMENT AND STANDARDS REQUIRED
PAL color bar signal with 100% white level, monoscope signal
Vertical sensitivity : 5 mV/DIV, external trigger
Bandwidth : more than 10 MHz
VHS cassette tape
Color Bar Signal Generator
Oscilloscope
Blank Tape
Notes :
•Self-recording means “Record the video signal and play
back the just-recorded portion.”
Alignment tape
PLAYBACK
mode
Measuring Point
VR141
Adj. Location
TP141, TP142
2-2-2. SKEW CORRECTION ADJ.
Measuring Equipment
Adj. Condition
Alignment tape
Oscilloscope
Adj. Value
1. Playback the alignment tape.
2. Connect CH1 of the oscilloscope to TP141.
3. Connect CH2 of the oscilloscope to TP142.
4. Adjust VR141 so that the Y level of CH1 and CH2 becomes
a minimum.
Measuring Point
Adj. Location
VR131 (2H-DL)
TP101
or VIDEO OUT
2-2-3. 2H DELAY LEVEL ADJ.
Measuring Equipment
Adj. Condition
Self-recording
(8H) mode
STILL mode
Blank tape
Adj. Value
Oscilloscope
Color bar generator
1. Terminate TP101 (or VIDEO OUT) and ground with a 75 Ω
resistor or connect the monitor TV to the VIDEO OUT terminal.
2. Connect the color bar generator (monoscope signal) to the
VIDEO IN terminal.
3. Record the color bar signal on the blank tape.
4. Play back of the just-recorded portion.
5. Adjust VR131 (2H-DL) so that the luminance signal level of
switching alternately becomes the same or no flicker by
monitor TV.
Alignment tape
3. TEST POINTS FOR TAPE PATH ADJUSTMENT
VR141
VR131
TP101
TP141
TP183
TP142
TP182
CP-1 PWB (Foil side)
Test points TP182 (ENV) and TP183 (SW-P) for tape path adjustment are shown in figure below.
VHJ-0008 : SP mode, color bar, 1 kHz

13
4. PARTS LIST
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
N.S.P.:Not available as service parts
CABINET & CHASSIS PARTS
*CH-RQ4Q/EX(MS)
Mechanism
3
3
3
3
1
1
1
1
1
1
6
17
11
12
13
21
9
10
8
7
25
26
21
22
23
24
14
16
15
2
2
2
2
2
4
4
N.S.P.
N.S.P.
N.S.P.
N.S.P.
1
N.S.P.
19
1
5
5
5
5
18
2
2
2
2
4
4
4
4
N.S.P.
1
N.S.P.
1
7
27
29
28
N.S.P.
N.S.P.
33
33
30
32
31
31
31
31
20
34
33
33
ACCESSORIES & PACKING MATERIALS
9170 613 197 8966 INSTRUCTION MANUAL
9205 645 045 3533 CORD,POWER-1.8MK,
SRT-8960P-UK,SRT-8040P-UK
9205 645 009 0400 CORD,POWER-1.875MK,SRT-8960P,SRT-8040P
OR 613 095 0550 CORD,POWER,SRT-8960P,SRT-8040P
9211 613 133 1907 HOLDER (CORD,POWER)
9001 613 197 8928 CARTON CASE,SRT-8960P ONLY
9001 613 198 2857 CARTON CASE,SRT-8040P ONLY
9001 613 198 8330 CARTON CASE,SRT-8960P-UK ONLY
9001 613 198 8347 CARTON CASE,SRT-8040P-UK ONLY
9002 613 196 6680 CUSHION, FRONT
9003 613 196 6697 CUSHION, BACK
9010 645 044 2797 POLY SHEET-0980X0570*NC
CABINET & CHASSIS PARTS
1 411 137 0007 SCR L-TPG BIN 3X10
2 411 001 1901 SCR S-TPG BIN 3X6
3 411 021 7907 SCR S-TPG BIN 4X12
4 411 021 3701 SCR S-TPG BIN 3X10
5 412 028 9406 SPECIAL SCREW
6 412 052 5108 SPECIAL SCREW-2.6X12
7 613 059 4099 SPRING PLATE (N.S.P.)
8 613 197 4852 TERMINAL(HB),SRT-8040P,SRT-8040P-UK
9 613 197 9413 COMPL PWB,CP-1-A,SRT-8960P,SRT-8960P-UK
9 613 198 3953 COMPL PWB,CP-1-A,SRT-8040P,SRT-8040P-UK
10 613 196 2866 SPACER,CAM OPT (80400)
11 613 198 0341 ASSY,CABINET FRONT SJC
12 613 198 0372 DOOR CASSETTE,SRT-8960P,SRT-8960P-UK
12 613 198 2215 DOOR CASSETTE,SRT-8040P,SRT-8040P-UK
13 613 188 1617 SPRING
14 613 196 9308 KNOB
15 613 102 0207 HOLDER
16 613 196 9292 KNOB SHUTTLE
17 613 199 0579 COMPL,COVER BOTTOM
18 613 191 7798 COVER TOP
19 613 198 3205 COMPL PWB,PW-1,SRT-8040P,SRT-8040P-UK
20 613 168 2801 HOLDER,AC INLET
21 613 121 1001 STAND,FELT
22 613 172 3894 PAD
23 613 196 5775 COMPL PWB,TM-2
24 613 197 9161 COMPL PWB,TM-1,SRT-8960P,SRT-8960P-UK
24 613 198 3755 COMPL PWB,TM-1,SRT-8040P,SRT-8040P-UK
25 613 197 5613 DEC BACK(+DC,MIC),SRT-8960P,SRT-8960P-UK
26 613 187 8464 SPRING,PLATE (N.S.P.)
27 613 197 5668 TERMINAL(HB),SRT-8960P,SRT-8960P-UK
28 613 198 0952 DEC BACK,SRT-8040P,SRT-8040P-UK
29 613 196 5782 COMPL PWB,TB-1,SRT-8960P,SRT-8960P-UK
30 613 197 5699 COMPL PWB,PW-1,SRT-8960P,SRT-8960P-UK
31 411 021 6405 SCR S-TPG BIN 3X8
( Included in the COMPL,PWB PW-1 )
32 613 198 0587 COMPL PWB,PW-2,SRT-8960P,SRT-8960P-UK
33 613 104 2926 HOLDER, FOR.PW1
( Included in the COMPL,PWB PW-1 )
34 645 023 4958 CORE,CLAMP,SRT-8960P,SRT-8960P-UK
Destination
SRT-8960P : SRT-8960P (Europe)
SRT-8960P-UK : SRT-8960P (U.K.)
SRT-8040P : SRT-8040P (Europe)
SRT-8040P-UK : SRT-8040P (U.K.)

14
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
1100
0800
0900
6073
6073
0099
0100
N.S.P.
040D
040C
040B
0300
1000
10400
12000
10400
10400
13000
20310
20300
30900
30700
61000
61100
6070
30600
30500
10140
20600
40300
40100
40200
50110
50100
20100
8010B
8010A
5050B
5050C
5050A
10120
6070
20200
50210
31100
50200
5060B
5060C
5060A
7010C
7010A
7010B
70410
70200
70400
70300
50900
50700
50800
51010 51000
N.S.P.
6070
10140
10150
6070
30300
30400
20400
20410
20700
30800 6090B
6090C
60910
31800
31700
N.S.P. : Not available as service parts.

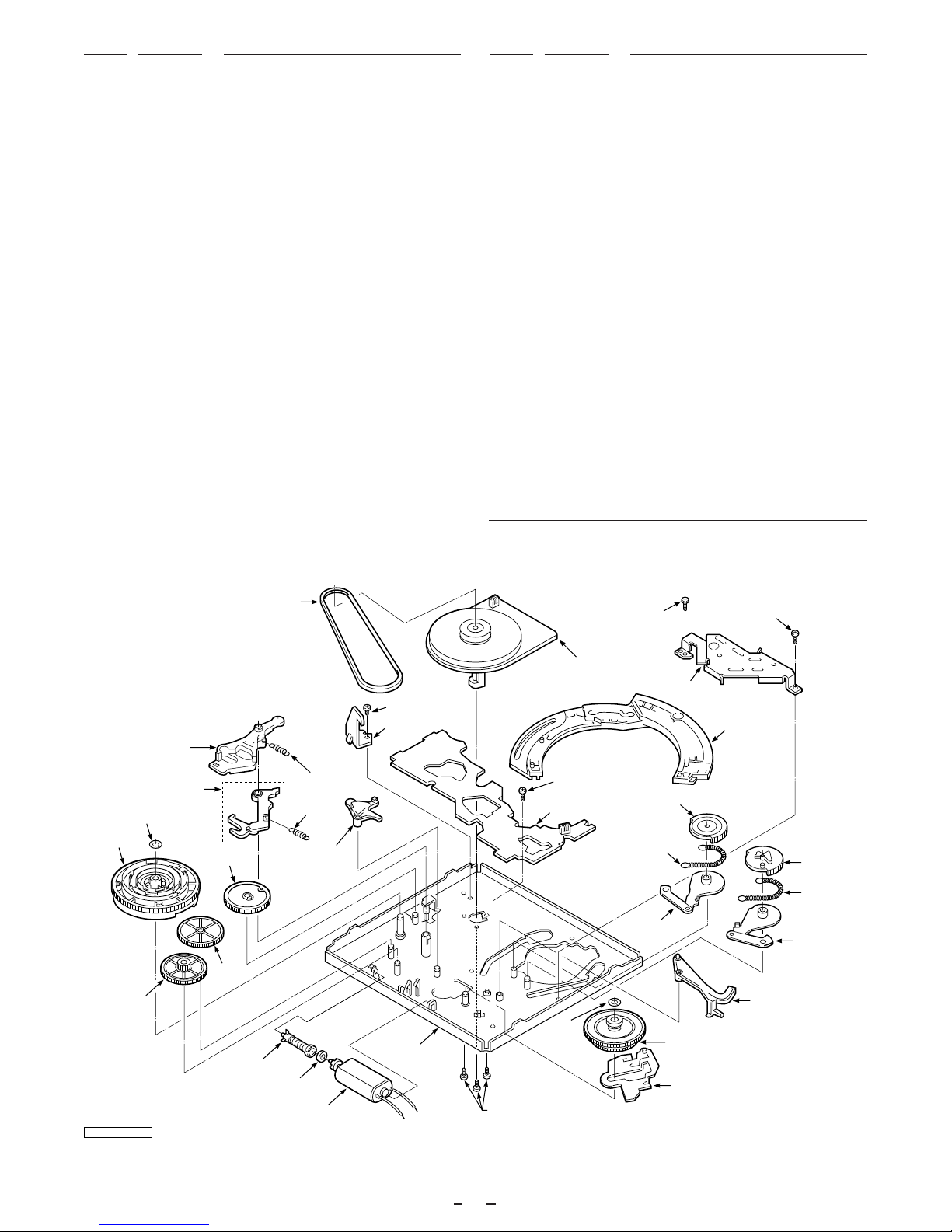

MECHANISM-PART 1
RF4QR/NA-M1
6090A
6102
20210
20110
40500
80300
80200
50220
51200
51100
51300
10150
1300
1200
40000
40000
22000
21000
11000
11200
11100
11600 11300
11500 11400
MECHANISM PARTS 1
11000 613 199 0982 COMPL,CYLINDER,2N4P-QL
11100 613 196 4648 ASSY,CYLINDER,LWR,4Q
11200 613 199 1002 ASSY,CYLINDER,UPR,2N4P-QL
11300 613 189 9124 MOUNTING,MOTOR,CYLINDER
OR 613 182 6311 MOUNTING,MOTOR,CYLINDER
11400 411 158 0208 SCR SET HEX-SCT 4X6
11500 613 182 6229 EARTH,CHIP,CYLINDER
11600 613 182 6533 SPRING,EARTH,CYLINDER
12000 613 176 9533 MOUNTING,CYLINDER
13000 412 048 8601 SPECIAL SCREW-2.6X7
21000 645 035 8043 MOTOR,ROTOR,CYL DC 2W VC
22000 645 048 6647 MOTOR,STATOR,CYL DC 2W VN
40000 412 036 5001 SPECIAL SCREW 2.3X6
10400 412 048 8106 SPECIAL SCREW-2.6X8
6102 613 151 6618 PAD
6073 412 048 8205 SPECIAL SCREW-2.6X6
0099 613 185 4055 COMPL,CASSETTE MECHANISM
0100 613 152 0738 STAND L
0300 613 152 0660 FRAME UNDER
040B 613 152 0417 SPRING,LID OPENER
040C 613 152 0707 LEVER,RELEASE
040D 613 152 0424 SPRING,TRAY LOCK
0800 613 152 2794 GEAR,LOCK
0900 613 152 2800 GEAR,PINION
1000 613 151 9480 LEVER,DOOR OPENER
1100 613 151 9299 HOLDER,GEAR
1200 411 008 5001 WASHER F 4X8X0.8
1300 411 109 2008 WASHER Y 3.1X8X0.5
6070 411 021 7907 SCR S-TPG BIN 4X12
10120 407 162 1102 LED LN59L
10140 407 162 8705 PHOTO DIODE PN263L-(NC)
10150 407 165 8108 PHOTO COUPLE SG-105F
OR 407 043 0101 PHOTO DIODE ON2170-R
20100 613 176 2343 ASSY,REEL SUPPLY
OR 613 169 3722 ASSY,REEL SUPPLY
20110 412 015 8603 SPECIAL WASHER 3.1X6X0.25
20200 613 160 4193 ASSY,REEL TAKE UP
OR 613 168 1514 ASSY,REEL TAKE UP
20210 412 021 5306 SPECIAL WASHER 3.1X6X0.3
OR 412 015 8900 SPECIAL WASHER 3.1X6X0.4
OR 412 015 8504 SPECIAL WASHER 3.1X6X0.5
20300 613 175 0661 COMPL,MOUNTING CLUTCH
OR 613 171 6896 COMPL,MOUNTING CLUTCH
20310 412 048 7505 SPECIAL SCREW-2.6X4
20400 613 151 9701 PULLEY,REEL
20410 412 045 4606 SPECIAL WASHER 2.4X6X0.25
20600 613 152 2749 GEAR,REEL S
20700 613 152 2756 GEAR,REEL T
30300 613 160 3356 ASSY,BRAKE SOFT T
30400 613 152 0295 SPRING,SOFT T
30500 613 151 9411 LEVER,SOFT S
30600 613 152 0318 SPRING,SOFT S
30700 613 189 8868 ASSY,BRAKE,S 90
30800 613 189 8875 ASSY,BRAKE,T 90
30900 613 191 7040 SPRING,BRAKE 90
31100 613 152 0189 SLIDE,ACT BRAKE T
31700 613 175 4843 ASSY,BRAKE CAPSTAN TL
31800 613 182 8377 SPRING,BRAKE CAPSTAN
40100 613 151 8759 ASSY,LEVER,BT
40200 613 160 5282 ASSY,BRAKE,BAND
40300 613 176 5610 SPRING,BT MAIN TL
40500 613 176 5627 SPRING,BT SUB TL
50100 645 023 0943 HEAD,ERASE FULL
50110 412 048 9707 SPECIAL SCREW-2.6X10
50200 613 190 8246 ASSY,HEAD R/P ACE
50210 412 052 3500 SPECIAL SCREW 2.6X12
50220 412 015 8603 SPECIAL WASHER 3.1X6X0.25
5050A 613 151 8858 ASSY,MOUNTING,INCLINE S
5050B 613 022 0233 ASSY,GUIDE,ROLLER
5050C 412 048 4504 SPECIAL SCREW-2X3
5060A 613 151 8872 ASSY,MOUNTING INCLINE T
5060B 613 022 0233 ASSY,GUIDE,ROLLER
5060C 412 048 4504 SPECIAL SCREW-2X3

15
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
5030C
N.S.P. : Not available as service parts.
MECHANISM-PART 2
31000
20500
20510
40400
5030B
5030A
5040C
5040B
5040A
10110
60700
60800
60810
70500
20800
31200
31600
31300
31400
31500
10130
60610
60600
60400
60500
60200
60300
60100 70510
N.S.P.
RF4QR/NA-M2
60810
10160
10720
10700
50700 613 175 6472 ASSY,LEVER,LOAD TL
50800 613 152 0387 SPRING,LEVER L GUIDE
50900 412 048 8908 SPECIAL NUT-3X3
51000 613 175 6489 ASSY,LEVER ACT L-GUIDE TL
51010 412 033 4502 WASHER SLIT 2.6X8X0.50
51100 613 175 6496 ASSY,LEVER STOPPER TL
51200 613 176 3043 SPRING,ACT L GUIDE TL
51300 613 176 3050 SPRING,STOPPER TL
6090A 613 151 9152 GEAR,RACK FRONT
OR 613 160 4636 GEAR,RACK FRONT
6090B 613 151 9114 GEAR,RACK START
6090C 613 152 0226 SPRING,RACK FRONT
60910 412 050 2802 SPECIAL SCREW-2.6X6
61000 613 151 9398 LEVER,EP SW
61100 613 152 3692 SPRING,EP SW
7010A 613 151 8803 ASSY,LEVER,PINCH ROLLER
7010B 613 182 8308 ASSY,MOUNTING,LIFT JG
7010C 613 152 0233 SPRING,PINCH ROLLER
70200 613 156 3841 CAM,LIFT PINCH
70300 613 182 8322 GEAR,CAM PINCH JG
70400 613 182 8339 MOUNTING,OPENER JG
70410 412 049 1106 SPECIAL SCREW-2.6X16
8010A 613 171 9606 LEVER,CLEANER
8010B 613 171 9439 ASSY,MOUNTING CLEANER
80200 645 049 1412 ASSY,R-SPECIAL,DEW
80300 411 137 0007 SCR L-TPG BIN 3X10
MECHANISM PARTS 2
10110 613 181 4967 COMPL PWB,MC-1
10130 613 195 9712 GEAR,RELAY PINCH OPT
10160 412 048 7505 SPECIAL SCREW-2.6X4
10700 613 167 5926 MOUNTING CAPSTAN
10720 412 048 8007 SPECIAL SCREW-2.6X6
20500 613 183 4361 ASSY,GEAR,FRICTION
OR 613 152 2602 ASSY,GEAR,FRICTION
20510 411 109 1605 WASHER Y 2.6X6X0.25
20800 613 151 9039 BELT,REEL
31000 613 152 0165 SLIDE,ACT BRAKE S
31200 613 159 0991 LEVER,CONTROL BRAKE
31300 613 159 0847 COMPL,LEVER,ACT BRAKE
31400 613 152 0332 SPRING,RETURN BRAKE
31500 613 151 9459 LEVER,CHANGE CLUTCH
31600 613 152 0349 SPRING,CHANGE CLUTCH
40400 613 176 5511 ASSY,LEVER SPRING BT TL
5030A 613 152 2763 GEAR,LOAD S
5030B 613 152 0370 SPRING,LOAD S
5030C 613 151 8766 ASSY,LEVER,LOAD S
5040A 613 152 2770 GEAR,LOAD T
5040B 613 152 0363 SPRING,LOAD T
5040C 613 151 8773 ASSY,LEVER,LOAD T
60100 645 003 4305 ASSY,MOTOR LOADING
60200 613 193 2883 COMPL,GEAR,WORM
60300 613 151 9107 DAMPER
60400 613 151 9138 GEAR,WHEEL 1
OR 613 187 4602 GEAR,WHEEL 1
60500 613 160 3790 GEAR,WHEEL 2
60600 613 195 9699 CAM MAIN OPT R
60610 412 054 6806 SPECIAL WASHER 3.6X0.5
60700 613 182 8360 SLIDE,CRESCENT JG
60800 613 159 8997 MOUNTING,CRESCENT
60810 412 048 8007 SPECIAL SCREW-2.6X6
70500 645 052 3106 MOTOR,CAPSTAN DC 3W
70510 412 048 7604 SPECIAL SCREW-2.6X6

16
Note:
1. Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor
MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor
OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.
F ............1% G ............2% J ............5% K ............10%
M ..........20% N ..........30% Z ..........+80% ~ -20%
3. Capacitors
U :
µ FP:pF
4. Inductors
UH :
µ H MH : mH
5. N.S.P. : Not available as service parts.
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
ELECTRICAL PARTS
COMPL PWB,CP-1-A
613 197 9413 SRT-8960P,SRT-8960P-UK
613 198 3953 SRT-8040P,SRT-8040P-UK
(SURGE-ABSORBER)
VA301 645 045 7449 SURGE-ABSORBER
VA302 645 045 7449 SURGE-ABSORBER
VA303 645 045 7449 SURGE-ABSORBER
VA304 645 045 7449 SURGE-ABSORBER
VA305 645 045 7449 SURGE-ABSORBER
VA306 645 045 7449 SURGE-ABSORBER
VA307 645 045 7449 SURGE-ABSORBER
VA308 645 045 7449 SURGE-ABSORBER
VA309 645 045 7449 SURGE-ABSORBER
(BATTERY)
Z3901 645 040 2494 BATTERY,RECHARGE
(SEMICONDUCTORS)
Q1001 405 015 9701 TR 2SC2814-F4
OR 405 015 9909 TR 2SC2814-F5
OR 405 035 6100 TR 2SC2413K-Q
Q1003 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1004 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1005 405 015 9701 TR 2SC2814-F4
OR 405 015 9909 TR 2SC2814-F5
OR 405 035 6100 TR 2SC2413K-Q
Q1016 405 138 6700 TR DTC144EKA
Q1030 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1081 405 015 9701 TR 2SC2814-F4
OR 405 015 9909 TR 2SC2814-F5
OR 405 035 6100 TR 2SC2413K-Q
Q1088 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1102 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1112 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1121 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1122 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1123 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1124 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1128 405 138 6700 TR DTC144EKA
Q1138 405 138 6700 TR DTC144EKA
Q1139 405 138 6700 TR DTC144EKA
Q1201 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1205 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1210 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1211 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1212 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1213 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1214 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1241 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1242 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1243 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1251 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q1252 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1253 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1301 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q

17
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
Q1301 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1306 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1307 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1321 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1322 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1323 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1324 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1341 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
Q1341 405 002 0407 TR 2SA1037K-S
Q1342 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1343 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1344 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1401 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1420 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1421 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1422 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1431 405 138 6700 TR DTC144EKA
Q1432 405 138 6700 TR DTC144EKA
Q1433 405 138 6700 TR DTC144EKA
Q1434 405 138 6700 TR DTC144EKA
Q1435 405 138 6700 TR DTC144EKA
Q1436 405 138 6700 TR DTC144EKA
Q1437 405 138 6700 TR DTC144EKA
Q1461 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1462 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1471 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1472 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1481 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1491 405 138 6700 TR DTC144EKA
Q1601 405 138 6700 TR DTC144EKA
Q1602 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1603 405 014 4400 TR 2SC2412K-Q
Q1603 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1610 405 138 6700 TR DTC144EKA
Q1631 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1632 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1801 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1851 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q2040 405 138 6700 TR DTC144EKA
Q2041 405 138 6700 TR DTC144EKA
Q2043 405 138 6700 TR DTC144EKA
Q2045 405 138 6700 TR DTC144EKA
Q2046 405 138 6700 TR DTC144EKA
Q2047 405 083 5209 TR DTC343TK
Q2048 405 138 6700 TR DTC144EKA
Q2071 405 003 5609 TR 2SA1318-S
OR 405 003 5708 TR 2SA1318-T
OR 405 003 5807 TR 2SA1318-U
Q2072 405 024 9709 TR 2SD734-E
OR 405 024 9907 TR 2SD734-F
Q2073 405 018 0002 TR 2SC3331-S
OR 405 018 0101 TR 2SC3331-T
OR 405 018 0200 TR 2SC3331-U
Q2074 405 018 0002 TR 2SC3331-S
OR 405 018 0101 TR 2SC3331-T
OR 405 018 0200 TR 2SC3331-U
Q2075 405 003 5609 TR 2SA1318-S
OR 405 003 5708 TR 2SA1318-T
OR 405 003 5807 TR 2SA1318-U
Q2204 405 000 5305 TR DTC143TK
OR 405 045 2208 TR 2SC3900
Q3001 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q3002 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q3005 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q3012 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3013 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3014 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3015 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3016 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3017 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3018 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3019 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3020 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3021 405 080 4601 TR 2SC3808
(INTEGRATED CIRCUITS)
IC101 409 480 5701 IC LA71582M-MPB

18
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
IC121 409 515 1807 IC LC74781-9832
IC131 409 519 6204 IC TL8855FS
IC132 409 326 0907 IC LA7152
IC141 409 519 6303 IC TL8722P
IC142 409 255 8906 IC BA7611AN
IC143 409 182 9007 IC NJM2234L
IC145 409 039 9501 IC NJM78L09A
IC161 409 143 7905 IC CXA1203M
IC211 409 018 4305 IC LA6458D
OR 409 039 7408 IC NJM4558D
IC301 410 451 8904 IC UPD78F4928GF-P28-3BA
IC302 409 407 0703 IC PST9128NR
IC303 409 440 4508 IC LB1643L
OR 409 314 2005 IC LB1643
IC304 409 144 7102 IC LA7116-S
IC305 409 482 5006 IC BR24C08
OR 409 455 0106 IC 24LC08B/P
OR 409 372 1002 IC AT24C08-10PC
IC306 409 313 1009 IC MN1381-R
IC308 409 155 7603 IC TC4S30F
IC309 409 137 9007 IC TC4S81F
(DIODES)
D1002 407 012 4406 DIODE 1SS133
D1063 407 012 4406 DIODE 1SS133
D1221 407 012 4406 DIODE 1SS133
D1251 407 063 8903 ZENER DIODE MTZJ5.6C
D1431 407 012 4406 DIODE 1SS133
D1432 407 012 4406 DIODE 1SS133
D1433 407 012 4406 DIODE 1SS133
D1602 407 012 4406 DIODE 1SS133
D1603 407 012 4406 DIODE 1SS133
D2047 407 012 4406 DIODE 1SS133
D2111 407 099 7000 ZENER DIODE MTZJ15B
OR 407 099 7109 ZENER DIODE MTZJ15C
OR 407 099 6904 ZENER DIODE MTZJ15A
D2201 407 012 4406 DIODE 1SS133
D3001 407 150 7703 DIODE RB441Q,SRT-8960P,SRT-8960P-UK
D3002 407 120 5807 DIODE AK04
OR 407 160 9100 DIODE ERA83-004
D3003 407 012 4406 DIODE 1SS133,SRT-8960P,SRT-8960P-UK
D3004 407 078 2705 DIODE 1SS244
D3005 407 012 4406 DIODE 1SS133
D3008 407 063 8903 ZENER DIODE MTZJ5.6C
D3009 407 063 8903 ZENER DIODE MTZJ5.6C
D3010 407 012 4406 DIODE 1SS133
D3011 407 012 4406 DIODE 1SS133
D3012 407 012 4406 DIODE 1SS133
D3013 407 012 4406 DIODE 1SS133
D3014 407 099 6003 ZENER DIODE MTZJ9.1B
D3015 407 063 8903 ZENER DIODE MTZJ5.6C
D3016 407 012 4406 DIODE 1SS133
D3020 407 078 2705 DIODE 1SS244
D3021 407 078 2705 DIODE 1SS244
D3022 407 012 4406 DIODE 1SS133
D3023 407 012 4406 DIODE 1SS133
D3030 407 012 4406 DIODE 1SS133
D3031 407 012 4406 DIODE 1SS133
D3098 407 150 7703 DIODE RB441Q
(PHOTO COUPLERS)
PC301 407 222 4609 PHOTO COUPLE GP1S094HCZ
PC302 407 222 4609 PHOTO COUPLE GP1S094HCZ
PC303 407 222 4609 PHOTO COUPLE GP1S094HCZ
(CRYSTAL DEVICES)
X1001 645 005 1180 OSC,CRYSTAL 3.579545MHZ
OR 645 014 8224 OSC,CRYSTAL 3.579545MHZ
X1002 613 080 9407 OSC,CRYSTAL 4.43MHZ
OR 645 005 1197 OSC,CRYSTAL 4.433619MHZ
OR 613 120 8865 OSC,CRYSTAL 4.433619MHZ
OR 645 014 8231 OSC,CRYSTAL 4.433619MHZ
X1201 613 127 1555 OSC,CRYSTAL 17.734475MHZ
X1461 645 051 9758 OSC,CRYSTAL 12.025672MHZ
X1471 645 051 9741 OSC,CRYSTAL 11.0592MHZ
X3001 613 109 0972 OSC,CRYSTAL 32KHZ
X3002 645 013 5507 OSC,CRYSTAL 8MHZ
OR 645 013 8102 OSC,CRYSTAL 8MHZ
(FILTER)
XF131 645 008 5161 FILTER,LP 6MHZ
(VARIABLE RESISTORS)
VR131 645 003 5616 VR,SEMI,4.7K N
OR 645 003 5500 VR,SEMI,4.7K N
VR141 645 003 5616 VR,SEMI,4.7K N
OR 645 003 5500 VR,SEMI,4.7K N
(INDUCTORS)
L1001 645 002 1510 INDUCTOR,68U J
OR 645 003 8228 INDUCTOR,68U J
L1002 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1005 645 003 6934 INDUCTOR,100U J
OR 645 003 7634 INDUCTOR,100U J
L1121 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1122 645 001 5496 INDUCTOR,39U J
OR 645 003 8129 INDUCTOR,39U J
L1139 645 001 4574 INDUCTOR,100U J
OR 645 003 7917 INDUCTOR,100U J
L1221 645 001 5458 INDUCTOR,27U J
OR 645 003 8051 INDUCTOR,27U J
L1230 645 006 3886 INDUCTOR,1U K
OR 645 005 3856 INDUCTOR,1U M
L1231 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1253 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1301 645 006 3886 INDUCTOR,1U K
OR 645 005 3856 INDUCTOR,1U M
L1303 645 002 1428 INDUCTOR,15U J
OR 645 003 7955 INDUCTOR,15U J
L1311 645 006 3886 INDUCTOR,1U K
OR 645 005 3856 INDUCTOR,1U M
L1321 645 001 5496 INDUCTOR,39U J
OR 645 003 8129 INDUCTOR,39U J
L1402 645 002 1442 INDUCTOR,18U J
OR 645 003 7986 INDUCTOR,18U J
L1403 645 006 3886 INDUCTOR,1U K
OR 645 005 3856 INDUCTOR,1U M
L1421 645 001 5458 INDUCTOR,27U J
OR 645 003 8051 INDUCTOR,27U J
L1422 645 006 3886 INDUCTOR,1U K
OR 645 005 3856 INDUCTOR,1U M
L1461 613 130 3539 FERRITE CORE
OR 645 008 7936 CORE
L1471 613 130 3539 FERRITE CORE
OR 645 008 7936 CORE
L1481 613 130 3539 FERRITE CORE
OR 645 008 7936 CORE
L1601 645 002 1411 INDUCTOR,10U J
OR 645 003 7894 INDUCTOR,10U J
L1615 645 001 4659 INDUCTOR,220U J
OR 645 003 8037 INDUCTOR,220U J
L1617 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1801 645 006 3602 INDUCTOR,1.1UH
L2071 645 003 6934 INDUCTOR,100U J
OR 645 003 7634 INDUCTOR,100U J
L3003 645 006 3602 INDUCTOR,1.1UH
L3004 645 006 3602 INDUCTOR,1.1UH
L3005 645 006 3602 INDUCTOR,1.1UH
L3006 645 006 3602 INDUCTOR,1.1UH
L3007 645 006 3602 INDUCTOR,1.1UH
L3008 645 006 3602 INDUCTOR,1.1UH
L3009 645 006 3602 INDUCTOR,1.1UH
L3010 645 006 3602 INDUCTOR,1.1UH
L3011 645 006 3602 INDUCTOR,1.1UH
L3012 645 006 3602 INDUCTOR,1.1UH
(TRANSFORMERS)
T2001 645 018 3515 TRANS,OSC,70KHZ
(CAPACITORS)
C1001 403 191 8709 ELECT 1U M 50V
C1002 403 163 7907 ELECT 47U M 6.3V
C1003 403 191 8709 ELECT 1U M 50V
C1004 403 189 2405 ELECT 10U M 16V
C1005 403 167 6500 ELECT 33U M 6.3V
C1006 403 193 8608 ELECT 0.47U M 50V
C1008 403 191 8709 ELECT 1U M 50V
C1009 403 189 2405 ELECT 10U M 16V

19
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
C1010 403 191 8709 ELECT 1U M 50V
C1011 403 164 0204 CERAMIC 0.1U Z 25V
C1012 403 193 9001 ELECT 3.3U M 50V
C1013 403 193 9001 ELECT 3.3U M 50V
C1014 403 191 8709 ELECT 1U M 50V
C1015 403 163 7907 ELECT 47U M 6.3V
C1031 403 298 9609 CERAMIC 0.1U K 16V
C1032 403 281 5007 CERAMIC 0.033U K 25V
C1033 403 164 0204 CERAMIC 0.1U Z 25V
C1034 403 215 2201 CERAMIC 0.01U K 50V
C1035 403 157 2505 CERAMIC 27P J 50V
C1036 403 266 0102 CERAMIC 4.7P C 50V
C1037 403 169 2807 CERAMIC 330P J 50V
C1038 403 155 1500 CERAMIC 180P J 50V
C1039 403 157 2505 CERAMIC 27P J 50V
C1041 403 215 2201 CERAMIC 0.01U K 50V
C1042 403 298 9609 CERAMIC 0.1U K 16V
C1043 403 215 2201 CERAMIC 0.01U K 50V
C1045 403 163 7907 ELECT 47U M 6.3V
C1046 403 215 2201 CERAMIC 0.01U K 50V
C1047 403 215 2201 CERAMIC 0.01U K 50V
C1048 403 215 2904 CERAMIC 0.022U K 25V
C1049 403 215 2904 CERAMIC 0.022U K 25V
C1050 403 205 2808 CERAMIC 0.047U K 25V
C1051 403 215 2904 CERAMIC 0.022U K 25V
C1052 403 298 9609 CERAMIC 0.1U K 16V
C1062 403 139 7306 CERAMIC 18P J 50V
C1067 403 298 9609 CERAMIC 0.1U K 16V
C1068 403 205 2808 CERAMIC 0.047U K 25V
C1075 403 139 7504 CERAMIC 39P J 50V
C1081 403 215 2201 CERAMIC 0.01U K 50V
C1088 403 164 0204 CERAMIC 0.1U Z 25V
C1101 403 163 7907 ELECT 47U M 6.3V
C1110 403 164 0204 CERAMIC 0.1U Z 25V
C1121 403 157 2505 CERAMIC 27P J 50V
C1122 403 157 1904 CERAMIC 10P D 50V
C1123 403 157 2505 CERAMIC 27P J 50V
C1139 403 139 7108 CERAMIC 12P J 50V
C1151 403 215 2201 CERAMIC 0.01U K 50V
C1152 403 215 2201 CERAMIC 0.01U K 50V
C1153 403 215 2201 CERAMIC 0.01U K 50V
C1154 403 070 2606 CERAMIC 0.1U Z 50V
C1155 403 164 0204 CERAMIC 0.1U Z 25V
C1201 403 164 0204 CERAMIC 0.1U Z 25V
C1202 403 218 3106 ELECT 1000U M 16V
C1210 403 284 9408 OS-SOLID 3.3U M 16V
C1211 403 189 2405 ELECT 10U M 16V
C1213 403 215 2201 CERAMIC 0.01U K 50V
C1221 403 139 7108 CERAMIC 12P J 50V
C1222 403 139 7108 CERAMIC 12P J 50V
C1223 403 145 9905 CERAMIC 22P J 50V
C1224 403 145 9905 CERAMIC 22P J 50V
C1225 403 157 3601 CERAMIC 100P J 50V
C1226 403 157 3601 CERAMIC 100P J 50V
C1227 403 157 3601 CERAMIC 100P J 50V
C1228 403 163 7907 ELECT 47U M 6.3V
C1229 403 215 2201 CERAMIC 0.01U K 50V
C1230 403 161 6902 NP-ELECT 2.2U M 50V
C1231 403 215 2201 CERAMIC 0.01U K 50V
C1233 403 191 8709 ELECT 1U M 50V
C1234 403 215 2201 CERAMIC 0.01U K 50V
C1235 403 163 7907 ELECT 47U M 6.3V
C1236 403 157 7005 CERAMIC 1800P K 50V
C1238 403 298 9609 CERAMIC 0.1U K 16V
C1241 403 167 7002 ELECT 4.7U M 50V
C1242 403 215 2201 CERAMIC 0.01U K 50V
C1251 403 164 0204 CERAMIC 0.1U Z 25V
C1253 403 155 2200 CERAMIC 3300P K 50V
C1254 403 191 8709 ELECT 1U M 50V
C1255 403 205 2808 CERAMIC 0.047U K 25V
C1256 403 157 3106 CERAMIC 56P J 50V
C1257 403 164 0204 CERAMIC 0.1U Z 25V
C1301 403 215 2201 CERAMIC 0.01U K 50V
C1302 403 215 2201 CERAMIC 0.01U K 50V
C1303 403 155 2309 CERAMIC 4700P K 50V
C1304 403 215 2201 CERAMIC 0.01U K 50V
C1305 403 215 2201 CERAMIC 0.01U K 50V
C1306 403 191 8709 ELECT 1U M 50V
C1307 403 215 2201 CERAMIC 0.01U K 50V
C1308 403 163 7907 ELECT 47U M 6.3V
C1309 403 157 1904 CERAMIC 10P D 50V
C1310 403 215 2201 CERAMIC 0.01U K 50V
C1321 403 284 9408 OS-SOLID 3.3U M 16V
C1322 403 215 2201 CERAMIC 0.01U K 50V
C1323 403 139 7108 CERAMIC 12P J 50V
C1324 403 163 7907 ELECT 47U M 6.3V
C1325 403 145 9905 CERAMIC 22P J 50V
C1332 403 164 0204 CERAMIC 0.1U Z 25V
C1333 403 215 2201 CERAMIC 0.01U K 50V
C1334 403 163 7907 ELECT 47U M 6.3V
C1335 403 164 0204 CERAMIC 0.1U Z 25V
C1341 403 298 9609 CERAMIC 0.1U K 16V
C1342 403 189 2405 ELECT 10U M 16V
C1343 403 189 2405 ELECT 10U M 16V
C1344 403 215 2201 CERAMIC 0.01U K 50V
C1401 403 157 1706 CERAMIC 8P D 50V
C1402 403 164 0204 CERAMIC 0.1U Z 25V
C1403 403 164 0204 CERAMIC 0.1U Z 25V
C1405 403 163 8409 ELECT 47U M 16V
C1406 403 163 8409 ELECT 47U M 16V
C1407 403 167 7002 ELECT 4.7U M 50V
C1408 403 163 8409 ELECT 47U M 16V
C1409 403 215 2201 CERAMIC 0.01U K 50V
C1410 403 215 2201 CERAMIC 0.01U K 50V
C1411 403 215 2201 CERAMIC 0.01U K 50V
C1412 403 189 2405 ELECT 10U M 16V
C1413 403 167 7002 ELECT 4.7U M 50V
C1420 403 215 2201 CERAMIC 0.01U K 50V
C1421 403 135 4101 ELECT 470U M 6.3V
C1422 403 157 2901 CERAMIC 47P J 50V
C1423 403 157 2901 CERAMIC 47P J 50V
C1424 403 163 7907 ELECT 47U M 6.3V
C1425 403 266 0102 CERAMIC 4.7P C 50V
C1426 403 157 2901 CERAMIC 47P J 50V
C1427 403 163 8409 ELECT 47U M 16V
C1428 403 215 2201 CERAMIC 0.01U K 50V
C1433 403 191 8709 ELECT 1U M 50V
C1434 403 191 8709 ELECT 1U M 50V
C1435 403 191 8709 ELECT 1U M 50V
C1436 403 298 9609 CERAMIC 0.1U K 16V
C1451 403 191 8808 ELECT 2.2U M 50V
C1452 403 191 8808 ELECT 2.2U M 50V
C1454 403 215 2201 CERAMIC 0.01U K 50V
C1455 403 163 7907 ELECT 47U M 6.3V
C1461 403 157 3809 CERAMIC 120P J 50V
C1462 403 157 2406 CERAMIC 24P J 50V
C1463 403 215 2201 CERAMIC 0.01U K 50V
C1464 403 215 2201 CERAMIC 0.01U K 50V
C1465 403 164 0204 CERAMIC 0.1U Z 25V
C1471 403 157 3809 CERAMIC 120P J 50V
C1472 403 157 2406 CERAMIC 24P J 50V
C1473 403 215 2201 CERAMIC 0.01U K 50V
C1474 403 215 2201 CERAMIC 0.01U K 50V
C1475 403 164 0204 CERAMIC 0.1U Z 25V
C1481 403 215 2201 CERAMIC 0.01U K 50V
C1482 403 215 2201 CERAMIC 0.01U K 50V
C1484 403 163 7907 ELECT 47U M 6.3V
C1485 403 215 2201 CERAMIC 0.01U K 50V
C1601 403 163 7907 ELECT 47U M 6.3V
C1602 403 164 0204 CERAMIC 0.1U Z 25V
C1603 403 157 3601 CERAMIC 100P J 50V
C1605 403 366 7605 CERAMIC 1000P J 25V
C1606 403 167 7002 ELECT 4.7U M 50V
C1608 403 215 2201 CERAMIC 0.01U K 50V
C1609 403 215 2201 CERAMIC 0.01U K 50V
C1610 403 155 4204 CERAMIC 15P J 50V
C1611 403 157 2901 CERAMIC 47P J 50V
C1612 403 299 1909 CERAMIC 1500P J 25V
C1613 403 189 2405 ELECT 10U M 16V
C1614 403 157 3106 CERAMIC 56P J 50V
C1615 403 173 9700 CERAMIC 7P D 50V
C1617 403 157 2505 CERAMIC 27P J 50V
C1620 403 139 7504 CERAMIC 39P J 50V
C1631 403 157 1904 CERAMIC 10P D 50V
C1801 403 163 7907 ELECT 47U M 6.3V
C1802 403 215 2201 CERAMIC 0.01U K 50V

20
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
C1851 403 164 0204 CERAMIC 0.1U Z 25V
C1852 403 157 2505 CERAMIC 27P J 50V
C1853 403 157 2505 CERAMIC 27P J 50V
C1855 403 164 0204 CERAMIC 0.1U Z 25V
C1856 403 215 2201 CERAMIC 0.01U K 50V
C1857 403 215 2201 CERAMIC 0.01U K 50V
C1871 403 157 2505 CERAMIC 27P J 50V
C1872 403 157 2505 CERAMIC 27P J 50V
C1873 403 205 2808 CERAMIC 0.047U K 25V
C1874 403 215 2201 CERAMIC 0.01U K 50V
C1875 403 215 2201 CERAMIC 0.01U K 50V
C2001 403 193 7502 ELECT 22U M 6.3V
C2002 403 189 2405 ELECT 10U M 16V
C2003 403 193 8202 ELECT 0.1U M 50V
C2004 403 167 7002 ELECT 4.7U M 50V
C2005 403 167 6500 ELECT 33U M 6.3V
C2006 403 167 6500 ELECT 33U M 6.3V
C2007 403 163 7907 ELECT 47U M 6.3V
C2031 403 157 7104 CERAMIC 2700P K 50V
C2032 403 215 2904 CERAMIC 0.022U K 25V
C2033 403 215 2201 CERAMIC 0.01U K 50V
C2034 403 146 0505 CERAMIC 1200P K 50V
C2035 403 164 0204 CERAMIC 0.1U Z 25V
C2036 403 155 2408 CERAMIC 5600P K 50V
C2037 403 164 0204 CERAMIC 0.1U Z 25V
C2038 403 164 0204 CERAMIC 0.1U Z 25V
C2040 403 164 0204 CERAMIC 0.1U Z 25V
C2041 403 205 2808 CERAMIC 0.047U K 25V
C2043 403 191 8709 ELECT 1U M 50V
C2049 403 164 0204 CERAMIC 0.1U Z 25V
C2071 403 163 7907 ELECT 47U M 6.3V
C2072 403 163 7907 ELECT 47U M 6.3V
C2073 403 081 3302 POLYPRO 0.022U J 100V
C2081 403 215 2201 CERAMIC 0.01U K 50V
C2082 403 281 5007 CERAMIC 0.033U K 25V
C2111 403 189 2405 ELECT 10U M 16V
C2112 403 163 7907 ELECT 47U M 6.3V
C2113 403 189 2405 ELECT 10U M 16V
C2114 403 164 0204 CERAMIC 0.1U Z 25V
C2115 403 189 2405 ELECT 10U M 16V
C2117 403 189 2405 ELECT 10U M 16V
C2118 403 366 7605 CERAMIC 1000P J 25V
C2121 403 157 3601 CERAMIC 100P J 50V
C3001 403 157 2406 CERAMIC 24P J 50V
C3002 403 145 9905 CERAMIC 22P J 50V
C3003 403 145 9905 CERAMIC 22P J 50V
C3004 403 145 9905 CERAMIC 22P J 50V
C3005 403 163 7907 ELECT 47U M 6.3V
C3006 403 215 2201 CERAMIC 0.01U K 50V
C3007 403 157 4202 CERAMIC 220P J 50V
C3008 403 215 2201 CERAMIC 0.01U K 50V
C3009 403 215 2201 CERAMIC 0.01U K 50V
C3011 403 113 3805 CERAMIC 1000P K 50V
C3012 403 191 8600 ELECT 4.7U M 25V
C3013 403 157 2901 CERAMIC 47P J 50V
C3014 403 163 7907 ELECT 47U M 6.3V
C3015 403 135 4002 ELECT 47U M 6.3V
C3016 403 164 0204 CERAMIC 0.1U Z 25V
C3018 403 215 2201 CERAMIC 0.01U K 50V
C3020 403 086 2805 NP-ELECT 1U M 50V
C3021 403 158 5604 NP-ELECT 0.47U M 50V
C3022 403 086 2805 NP-ELECT 1U M 50V
C3023 403 086 2805 NP-ELECT 1U M 50V
C3024 403 215 2201 CERAMIC 0.01U K 50V
C3025 403 113 3805 CERAMIC 1000P K 50V
C3026 403 215 2201 CERAMIC 0.01U K 50V
C3028 403 215 2201 CERAMIC 0.01U K 50V
C3029 403 164 0006 CERAMIC 0.068U Z 25V
C3031 403 164 0006 CERAMIC 0.068U Z 25V
C3032 403 155 1609 CERAMIC 33P J 50V
C3033 403 155 1609 CERAMIC 33P J 50V
C3034 403 155 1609 CERAMIC 33P J 50V
C3035 403 157 3106 CERAMIC 56P J 50V
C3036 403 157 3106 CERAMIC 56P J 50V
C3037 403 157 3106 CERAMIC 56P J 50V
C3038 403 135 3302 ELECT 1000U M 6.3V
C3039 403 150 6500 ELECT 22U M 16V
C3040 403 193 7601 ELECT 220U M 6.3V
C3041 403 121 2401 ELECT 22U M 16V
C3043 403 164 0204 CERAMIC 0.1U Z 25V
C3044 403 164 0204 CERAMIC 0.1U Z 25V
C3045 403 189 2405 ELECT 10U M 16V
C3048 403 164 0204 CERAMIC 0.1U Z 25V
C3050 403 164 0204 CERAMIC 0.1U Z 25V
C3054 403 215 2201 CERAMIC 0.01U K 50V
C3057 403 113 3805 CERAMIC 1000P K 50V
C3058 403 191 8709 ELECT 1U M 50V
C3059 403 113 3805 CERAMIC 1000P K 50V
C3060 403 191 8709 ELECT 1U M 50V
C3061 403 139 1007 ELECT 47U M 6.3V
C3062 403 155 4204 CERAMIC 15P J 50V
C3063 403 155 4204 CERAMIC 15P J 50V
C3064 403 150 6500 ELECT 22U M 16V
C3065 403 121 2401 ELECT 22U M 16V
C3066 403 135 3500 ELECT 220U M 6.3V
C3067 403 164 0204 CERAMIC 0.1U Z 25V
C3069 403 164 0204 CERAMIC 0.1U Z 25V
C3070 403 189 2405 ELECT 10U M 16V
C3073 403 164 0204 CERAMIC 0.1U Z 25V
C3075 403 164 0204 CERAMIC 0.1U Z 25V
C3076 403 164 0204 CERAMIC 0.1U Z 25V
C3078 403 215 2201 CERAMIC 0.01U K 50V
C3090 403 135 4101 ELECT 470U M 6.3V
C3101 403 164 0204 CERAMIC 0.1U Z 25V
C3102 403 191 8808 ELECT 2.2U M 50V
C3103 403 113 3805 CERAMIC 1000P K 50V
C3104 403 113 3805 CERAMIC 1000P K 50V
C3105 403 113 3805 CERAMIC 1000P K 50V
C3106 403 113 3805 CERAMIC 1000P K 50V
C3110 403 164 0204 CERAMIC 0.1U Z 25V
C3121 403 164 0204 CERAMIC 0.1U Z 25V
C3123 403 157 4202 CERAMIC 220P J 50V
C3130 403 113 3805 CERAMIC 1000P K 50V
C3131 403 164 0204 CERAMIC 0.1U Z 25V
C3132 403 164 0204 CERAMIC 0.1U Z 25V
C3133 403 164 0204 CERAMIC 0.1U Z 25V
C3134 403 150 6500 ELECT 22U M 16V
C3139 403 164 0204 CERAMIC 0.1U Z 25V
C3140 403 157 4202 CERAMIC 220P J 50V
C3141 403 157 4202 CERAMIC 220P J 50V
C3145 403 164 0204 CERAMIC 0.1U Z 25V
C3146 403 164 0204 CERAMIC 0.1U Z 25V
C3148 403 113 3805 CERAMIC 1000P K 50V
C3149 403 139 1007 ELECT 47U M 6.3V
(RESISTORS)
R1002 401 105 1600 MT-GLAZE 15K JA 1/16W
R1003 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1004 401 105 0603 MT-GLAZE 10K JA 1/16W
R1005 401 105 4007 MT-GLAZE 330 JA 1/16W
R1006 401 105 1006 MT-GLAZE 1.2K JA 1/16W
R1007 401 105 4007 MT-GLAZE 330 JA 1/16W
R1008 401 105 0405 MT-GLAZE 100 JA 1/16W
R1009 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1010 401 105 7305 MT-GLAZE 820 JA 1/16W
R1012 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1013 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1014 401 105 1501 MT-GLAZE 1.5K JA 1/16W
R1015 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1016 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R1017 401 105 0504 MT-GLAZE 1K JA 1/16W
R1018 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R1019 401 113 5904 MT-GLAZE 1.3K JA 1/16W
R1020 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1021 401 105 0504 MT-GLAZE 1K JA 1/16W
R1022 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1024 401 105 0504 MT-GLAZE 1K JA 1/16W
R1026 401 105 2904 MT-GLAZE 22K JA 1/16W
R1030 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1031 401 105 0504 MT-GLAZE 1K JA 1/16W
R1045 401 105 0504 MT-GLAZE 1K JA 1/16W
R1051 401 105 2102 MT-GLAZE 18K JA 1/16W
R1062 401 105 8005 MT-GLAZE 1M JA 1/16W
R1063 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1081 401 105 0504 MT-GLAZE 1K JA 1/16W
R1082 401 105 4007 MT-GLAZE 330 JA 1/16W
R1083 401 105 5400 MT-GLAZE 47K JA 1/16W

21
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
R1084 401 105 5400 MT-GLAZE 47K JA 1/16W
R1085 401 105 8203 MT-GLAZE 68K JA 1/16W
R1086 401 105 4007 MT-GLAZE 330 JA 1/16W
R1088 401 105 0504 MT-GLAZE 1K JA 1/16W
R1103 401 105 0504 MT-GLAZE 1K JA 1/16W
R1118 401 105 0504 MT-GLAZE 1K JA 1/16W
R1120 401 105 5905 MT-GLAZE 560 JA 1/16W
R1121 401 105 5905 MT-GLAZE 560 JA 1/16W
R1122 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1123 401 105 5905 MT-GLAZE 560 JA 1/16W
R1124 401 105 2904 MT-GLAZE 22K JA 1/16W
R1125 401 105 1105 MT-GLAZE 12K JA 1/16W
R1126 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1127 401 105 4007 MT-GLAZE 330 JA 1/16W
R1128 401 105 4007 MT-GLAZE 330 JA 1/16W
R1129 401 105 0504 MT-GLAZE 1K JA 1/16W
R1139 401 105 0603 MT-GLAZE 10K JA 1/16W
R1201 401 113 4402 MT-GLAZE 75 JA 1/16W
R1202 401 021 1807 CARBON 560 JA 1/4W
R1203 401 021 1807 CARBON 560 JA 1/4W
R1205 401 105 0504 MT-GLAZE 1K JA 1/16W
R1210 401 105 8203 MT-GLAZE 68K JA 1/16W
R1211 401 113 4402 MT-GLAZE 75 JA 1/16W
R1212 401 105 8104 MT-GLAZE 56K JA 1/16W
R1213 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1214 401 105 6506 MT-GLAZE 680 JA 1/16W
R1215 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1216 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1217 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1218 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1219 401 037 5400 MT-GLAZE 1K JA 1/10W
R1220 401 037 5400 MT-GLAZE 1K JA 1/10W
R1221 401 105 0504 MT-GLAZE 1K JA 1/16W
R1222 401 105 0504 MT-GLAZE 1K JA 1/16W
R1223 401 105 0504 MT-GLAZE 1K JA 1/16W
R1231 401 105 2706 MT-GLAZE 220 JA 1/16W
R1232 401 105 7602 MT-GLAZE 820K JA 1/16W
R1241 401 105 4106 MT-GLAZE 3.3K JA 1/16W
R1242 401 105 0504 MT-GLAZE 1K JA 1/16W
R1243 401 105 0702 MT-GLAZE 100K JA 1/16W
R1244 401 105 0504 MT-GLAZE 1K JA 1/16W
R1245 401 105 0504 MT-GLAZE 1K JA 1/16W
R1246 401 105 0504 MT-GLAZE 1K JA 1/16W
R1251 401 022 1806 CARBON 680 JA 1/4W
R1252 401 105 0504 MT-GLAZE 1K JA 1/16W
R1253 401 105 2706 MT-GLAZE 220 JA 1/16W
R1254 401 105 3000 MT-GLAZE 220K JA 1/16W
R1255 401 105 5509 MT-GLAZE 470K JA 1/16W
R1256 401 105 0702 MT-GLAZE 100K JA 1/16W
R1257 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1258 401 105 0504 MT-GLAZE 1K JA 1/16W
R1300 401 105 7909 MT-GLAZE 0.000 ZA 1/16W
R1301 401 105 0504 MT-GLAZE 1K JA 1/16W
R1302 401 105 0504 MT-GLAZE 1K JA 1/16W
R1303 401 105 0504 MT-GLAZE 1K JA 1/16W
R1304 401 105 7305 MT-GLAZE 820 JA 1/16W
R1305 401 105 0504 MT-GLAZE 1K JA 1/16W
R1306 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R1307 401 105 1501 MT-GLAZE 1.5K JA 1/16W
R1308 401 105 5202 MT-GLAZE 470 JA 1/16W
R1309 401 105 0504 MT-GLAZE 1K JA 1/16W
R1321 401 105 0504 MT-GLAZE 1K JA 1/16W
R1322 401 105 0504 MT-GLAZE 1K JA 1/16W
R1323 401 105 8203 MT-GLAZE 68K JA 1/16W
R1324 401 105 8104 MT-GLAZE 56K JA 1/16W
R1325 401 016 2505 CARBON 220 JA 1/4W
R1326 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1327 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1328 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1329 401 105 6001 MT-GLAZE 5.6K JA 1/16W
R1330 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1331 401 037 5400 MT-GLAZE 1K JA 1/10W
R1333 401 114 0502 MT-GLAZE 2.2M JA 1/16W
R1334 401 105 5400 MT-GLAZE 47K JA 1/16W
R1335 401 105 7909 MT-GLAZE 0.000 ZA 1/16W
R1336 401 114 0502 MT-GLAZE 2.2M JA 1/16W
R1341 401 105 0405 MT-GLAZE 100 JA 1/16W
R1342 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1343 401 105 5400 MT-GLAZE 47K JA 1/16W
R1344 401 105 1006 MT-GLAZE 1.2K JA 1/16W
R1345 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1346 401 105 2409 MT-GLAZE 2K JA 1/16W
R1347 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1348 401 113 6109 MT-GLAZE 2.4K JA 1/16W
R1349 401 105 1105 MT-GLAZE 12K JA 1/16W
R1350 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1351 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1401 401 037 5400 MT-GLAZE 1K JA 1/10W
R1405 401 105 6100 MT-GLAZE 560K JA 1/16W
R1406 401 105 6100 MT-GLAZE 560K JA 1/16W
R1420 401 105 0504 MT-GLAZE 1K JA 1/16W
R1421 401 105 6506 MT-GLAZE 680 JA 1/16W
R1422 401 105 0504 MT-GLAZE 1K JA 1/16W
R1423 401 105 5202 MT-GLAZE 470 JA 1/16W
R1424 401 105 3406 MT-GLAZE 27K JA 1/16W
R1425 401 105 1600 MT-GLAZE 15K JA 1/16W
R1426 401 105 0504 MT-GLAZE 1K JA 1/16W
R1427 401 037 5400 MT-GLAZE 1K JA 1/10W
R1431 401 105 0603 MT-GLAZE 10K JA 1/16W
R1432 401 105 0603 MT-GLAZE 10K JA 1/16W
R1451 401 114 0502 MT-GLAZE 2.2M JA 1/16W
R1452 401 105 0603 MT-GLAZE 10K JA 1/16W
R1453 401 114 0502 MT-GLAZE 2.2M JA 1/16W
R1461 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1462 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1463 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1464 401 105 0504 MT-GLAZE 1K JA 1/16W
R1465 401 105 0504 MT-GLAZE 1K JA 1/16W
R1471 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1472 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1473 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1474 401 105 0504 MT-GLAZE 1K JA 1/16W
R1475 401 105 0504 MT-GLAZE 1K JA 1/16W
R1481 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1482 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1483 401 105 0405 MT-GLAZE 100 JA 1/16W
R1484 401 105 5905 MT-GLAZE 560 JA 1/16W
R1491 401 105 0603 MT-GLAZE 10K JA 1/16W
R1601 401 105 5202 MT-GLAZE 470 JA 1/16W
R1603 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1604 401 105 5202 MT-GLAZE 470 JA 1/16W
R1606 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1607 401 105 0603 MT-GLAZE 10K JA 1/16W
R1608 401 105 2904 MT-GLAZE 22K JA 1/16W
R1611 401 105 0504 MT-GLAZE 1K JA 1/16W
R1612 401 105 4304 MT-GLAZE 330K JA 1/16W
R1613 401 105 1709 MT-GLAZE 150K JA 1/16W
R1614 401 105 4007 MT-GLAZE 330 JA 1/16W
R1615 401 105 0702 MT-GLAZE 100K JA 1/16W
R1616 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R1617 401 105 1006 MT-GLAZE 1.2K JA 1/16W
R1618 401 105 1501 MT-GLAZE 1.5K JA 1/16W
R1619 401 105 3208 MT-GLAZE 270 JA 1/16W
R1621 401 105 4007 MT-GLAZE 330 JA 1/16W
R1631 401 105 0504 MT-GLAZE 1K JA 1/16W
R1632 401 105 0504 MT-GLAZE 1K JA 1/16W
R1633 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1634 401 105 0504 MT-GLAZE 1K JA 1/16W
R1802 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1804 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1851 401 105 2706 MT-GLAZE 220 JA 1/16W
R1852 401 105 1105 MT-GLAZE 12K JA 1/16W
R1853 401 105 0603 MT-GLAZE 10K JA 1/16W
R1854 401 105 2706 MT-GLAZE 220 JA 1/16W
R1856 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R2001 401 113 5904 MT-GLAZE 1.3K JA 1/16W
R2002 401 105 3406 MT-GLAZE 27K JA 1/16W
R2003 401 105 4304 MT-GLAZE 330K JA 1/16W
R2004 401 105 2706 MT-GLAZE 220 JA 1/16W
R2005 401 105 1105 MT-GLAZE 12K JA 1/16W
R2006 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R2007 401 105 1105 MT-GLAZE 12K JA 1/16W
R2010 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R2011 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R2012 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R2013 401 114 0908 MT-GLAZE 3.3M JA 1/16W
