SERVICE MANUAL
Video Cassette Recorder
—
(VHR-790)
PAL
CONTENTS
SELF-DIAGNOSIS DiSPLAY .................................................... 2
1. DISASSEMBLY .................................................................... 5
2. ELECTRICAL ADJUSTMENT .............................................. 9

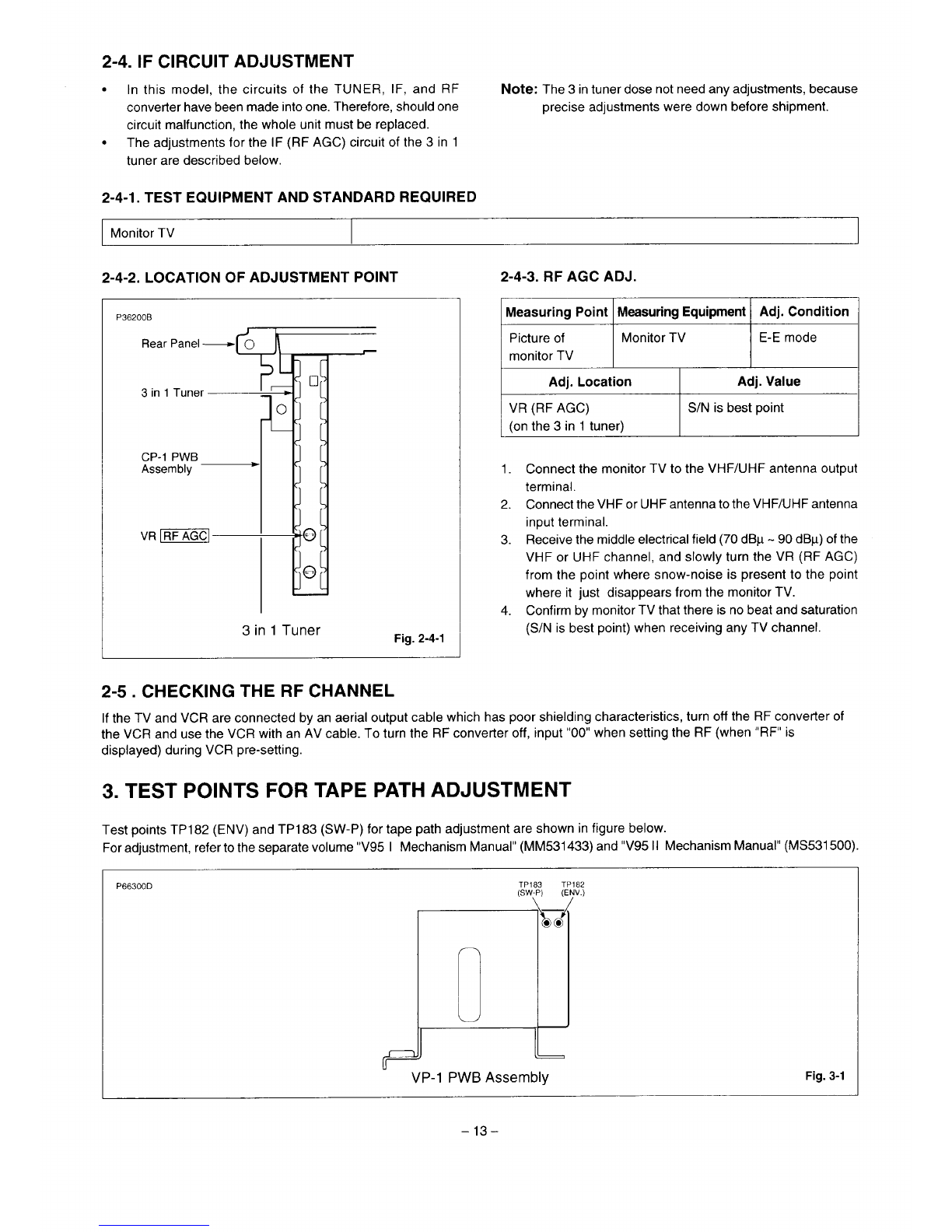

3. TEST POINTS FOR TAPE PATH ADJUSTMENT .............13

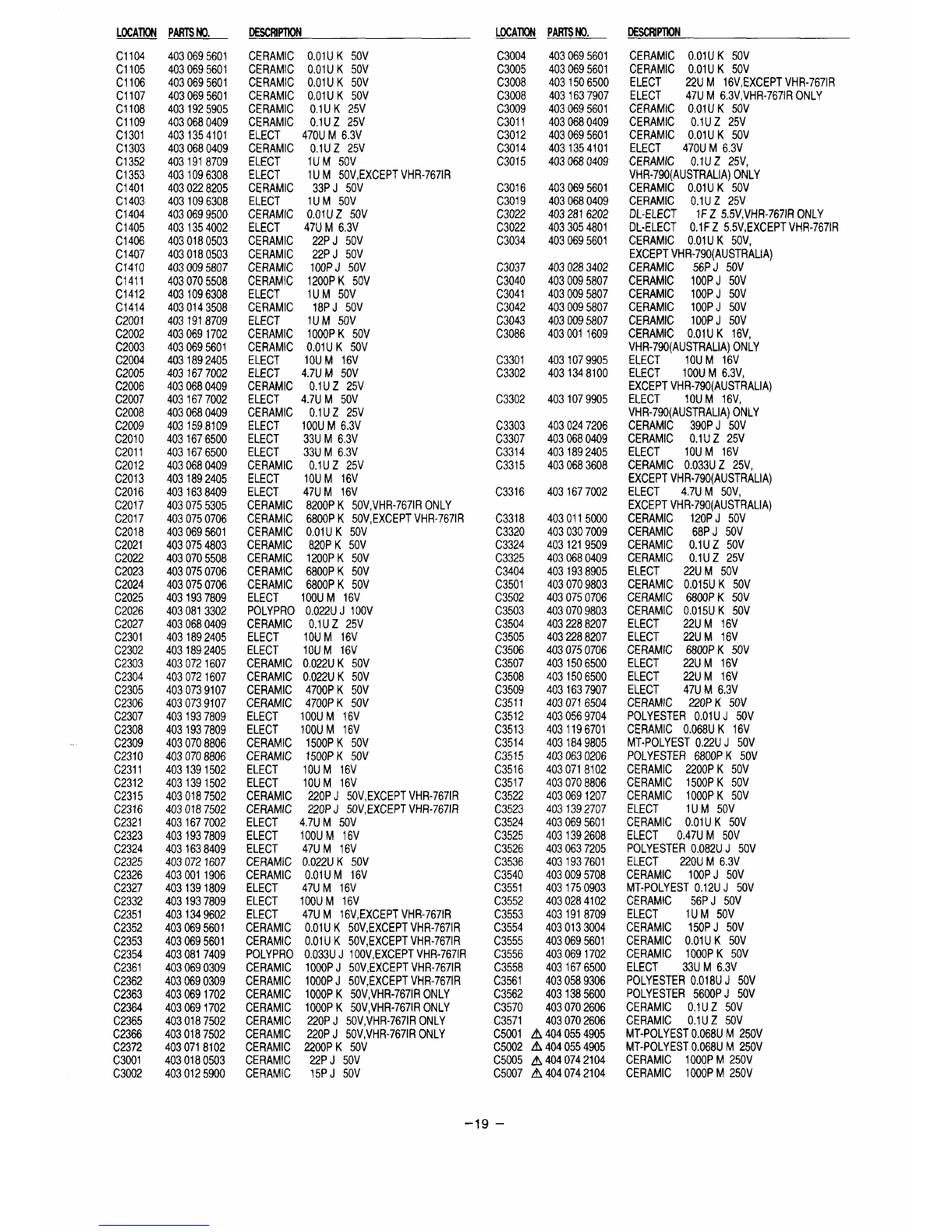

4. PARTS LIST

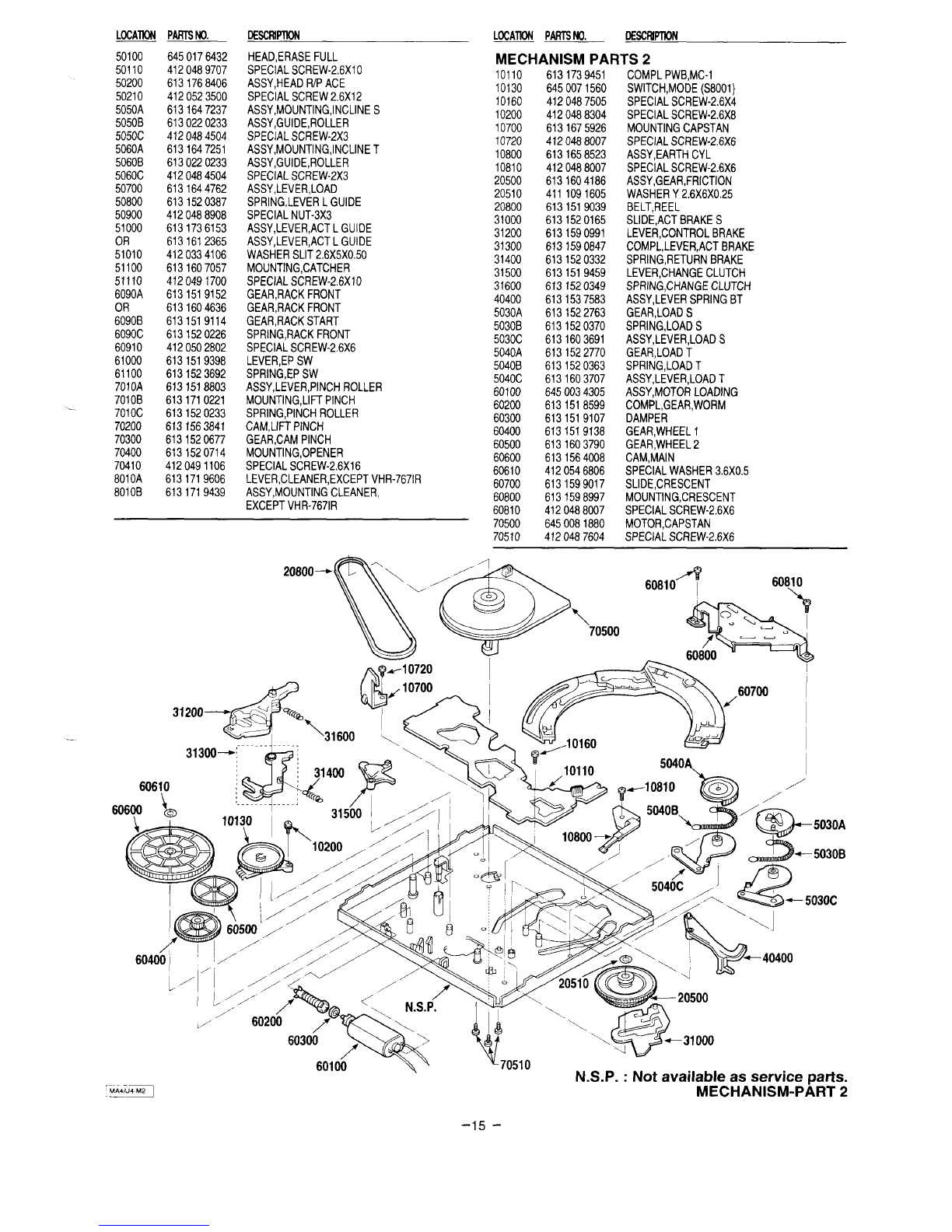

MECHANISM PARTS ......................................................... 14
Accessories .................................................................. 16
PACKING MATERIALS ...................................................... 16
CABINET &CHASSIS PARTS ........................................... 16
ELECTRICAL PARTS ........................................................ 17
CIRCUIT DIAGRAMS (Refer to the separate volume)
*O
VHR-790
(Product Code: 143171 54)
(New Zealand)
VHR-790
(Product Code :143171 53)
(Australia)
VHR-7671R
(Product Code :143171 68)
(Ireland)
Please see other materials with Reference
number given in table below.
Materials Model No. Reference No.
V95 I
Mechanism Mechanism MM531433
Manual V95 II
Mechanism MS531500
~‘RODucT‘AFETY‘OT’cE
The components designated by asymbol (~) in this schematic diagram designates components whose value are of special
significance to product safety. Should any component designated by asymbol need to be replaced, use only the part designated
in the parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
NOTE: 1. Parts order must contain model number, part number, and description.
2. Substitute parts may be supplied as the service parts.
3. N.S. P. :Not available as service parts.
Design and specifications are subject to change without notice.
MP4HN/NZ, A, IR3 REFERENCE No. SM531597

SELF-DIAGNOSIS DISPLAY
Mechanism Mode Display/ Head Output Drop Warning Display/ Cylinder Rotation Accumulated
Time Display
This unit displays the diagnosis contents of abnormalities and the mechanism, mode on its display panel in 2-digit numbers.
When the head playback output has dropped, the “L” sign will be blinked. Some models (listed later) will also display the cylinder
rotation accumulated time.
These display shows the outline of the problems. Use it as areference when servicing the unit.
1.
●
.
.
●
Self-Diagnosis Contentes and Mechanism Mode Display
When the STOP button on the remote control is pressed for about 10 seconds continuously, the self-diagnosis number will be
displayed on the reception channel display of the display panel and number indicating the failed mechanism mode (changed mode
when being shifted) on the tape counter “seconds” display for 10 seconds each.
During self-diagnosis display, displays other than the diagnosis number/mechanism mode number and the cylinder accumulated
rotation time display described later (some models only) will be turned off and when displays end, the normal display will be
returned automatically.
Refer to “Self-Diagnosis Contents” for the self-diagnosis numbers and the “Mechanism Mode Display Contents” for the
mechanism mode numbers.
When the “O” button on the remote control unit is pressed during display, and clearing the self-diagnosis display and mechanism
mode display.
(
Display panel n 1: n J
U _/ u I_
/4 4
\I ,
Self -Diagnosis number Mechanism mode number
(Recept”fin channel display) (Tape counter “Seconds” display)
Self-Diagnosis Contents
No. Problem Main Possible Cause Mechanism Operations and
State After Occurrence
00 There is no abnormality in the mechanism.
The cylinder motor does not rotate. ●The cylinder motor is faulty. Shifts to the STOP mode.
●The control of the cylinder motor is
01 faulty,
●The tape winds around the cylinder.
The take-up reel does not rotate. ●The take-up reel is caught. Shifts to the STOP mode.
02 ●The reel belt is faulty.
●The take-up torque has decreased.
The capstan motor does not rotate. ●The capstan motor is faulty. Shifts to the STOP mode.
03 ●The control of the capstan motor is
faulty.
The tape cannot be loaded with the ●Error in the operations of the tape Unloads, shifts to the INITIAL mode,
cassette inserted. loading mechanism. and the power goes off.
(But unloading can be performed.) ●Foreign particles in the tape load-
04 ing mechanism.
cThe tape end sensor is faulty.
●The reel brake of the tape cassette
has not been released.
Tape loading and unloading cannot ●The tape guide is caught. The power is forcibly turned off with
05 be performed with the cassette in- ●The loading motor is faulty. the mechanism at its current position.
serted. ●The control of the loading motor is
faulty.
–2-

No. Problem Main Possible Cause Mechanism Operations and
State After Occurrence
Front unloading cannot be performed ●The cassette drive mechanism is Front loads and shifts to the STOP or
when ejecting the cassette. faulty. INITIAL mode.
(Front loading can be performed.) ●The front door is caught. ●When the power switch is turned on
before eject operations: Shifts to the
06 STOP mode.
●When the power switch is turned off
before eject operations: Shifts to the
INITIAL mode and the power goes
off.
Front loading and front unloading can- ●The tape cassette is caught in the The power is forcibly turned off with
not be performed when ejecting the cassette drive mechanism. the mechanism at its current position.
cassette. ●The main cam and front rack gear of
07 the front loading mechanism have
not engaged properly.
●The gears of the front loading drive
mechanism have not engaged prop-
erly.
The mechanism becomes 1(RE- ●The mechanism mode switch con- The power is forcibly turned off with
08 VIEW) while moving from 2(IDLER), tact is faulty. the mechanism at its current position.
3(STILL), 4(BRAKE), and to 5
(STOP).
The mechanism becomes 7(INITIAL) ●The mechanism mode switch con- Carries out tape take-up operations,
09 while moving from 1(REVIEW), 2tact is faulty. shifts to the INITIAL mode, and the
(IDLER), 3(STILL), 4(BRAKE), and power goes off.
to 5(STOP).
Note: For details of mechanism operations corresponding to the mechanism positions of the self-diagnosis numbers 08 and 09 above,
refer to the separate volume on the V95 Imechanism manual. These manual reference numbers are shown in the cover
Mechanism Mode Display Contents
Mode No.
00
01
02
03
04
05
06
07
Mechanism Mode
CASSETTE OUT
STANDBY
STOP
STILL
REC-PAUSE
AUDIO DUBBING-PAUSE
FRAME ADVANCE
SLOW
Mode No.
08
09
10
11
12
13
14
15
Mechanism Mode
PLAY
REC
AUDIO DUBBING
X2 SPEED PLAY
CUE
REVIEW
FAST FORWARD
REWIND
Mode No.
16
17
18
19
99
Mechanism Mode
VIDEO INSERT
VIDEO INSERT-PAUSE
AUDIO/VIDEO INSERT
REVERSE X2 SPEED PLAY
OTHERS
2. Head Output Drop Warning Display
●When the STOP button on the remote control is pressed for 10 seconds continuously 10 seconds after play starts, “L” will be
displayed blinking at the first digit of the minutes position on the tape counter when the head output is lower than the specified
value to indicate an abnormality.
●The cause of the abnormality may be due to drop in the playback output caused by drop in the efficiency of the cassette used or
head clogging. Refer to “Head Playback Output Voltage Check” as ameans to judge the abnormality.
Display panel
L\&
Head output drop warning display
(Tape counter”1 st digit of Minutes.” position)
–3-

Head playback output voltage check
Warning
)assette Used Display Envelope Detection Output Voltage Main Cause
Envelope detec- 4V ...................................
kz+”’-o”v !%(:::::::::
When the output voltage differ-
Cassette tion output
(IC301 Pin 25 or
with normal R3032 Mark side:
playback –see Fig. 2-l-1) “v
output Switching pulse
(TP183: see Fig. normal
CH-1 CH-2
2-l-2)
Envelope detec- ~v ___________________________________ When the output voltage differ-
tion output
(IC301 Pin 25 or
R3032 Mark side:
,,L1l blinking see Fig. 2-l-1) ‘v &!Y:~Jhan ‘n~fiw:::::::
Switching pulse been performed accurately
(TP183: see Fig. CH-1 CH-2 ●One video head is clogged
Recorded 2-l-2) ●One video head has worn out
cassette
(with tabs) When the average output volt-
Envelope detec- 4V ...................................
tion output
(IC301 Pin 25 or
R3032Markside:
IL,, bllnking see Fig. 2-l-1) “v ~,:,than ~K~::;;;;;
Switching pulse
(TP183: see Fig. ●Both video heads are clogged
CH-1 CH-2
2-l-2) .Both video heads have worn
out
Envelope detec- ~v ___________________________________
tion output
(IC301 Pin 25 or
“L” blinking R3032 Mark side:
Rental see Fig. 2-l-1) ‘v klz~:$flan :$gg:d
Switching pulse
cassette (TP183: see Fig. CH-1 CH-2 ●One video head is clogged
(without tabs) 2-l-2) ●One video head has worn out
●Some rental cassettes may have extremely low video playback outputs even when both video heads are normal.
As the average output voltage of the two heads maybe less than 0.5V for some, no warning displays will be
shown.
3. Cylinder rotation accumulated time display
●Press the STOP button on the remote control for approximately 10 seconds and the cylinder rotation accumulated time excluding
the cassette out and standby operation time will be displayed on the “Hours” display in units of 100 hours. (“33” will be displayed
for 10 seconds for 3,200 to 3,299 hours.)
●To erase the cylinder rotation accumulated time display, press the RESET button on the remote control during the accumulated
time display.
II
—1 I
Cylinder rotation accumulated display (Tape counter “Hours” display)
-4–

1. DISASSEMBLY
1-1. REMOVAL OF CABINET, MECHANISM UNIT, AND MAIN BOARD

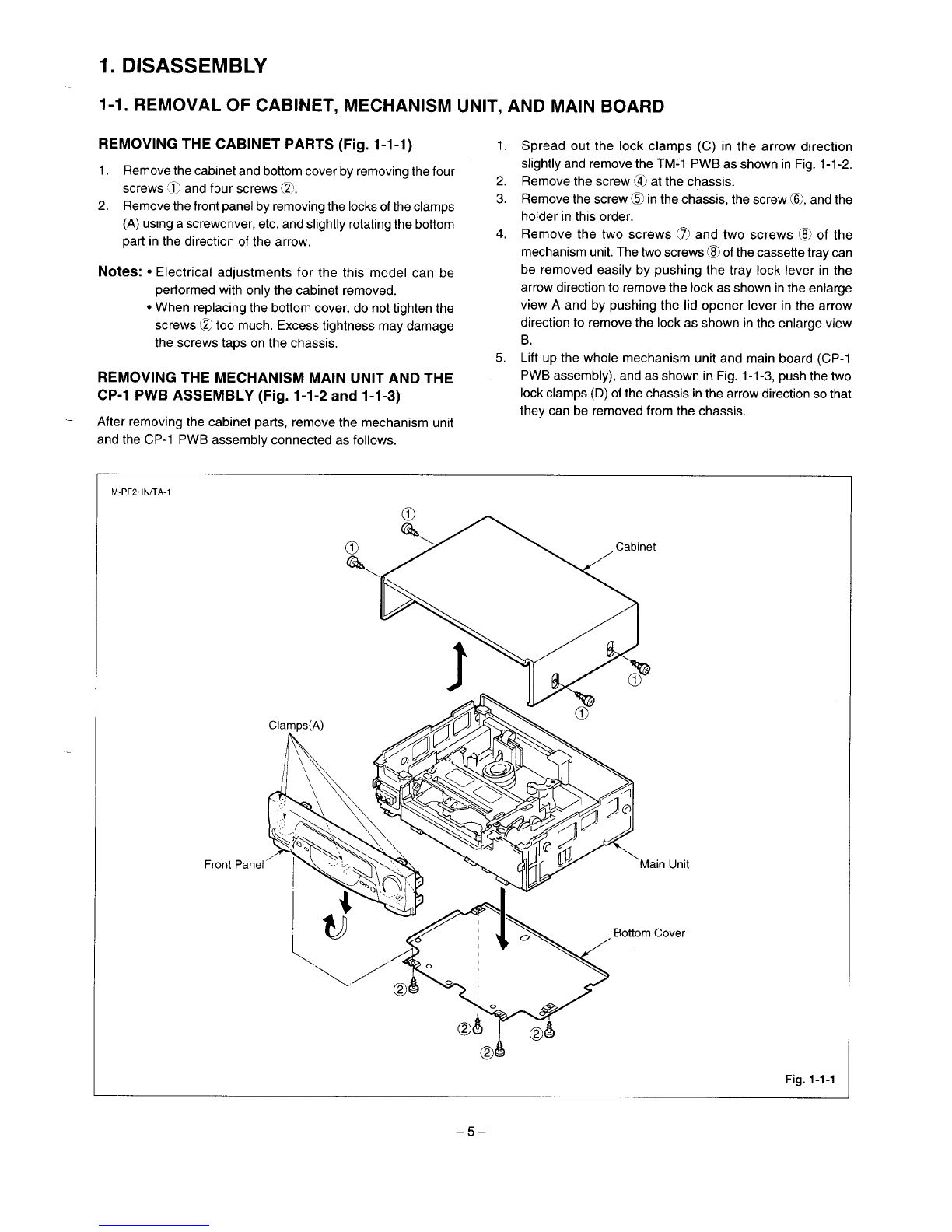

REMOVING THE CABINET PARTS (Fig. l-l-l) 1. Spread out the lock clamps (C) in the arrow direction
1.
2.
Remove the cabinet and bottom cover by removing the four slightly and remove the TM-1 PWB as shown in Fig. 1-1-2.
screws zand four screws @. 2. Remove the screw @at the chassis.
Remove the front panel by removing the locks of the clamps 3. Remove the screw@ in the chassis, the screw \@l,and the
(A) using ascrewdriver, etc. and slightly rotating the bottom holder in this order.
part in the direction of the arrow. 4. Remove the two screws @and two screws @of the
mechanism unit. The two screws @of the cassette tray can
Notes: ●Electrical adjustments for the this model can be be removed easily by pushing the tray lock lever in the
performed with only the cabinet removed. arrow direction to remove the lock as shown in the enlarge
●When replacing the bottom cover, do not tighten the view Aand by pushing the lid opener lever in the arrow
screws’~ too much. Excess tightness may damage direction to remove the lock as shown in the enlarge view
the screws taps on the chassis. B.
5. Lift up the whole mechanism unit and main board (CP-1
REMOVING THE MECHANISM MAIN UNIT AND THE PWB assembly), and as shown in Fig. 1-1-3, push the two
CP-1 PWB ASSEMBLY (Fig. 1-1-2 and l-l-3) lock clamps (D) of the chassis in the arrow direction so that
.- they can be removed from the chassis.
—After removing the cabinet parts, remove the mechanism unit
and the CP-1 PWB assembly connected as follows.
M-PF2HNmA-l
Front Panel
(&J
Fig. 1-1-1
–5–

M-PF2HN/-rA-2
Tray Lock Lever
>II Cassette Tray
wFig. 1-1-2
M-PF2HN/lA-3
TM-2 PPWB Assembly
.Chassis
Fig. 1-1-3
–6–

1-2. TEMPORARILY SEITING UP AND CONNECTING CP-1 PWB ASSEMBLY
The following is an example of how to place and connect the main board without ajig, when repairing the CP-I PWB assembly.
1. Place the mechanism unit and main board up side down as 2. Operete the unit using the buttons on TM-1 PWB or the
awhole on a flat surface with foil side of the main board remote control.
facing up.
M-PF2HNiTA-4 CP-1 PWB Assembly (Foil side)
\\
TM-2 PWB Fig. 1-1-4
1-3. INSTALLATION OF THE FRONT PANEL
When installing the front panel to the chassis after repaires and adjustments.
1. Pressing down the door opener lever of the mechanism Note: Opened cassette door position does not install the front
main unit. panel to the chassis.
2. Set the cassette door to half-opened state as shown in Fig.
1-1-5, and install the front panel to the chassis.
M-PF2HN~A-5 Jutted Dart of
Front
(Position B) Fig. 1-1-5
–7-

1-4. CIRCUIT BOARD LOCATIONS
L-MP4HNINZ, MP4HN/A, MP4HN/E3
VHR-790
3i”’T”nern A
(New Zealand) (Tuner/lF/RF Con..) ~VP-1 PWB Assembly
CP-1 PWB Assembly
VHR-790
(Australia)
“’;e’EFT- rvp-’pwBAssemb’y
TN-3 PWB ~
TB-2 PWB -
‘~.pwB>_
VHR-7671R
TN-5
CP-I PWB Assembly
CP-1 PWB Assembly
–8–

2. ELECTRICAL ADJUSTMENT
VCR PRESETTING
This VCR need three basic presetting by using the menus displayed on-screen. After all connection have been made, then follow steps
ito 3to preset the VCR.
The three presetting steps will be displayed in sequence on TV screen. The setting are entered with the remote control.
Turn on the VCR
1. Adjusting the TV receiver to the video channel: The AUTO SETUP screen will appear. When the video channel has been preset,
press the OK button on the remote control.
2. Country selection: Using the numeric button, select the country of use.
3. Language selection: When the desired language has been select, press the MENUI7W button directly before prevent auto tuning
will start.
When steps 1to 3have been finish, ready to operate the all operating mode.
2-1. SERVO CIRCUIT ADJUSTMENT
.These adjustments should be done upon completion of the tape transport adjustments.
●If the tape transport adjustments (except the tilt adjustment) are done after these adjustments, follow the procedures again in
section 2-1-3, “Switching position adj. ”
-* When acassette tape is loaded, auto-tracking will be set immediately after starting the first playback. As this will daviate the
tracking center set, be sure to press the channel buttons (+) and (–) once directly after starting playback to prevent auto-tracking
from being set.
2-1-1. TEST EQUIPMENT AND STANDARDS REQUIRED
IOscilloscope IVertical sensitivity :5 mV/DIV, external trigger I
Bandwidth :more than 10 MHz
Alignment Tape VHJ-0009 or VHJ-O023 :SP mode, monoscope, 6KHz
Blank Tape VHS-tv~e cassette ta~e
Monitor TV
2-1-2. LOCATION OF ADJUSTMENT POINTS
P12000B
I
o
3D’
TP306 ---
TP307 --- v~:ol
:,)
.-. :
1VR351
;...,,
‘..g ,,
+on
LCP-1 PWB (Foil side) Fig. 2-1-1
-9-

P66300D TP183 TP182
(SW:P) (ENV.)
VP-1 PWB Assembly Fig. 2-1-2

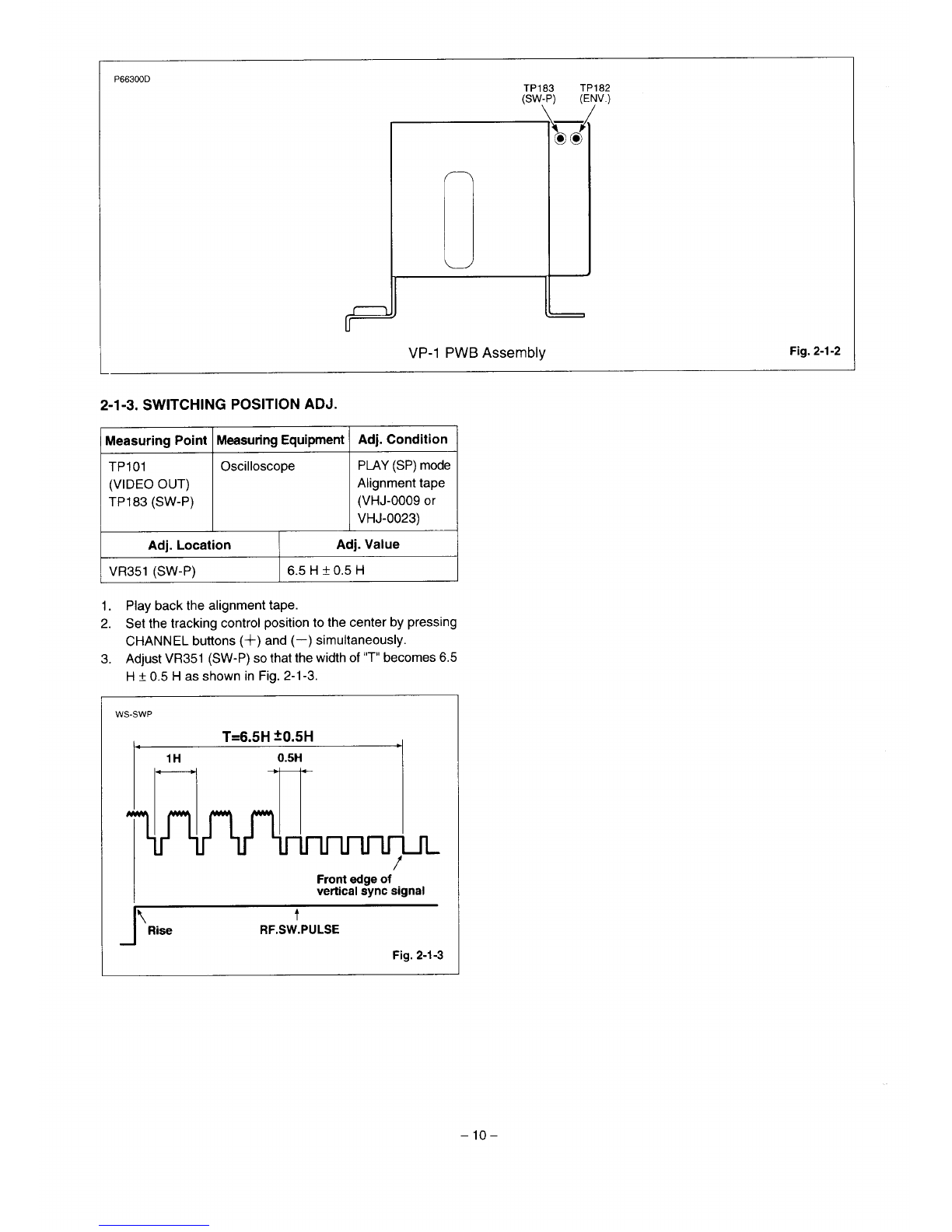

2-1-3. SWITCHING POSITION ADJ.
Measuring Point IMeasuring Equipment
TP101 Oscilloscope
(VIDEO OUT)
TP183 (SW-P)
Adj. Condition
PIAY (SP) mode
Alignment tape
(VHJ-0009 or
VHJ-0023)
Adj. Location IAdj. Value
\VR351 (SW-P) I6.5 H*0.5H I
1. Play back the alignment tape.
2. Set the tracking control position to the center by pressing
CHANNEL buttons (-l-) and (–) simultaneously.
3. Adjust VR351 (SW-P) so that the width of “T” becomes 6.5
H~().5 Has shown in Fig. 2-1-3.
WS-S!NP
T=6.5H tO.5H
.0.5H
N,Al,,”, ,
/
Front edge of
vetitcal sync signal
Tt
Rise RF. SW. PULSE
Fig. 2-1-3
-1o-

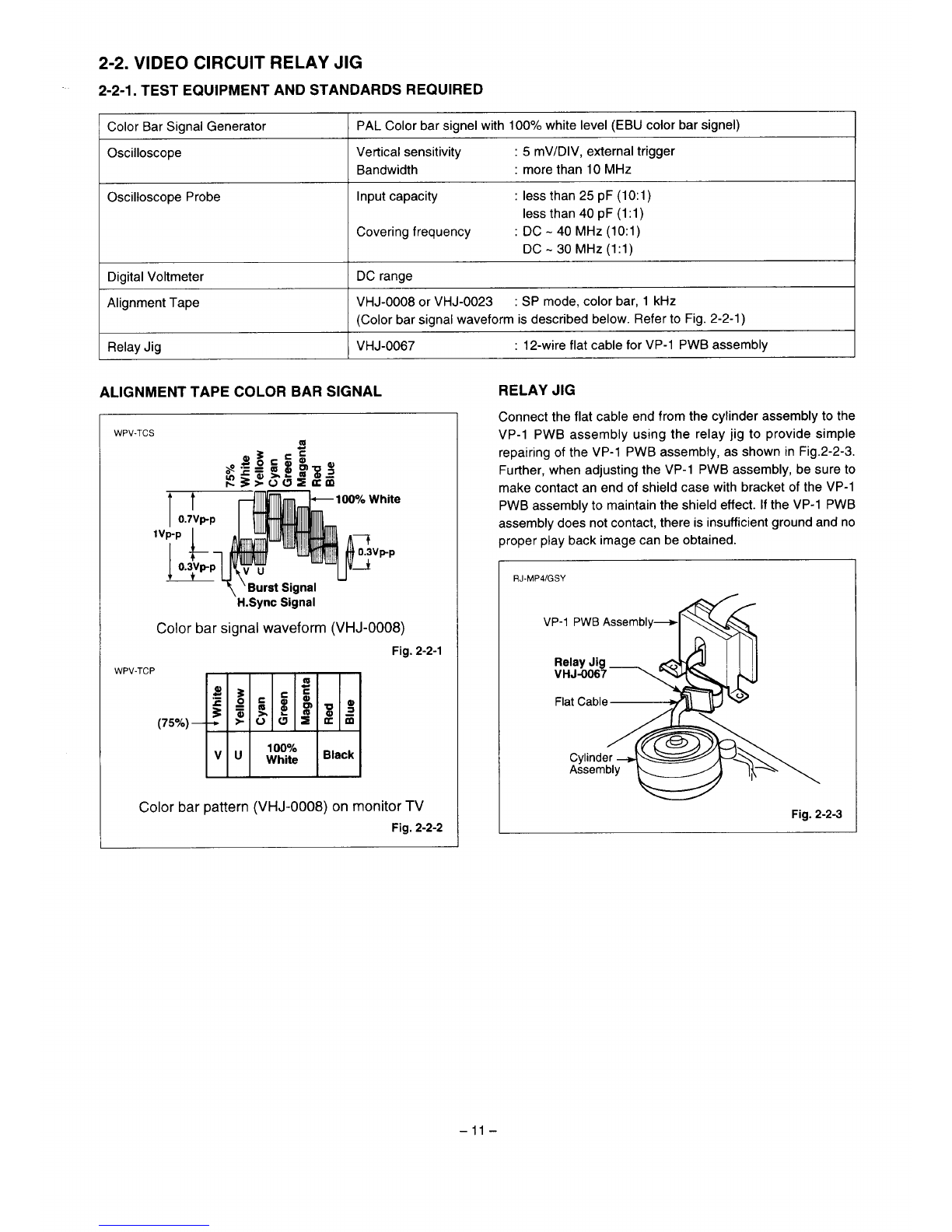

2-2. VIDEO CIRCUIT RELAY JIG
2-2-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Color Bar Signal Generator PAL Color bar signel with 10OOAwhite level (EBU color bar signel)
Oscilloscope Vertical sensitivity :5 mV/DIV, external trigger
Bandwidth :more than 10 MHz
Oscilloscope Probe Input capacity :less than 25 pF (10:1)
less than 40 pF (1:1)
Covering frequency :DC -4OMHZ(10:I)
DC -- 30 MHz(I:I)
Digital Voltmeter DC range
Alignment Tape VHJ-0008 or VHJ-0023 :SP mode, color bar, 1kHz
(Color bar signal waveform is described below. Refer to Fig. 2-2-1)
Relay Jig VHJ-O067 :12-wire flat cable for VP-1 PWB assembly
ALIGNMENT TAPE COLOR BAR SIGNAL
‘H.Sync Signal
Color bar signal waveform (VHJ-0008)
Fig. 2-2-1
wPv-TCP
(75%) –m
vu 100%
White Black
Color bar pattern (VHJ-0008) on monitor TV
Fig. 2-2-2
Connect the flat cable end from the cylinder assembly to the
VP-1 PWB assembly using the relay jig to provide simple
repairing of the VP-1 PWB assembly, as shown in Fig.2-2-3.
Further, when adjusting the VP-1 PWB assembly, be sure to
make contact an end of shield case with bracket of the VP-1
PWB assembly to maintain the shield effect. If the VP-1 PWB
assembly does not contact, there is insufficient ground and no
proper play back image can be obtained.
RJ-MP41GSY (ea-
VP-1 PWB Assembly+\
Ralay Jig
VHJ-0067
/~
Cylinder c
Assembiv /1
Fig. 2-2-3
–11-

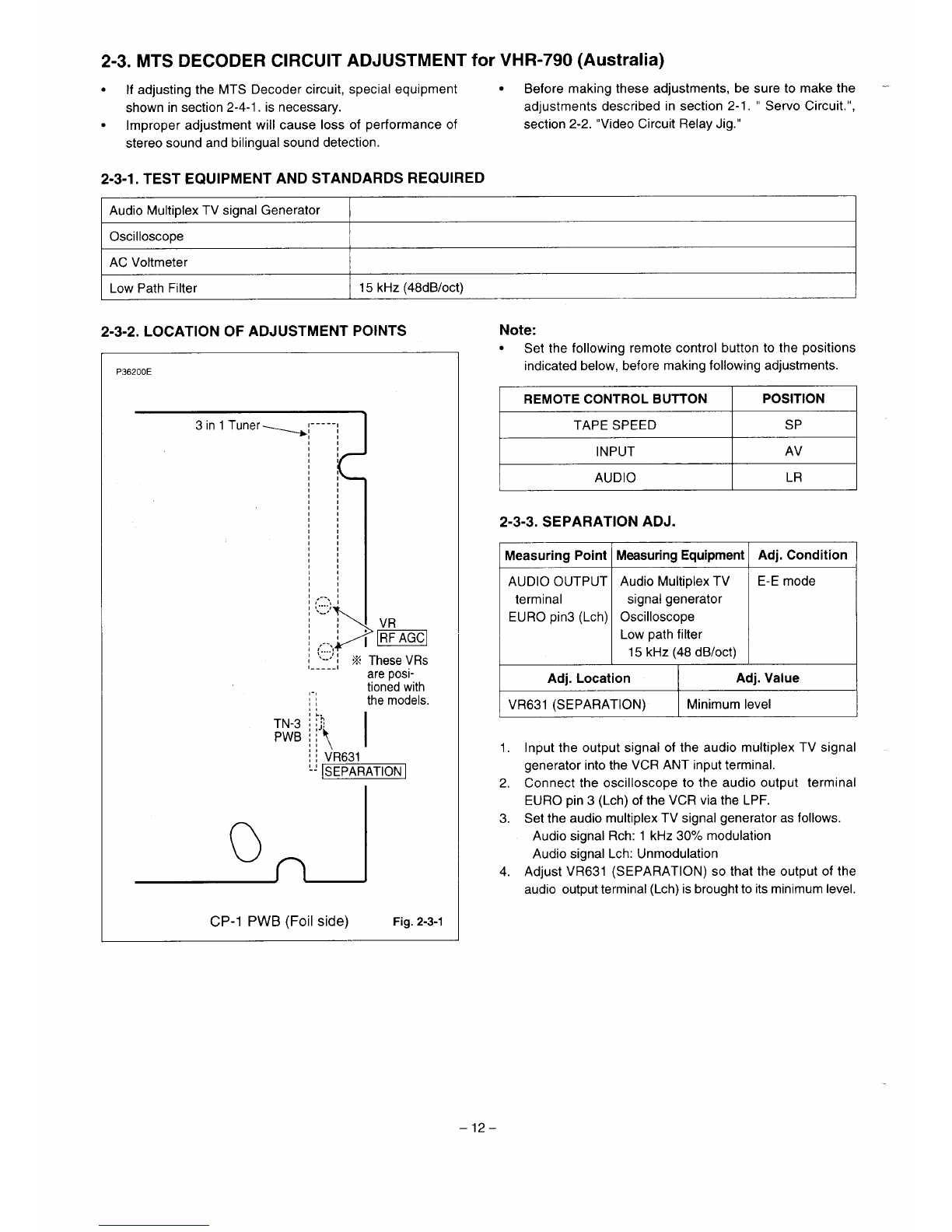

2-3. MTS DECODER CIRCUIT ADJUSTMENT for VHR-790 (Australia)
●If adjusting the MTS Decoder circuit, special equipment ●Before making these adjustments, be sure to make the -
shown in section 2-4-1. is necessary. adjustments described in section 2-1. “Servo Circuit.”,
●Improper adjustment will cause loss of performance of section 2-2. “Video Circuit Relay Jig. ”
stereo sound and bilingual sound detection.
2-3-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Audio Multiplex TV signal Generator
Oscilloscope
AC Voltmeter
Low Path Filter 15 kHz (48dB/oct)
2-3-2. LOCATION OF ADJUSTMENT POINTS
P36200E
3inl ‘{
Tuner -__+ -----~
,,
II
,,
,,
,,
II
II
,,
,,
,,
,,
II
,,
,,
1,
II
,,
,,
,,
,,
,,
,1
,4
,1
,, I
;,,--, I
, ,...,; I
,~.-,
$
,1
I, VR
,,
t8’--’, i-
{-~’~’~ XThese VRS
are posi-
tioned with
,-,
:: the models.
on
CP-1 PWB (Foil side) Fig. 2-3-1
Note:
●Set the following remote control button to the positions
indicated below, before making following adjustments.
IREMOTE CONTROL BUTTON IPOSITION I
TAPE SPEED SP
INPUT AV
IAUDIO ILR I
2-3-3. SEPARATION ADJ.
Measuring Point Measuring Equipment
AUDIO OUTPUT Audio Multiplex TV
terminal signal generator
EURO pin3 (Lch) Oscilloscope
Low path filter
15 kHz (48 dB/oct)
Adj. Condition I
E-E mode
Adj. Location Adj. Value
VR631 (SEPARATION) Minimum level
1.
2.
3.
4.
Input the output signal of the audio multiplex TV signal
generator into the VCR ANT input terminal.
Connect the oscilloscope to the audio output terminal
EURO pin 3(Lch) of the VCR via the LPF.
Set the audio multiplex TV signal generator as follows.
Audio signal Rch: 1kHz 30?!0modulation
Audio signal Lch: Unmodulation
Adjust VR631 (SEPARATION) so that the output of the
audio output terminal (Lch) is brought to its minimum level.
–12–

2-4. IF CIRCUIT ADJUSTMENT
●In this model, the circuits of the TUNER, IF, and RF Note: The 3in tuner dose not need any adjustments, because
converter have been made into one. Therefore, should one precise adjustments were down before shipment.
circuit malfunction, the whole unit must be replaced.
●The adjustments for the IF (RF AGC) circuit of the 3in 1
tuner are described below.
2-4-1. TEST EQUIPMENT AND STANDARD REQUIRED
Monitor TV
2-4-2. LOCATION OF ADJUSTMENT POINT
3in 1Tuner
2-4-3. RF AGC ADJ.
Measuring Point Measuring Equipment Adj. Condition
Picture of Monitor TV E-E mode
monitor TV
Adj. Location Adj. Value
VR (RF AGC) S/N is best point
(on the 3in 1tuner) 1
1.
2.
3.
4.
Connect the monitor TV to the VHFIUHF antenna output
terminal.
Connect the VHF or UHF antenna to the VHFIUHF antenna
input terminal.
Receive the middle electrical field (70 dB~ -90 dBL) of the
VHF or UHF channel, and slowly turn the VR (RF AGC)
from the point where snow-noise is present to the point
where it just disappears from the monitor TV.
Confirm by monitor TV that there is no beat and saturation
(S/N is best point) when receiving any TV channel.
2-5. CHECKING THE RF CHANNEL
If the TV and VCR are connected bv an aerial outtmt cable which has Qoor shieldin~ characteristics, turn off the RF converter of
the VCR and use the VCR with an AV cable. To turn the RF converter’off, input “OO;when setting the RF (when “RF” is
displayed) during VCR pre-setting.
3. TEST POINTS FOR TAPE PATH ADJUSTMENT
Test points TPI 82 (ENV) andTP183 (SW-P) for tape path adjustment are shown in figure below.
For adjustment, refer to the separate volume “V95 I!vlechanism Manual” (MM531 433) and “V95 II Mechanism Manual” (MS531 500).
VP-1 PWB Assembly Fig. 3-1
–13-

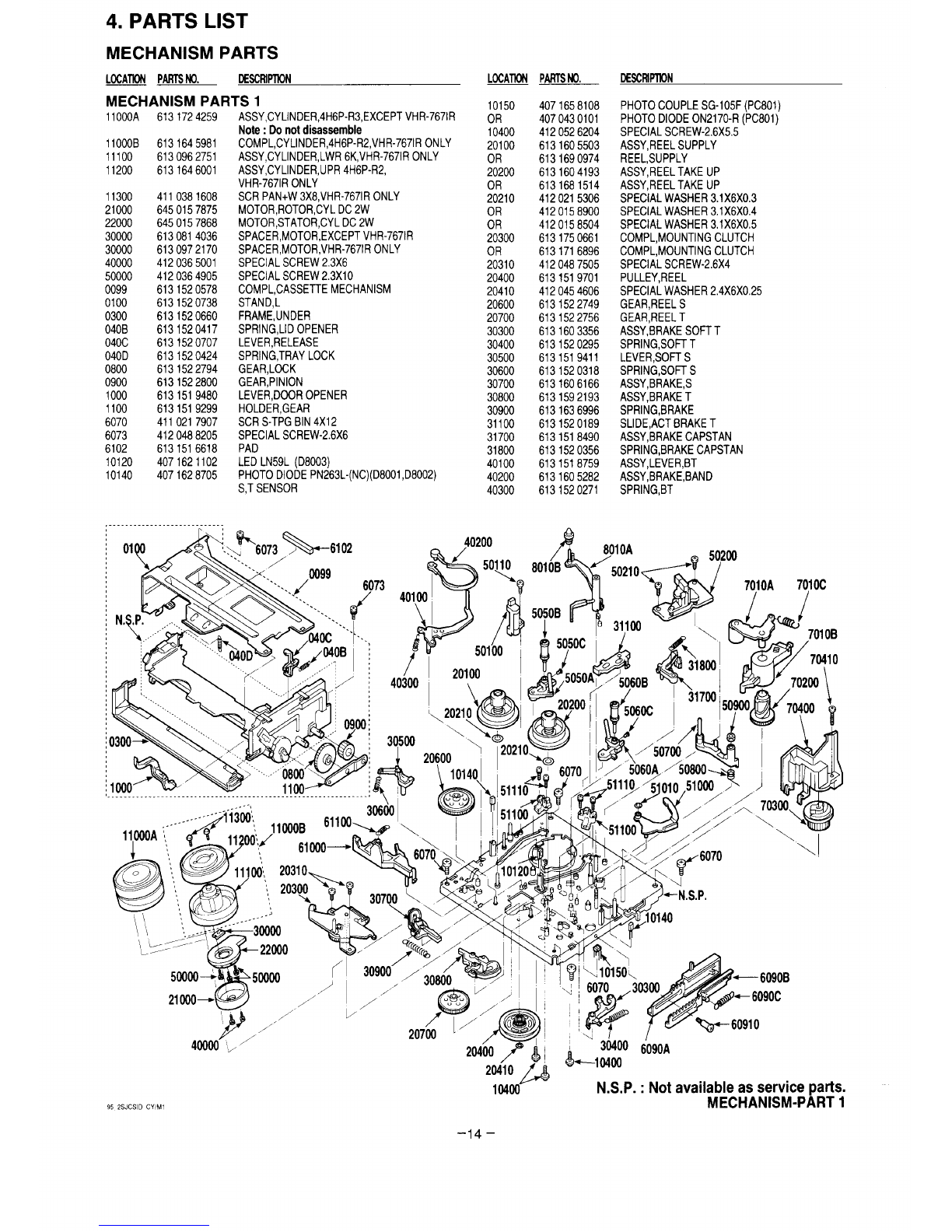

4. PARTS LIST
MECHANISM PARTS
LOCATIONPARTSNO. DESCRIPTION
MECHANISM PARTS 1
11OOOA
11OOOB
11100
11200
11300
21000
22000
30000
30000
40000
50000
0099
0100
0300
040B
040C
040D
0800
0900
1000
1100
6070
6073
6102
10120
10140
0100
6131724259
6131645981
6130962751
6131646001
4110381608
6450157875
6450157868
6130814036
6130972170
4120365001
4120364905
6131520578
6131520738
6131520660
6131520417
6131520707
6131520424
6131522794
6131522800
6131519480
6131519299
4110217907
4120488205
6131516618
4071621102
4071628705
ASSY,CYLINDER,4 H6P-R3,EXCEPT VHR-7671R
Note: Do not disassemble
COMPL,CYLINDER,4H6P-R2,VHR-7671R ONLY
ASSY,CYLINDER,LWR 6K,VHR-7671RONLY
ASSY,CYLINDER,UPR 4H6P-R2,
VHR-7671RONLY
SCR PAN+W 3X8,VHR-7671RONLY
MOTOR,ROTOR,CYL DC 2W
MOTOR,STATOR,CYL DC 2W
SPACER,MOTOR,EXCEPT VHR-7671R
SPACER,MOTOR,VHR-7671RONLY
SPECIAL SCREW 2.3X6
SPECIAL SCREW 2.3X1O
COMPL,CASSETTE MECHANISM
STAND,L
FRAME,UNDER
SPRING,LIDOPENER
LEVER,RELEASE
SPRING,TRAY LOCK
GEAR,LOCK
GEAR,PINION
LEVER,DOOR OPENER
HOLDER,GEAR
SCR S-TPG BIN4X12
SPECIAL SCREW-2.6X6
PAD
LED LN59L (D8003)
PHOTO DIODE PN263L-(NC)(D8001,D8002)
S,T SENSOR
LOCATIONPARTSW.
10150
OR
10400
20100
OR
20200
OR
20210
OR
OR
20300
OR
20310
20400
20410
20600
20700
30300
30400
30500
30600
30700
30800
30900
31100
31700
31800
40100
40200
40300
4071658108
4070430101
4120526204
6131605503
6131690974
6131604193
6131681514
4120215306
4120158800
4120158504
6131750661
6131716896
4120487505
6131519701
4120454606
6131522749
6131522756
6131603356
6131520295
6131519411
6131520318
6131606166
6131592193
6131636996
6131520189
6131518490
6131520356
6131518759
6131605282
6131520271
DESCMPT!ON
PHOTO COUPLE SG-105F (PC801)
PHOTO DIODE 0N2170-R (PC801 )
SPECIAL SCREW-2 .6X5.5
ASSY,REEL SUPPLY
REEL. SUPPLY
ASSY;REEL TAKE UP
ASSY,REEL TAKE UP
SPECIAL WASHER 3.1 X6X0.3
SPECIAL WASHER 3.1 X6X0.4
SPECIAL WASHER 3.1 X6X0.5
COMPL,MOUNTING CLUTCH
COMPL,MOUNTING CLUTCH
SPECIAL SCREW-2.6X4
PULLEY,REEL
SPECIAL WASHER 2,4X6X0,25
fiEAR,REELs
GEAR,REEL T
ASSY,BRAKESOFTT
SPRINGSOR T
LEVER,SOFT S
SPRING,SOFT S
ASSY,BRAKE,S
ASSY,BRAKE T
SPRING,BRAKE
SLIDE,ACT BRAKE T
ASSY,BRAKE CAPSTAN
SPRING,BRAKE CAPSTAN
ASSY,LEVER,BT
ASSY,BRAKE,BAND
SPRING,BT
@
(2)
\\\,
‘lLL-
,,
95 2SJCSID CYfM1
\l
D
204{0 “‘3+- 104OO
10400 N.S. P.: Not available as service parts.
MECHANISM-PART 1
-14–

LOCATION PARTSMl
50100 6450176432
50110 4120489707
50200 6131768406
50210 4120523500
5050A 6131647237
5050B 6130220233
5050C 4120484504
5060A 6131647251
5060B 6130220233
5060C 4120484504
50700 6131644762
50800 6131520387
50900 4120488908
51000 6131736153
OR 6131612365
51010 4120334106
51100 6131607057
51110 4120491700
6090A 6131519152
OR 6131604636
6090B 6131519114
6090C 6131520226
60910 4120502802
61000 6131519398
61100 6131523692
701 OA 6131518803
7010B 6131710221
-. 701 Oc 6131520233
70200 6131563841
70300 6131520677
70400 6131520714
70410 4120491106
801 OA 6131719606
8010B 6131719439
31200
.—
60610
{
606p @
ImmTloN
HEAD, ERASE FULL
SPECIAL SCREW-2 .6X1O
ASSY,HEAD R/P ACE
SPECIAL SCREW 2,6X12
ASSY,MOUNTING,INCLINE S
ASSY,GUIDE,ROLLER
SPECIAL SCREW-2X3
ASSY.MOUNTING,INCLINE T
ASSY;GUIDE,ROLLER
SPECIAL SCREW-2X3
ASSY,LEVER,LOAD
SPRING, LEVER LGUIDE
SPECIAL NUT-3X3
ASSY,LEVER,ACT LGUIDE
ASSY,LEVER,ACT LGUIDE
WASHER SLIT 2.6X5X0.50
MOUNTING,CATCHER
SPECIAL SCREW-2,6XI0
GEAR,RACK FRONT
GEAR,RACK FRONT
GEAR,RACK START
SPRING,RACK FRONT
SPECIAL SCREW-2.6X6
LEVER,EP SW
SPRING,EP SW
ASSY,LEVER,PINCH ROLLER
MOUNTING,LIFT PINCH
SPRING, PINCH ROLLER
CAM,LIFT PINCH
GEAR,CAM PINCH
MOUNTING, OPENER
SPECIAL SCREW-2.6X16
LEVER,CLEANER,EXCEPT VHR-7671R
ASSY,MOUNTING CLEANER,
EXCEPT VHR-7671R
LOCATIONPARTSMl r!EscmPnoN
MECHANISM PARTS 2
10110
10130
10160
10200
10700
10720
10800
10810
20500
20510
20800
31000
31200
31300
31400
31500
31600
40400
5030A
5030B
5030C
5040A
5040B
5040C
60100
60200
60300
60400
60500
60600
60610
60700
60800
60810
70500
70510
6131739451
6450071560
4120487505
4120488304
6131675926
4120488007
6131658523
4120488007
6131604186
4111091605
6131519039
6131520165
6131590991
6131590847
6131520332
6131519459
6131520349
6131537583
6131522763
6131520370
6131603691
6131522770
6131520363
6131603707
6450034305
6131518599
6131519107
6131519138
6131603790
6131564008
4120546806
6131599017
6131598997
4120488007
6450081880
4120487604
COMPL PWB,MC-1
SWITCH,MODE (S8001 )
SPECIAL SCREW-2.6X4
SPECIAL SCREW-2.6X8
MOUNTING CAPSTAN
SPECIAL SCREW-2.6X6
ASSY,EARTH CYL
SPECIAL SCREW-2.6X6
ASSY,GEAR,FRICTION
WASHER Y2.6X6X0,25
BELT,REEL
SLIDE,ACT BRAKES
LEVER, CONTROL BRAKE
COMPL,LEVER,ACT BRAKE
SPRING, RETURN BRAKE
LEVER,CHANGE CLUTCH
SPRING, CHANGE CLUTCH
ASSY,LEVER SPRING BT
GEAR,LOAD S
SPRING,LOAD S
ASSY,LEVER,LOAD S
GEAR,LOAD T
SPRING,LOAD T
ASSY,LEVER,LOAD T
ASSY,MOTOR LOADING
COMPL,GEAR,WORM
DAMPER
GEARWHEEL 1
GEAR,WHEEL2
CAM,MAIN
SPECIAL WASHER 3.6X0,5
SLIDE,CRESCENT
MOUNTING, CRESCENT
SPECIAL SCREW-2,6X6
MOTOR, CAPSTAN
SPECIAL SCREW-2.6X6
31300-;
a
------”i -----
m.. -----
6OQ1O
K%$J al ‘10200 ,//’ IMZ’”7 ‘
50404
/
‘tiA4;U~
.—
60100 -y~ ~70510 N.S.P. :Not available as service parts.
MECHANISM-PART 2
-15 -

LOCATIONPARTSMl DESCRIPTION
ACCESSORIES
6450247224
6450242960
6131771901
6131694385
6131769625
6131771963
6450031182
OR 6450234170
OR 6450251382
OR 6450094569
6450251375
OR 6450210464
OR 6450209390
A3 6450027642
OR h6450122606
h6450114335
OR A6131366411
OR A6450234156
OR A6450191923
REMOCON,INFRARED,WITH COVER
BAllERY,EXCEPT VHR-7671R
REMOCON,INFRARED, WITH COVER
BAllERY, VHR-7671R ONLY
COVER, BAllERY, EXCEPT VHR-7671R
COVER, BAllERY, VHR-7671R ONLY
INSTRUCTION MANUAL, EXCEPT VHR-7671R
INSTRUCTION MANUAL, VHR-7671R ONLY
CABLE,ANT PAL,VHR-7671R ONLY
CABLE,ANT PAL,VHR-7671R ONLY
CABLE,ANT PAL,VHR-7671R ONLY
CABLE,ANT PAL,VHR-7671R ONLY
CABLE,ANT PAL,EXCEPT VHR-7671R
CABLE,ANT PAL,EXCEPT VHR-7671R
CABLE,ANT PAL,EXCEPT VHR-7671R
CORD, POWER, EXCEPT VHR-7671R
CORD, POWER, EXCEPT VHR-7671R
CORD, POWER, VHR-7671R ONLY
CORD, POWER, VHR-7671R ONLY
CORD, POWER, VHR-7671R ONLY
CORD, POWER, VHR-7671R ONLY
PACKING MATERIALS
6131773721
6131770065
6131776678
6131735491
6131732537
6131735507
6131732544
6131398047
6130991768
CARTON CASE, VHR-7671R ONLY
CARTON CASE,VHR-790(AUSTRALIA) ONLY
CARTON CASE,VHR-790(NEWZEAIAND) ONLY
CUSHION, FRONT(SJC),EXCEPT VHR-7671R
CUSHION, FRONT (SID),VHR-7671R ONLY
CUSHION, BACK(SJC),EXCEPT VHR-7671R
CUSHION, BACK (SID),VHR-7671R ONLY
POLYE COVER, INNER-K, VHR-7671R ONLY
POLYE COVER, INNER-K, EXCEPT VHR-7671R
Undesignated numeral shows
Location No.:CH-
N.S.P.:Not available as service parts
9-22 T-1
LOCATIONPARTSMl. DESCFUPTION
CABINET AND CHASSIS PARTS
CH-I
CH-2
CH-3
CH-3
CH-4
CH-5
CH-6
CH-6
CH-6
CH-7
CH-8
CH-8
CH-9
CH-10
CH-10
CH-10
CH-11
CH-I 1
CH-12
CH-12
CH-13
CH-14
CH-14
CH-15
CH-15
CH-15
CH-16
CH-17
CH-18
CH-19
CH-20
CH-21
CH-22
4111370007
4110217907
6131769311
6131729162
4120525108
4120289406
6131606036
6131730632
6131775381
6131602885
6131773165
6131735620
6131585751
6131772793
6131776135
6131768123
6450190094
6450190070
6131693777
6131616226
6131769892
6131741522
6131759862
6131769991
6131777149
6131759923
6131530478
6131739192
6131769328
6131769335
6131211001
6131605091
4110011901
SCR L-TPG BIN 3XI0
SCR S-TPG BIN 4X12
COMPL PWB,VP-1 ,EXCEPT VHR-7671R
COMPL PWB,VP-1 ,VHR-7671R ONLY
SPECIAL SCREW-2.6X12
SPECIAL SCREW
COVER TOP, VHR-7671R ONLY
COVER TOP, EXCEPT VHR-7671R
COVER TOP, VHR-7671R ONLY
HOLDER
TERMINAL, EXCEPT VHR-7671R
TERMINAL, VHR-7671R ONLY
COMPL PCB,TM-9
(OPTION FOR VHR-7671R ONLY)
COMPL PWB,CP-1-A,VHR-7671R ONLY
COMPLPWB,CP-l-A,
VHR-790(NEWZEALAND) ONLY
COMPL PWB,CP-1-A,
VHR-790(AUSTRALIA) ONLY
TUNER, RF/TU/lF,VHR-7671R ONLY
TUNER, RF/TU/lF,EXCEPT VHR-7671R
COMPL PWB,TN-5,
VHR-790(NEWZEALAND) ONLY
COMPL PWB,TN-5,VHR-7671R ONLY
COMPL PWB,TN-3,VHR-790(AUSTRALIA) ONLY
ASSY,CABINET FRONT SJC,EXCEPT VHR-7671R
ASSY,CABINET FRONT, VHR-7671R ONLY
DOOR CASSEllE,VHR-790(AUSTRALlA) ONLY
DOOR CASSEllE,
VHR-790(NEWZEALAND) ONLY
DOOR CASSEllE,VHR-7671R ONLY
SPRING
COMPL PWB,TM-1 ,VHR-7671R ONLY
COMPL PWB,TM-1 ,EXCEPT VHR-7671R
COMPL PWB,TB-2,EXCEPT VHR-7671R
STAND, FELT(FRONT)
COVER BOllOM
SCR S-TPG BIN 3X6
U-W
/’”
,/”
1
.cH-MP4HtuNz ,J’dllP
–16–
CABINET &CHASSIS PARTS

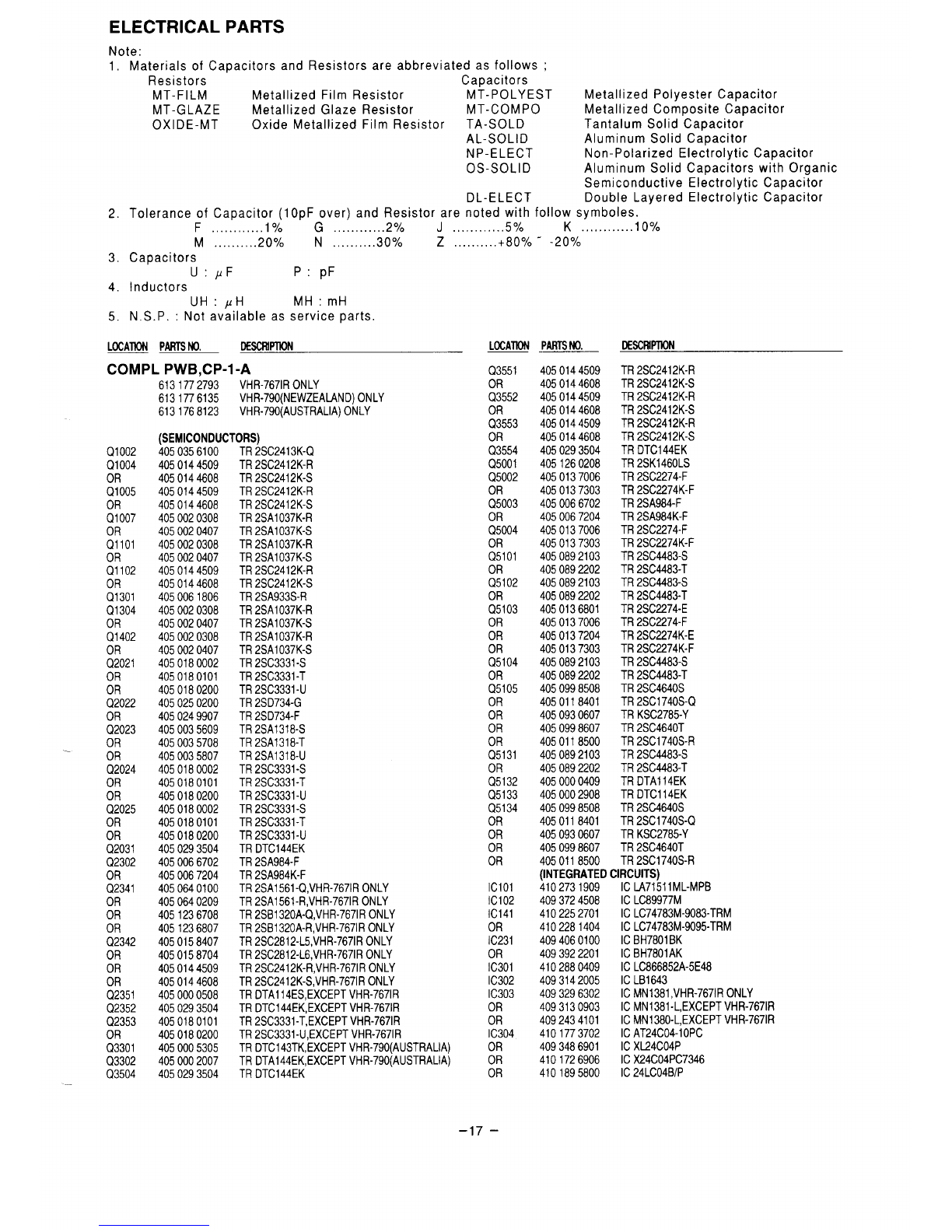

ELECTRICAL PARTS
Note:
1, Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metal lized Film Resistor MT- PO LYEST Metal lized Polyester Capacitor
MT-GLAZE Metal lized Glaze Resistor MT-COMPO Metallized Composite Capacitor
OXIDE-MT Oxide Metal lized Film Resistor TA-SOLD Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
2. Tolerance of Capacitor (1OPF over) and Resistor are noted with follow symbol es.
F............1% G............270 J............50/0 K............10%
M..........2070 N..........3070 Z.,., . . . ...+80 °/0- -20?’0
3. Capacitors U:AF P:pF
4. Inductors UH:/JH MH :mH
5, N. S.P. :Not available as service parts.
LOCATtON PARTSNO. OESCRIMION
COMPL PWB,CP-1-A
6131772793 VHR-7671RONLY
6131776135 VHR-780(NEWZEALAND)ONLY
6131768123 VHR-780(AUSTRALIA)ONLY
(SEMICONDUCTORS)
QIO02 4050356100 TR2SC2413K-Q
Q1OO4 4050144509 TR2SC2412K-R
OR 4050144608 TR2SC2412K-S
Q1OO5 4050144509 TR2SC2412K-R
OR 4050144608 TR2SC2412K-S
QIO07 4050020308 TR2SA1037K-R
OR 4050020407 TR2SA1037K-S
QIIO1 4050020308 TR2SA1037K-R
OR 4050020407 TR2SA1037K-S
Q1102 4050144509 TR2SC2412K-R
OR 4050144608 TR2SC2412K-S
Q1301 4050061806 TR2SA933S-R
Q1304 4050020308 TR2SA1037K-R
OR 4050020407 TR2SA1037K-S
QI402 4050020308 TR2SA1037K-R
OR 4050020407 TR2SA1037K-S
Q2021 4050180002 TR2SC3331-S
OR 4050180101 TR2SC3331-T
OR 4050180200 TR2SC3331-U
Q2022 4050250200 TR2SD734-G
OR 4050249907 TR2SD734-F
Q2023 4050035609 TR 2SA1318-S
OR 4050035708 TR 2SA1318-T
OR 4050035807 TR 2SA1 318-U
Q2024 4050180002 TR 2SC3331-S
OR 4050180101 TR 2SC3331-T
OR 4050180200 TR 2SC3331-U
Q2025 4050180002 TR 2SC3331-S
OR 4050180101 TR 2SC3331-T
OR 405 Ot80200 TR 2SC3331-U
Q2031 4050293504 TR DTC144EK
Q2302 4050066702 TR 2SA984-F
OR 4050067204 TR 2SA984K-F
Q2341 4050640100 TR 2SAI 561 -Q,VHR-7671R ONLY
OR 4050640209 TR 2SAI 561-R, VHR-7671R ONLY
OR 4051236708 TR2SB1320A-Q,VHR-7671R ONLY
OR 4051236807 TR 2SBI 320A-R, VHR-7671R ONLY
Q2342 4050158407 TR 2SC2812-L5,VHR-7671R ONLY
OR 4050158704 TR 2SC2812-L6,VHR-7671R ONLY
OR 4050144509 TR 2SC2412K-R,VHR-7671R ONLY
OR 4050144608 TR 2SC2412K-S,VHR-7671R ONLY
Q2351 4050000508 TR DTA1 t4ES,EXCEPT VHR-7671R
Q2352 4050293504 TR DTCI 44 EK,EXCEPT VHR-7671R
Q2353 4050180101 TR 2SC3331-T,EXCEPT VHR-7671R
OR 4050180200 TR 2SC3331-U,EXCEPT VHR-7671R
Q3301 4050005305 TR DTCI 43TK,EXCEPT VHR-790(AUSTRALIA)
Q3302 4050002007 TR DTA144EK,EXCEPT VHR-790(AUSTRALIA)
Q3504 4050293504 TR DTC144EK
LOCATK)NPARTSNO.
Q3551 4050144509
OR 4050144608
Q3552 4050144509
OR 4050144608
Q3553 4050144509
OR 4050144608
Q3554 4050293504
Q5001 4051260208
Q5002 4050137006
OR 4050137303
Q5003 4050066702
OR 4050067204
Q5004 4050137006
OR 4050137303
Q5101 4050892103
OR 4050892202
Q5102 4050892103
OR 4050892202
Q5103 4050136801
OR 4050137006
OR 4050137204
OR 4050137303
Q5104 4050892103
OR 4050892202
Q5105 4050998508
OR 4050118401
OR 4050930607
OR 4050998607
OR 4050118500
Q5131 4050892103
OR 4050892202
Q5132 4050000409
Q5133 4050002908
Q5134 4050998508
OR 4050118401
OR 4050930607
OR 4050998607
OR 4050118500
(INTEGRATED
Iclol 4102731909
IC102 4093724508
IC141 4102252701
OR 4102281404
IC231 4094060100
OR 4093922201
IC301 4102880409
IC302 4093142005
IC303 4093296302
OR 4093130903
OR 4092434101
IC304 4101773702
OR 4093486901
OR 4101726906
OR 4101895800
DESCRIPTION
TR 2SC2412K-R
TR 2SC2412K-S
TR 2SC2412K-R
TR 2SC2412K-S
TR 2SC2412K-R
TR 2SC2412K-S
TR DTC144EK
TR 2SK1460LS
TR 2SC2274-F
TR 2SC2274K-F
TR 2SA984-F
TR 2SA984K-F
TR 2SC2274-F
TR 2SC2274K-F
TR 2SC4483-S
TR 2SC4483-T
TR 2SC4483-S
TR 2SC4483-T
TR 2SC2274-E
TR 2SC2274-F
TR 2SC2274K-E
TR 2SC2274K-F
TR 2SC4483-S
TR 2SC4483-T
TR 2SC4640S
TR2SC1740S-Q
TR KSC2785-Y
TR 2SC4640T
TR 2SC1740S-R
TR 2SC4483-S
TR 2SC4483-T
TR DTAI 14EK
TRDTC114EK
TR 2SC4640S
TR 2SC1740S-Q
TR KSC2785-Y
TR 2SC4640T
TR 2SC1740S-R
CIRCUITS)
ICLA71511ML-MPB
ICLC89977M
ICLC74783M-9083-TRM
ICLC74783M-9095-TRM
ICBH7801BK
ICBH7801AK
ICLC866852A-5E48
ICLB1643
ICMN1381,VHR-7671RONLY
ICMNI381-L,EXCEPTVHR-7671R
ICMN1380-L,EXCEPTVHR-7671R
ICAT24C04-IOPC
Ic XL24C04P
ICX24C04PC7346
IC24LC04B/P
–17 –

‘“-”-”” PmNo. DESCRIPl!ON

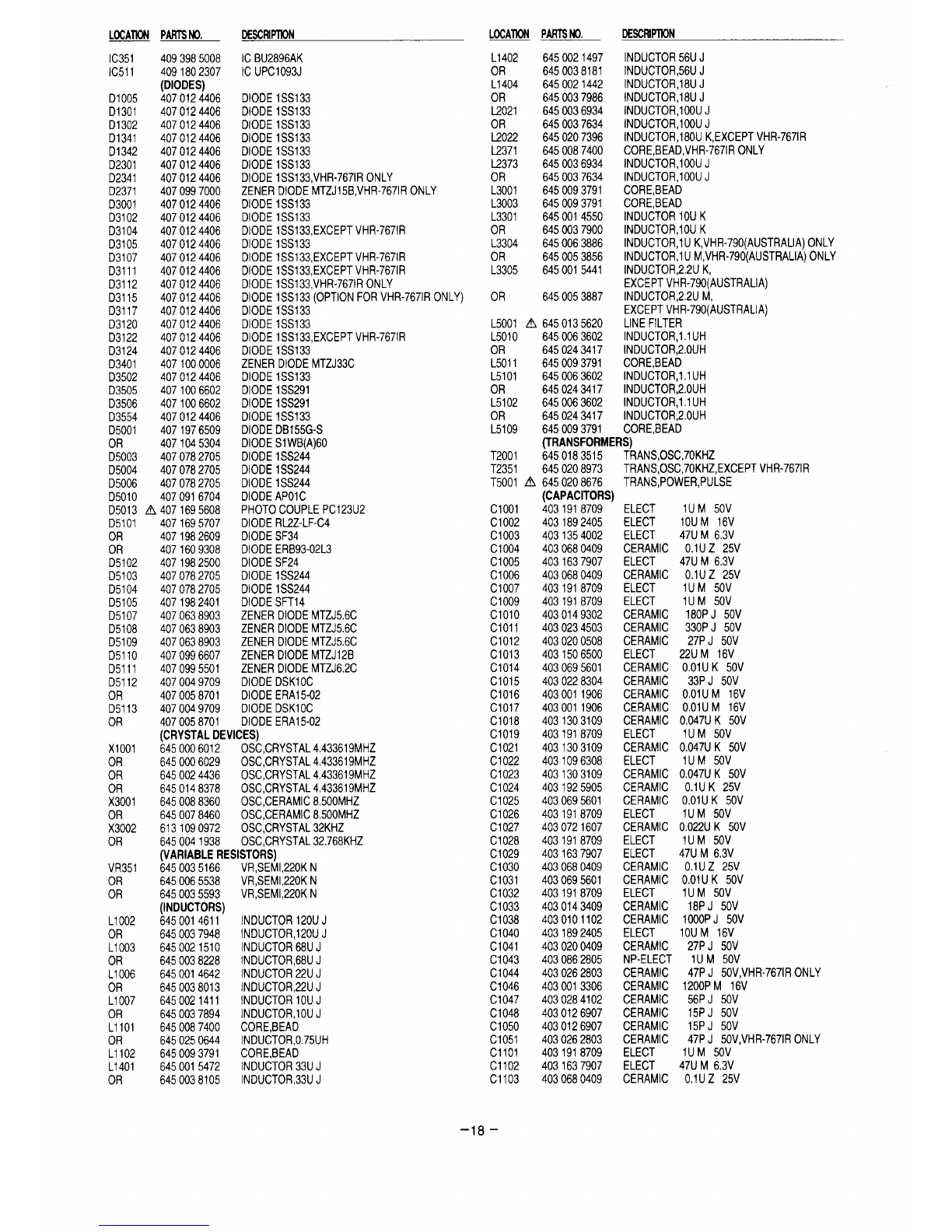

IC351
IC511
DIO05
D1301
D1302
D1341
D1342
D2301
D2341
D2371
D3001
D3102
D3104
D3105
D3107
D3111
D3112
D3115
D3117
D3120
D3122
D3124
D3401
D3502
D3505
D3506
D3554
D5001
OR
D5003
D5004
D5006
4093985008
4091802307
(DIODES)
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070997000
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
4071000006
4070124406
4071006602
4071006602
4070124406
4071976509
4071045304
4070782705
4070782705
4070782705
IC BU2896AK
IC UPC1093J
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133,VHR-7671R ONLY
ZENER DIODEMTZJ15B,VHR-7671R ONLY
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133,EXCEPT VHR-7671R
DIODE 1SS133
DIODE 1SS133,EXCEPT VHR-7671R
DIODE 1SS133,EXCEPT VHR-7671R
DIODE 1SS133,VHR-7671R ONLY
DIODE 1SS133 (OPTION FOR VHR-7671R ONLY)
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133,EXCEPT VHR-7671R
DIODE 1SS133
ZENER DIODE MTZJ33C
DIODE 1SS133
DIODE 1SS291
DIODE 1SS291
DIODE 1SS133
DIODE DB155G-S
DIODE S1WB(A)60
DIODE 1SS244
DIODE 1SS244
DIODE 1SS244
D501O 4070916704 DIODE APOIC
D5013 A4071695608 PHOTO COUPLE PC123U2
D51OI
OR
OR
D5102
D5103
D5104
D5105
D5107
D5108
D5109
D511O
D5111
D5112
OR
D5113
OR
Xlool
OR
OR
OR
X3001
OR
X3002
OR
VR351
OR
OR
LI 002
OR
LI 003
OR
L1006
OR
LI 007
OR
LI101
OR
L1102
L1401
OR
4071695707 DIODE RL2Z-LF-C4
4071982609 DIODE SF34
4071609308 DIODE ERB93-02L3
4071982500 DIODE SF24
4070782705 DIODE 1SS244
4070782705 DIODE 1SS244
4071982401 DIODE SFT14
4070638903 ZENER DIODE MTZJ5.6C
4070638903 ZENER DIODE MTZJ5.6C
4070638903 ZENER DIODE MTZJ5.6C
4070996607 ZENER DIODE MTZJ12B
4070995501 ZENER DIODE MTZJ6.2C
4070049709 DIODE DSKIOC
4070058701 DIODE ERA1 5-02
4070049709 DIODE DSK1OC
4070058701 DIODE ERAI 5-02
(CRYSTALDEVICES)
6450006012 OSC,CRYSTAL4.433619MHZ
6450006029 OSC,CRYSTAL4.433619MHZ
6450024436 OSC,CRYSTAL4.433619MHZ
6450148378 OSC,CRYSTAL4.433619MHZ
6450088360 OSC,CERAMIC8.500MHZ
6450078460 OSC,CERAMIC8.500MHZ
6131090972 OSC,CRYSTAL32KHZ
6450041938 OSC,CRYSTAL32.768KHZ
(VARIABLERESISTORS)
6450035166 VR,SEMI,220KN
6450065538 VR,SEMI,220KN
6450035593 VR,SEMI,220KN
(INDUCTORS)
6450014611 INDUCTOR120UJ
6450037948 INDUCTOR,120UJ
6450021510 INDUCTOR68UJ
6450038228 INDUCTOR,68UJ
6450014642 INDUCTOR22UJ
6450038013 INDUCTOR,22UJ
6450021411 INDUCTORIOUJ
6450037894 INDUCTOR,1OUJ
6450087400 CORE,BEAD
6450250644 INDUCTOR,0.75UH
6450093791 CORE,BEAD
6450015472 INDUCTOR33UJ
6450038105 INDUCTOR,33UJ
LOCATIONPARTSMl. DESCRIPTION
LI402 6450021497 INDUCTOR56UJ
OR 6450038181 INDUCTOR,56UJ
L1404 6450021442 INDUCTOR,18UJ
OR 6450037986 INDUCTOR,18UJ
12021 6450036934 INDUCTOR,1OOUJ
OR 6450037634 INDUCTOR,1OWJ
L2022 6450207396 INDUCTOR,180UK,EXCEPTVHR-7671R
L2371 6450087400 CORE,BEAD,VHR-7671RONLY
L2373 6450036934 INDUCTOR,1OOU
J
OR 6450037634 INDUCTOR,1OOU J
L3001 6450093791 CORE,BEAD
L3003 6450093791 CORE,BEAD
L3301 6450014550 INDUCTOR IOU K
OR 6450037900 INDUCTOR,1OU K
L3304 6450063886 INDUCTOR,IU K,VHR-790(AUSTRALIA) ONLY
OR 6450053856 INDUCTOR,l UM,VHR-790(AUSTRALIA) ONLY
L3305 6450015441 INDUCTOR,2.2U K,
EXCEPT VHR-790(AUSTRALIA)
OR 6450053887 INDUCTOR,2.2U M,
EXCEPT VHR-790(AUSTRALIA)
L5001 A6450135620 LINE FILTER
L501O 6450063602 INDUCTOR,l.IUH
OR 6450243417 INDUCTOR,2.OUH
L5011 6450093791 CORE,BEAD
L5101 6450063602 INDUCTOR,l.l UH
OR 6450243417 INDUCTOR,2.OUH
L5102 6450063602 INDUCTOR, I.IUH
OR 6450243417 INDUCTOR,2.OUH
L5109 6450093791 CORE,BEAD
(TRANSFORMERS)
T2001 6450183515 TRANS,0SC,70KHZ
T2351 6450208973 TRANS,0SC,70KHZ, EXCEPT VHR-7671R
T5001 A6450208676 TRANS,POWER,PULSE
(CAPACITORS)
Clool 4031918709 ELECT lUM 50V
cl 002 4031892405 ELECT 10UM 16V
cl 003 4031354002 ELECT 47UM 6,3V
cl 004 4030680409 CERAMIC O.lUZ 25V
cl 005 4031637907 ELECT 47UM 6,3V
Cl 006 4030680409 CERAMIC O.lUZ 25V
cl 007 4031918709 ELECT IUM 50V
cl 009 4031918709 ELECT lUM 50V
Clolo 4030149302 CERAMIC 180PJ 50V
Cloll 4030234503 CERAMIC 330PJ 50V
C1012 4030200508 CERAMIC 27PJ 50V
C1013 4031506500 ELECT 22UM 16V
C1OI4 4030695601 CERAMIC O.OIUK 50V
C1015 4030228304 CERAMIC 33PJ 50V
C1016 4030011906 CERAMIC O.OIUM 16V
CIO17 4030011906 CERAMIC O.OIUM 16V
C1OI8 4031303109 CERAMIC 0.047UK 50V
C1OI9 4031918709 ELECT lUM 50V
CI021 4031303109 CERAMIC 0.047UK 50V
cl 022 4031096308 ELECT lUM 50V
CI023 4031303109 CERAMIC 0.047UK 50V
Cl 024 4031925905 CERAMIC O.lUK 25V
Cl 025 4030695601 CERAMIC O.OIUK 50V
C1026 4031918709 ELECT IUM 50V
C1027 4030721607 CERAMIC 0.022UK 50V
C1028 4031918709 ELECT lUM 50V
Cl 029 4031637907 ELECT 47UM 6,3V
cl 030 4030680409 CERAMIC O.lUZ 25V
C103I 4030695601 CERAMIC O.OIUK 50V
Cl 032 4031918709 ELECT lUM 50V
cl 033 4030143409 CERAMIC 18PJ 50V
Cl 038 4030101102 CERAMIC 1000PJ 50V
cl 040 4031892405 ELECT 10UM 16V
C1041 4030200409 CERAMIC 27PJ 50V
cl 043 4030862805 NP-ELECT lUM 50V
cl 044 4030262803 CERAMIC 47PJ 50V,VHR-7671RONLY
Cl 046 4030013306 CERAMIC 1200PM 16V
cl 047 4030284102 CERAMIC 56PJ 50V
Cl 048 4030126907 CERAMIC 15PJ 50V
cl 050 4030126907 CERAMIC 15PJ 50V
C105I 4030262803 CERAMIC 47PJ 50V,VHR-7671R ONLY
Cllol 4031918709 ELECT IUM 50V
C1102 4031637907 ELECT 47UM 6,3V
C1103 4030680409 CERAMIC O.lUZ 25V
-18–

LOCAl!Ot4PARTSI@. DWYIIPTION LOCATION PARTSt@. DESCRIPTION
C1104
C1105
CI106
CI107
C1108
C1109
C1301
cl 303
Cl 352
C1353
C1401
C1403
C1404
cl 405
Cl 406
cl 407
C1410
C1411
C1412
C1414
C2001
C2002
C2003
C2004
C2005
C2006
C2007
C2008
C2009
C2010
C2011
C2012
C2013
C2016
C2017
C2017
C2018
C2021
C2022
C2023
C2024
C2025
C2026
C2027
C2301
C2302
C2303
C2304
C2305
C2306
C2307
C2308
C2309
C231O
C2311
C2312
C2315
C2316
C2321
C2323
C2324
C2325
C2326
C2327
C2332
C2351
C2352
C2353
C2354
C2361
C2362
C2363
C2364
C2365
C2366
C2372
C3001
C3002
4030695601
4030695601
4030695601
4030695601
4031925905
4030680409
4031354101
4030680409
4031918709
4031096308
4030228205
4031096308
4030699500
4031354002
4030180503
4030180503
4030095807
4030705508
4031096308
4030143508
4031918709
4030691702
4030695601
4031892405
4031677002
4030680409
4031677002
4030680409
4031598109
4031676500
4031676500
4030680409
4031892405
4031638409
4030755305
4030750706
4030695601
4030754803
4030705508
4030750706
4030750706
4031937809
4030813302
4030680409
4031892405
4031892405
4030721607
4030721607
4030739107
4030739107
4031937809
4031937809
4030708806
4030708806
4031391502
4031391502
4030187502
4030187502
4031677002
4031937809
4031638409
4030721607
4030011906
4031391809
4031937809
4031349602
4030695601
4030695601
4030817409
4030690309
4030690309
4030691702
4030691702
4030187502
4030187502
4030718102
4030180503
4030125900
CERAMIC 0.01 U K 50V
CERAMIC O,OIU K50V
CERAMIC 0,01 U K 50V
CERAMIC 0,01 U K 50V
CERAMIC 0.1 U K 25V
CERAMIC 0.1 UZ25V
ELECT 470U M6,3V
CERAMIC 0.1 UZ25V
ELECT lUM 50V
ELECT 1UM50V,EXCEPT VHR-7671R
CERAMIC 33P J50V
ELECT lUM 50V
CERAMIC 0,01 UZ50V
ELECT 47U M6,3V
CERAMIC 22P J50V
CERAMIC 22P J50V
CERAMIC 100P J50V
CERAMIC 1200P K50V
ELECT lUM 50V
CERAMIC 18P J50V
ELECT IUM 50V
CERAMIC 1003P K50V
CERAMIC 0.01 U K 50V
ELECT 10UM 16V
ELECT 4.7U M50V
CERAMIC 0,1 UZ25V
ELECT 4.7U M50V
CERAMIC 0,1 UZ25V
ELECT IOOU M6.3V
ELECT 33U M6.3V
ELECT 33U M6.3V
CERAMIC 0,1 UZ25V
ELECT 10UM 16V
ELECT 47U M16V
CERAMIC 8200P K50V,VHR-7671R ONLY
CERAMIC 6800P K50V,EXCEPT VHR-7671R
CERAMIC 0,01 U K 50V
CERAMIC 820P K50V
CERAMIC 1200P K50V
CERAMIC 6800P K50V
CERAMIC 6800P K50V
ELECT 100UM 16V
POLYPRO 0.022U J100V
CERAMIC O.l UZ25V
ELECT 10UM 16V
ELECT 10UM 16V
CERAMIC 0.022U K50V
CERAMIC 0.022U K50V
CERAMIC 4700P K50V
CERAMIC 4700P K50V
ELECT 100U M16V
ELECT 100U M16V
CERAMIC 1500P K50V
CERAMIC 1500P K50V
ELECT 10UM 16V
ELECT 10UM 16V
CERAMIC 220P J50V,EXCEPT VHR-7671R
CERAMIC 220P J50V,EXCEPT VHR-7671R
ELECT 4,7U M50V
ELECT IOOU M16V
ELECT 47U M16V
CERAMIC 0.022U K50V
CERAMIC O.OIU M16V
ELECT 47U M16V
ELECT 100UM 16V
ELECT 47U M16V,EXCEPT VHR-7671R
CERAMIC 0.01 U K 50V.EXCEPT VHR-7671R
CERAMIC 0.01 U K 50V,EXCEPT VHR-7671R
POLYPRO 0,033U J100V,EXCEPT VHR-7671R
CERAMIC 1000P J50V,EXCEPT VHR-7671R
CERAMIC 1000P J50V,EXCEPT VHR-7671R
CERAMIC 1000P K50V,VHR-7671R ONLY
CERAMIC 1000P K50V,VHR-7671R ONLY
CERAMIC 220P J50V,VHR-7671R ONLY
CERAMIC 220P J50V,VHR-7671R ONLY
CERAMIC 2200P K50V
CERAMIC 22P J50V
CERAMIC 15P J50V
C3004
C3005
C3008
C3008
C3009
C3011
C3012
C3014
C3015
C3016
C3019
C3022
C3022
C3034
C3037
C3040
C3041
C3042
C3043
C3086
C3301
C3302
C3302
C3303
C3307
C3314
C3315
C3316
C3318
C3320
C3324
C3325
C3404
C3501
C3502
C3503
C3504
C3505
C3506
C3507
C3508
C3509
C3511
C3512
C3513
C3514
C3515
C3516
C3517
C3522
C3523
C3524
C3525
C3526
C3536
C3540
C3551
C3552
C3553
C3554
C3555
C3556
C3558
C3561
C3562
C3570
C3571
4030695601
4030695601
4031506500
4031637907
4030695601
4030680409
4030695601
4031354101
4030680409
4030695601
4030680409
4032816202
4033054801
4030695601
4030283402
4030095807
4030095807
4030095807
4030095807
4030011609
4031079905
4031348100
4031079905
4030247206
4030680409
4031892405
4030683608
4031677002
4030115000
4030307009
4031219509
4030680409
4031938905
4030709803
4030750706
4030709803
4032288207
4032288207
4030750706
4031506500
4031506500
4031637907
4030716504
4030569704
4031196701
4031849805
4030630206
4030718102
4030708806
4030691207
4031392707
4030695601
4031392608
4030637205
4031937601
4030095708
4031750903
4030284102
4031918709
4030133004
4030695601
4030691702
4031676500
4030589306
4031385600
4030702606
4030702606
C5001 A4040554905
C5002 A4040554905
C5005 A4040742104
C5007 A4040742104
CERAMIC 0.01 U K 50V
CERAMIC 0.01 U K 50V
ELECT 22U M16V,EXCEPT VHR-7671R
ELECT 47U M6.3V,VHR-7671R ONLY
CERAMIC 0,01 U K 50V
CERAMIC 0,1 UZ25V
CERAMIC 0.01 U K 50V
ELECT 470U M6,3V
CERAMIC O.IU Z25V,
VHR-790(AUSTRALIA) ONLY
CERAMIC 0.01 U K 50V
CERAMIC 0.1 UZ25V
DL-ELECT lF Z5,5V,VHR-7671R ONLY
DL-ELECT 0.1 F Z 5,5V,EXCEPT VHR-7671R
CERAMIC 0.01 U K 50V,
EXCEPT VHR-790(AUSTRALIA)
CERAMIC 56P J50V
CERAMIC 100P J50V
CERAMIC 100P J50V
CERAMIC 100P J50V
CERAMIC 100P J50V
CERAMIC 0.01 U K 16V,
VHR-780(AUSTRALIA) ONLY
ELECT 10UM 16V
ELECT 100U M6.3V,
EXCEPT VHR-790(AUSTRALIA)
ELECT IOU M16V,
VHR-790(AUSTRALIA) ONLY
CERAMIC 390P J50V
CERAMIC 0.1 UZ25V
ELECT 10UM 16V
CERAMIC 0.033U Z25V,
EXCEPT VHR-790(AUSTRALIA)
ELECT 4.7U M50V,
EXCEPT VHR-790(AUSTRALIA)
CERAMIC 120P J50V
CERAMIC 68P J50V
CERAMIC O.IU Z50V
CERAMIC 0.1 UZ25V
ELECT 22U M50V
CERAMIC 0,015U K50V
CERAMIC 6800P K50V
CERAMIC 0.015U K50V
ELECT 22U M16V
ELECT 22UM 16V
CERAMIC 6800P K50V
ELECT 22UM 16V
ELECT 22UM 16V
ELECT 47U M6,3V
CERAMIC 220P K50V
POLYESTER 0,01 UJ50V
CERAMIC 0.068U K16V
MT-POLYEST 0,22U J50V
POLYESTER 6800P K50V
CERAMIC 2200P K50V
CERAMIC 1500P K50V
CERAMIC 1000P K50V
ELECT IUM 50V
CERAMIC 0.01 U K 50V
ELECT 0.47U M50V
POLYESTER 0,082U J50V
ELECT ZK20UM6.3V
CERAMIC 100P J50V
MT-POLYEST 0,12U J50V
CERAMIC 56P J50V
ELECT lUM 50V
CERAMIC 150P J50V
CERAMIC 0.01 U K 50V
CERAMIC 1000P K50V
ELECT 33U M6,3V
POLYESTER 0,018U J50V
POLYESTER 5600P J50V
CERAMIC 0.1 UZ50V
CERAMIC 0.1 UZ50V
MT-POLYEST 0.068U M250V
MT-POLYEST 0.068U M250V
CERAMIC 1000P M250V
CERAMIC 1000P M250V
-19 –

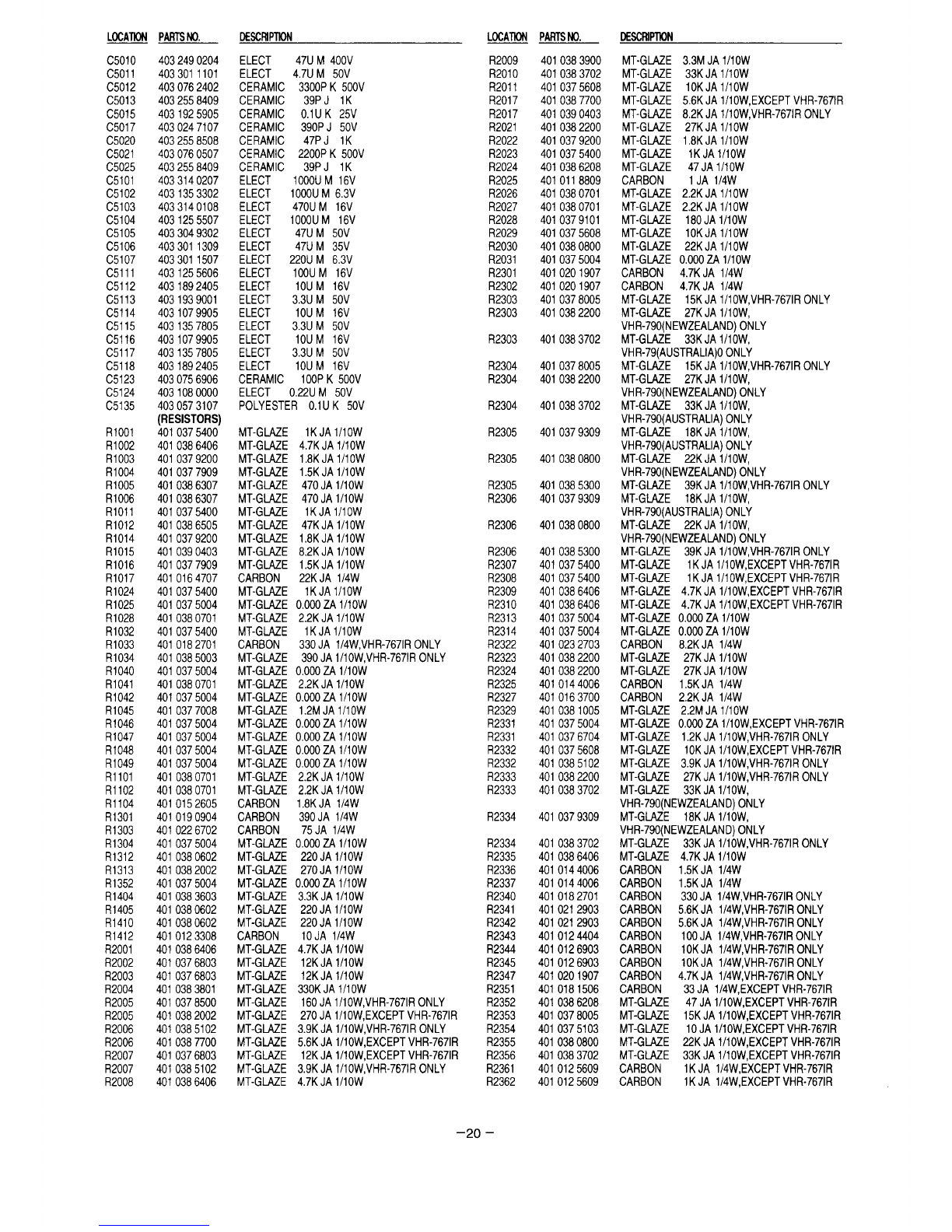

l&A~ PARTSM’) I-lF.wllm L~A~ PARTSMl l’)FSf!MP’lY)N
C5010
C5011
C5012
C5013
C5015
C5017
C5020
C5021
C5025
C5101
C5102
C5103
C5104
C5105
C5106
C5107
C5111
C5112
C5113
C5114
C5115
C5116
C5117
C5118
C5123
C5124
C5135
R1OO1
R1OO2
RI 003
RI 004
RI 005
R1006
R1OII
R1012
R1014
R1015
R1OI6
R1OI7
RI 024
R1025
R1028
R1032
RI 033
R1034
RI 040
R1041
RI 042
R1045
RI 046
RI 047
RI 048
R1049
RI1OI
RI102
RII04
R1301
R1303
R1304
R1312
R1313
R1352
R1404
R1405
R141O
R1412
R2001
R2002
R2003
R2004
R2005
R2005
R2006
R2006
R2007
R2007
R2008
... ... ....
4032490204
4033011101
4030762402
4032558409
4031925905
4030247107
4032558508
4030760507
4032558409
4033140207
4031353302
4033140108
4031255507
4033049302
4033011309
4033011507
4031255606
4031892405
4031939001
4031079905
4031357805
4031079905
4031357805
4031892405
4030756906
4031080000
4030573107
(RESISTORS)
4010375400
4010386406
4010379200
4010377909
4010386307
4010386307
4010375400
4010386505
4010379200
4010390403
4010377909
4010164707
4010375400
4010375004
4010380701
4010375400
4010182701
4010385003
4010375004
4010380701
4010375004
4010377008
4010375004
4010375004
4010375004
4010375004
4010380701
4010380701
4010152605
4010190904
4010226702
4010375004
4010380602
4010382002
4010375004
4010383603
4010380602
4010380602
4010123308
4010386406
4010376803
4010376803
4010383801
4010378500
4010382002
4010385102
4010387700
4010376803
4010385102
4010386406
----- .. .....
ELECT 47U M400V
ELECT 4,7U M50V
CERAMIC 3300P K500V
CERAMIC 39P J 1K
CERAMIC O.l U K 25V
CERAMIC 390P J50V
CERAMIC 47P JlK
CERAMIC 2200P K500V
CERAMIC 39P JIK
ELECT 1000U M16V
ELECT 1000U M6.3V
ELECT 470U M16V
ELECT 1000U M16V
ELECT 47U M50V
ELECT 47U M35V
ELECT 220U M6,3V
ELECT 100UM 16V
ELECT 10UM 16V
ELECT 3.3U M50V
ELECT 10UM 16V
ELECT 3.3U M50V
ELECT IOUM 16V
ELECT 3.3U M50V
ELECT 10UM 16V
CERAMIC 100P K500V
ELECT 0.22U M50V
POLYESTER 0,1 U K 50V
MT-GLAZE 1KJA 1/1OW
MT-GLAZE 4.7K JA l/10W
MT-GLAZE 1,8K JA 1/1OW
MT-GUG?E 1.5K JA l/10W
MT-GIAZE 470 JA l/10W
MT-GLAZE 470 JA l/10W
MT-GLAZE 1KJA 1/1OW
MT-GLAZE 47K JA 1/1OW
MT-GLAZE 1.8K JA l/10W
MT-GLAi!E 8.2K JA l/10W
MT-GLAZE 1.5K JA l/10W
CARBON 22K JA l/4W
MT-GLAZE 1KJA l/10W
MT-GLAZE 0.000 ZA l/10W
MT-GLAZE 2.2K JA 1/1OW
MT-GLAZE 1KJA l/10W
CARBON 330 JA l/4W,VHR-7671R ONLY
MT-GIAZE 390 JA 1/1OW,VHR-7671R ONLY
MT-GLAZE 0.000 ZA l/10W
MT-GLAZE 2,2K JA l/10W
MT-GLAZE 0.000 ZA l/10W
MT-GLAZE 1.2M JA 1/1OW
MT-GLAZE 0.000 ZA l/10W
MT-GLAZE 0,000 ZA 1/1OW
MT-GLAZE 0.000 ZA l/10W
MT-GLAZE 0.000 ZA l/10W
MT-GLAZE 2.2K JA l/10W
MT-GLAZE 2.2K JA l/10W
CARBON 1.8K JA l/4W
CARBON 390 JA l/4W
CARBON 75 JA I14W
MT-GIAZE 0,000 ZA l/10W
MT-GLAZE 220 JA l/10W
MT-GLAZE 270 JA l/10W
MT-GLAZE 0,000 ZA l/10W
MT-GLAZE 3.3K JA l/10W
MT-GME 220 JA l/10W
MT-GLAZE 220 JA l/10W
CARBON IOJA l/4W
MT-GLAZE 4.7K JA l/10W
MT-GLAZE 12K JA l/10W
MT-GLAZE 12K JA l/10W
MT-GLAZE 330K JA 1/1OW
MT-GLAZE 160 JA l/10W,VHR-7671R ONLY
MT-GLAZE 270 JA l/10W,EXCEPT VHR-7671R
MT-GLAZE 3.9K JA l/10W,VHR-7671R ONLY
MT-GWE 5,6K JA l/10W,EXCEPT VHR-7671R
MT-GLAZE 12K JA l/10W,EXCEPT VHR-7671R
MT-GIAZE 3,9K JA l/10W,VHR-7671R ONLY
MT-GIAZE 4,7K JA l/10W
R2009
R2010
R2011
R2017
R2017
R2021
R2022
R2023
R2024
R2025
R2026
R2027
R2028
R2029
R2030
R2031
R2301
R2302
R2303
R2303
R2303
R2304
R2304
R2304
R2305
R2305
R2305
R2306
R2306
R2306
R2307
R2308
R2309
R2310
R2313
R2314
R2322
R2323
R2324
R2325
R2327
R2329
R2331
R2331
R2332
R2332
R2333
R2333
R2334
R2334
R2335
R2336
R2337
R2340
R2341
R2342
R2343
R2344
R2345
R2347
R2351
R2352
R2353
R2354
R2355
R2356
R2361
R2362
...... ....
4010383900
4010383702
4010375608
4010387700
4010390403
4010382200
4010379200
4010375400
4010386208
4010118809
4010380701
4010380701
4010379101
4010375608
4010380800
4010375004
4010201907
4010201907
4010378005
4010382200
4010383702
4010378005
4010382200
4010383702
4010379309
4010380800
4010385300
4010379309
4010380800
4010385300
4010375400
4010375400
4010386406
4010386406
4010375004
4010375004
4010232703
4010382200
4010382200
4010144006
4010163700
4010381005
4010375004
4010376704
4010375608
4010385102
4010382200
4010383702
4010379309
4010383702
4010386406
4010144006
4010144006
4010182701
4010212903
4010212903
4010124404
4010126903
4010126903
4010201807
4010181506
4010386208
4010378005
4010375103
4010380800
4010383702
4010125609
4010125609
------- ... ..
MT-GLAZE 3.3M JA l/10W
MT-GLAZE 33K JA l/10W
MT-GMZE 10K JA 1/1OW
MT-GLAZE 5.6K JA l/10W,EXCEPT VHR-7671R
MT-GIAZE 8,2K JA l/10W,VHR-7671R ONLY
MT-GLAZE 27K JA 1/1OW
MT-GLAZE 1.8K JA l/10W
MT-GIAZ’E 1KJA l/10W
MT-GLAZE 47 JA l/10W
CARBON 1JA l/4W
MT-GLAZE 2.2K JA l/10W
MT-GLAZE 2.2K JA l/10W
MT-GIAZE 180 JA l/10W
MT-GLAZE 10K JA 1/1OW
MT-GLAZE 22K JA 1/1OW
MT-GLAZE 0,000 ZA l/10W
CARBON 4.7K JA l/4W
CARBON 4.7K JA 114W
MT-GIAZ’E 15K JA l/10W,VHR-7671R ONLY
MT-GLAZE 27K JA l/10W,
VHR-790(NEWZEALAND) ONLY
MT-GLAi!E 33K JA l/10W,
VHR-79(AUSTRALIA)0 ONLY
MT-GLAZE 15K JA l/10W,VHR-7671R ONLY
MT-GLAZE 27K JA l/10W,
VHR-790(NEWZEALAND) ONLY
MT-GLAZE 33K JA l/10W,
VHR-790(AUSTRALIA) ONLY
MT-GLAZE 18K JA l/10W,
VHR-790(AUSTRALIA) ONLY
MT-GLAZE 22K JA l/10W,
VHR-790(NEWZEALAND) ONLY
MT-GLAZE 39K JA l/10W,VHR-7671R ONLY
MT-GLAZE 18K JA l/10W,
VHR-790(AUSTRALIA) ONLY
MT-GLAZE 22K JA l/10W,
VHR-790(NEWZEALAND) ONLY
MT-GLAZE 39K JA l/10W,VHR-7671R ONLY
MT-GLAZE 1KJA l/10W,EXCEPT VHR-7671R
MT-GIAZE 1KJA l/10W,EXCEPT VHR-7671R
MT-GLAZE 4,7K JA l/10W,EXCEPT VHR-7671R
MT-GLAZE 4.7K JA 1/1OW,EXCEPT VHR-7671R
MT-GLAZE 0.000 2% l/10W
MT-GLAZE 0.000 ZA l/10W
CARBON 8.2K JA l/4W
MT-GLAZE 27K JA l/10W
MT-GLAZE 27K JA l/10W
CARBON 1,5K JA l/4W
CARBON 2.2K JA l/4W
MT-GLAZE 2,2M JA l/10W
MT-GLAZE 0,000 ZA l/10W,EXCEPT VHR-7671R
MT-GLAZE 1.2K JA 1/1OW,VHR-7671R ONLY
MT-GLAZE IOKJA l/10W,EXCEPT VHR-7671R
MT-GIAZE 3,9K JA l/10W,VHR-7671R ONLY
MT-GLAZE 27K JA l/10W,VHR-7671R ONLY
MT-GLAZE 33K JA l/10W,
VHR-790(NEWZEALAND) ONLY
MT-GIAZE 18K JA l/10W,
VHR-790(NEWZEALAND) ONLY
MT-GLAZE 33K JA l/10W,VHR-7671R ONLY
MT-GLAZE 4.7K JA l/10W
CARBON 1.5K JA l/4W
CARBON 1.5K JA l/4W
CARBON 330 JA l/4W,VHR-7671R ONLY
CARBON 5.6K JA l/4W,VHR-7671R ONLY
CARBON 5.6K JA l/4W,VHR-7671R ONLY
CARBON 100 JA l/4W,VHR-7671R ONLY
CARBON 10K JA l/4W,VHR-7671R ONLY
CARBON 10K JA l/4W,VHR-7671R ONLY
CARBON 4.7K JA l/4W,VHR-7671R ONLY
CARBON 33 JA l/4W,EXCEPT VHR-7671R
MT-GLAZE 47 JA l/10W,EXCEPT VHR-7671R
MT-GLAZE 15K JA l/10W,EXCEPT VHR-7671R
MT-GLAZE 10 JA l/10W,EXCEPT VHR-7671R
MT-GIAZE 22K JA l/10W,EXCEPT VHR-7671R
MT-GLAZE 33K JA l/10W,EXCEPT VHR-7671R
CARBON 1KJA l/4W,EXCEPT VHR-7671R
CARBON 1KJA l/4W,EXCEPT VHR-7671R
–20 –
