Sartorius Talent Series User manual

WTE5001-e03101
Service Manual
Sartorius Talent | Gem, Gold
TE Models
Electronic Analytical and Precision
Balances and Precious Metal Scales
Including Service Specification Sheets

2
Contents
04 Generals Information
04 Important Information
05 Service Concept for TE- Balances/Scales
05 Valid until Revoked
06 General Notes
06/08 Service Guide
09 Models with Special Weighing Systems
09 Model 1
10 Model 2
11 Model 3
12 Model 4
13 Auxiliary Service Tools, Equipment and Weights
14 Accompanying Literature
14 Weights
17 Handling and Operating the TE Balances/Scales
17 Function of the Keys
18 Displaying the Hardware and Software Versions
19 Operating Menu Access Switch
20 Balance/Scale Operating Menu
20/21Accessing the Balance/Scale Operating Menu and
Changing the Settings
22/25Menu Code Settings (Version 19.41)
26/27Activating the BPI Mode
28 Balances/Scales with Strain Gauge Systems
29 Checking and Adjustment Sequence
29 Checking the Overload Stop
30 Table of Weights for Overload Stop
31 Checking the Overload Stop
32 Zero-point Offset Value
32 Adjusting the Zero-point Offset Value
33 Table of Adjustment Resistors
34 Repeatability (Standard Deviation)
34 Checking the Repeatability
(Standard deviation „S“)
35 Off-center Error
35 Checking the Off-Center Error
35 Adjusting the Off-Center Error
36 Span Adjustment
37 Adjusting Linearity
37 Checking the Linearity
37 Adjusting the Linearity

3
38 Balances/Scales with Double Lever
38 Checking and Adjustment Sequence
38 Checking the Overload Stops
38 Adjusting the Overload Stops
39 Repeatability (Standard Deviation)
39 Checking the Repeatability
(Standard deviation „S“)
40 Off-center Error
41 Checking the Off-Center Error
42 Adjusting the Off-Center Error
43 3-point Adjustment
44 Procedure for Adjusting the Off-Center Error
(Double-Lever System)
45 Position of the Systems in the Balance/Scale
46 Span Adjustment
47 Adjusting External Linearity
47 Checking the Linearity
47 Adjusting the Linearity
Contents
48 Opening and Closing the Balance/Scale
48 Opening the Balance/Scale
48 Closing the Balance/Scale
49 Replacing the PCB
50 Replacing the Data Output Port
51/52 Error Codes
53/54 Service Specifications

4
Generals Information
Important Information
Any persons servicing or working on high-resolution Sartorius Competence
balances/scales should have successfully completed a service course at the
Sartorius headquarters in Goettingen. Do not perform any unauthorized repair
work!

5
Service Concept for TE- Balances/Scales
Valid until further notice
- All calibration/adjustment work required for starting up operations and tests
must be carried out in accordance with the operation instructions.
- Quality defects.
o Immediately report all quality defects that may occur to the Quality
Assurance Department (WQM).
- Defective balances/scales
o Warranty.
• Within the first 6 months of installation, any defective balance/scale
covered by the warranty should be exchanged.
o Seal of warranty.
• If you have to remove the Seal of Warranty, please affix your
Company control seal to the unit!
o In other cases, proceed according to the OAW135 (standard operating
procedure for returns for repairs).
• Defective weighing systems.
Proceed as described in the Service Concept for Weighing Cells, refer
to (Service Information Document 6.2001 / OAW135-2/3).
• Defective electronics.
These balances/scales along with an error record should be sent back
to the Central Mechanics Workshop (ZW) in Goettingen (OAW135-2).
• Other service situations can be dealt with on site, for example:
Broken draft shields; weighing pan can no longer be used;replacing
small parts, ... etc

6
General Notes
Service Guide
1. Check the repeatability
Balance/Scale with strain gauge system (standard deviation, see page 34)
Balance/Scale with double lever system (standard deviation, see page 39)
2. Check the off-center loading error and adjust as required
Balance/Scale with strain gauge system (see page 35)
Balance/Scale with double lever system (see page 40/41)
3. Adjust the sensitivity with external calibration weight
Balance/Scale with strain gauge system (see page 36)
Balance/Scale with double lever system (see page 46)
4. Adjust the linearity is preferably performed using the sequential method,
or with calibrated weights,
Balance/Scale with strain gauge system (see page 37)
Balance/Scale with double lever system (see page 47)
Activating the BPI Mode/ Perform only before working with the Sartorius Service Software;
Deactivating write-protect for calibration/adjustment. Linearization and programming a data record when
exchanging the main PCB.

7
Reset write-protect After working with the Sartorius Service Software, always make sure to
conclude with the „Close“ function (returning the balance from BPI back to SBI
mode), otherwise write-protect is not set, and the balance/scale remains in the
BPI mode (see Page 25). If all else fails, reset the SBI mode by selecting menu
reset (9-1°).
Exchanging the Main PCB When ordering replacement PCBs, always state the model and the serial
number, based on this information a preprogrammed new PCB set can be
delivered.
Weighing systems - Double lever system, Strain gauge system
Opening the housing - Unscrew the 2 (sealed) screws on the reverse side and slide the upper half
of the housing back.
- After closing the balance/scale, the service technician or service
organization must reaffix another control seal!
Service software – Must be used for adjusting weighing instruments when tolerance levels are
exceeded by ± 2% (span, linearity, offset, zeropoint).
Do not use out-dated software versions.
Adjusting the off-center load – Strain-gauge weighing systems and model TE3102 devices are adjusted by
filing the thin parts. Model TE214S and TE313S devices are adjusted using
the off-center value adjustment screws.
Span adjustment – Can be performed using external calibrated (i.e., certified) weights.

8
BPI switch – (BPI = Binary Prozessor Interface) to prepare for working with Sartorius
service software, log out with „CLOSE“ function (to reset for SBI functions).
– Or if all else fails by resetting the operating menu (9-1°)
Be careful, the factory settings are activated.
“ ERR 30 is also shown after pressing the rkey, if the wrong interface
cable is used!

9
Models with Special Weighing Systems

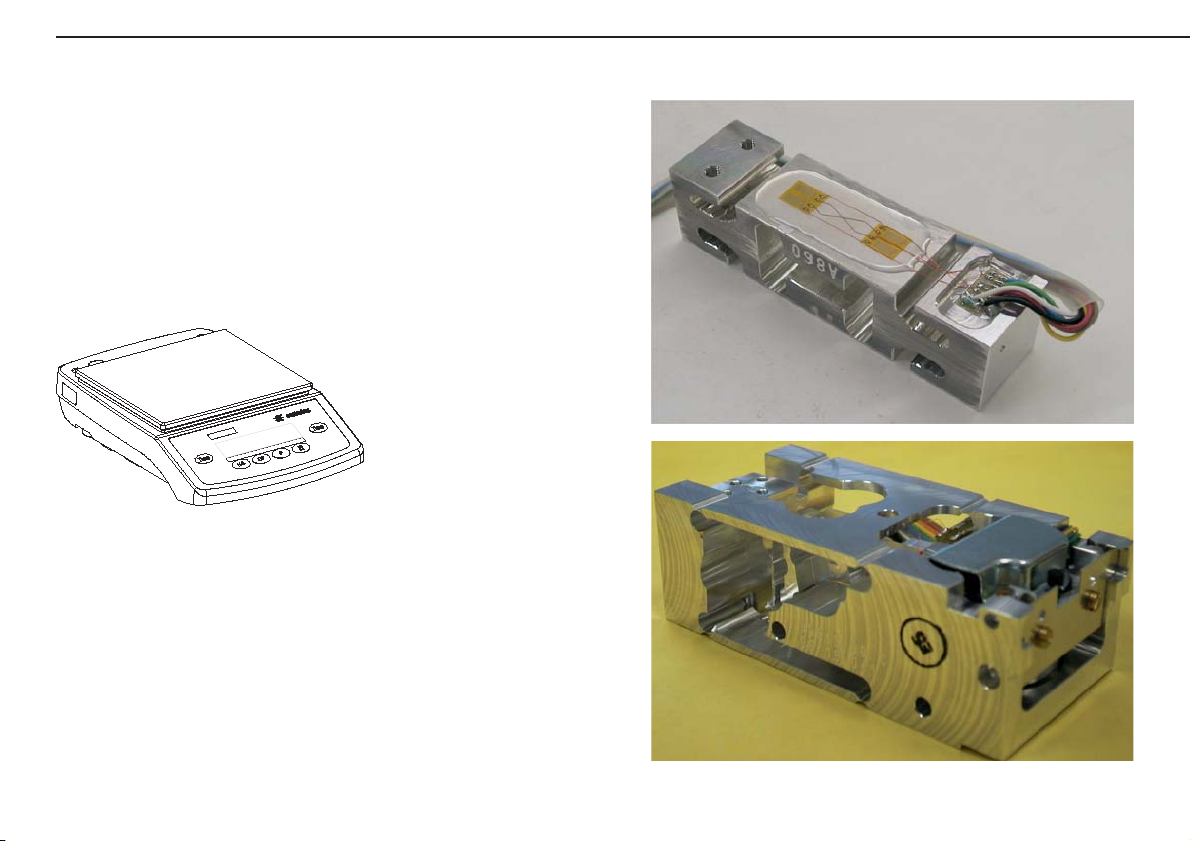

Model Weighing Systems
Model 1
Weighing system:
Double Lever Systems
with off-center
adjustment screws (P)
(see right)
Resolution: 0.1 mg
TE64
TE124S
TE214S
Resolution: 1 mg
TE313S-DS
Weighing system:
(Strain gauge) (see right)
Resolution: 1 mg
TE153S-DS
TE-Modell-Nr1.eps
PP
PP
P

10
Model Weighing Systems
Model 2
Weighing system:
Double Lever Systems
(see right)
Resolution:1mg
TE313S
Resolution: 0,001ct
GD103
GD603
Weighing system:
Strain gauge (see right)
Resolution: 0,001g
TE153S
Resolution: 0,01ct
GD252
Bauform-Nr2.eps
PP
PP
P

11
Model Weighing Systems
Model 3
Weighing system:
(Strain gauge) (see right)
Resolution: 0,01g
TE212 TE212-L
TE412 TE412-L
TE612 TE612-L
GE212
GE412
GE812
TE-Modell-Nr3.eps

12
TE-Modell-Nr4.eps
Model Weighing Systems
Model 4
Weighing system:
Strain gauge) (see right)
Resolution: 0,01g
TE1502S
GE1302, GE2102
Resolution: 0,1g
TE601 TE601-L
TE2101 TE2101-L
TE4101 TE4101-L
TE6101 TE6101-L
GE811, GE2101, GE7101,
GE4101
Resolution: 1g
TE12000 TE12000-L
TE6100 TE6100-L
TE4100 TE1200-0CE
Weighing system:
Double Lever Systems
(see right)
Resolution: 0,01g
TE3102S

13
Auxiliary Service Tools, Equipment and Weights
Caution: After removing the seal (warranty label) and finishing service work, reaffix
your company control seal!
Please make sure that you use the proper tools and equipment and that the
balance/scale is set up on a solid, levelled surface and in a clean work area,
free of vibrations and drafts.
Sartorius service software 6740-33
BPI- connecting / Service Data output 6740-71
RS232 connecting cable (25-Pin /25-Pin) 7357312
RS232 connecting cable (25-Pin / 9-Pin) 7357314
Accompanying Literature
Operating Instructions Sartorius Talent/TE Series/Sartorius Gem Publication
No: WTE6003-d03071

14
Weights
In addition to your standard tools and equipment, you will need the following
sets of weights when working on Sartorius balances/scales:
Model Accuracy Weight Catalog No.:
class (OIML) in grams
TE214S E2 1x200 YCW5228
TE212, TE212-L
TE124S, GD603 E2 1x100 YCW5128
TE64 E2 1x50 YCW4528
TE313S, TE313S-DS E2 1x200 + YCW5228 +
E2 1x100 YCW5128
GD103 E2 1x50 YCW4528
GD252 F1 1x50 YCW4538
TE153S, TE153S-DS E2 1x100 + YCW5128 +
E2 1x50 YCW4528
TE612, TE612-L F2 1x500 + YCW5548 +
1x100 YCW5128
TE412, TE412-L F2 2x200 YCW5248
GE412

15
Model Accuracy Weight Catalog No.:
class (OIML) in grams
TE212, TE212-L F2 2x100 YCW5148
GE212
GE812 F1 1x500 + YCW5538 +
F1 1x200 + YCW5238 +
F1 1x100 YCW5138
TE1502S F1 1x1000 + YCW6138 +
F1 1x500 YCW5538
GE2102 E2 1x2000 + YCW6228 +
E2 1x200 YCW5228
GE1302 E2 1x1000 + YCW6128 +
E2 1x200 + YCW5228 +
E2 1x100 YCW5128
TE3102S E2 1x2000 + YCW6228 +
E2 1x1000 + YCW6128 +
E2 1x100 YCW5128
TE6101, TE6101-L F1 1x5000 + YCW6538 +
F1 1x1000 + YCW6138 +
F1 1x100 YCW5138
TE4101, TE4101-L F2 2x2000 + YCW6248 +
GE4101 F2 1x100 YCW5148

16
Model Accuracy Weight Catalog No.:
Accuracy in grams
GE7101 F1 1x5000 + YCW6538 +
F1 1x2000 + YCW6238 +
F1 1x100 YCW5138
TE2101, TE2101-L F2 2x1000 + YCW6148 +
GE2101 F2 1x100 YCW5148
TE601, TE601-L F2 1x500 + YCW5548 +
F2 1x100 YCW5148
GE811 F2 1x500 + YCW5548 +
F2 1x200 + YCW5248 +
F2 1x100 YCW5148
TE12000, TE12000-L F2 1x10000 + YCW7148 +
F2 1x2000 YCW6248
TE6100, TE6100-L F2 1x5000 + YCW6548 +
F2 1x1000 + YCW6148 +
F2 1x100 YCW5148
TE4100 F2 1x2000 + YCW6248 +
F2 1x100 YCW5148

17
Bedienfeld-TE.eps
3
Handling and Operating the TE Balances/Scales
Function of the Keys
Position Description
1 Weighing unit
2 Data output (Print)
3 Function key:
activates selected applications program
4 Activate calibration/adjustment mode
5 ON/OFF key:
Switches the display on and off.
(The balance/scale may remain on -
depending on the factory setting.)
6 Taring
7 Manufacturer’s ID label
8 Weight display depending on the
selected basic unit

18
Anz-rel07F.eps
Anz-000F.eps

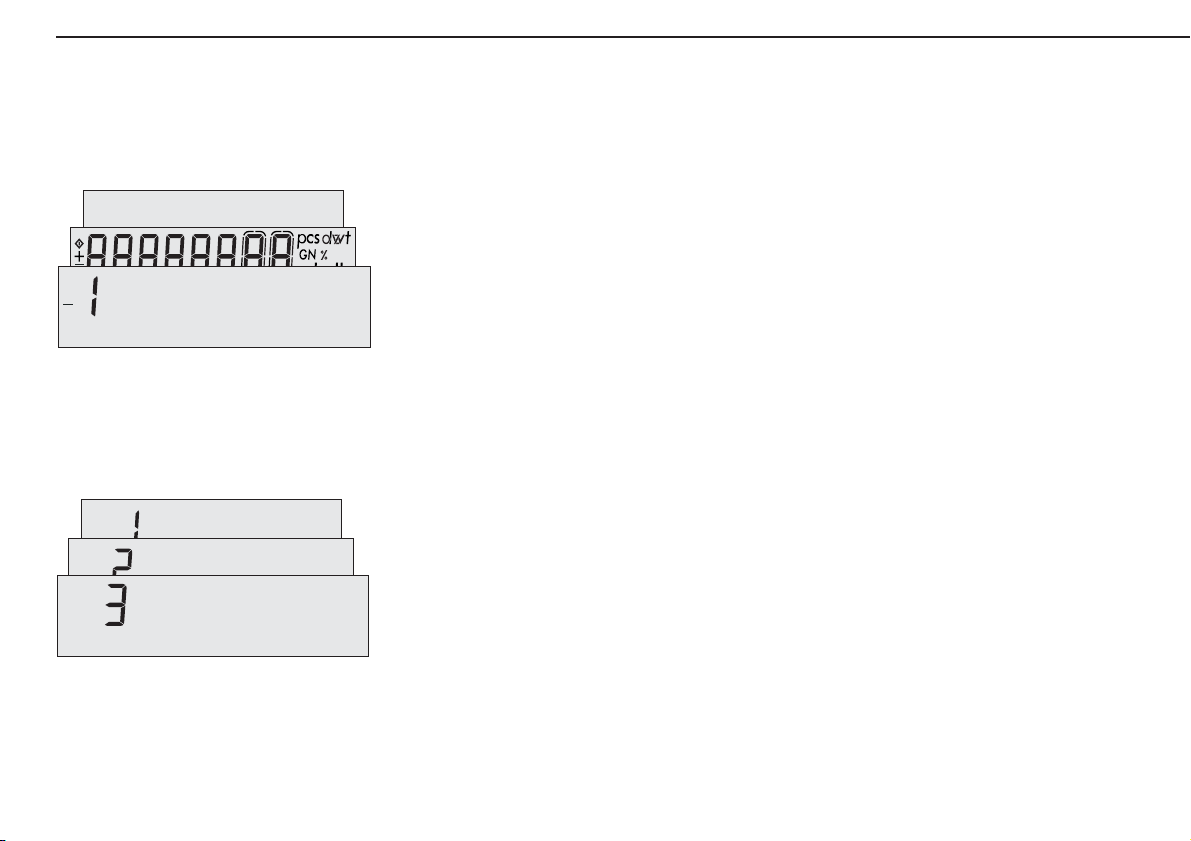

Displaying the Hardware and Software Versions
- Turn the balance/scale off and back on again with the e button.
- While all display segments are lit („Segment Test“), briefly press the r
key, the pattern shown to the left appears in the display.
- This remains displayed for around 3 sec.
- The first number shows the hardware generation; the last two numbers the
software version.
- The display returns to the normal weight readout mode.

19
Operating the Menu Access Switch
The menu access switch is found only on balance/scale versions that are verified
for use in legal metrology. The switch is located under a protective cap on the
bottom of the balance/scale.
Note:
Span adjustment with external weights can be performed without the Sartorius
service software if the deviation does not exceed ± 2% of the required weight.
Procedure:
1. Open the menu access witch (move to the right)
2. Make sure menu item 1 - 5 - 1 is active (see page 36)
3. Press the qkey
4. Adjust the balance/scale as needed
5. Close the menu access switch (this step is essential for
verified operation of the balance/scale)
left right
(Standard)

20
Anz-001F.eps
Anz-002F.eps
Balance/Scale Operating Menu
Accessing the Balance/Scale Operating Menu and Changing the Settings
Accessing the Menu: e+ t
– Turn the balance/scale off and then turn it on.
– Press tbriefly while all display segments are lit.
– If “- 1” is displayed, the menu is locked (read-only).
Note: To unlock the operating menu, change the active menu setting from
menu item 8 - 1 - 2 to 8 - 1 - 1.
Selecting a Menu Item: „rand t
– Press the t key to change the selected number; the display scrolls from 1
to 9 and starts over again at 1
– Press the rkey to change the cursor position (the cursor moves from the
1st to the 2nd to the 3rd position and then back to the 1st, etc.)
