Satel ACSP SPP-401 User manual

Addressable fire alarm sounder
for outdoor use
SPP-401
Firmware version 1.00
spp-401_en 02/23
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. [phone]
www.satel.pl
EN

IMPORTANT
The device should be installed by qualified personnel.
Prior to installation, please read carefully this manual in order to avoid mistakes that can lead
to malfunction or even damage to the equipment.
Disconnect power before making any electrical connections.
Changes, modifications or repairs not authorized by the manufacturer shall void your rights
under the warranty.
The following symbols may be used in this manual:
- note,
- caution.

The SPP-401 outdoor sounder is used for acoustic alarm signaling. It is designed to operate
in the detection line of the ACSP-402 addressable fire alarm control panel.
1. Features
Acoustic signaling by means of piezoelectric transducer.
Signaling controlled by the control panel:
–different tones for different alarm conditions.
–32 selectable tones.
Double-sided short-circuit isolator.
Power supply from the detection line.
2. Installation
Disconnect power before making any electrical connections.
The sounder is designed for installation outdoors and indoors in places where condensation
of water vapor may occur.
1. Turn the cover counter-clockwise and remove it (Fig. 1).
2. Drill the holes for screws in the enclosure base. Use the countersunk screws (Fig. 2) or
the non-countersunk screws (Fig. 3) to fasten the enclosure base to the wall.

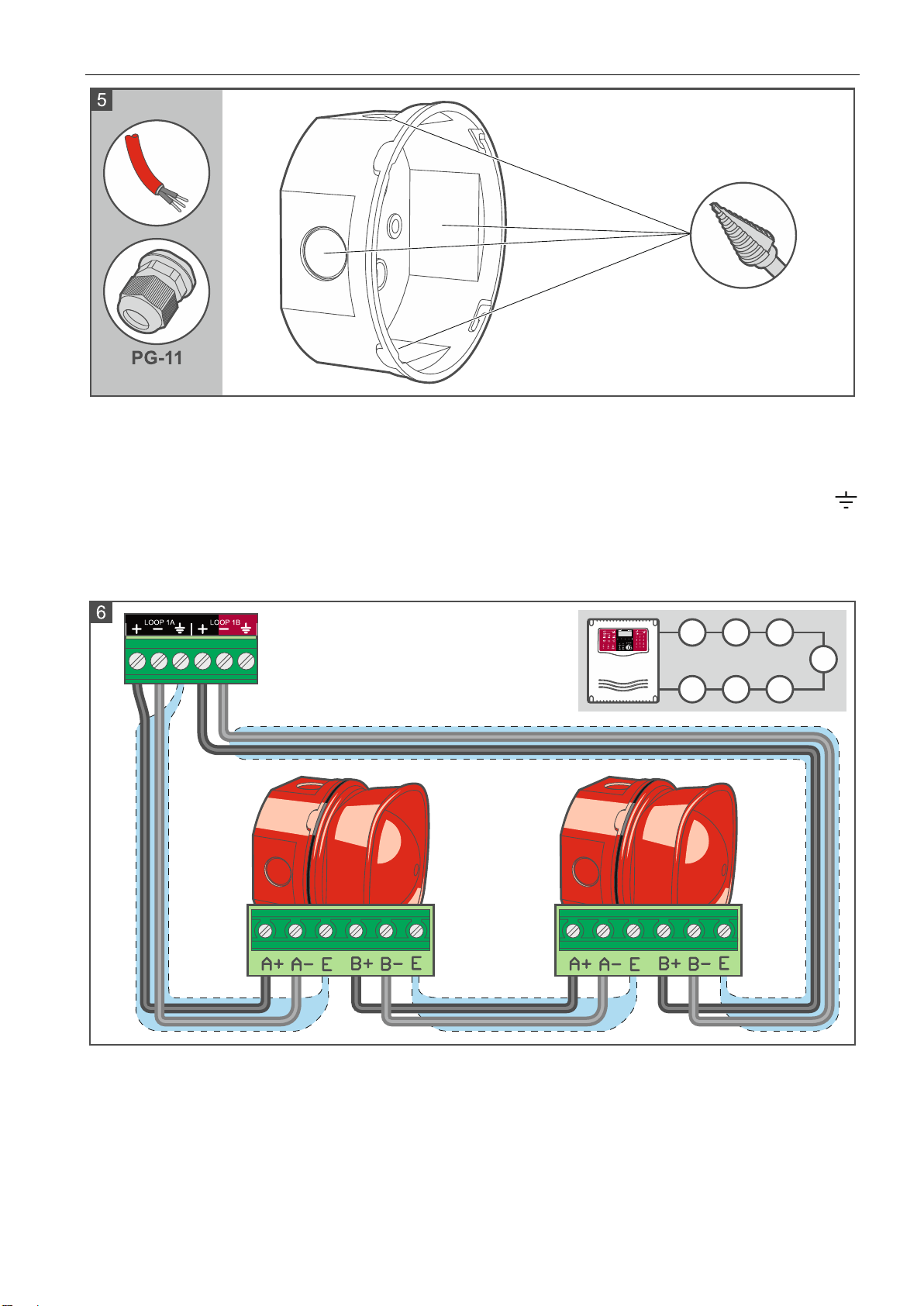

3. Drill the hole(s) for cables in the enclosure base. The markings for the holes are provided
on the bottom (Fig. 4) and on the sides (Fig. 5) of the base. If you drill the holes in the
sides of the base, use cable glands (recommended cable gland: PG-11).
4. Place the enclosure base against the wall and mark the location of mounting holes.
5. Drill the holes for wall plugs (screw anchors) in the wall.
6. Run the cables inside the enclosure base.
7. Use wall plugs and screws to secure the enclosure base to the wall. Select wall plugs
specifically intended for the mounting surface (different for concrete or brick wall, different
for plaster wall, etc.). If you drilled the holes for wires and/or wall plugs on the bottom of
the base, seal them using silicone.

2 SPP-401 SATEL

SATEL SPP-401 3
8. Connect the detection line wires to the sounder (Fig. 6 –loop; Fig. 7 –radial circuit).
To terminals A+ and A-, connect the wires from the control panel / previous device.
Connect the wires to terminals B+ and B- to connect the sounder to the next device /
control panel. For radial circuits, if the sounder is the last device in the circuit, do not
connect the wires to terminals B+ and B- (Fig. 7). Connect the cable shields to the E /
terminals.
9. Replace the cover and turn it clockwise (Fig. 8).
10.Lock the cover with a screw (Fig. 9).

4 SPP-401 SATEL

SATEL SPP-401 5
3. Acoustic signaling
Configure the acoustic signaling settings in the control panel. For each alarm condition you
can select one of the 32 available tones (see: Table 1).
No
Acoustic signaling
Frequency Hz
Description
1
800 & 970
2 Hz (250 ms –250 ms)
2
800-970
7 Hz (7/s)
3
800-970
1 Hz (1/s)
4
2850
Continuous
5
2400-2850
7 Hz
6
2400-2850
1 Hz
7
500-1200
3 s sound, 0.5 s silence, repeated
8
1200-500
1 Hz
9
2400-2850
2 Hz (250 ms –250 ms)
10
970
0.5 Hz (1 s)
11
800 & 970
1 Hz (500 ms –500 ms)
12
2850
0.5 Hz (1 s)
13
970
0.8 Hz (250 ms / 1 s)
14
970
Continuous
15
554 & 440
100 ms –400 ms
16
660
3.3 Hz (150 ms)
17
660
0.28 Hz (1.8 s)
18
660
0.05 Hz (13 s / 6.5 Hz)
19
660
Continuous
20
554 & 440
0.5 Hz (1 s)
21
660
1 Hz (500 ms –500 ms)
22
2850
4 Hz (150 ms –100 ms)
23
800-970
50 Hz
24
2400-2850
50 Hz

6 SPP-401 SATEL
25
970
3 x 500 ms sound, 1.5 s silence, repeated
26
800-970
3 x 500 ms sound, 1.5 s silence, repeated
27
970 & 800
3 x 500 ms sound, 1.5 s silence, repeated
28
2400
Continuous
29
990 & 650
2 Hz (250 ms –250 ms) (Symphoni Tones)
30
510 & 610
2 Hz (250 ms –250 ms) (Squashni Micro Tones)
31
300-1200
1 Hz
32
510 & 610
1 Hz (500 ms –500 ms)

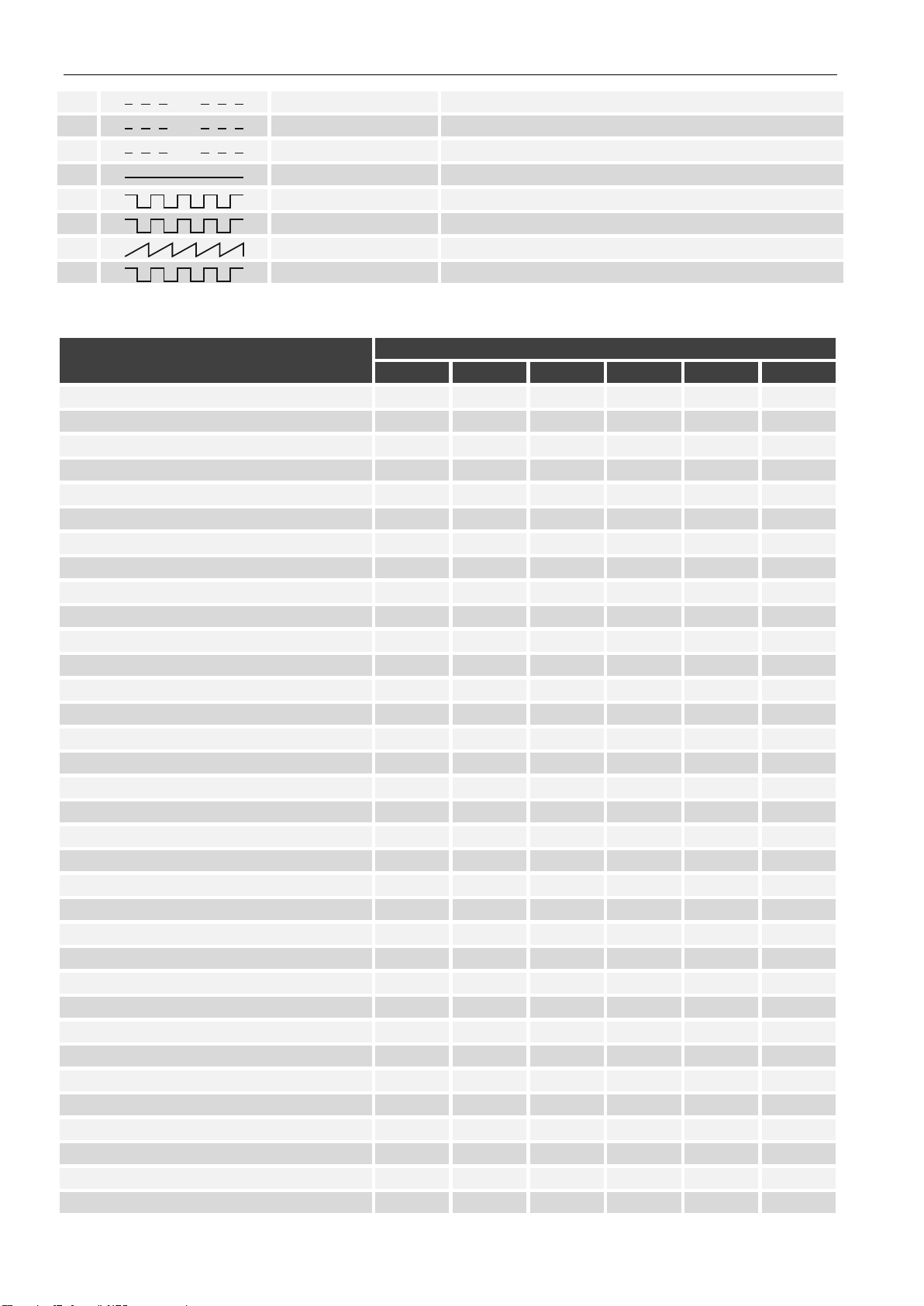

Table 1.
Tone / supply voltage
Angle-dependent [°] minimum sound level [dBA]
15°
45°
75°
105°
135°
165°
1 / 18 VDC
81.1
87.2
91.5
91.9
87.1
80.7
1 / 26 VDC
82.9
88.9
94.4
94.6
91.5
84.1
2 / 18 VDC
79.3
86.9
90.5
90.2
85.4
78.4
2 / 26 VDC
82.1
88.8
92.9
93.0
89.3
81.1
3 / 18 VDC
80.2
88.0
91.7
91.8
86.3
79.5
3 / 26 VDC
82.5
89.3
93.9
94.1
89.9
81.6
4 / 18 VDC
71.8
82.7
85.0
84.1
82.1
72.1
4 / 26 VDC
71.0
81.5
83.6
85.3
83.1
71.6
5 / 18 VDC
76.1
85.3
86.6
86.0
83.2
74.6
5 / 26 VDC
76.2
84.6
86.5
87.1
84.9
76.0
6 / 18 VDC
78.0
86.7
88.0
86.8
85.1
75.8
6 / 26 VDC
77.5
85.5
86.7
87.4
85.4
77.0
7 / 18 VDC
80.1
87.5
91.7
91.8
86.1
80.4
7 / 26 VDC
83.8
88.9
94.5
94.8
90.8
83.3
8 / 18 VDC
79.7
87.0
90.9
90.9
85.4
79.1
8 / 26 VDC
82.4
88.5
93.4
93.6
89.5
82.3
9 / 18 VDC
75.9
81.6
86.9
86.2
80.6
74.7
9 / 26 VDC
76.0
81.6
86.1
87.3
83.0
76.2
10 / 18 VDC
79.9
87.2
91.6
91.8
87.5
81.1
10 / 26 VDC
83.9
88.7
94.5
94.4
91.4
83.6
11 / 18 VDC
79.8
87.3
91.9
92.1
87.5
80.4
11 / 26 VDC
82.9
88.5
93.8
94.1
90.7
83.3
12 / 18 VDC
71.4
83.9
86.7
85.8
83.5
72.7
12 / 26 VDC
75.8
86.2
88.6
89.6
87.9
76.1
13 / 18 VDC
79.3
86.9
91.5
91.7
87.1
80.1
13 / 26 VDC
83.3
88.7
94.1
94.8
91.0
83.6
14 / 18 VDC
79.4
86.9
91.4
91.6
87.3
80.8
14 / 26 VDC
81.7
88.1
93.2
93.4
90.3
82.5
15 / 18 VDC
77.2
84.2
87.2
87.1
82.3
77.1
15 / 26 VDC
78.3
84.8
88.6
88.7
84.9
78.6
16 / 18 VDC
76.6
85.6
87.9
87.7
84.0
75.2
16 / 26 VDC
81.0
86.6
91.1
91.5
87.7
80.8
17 / 18 VDC
78.0
86.9
89.3
89.3
84.8
78.0
17 / 26 VDC
82.2
87.9
92.5
92.7
88.8
82.1

SATEL SPP-401 7
Tone / supply voltage
Angle-dependent [°] minimum sound level [dBA]
15°
45°
75°
105°
135°
165°
18 / 18 VDC
77.9
86.8
89.1
88.9
85.1
77.3
18 / 26 VDC
88.2
87.7
92.2
92.6
88.8
81.9
19 / 18 VDC
78.0
87.0
89.3
89.2
84.8
77.2
19 / 26 VDC
82.3
87.9
92.4
92.8
88.8
82.1
20 / 18 VDC
77.0
84.0
87.6
87.4
82.7
77.5
20 / 26 VDC
78.3
84.6
88.3
88.7
84.9
78.4
21 / 18 VDC
77.8
87.1
89.2
89.1
84.7
77.0
21 / 26 VDC
82.2
88.0
92.5
92.7
88.9
82.1
22 / 18 VDC
72.5
84.6
87.7
86.6
84.4
73.7
22 / 26 VDC
74.9
85.4
87.5
88.3
86.7
75.1
23 / 18 VDC
79.1
86.5
89.8
89.6
84.6
78.1
23 / 26 VDC
81.8
88.4
92.5
92.6
89.1
81.1
24 / 18 VDC
75.7
84.0
86.5
85.6
82.8
74.1
24 / 26 VDC
75.9
84.3
86.1
86.6
84.3
75.7
25 / 18 VDC
79.9
87.4
92.0
92.1
87.5
80.9
25 / 26 VDC
82.7
88.8
94.2
94.9
91.8
84.3
26 / 18 VDC
80.0
86.9
91.1
90.8
85.5
78.6
26 / 26 VDC
82.8
88.6
94.0
93.9
89.6
81.6
27 / 18 VDC
79.4
86.9
91.5
91.7
87.1
80.1
27 / 26 VDC
82.4
88.5
94.0
94.8
91.6
84.1
28 / 18 VDC
75.7
79.5
86.9
86.0
78.8
74.6
28 / 26 VDC
76.4
80.3
85.9
87.1
80.5
76.4
29 / 18 VDC
78.9
87.5
90.9
90.8
85.4
79.5
29 / 26 VDC
84.0
88.4
94.1
94.5
90.2
84.1
30 / 18 VDC
77.2
85.5
89.0
88.9
83.6
77.1
30 / 26 VDC
80.7
88.4
92.3
92.0
87.9
79.9
31 / 18 VDC
78.9
86.4
90.1
90.2
84.9
78.8
31 / 26 VDC
79.8
86.5
91.7
91.8
87.9
80.5
32 / 18 VDC
77.1
85.5
89.0
89.0
83.7
77.3
32 / 26 VDC
80.7
88.3
92.2
91.9
87.8
79.8
Table 2.
4. Maintenance
The fire alarm system elements require regular maintenance. The periodic checks of the
SPP-401 sounder should be carried out at least every 6 months. In spaces where working
conditions are difficult (e.g. dust, aggressive environment that may cause corrosion, etc.),
the periodic checks should be carried out more often.
As part of maintenance, start a test in the control panel and make sure the acoustic signaling
is working. Please go to the ACSP-402 control panel manuals to find out how to start the test.
Start of the test and test activation of devices will be registered in the control panel event log.
During the test, make sure the device is in its right place (e.g. it has not been swapped with
another device).

8 SPP-401 SATEL
5. Specifications
Supply voltage ....................................................................................................... 18...26 VDC
Quiescent current consumption ....................................................................................0.25 mA
Alarm current consumption............................................................................................... 4 mA
Operating temperature range...............................................................................-25°C...+70°C
Maximum humidity..............................................................................................................95%
Protection rating................................................................................................................. IP65
Operating environment type.................................................................................................... B
Dimensions................................................................................................. 108 x 108 x 96 mm
Weight...............................................................................................................................227 g
