SATO LM408-LM412e User manual

PN: 9001157D
LM408-412e
PRINTER
PARTS LIST

PN: 9001157D
SATO America, Inc.
10350A Nations Ford Road
Charlotte, NC 28273
Main Phone: [phone]
Technical Support: [phone]
Technical Support Fax: [phone]
E-Mail: satosale[email protected]
[e-mail]
www.satoamerica.com

LM408-412e Parts List 1/15 PN: 9001157D
COVER ASSEMBLY
Figure PL1a, Frame & Housing Covers (1)
Figure PL1b, Frame & Housing Covers (2)

LM408-412e Parts List 2/15 PN: 9001157D
Figure PL1c, Frame & Housing Covers (3)
FRAME & HOUSING COVERS (1-3)
ITEM PART NUMBER PART DESCRIPTION
1 PR3770550 BASE FRAME
2 PT6680100 CASE LEG
3 PR3770350 CENTER FRAME
4 MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
5 PZ0771050 REAR COVER
6 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
11 PA1772100 GUIDE PLATE
12 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
13 PA1773500 UNWIND BRACKET
14 PA4520300 STOPPER SPRING
15 PE1720350 LABEL STOPPER
16 MH0300822 PAN HEAD SCREW, P-TIGHT
17 NA1030022 FLAT WASHER
18 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER

LM408-412e Parts List 3/15 PN: 9001157D
33 P00165010 BASE JOINT BRACKET FOR PRINT ASSEMBLY
34 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
35 PE1770200 ROLLER BRACKET
36 PE3770100 ROLLER, 3.1 x 8 x 16
42 PB0751400 TENSION ROLLER POST
43 PA3741800 TENSION ROLLER BRACKET
44 PB0740900 TENSION ROLLER SHAFT
45 PC0740100 TENSION ROLLER SPRING
46 PE3720100 TENSION ROLLER
47 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
48 ND0040030 SNAP RING, TYPE E
49 MD4301422 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
50 MT1300522 HEXAGON NUT
51 PE6770700 CABLE PROTECTOR
52a PA1775400 BRACKET, MAIN CIRCUIT BOARD, LM408e with S/N 7E032269 and below, and LM412e
with S/N 7J034465 and below
52b P23339000 BRACKET, MAIN CIRCUIT BOARD, LM408e with S/N 7E032270 and above, and LM412e
with S/N 7J034466 and above
53 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
55 P24595000 SPACER MAT
61 R08582000 COVER STICKER, RIGHT-HAND
65 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
66 PH1770150 HOUSING COVER, LEFT SIDE
67 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
78 P11949000 ANTI-STATIC SHEET
101 R08511000 HOUSING COVER, FRONT A
102 P19061000 HOUSING COVER, FRONT B
104 M16225000 FLANGE HEX SCREW, SELF-TAPPING
105 MA1300622 FLAT HEAD SCREW
106 MD4401022 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
110 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
TY-RAP (cable tie - Use any cable tie)
FRAME & HOUSING COVERS (1-3)
ITEM PART NUMBER PART DESCRIPTION

LM408-412e Parts List 4/15 PN: 9001157D
CIRCUIT BOARD ASSEMBLIES
Figure PL2a, Circuit Board Assemblies (1)
Figure PL2b, Circuit Board Assemblies (2)

LM408-412e Parts List 5/15 PN: 9001157D
CIRCUIT BOARD ASSEMBLIES (1 & 2)
ITEM PART NUMBER PART DESCRIPTION
1a R08667000 MAIN CIRCUIT BOARD, LM408e with S/N 7E032269 and below, and LM412e with S/N
7J034465 and below
1b R11474001 MAIN CIRCUIT BOARD, LM408e with S/N 7E032270 and above, and LM412e with S/N
7J034466 and above
4 PC9730100 SPRING, LOCK
5 PA3739900 CONNECTOR CLIP
6 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
90 KA500631A POWER SUPPLY BOARD, 110 VOLT
92 MD4300825 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
93 R00558000 WIRING HARNESS, POWER SUPPLY
95 R08668000 PANEL/LCD BOARD ASSEMBLY
96 R09094000 WIRING HARNESS, PANEL BOARD
97 PE6770600 PROTECTION SCREEN, LCD BOARD
98 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
99 HD100401A FUSE, LF.T3.15AH250V

LM408-412e Parts List 6/15 PN: 9001157D
DRIVE TRAIN & PRINT ASSEMBLY
Figure PL3a, Drive Train & Print Assembly

LM408-412e Parts List 7/15 PN: 9001157D
DRIVE TRAIN & PRINT ASSEMBLY
ITEM PART NUMBER PART DESCRIPTION
1 P00162000 ENGINE FRAME
2 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
3 PE5680000 GUIDE SHAFT
4 MH9300822 PAN HEAD SCREW, P-TIGHT
5 PE1770300 GUIDE BLOCK
6 MH0301022 PAN HEAD SCREW. P-TIGHT
7 PD1770100 STAY, RIGHT ANGLE BRACE
8 MD4401022 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
9 PA1773200 TEAR BAR
10 PE1770800 TEAR BAR END CAP
11 MD4300825 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
12 P00163100 MEDIA RAMP
13 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
14 NA1040022 FLAT WASHER
15 NB0040022 SPRING WASHER
16 MT1400722 HEX NUT
17 PB0770500 LATCH POST
18 NA1030022 FLAT WASHER
19 MD4300825 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
24 MD3401022 PAN HEAD SCREW W/ SPRING WASHER & NARROW FLAT WASHER
27 R03064000 PLATEN ROLLER ASSEMBLY, LM408e, S/N 7E032269 and below & 7E032270 & above
28 R03065000 PLATEN ROLLER ASSEMBLY, LM412e, S/N 7J034465 & below, and 7J034466 & above
29 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
30 PT8127064 TIMING BELT, LWR LM408e, 127MXLx6.4, S/N 7E032269 & below, and 7E032270 & above
31 PT8130064 TIMING BELT, LWR LM412e, 130MXLx6.4, S/N 7J034465 & below, and 7J034466 & above
32 PA1770800 SUPPORT CLAMP
33 MD4401022 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
34 PR7770100 LABEL SENSOR ASSEMBLY
35 PE2770400 COLLAR, 6 x 9 x 1, NYLON
36 PC1770100 GUIDE SPRING
37 PE2770500 GUIDE COLLAR, GREEN PLASTIC
38 MH0300822 PAN HEAD SCREW, P-TIGHT
39 PE6770900 PAPER GUIDE
40 PA1773100 GUIDE PLATE
41 PC1770100 GUIDE SPRING
42 PB2770200 COLLAR, M3 x 6 x 9.5F
43 MD4301422 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
45 MD3201222 PAN HEAD SCREW W/ SPRING WASHER & NARROW FLAT WASHER
46 RH1770800 HEAD-OPEN SENSOR ASSEMBLY
47 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
50 P00994000 FLAT WASHER

LM408-412e Parts List 8/15 PN: 9001157D

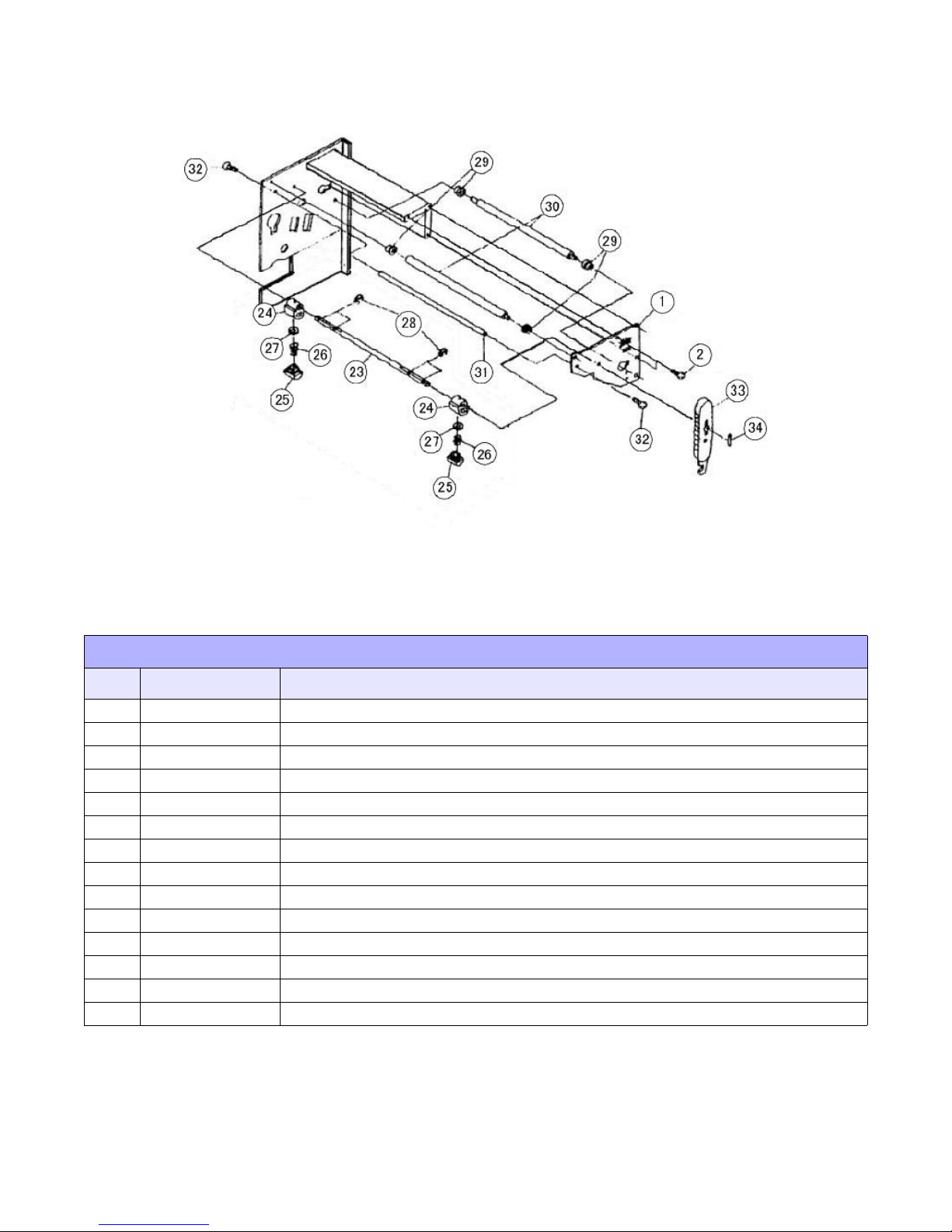

Figure PL3b, Drive Train & Print Assembly (2)
DRIVE TRAIN & PRINT ASSEMBLY (2)
ITEM PART NUMBER PART DESCRIPTION
1 PA1772000 SIDE PLATE
2 MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
23 PB0770600 HEAD PRESSURE SHAFT
24 PE1740100 HEAD PRESSURE CAM
25 PE1740201 HEAD PRESSURE PIN
26 PC1770200 HEAD PRESSURE SPRING
27 PA0740100 PRESSURE PLATE
28 ND0060030 SNAP RING, TYPE E
29 PE2770300 COLLAR, 6 x 8 x 4F
30 PB3770100 ROLLER, 6 x 12 x 143
31 PB0770300 SUPPORT SHAFT
32 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
33 PR2770150 LATCH HANDLE
34 NG2201230 STRAIGHT PIN

LM408-412e Parts List 9/15 PN: 9001157D
Figure PL3c, Drive Train & Print Assembly (3)
DRIVE TRAIN & PRINT ASSEMBLY (3)
ITEM PART NUMBER PART DESCRIPTION
19 PA2770200 MOTOR BRACKET
20 MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
21 PL1770100 MOTOR PULLEY, 20, LM408e, S/N 7E032269 and below, and 7E032270 and above
22 MJ1400524 W-POINT ALLEN SCREW
24 K00113100 DRIVE MOTOR, STEPPER, ELECTRIC
26 PA1771400 PLATE NUT
31 PL1770200 MOTOR PULLEY, 16, LM412e, S/N 7J034465 and below, and 7J034466 and above

LM408-412e Parts List 10/15 PN: 9001157D

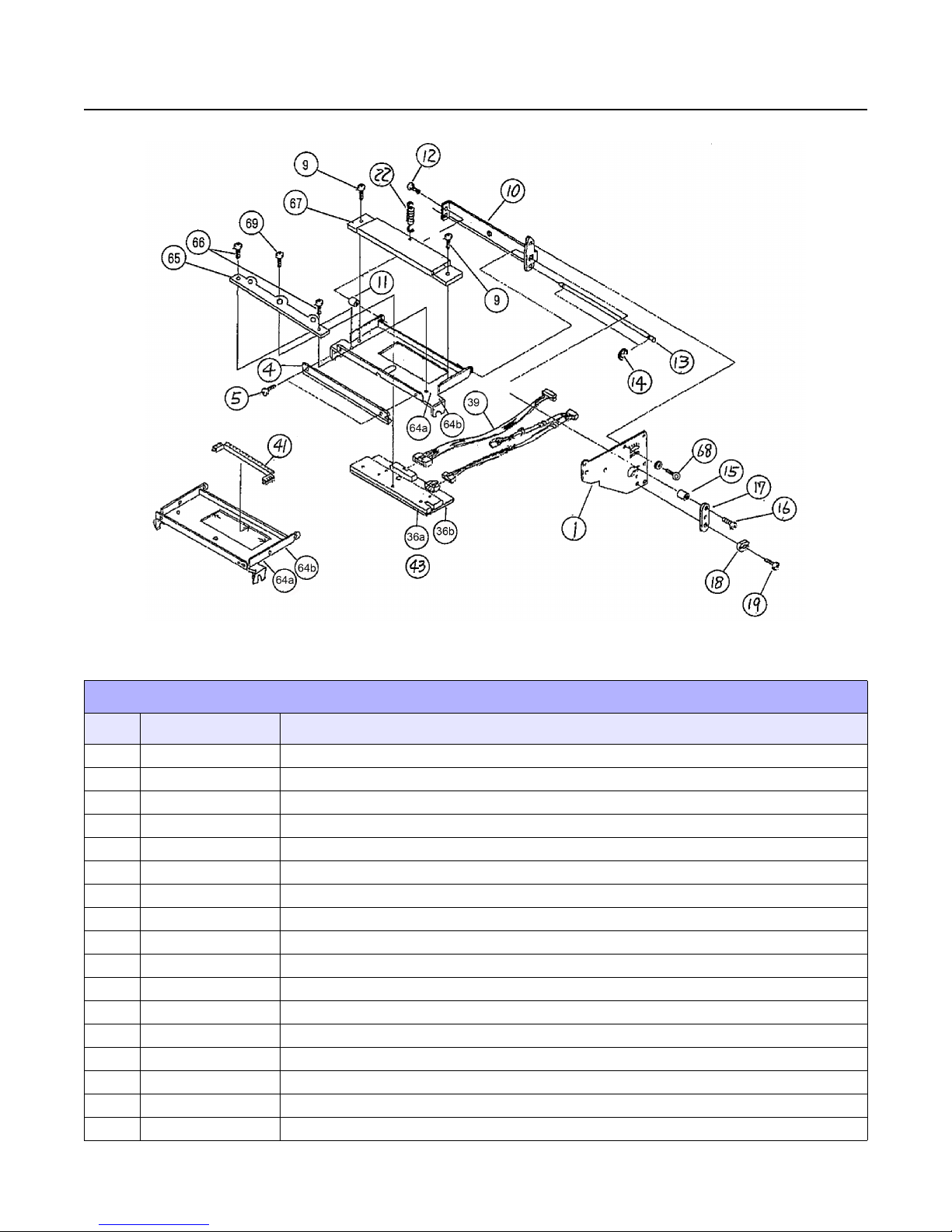

PRINT HEAD ASSEMBLY
Figure PL4, Print Head Assembly (1)
PRINT HEAD ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 PA1772000 HEAD FRAME
4 PA1771900 RIBBON ADJUSTMENT PLATE
5 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
9 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
10 PA1770601 ADJUSTMENT PLATE B
11 PB2770300 COLLAR, 4 x 6 x 7.2F
12 MD3401222 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
13 PB0770700 HEAD ADJUSTMENT SHAFT
14 ND0020030 SNAP RING, TYPE E
15 PB2770100 COLLAR, 4 x 6 x 8.7
16 MD4401422 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
17 PA1771500 PLATE
18 PL2720100 ADJUSTMENT COLLAR
19 MD4300825 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
22 PC0770100 SPRING, OPEN
36a GH000741A PRINT HEAD, 203 dpi, LM408e, S/N 7E032269 and below
36b R11375100 PRINT HEAD, 203 dpi, LM408e, S/N 7E032270 and above

LM408-412e Parts List 11/15 PN: 9001157D
Note: If you have an LM408e with Serial Number (S/N) 7E032270 and above, or LM412e with S/N 7J034466 and
above, and if you replace its print head with the print head for the LM408e with S/N 7E032269 and below, and
7J034465 and below, you must also replace the main printed circuit board (PCB).
39 RH1775201 PRINT HEAD WIRING HARNESS
41 PV9740300 CUSHION BRACKET
43 G00251000 PRINT HEAD, LM412e (305 dpi)
64a P04911000 PRINT HEAD BRACKET, LM408e S/N 7E032269 and below with GH000741A only
64b P04911100 PRINT HEAD BRACKET, LM408e S/N 7E032270 and above, LM412e S/N 7J034465 and
below, and 7J034466 and above
65 R02501000 ALIGNMENT PLATE
66 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
67 P02736000 HEAD BRACKET COVER
68 MJ9300822 LOW-PROFILE SCREW
69 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
PRINT HEAD ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION

LM408-412e Parts List 12/15 PN: 9001157D
RIBBON SPINDLE ASSEMBLY
Figure PL5a, Ribbon Spindle Assemblies (1)

LM408-412e Parts List 13/15 PN: 9001157D
Figure PL5b, Ribbon Spindle Assemblies (2)
RIBBON SPINDLE ASSEMBLIES (1 & 2)
ITEM PART NUMBER PART DESCRIPTION
1 PE4730100 RIBBON BOSS
2 PE2720100 COLLAR, 10 x 12 x 10
3 P00626000 RIBBON BOSS SPRING
4 MH0300522 PAN HEAD SCREW, P-TIGHT
5 PT2301020 WASHER, OIL DRY, METAL
6 PA0680400 DISC
7 PC1730100 RIBBON SPRING
8 PE2730100 STOPPER COLLAR
9 PB5730100 ADJUSTMENT SCREW
10 MA0303022 PAN HEAD SCREW
11 MA1300822 FLAT HEAD SCREW
12 MT1300522 HEX NUT
13 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
14 PB0771101 RIBBON SPINDLE
15 PE4720200 PLATE HOLDER BOSS
16 MA0301822 PAN HEAD SCREW
17 MA0302522 PAN HEAD SCREW
18 MT1300522 HEX NUT
19 MH1250621 FLAT HEAD SCREW, P-TIGHT

LM408-412e Parts List 14/15 PN: 9001157D
20 PA0680300 RIBBON FRICTION WASHER
21 PC0740200 BACK SPRING
22 PA0730100 GUIDE PLATE A
23 PA0730200 HOLD PLATE
24 PE1681100 GUIDE PLATE B
25 PE7720100 DISK PLATE A
28 PA1770500 RIBBON SENSOR BRACKET
29 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
30 MA0300622 PAN HEAD SCREW
31 RH1740400 RIBBON SENSOR ASSEMBLY
34 PA1751802 RIBBON FRAME
35 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
36 PA1771700 ADJUSTMENT PLATE
37 MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
38 MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
39 PT1112080 BEARING
40 PR1720400 PULLEY, 50
41 ND0060030 SNAP RING, TYPE E
42 PT9751200 CABLE TIE, TWIST
43 PT8170064 TIMING BELT, 170MXL6.4
45 PR1770100 PULLEY, 4 x 40
46 PC0740200 BACK SPRING
47 MH0300822 PAN HEAD SCREW, P-TIGHT
48 PA2771300 SPRING (BRACKET)
49 MD4300622 PAN HEAD SCREW +SW +WL
RIBBON SPINDLE ASSEMBLIES (1 & 2)
ITEM PART NUMBER PART DESCRIPTION

LM408-412e Parts List 15/15 PN: 9001157D
ACCESSORIES & OPTIONS
Figure PL6, Accessories & Options
ACCESSORIES & OPTIONS
ITEM PART NUMBER PART DESCRIPTION
1 WWCL45031 ENHANCED SERIAL INTERFACE BOARD
1 WWCL45060 IEEE1284 PARALLEL INTERFACE BOARD
1 11S000358 LAN INTERFACE BOARD, ETHERNET
1 WCL405800 802.11G WIRELESS INTERFACE BOARD
1 WCL404060 ENHANCED USB INTERFACE BOARD
