Sauder Craft Pro 417047 User manual

Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-445-1527.
Share your journey!
sauder.com
Get your gear a
mobile home.
Craft Cart
Craft Pro Series Collection | Model 417047
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-27
Français pg 28-32
Español pg 33-37
Lot #: 514509
Date Purchased: __________________
03/21/18
Be sure to give us a ring before
making any returns. 1-800-445-1527

Table of Contents Assembly Tools Required
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
2-3
4
5-27
28-32
33-37
38
39
A SLIDING TOP (2)
B1 LEFT END (1)
B2 RIGHT END (1)
C BACK (1)
D TRAY BOTTOM (1)
E ADJUSTABLE SHELF (2)
F ADJUSTABLE SHELF FRONT (2)
G TRAY FRONT (1)
H TRAY UPRIGHT (2)
I TRAY BACK (1)
J TRAY DIVIDER (1)
K UPPER BACK RAIL (2)
L BACK DIVIDER (2)
M LOWER BACK RAIL (1)
N SHELF (1)
O1 SMALL LEFT DRAWER SIDE (1)
O2 SMALL RIGHT DRAWER SIDE (1)
P SMALL DRAWER FRONT (1)
Q SMALL DRAWER BACK (1)
R DRAWER BOTTOM (2)
S1 LARGE LEFT DRAWER SIDE (1)
S2 LARGE RIGHT DRAWER SIDE (1)
T LARGE DRAWER FRONT (1)
U LARGE DRAWER BACK (1)
V DRAWER BRACE (2)
W BOTTOM (1)
X ROD CAP (2)
Y ROD (1)
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Hammer
Not actual size
Skip the power trip.
This time.
Straight Edge Screwdriver
Part Identification
Page 2 www.sauder.com 417047
Short Screwdriver
Now you know
our ABCs.

åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
Part Identification
A
A
B1
B2
C
D
E
E
F
F
GH
I
H
J
K
KL
L
M
N
O1
O2
P
Q
R
R
S1
S2
T
U
W
Y
X
V
V
Page 3www.sauder.com417047

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
METAL PIN - 8
6
WOOD DOWEL - 38
3
WASHER - 16
7
CLAMP - 4
10 11 SMALL EXTENSION
SLIDE and RAIL - 4 12 LARGE EXTENSION
SLIDE and RAIL - 4
LOCKING CASTER - 2
13 CASTER - 2 14
17 CAM COVER - 16
WIRE TRAY - 2
16
4SILVER 1-9/16" FLAT HEAD SCREW - 12 5SILVER 1-3/16" FLAT HEAD SCREW - 6
SILVER 3/8" PAN HEAD SCREW - 4
15
SILVER 5/8" PAN HEAD SCREW - 16
8SILVER 1/2" FLAT HEAD SCREW - 44
9
CAM SCREW - 44
1HIDDEN CAM - 44 2
Page 4 www.sauder.com 417047

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å
Turn forty-four CAM SCREWS (1) into the exact holes
shown in the ENDS (B1 and B2), BACK (C), TRAY
BOTTOM (D), ADJUSTABLE SHELF FRONTS (F), TRAY
FRONT (G), UPPER BACK RAILS (K), SMALL DRAWER
FRONT (P), LARGE DRAWER FRONT (T), and BOTTOM (W).
B1
B2
C
D
F
F
G
K
KP
T
W
1
1
(44 used)
Page 5www.sauder.com417047

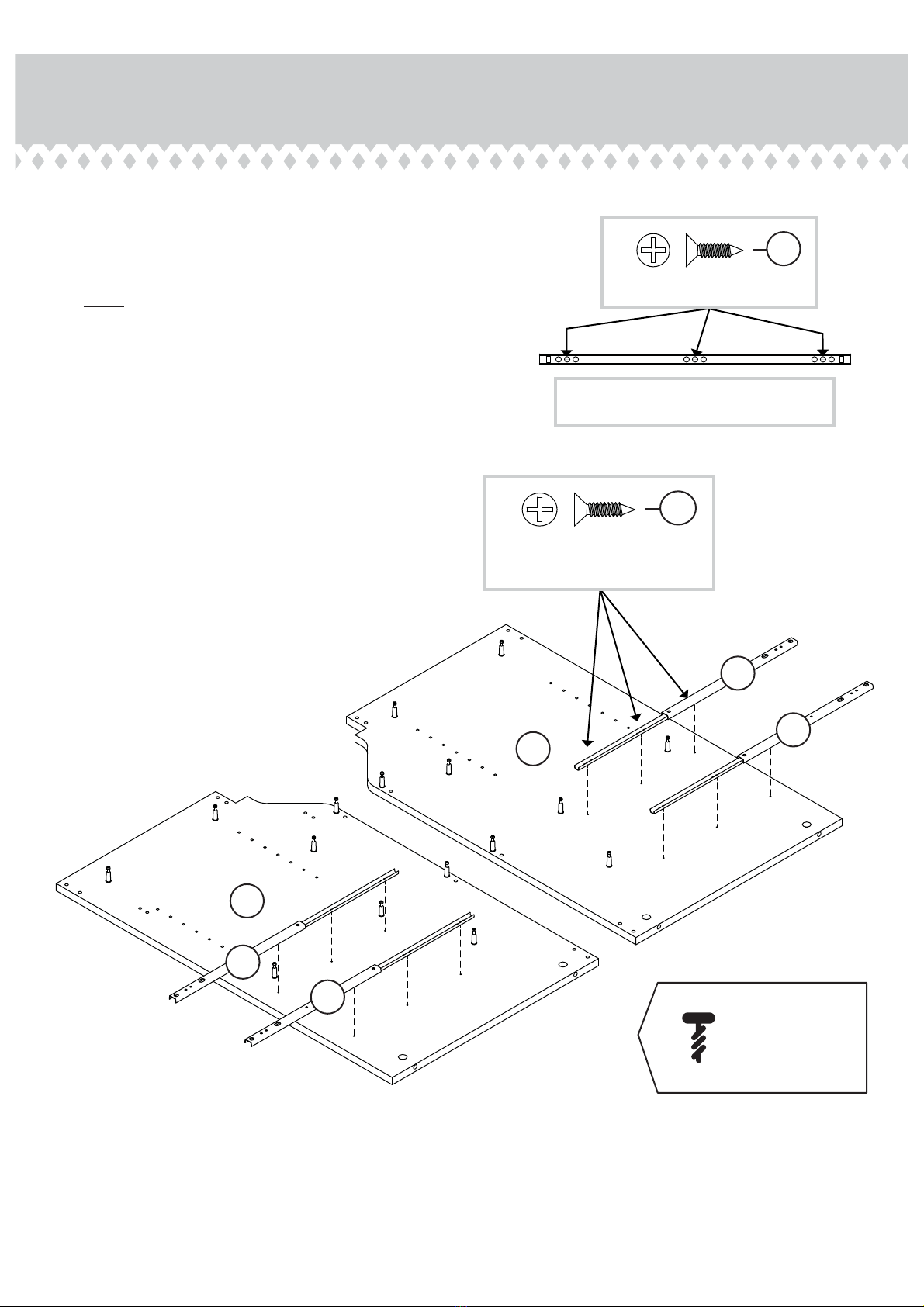

å Fasten the SMALL EXTENSION SLIDES and RAILS (11)
to the ENDS (B1 and B2). Use twelve SILVER 1/2" FLAT
HEAD SCREWS (9). Use the center hole in each set of
three holes in the SLIDE and RAIL as shown to the right.
å NOTE: You will need to extend the SMALL EXTENSION
SLIDE and RAIL all the way open to find the center hole in
two of the sets of three holes. Then, slide the large portion
of the SLIDE and RAIL in to find the last center hole in
each SLIDE and RAIL.
Step 2
Page 6 www.sauder.com 417047
Small section of the EXTENSION SLIDE
and RAIL. Use the center hole in each set.
SILVER 1/2" FLAT HEAD SCREW
9
11
11
11
11
B1
B2
SILVER 1/2" FLAT HEAD SCREW
(12 used in this step)
9
Remember:
Righty tighty.
Lefty loosey.

å Insert two HIDDEN CAMS (2) into the large holes in the
TRAY BOTTOM (D) as shown.
å Fasten the TRAY FRONT (G) to the TRAY BOTTOM (D).
Tighten two HIDDEN CAMS.
å NOTE: The arrow in the HIDDEN CAM must point toward
the hole in the edge of the board.
Step 3
Page 7www.sauder.com417047
Arrow
The TRAY FRONT (G) should
hang over more on this side.
G
D
3
21
2
The arrow must point
toward the hole in the
edge of the board.
2

å Insert two HIDDEN CAMS (2) into the large holes in the
TRAY BACK (C) near the edge of the indicated arrow.
å NOTE: The arrow in the HIDDEN CAM must point toward
the hole in the edge of the board.
å Fasten the BACK (C) to the TRAY BOTTOM (D). Tighten
two HIDDEN CAMS.
Step 4
Page 8 www.sauder.com 417047
Arrow
The indicated arrow on
the BACK (C) should
point toward the TRAY
BOTTOM (D).
C
D
2
3
21
2
The arrow must point
toward the hole in the
edge of the board.

å Insert four HIDDEN CAMS (2) into the large holes in the
BACK (C) and TRAY BOTTOM (D) as shown.
å NOTE: The arrow in the HIDDEN CAM must point toward
the hole in the edge of the board.

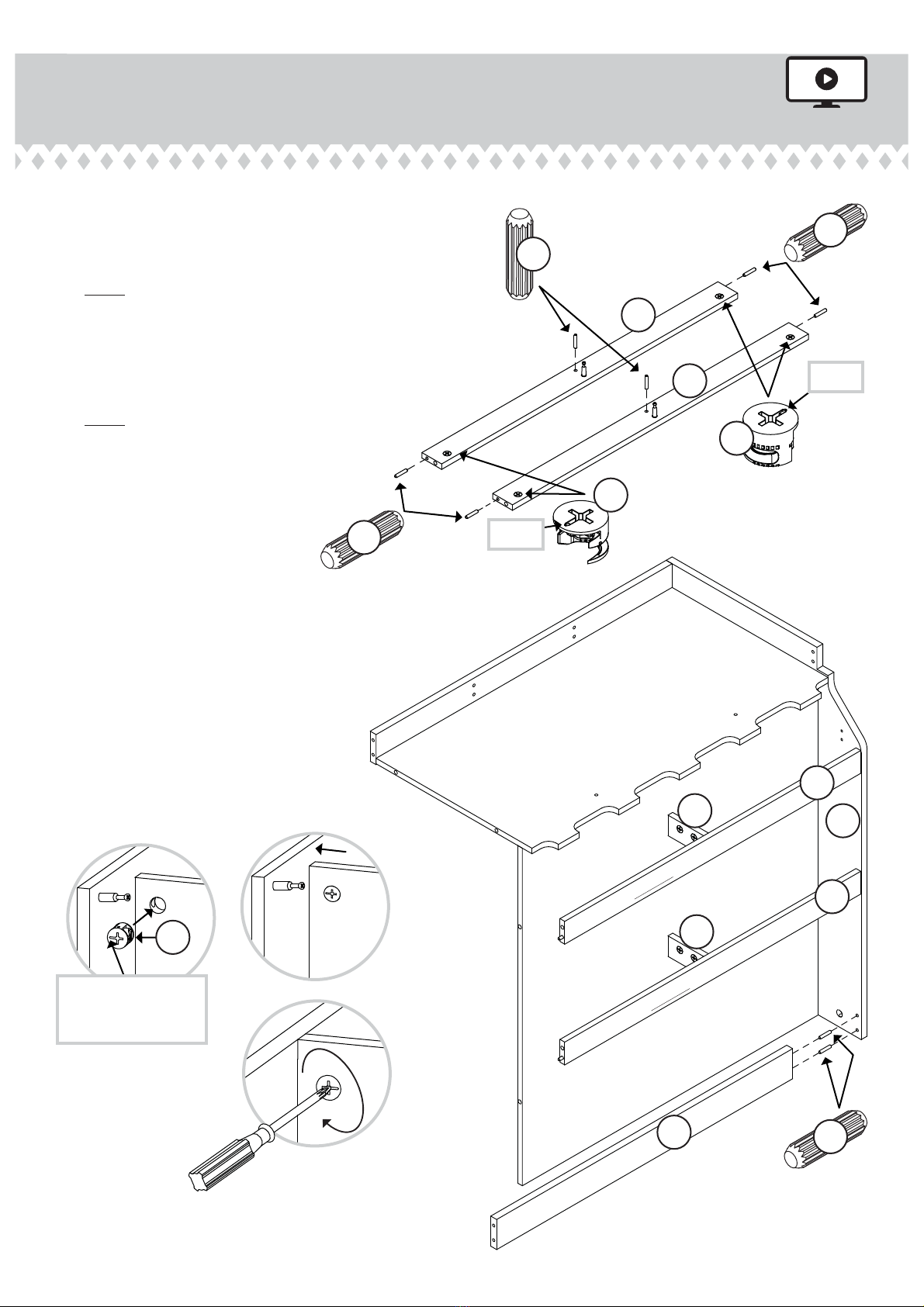

å Insert two WOOD DOWELS (3) into the LEFT END (B1).
å Fasten the BACK (C) and TRAY BOTTOM (D) to the LEFT
END (B1). Tighten four HIDDEN CAMS.
å NOTE: Be sure the WOOD DOWELS in the LEFT END
insert into the TRAY FRONT.
Step 5
Page 9www.sauder.com417047
C
D
Arrow
Arrow
2
2
B1
3
3
21
2
The arrow must point
toward the hole in the
edge of the board.

å Carefully stand your unit upright.
å Insert four HIDDEN CAMS (2) into the large holes in the
BACK DIVIDERS (L) as shown in the right diagram.
å NOTE: The arrow in the HIDDEN CAM must point toward
the hole in the edge of the board.
å Insert two WOOD DOWELS (3) into the holes in the BACK (C).
å Fasten the BACK DIVIDERS (L) to the BACK (C). Tighten
two HIDDEN CAMS (2).
å NOTE: Be sure the WOOD DOWELS in the BACK insert
into the holes in the BACK DIVIDERS.
Step 6
Page 10 www.sauder.com 417047
Arrow
Arrow
L
L
3
2
2
L
L
C
3
21
2
The arrow must point
toward the hole in the
edge of the board.

å Insert six WOOD DOWELS (3) and four HIDDEN CAMS
into the holes in the UPPER BACK RAILS (K) as shown in
the right diagram.
å NOTE: The arrow in the HIDDEN CAM must point toward
the hole in the edge of the board.
å Fasten the UPPER BACK RAILS (K) to the LEFT END (B1)
and BACK DIVIDERS (L). Tighten four HIDDEN CAMS with
a short screwdriver.
å NOTE: Be sure the WOOD DOWELS insert into the
holes in the LEFT END and BACK DIVIDERS.
å Insert two WOOD DOWELS (3) into
the short edge of the LOWER
BACK RAIL (M).
å Insert the WOOD DOWELS in the
end of the LOWER BACK RAIL (M)
into the holes in the LEFT END (B1).
Step 7
Page 11www.sauder.com417047
3
3
3
3
2
2
Arrow
Arrow
K
K
L
L
K
K
B1
M
3
21
2
The arrow must point
toward the hole in the
edge of the board.
Surface without HIDDEN CAMS
Surface without HIDDEN CAMS

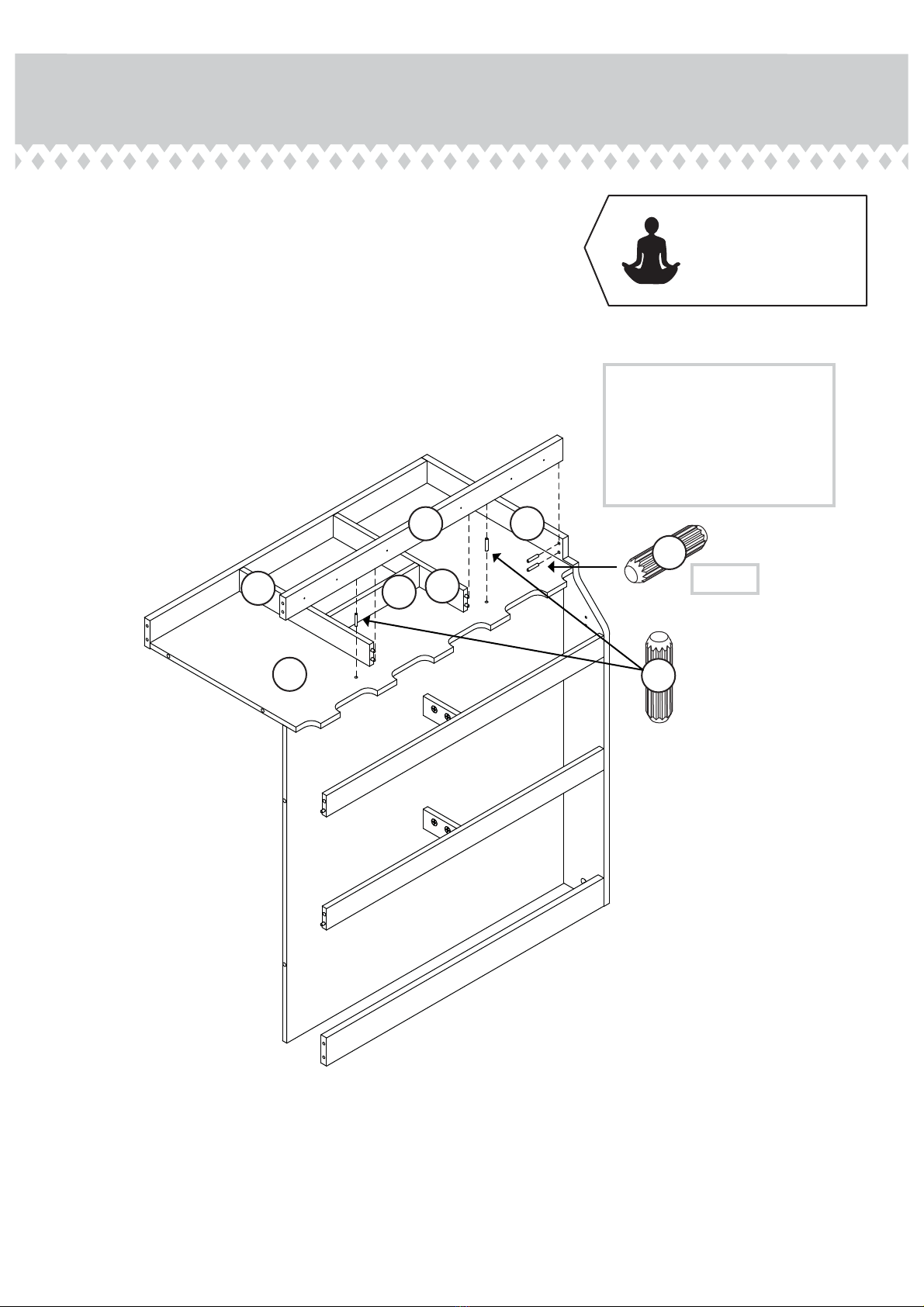

å Insert eight WOOD DOWELS (3) into the short edges of the TRAY UPRIGHTS (H). Next, fasten the TRAY UPRIGHTS (H)
to the TRAY FRONT (G).
å Insert four WOOD DOWELS (3) into the short edges of the TRAY DIVIDER (J). Then, fasten the TRAY DIVIDER (J) to the
TRAY UPRIGHTS (H). You will need to widen the TRAY UPRIGHTS (H) to get the TRAY DIVIDER (J) in between them.
Step 8
Page 12 www.sauder.com 417047
33
33
H
H
B1
J
G
(12 used)

å Insert two WOOD DOWELS (3) into the LEFT END (B1)
and two WOOD DOWELS (3) into the TRAY TOP (D).
å Fasten the TRAY BACK (I) to the TRAY UPRIGHTS (H),
TRAY BOTTOM (D), and LEFT END (B1).
Step 9
Page 13www.sauder.com417047
3
3
HH
J
IB1
D
Just breathe.
It's going to be ok.
First, insert the WOOD DOWELS into
the END (B1). Then on an angle, push
the end of the TRAY BACK (I) over
the WOOD DOWELS, while working
the TRAY UPRIGHT (H) WOOD
DOWELS into the back surface of
the TRAY BACK (I).
(4 used)

å Insert four HIDDEN CAMS (2) into the large holes in
the SHELF (N).
å With someone's help, fasten the SHELF (N) to the LEFT
END (B1). Tighten two HIDDEN CAMS.
Step 10
Page 14 www.sauder.com 417047
N
Arrow
Arrow
N
For support, place packing
foam and magazines
here or have a someone
hold the SHELF (N) up
horizontal until the next
step is complete.
B1
2
23
21
2
The arrow must point
toward the hole in the
edge of the board.
Surface without HIDDEN CAMS

å Insert six WOOD DOWELS (3) into the short edges of the TRAY
FRONT (G), TRAY BACK (I) and LOWER BACK RAIL (M).
å Insert four HIDDEN CAMS (2) into the BACK (C) and TRAY BOTTOM (D)
å Fasten the RIGHT END (B2) to the BACK (C), TRAY BOTTOM (D),
UPPER BACK RAILS (K), and SHELF (N). Tighten eight HIDDEN CAMS.
å
NOTE: Be sure the WOOD DOWELS in the TRAY FRONT, TRAY
BACK, UPPER RAILS and LOWER BACK RAIL insert into RIGHT END.
Step 11
Page 15www.sauder.com417047
Arrow
Arrow
Arrow
N
B2
3
3
(6 used)
G
M
I
K
K
3
D
C
22
2
3
21
2
The arrow must point
toward the hole in the
edge of the board.

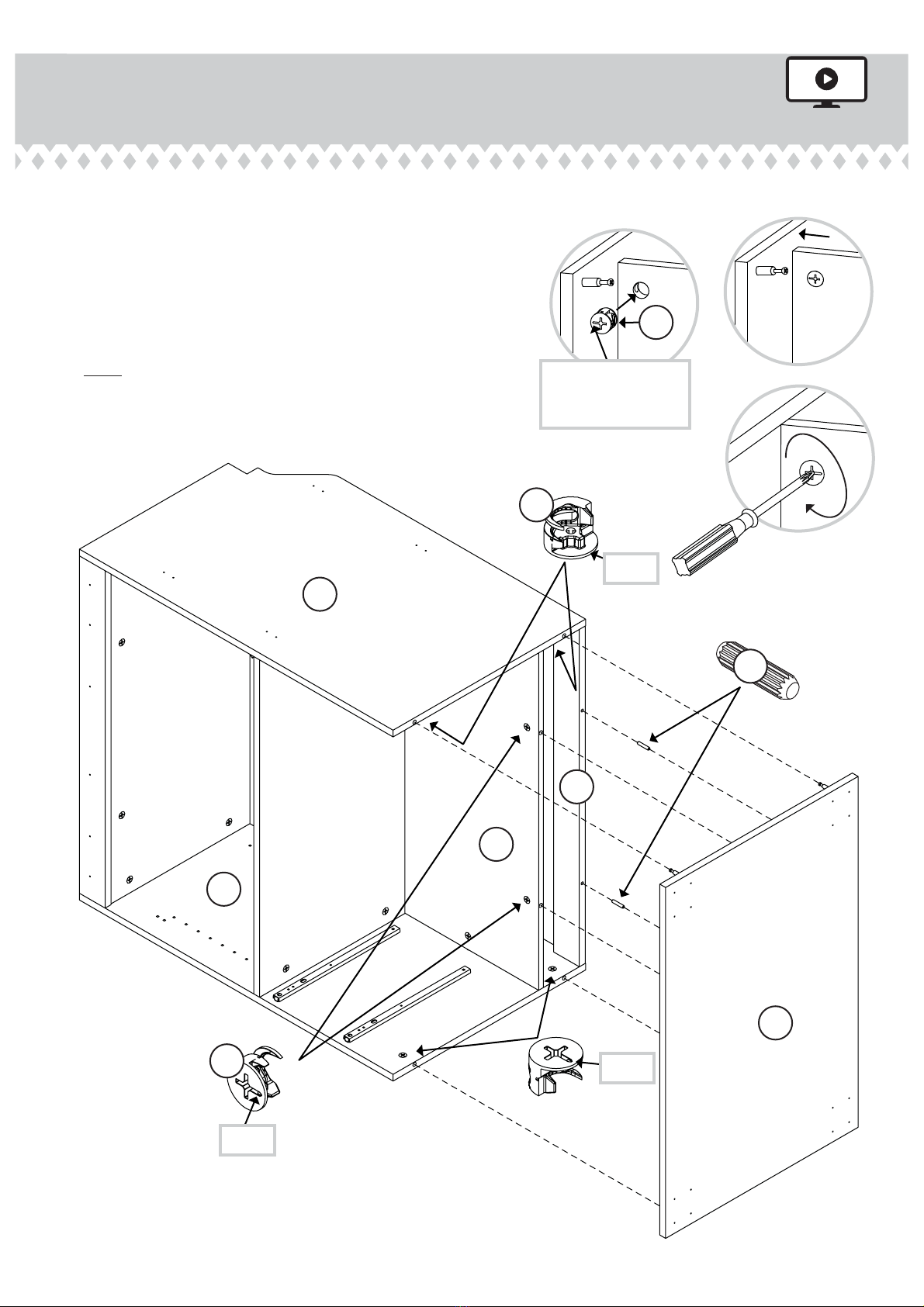

å Turn your unit onto its LEFT END (B1). Insert two WOOD
DOWELS (3) into the BOTTOM (W).
å Insert six HIDDEN CAMS (2) into the ENDS (B1 and B2)
and BACK (C).
å Fasten the BOTTOM (W) to the ENDS (B1 and B2), and
BACK (C). Tighten six HIDDEN CAMS.
å NOTE: Be sure the WOOD DOWELS in the BOTTOM insert
into to LOWER BACK RAIL (M).
Step 12
Page 16 www.sauder.com 417047
Arrow
Arrow
Arrow
W
M
3
C
B2
B1
2
2
3
21
2
The arrow must point
toward the hole in the
edge of the board.

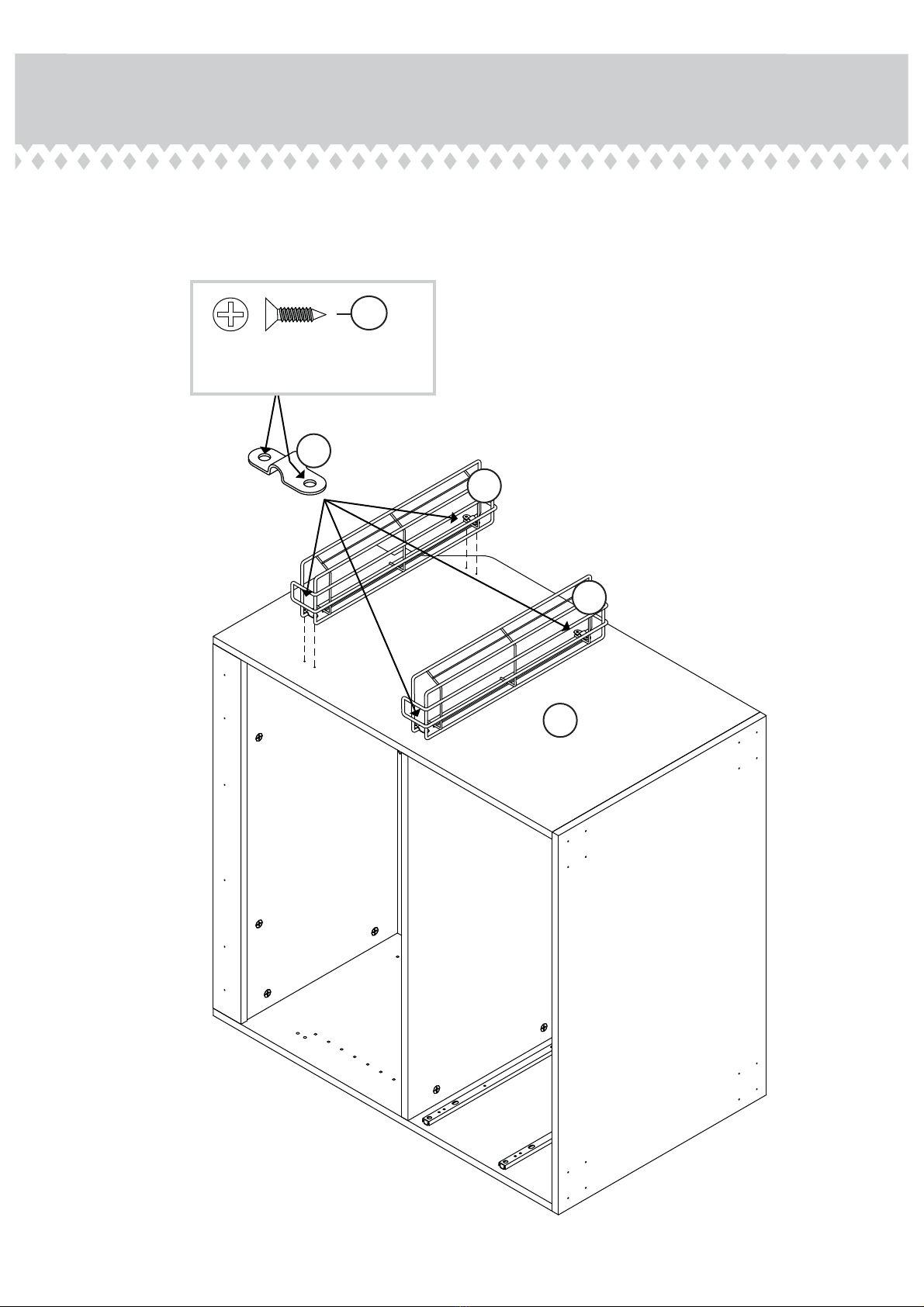

å Fasten the WIRE TRAYS (16) to the RIGHT END (B2). Use four
CLAMPS (10) and eight SILVER 1/2" FLAT HEAD SCREWS (9).
Step 13
Page 17www.sauder.com417047
B2
10
SILVER 1/2" FLAT HEAD SCREW
(8 used in this step)
9
16
16

Step 14
Page 18 www.sauder.com 417047
(16 used)
7
SILVER 5/8" PAN HEAD SCREW
(16 used in this step)
8
The LOCKING CASTERS will
have a lever to lock the wheels.

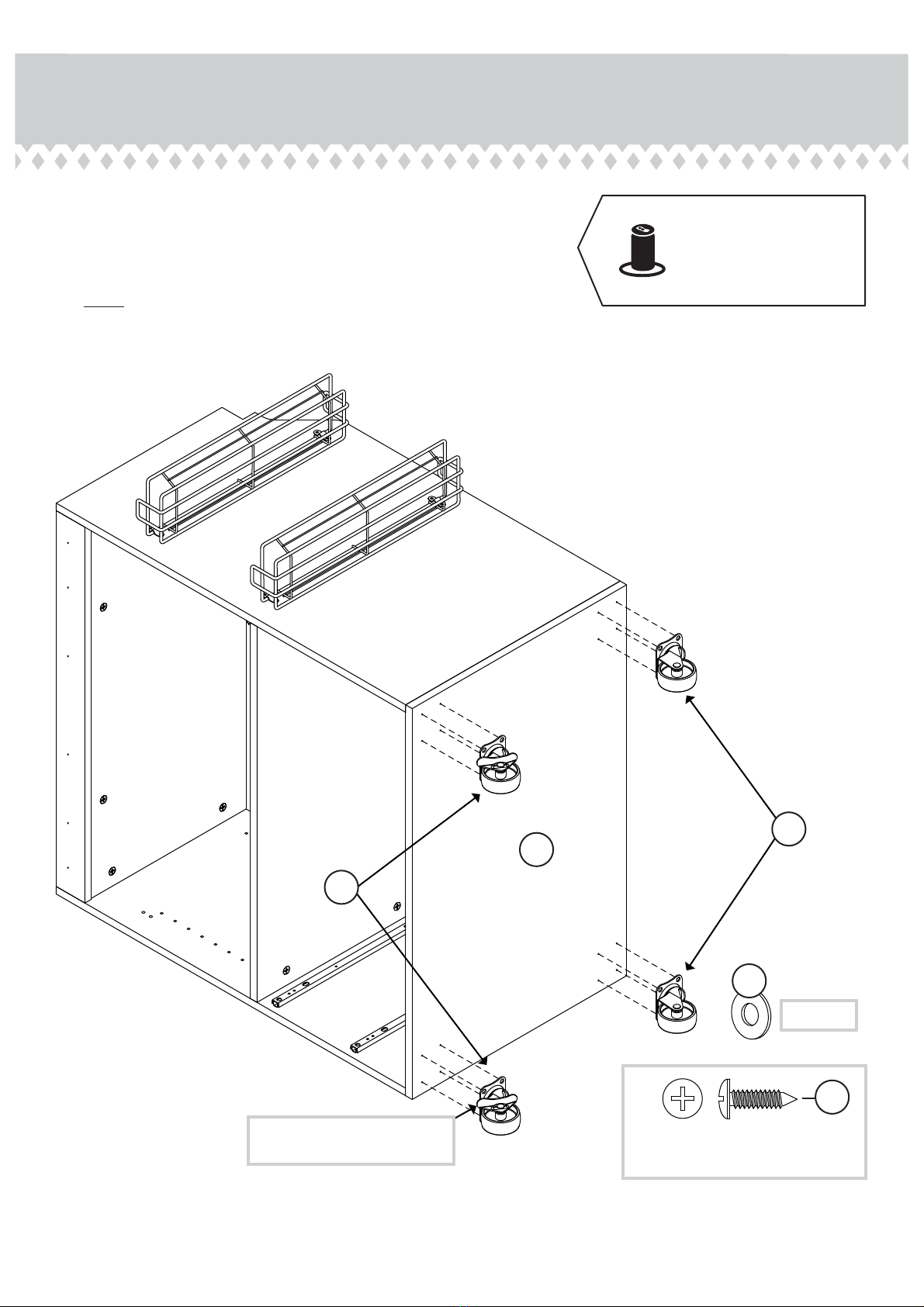

å Fasten the CASTERS (13 and 14) to the BOTTOM (W).
Use sixteen SILVER 5/8" PAN HEAD SCREWS (8) through
sixteen WASHERS (7), through the holes of each CASTER,
and into the holes in the BOTTOM (W).
å NOTE: The LOCKING CASTER (13) will get fastened near
the front of the Cart. The CASTERS (14) will get fastened
near the rear of the Cart.
14
13
W
Now might be a
good time to refresh
your drink.

Step 15
Page 19www.sauder.com417047
å Carefully stand your unit upright.

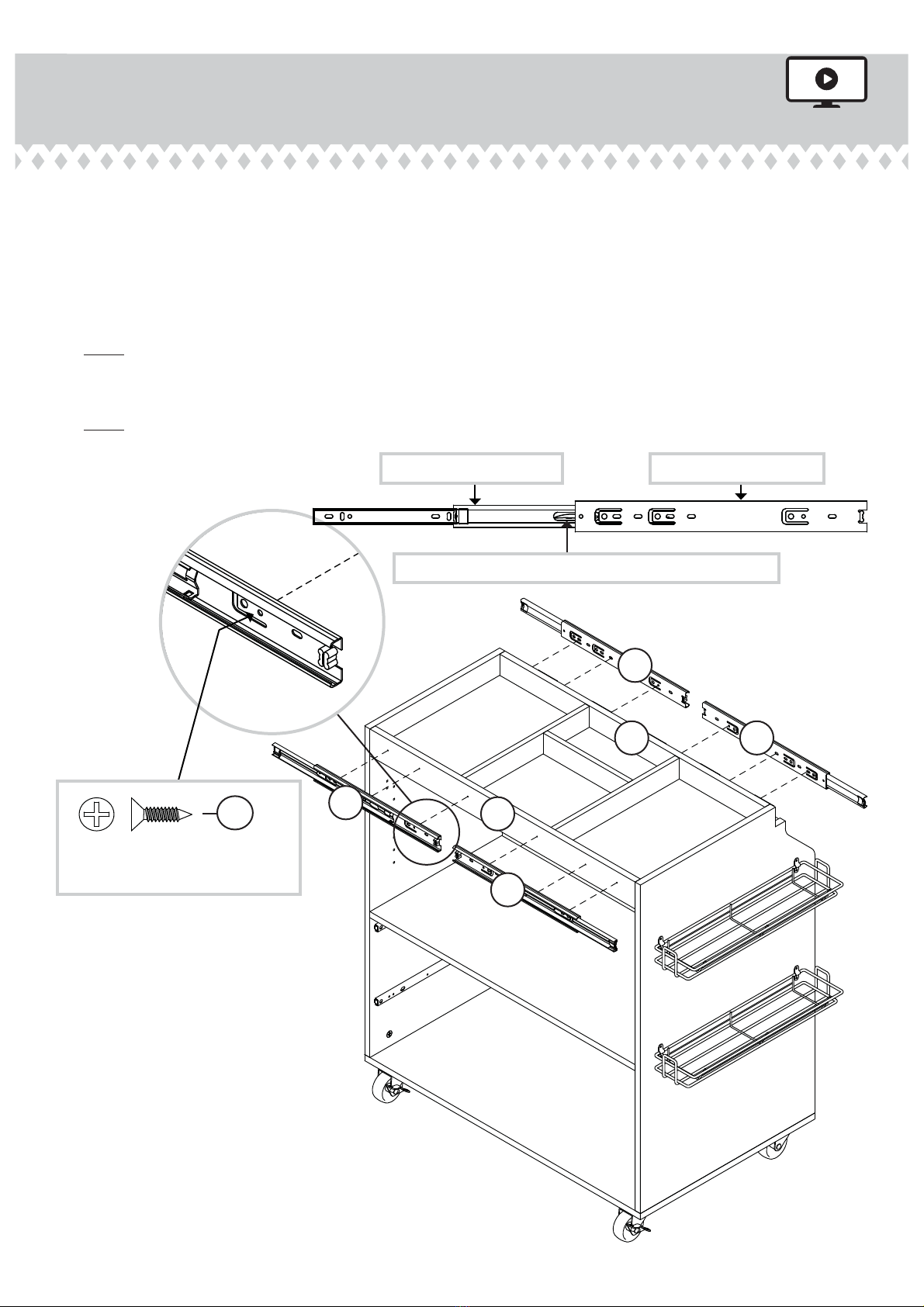

å Separate the LARGE EXTENSION SLIDES from the LARGE EXTENSION RAILS as shown in the upper diagram below.
Be prepared, the parts are greasy.
å Fasten the LARGE EXTENSION RAILS (12) to the TRAY FRONT (G) and TRAY BACK (I). Use twelve SILVER 1/2" FLAT
HEAD SCREWS (9).
å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram. Then, slide the inner
cartridge of the EXTENSION RAIL in to find the other two holes that line up with the holes in the TRAY FRONT and
TRAY BACK. Turn a SCREW into those holes.
å NOTE: The EXTENSION SLIDES will be used later for the DRAWERS.
SILVER 1/2" FLAT HEAD SCREW
(12 used in this step)
9
Push up on the black lever and pull the SLIDE from the RAIL.
LARGE EXTENSION SLIDE LARGE EXTENSION RAIL
G
I
12
12
12
12

Step 16
Page 20 www.sauder.com 417047

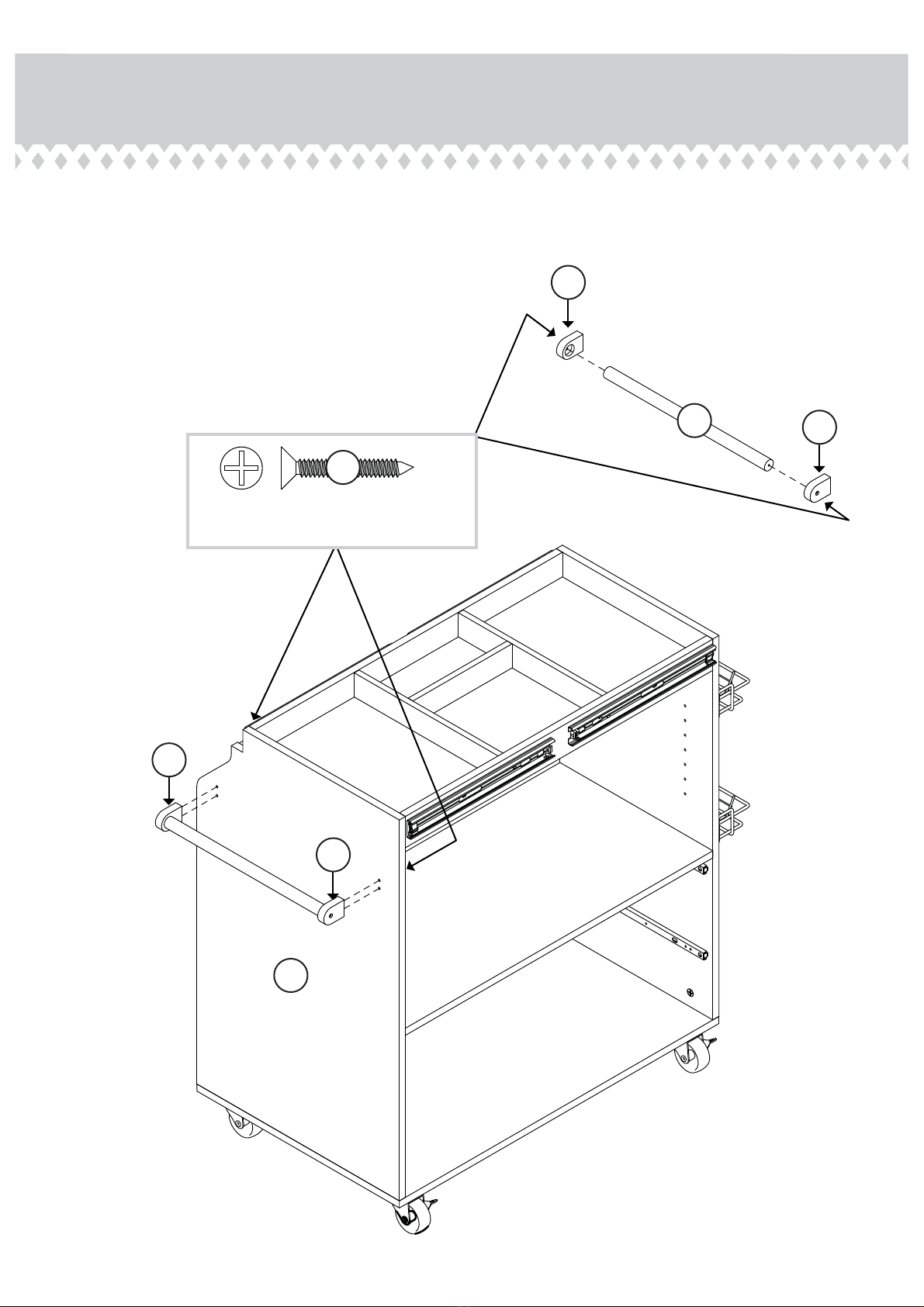

å Fasten two ROD CAPS (X) to the ROD (Y). Use two SILVER
1-3/16" FLAT HEAD SCREWS (5) as shown to the right.
å Fasten the ROD CAPS (X) to the LEFT END (B1). Use four
SILVER 1-3/16" FLAT HEAD SCREWS (5) as shown in the
lower diagram.
SILVER 1-3/16" FLAT HEAD SCREW
(6 used in this step)
5
X
X
Y
B1
X
X
