saunalife Xperience Series User manual

Xperience-Series Model X2
INSTALLATION MANUAL
saunalife.com

Assembly instructions
1. Preparations
·Sauna package must be stored in a heated and dry room.
·Prior to installation ithe package must be opened and stored for 48h to adjust to
relative humidity of the room (72
oF, 40-60% RH).
·Ensure the sauna model fits in the designated room with sufficient extra room for
ease of installation.
·Carefully clean the location of the sauna in order to not damage any details,
elements.
·Room must be well ventilated, with water drain on or near the position of the sauna.
·Sauna is intended to be installed on a level surface to ensure proper installation and
quality of the installed product.
·Adequate electrical supply must be ensured for electrical components of the sauna.
Refer to user manuals of respective products.
·Electrical connections to the power grid and to the sauna may only be carried out by
legally competent and certified specialist.
·Producer cannot be held responsible for any errors resulting from disregard to the
levelness of substructure, inadequate storing conditions, inadequate power supply,
unauthorized alterations to components or any other circumstances occuring from
deviations described in this manual and/or good customs.
2. List of tools
·Water level
·Tape measure
·Power drill
·Rubber or plastic mallet
·Silicone gun
·Screwdriver set
Installation of a sauna requires at least two (2) persons.
3. Installations
·Follow the instructions precisely.
·Always start from 1 and continuosly move forward in an organized manner.
·Keep the installation site always clean and organized.
·This manual does not take into account any possible peculiarities of the installation
site.
·Take care not to damage any components during installation due to dropping,
dragging or careless handling.
·Special attention towards elements - they must be stored with care and kept away
from any hard or sharp objects. Glasses are tempered and even smallest damages
to the surface or corners can lead to concentration of stress and shattering of the
glass.

BASE FRAME
Figure a.
Figure b.
Diagonal 2
Diagonal 1
4
1. Check substructure level. Sauna must be installed on a level surface.
2. Connect the base frame elements
3. Fix the elements with screws
4. Check baseframe diagonals for equality and right corners
5. Apply silicone under basefame and fix in place
NOTE! If the sauna is to be moved after installation, silicone can be installed afterwards.
2
1
A
B
C
3

2. Wall elements
Figure 2a.
A1
1
B1
2
C1
3
1. Start fixing walls from A-B corner
2. Place walls on base frame
3. Fasten screws from top
4. Fix corners outside

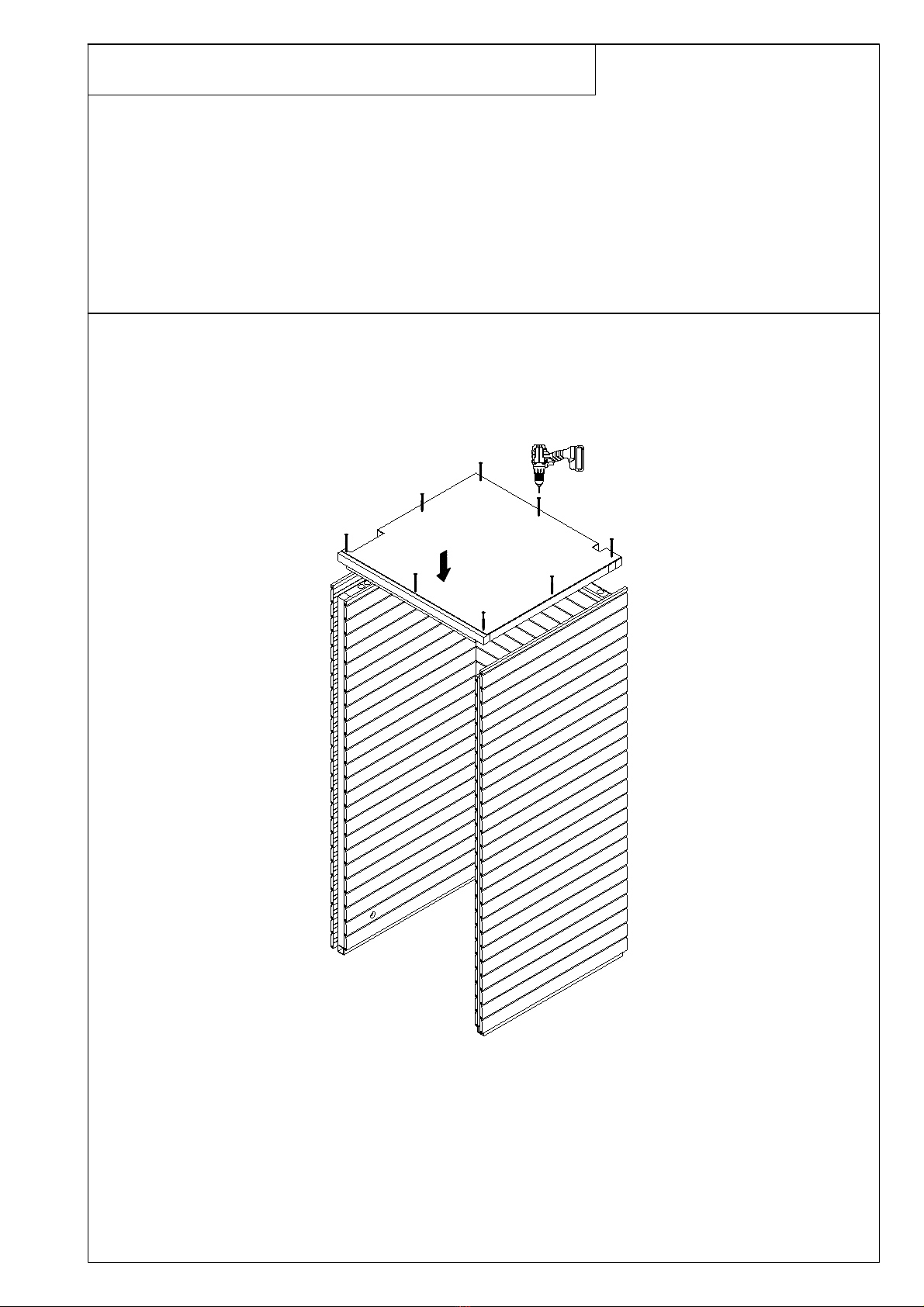

3. Ceiling elements
1. Place the ceiling element on top of prefiously installed and fixed wall elements (Figure 3a).
Check walls for vertical level. Ceiling element must sit flush with walls external layer and with no excessive
gaps between internal panels. Fix with screws.
NOTE! Do not support elements on edge of previous installed element!
Figure 3a.
CE1

4. Bench support placement
Figure 4a.
1. Place bench supports in sauna, check for level.
2. Fix bench supports with screws.
Figure 4b.
15.75"
28.8"
11.1"
15.75"
15.75" 15.75"
12.2"
12.2"

Figure 5a.

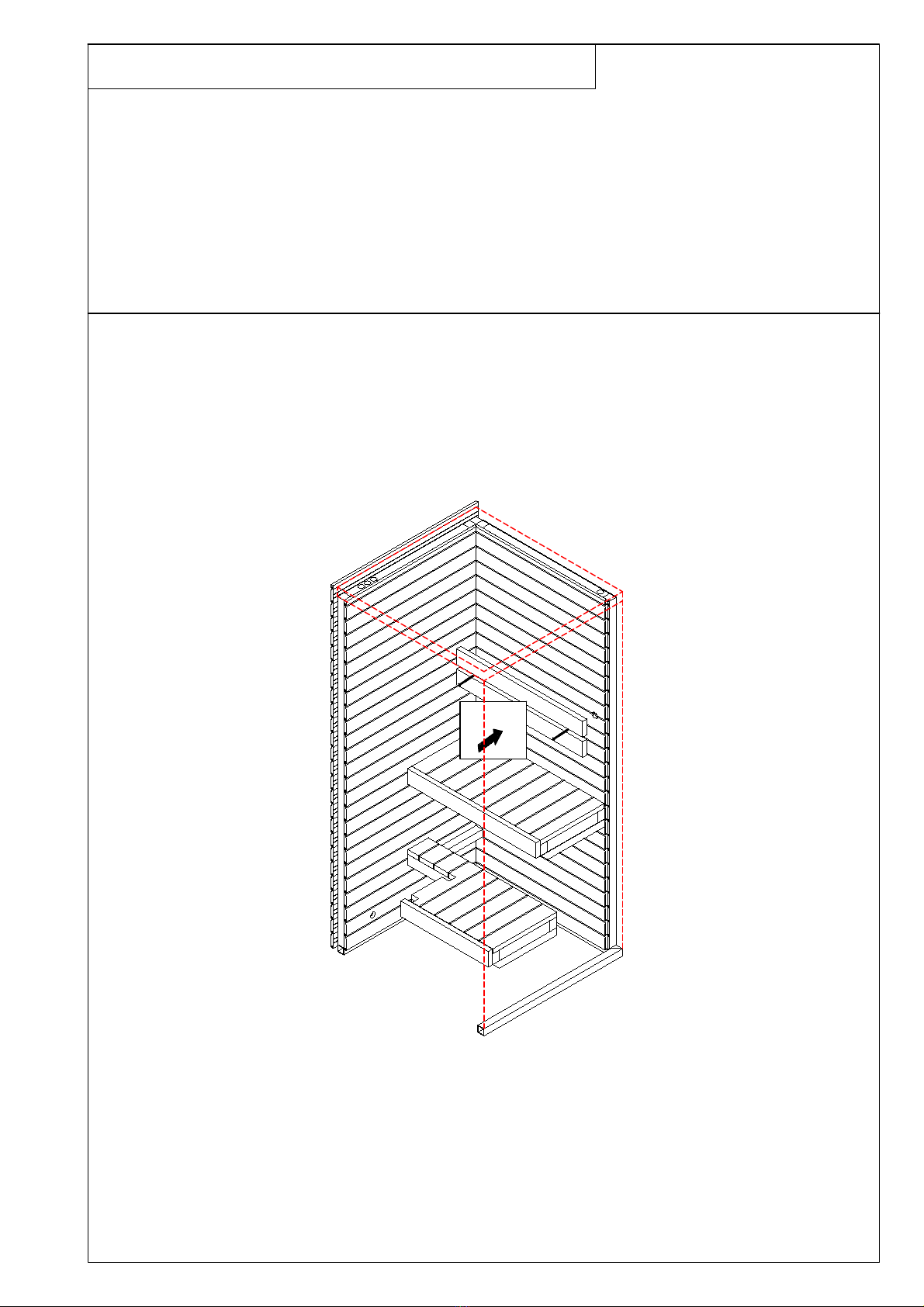

5. Bench frames
1. Place upper bench frame and fix with screws.
2. Place lower bench frame and fix with screws.
NOTE! First fasten the screws on sidewalls, then backwall.
1
2

Figure 7a.

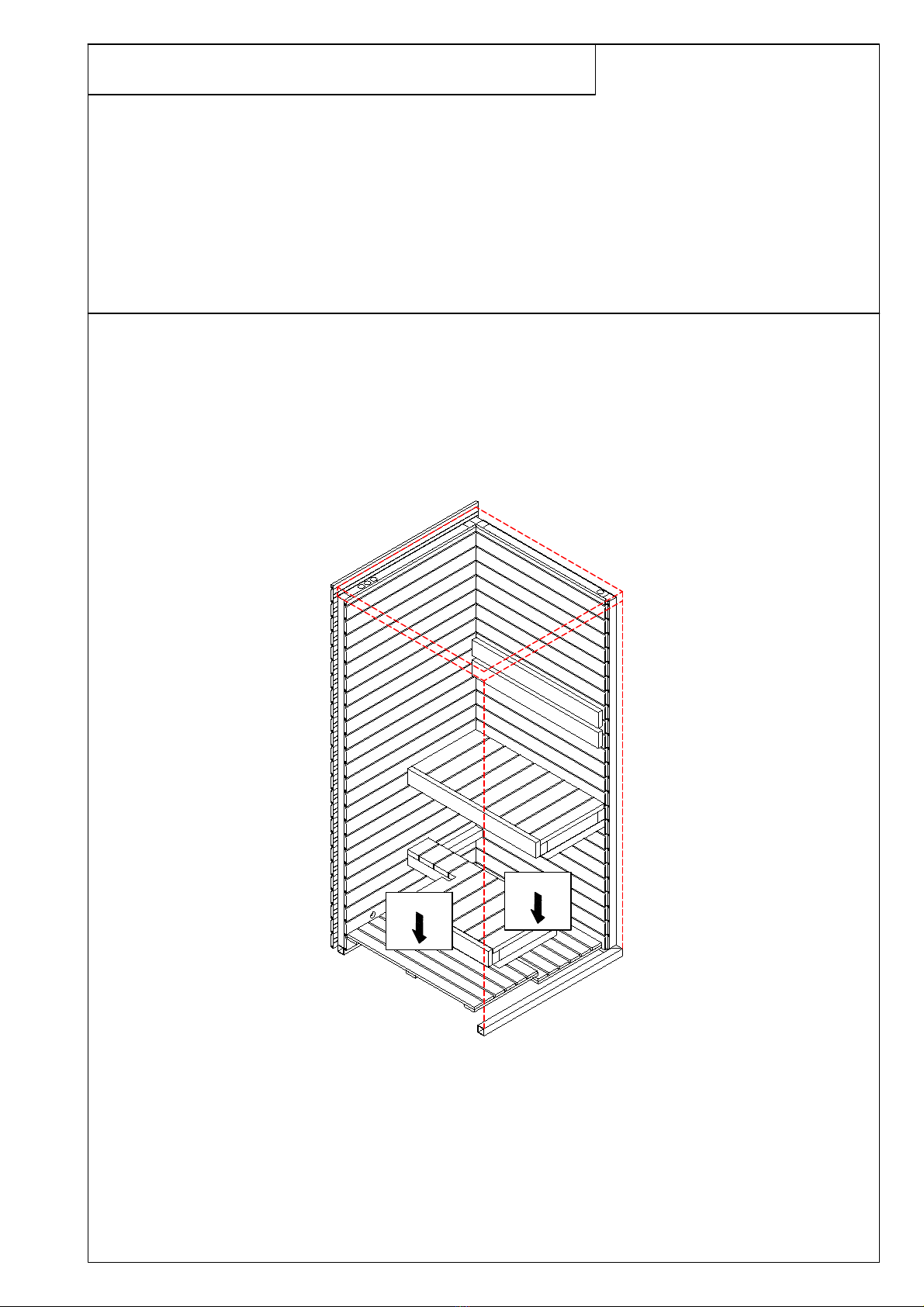

7. Bench grids
1
Bench grid
2
Bench grid
1. Place bench grids on bench frames
2. Fix bench grids from below with screws
*Fixing bench grids helps to prevent bench grid from bending

8. Backrest
Figure 8a.
1. Lift backrest in place and fasten with screws, cover screw holes with caps.
1
Backrest

8.5 Floor grids
Figure 8.5a.
1. Place floor grids
1
Floor grid
2
Floor grid

9. LED Light Strips
Figure 9a.
19.6"
Figure 9b.
Backrest LED
1. Install the lighting before attaching the benches and backrest
2. Pull the LED strip cables through the pipes to the ceiling
3. Attach the LED strips to the clamps
Always use certified electrician!

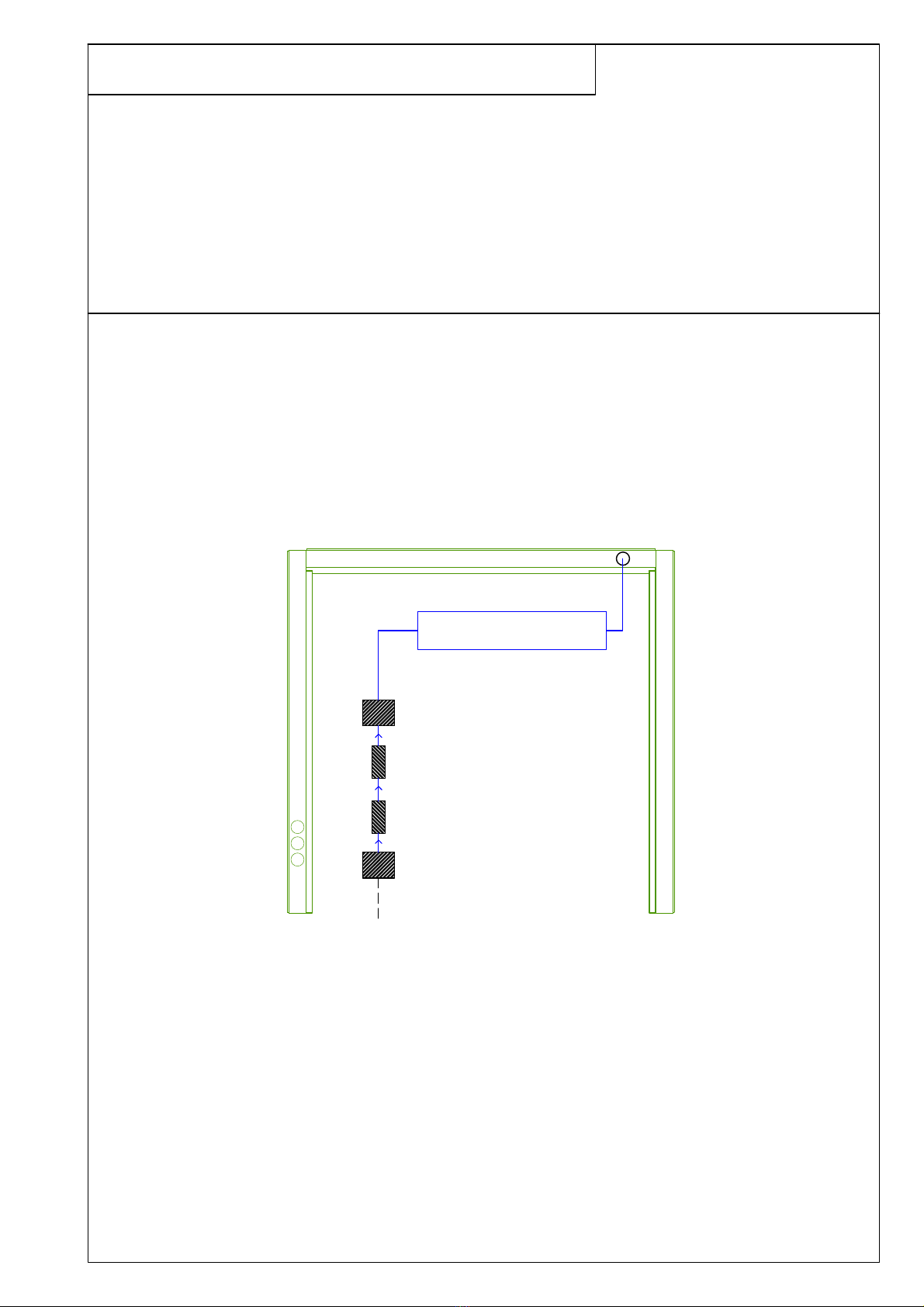

9.2 Electrical diagram
Figure 9.2a.
Junction
box 2
120V in
Transformer
75W
24v out
230V in
Junction
box
LED
Reciever
LED strip for the backrest:
Always use certified electritian!

10. Heater guard
Figure 10a.
Heater guard
1. Place heater guard as indicated on Figure 10a
2. Fix heater guard with screws.

11. Glass wall
Figure 11a.
A
B
1
2
3
Section view
Figure 11.b
1. Apply stripes of silicone on respective lines of glass walls location. Lehngth of stripe equals B
(Figure 11b).
2. For silicone stripes distance from the wall check Figure 11b.
3. Lift the glass wall in place and fix with screws.
4. Check the distance (A) between installed walls. They must be equal (A=A) for the door to be
installed.
5. Place the door upper wooden frame piece and fix with screws from top.
!NOTE! Make sure NOT to leave any gaps between glasswall elements and interior cladding!

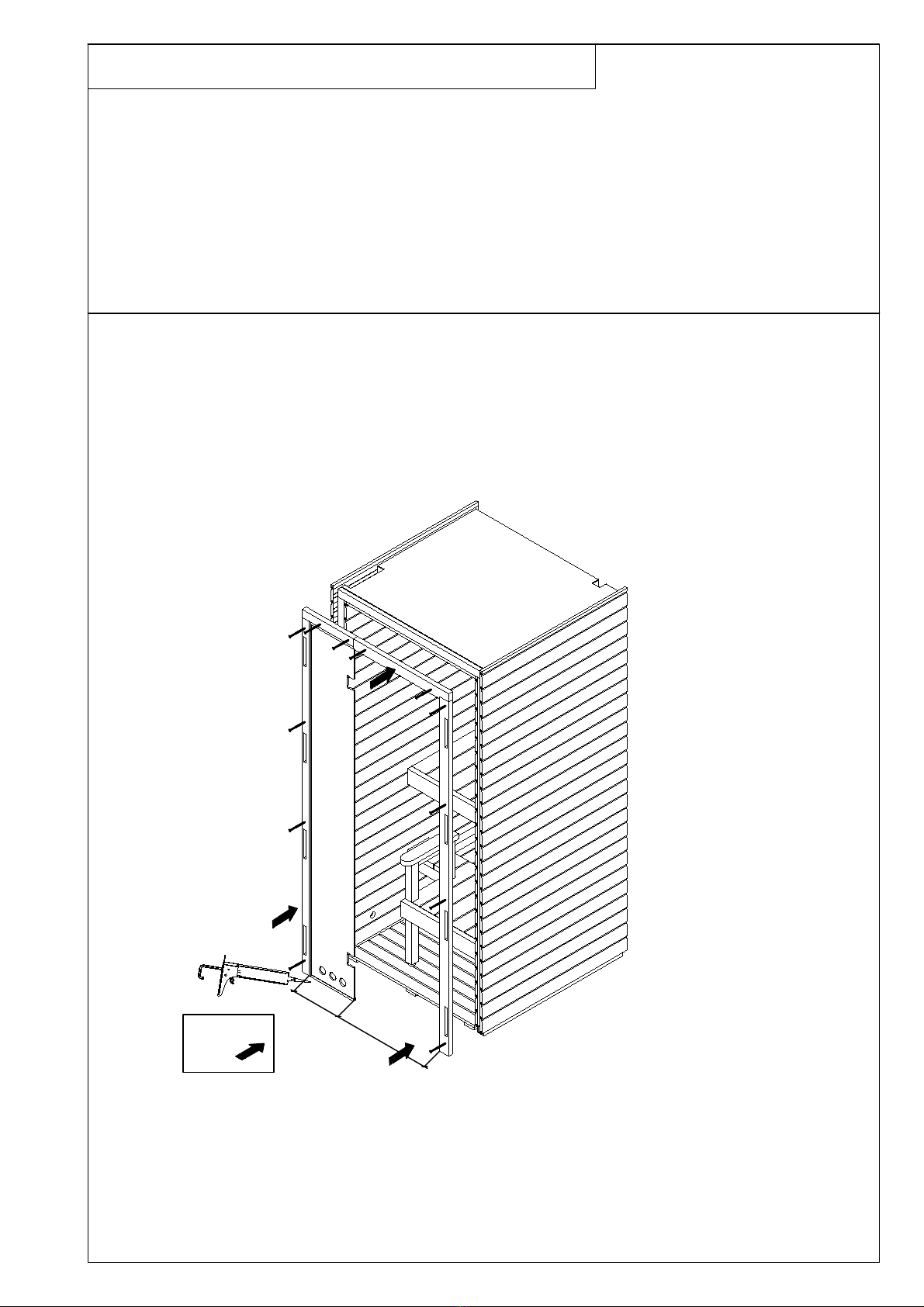

12. Door
1. See drawing on next page
Figure 10a.

1. Fit the hinges on door according to Figure 12c.
2. Fit the door to glass wall according to Figure 12c.
3. Fit the handle to the door according to Figure 12b.
NOTE! Door must not be supported directly to a hard (tiled, concrete or other) floor due to risk of
shattering. Always when not installed rest the door on a protected floor. Do not remove
protection material from door until it is finally and properly fitted.
Premium handle
Figure 12b.
Glass-glass hinges
Figure 12c
Glass-glass hinges
Figure 11c.
Premium handle
Figure 12b.
12. Door
Use 2mm washers for the hinges!
2
2

Multiclip view
Figure 13.c
13. Finishing touches
3
Frame
1
Frame
2
Frame
1. Fix vertical frames with multiclips. Figure 10.c.
2. Fix horizontal frame with screws from top

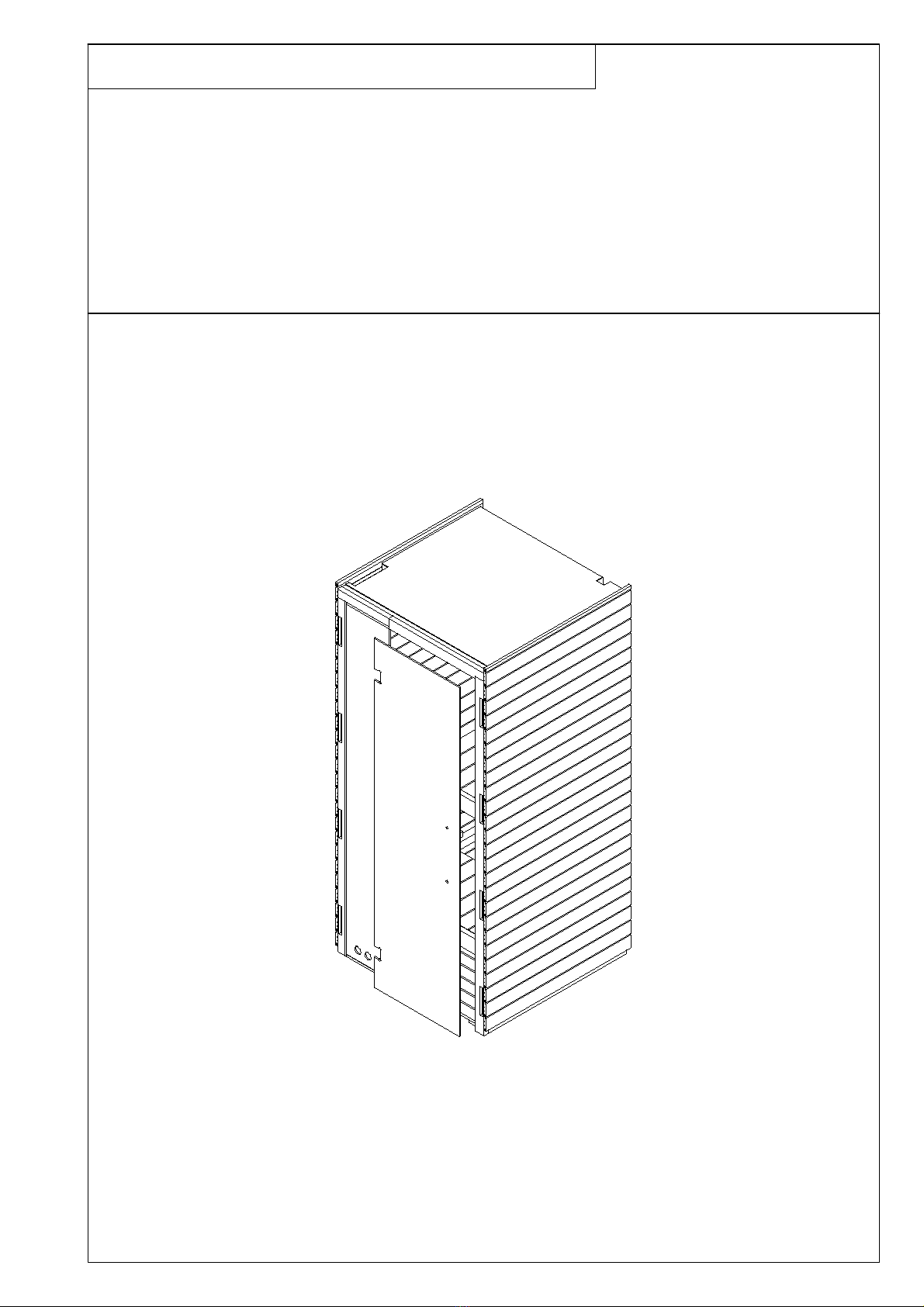

14. Completed sauna
1. Check the level of all elements.
2. Check the functionality of all moving parts.
3. If needed, make adjustments on adjustable components.
4. Before using the sauna read SaunaLife terms and conditions and user manual.
IMPORTANT! When first using sauna, it must be gradually and steadily heated to normal operating
temperature under constant supervision, and afterwards, thoroughly ventilated due to evaporation of
various substances that might be present from production of the sauna and/or its components.

saunalife.com
Instructions for use and maintenance of pre-built modular saunas
1. General installation requirements
1.1.Your sauna should be installed by a professional installer.
1.2.The installer of the sauna must familiarize themselves thoroughly with the manufacturer's
warranty terms and the installation instructions.
1.3.The electrical components of the sauna may be installed and connected only by a qualified
electrician.
1.4.The wooden parts of the sauna must not be in permanent contact with water or the structures of
the room.
1.5.The exterior surfaces of the sauna must not be directly exposed to excessive humidity.
1.6.The installation site must have proper electrical connections that conform with state and local
codes.
2. On-site requirements- indoor sauna
2.1.Make sure adequate ventilation is ensured in the room to be used for installing the sauna to
ventilate the humidity and warm air created by the sauna.
2.2.Fresh air supply for the sauna room and heater must also be ensured. Be sure to leave an air gap
between the sauna structure and the adjacent structures of the room. This is necessary to avoid
formation of condensation between the structures of both the building and the sauna that
could damage them and shorten their lifetime. The manufacturer recommends ensuring a
minimum distance of 2".
2.3.The installation surface must be level and stable.
3. On-site requirements- outdoor sauna
3.1.The outdoor sauna is designed to be installed on a pre-prepared level and stable surface capable
of bearing the load.
3.2.Safety distances- you must leave at least a two-metre clearance around the sauna, unless
specified otherwise or provided otherwise by the local requirements for similar buildings.
3.3.If your sauna is delivered pre-assembled, the installation site must be accessible for heavy
machinery.
4. Sauna heater and heating stones
4.1.Install the sauna heater according to the heater manufacturer's installation instructions.
4.2.Install the sauna stones according to the heater manufacturer's instructions. Installation
requirements for the stones may vary depending on the sauna heater selected. As a
general rule, the heating elements of the heater must be covered with stones. Pouring
water directly on the heating elements will shorten the life of the heater and pose a health
risk (hot water splashes).
4.3.It is recommended to rinse the sauna stones with water before use. This cleans the
stones of any possible processing residue.
4.4.Never use the heater without stones.

saunalife.com
Instructions for use and maintenance of pre-built and
pre-assembled indoor and outdoor saunas
5. Finishing and treating the wooden parts of the sauna with a protective agent
5.1.Before using the sauna, wooden surfaces should be treated with a suitable protective agent.
The manufacturer recommends using sauna wax or sauna wood oil (paraffin oil).
5.2.Depending on the installation method used for your sauna and the free space left in and around
the sauna, the wooden surfaces can be treated before or after installation.
5.3.Treating the wood will extend the life of the wood and your sauna, preserving its properties
and appearance. Treated surfaces repel water and dirt and are easier to clean.
6. When first starting the sauna
6.1.Make sure all parts of your sauna are intact and functional after installation and before the first
heating.
6.2.First heating: slowly heat your sauna to a temperature of 210°F under supervision, keep this
temperature for two hours and let the sauna cool down slowly. The sauna must be well ventilated
during the first heating- it is recommended to leave the door ajar. This is necessary to allow the
wood protecting agent to be absorbed into the wood and any residues from production and
processing to evaporate from the surfaces.
6.3.DO NOT STAY IN THE SAUNA DURING THE FIRST HEATING- substances evaporating from
surfaces may cause an unpleasant smell.
7. Using your sauna
7.1.Use the sauna only for the purpose for which it was manufactured.
7.2.Pour water only on the heating stones.
7.3.Use the sauna in moderation- it stimulates circulation, relaxes muscles and cleanses.
7.4.Rinse yourself with water between sauna sessions.
7.5.Be sure to stay well hydrated before and after your sauna session.
8. General sauna maintenance
8.1.After each use:
·Wipe the bench with a damp cloth after.
·Remove and pools of water from wooden surfaces.
·If the design of the bench allows it, raise the platforms to an upright position to dry.
·Let the heater run under supervision for approximately 20 minutes - wooden parts dry more
efficiently this way.
