Saunum Primary set Operation manual

Saunum Primary Set

heater with a sauna room indoor climate device

INSTRUCTION FOR USE AND INSTALLATION

ENG

6 7

ENG ENG

THE BEST SAUNA

EXPERIENCE TO HAVE!

am very glad that you have invested in the Saunum

device, and I believe that our innovative technology

will oﬀer you a wonderful and extraordinary sauna

experience.

I have a degree in thermal engineering and come from the

Southern Estonia, where my love for saunas began.The special

feature of local historic smoke saunas is the lower tempera-

ture and higher humidity level than, for example, a classic

Finnish sauna. In ordinary saunas, the stone volume of the

sauna heater is generally small. Such an arrangement can

cause a sudden, burning hot steam and an extremely uneven

temperature, where your head and shoulder level is really hot,

but your feet are left cold. Such an experience can be quite

unpleasant and may cause headaches and lead to body stress.

However, in ancient smoke saunas and Native American sau-

nas, the stones were rst heated during the day. Then the heat

stored in the stones was used to cleanse the body and create a

truly enjoyable sauna experience.

Inspired by the experience of a smoke sauna, I wanted to

create an innovative solution that combines the best features

of an authentic sauna with modern technology; enabling a

pleasantly mild and relaxing sauna experience without pain-

fully scorching steam. For that, however, I had to solve the

problem of how to achieve an even temperature, at both the

head and foot levels. My development work was supported

by research done alongside Tallinn University of Technology,

in which we analysed the thermal stratication and air move-

ment in the sauna room. Saunum was born in cooperation

between scientic thinking and technological innovation.

Saunum’s unique patented mixing system of air layers cap-

tures the hot steam that rises under the ceiling of the sauna

room, mixes it with the cooler air from the surface of the oor,

and directs the milder steam back evenly. This makes for an

enjoyable, unaggressive heat. You can sit in the sauna for a

longer time, and enjoy a sweat and a deep cleanse without

feeling tired. The stone volume of our heaters is signicantly

larger than other sauna heaters, which is the reason for the

especially pleasant indoor climate with long and soft steam.

A moist steamy sauna, a sanarium, a therapeutic salt sauna, or

a healthy aroma sauna – all of these functions are available on

Saunum’s devices to create a truly relaxing sauna experience.

When using Himalayan salt balls in our device, salt ions that

are benecial to skin and respiratory tract evaporate and the

steam circulates these into the air. Adding a sauna aroma sys-

tem that blends steam and healthy aroma oil creates an even

more enjoyable sauna environment.

Saunum’s sauna devices are suitable for both adults and

children.

Have a pleasant sauna!

Andrus Vare

The creator of Saunum

ENGENG

Saunum Saunas OÜ

congratulates you

on choosing a heater with

an innovative sauna room

indoor climate device!

CONTENTS

Safety information ____________________________________

DIRECTION FOR USE

Heating the sauna room______________________________

Using the sauna climate device _______________________

Adjusting the temperature ___________________________

Regulation of the sauna climate _________________________

Use of Himalayan salt balls ____________________________

Throwing water on the heater ____________________________

Loading the stones ____________________________________

Warnings _________________________________________

Solving problems __________________________________

Maintenance _______________________________________

Sauna room _________________________________________

Sauna room ventilation_______________________________

Power of the heater ___________________________________

INSTALLING

Before the installation _________________________________

Dimensions _______________________________________

Product completeness _________________________________

Parts of the device ____________________________________

Installation instructions _______________________________

Electrical connection ________________________________

Electric heater insulation resistance_______________________

Installing and replacing the heating elements _______________

Warranty _________________________________________

Installation Report ____________________________________

CONTENTS

10 11

ENG ENG

SAFETY INFORMATION

These instructions for installation and use

are intended for the sauna owner or main-

tenance provider, as well as the electrician

responsible for installing the heater with

a sauna room indoor climate device. After

installing the heater with an indoor climate

device, the instructions must be handed

over to the owner or maintenance provider.

Before using the Saunum Primary Set

heater with an indoor climate device (here-

inafter ‘sauna climate device’), read the in-

stallation and safety instructions.

The sauna climate device is intended for

heating the sauna room at 60–100 °C and

for regulating the sauna room climate

during steaming.

NB!The climate control unit and the heat-

er of the sauna must not be operated in

temperatures exceeding 100 °C!

NB! Do not use the sauna climate device

for any other purposes!

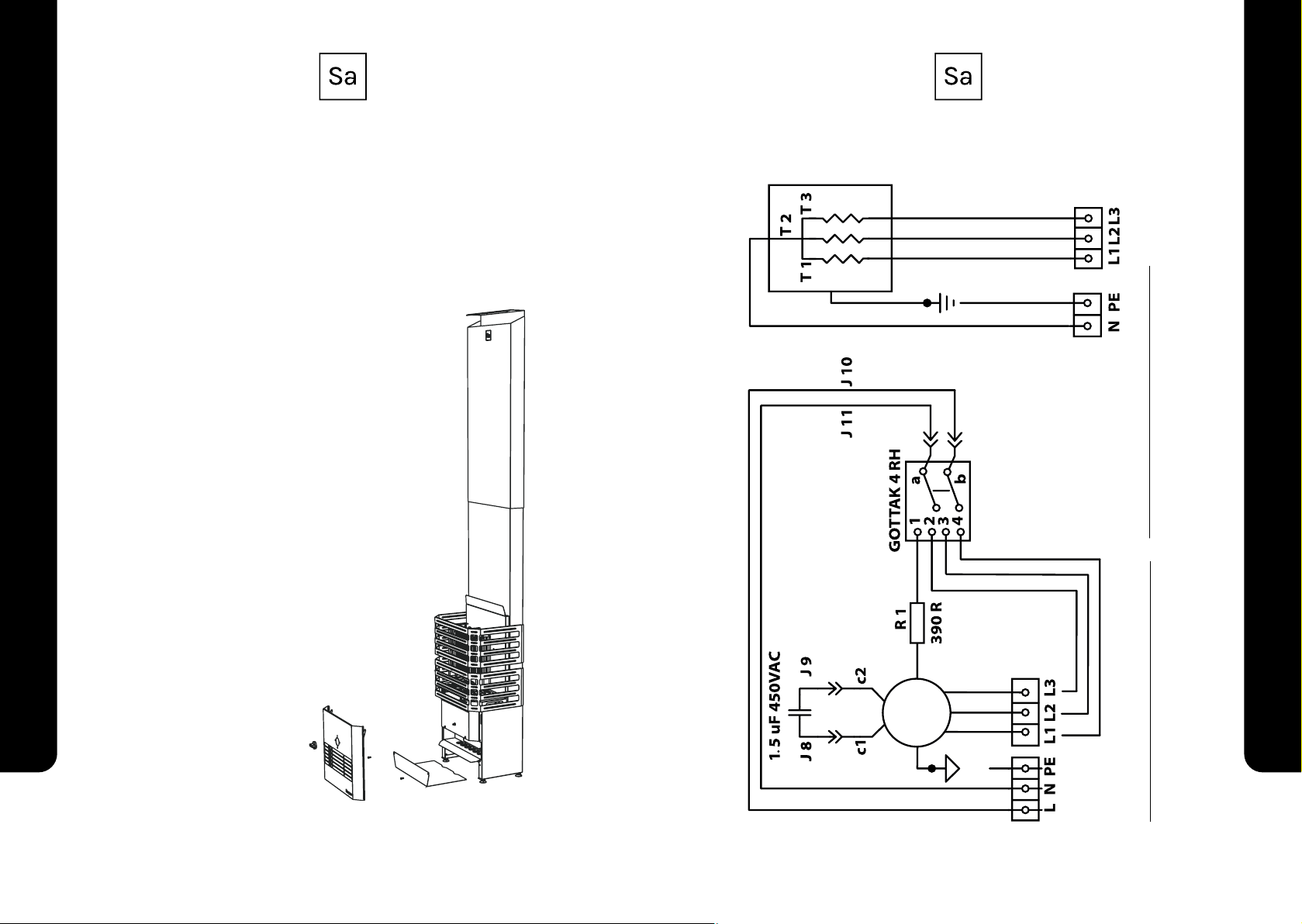

NB! To connect the sauna climate device to

the power network, a control device for the

control of electric heaters is required. The

control device must correspond to the pow-

er of the heater used according to Table 1.

The control device must have the ability to

control the fan of the sauna climate device,

and the function of simultaneously switch-

ing o the heater and the fan of the sauna

climate device is recommended.

To ensure the longevity of the device,

make sure that the temperature of the

sauna room at the height of the lower

part of the device does not exceed 80

°C. If it is exceeded, the thermal protection

DEVICE POWER

3 phase

PROTECTION

Saunum Primary Set 4.5 kW C10

C106 kW

Saunum Primary Set

Saunum Primary Set 9 kW C16

C2012 kW

Saunum Primary Set

3 phase

5x1.5

5x2.5

5x4

5x2.5

Saunum Primary Set B 4.5 kW C10

C106 kW

Saunum Primary Set B

Saunum Primary Set B 9 kW C16

5x1.5

5x2.5

Table 1

3–5

5–7

3x1.5

1 phase/fan

CUBIC SIZE OF THE

SAUNA ROOM m

7–10

10–13

3x1.5

3–5

5–7

3x1.5

7–103x1.5

3x1.5

150 mm from sides, 150 mm from the front side,
