Instruction manual ultrasonic hardness
tester
SAUTER HO
Version 2.0
03/2020
GB
HO-BA-e-2020
PROFESSIONAL MEASURING

2 HO-BA-e-2020
GB
SAUTER HO
V. 2.0 08/2020
Instruction manual ultrasonic hardness tester
Thank you for purchasing the digital ultrasonic hardness tester from SAUTER. We
hope you will be very satisfied with the high quality of the hardness tester and its
extensive functionality.
For any questions, wishes and suggestions we are at your disposal.
Table of contents:
1Safety and liability ......................................................................................... 3
1.1 Safety Instructions ................................................................................................................... 3
2Introduction.................................................................................................... 3
2.1 Description of the device......................................................................................................... 3
2.2 Specification ............................................................................................................................. 4
2.3 Use............................................................................................................................................. 5
2.4 Operating conditions ............................................................................................................... 5
2.5 Scope of delivery for the standard version ........................................................................... 5
3Structure and function .................................................................................. 6
3.1 Basic Structure and Functionality.......................................................................................... 6
3.2 Ultrasonic sensor ..................................................................................................................... 7
4Technical properties...................................................................................... 9
4.1 Technical data........................................................................................................................... 9
5Safety instructions for handling................................................................. 10
5.1 Preparation and control......................................................................................................... 10
5.2 Measurement .......................................................................................................................... 12
6Special precautions..................................................................................... 17
7Handling ....................................................................................................... 18
7.1 Masks and keys...................................................................................................................... 18
7.2 Test settings ........................................................................................................................... 20
7.3 System settings ..................................................................................................................... 21
7.4 Memory settings..................................................................................................................... 22
7.5 Print settings........................................................................................................................... 23
7.6 Calibration............................................................................................................................... 24
7.7 Permissible deviation and repeatability............................................................................... 26
7.8 Battery ..................................................................................................................................... 27
7.9 Data transmission.................................................................................................................. 27
8Maintenance................................................................................................. 27
9Warranty....................................................................................................... 28
10 Storage/Transport........................................................................................ 28

HO-BA-e-2020 3
1 Safety and liability
These operating instructions contain important information about safe handling and
maintenance of your new device. Before using the appliance for the first time, please
read these operating instructions completely and carefully. Please keep the manual
in a safe place for future reference.
1.1 Safety Instructions
Your device is a high-precision instrument; it requires careful handling and must not
be exposed to considerable vibrations. Risk of damage to internal components!
The indenter of the hardness tester is made of diamond and has absolute natural
hardness. Risk of scratching and damage to valuable objects!
After the measurement, lift off the indenter for approx. 0.5s and then perform a new
measurement. Otherwise there will be no resonance between the indenter and the
test specimen in a short time.
After use, store the device in a transport case. Danger of damage!
The main unit and the sensor must not be disassembled. No liability is assumed for
any damage resulting from this.
It is prohibited to use the device in an explosive environment. Fire and explosion
hazard!
Battery: Only the battery supplied by the manufacturer may be used. The battery must
not be disassembled. When inserting the battery, make sure that the polarity is
correct.
Do not throw the battery into fire or heat sources, immerse it in water or expose it to
water! If the battery is deformed, it must not be reused. Switch off the device before
changing the battery. The battery must not be removed when the unit is switched on.
The battery is installed before delivery and does not require any major changes.
Power supply unit: The power supply unit must be stored in a dry place. It must be
protected against short circuits. Danger of damage! Do not touch with wet hands!
Danger of electric shock!
We reserve the right to change the specification of the device as well as the software
without prior notice.
2 Introduction
2.1 Description of the device
Many common measuring methods are currently used for hardness testing.
Such as Brinell, Rockwell, Vickers, Leeb and the like The test load as well as the
rather large penetration depth in the Rockwell and Brinell method lead to

4 HO-BA-e-2020
considerable damage to the surface of the test specimen. The Vickers method uses
an optical measurement, but a problem-free and correct measurement requires
extensive expertise. Furthermore, there is no possibility to test a test piece of greater
weight or solid parts for hardness.
The ultrasonic hardness tester is based on the ultrasonic contact impedance method
for performing comparable hardness tests on test specimens. The instrument ensures
high precision and performance, is portable, easy to use and offers a non-destructive
testing method.
2.2 Specification
Perfect accuracy: ±3%HV，±3%HB, ±1.5HR
* Microscopic impression: it does not damage the specimen, the impression is only
visible under a very powerful microscope
* fast Measurement：measurement results are readable within 2s, 60 times more
power than tabletop units
* Large LCD display: direct display of measurement results, counter values, MAX and
MIN values as well as average values and conversion factors
* Simple operation: the device is user-friendly after only a short training
* High performance: 2 years warranty
* Mass memory: up to 1000 measured value groups and up to 20 calibration sets can
be stored
* Before calibration: 20 measurement value groups can be stored before calibration
for recall to improve measurement performance
* Data output and printing: cable transfer via USB to computer and printer

HO-BA-e-2020 5
2.3 Use
* Hardness measurement of flange edge and flanks of gears, moulds, sheet metal,
surface-hardened cutting edges as well as tooth grooves and conical parts
* Hardness measurement of axles, thin-walled tubes and containers
* Hardness measurement of wheels and rotor turbines
* Hardness measurement of rotor blades
* Hardness measurement of welded parts
* Measurement of certain opening depths of incisions, radii of convex marks, irregular
surfaces
* Hardness measurement of majority of ferrous metals, non-ferrous metals and other
alloyed steels in industrial production
2.4 Operating conditions
Operating temperature: -10～40°C
Storage temperature: -20～+60°C
Relative working humidity: ≤85%.
During storage, avoid vibrations, aggressive environments and dust!
2.5 Scope of delivery for the standard version
- Display housing
- depending on version, corresponding probe
- Sensor cable
- (hardness comparison plate standard)
- Power supply unit USB
- Battery
- Screwdriver
- Transport case
- Operating instructions

6 HO-BA-e-2020
3 Structure and function
3.1 Basic structure and functionality

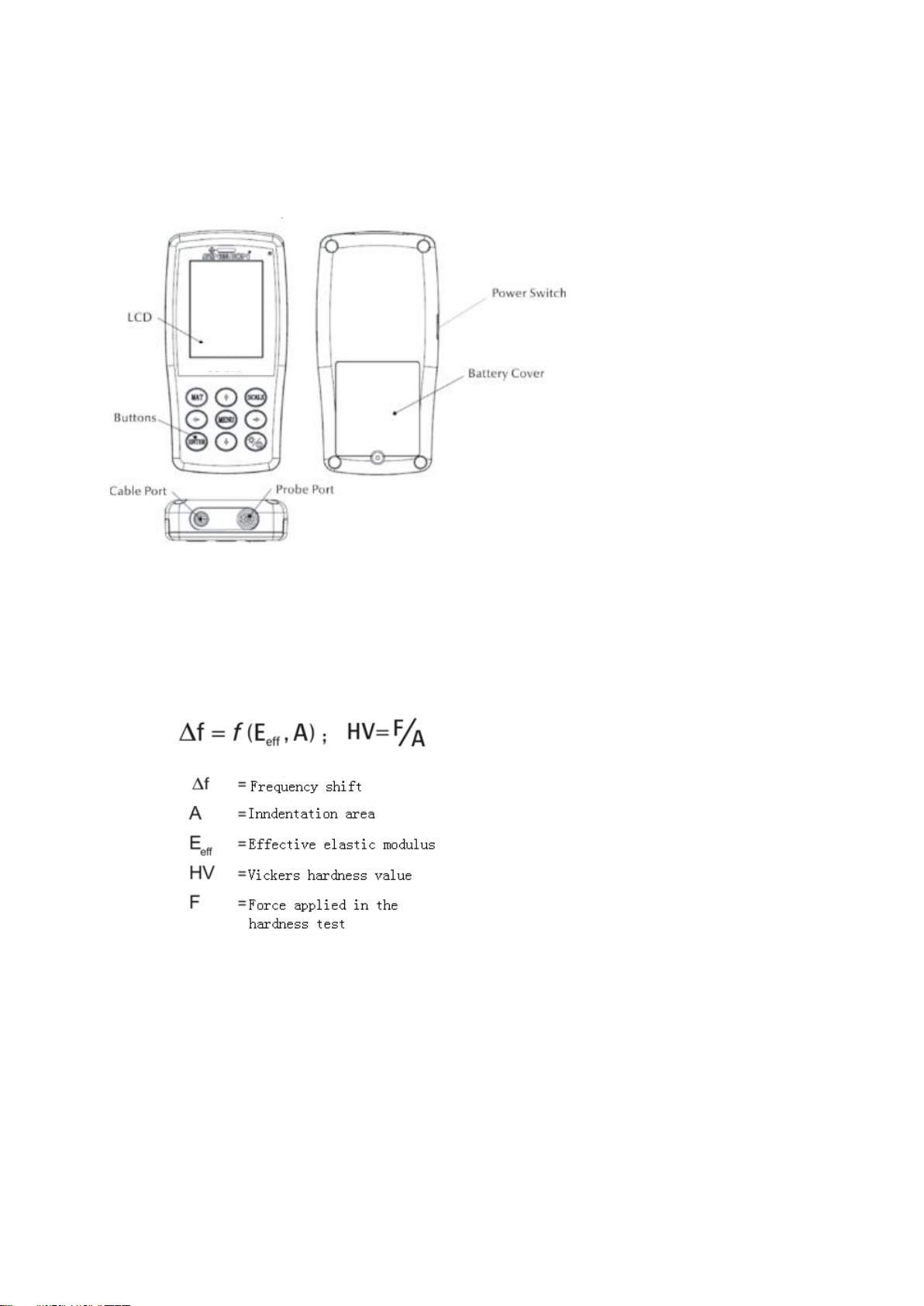

Front and rear view of the ultrasonic hardness tester HO
Fig. 1
The main unit is connected by means of an 8-pin data cable and an ultrasonic sensor
(see fig. 1.1).
The function of the ultrasonic hardness tester is based on the ultrasonic contact
impedance method as well as on the modulus of elasticity.
Formula for the quality of the ultrasonic measurement of the hardness tester EQ1:
Hint:
As can be seen in EQ1, the change in frequency depends not only on the size of the
contact area, but also on elastic modulus values of materials in the contact area. In
order to take into account the differences in Young's modulus values, the instrument
must be calibrated for different groups of materials.
After calibration, the ultrasonic contact impedance method can be applied to all
materials that have corresponding elastic modulus values.

HO-BA-e-2020 7
3.2 Ultrasonic sensor

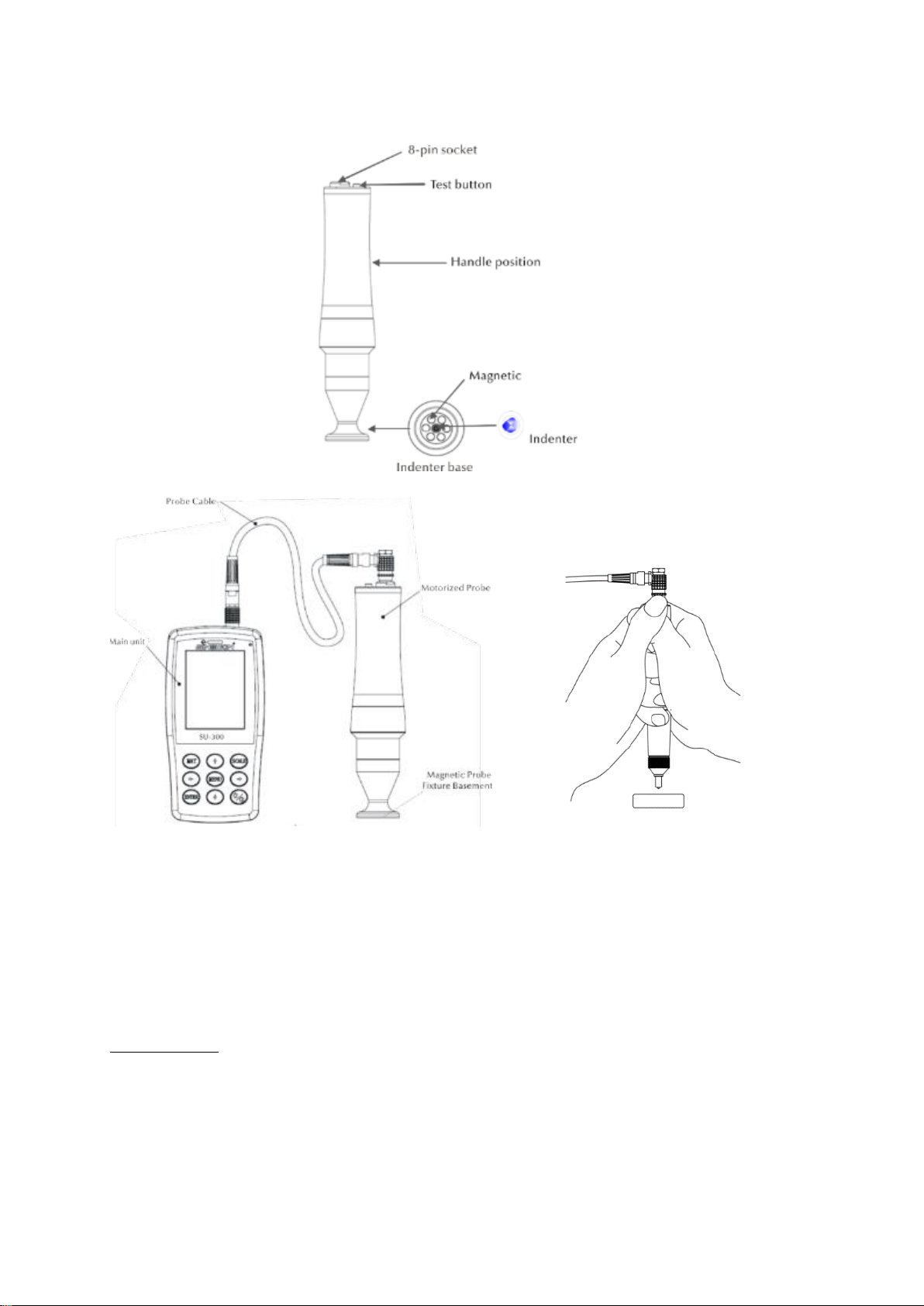

3.2.1 Design of the manual sensor
3.2.2 Technical data of the manual sensor
Type of sensor
HO-A01
HO-A02
HO-A13
HO-A14
Available as
Accessories
Accessories
Accessories
Accessories
Test force
10 N
20 N
50N
100N
Diameter
22 mm
22 mm
22 mm
22 mm
Length
154 mm
154 mm
154 mm
154 mm
Diameter of the
oscillating rod
2.4 mm
2.4 mm
2.4 mm
2.4 mm
Surface roughness of
the test specimen
Ra＜3.2
um
Ra＜5 um
Ra＜10 um
Ra＜15 um
Minimum weight of test
pieces
0,3 kg
0,3 kg
0,3 kg
0,3 kg
Minimum thickness of
test specimen
2mm
2mm
2mm
2mm
Diamond indenters
8-pin female connector
Handle
position

8 HO-BA-e-2020
3.2.3 Indenter and impression
The ultrasonic penetrator is a diamond penetrator of 136 °. Below is an image of the
impression in prism form on the test piece, the size of the impression varying according
to the material of the test piece. The shape of the impression is the same as the Vickers
method and would require a strong microscope for observation.
Fig. 3 Fig. 4
The penetration depth (h) and the mean value of the dialogue length (d) of sensors of
the ultrasonic hardness tester decrease together with the increase of the hardness
value.
Table
Certain hardness values according to different ultrasonic sensors (ultrasonic contact
impedance method) including penetration depth (h, µm)
Vickers
Hardness
HO-3M
HO-5M
HO-1K
HO-2K
HO-5K
HO-10K
800HV
4
5
7
10
15
22
600HV
4
5
8
11
18
25
300HV
6
8
11
16
25
35

HO-BA-e-2020 9
4 Technical properties
4.1 Technical data
Measuring ranges:
HO-A03
HRC
20,3~68
HRB
41~100
HRA
61~85,6
AGM
80~1599
HB
76~618
Supported and
displayed
hardness scales
HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N,
HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T,
HRB
Tensile strength
255~2180 N/mm²
Battery:
Voltage
4,2V
Capacity
4800mAh
Loading time
8h
Power supply unit:
Entrance
220V/50Hz 110V/60Hz
Output
5V/1A
Menu languages
German, English, French, Italian, Spanish, Polish
Data memory
1000 measurement value groups, 20 calibration sets
Dimensions
display unit
162×81×31mm
Weight display
unit
0.5kg
Type
ASTM E140-18265；GB 18265；GB 2005/T
1172-1999

10 HO-BA-e-2020
5 Safety instructions for handling
5.1 Preparation and control
5.1.1 Requirements concerning test pieces
Minimum thickness
The ultrasonic hardness tester uses a Vickers diamond indenter, so the Vickers
hardness calculation formula is also used in the ultrasonic hardness tester. Thin layers
or top coats of base material must have a minimum thickness (t).
1) The penetration depth of a diamond pyramid according to Vickers for specific
hardness (in HV) and test load (in N) are given at EQ2:
h=0.062
HV
F
(5-1-1) h : mm, test load F : N
Minimum thickness 10 times the penetration depth of the indenter used
t≥10h (5-1-2)
From （5-1-1）und （5-1-2）results
Minimum thickness t≈0,62
HV
F
(5-1-3)t: mm; Test load F: N
Formula 5-1-3 gives the following minimum thickness values (Table No. 5-1-0)
Determined hardness value (HV) with two different sensors with required minimum
thickness:
HO-M
HO-1K
HO-2K
HO-5K
HO-10K
800HV
30um
69um
100um
150um
220um
600HV
49um
79um
110um
180um
250um
300HV
65um
112um
160um
250um
350um
