Savin MP CW2200

ppmppm

full-color

monochrome

1.13.2

Wide Format Color

Digital Imaging System

Copier

Printer

Scanner

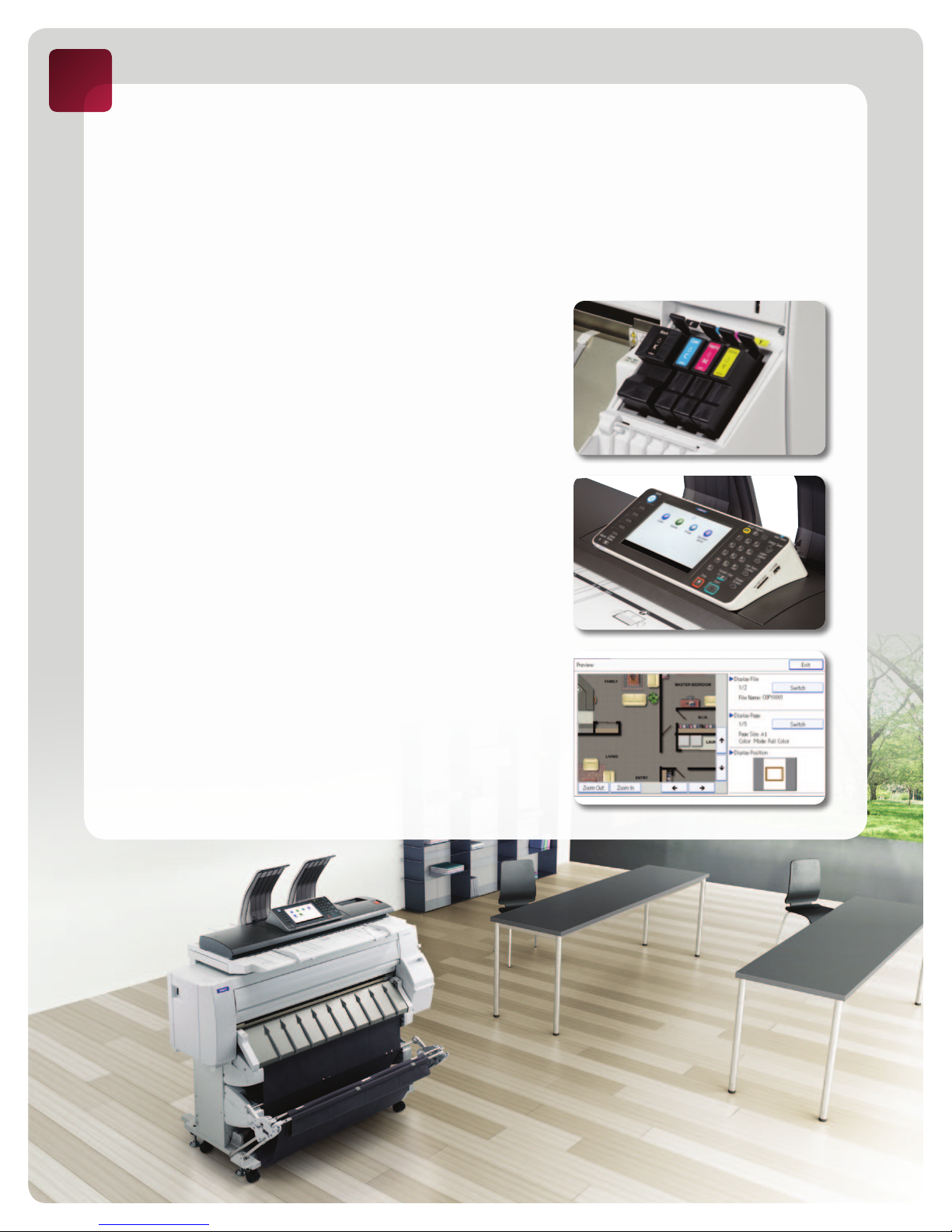

MP CW2200

Add color to wide format workflows

The SAVIN®MP CW2200 combines full-color output with exceptional versatility to meet a wider range of

wide format workflow demands. The affordable, full-color low-volume digital imaging system offers print,

copy and scan functionality to ensure essential large documents can be captured, saved and shared with

incredible ease and simplicity. Present design plans, documents, schematics and more in brilliant colors —

exactly the way they were designed.

Versatile performance to do more

The Savin MP CW2200 offers incredible multifunction performance, including

copying, scanning and printing, to streamline low-volume, wide format

workloads for CAD-centric organizations, such as architectural, construction

and engineering firms. With full-color output, you can create compelling,

professional-quality documents to put your work in the best light. Choose from

multiple paper sizes and weights in order to meet every demand and manage

every project with ease from the device or from the desktop.

Intuitive functionality makes it easy

The Savin MP CW2200 is designed to work the way you do. Take advantage of

embedded SDK architecture to integrate highly productive Savin applications

such as GlobalScan NX as well as the 4.3" tiltable operator panel to configure

workflows and to set up easy, one-touch shortcuts for frequently used tasks

and personal preferences. A simplified display and step-by-step animated

guide ensure easy operation for every user. Users can also replace proprietary

ink cartridges in moments without swapping print heads for longer-lasting

performance and less waste.

Advanced scanning streamlines

operations

With the Savin MP CW2200 digital imaging system, you can share high-quality color

or black-and-white electronic documents quickly and easily at no additional cost.

The Savin MP CW2200 lets you scan full-color originals and distribute them via

Scan-to-Email/Folder/FTP/HDD. Take advantage of Scan-to-URL to give users in the

field immediate access via any Web browser. Save files directly to a USB or SD card

for mobile convenience. In addition, full-color thumbnail views allow users to review

documents for accuracy and clarity before delivery.

Full-featured capabilities in full color

Outstanding paper feeding

Take advantage of uninterrupted workflow and improve your

productivity. The Savin MP CW2200 includes multiple paper feeds

to ensure users have the right kind of paper to handle every project

with consistent speed and efficiency. With optional two-roll printing,

the system can accommodate various-sized paper rolls and change

them automatically. Users can print on the appropriately sized paper

to reduce paper waste without having to walk to the device and

spend critical time changing paper manually.

Powerful security

Protect confidential and proprietary documents with a host of

advanced security features. With user authentication, print jobs

are stored and released only when the authorized user swipes

an ID card or enters a password at the device. PDF encryption

protects the integrity of scanned, password-protected PDFs during

distribution. The device includes the DataOverwriteSecurity System

(DOSS) feature to automatically destroy latent images and data

on the HDD. Administrators can even restrict access to specific

functions for each individual user.

External media convenience

The Savin MP CW2200 is designed to enhance efficiency for every

user — especially for those on the go. With the built-in USB and

SD card slots, users can Scan-To or generate prints directly at

the device using a USB memory or SD card for optimal on-the-go

flexibility. It also supports an optional keyboard unit for users who

prefer traditional keyboard input to a touch screen. In addition, users

can even print from most manufacturer’s mobile devices to ensure

they have important documents at the most critical times.

SYStem SpecificationS

Savin MP CW2200

General Specifications

Configuration Console

Scanning Element CIS Color Scanner (Moving original)

Printing Process On demand Piezo inkjet system

Ink Type Pigment-based ink (All 4 colors)

System Memory 3GB

HDD 250GB

Warm-up Time Less than 40sec*

First Copy Time A0 SEF: (B/W) Speed Priority Mode:

(from Standby mode) 51sec/ Standard Mode: 71sec

(Color) Speed Priority Mode:155sec/

Standard Mode: 244sec

A1 LEF: (B/W) Speed Priority Mode:

29sec/ Standard Mode: 41sec

(Color) Speed Priority Mode: 84sec/

Standard Mode: 131sec

Copy Resolution 600dpi

Original Feed Sheet

Original Set Position Center

Original Scan Size Maximum: 36" x 590" (914mm x

15,000mm)

Minimum: 8.5" x 8.5" (210mm x 210mm)

Original Paper Weight Paper Feed Guarantee: 0.035 – 1.0mm

Image Quality Guarantee: 0.090 – 0.2mm

(64 – 190g/m2)

Feed to Carrier Sheet: 0.070mm and less

Original Paper Width Inches: 8.5” / 9” / 11” / 12” / 17” / 18” /

22” / 24” / 30” / 34” / 36”

Metric (mm): 210 / 257 / 297 / 364 / 420 /

440 / 490 / 515 / 594 / 610 / 620 / 625 /

660 / 680 / 707 / 728 / 800 / 841 / 880 /

914.4

Output Paper Size Inches: Maximum Roll Feeder – Width:

36", Length: 590"

Maximum Bypass – Width 36", Length:

78.7"

Minimum – Width 11", Length: 8.27"

Metric: Maximum Roll Feeder – Width:

914.4mm, Length: 15,000mm

Maximum Bypass – Width 914.4mm,

Length: 2,000mm

Minimum – Width 279.4mm, Length:

210mm

Output Paper Weight Roll Paper: 0.068-0.2mm (51 – 190g/m2)

Cut Sheet: 0.068-0.4mm (51 – 220g/m2)

Roll Paper Width Inches: 11" / 12" / 15" / 17" /18" / 22" /

24" / 30" / 34" / 36"

Metric (mm): 297 / 364 / 420 / 440 / 490 /

515 / 594 / 610 / 620 / 625 / 660 / 680 /

707 / 728 / 800 / 841 / 880 / 914.4

Paper Type Plain Paper, Recycle Paper, Inkjet Plain

Paper, Tracing Paper, Matte Film, Coated

Paper, Coated Paper (CAD), Special Paper

Copy Speed (CPM) A0 SEF: (B/W) Speed Priority Mode:

1.8cpm/Standard Mode: 1.1cpm

(Color) Speed Priority Mode: 0.6cpm/

Standard Mode: 0.3cpm

A1 LEF: (B/W) Speed Priority Mode:

3.4cpm/Standard Mode: 2.0cpm

(Color) Speed Priority Mode: 1.1cpm/

Standard Mode: 0.6cpm

Reproduction Ratio Metric: 25%, 35.4%, 50%, 70.7%,

141.4%, 200%, 282.8%, 400%

Engineer (inch): 25%, 32.4%, 50%,

64.7%, 129.4%, 200%, 258.8%, 400%

Architecture: 25%, 33.3%, 50%, 66.7%,

133.3%, 200%, 266.7%, 400%

Zoom 25% – 400% by 0.1% Step

Multiple Copying 1 to 99

Paper Feeding Capacity 1st Roll and Optional 2nd Roll: One Roll

Paper each, Width: 8.5" – 36" (279.4mm

– 914mm), Max. length:150,000mm, Max

diameter: 176mm

Bypass: One sheet

Paper Output Capacity 10 Sheets (Plain Paper)*

*2" core roll cannot stack because the curvature factor is too small.

Paper Cut Method Preset size cut/Synchronized cut/

Variable cut

Power Source 220 – 240V 50 – 60Hz, 1.9A 120 – 127V

60Hz, 3.6A

Max Power Consumption Less than 180W

Dimensions (WxDxH) 55.1" x 22.1" x 50.3" (1,400 x 560 x

1,280mm)

Weight Less than 265 lbs (120 kg)

Printer Specifications

Controller Board Embedded (GW Controller)

CPU Celeron-M 1.0GHz

RAM 3GB

HDD 250GB

Print Speed A0 SEF: (B/W) – 1.8ppm (Speed Priority

Mode)

(Color) – 0.6ppm (Speed Priority Mode)

A1 LEF: (B/W) – 3.2ppm (Speed Priority

Mode)

(Color) – 1.1ppm (Speed Priority Mode)

Print Drivers Adobe PostScript3, HDI

Supported Print Language

PostScript3, HP-GL, HP-GL2

Print Resolution Speed Priority Mode: 600dpi x 300dpi

Standard Mode : 600dpi x 600dpi

Quality Priority Mode: 600dpi x 600dpi

Quality Priority Mode for Coated Paper,

Film (Matted) and Special Paper: 1200dpi

x 1200dpi

Font European 136 fonts (PS3)

Ink Save Mode Yes, Save Ratio 50% (PS Driver)

Interface Standard: Ethernet 100BASE-TX/

10BASE-T, USB2.0

Optional: Wireless LAN (IEEE802.11a/b/g,)

Gigabit Ethernet (1000BASE-T)

Network Protocol TCP/IP (IP v4, IP v6), IPX/SPX

Standard MIB MIB-II (RFC1213), Host Resource

(RFC1514), Printer MIB (RFC1759)

Private MIB Savin Original

Network/Operating System

Windows: XP/Vista/Server2003/

Server2008/Server2008R2/7

Mac: OS 10.2 – 10.6 or later

Citrix Presentation Server 4.5 (32bit/64bit)

Citrix XenApp5.0 (32bit/64bit)

Citrix XenApp6.0 (64bit)

Supported CAD version AutoCAD 2004/2005/2006/2007/2008/

(HDI Driver) 2009/2010/2011/2012

One Direction Yes

Media to Print Yes (JPEG/TIFF/PDF)

(Print from USB/SD)

Unauthorized Copy Yes (PS driver)

Prevention

WSD Printer Yes

Color Matching Yes

POP Yes

CUD Yes

Scanner Specifications

Color Scan Standard

Scan to Multimedia Standard

Media to Print Standard

Scanning Speed B/W: 600dpi: 3.14ips, 80mm/s

Color: 600dpi: 1.05ips, 26.7mm/s

Scanning Resolution Standard: 100 / 200 / 300 / 400 / 600 dpi

Default: 200 dpi

Scan Detection Auto detect, Preset size, Custom size

RGB Support Standard

Network Interface Standard: Ethernet 100BASE-TX/

10BASE-T, USB2.0, USB Host, SD card

slot

Optional: Gigabit Ethernet (1000BASE-T),

Wireless LAN (IEEE802.11a/b/g)

Protocol Network: TCP/IP, Scan-to-E-mail: SMTP,

Scan-to-Folder: SMB, FTP

Compression Method B/W: TIFF (MH, MR, MMR), Grayscale

Full Color: JPEG (5 levels)

Scan Mode B/W: Text/Line Art (Default), Text, Text/

Photo, Grayscale

Full Color: Text/Photo, Photo

Image Density Auto Density Selection effective only in

B/W and Grayscale scan mode

Manual: 7 levels (Effective in B&W/

Grayscale and Full-Color scan mode)

Image Rotation Yes

SADF/Batch Mode Yes

Mixed Size Mode Ye s

External Options

2nd Roll Unit

Roll Paper Size Maximum Width: 36" (914mm)

Minimum Width: 11" (279.4mm)

Roll Paper Diameter 6.92" (176mm)

Dimensions (WxHxD) 43.6" x 15.7" x 17" (1,108 × 398 ×

432mm)

Weight 31.9 lb. (14.5 kg)

Roll Holder Unit

Dimensions (WxHxD) 41.3" x 6.3" x 6.3 (1,049 ×160 ×160mm)

Weight 3.3 lb. (1.5 kg)

Consumables*

Starter (Included):

Print Cartridge Black 60ML

Print Cartridge Cyan 28ML

Print Cartridge Magenta 28ML

Print Cartridge Yellow 28ML

For Purchase:

Print Cartridge Black 200ML

Print Cartridge Cyan 100ML

Print Cartridge Magenta 100ML

Print Cartridge Yellow 100ML

*For maximum performance and yield, we recommend using genuine

Savin parts and supplies.

Warranty

The Savin MP CW2200 is under warranty against defects for a period

of one year from the date of purchase. Consumables are under

warranty for a period of 90 days from the date of purchase or until

depleted, whichever comes first. Please refer to warranty documents

shipped with the product for more details.
