Savio Uvinex Standard User manual

A
_____________________________
Read entire instructions prior to assembly and operation
UVinex System
UVinex Standard and High Output Systems
Read the entire instructions prior to assembling and operating
Operating Manual & Specications
The ONLY UV Approved for Use in Savio Skimmerlters
Savio UVinex™ systems provide unparalleled water
clarity for your pond. UVinex™ oers a safe, chemical-free
solution for eliminating green water. By adding a UVinex™
system you’ll also enhance the ltration capabilities of your
Savio Skimmerlter.®
Standard High Output
SUV050A
SUV026A
SUV018A
SUV2800HO
SUV3500HO
SUV5500HO

2
UVinex Components
Standard High Output
RU1805 -18 Watt
RU2605 - 26 Watt
RU5005 - 50 Watt
RU2800HO - 28 Watt
RU3500HO - 35 Watt
RU5500HO - 55 Watt
RU116 RU117
RU1805
RU2605
RU5005
RU2800HO
RU3500HO
RU5500HO
Transformer and Bulb
Compatibility
The UVinex System should come fully-assembled (do not disassemble). Examine all
parts while unpacking. Carefully inspect UVinex Bulb for damage incurred during
shipping. If the unit appears damaged, contact the dealer you purchased it from for a
replacement. Do not use it if damage is evident.

3
Installation

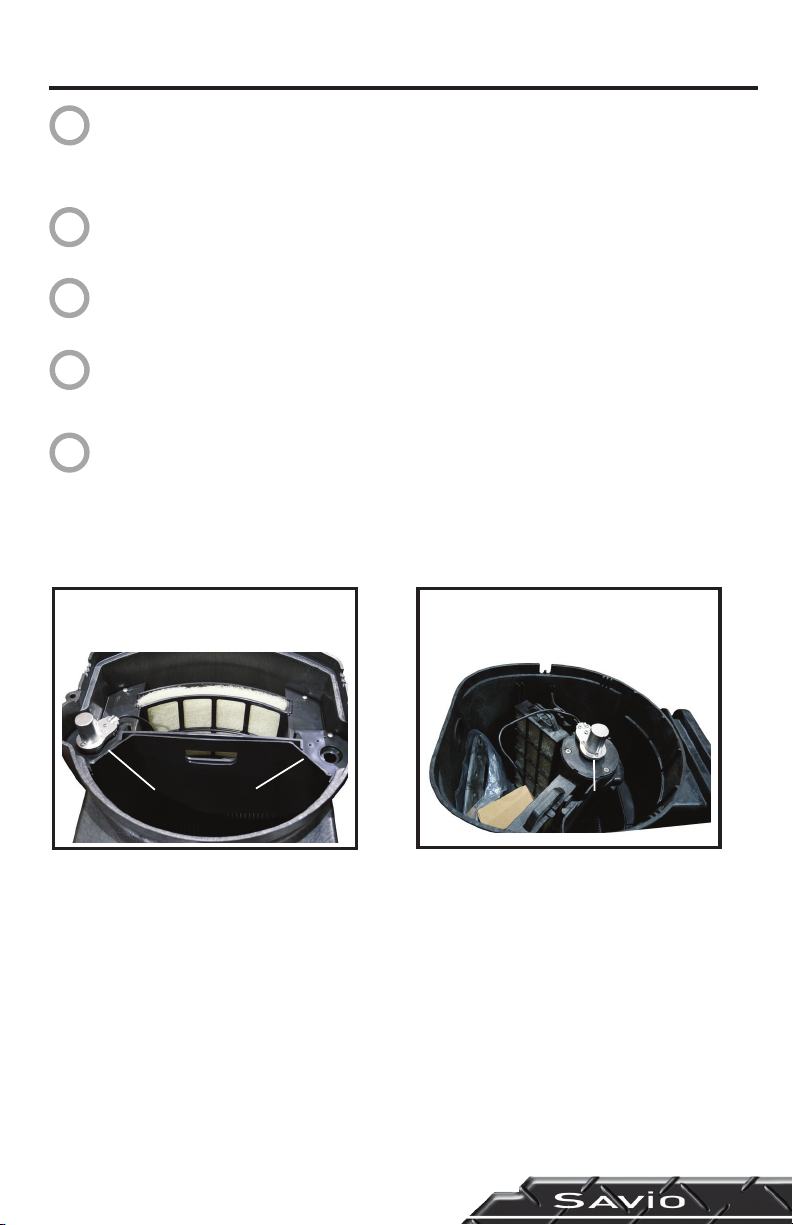

Standard Skimmer Compact Skimmer
UV mounts UV mount
1
2
3
4
5
If installing a single UV, you may use either the left or right Skimmer UV
mount on the Standard Skimmerlter. If using the compact Skimmer Filter
only use the center UV mount.
If using a single UV, a Bae Block can be used to prevent water movement
through the unused UV chamber. This provides improved UV exposure.
Place UV into skimmer by inserting the bulb into the UV mount.
Use a Philips screwdriver and the screws provided to secure the unit. Extra
screws are provided.
To start the system: Plug UV into a GFCI protected outlet. UV must be used in
conjunction with a ground fault current interrupter socket (GFCI). (If you do
not have a GFCI, contact a licensed electrician before using the UV.)

4
Lamp Replacement
Standard
Ru1805
RU2605
RU5005
High Output
RU2800HO
RU3500HO
RU5500HO
1. Remove Uvinex Clarier from the SkimmerFilter
2. Wipe any water or pond debris from the unit
3. Unscrew RU119 Junction Screws and remove RU120 Junction Cap Top
4. Unplug transformer socket from Uvinex 4-prong UV bulb
5. Loosen (do not remove) RU122 Screw Ring until bulb moves freely
6. Gently twist old bulb and remove from RU121 Junction Cap – Bottom
7. Carefully insert new bulb though RU121 Junction Cap Bottom
8. Plug 4-prong UV bulb into transformer socket
9. Set bulb at proper depth by test tting the Junction Cap Top
10. Snug (do not over-tighten) the RU122 Screw Ring to hold bulb in place
11. Install RU120 Junction Cap Top and seal with RU1119 Junction Screws
12. Reinstall Uvinex Clarier in the SkimmerFilter

5
Specs and Maintenance
Recommended Flow Rates
For water clarication, the pump needs to ow the total volume of the pond water past
the UV no less than every two hours. In full-size Skimmerlters® two UVs may be used for
increased clarication.
18 Watt UVinex™ / 28 Watt High Output
Minimum 33% of the total volume of gallons per hour (gph)
Maximum 2000 gallons per hour (GPH)
26 Watt UVinex™ / 35 Watt High Output
Minimum 33% of the total volume of gallons per hour (gph)
Maximum 3000 gallons per hour (GPH)
50 Watt UVinex™ / 55 Watt High Output
Minimum 33% of the total volume of gallons per hour (gph)
Maximum 5000 gallons per hour (GPH)
Maintenance
Prior to performing any maintenance, always unplug the UVinex™ system. Use caution
when removing or replacing bulbs.
Every Three Months:
The coated bulb should be wiped with a clean cloth & rinsed with clean water.
Annually or As Needed:
Replace UVinex™ bulb every 12 months for optimal water clarity.
Winterizing
Allowing the UVinex™ system to freeze can result in breakage to the bulb.
Winterize pond equipment before ice develops on the pond. Keep equipment winterized
until Spring when the water temperature rises to 40F or higher consistently.
To Winterize UV:
1. Disconnect electrical connections.
2. Remove the UV from the Skimmerlter®.
3. Dry UV unit thoroughly and clean bulb.
4. Store indoors in a safe place.

6
Safety
Important Safety Instructions
Water and electricity can be deadly when combined. This unit can pose a signicant
risk of bodily harm if used incorrectly. Please read the following instructions carefully.
WARNING - ELECTRICAL SHOCK HAZARD
• Never immerse the ballast/transformer unit in water.
• Never immerse the entire Uvinex™ system in water.
• UV must be used in conjunction with a ground fault current interrupter socket
(GFCI) (If you do not have a GFCI, contact a licensed electrician before using the
UV.)
• If the UV’s internal components get wet, unplug the unit immediately.
• If the bulb shows signs of leakage unplug the unit immediately.
• Do not operate UV with a damaged cord or plug, if it has been dropped, or is
malfunctioning.
• Do not attempt repairs on a damaged transformer unit.
• Always unplug the unit when not in use and prior to servicing it.
• Always pull the plug from the outlet, never pull the cord.
UV Light Warning
• Do not operate UV unless it is fully installed in the Savio Skimmerlter®.
• UV lamps emit radiation that is harmful to eyes and skin. Do not look directly at
UV while in operation.
• UV lamps are made from glass and must always be handled with caution.
• Closely supervise children around all pond equipment.
• The Savio UVinex™ System is for use solely in Savio Skimmerlters®. Do not use it
in any other environment.

7
Troubleshooting
Faults Possible Causes Remedies
UVinex™
System not
oprating
a) UV is not plugged in
b) GFCI switch (ground fault
circuit interrupt) has tripped
c) Domestic fuse has blown
d) UVinex™ bulb needs
replacing
e) UVinex™ transformer has
failed
a) Connect UV plug to a working outlet
b) Reset GFCI. If this occurs often consult an
electrician
c) Replace the fuse or the reset circuit breaker. If
this occurs often consult an electrician
d) Replace bulb
e) Replace transformer
Transformer
Light RED
a) Bulb not connected to
transformer
b) UVinex™ bulb needs
replacing
c) Transformer needs to be
reset
a) Unplug from the electrical circuit. Unscrew
junction box and reconnect bulb into
transformer, reassemble and restart
b) Replace Bulb
c) Unplug transformer from the circuit
Bulb not lit
a) Coating is cracked or
broken
b) UVinex™ bulb needs
replacing
c) Transformer needs to be
reset
a) Check coating for signs of breakage or
cracks. Replace bulb
b) Replace bulb
c) Unplug transformer from circuit allow 2
minutes and restart
Uvinex
System trips
GFCI
a) Bulb coating is cracked or
broken
b) Too much output for the
electrical outlet
a) Replace bulb
b) Unplug any other items plugged into the
same circuit. Have an electrician check circuit
Water not
clearing up/
clarifying
a) Not enough UV output
b) Too much calcium buildup
c) Not enough Bio-
Mechanical Filtration
d) Needs additional time for
extreme buildup
a) Check UV output ratio to pond gallons and
pump output (GPH). Additional wattage needed
b) Wipe UV coating with a clean cloth to
remove build-up
c) Check your pond gallons and waste
accumulation to the amount of ltration
needed. Add additional ltration
d) If starting UV system under extreme algae
buildup - allow additional time for clarication.
Standard 3-4 weeks

Warranty
Savio Engineering provides a manufacturer’s limited warranty of 5 years from original purchase
date. Warranty does not cover consumables or wear items. Warranty is non-transferable. Within
the warranty period, Savio will repair materials with manufacturing deciencies at their
discretion.
This warranty does not cover any faults caused by improper use, installation and handling of
the device or as a result of wear and tear. Savio Engineering does not assume liability for
consequential damage caused by the failure of the product.
Warranty is void if the product is not used in accordance with instructions. For warranty claims,
please contact your dealer or place of purchase.
