SAYFA SYSTEMS UK 3SIXTY User manual

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [email protected]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
AP135A QUICK INSTALL GUIDE
D9563
5/4/2022
AP135A
1
✓
✓
✓
✗

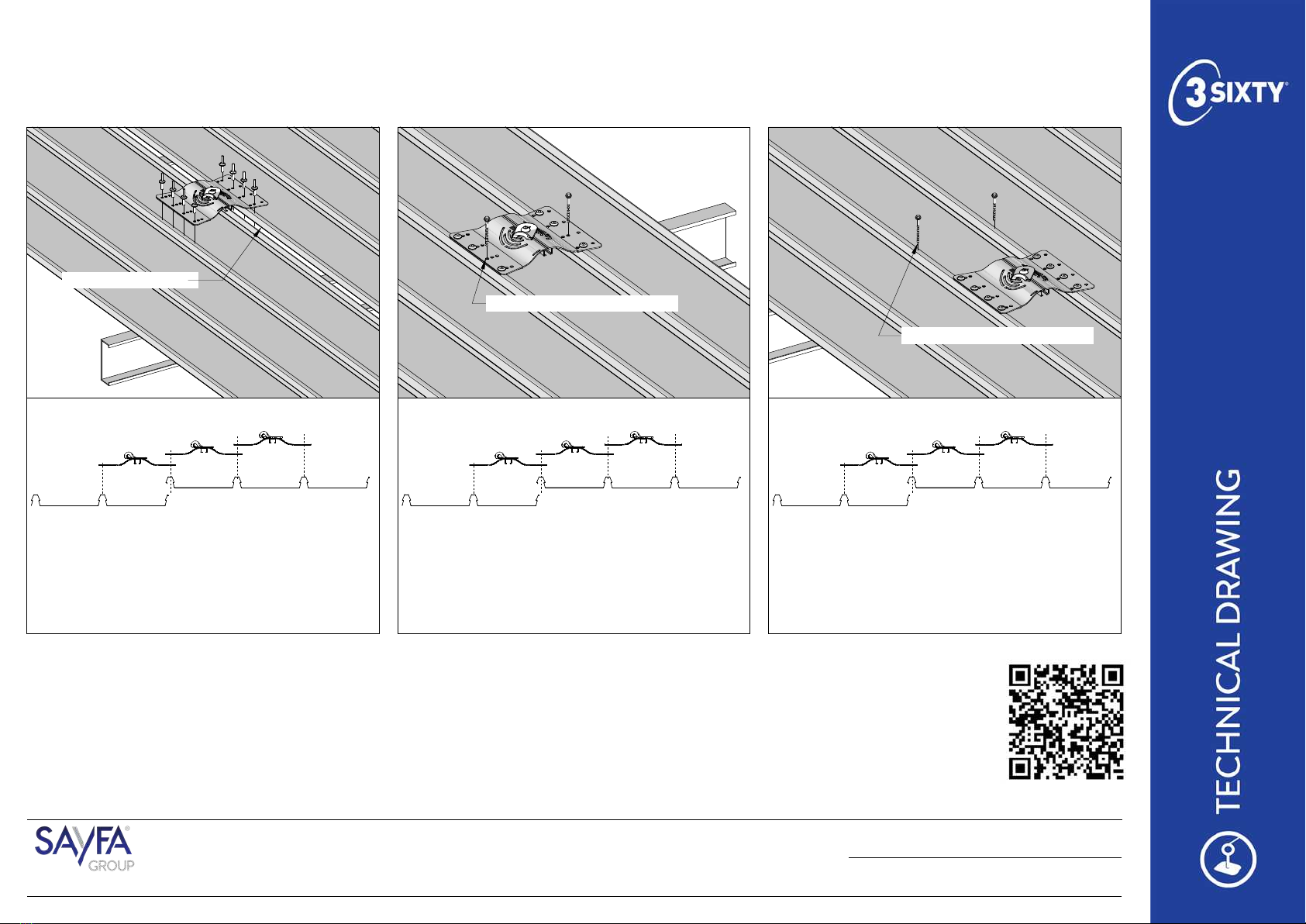

3SIXTY RAPID ANCHOR - INSTALLATION CRITERIA - SCREW-FIX ROOFS
OPTION 1 - RIVETS ONLY
OPTION 2 - RIVETS ONLY
OPTION 3 - RIVETS AND SCREWS
ROOF SHEET
JOIN
SCREW FIXED INTO PURLIN
RIVET THROUGH LAP
EXTRA RIVETS ONLY REQUIRED
IF ANCHOR MAY BE SIDE LOADED
✓
✓
✓
OPTION 3
�8 x 8mm rivets
�Min 3 purlins
�Additional rivet required on overlap if anchor
loaded at 90 deg to roof sheet
OPTION 1
�8 x 8mm Rivets
�Min 3 purlins
�Must be fixed over 2 roof sheets
OPTION 2
�6 x 8mm rivets + 2 x 14g Screws into purlin
�Min 3 purlins
Scan for detailed manual here
CRITICAL CRITERIA
�Roof deck must be supported by 3 or more purlins.
�Where anchor cannot be placed over 2 roof sheets, additional fixings may be required.
�Full installation manual must be read, any questions, CALL SAYFA 1300 301 755 or visit SAYFA.COM.AU

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [email protected]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
AP135A QUICK INSTALL GUIDE
D9563
5/4/2022
AP135A
1
3SIXTY RAPID ANCHOR - INSTALLATION CRITERIA - CLIP-FIX ROOFS
OPTION 1 - RIVETS ONLY
✓
✗
✗
ROOF SHEET JOIN
OPTION 1
�8 x rivets only
�Min 10 purlins (less than 10 purlins - refer to
option 2 or 3)
�Must be fixed over 2 roof sheets
�Must be more than 2m from any end of roofsheet
OPTION 2 - RIVETS AND SCREWS
OPTION 3 - RIVETS AND SCREWS
✓
OPTION 3
�8 x rivets + 2 x 14g Screws into nearest purlin
�Min 3 purlins
✓
✓
✓
✓
✓
OPTION 2
�6 x rivets + 2 x 14g Screws into purlin
�Min 3 purlins
Scan for detailed manual here
CRITICAL CRITERIA
�Roof deck must be supported by 3 or more purlins
�Where anchor cannot be placed over 2 roof sheets, anchor fixing must include 2 screws into purlin.
�Clip-fix type roofs with less than 10 purlins will require an additional 2 screws through roofsheet into the
purlin nearest the anchor.
�Clip-fix roofs with 10 or more purlins should be fixed using rivets only (still fixed over 2 roof sheets).
�Full installation manual must be read, any questions, CALL SAYFA 1300 301 755 or visit SAYFA.COM.AU
SCREW FIXED INTO PURLIN
SCREW FIXED INTO PURLIN
