SAYFA SYSTEMS UK SENTRY GW300 User manual

GUARDRAIL SYSTEM SYSTEM INSTALLATION
1300 301 755
TRAVEL8.COM.AU
PERMANENT GUARDRAIL SYSTEM
FOR HIGHEST LEVEL OF SAFETY
WHEN WORKING AT HEIGHTS
MUST BE READ AND UNDERSTOOD PRIOR TO USE

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
SENTRY GUARDRAIL SYSTEM REQUIREMENTS
4117
8/7/2019
GW300
3
Min 900
625
Min 550
Max 450
Max 560
Guardrail on Parapet
Height of guardrail must be
min 900mm from main
walking surface e.g. roof
deck.
(Unless box gutter is more
than 1000mm wide - then
height is measured from box
gutter)
Safety Below Platform or Landing
Where persons have access to or work
beneath any platform or landing, the
floor of such platform or landing shall
be designed, or provided with
protection, to prevent objects falling
through the floor reaching the area
below - Max 15mm Opening.
Use small Mesh or Checkerplate.
300 Max
(W)
5
6
7
4
1
2
3
8
Guardrail Height
Minimum height for
guardrailing is 900mm from
the walking surface.
If guardrail is more than
1100mm high, a third rail is
required
Width Between Guardrails
Horizontal distance between
guardrails, intermediate rails
or toeboards shall not be less
than 550mm.
Minimum width of walkway
must be 600mm.
Typical Guardrail Requirements (From AS1657 :2013 Standards)
Min 50mm Clearance
Guardrail on Sloping Roofs
If there is guardrail on the
edge of the roof where the
slope is 12o or greater, a third
rail is recommended.
Hand Clearance
The distance between the
edge of the handrail and any
adjacent structure must be
no less than 50mm.
NOTE. A Handrail provides a
handhold. eg, Stairway. This
may not be applicable when
used as a guardrail. (Barrier as
edge protection)
Guardrail on Platforms
Guardrail is not required on a platform if
the height to lower landing is less than
300mm and (W) is not more than 1000mm.
If (W) is less than 1000mm then the
guardrail height must be increased by
300mm.
If platform is higher than 300mm,
guardrailing is required on the platform.
Toeboard
A toeboard (Min 100mm) shall be installed
on the edge of a walkway which an object
could fall to where persons have access to
the area below and to the side of the
walkway.
PLATFORM
FALL EDGE
Box Gutter
Min 900
Gap not to
exceed 15mm
Max 450
Max 450
Min 100
Max 10mm
Gap

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
SENTRY GUARDRAIL SYSTEM REQUIREMENTS
4117
8/7/2019
GW300
3
Typical Guardrail Requirements (From AS1657 :2013 Standards)
Typical Walkway Application Types
Max 7°
Walkway
Direction of Travel
ACROSS SLOPE
IN-LINE WITH SLOPE
Direction of Travel
Max 10°
Direction of Travel
Walkway
0 - 7 Degrees
7 - 10 Degrees
0 - 7 Degrees
7 - 10 Degrees
Max 12°
Max 10°
Direction of Travel
Walkway
Direction of Travel
Max 12°
10 - 12 Degrees
Max 12°
Direction of Travel
Cleats
Walkway
>10 - 12 Degrees
Roof Angle : 0 - 7 Degrees
- Walkway same angle as
roof
Roof Angle : 7 - 10 Degrees
- Walkway to be levelled
- Cleats required
Roof Angle : 10 - 12 Degrees
- Walkway to be levelled
Roof Angle : >12 - 20 Degrees
- Walkway to be levelled
- Cleats required
Roof Angle : 0 - 7 Degrees
- Walkway same angle as roof
Roof Angle : 7 - 10 Degrees
- Walkway same angle as roof
Roof Angle : >10 - 12 Degrees
- Walkway same angle as roof
- Cleats required
Cleat Spacings:
Slopes 10o - 15o - 450mm
Slopes 15+o - 18o - 400mm
Slopes 18+o - 20o - 350mm
Roof Angle : 12 - 20 Degrees
- Walkway same angle as roof
- Cleats required
>12 - 20 Degrees
12 - 20 Degrees
<12° -20°
Guardrail
Walkway
<12° -20°
Direction of Travel
Walkway
Cleats

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
SENTRY GUARDRAIL SYSTEM REQUIREMENTS
4117
8/7/2019
GW300
3

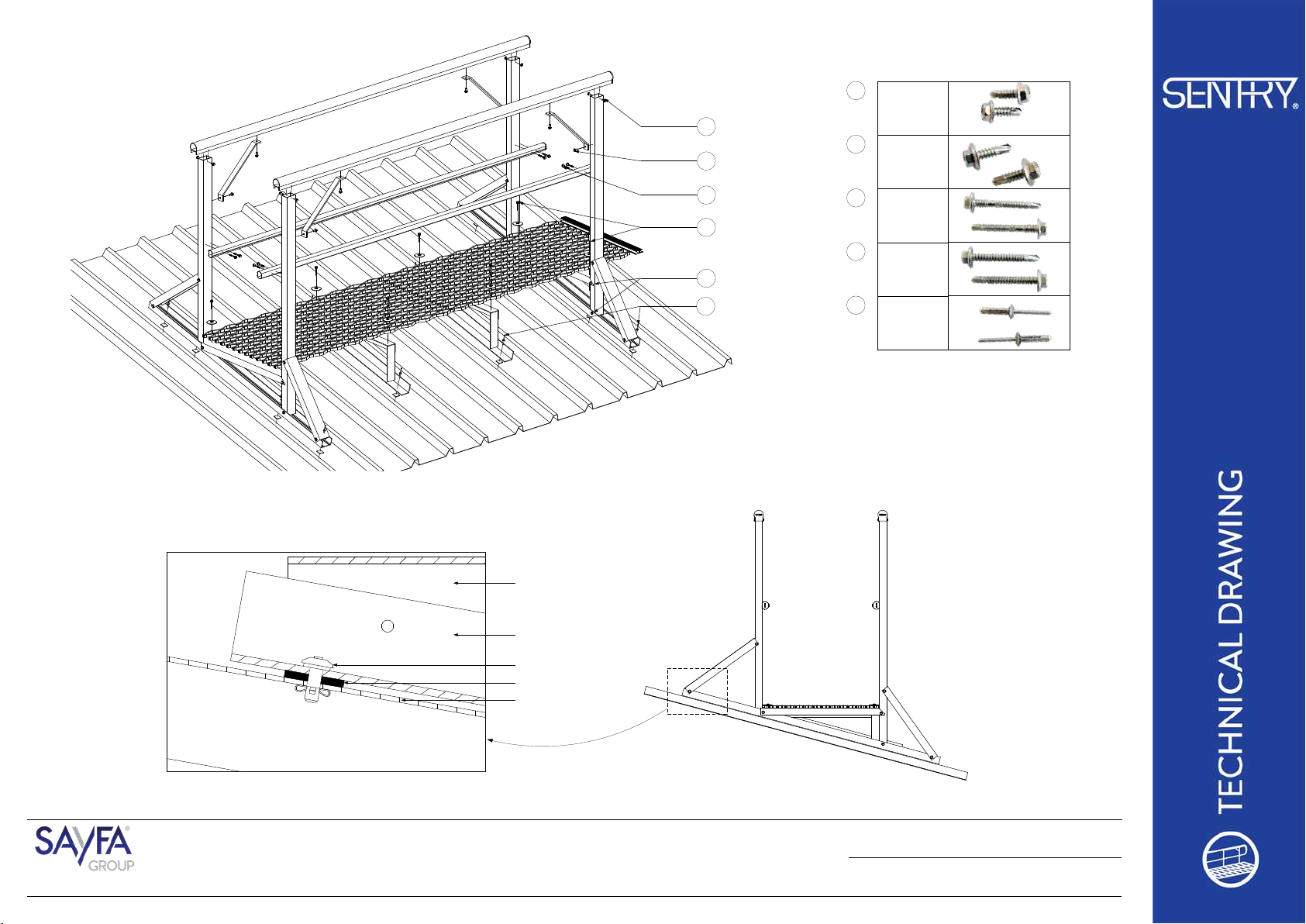

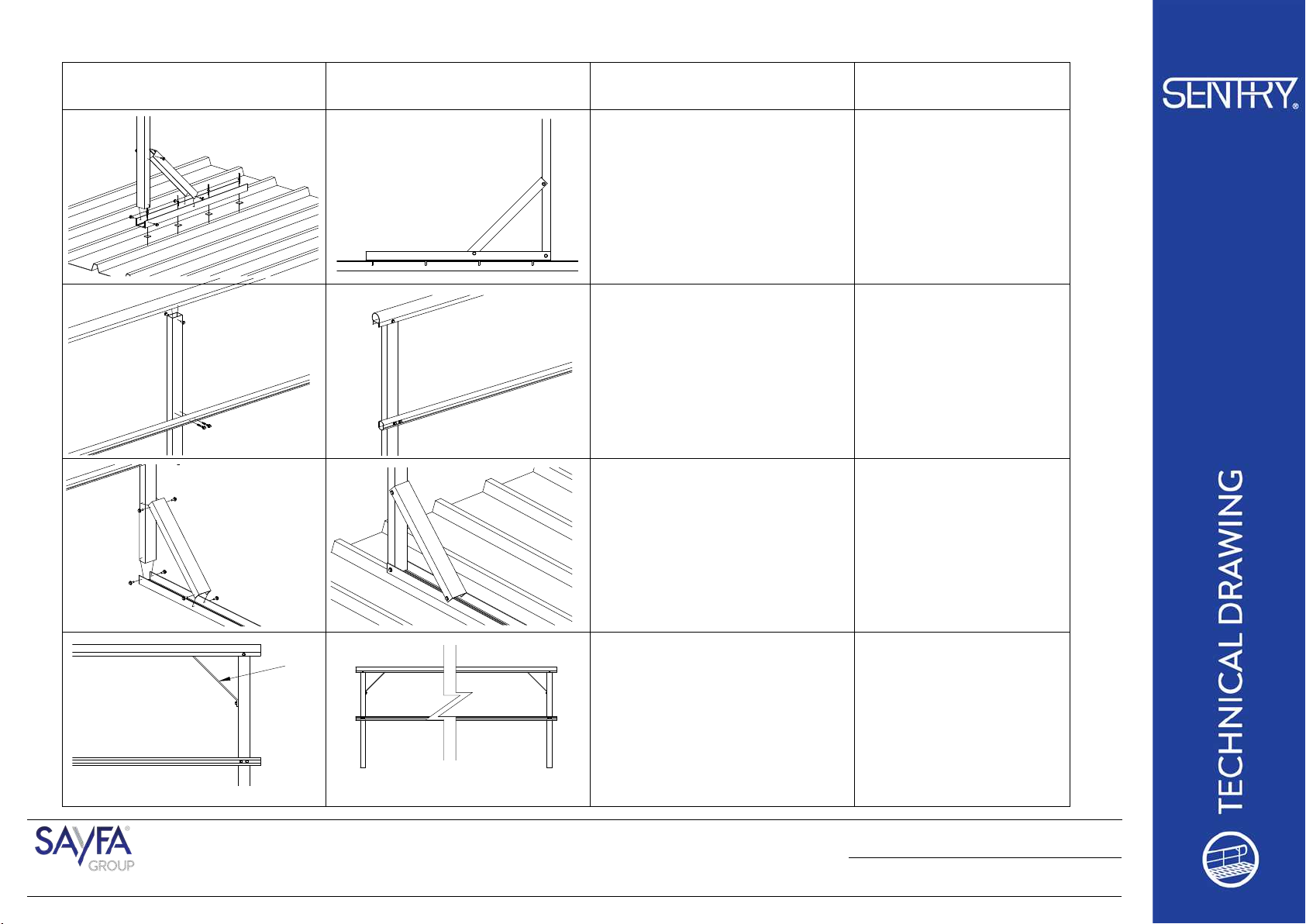

PART (View 1)
PART (View 2)
CRITERIA
CHECKED / COMMENTS
Minimum 2 fixings into Handrail
Minimum 2 fixings into Kneerail
Minimum Qty of fixings:-
4 x 5mm bulb-tite rivets or
3 x 8mm bulb-tite rivets
For any guardrail channel fixed to
roof deck
Minimum Qty - 2 x Fixings for each
connection point
Minimum 2 braces required for
every straight length of guadrail.
Note, only roof deck mounted
systems require the braces
SENTRY GUARDRAIL CRITERIA

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
SENTRY GUARDRAIL SYSTEM REQUIREMENTS
4117
8/7/2019
GW300
3

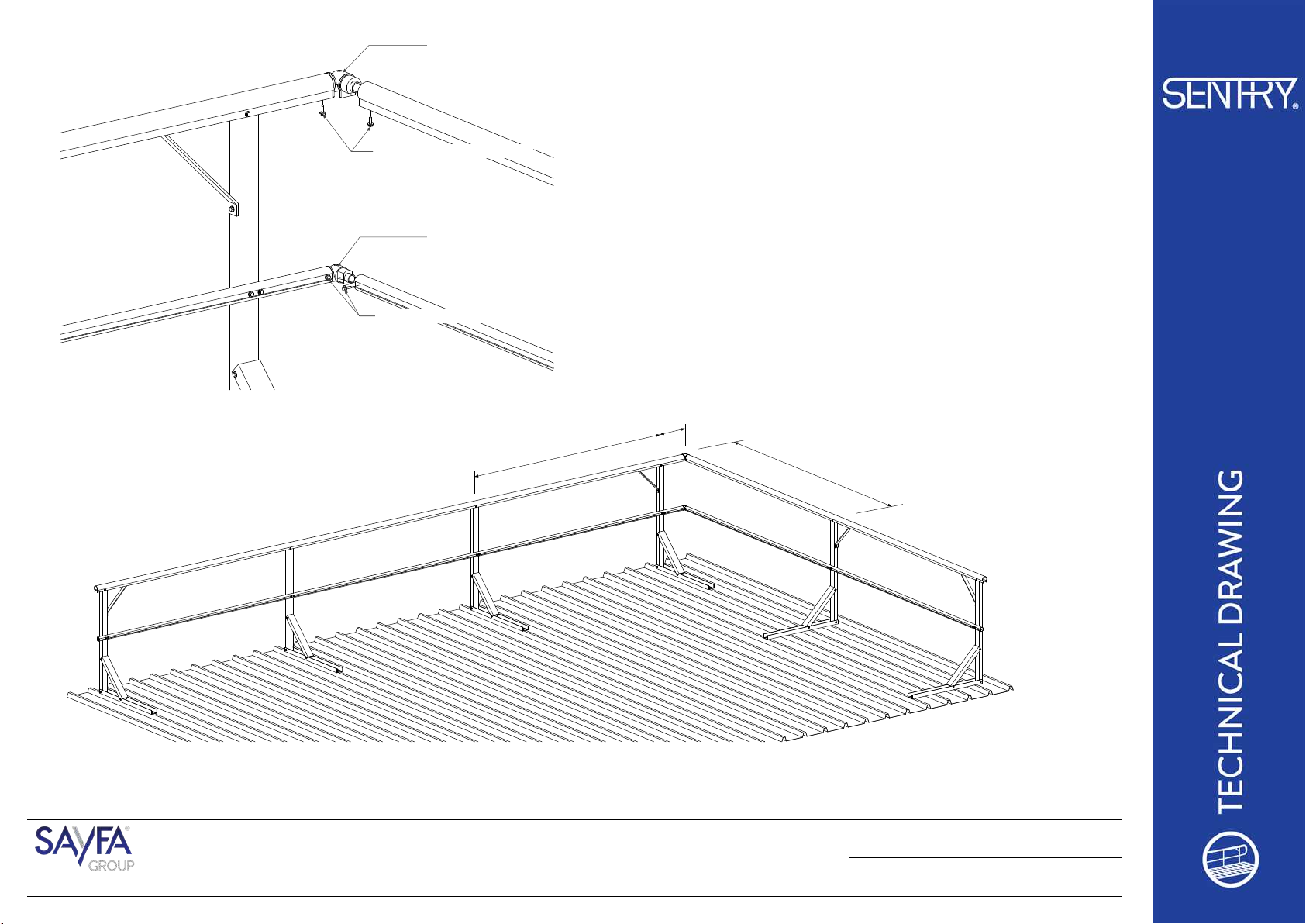

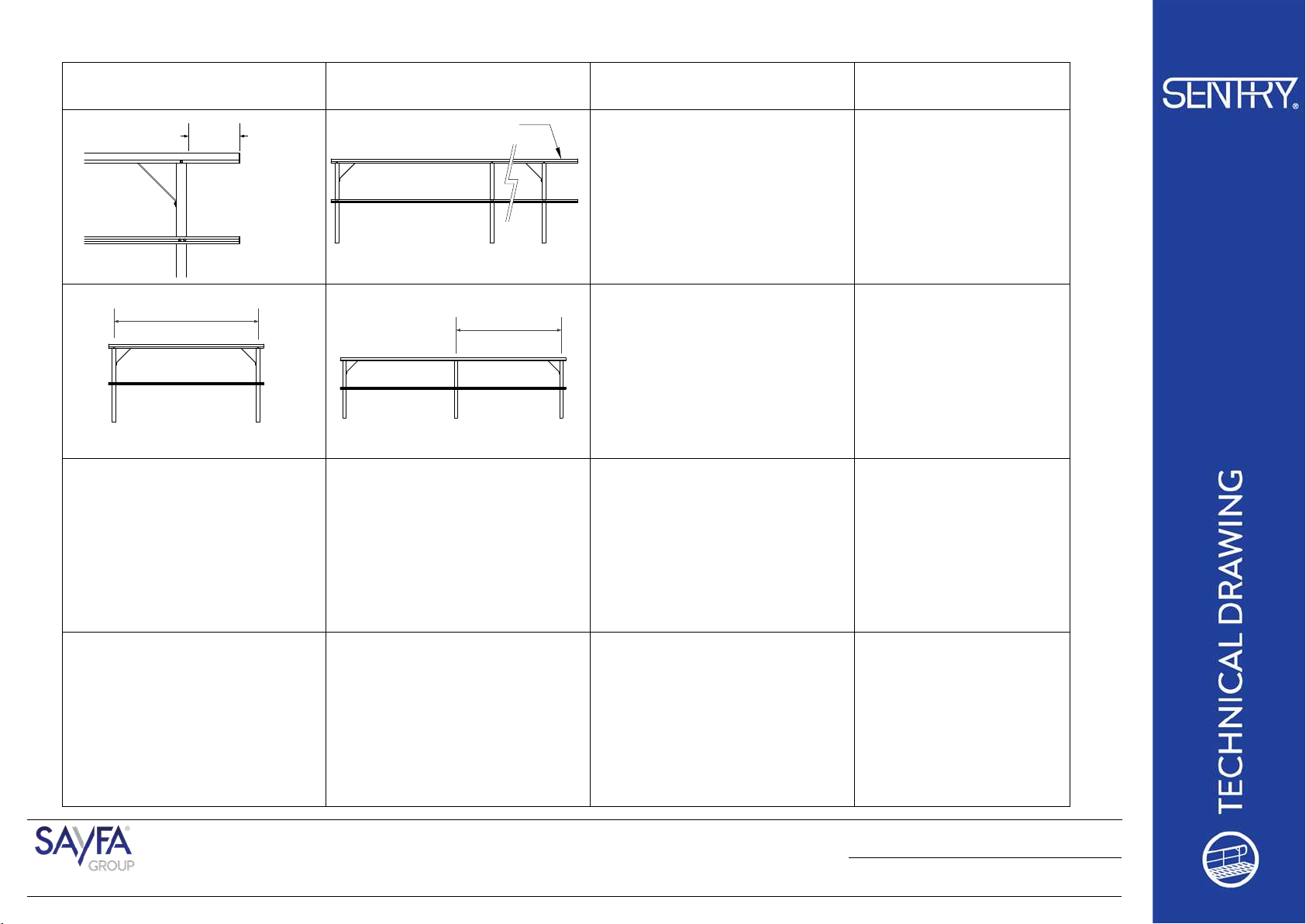

Max 2000
PART (View 1)
PART (View 2)
CRITERIA
CHECKED / COMMENTS
300*
**Post Spacing
2000mm Preferred
2200mm Max if multiple span
(more than 2 posts)
Overhang
*Overhang Allowance
300mm Preferred
400mm Max if multiple span
(more than 2 posts)
SENTRY GUARDRAIL CHECKING CRITERIA
Max 2200
Up tp 400mm

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
SENTRY Guardrail Installation Details
D9088
29/8/2018
GW300
2 - MV
2000
2000 Preferred (Max 2200 if more than 2 posts)
POST SPACING - 2 POSTS
POST SPACING - > 2 POSTS
HANDRAIL CANTILEVER (MAX OVERHANG)
300 (Max 400 if more than 2 posts)
Max 450
Max 560
Max 450
100
Max 10mm Gap under toeboard
TOEBOARD
Min 900
All Dimensions In mm
NOTE - SENTRY Guardrail System is standard 1000mm high
Guardrail over 1100mm high will require an additional mid-rail
GW374 - Handrail Extrusion
SENTRY Post
GW375 - Kneerail Extrusion
400

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION
SENTRY Guardrail Installation Details
D9088
29/8/2018
GW300
2 - MV

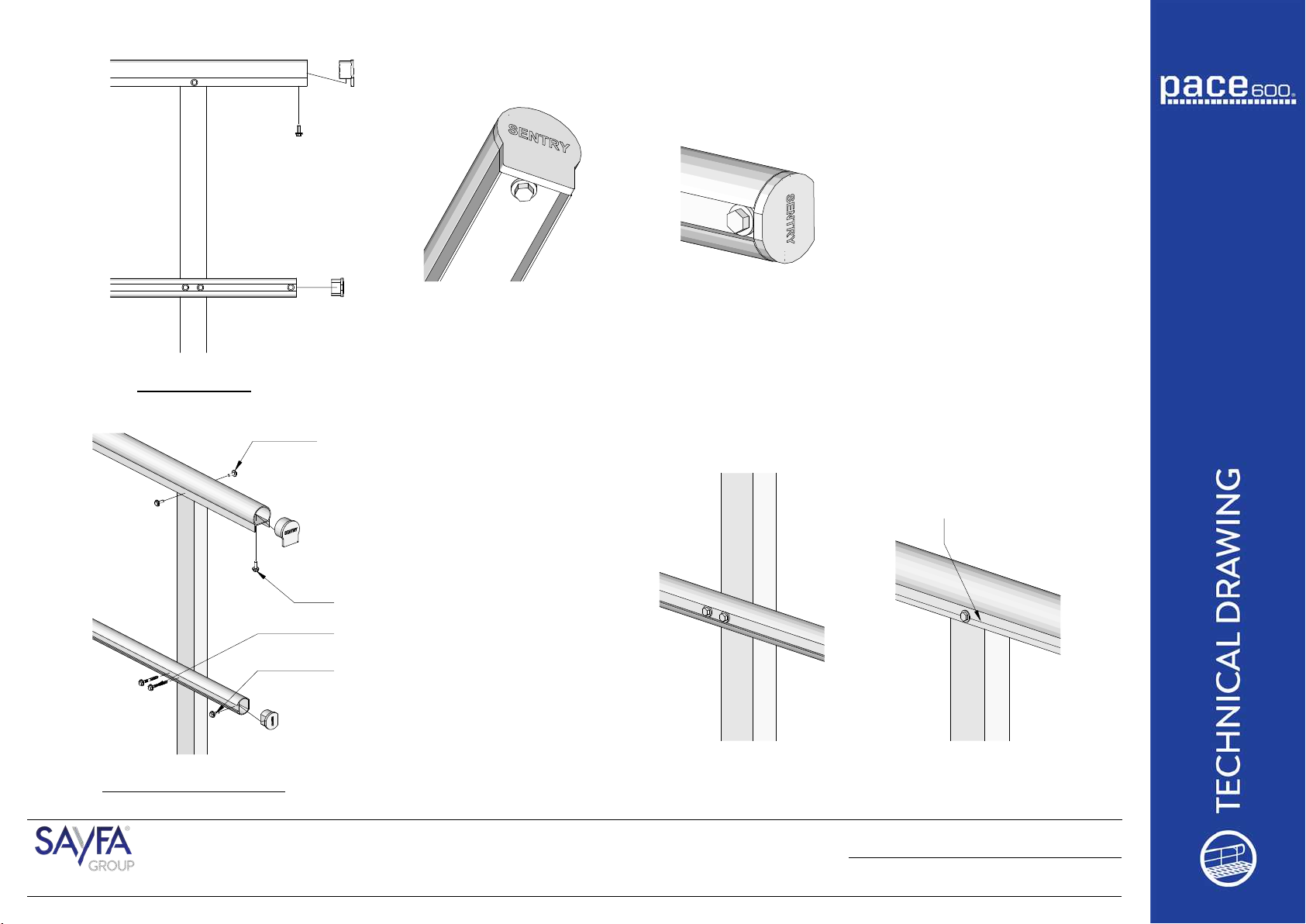

END CAP DETAILS
POST CONNECTION DETAILS
SD910 - 16mm SD TEK Screw - QTY 2
SD907.20 - 20mm SD TEK Screw
SD907.20 - 20mm SD TEK Screw
SD907.48 - 48mm SD TEK Screw - QTY 2
Groove to locate TEK Screw

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION

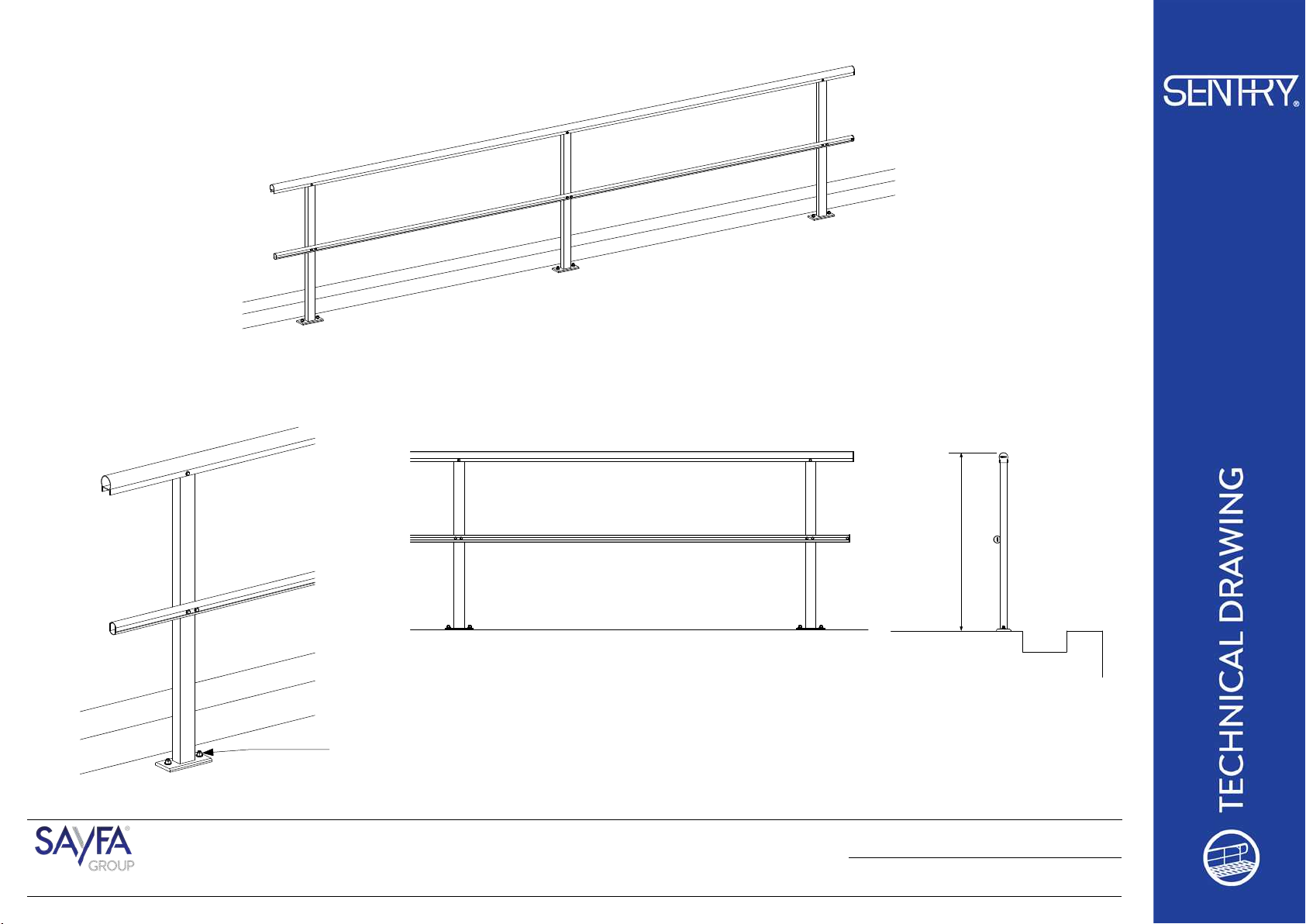

GUARDRAIL WITH BASEPLATE, TOP MOUNT
3002
1/07/2019
GW1
2
REFER TO D9088 FOR GUARDRAIL DETAILS
1000
QTY 2, 10 x 75mm Trubolt or
QTY 2, 8 x 75mm Screwbolt or similar or
QTY 2, 10mm Stud with Chemset - 75mm deep

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION

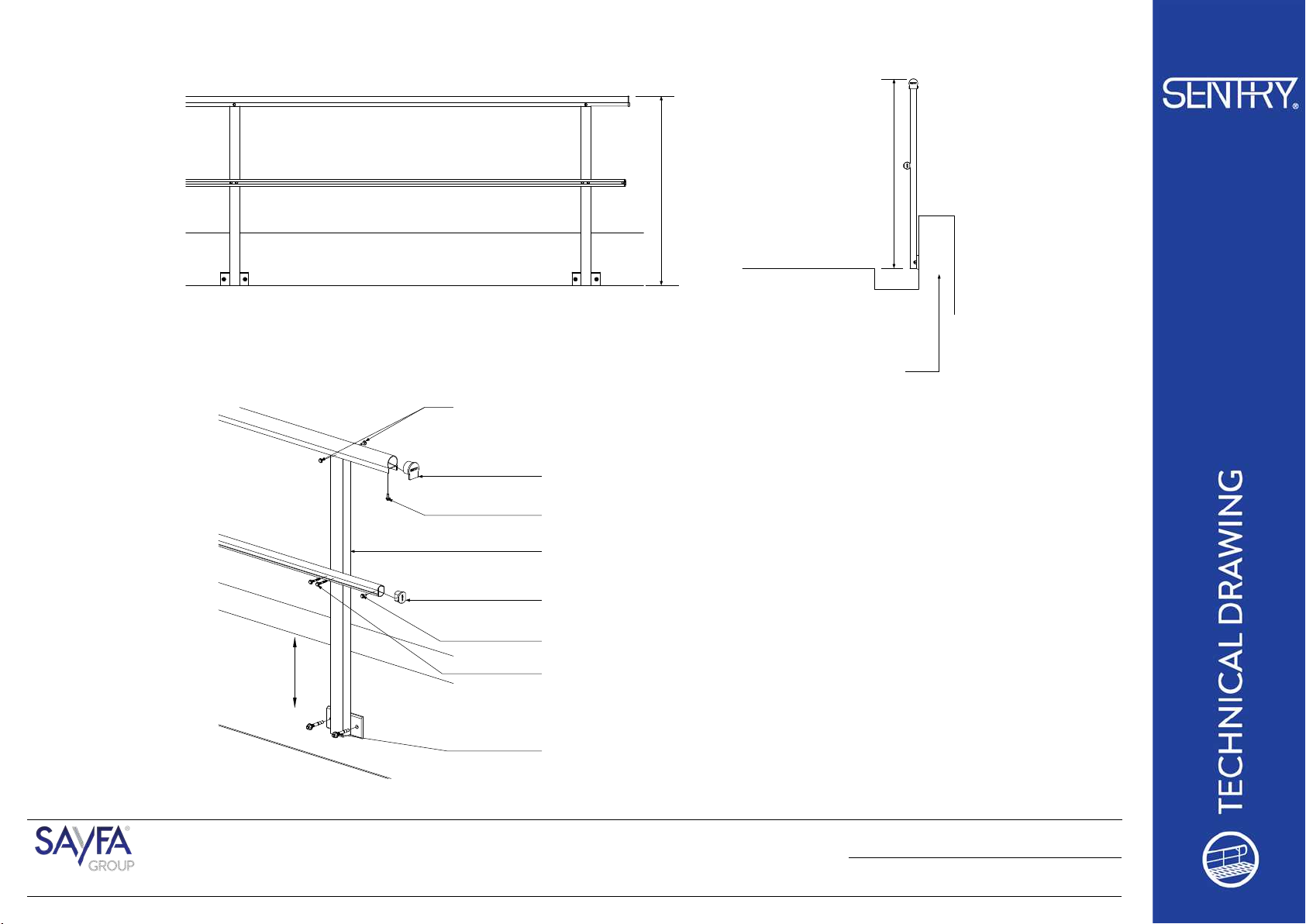

GUARDRAIL WITH SIDE MOUNT POST
6921
9/7/2019
GW1
2 - MV
1080
GW351.20 SENTRY Guardrail Post
SD910.10 - Screw 10-16 x 16mm Tek S_S
SENTRY Handrail Endcap
SENTRY Kneerail End Cap
SD907.20 - 20mm Tek Screw
SD907.20 - 20mm Tek Screw
SD907.48 - 48mm Tek Screw
QTY 2, 10 x 75mm Trubolt or
QTY 2, 8 x 75mm Screwbolt or similar or
QTY 2, 10mm Stud with Chemset - 75mm deep
Concrete Parapet
(Must be structurally sound
and/or verified by Engineer)
1080
Check edge distance
with fixing manufacturer

THIS PROPERTY REMAINS THE PROPERTY OF SAYFA GROUP AND MAY NOT BE CHANGED WITHOUT WRITTEN
PERMISSIONFOR FURTHER INFORMATION REFER TO OUR WEBSITE AT sayfa.com.au
1029 MOUNTAIN HWY BORONIA VIC 3155
T [phone]
E [e-mail]
F [phone]
E sayfa.com.au
DRG No.
DATE
Code
REV
DESCRIPTION

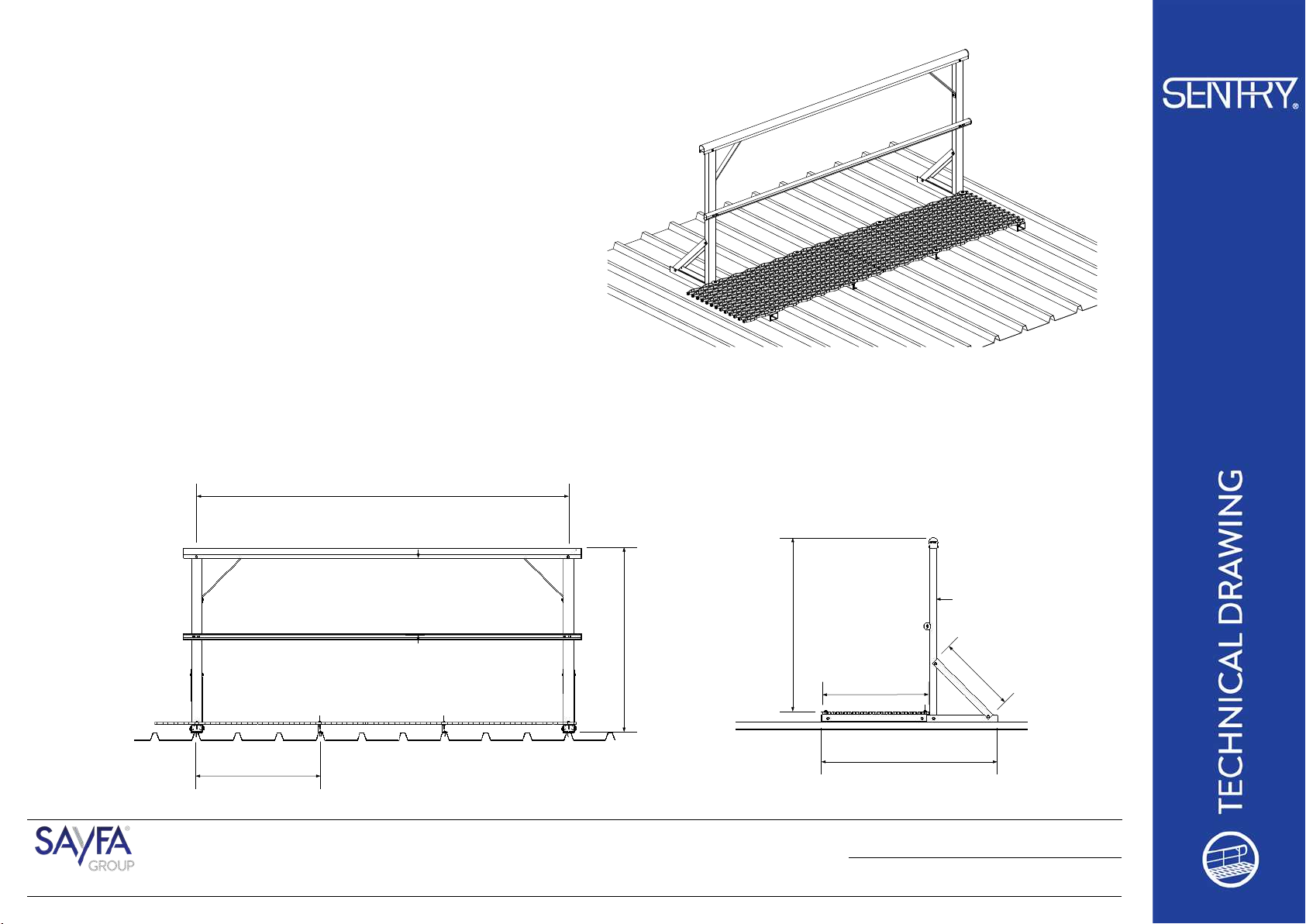

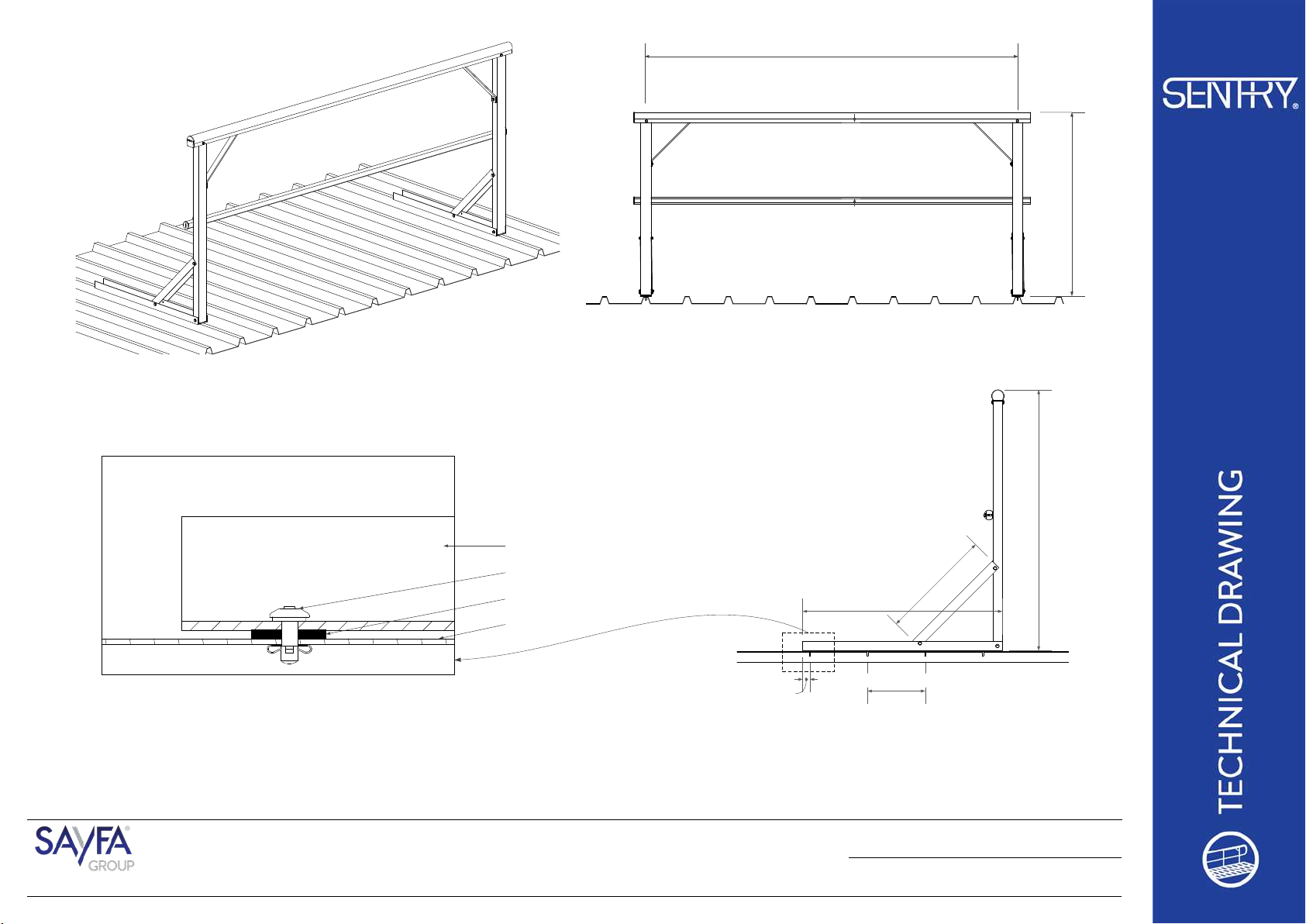

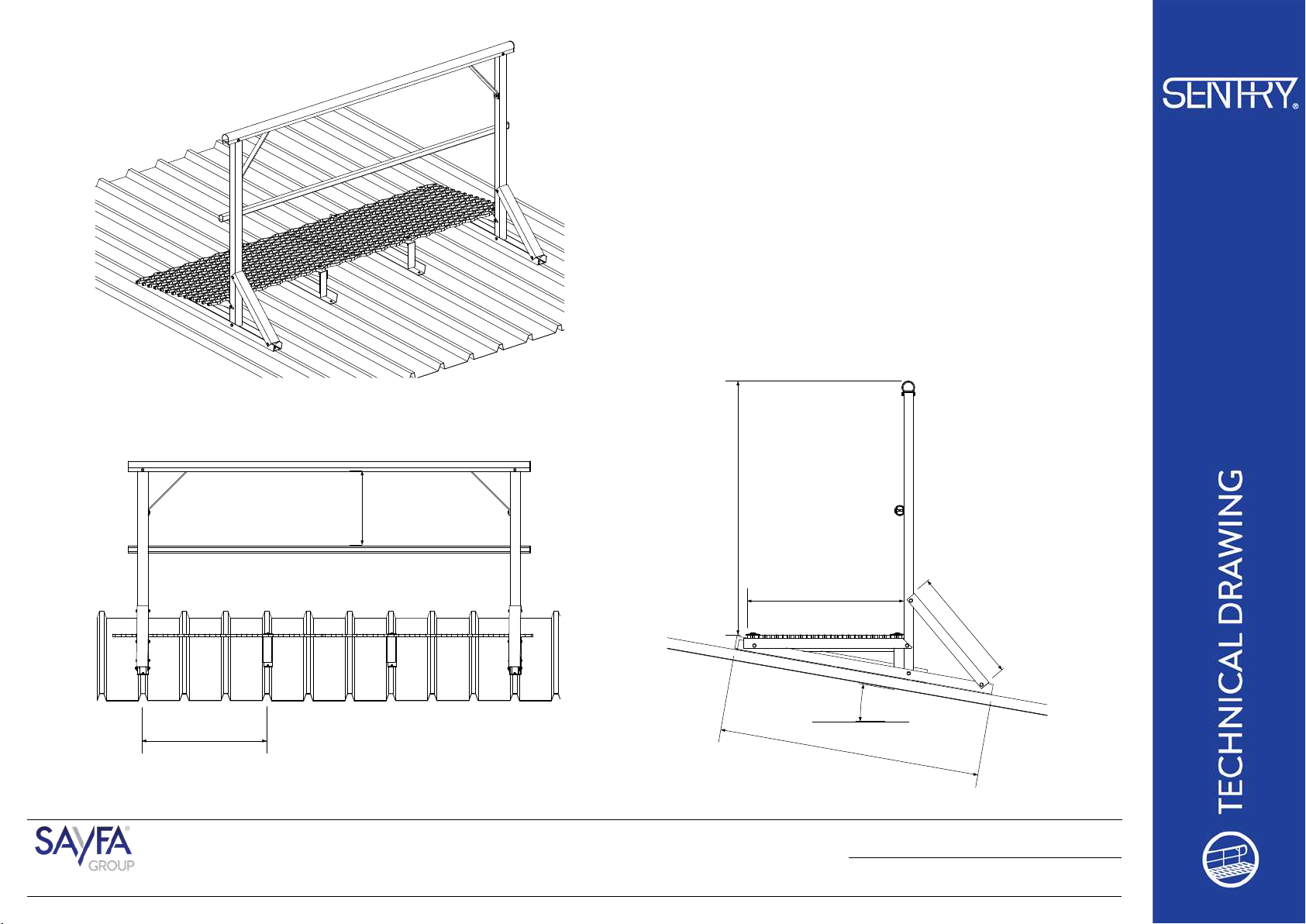

SENTRY Guardrail Roof Mounted
4025
18/02/2019
GW3
2
NOTES
The SENTRY Guardrail Systems complies with AS1657 when installed as per the instructions
detailed These drawings and Instructions must be read in conjunction with the Australian Standards
Criteria
1Guardrail height is to be 900 - 1000mm from the walking surface or the nosing of a
stair tread
2Distance between guardrails, intermediate rails or toe-boards shall not be less than
550mm
3Hand clearance - Min 60mm between the edge of any handrail and adjacent structure
4Toe-board - A toe-board shall be installed on the edge of a platform or walkway where
there is no permanent structure within 10mm of the edge and from which an object
could fall to where persons have access to the area below and to the side of a
walkway Maximum gap between the toe-board and walkway is 10mm
5Minimum width of walking surface or length of stair tread shall be 600mm
6All walkways are designed for 25KPA UDL (This does not include the structure to which
it is fixed eg Roof deck)
7In general, the angle of slope of the walking surface shall not exceed 3◦ (Walkway
mounted directly to low-pitched roofs can have a cross-slope not exceeding 7◦)
8The angle of the walking surface in the direction of travel shall not exceed 20◦ (ie
up/down the roof slope) Where the walkway slope is between 10◦- 20◦, cleats
shall be fitted
1045
450 Max
2000
800
Post Length - 996
450
