SCA TPS-946 Setup guide

1 2
• Before using the SCA solar maintenance battery chargers ensure the instructions have
been read and understood.
• The SCA solar maintenance battery chargers are not intended for use by young
children or infirm persons. Please keep away from pets.
• SCA solar maintenance battery chargers are designed to charge most 12 volt battery
types including: Lead-acid , Deep-cycle, Calcium, Gel and Absorbed Glass Matt (AGM)
batteries.
• Always wear the appropriate Personal Protective Equipment (PPE) when working near
batteries. This includes gloves and eye protection.
• For maintainable batteries it is advisable read the operation manual before charging.
• Ensure battery is being charged in a well-ventilated area. Explosive gases may escape
from the battery during charging. Never charge a battery in a closed off space or in an
area without ventilation.
• Never smoke, use an open flame or create sparks near a battery or charger whilst
charging as gases may cause explosion. Please keep burning cigarettes, flames or
other ignition sources away from the charging battery at all times.
• SCA solar maintenance battery chargers are not water resistant or waterproof. Do not
expose the battery charger to water or liquids.
• Do not attempt to use the battery charger if the cables or plugs are damaged. These
units do not contain serviceable parts. To avoid a hazard ensure that any damage to
the unit, cable or plugs are replaced by the manufacturer or service agent/ qualified
technician.
• Do not disassemble the SCA solar maintenance battery charger. The warranty will be
void if this instruction is ignored.
• If battery is still connected in the vehicle, ensure vehicles ignition is switched off before
charging the battery.
• Do not place the SCA solar maintenance battery charger where it is not able to get
adequate ventilation. Do not place on fabric/leather/vinyl seats, on the battery or
balanced in the engine bay.
• Never charge a frozen battery, non-rechargeable, lithium or dry cell battery.
• For advice, contact the Poisons Information Centre in Australia (PH: 13 11 26) or the
National Poisons Centre in New Zealand (PH: 0800 764 766)
• If battery acid makes contact with the skin or clothing, wash immediately with soap
and water.
• If battery acid makes contact with the eyes, hold eyelids apart and flush the eye
continuously with fresh running water for at least 15 minutes or until the Poisons
information centre advises you to stop.
• If battery acid is swallowed, do not induce vomiting. Drink a glass of water and seek
medical assistance.
1. SAFETY/WARNING 2. FIRST AID
Amorphous solar panel
Suitable for maintaining 12 volt batteries
Protects 12 volt batteries from discharge during storage from the radio, clocks and
other accessories
Ability to trickle charge in cloudy conditions
Easy to use, connect 12 volt clips to the battery in a well ventilated area where there
is adequate sunlight
3. FEATURES
4. TECHNICAL SPECIFICATIONS
Part Number: TPS-946
Charger Type: Maintenance
Rated Power: 1.5 Watt at 1000W/m², 25°C
Maximum Power Voltage : 17.5V
Maximum Power Current : 85.7mA
Open Circuit Voltage : 21.0V
Short Circuit Current : 107mA
Power Tolerance: +/-3%
Operating Temperature: -40°C To + 85°C
12v Battery Chemistry Types: Lead Acid, Gel, Calcium & AGM
*TO ENSURE FULL BATTERY FUNCTIONALITY - CHECK VOLTAGE
PRIOR TO USING A MAINTENANCE CHARGER*
Battery Charge Capacity
(Ah/ CCA):
AUTOMOTIVE 100–550CCA
MARINE 150–600MCA
DEEP CYCLE 7–40Ah

3 4
5. BATTERY CHARGER DIAGRAM
6. CHARGING INSTRUCTIONS
Amorphous panel
12V Cigarette Plug
Step 1. Electrolyte Level Check
Prior to charging the battery, remove the vent caps on the battery (For sealed
maintenance free batteries check the state of charge indicator). If electrolyte
levels are low ensure to add demineralised water to the correct level indicated
on the battery.
Step 2. Voltage Check
Prior to connecting the SCA solar maintenance battery charger, ensure that the
battery voltage is adequate enough to receive charge. If the battery does not
contain enough voltage the maintenance charger will not be able to provide ade
quate current to maintain your battery.
Please Note: The SCA solar maintenance battery charger will not charge
from zero volts.
*For voltage requirements see Technical Specifications
Step 3. Connect SCA solar maintenance battery charger to battery
There are two (2) options for connecting the SCA solar maintenance battery
charger to a battery
i. Connect SCA solar maintenance battery charger to a battery 12V Battery
Clamps
ii. Connect SCA solar maintenance battery charger to a battery 12V Cigarette
Plug(where 12V Cigarette Plug is provided)
i. Connect using 12V Battery Clamps
Solar Connection Lead
12V Battery Clamps
DO NOTstart the vehicle while the charger is connected to the battery with
cigarette lighter or Battery Clamps. Electrical surges from the engine when
starting and running may damage your charger.
Important ! The black lead & clamp indicates (-/Negative) and the red lead &
clamp indicates (+/Positive). Ensure that the correct polarity is connected to
prevent a short circuit. This unit is not reverse polarity protected.
Ensure the battery is in a safe location on a stable surface with adequate ventilation
Ensure the correct Personal Protective Equipment is being worn I.e. Gloves and Eye
Wear
(If applicable) ensure the batteries vent caps are loosened or removed
Connect the suction caps to the SCA solar maintenance battery charger (Where
applicable)
Attach to the windshield either inside or outside of the vehicle OR on a surface that
is close to the battery
(* SCA Maintenance Charger is NOT waterproof or water resistant and must be in a
well ventilated area)
Connect the 12V Battery Clamps to the SCA Maintenance Charger
Connect the RED Battery Clamp to the Positive Terminal (+/Positive) on the battery
Connect the BLACK Battery Clip to the Negative Terminal (-/Negative) on the battery
When ready to disconnect
Disconnect the BLACK lead (Battery Clamp) from the Negative Terminal (-/Negative)
Disconnect the RED lead (Battery Clip) from the Positive Terminal (+/Positive)
Using a Voltmeter check the voltage of the battery before connecting it back in the
vehicle
If required, replace the vent caps on the battery
Ensure that the battery has been secured correctly

ii. Connect using 12V Cigarette Plug (Where 12V Cigarette Plug is provided)
DO NOTstart the vehicle while the charger is connected to the battery with
cigarette lighter or Battery Clamps. Electrical surges from the engine when
starting and running may damage your charger.
Important! In some cases the 12V cigarette lighter may not operate when the
ignition is turned off. In such cases, you can connect the maintenance charger
directly to the battery by connecting with the 12V Battery Clamps.
Ensure the battery is in a safe location on a stable surface with adequate ventilation
Ensure the correct Personal Protective Equipment is being worn I.e. Gloves and Eye
Wear
(If applicable) ensure the batteries vent caps are loosened or removed
Connect the suction caps to the SCA solar maintenance battery charger (Where
applicable)
Attach to the windshield either inside or outside of the vehicle OR on a surface that is
close to the battery
(* SCA Maintenance Charger is NOT waterproof or water resistantand must be in a well
ventilated area)
Connect the 12V Cigarette Plug to the SCA solar maintenance battery charger
Insert the 12V Cigarette Plug to the 12V Output inside the vehicle
When ready to disconnect
Disconnect the 12V Cigarette Plug from the 12V Output inside the vehicle
Using a Voltmeter check the voltage of the battery before connecting it back in the
vehicle
If required, replace the vent caps on the battery
Ensure that the battery has been secured correctly
5 6

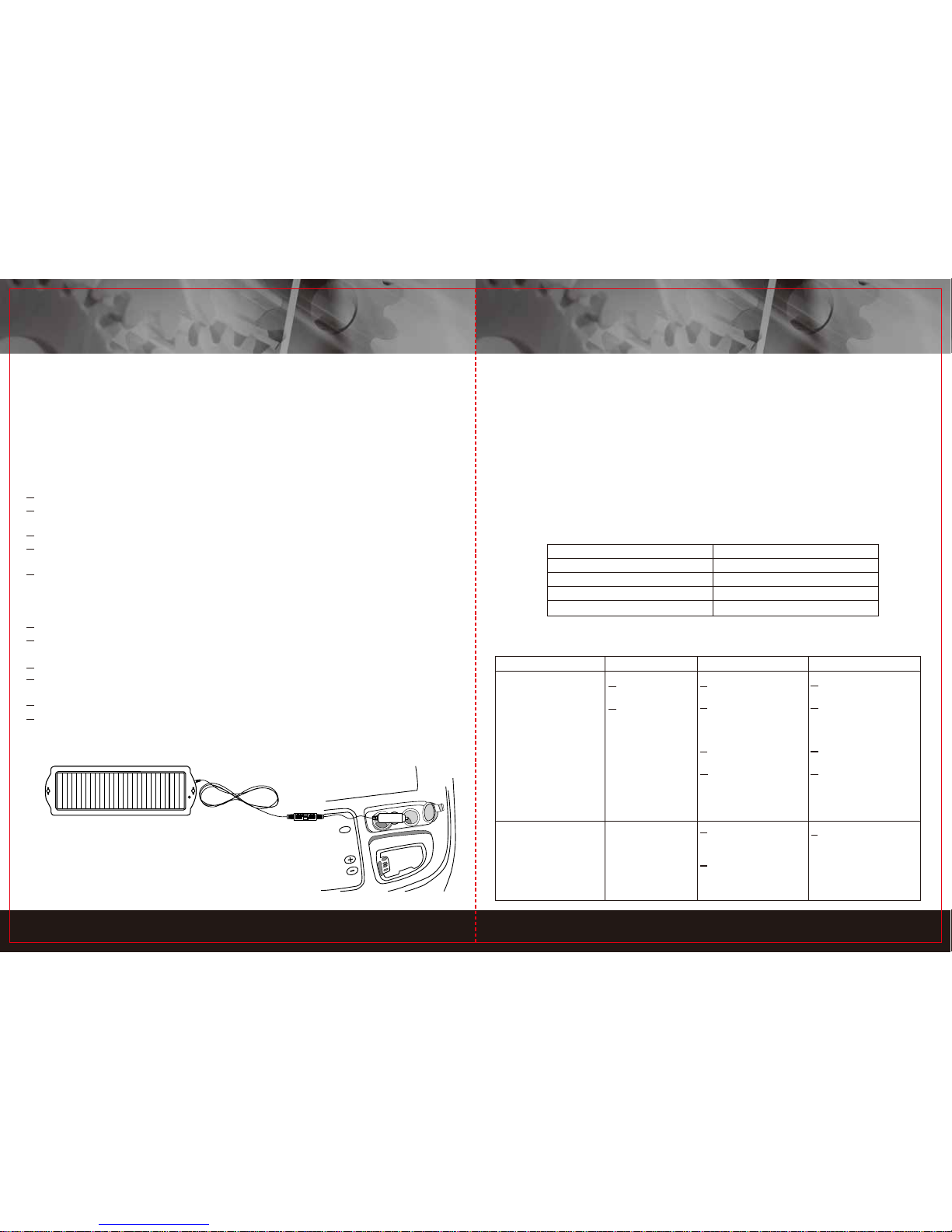

7. BATTERY CHARGER SPECIFICATIONS
8. TROUBLESHOOTING
Step 4. Charging
Once connected,tinted windows or a dirty solar panel will affect the battery
chargers ability to charge a battery. The battery charger will need to be
placed in a location where there is sufficient sunlight and ventilation
available to be able to trickle charge the battery, and (if required) cleaned
with a soft cloth to ensure adequate charge.
The charger is designed to top-up charge in a battery due to natural
discharge, if your battery is fully discharged please use a suitable 240v
AC Battery Charger.
Part Number: TPS-946
Charger Type: Maintenance
12v Battery Clamps Length: 2.4 Meter
Case Type: Plastic
Solar Panel Amorphous
Problem Indication Possible Causes Suggested Solution
Battery charger does
not work?
The battery is swollen
after it has been
charged
Battery sides are
rounded and swollen
Battery vent caps have
not been loosened or
removed
Battery has been left
on charge beyond its
capacity
Immediately turn the
Battery Charger off
and remove from the
battery. Replace
Battery.
No indicator lights
are illuminating
Battery is still flat
Charger has not been
connected correctly
Charger has “short
circuited” due to
reverse polarity
connection
Battery voltage was
too low to instil charge
Charger is not receiving
enough sunlight
Check connections are
secured correctly
If short circuit due to
reverse polarity
connection: Discontinue
to use
Check battery Voltage
level with a voltmeter
Move charger to direct
sunlight

9. FREQUENTLY ASKED QUESTIONS
10. WARRANTY
7 8
Q. Is the battery charger waterproof or water resistant?
A. No. Please ensure that the battery charger is kept out of extreme weather or wet conditions
Q. Is this battery charger suitable for lithium batteries?
A. No. Please contact your local Supercheap Auto store for lithium battery chargers.
Q. Is this battery charger suitable for 6/12/24Volt batteries?
A. No. The battery charger is only suitable for 12volt Batteries.
Q. Can the battery charger be left on the battery permanently?
A. No. It is recommended that the charger is checked regularly. Leaving a battery on charge
permanently may cause damage to your battery.
This product is guaranteed against defects for a period of 12 months from date
of purchase. This warranty is provided by Super Cheap Auto Pty Ltd ACN 085
395 124 (Supercheap Auto) of 751 Gympie Rd Lawnton QLD 4501 Ph (07) 3482
7500. Supercheap Auto will offer a repair, replacement product or store credit if
the product is assessed as being defective during the warranty period.
To claim under this warranty, take this product to the Front Service Desk of your
nearest Supercheap Auto store. For store locations, visit www.supercheapauto.
com.au (AUS) or www.supercheapauto.co.nz (NZ). You will need your receipt or
proof of purchase. Additional information may be requested of you to process
your claim. Should you not be able to provide proof of purchase with a receipt
or a bank statement, identification showing your name, address and signature
may be required to process your claim.
This product may need to be sent to the manufacturer to assess the defect
before determining any claim. Faults or defects caused by product modification,
misuse and abuse, normal wear and tear or failure to follow user instructions are
not covered under this warranty.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Any expenses incurred relating to the return of this product to store will normally
have to be paid by you. For more information contact your nearest Supercheap
Auto store.
The benefits to the consumer given by this warranty are in addition to other
rights and remedies of the Australian Consumer Law in relation to the goods and
services to which this warranty relates.
