Schaerer Coffee Art Plus Touch User manual

Models:
040381-00090EUS SCA 1 CT1/S-2M/KE/SST
Schaerer Coffee Art Plus Touch
User Manual | 11.2016 | v01
Schaerer USA Corporation
15501 Red Hill, Ave . STE 200
Tustin, CA 92780
www.schaererusa.com | 888.989.3004

www.schaererusa.com Copyrights
User Manual | 11.2016 | v01
All rights reserved, including translation into other languages. This manual may not be copied, photocopied
or distributed, in whole or in part, by any means, nor transmitted electronically, without the publisher’s written
consent.
All information, illustrations, and specications are based on the latest product information available at the time
of publication approval. Schaerer USA Corporation reserves the right to change the content at any time without
prior notice.
Note that the pictures and display messages shown inside are only examples; your machine and display
messages may vary.
Published by:
Schaerer USA Corporation, Tustin, California
Version:
Version 01 / November 2016
Designed and edited by:
Schaerer USA Corporation, Tustin, California
© Copyright:
Schaerer USA Corporation, Tustin, California

www.schaererusa.com Cautions & Warnings
User Manual | 11.2016 | v01
WARNING:
TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE SIDE
OR BACK PANELS FROM THIS MACHINE. NO USER SERVICE-
ABLE PARTS INSIDE. REFER SERVICING TO AUTHORIZED
SERVICE PERSONNEL ONLY.
WARNING:
IF WATER OR SMOKE IS COMING FROM INSIDE THE MA-
CHINE, TURN OFF MACHINE IMMEDIATELY. UNPLUG THE
MACHINE, TURN OFF WATER SUPPLY, AND CONTACT AN
AUTHORIZED SERVICE AGENT.
WARNING:
DO NOT MOVE MACHINE WHILE IT IS STILL CONNECTED TO
UTILITIES.
CAUTION:
ALL DISPENSED PRODUCTS ARE EXTREMELY HOT! USE
CAUTION WHILE OPERATING ALL FUNCTIONS. KEEP HANDS
AWAY FROM FOAMER HEAD/COFFEE SPOUT/SPLITTER
WHILE DISPENSING OR CLEANING (EXTREMELY HOT).
CAUTION:
DO NOT PLACE HANDS INSIDE MACHINE WHILE OPERATING,
EXCEPT WHEN FOLLOWING CLEANING PROCEDURES.
CAUTION:
DO NOT TILT MACHINE TO EITHER SIDE (VERY HEAVY).
CAUTION:
DO NOT PLACE LIQUID CONTAINERS (SYRUPS, MILK, ETC.)
ON TOP OF THIS EQUIPMENT.
USE CAUTION WHILE OPERATING AND CLEAN-
ING THE COFFEE ART PLUS MACHINE
Cautions & Warnings

www.schaererusa.com Table of Contents
User Manual | 11.2016 | v01
Table of Contents
Introduction
Machine Overview
Machine Description
Machine Accessories
Utility Hook-Up Requirements
Operation
General Operation
Beverage Output
Tips During Operation
Maintenance
Daily Cleaning
Cleaning the Steam Wand
Weekly Hopper Cleaning
Error Messages
How to Get Help
Table of Contents

- 5 -
User Manual | 11.2016 | v01
www.schaererusa.com Introduction | Machine Overview
Dual bean hoppers each hold
up to 1 kg (2.2 lbs.)
Regular (left) and Decaf (right)
Cleaning tablet funnel
Touch Screen
PURGE/STEAM buttons
HOT WATER buttons
Hot water spout
Coffee spout
Steam wand with nesteam®
Grounds bin
Drip tray
Machine Overview

- 6 - User Manual | 11.2016 | v01
www.schaererusa.com Introduction | Machine Overview

- 7 -
User Manual | 11.2016 | v01
www.schaererusa.com Introduction | Machine Description

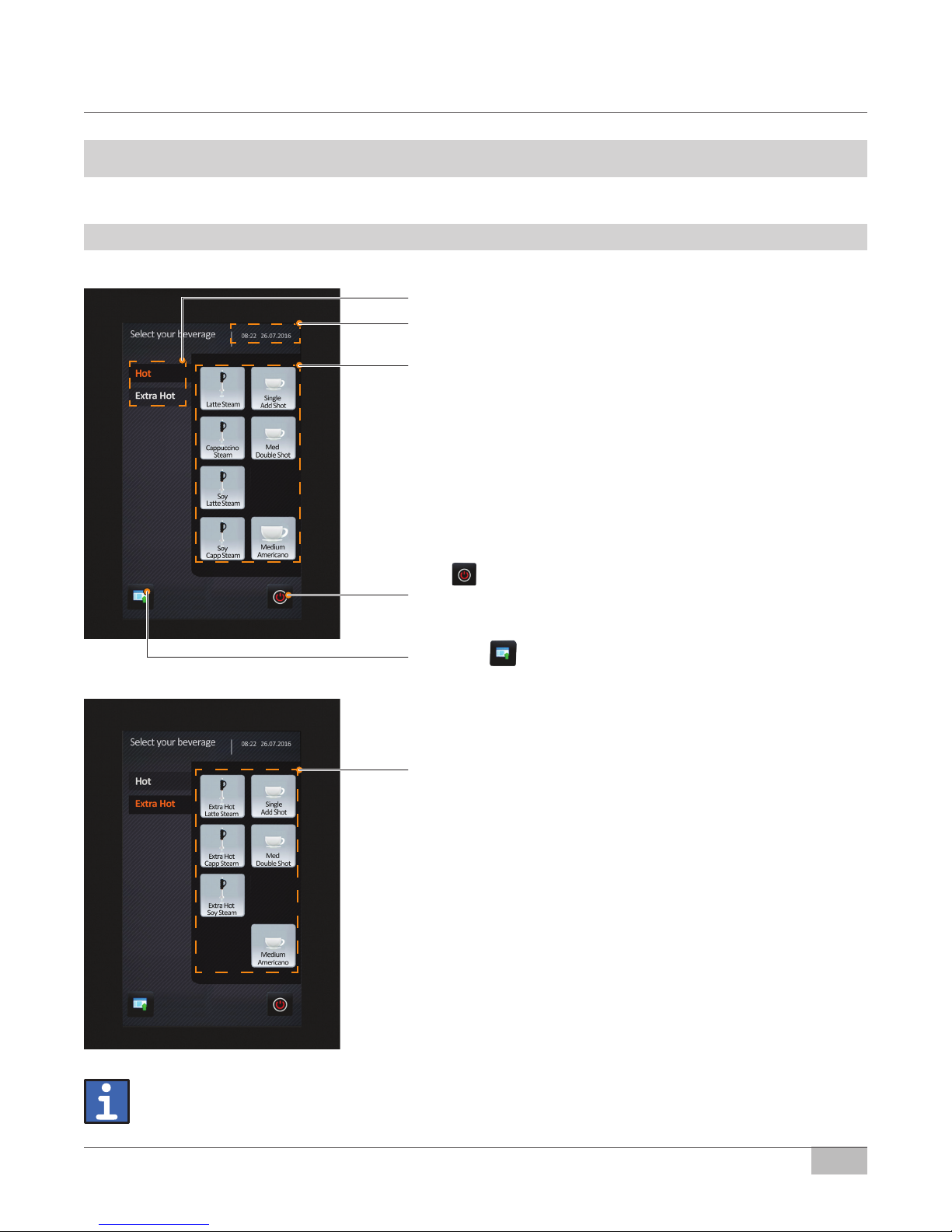

Machine Description
Touch Screen User Interface
User interface conguration may vary.
The icon controls the power to the machine. To turn the
machine off, press and hold the button. To turn it on, just the
press the button.
Press the icon to go into the Service Menu.
Notes:
1. This icon may be hidden; press & hold the blank area to bring
up the icon.
2. When machine is off, this icon is called Quick Menu.
Beverage type selection
• Press the LATTE STEAM icon to steam latte milk.
• Press the CAPPUCCINO STEAM icon to steam cappuccino milk.
• Press the SOY LATTE STEAM icon to soy steam latte milk.
• Press the SOY CAPPUCCINO STEAM icon to steam soy cappuccino milk.
• Press the SINGLE ADD SHOT icon for drinks requiring one espresso shot.
• Press the MED DOUBLE SHOT icon for drinks requiring two espresso shots.
• Press the MEDIUM AMERICANO icon for a medium americano.
Beverage type selection
• Press the EXTRA HOT LATTE STEAM icon to steam extra hot latte milk.
• Press the EXTRA HOT CAPPUCCINO STEAM icon to steam extra hot cappuc-
cino milk.
• Press the EXTRA HOT SOY STEAM icon to steam extra hot soy milk.
• Press the SINGLE ADD SHOT icon for drinks requiring one espresso shot.
• Press the MED DOUBLE SHOT icon for drinks requiring two espresso shots.
• Press the MEDIUM AMERICANO icon for a medium americano.
Hot Tab
Extra Hot Tab
Beverage category selection
Time and date indicator

- 8 - User Manual | 11.2016 | v01
www.schaererusa.com Introduction | Machine Description
Bean Hoppers
Fill the hoppers on top of the machine with whole beans only. The ma-
chine grinds the beans freshly for each shot.
The left hopper is intended for regular espresso beans.
The right hopper is intended for decaffeinated espresso beans.
Bean Hopper Slides
The bean hopper slides are used for locking the hoppers into position.
To release the hoppers for weekly cleaning, push the slides inward and
then lift up. Refer to page 22 for instructions.
Purge/Steam Buttons
Hot Water Buttons
To purge the steam wand after each use, press purge button 1 or 2. It
will purge for one 1 second (button 1) and two seconds for button 2.
To dispense hot water from the machine, press hot water button 1 or 2.
Button 1 will dispense for 2.5 seconds and stop automatically. Button 2
will dispense for 5 seconds and stop automatically.
Programming may vary.
Programming may vary.

- 9 -
User Manual | 11.2016 | v01
www.schaererusa.com Introduction | Machine Description
Steam Wand with nesteam©
Hot Water Spout and Coffee Spout
The steam wand is movable and has a hard plastic handle for handling
when it is hot.
The PEEK steam wand material dramatically lowers the wand’s surface
temperature. Unlike standard stainless steel wands, milk doesn’t bake
onto the wand. Milk residue easily wipes clean, even later on after steam-
ing. The PEEK steam wand is also much safer to touch right after steam-
ing.
Steam wand with proprietary air injection and auto shut-off guarantees
consistent milk texture and temperature while allowing users the freedom
to multitask.
Cleaning Tablet Funnel
The cleaning tablet funnel is located between the two bean hoppers.
Only Schaerer Cleaning Tablets should be dropped into this funnel dur-
ing the daily cleaning procedure. Refer to pages 19-20 for daily cleaning
instructions.
Use only Schaerer Cleaning Tablets (Item # 65221) for the
daily cleaning procedure. Refer to page 11 for reordering
cleaning tablets.
The hot water outlet is used for pre-heating ceramic cups and quick
rinsing of utensils.
The coffee spout can accommodate tall cups.

- 10 - User Manual | 11.2016 | v01
www.schaererusa.com Introduction | Machine Description
Grounds Bin
The grounds bin is located below the coffee spout. It holds the used
grounds which are disposed of after each espresso shot is brewed.
The bin slides straight out from the machine and must be emptied
periodically or when prompted on the display.
The drip tray is connected to a exible hose which should be connected
to a xed drain line. The purpose of this ‘basin’ is to funnel any spilled
liquids down the drain. To prevent blockage, we recommend that you
avoid ushing large quantities of milk and/or used coffee grounds down
the drain.
The drip tray grill is removable for easy cleaning and access to the
inside of the drip tray.
Drip Tray Grill and Drip Tray
For use by manufacturer authorized service agent.
Card Reader

- 11 -
User Manual | 11.2016 | v01

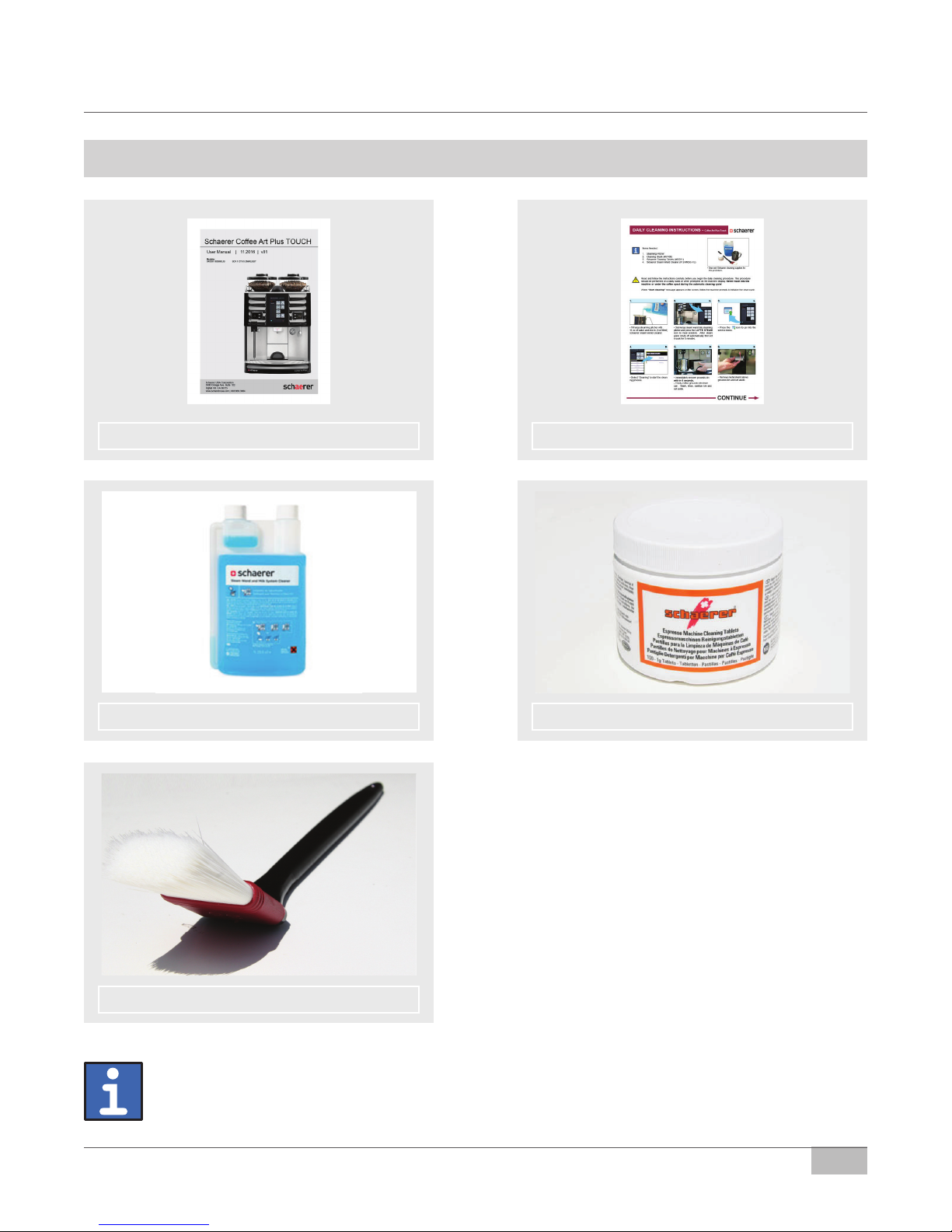

www.schaererusa.com Introduction | Machine Accessories
User Manual
Steam Wand Cleaner (Item # 12-MKSC-1L)
Large Cleaning Brush (Item #67409)
Daily Cleaning Instructions
Schaerer Cleaning Tablet (Item #65221)
TO ORDER CLEANING SUPPLIES PLEASE CALL
888.989.3004
Machine Accessories

- 12 - User Manual | 11.2016 | v01
www.schaererusa.com Utility Hook-Up Requirements
G
Y
X
Notes: Access hole is only required if any of the utility hook-ups are located under the counter. Drain pipe is only necessary if the drain line
from the drain tray is mounted xed. A removable drain tray does not require a drain pipe since it will be emptied by the operator.
4" Clearance
3" Clearance
23"
The receptacle (NEMA L6-30R)
and Water Filter can be located
either under the counter or top of
counter behind the machine.
17”
3” Diameter Access
Hole Located Rear
Center of Machine
1” Diameter
Drain Hose
1 1/2” Diameter
Drain Pipe to Floor
Drain
28"
8” Top
Clearance
2” Side Clearance
22”
3” Rear Clearance
4”
POWER, WATER SUPPLY, AND ACCESS REQUIREMENTS
The receptacle, water
shut-off valve and drain
pipe must be within 3 feet
(36") of the center of the
location (footprint) of the
machine.
Ideal under counter
space for softener: 30"
(minimum requirement:
26 inches).
• Receptacle type: NEMA L6-30R.
• 3 Prong twist-lock.
• Breaker panel: 30 Amp dedicated 220V
single phase circuit.
• Actual maximum load: 24 Amps.
• Access hole with collar (no sharp edges).
• Located centrally under machine for water
and drain hose.
• Diameter: Minimum 3"(80mm).
• Water shut-off valve with 3/8"(9.5mm)
compression tting.
• Back ow preventer in accordance with
local requirements.
• Drain pipe to oor drain.
• Copper or PVC in accordance with local
health codes and regulations.
• Diameter: 1.5" (38mm) or larger.
Utility Hook-Up Requirements

- 13 -
User Manual | 11.2016 | v01
www.schaererusa.com Operation | General Operation
General Operation
Introduction
This chapter describes the basic functions of the espresso machine.
Read the instructions carefully to ensure smooth routine operation.
Filling Bean Hoppers
Only use whole beans in the bean hoppers!
Never reach with your hands into the bean hoppers when the
machine is switched on. When relling the bean hoppers, do not
reach into the grinder and do not press any of the product buttons!
1. Remove the lid from the bean hopper.
2. Fill with whole beans maximum 1 kg (2.2 lbs) and close the lid.
A well-closed lid prevents loss of aroma.
Preparing the Machine for Operation
Prior to switching on the machine, check the following:
• The fresh water supply is open.
• The hoppers are lled (see above).
• The grounds bin is empty.
• The machine is connected to the power supply.
• Check whether the bean hopper slides are open.
Switching On the Espresso Machine
Switch on the espresso machine by pressing the icon.
If the machine has been switched off for a long period of time, the
message “heating” appears on the display.
A product selection can be made when the message “select product”
appears on the display.

- 14 - User Manual | 11.2016 | v01
www.schaererusa.com Operation | General Operation
Switching Off the Espresso Machine
If the espresso machine is not used for longer periods, i.e. overnight, it
can be switched to standby mode. In this mode, the boiler is not heated
and no beverages are available.
1. Press the icon until the message "<< Standby >>" appears on
the display.
Extended Idle Time
1. Perform the daily cleaning:
(See section "Daily Cleaning" on pages 19-20).
2. Switch the machine to “<< Standby >>” (Press the icon).
3. Close the shut-off valve from the fresh water supply.
4. Disconnect the machine from the power supply.
5. Vacuum the coffee beans from the bean hoppers.
6. Store the machine in a dry and clean location. On premises where
temperatures can drop below zero, the boiler has to be emptied. To
empty the boiler, contact a manufacturer-authorized service agent for
assistance.
Removal / Relocation / Disassembly
Contact a manufacturer-authorized customer service agent.

- 15 -
User Manual | 11.2016 | v01
www.schaererusa.com Operation | Beverage Output

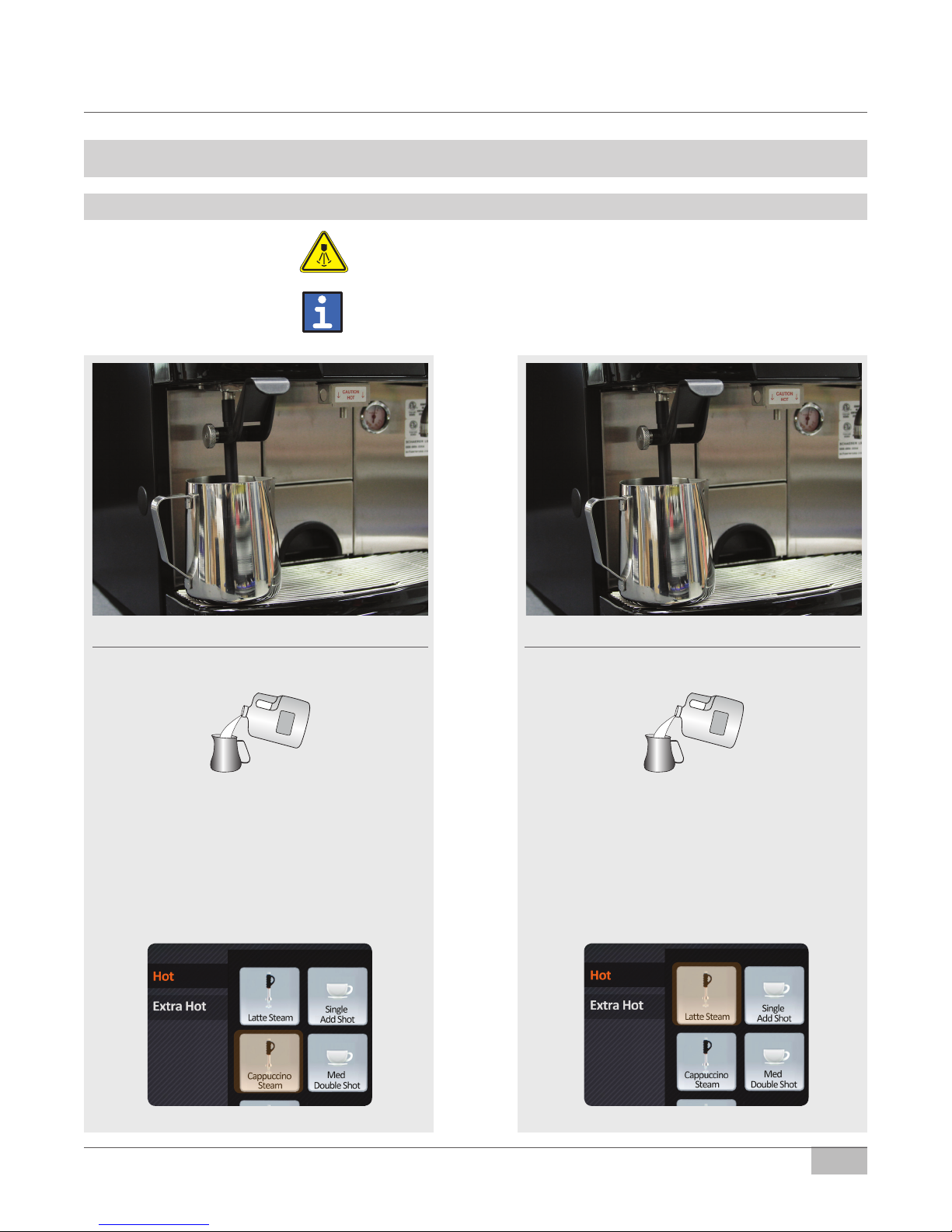

Foamed Milk Steamed Milk
Steam wand is extremely hot!
MILK MILK
1. Portion milk into steaming pitcher. 1. Portion milk into steaming pitcher.
2. Submerge steam wand into pitcher and make
sure wand points straight down. Press the
CAPPUCCINO STEAM or EXTRA HOT CAP-
PUCCINO STEAM icon.
For Extra Hot
Press the EXTRA HOT tab rst then press the
the EXTRA HOT CAPPUCCINO STEAM icon.
For Extra Hot
Press the EXTRA HOT tab rst then press the
the EXTRA HOT LATTE STEAM icon.
2. Submerge steam wand into pitcher and
make sure wand points straight down. Press
the LATTE STEAM or EXTRA HOT LATTE
STEAM icon.
Always wipe steam wand with a thick, clean, damp cloth and purge
after each use. Refer to page 21 for details.
Beverage Output
Foamed and Steamed Milk

- 16 - User Manual | 11.2016 | v01
www.schaererusa.com Operation | Beverage Output

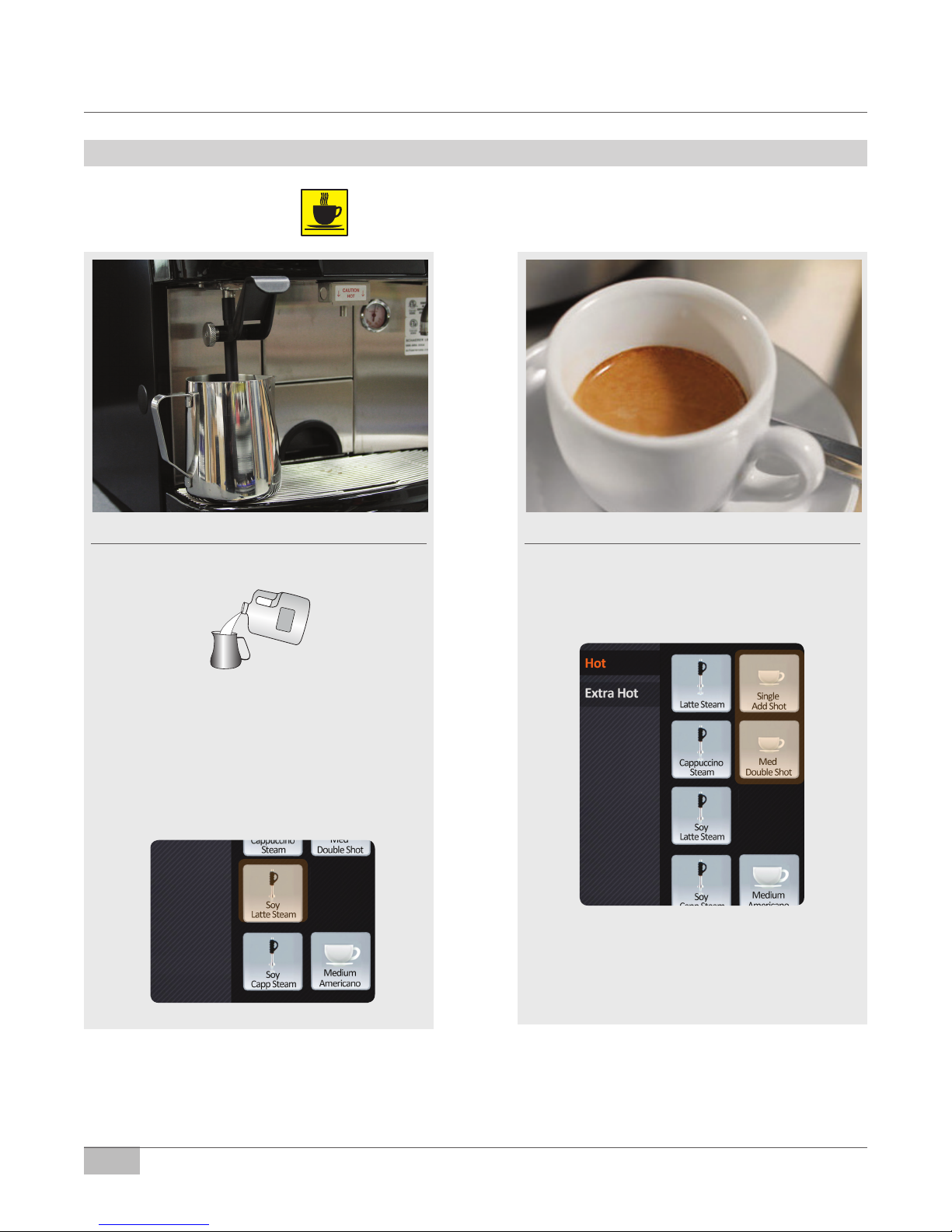

Soy Steam Espresso Shot
1. Place cup under coffee spout and press
the SINGLE ADD SHOT or MED DOUBLE
SHOT icon.
All beverages dispensed by the machine are extremely hot!
MILK
1. Portion soy milk into steaming pitcher.
For Extra Hot
Press the EXTRA HOT tab rst then press the
the EXTRA HOT SOY STEAM icon.
2. Submerge steam wand into pitcher and make
sure wand points straight down. Press the
SOY LATTE STEAM or SOY CAPPUCCINO
STEAM icon.
Soy Steam and Espresso

- 17 -
User Manual | 11.2016 | v01
www.schaererusa.com Operation | Beverage Output
Cappuccino Latte
MILK MILK
1. Portion milk into steaming pitcher. 1. Portion milk into steaming pitcher.
2. Submerge steam wand into pitcher and make
sure wand points straight down. Press the
CAPPUCCINO STEAM or EXTRA HOT CAP-
PUCCINO STEAM icon.
2. Submerge steam wand into pitcher and
make sure wand points straight down. Press
the LATTE STEAM or EXTRA HOT LATTE
STEAM icon.
3. Place cup under coffee spout and press the
SINGLE ADD SHOT or MED DOUBLE SHOT
icon.
3. Place cup under coffee spout and press the
SINGLE ADD SHOT or MED DOUBLE SHOT
icon.
4. Fill cup to top with foamed milk. 4. Fill cup to top with steamed milk.
Cappuccino and Latte
For Extra Hot
Press the EXTRA HOT tab rst then press the
the EXTRA HOT CAPPUCCINO STEAM icon.
For Extra Hot
Press the EXTRA HOT tab rst then press the
the EXTRA HOT LATTE STEAM icon.

- 18 - User Manual | 11.2016 | v01
www.schaererusa.com Operation | Tips During Operation
Always run the daily cleaning procedure
when prompted by the machine display.
Refer to page 19-20 for details.
Empty the grounds bin regularly and when
prompted by the display. Rinsing it nightly
will prevent caked-up grounds from forming.
When making two 16oz drinks at a time,
steam 32oz of milk.
Always wipe steam wand with a thick, clean,
damp cloth and purge after each use. Refer
to page 21 for details.
Periodically wipe the machine exterior thor-
oughly with a clean, damp cloth to remove
residue from steamed milk and espresso
shots.
Tips During Operation

- 19 -
User Manual | 11.2016 | v01
www.schaererusa.com Maintenance | Daily Cleaning
Daily Cleaning
Read and follow the instructions carefully before you begin the daily
cleaning procedure. This procedure should be performed on a daily
basis or when prompted by the machine display.
Never reach into the machine or under the coffee spout during the
automatic cleaning cycle!
The status of the cleaning and some cleaning steps are shown in the
display.
2. ►
1. ►
• Use only Schaerer cleaning sup-
plies for this procedure.
• Fill large steaming pitcher
with 16oz of water and mix in
(1oz/30ml) Schaerer Steam
Wand Cleaner.
• Press the icon to go into the
service menu.
Item #12-MKSC-1L
Item #65221
Item #67409
3. ►
• Submerge steam wand into steam-
ing pitcher and press the LATTE
STEAM icon to heat solution.
After steam wand shuts off au-
tomatically then let it soak for 5
minutes.
4. ► 5. ► 6. ►
• Remove metal shield above
grounds bin and set aside.
• Immediately remove grounds bin
with in 6 seconds.
• Empty coffee grounds into trash
can. Wash, rinse, sanitize bin and
set aside.

- 20 - User Manual | 11.2016 | v01

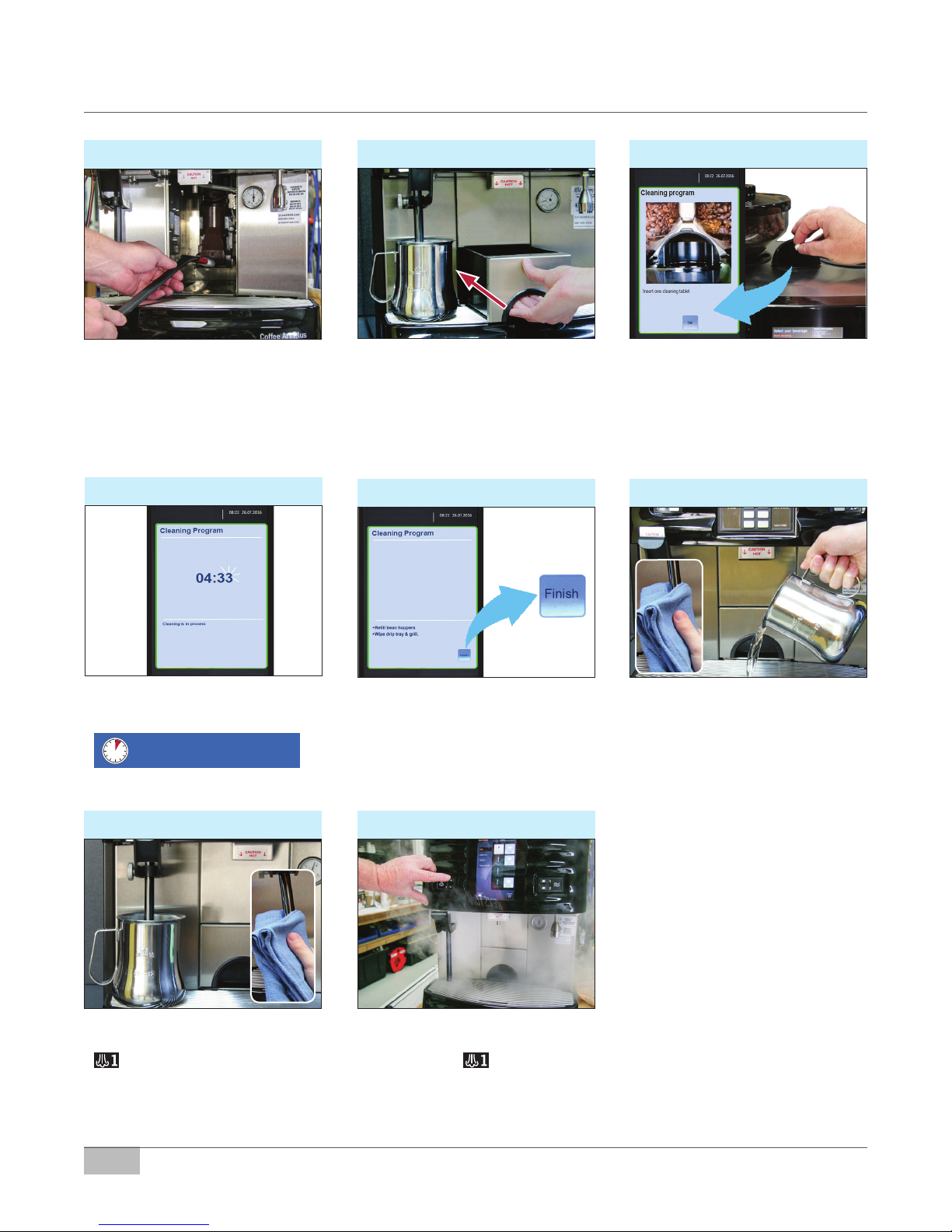

www.schaererusa.com Maintenance | Daily Cleaning
9. ►
• Display will read, “Insert one
cleaning tablet”. Lift lid and drop
in one Schaerer cleaning tablet.
Close lid.
• Press “OK” on the screen.
7. ►
• Use large cleaning brush to wipe
coffee grounds from brew unit and
surrounding areas into drip tray.
8. ►
• Reinstall metal shield and insert
coffee grounds bin back into
place.
• Follow instructions on display.
10. ► 11. ►
• After cleaning program completes.
• Rell beans if necessary.
• Wipe drip tray & grill.
• Press “Finish” to return to
normal operating mode.
Cleaning runs (4:33 min.)
• Cleaning process will complete
in 4:33 minutes.
12. ►
• When automated cleaning cycle
is complete, empty pitcher into
drip tray. Wipe steam wand with
a thick, clean, damp cloth. Be
careful, wand will be very hot!
14. ■
• After wiping off wand, point it
toward drip tray and purge by
pressing the button or any
steam function.
13. ►
• Submerge steam wand into cold
water once to rinse then press the
button or any steam function.
• Discard water and wipe steam
wand with a clean, damp cloth.
