Schick CDR Wireless User manual

CDR Wireless
User Guide
Schick Technologies, Inc.
30-00 47th Avenue
Long Island City, NY 11101
[phone]
[phone] (fax)
PART NUMBER B1051301 REV. –
DRAFT

Copyright 2003 by Schick Technologies, Inc.
All Rights Reserved
CDR and CDR Wireless are trademarks of Schick Technologies, Inc.
CDR is a registered trademark and is covered by US Patent Numbers
5,912,942 and 6,134,298. Additional patents are pending.
Trademark designations used by other manufacturers and sellers may
appear in this document also. Where Schick Technologies, Inc. was
aware of a trademark claim, that information has been printed in caps
or initial ca
p
s.
February 11, 2003

Printed in the United States of America
This document was originally prepared in English

Contents
1. Overview ........................................................................................................1
1.1. Purpose....................................................................................................................................1
1.2. Indications for Use..................................................................................................................1
1.3. Important Setup Reminders ....................................................................................................1
1.4. General Description ................................................................................................................2
1.5. Explanation of Terms..............................................................................................................3
2. System Description .....................................................................................4
2.1. Hardware.................................................................................................................................4
2.2. Software ..................................................................................................................................9
3. Installation and Operation....................................................................... 10
3.1. Wireless Sensor Software Installation ..................................................................................10
3.2. USB Interface Positioning ....................................................................................................10
3.3. Antenna / Receiver Positioning.............................................................................................11
3.4. Wireless Sensor Setup, Turn On, and Positioning ................................................................12
3.5. Wireless Sensor Calibration.................................................. Error! Bookmark not defined.
3.6. Remote Mounting Option ..................................................... Error! Bookmark not defined.
4. Controls and LED Indicators ......................Error! Bookmark not defined.
4.1. Wireless Sensor..................................................................... Error! Bookmark not defined.
4.2. Antenna / Receiver................................................................ Error! Bookmark not defined.
4.3. USB Interface........................................................................ Error! Bookmark not defined.
5. Using Your Wireless Sensor ......................Error! Bookmark not defined.
5.1. Sensor Sheaths ...................................................................... Error! Bookmark not defined.
5.2. Sensor Holders ...................................................................... Error! Bookmark not defined.
5.3. Taking X-rays ....................................................................... Error! Bookmark not defined.
6. Using the Wireless Tools Utility.................Error! Bookmark not defined.
6.1. Introduction........................................................................... Error! Bookmark not defined.
6.2. Sensor Upgrade and Configuration....................................... Error! Bookmark not defined.
6.3. Receiver Upgrade and Configuration ................................... Error! Bookmark not defined.
7. Maintenance...................................................Error! Bookmark not defined.
7.1. Preventive Actions ................................................................ Error! Bookmark not defined.
7.2. Corrective Actions ................................................................ Error! Bookmark not defined.
8. Reference........................................................Error! Bookmark not defined.
8.1. System Summary .................................................................. Error! Bookmark not defined.
Index .......................................................................Error! Bookmark not defined.
CDR Wireless User Guide B1051301 Rev. - (DRAFT) i

List of Figures

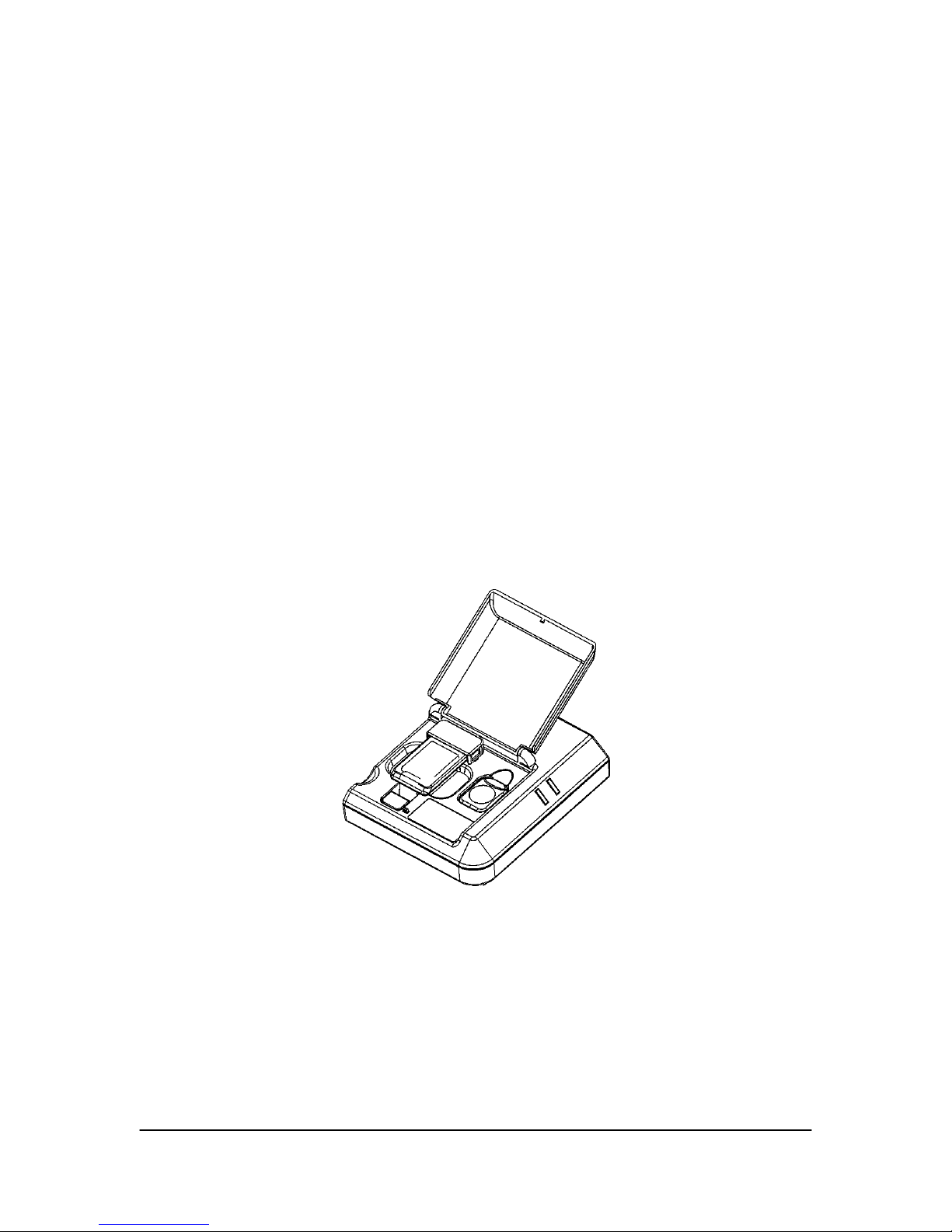

Figure 1. CDR Wireless System.......................................................................................................4
Figure 2. Wireless Sensor with Battery Pack Removed...................................................................5

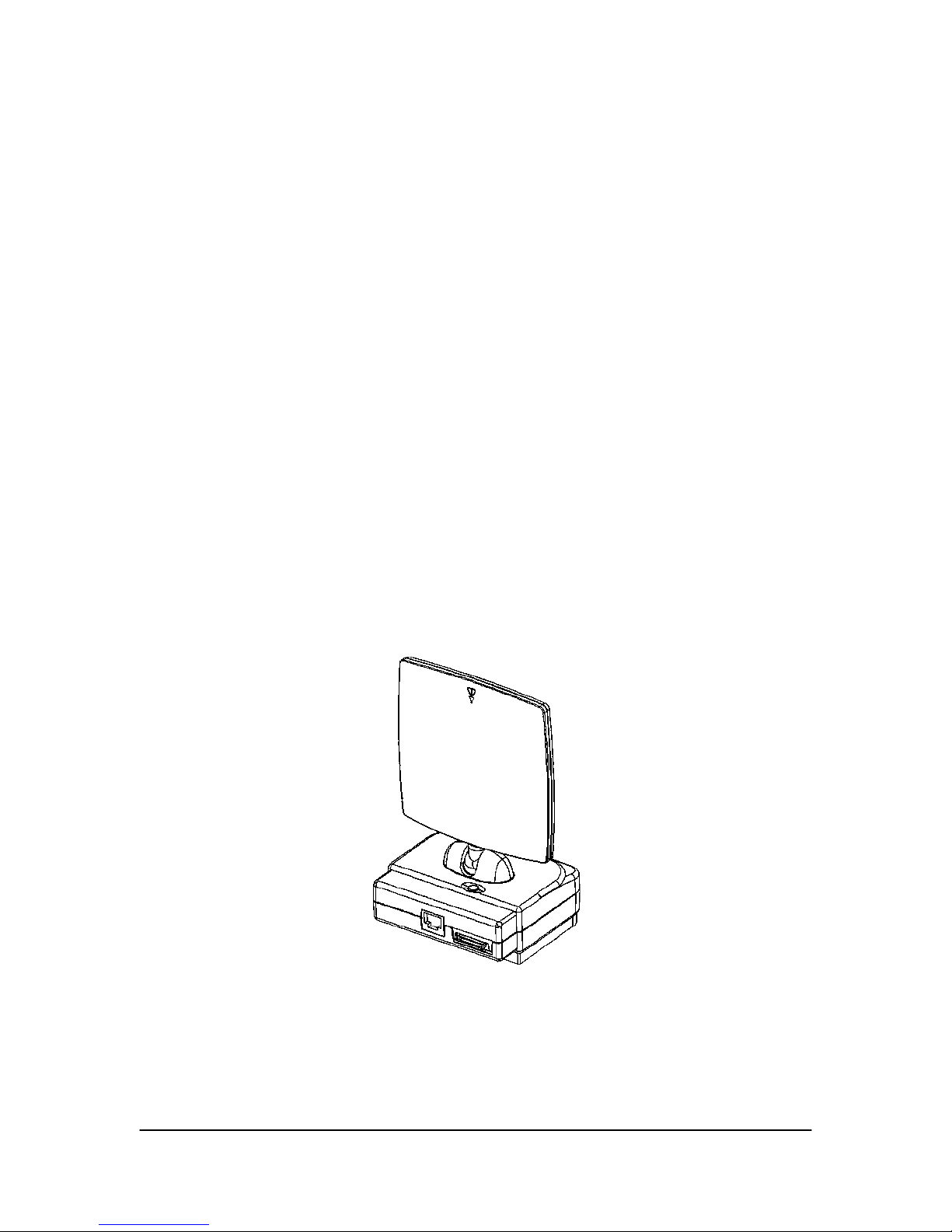

Figure 3. Antenna / Receiver............................................................................................................6
Figure 4. USB Interface....................................................................................................................7
Figure 5. USB Connector and Cable Marking .................................................................................8

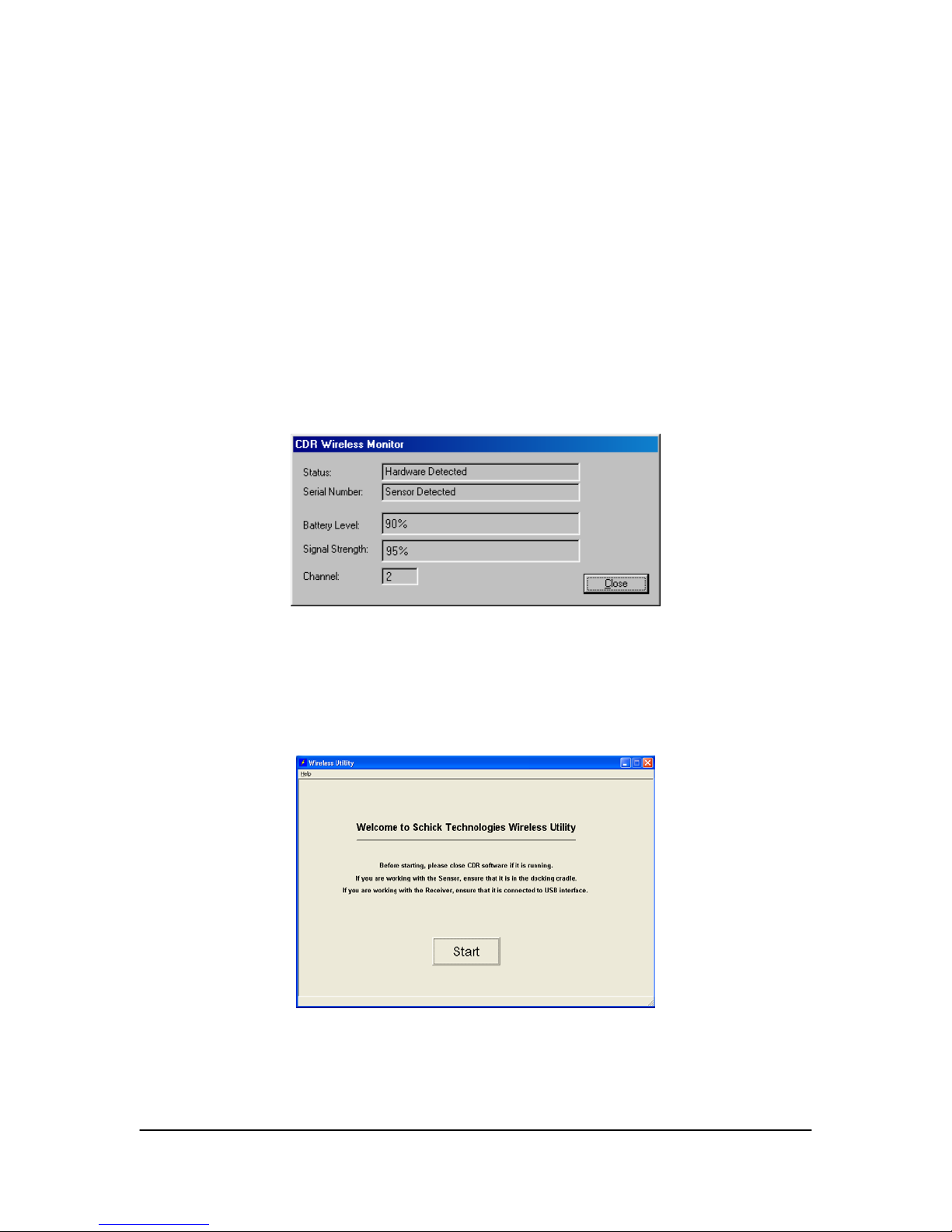

Figure 6. Wireless Monitor...............................................................................................................9
Figure 7. Wireless Tools ..................................................................................................................9
Figure 8. USB Interface with Protective Panel Attached ............... Error! Bookmark not defined.
Figure 9. Antenna / Receiver with Protective Panel Attached ....... Error! Bookmark not defined.
Figure 10. Antenna / Receiver Base ............................................... Error! Bookmark not defined.
Figure 11. USB Interface Base....................................................... Error! Bookmark not defined.
Figure 12. Wireless Sensor Controls and Indicators ...................... Error! Bookmark not defined.
Figure 13. Antenna / Receiver Connections and Indicators ........... Error! Bookmark not defined.
Figure 14. USB Interface Connections........................................... Error! Bookmark not defined.
Figure 15. USB Interface Indicators............................................... Error! Bookmark not defined.
Figure 16. Wireless Tools Selection Screen................................... Error! Bookmark not defined.
List of Tables
Table 1. USB Cable Markings..........................................................................................................8
Table 2. Placing the Sensor in the Sensor Cradle........................... Error! Bookmark not defined.
Table 3. Securing the Battery Pack to the Sensor........................... Error! Bookmark not defined.
Table 4. Wireless Sensor Dual LED Indications............................ Error! Bookmark not defined.
Table 5. USB Interface LED Indications ....................................... Error! Bookmark not defined.
Table 6. Wireless Sensor System Summary................................... Error! Bookmark not defined.
Table 7. Wireless Sensor System Specifications............................ Error! Bookmark not defined.
ii B1051301 Rev. - (DRAFT) CDR Wireless User Guide

Compliance Statement and Safety Issues
FCC Compliance Statement
Changes or modifications not expressly approved by Schick Technologies could void
your authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
Check CDR Wireless Sensor before Using It
Before each usage, check the CDR Wireless Sensor for any signs of physical damage or
defect. Make sure the battery pack is attached securely to the sensor. Before taking X-
rays, observe the proper guidelines for using sheaths, holders, and tabs.
Observe Handling, Storage, and Disposal Guidelines for
Batteries
Your CDR Wireless Sensor system is equipped with disposable batteries that have been
packaged and protected at the factory. Be sure to read the special instructions relating to
battery usage and follow all of the guidelines for storage and disposal.
Radio Frequency (RF) Interference Considerations
Your CDR Wireless Sensor system has been tested and found to comply with the limits
for a Class A digital device under the Federal Communication Commission's Rules and
Regulations. These limits are designed to provide reasonable protection against harmful
interference when the system is operated in a commercial (in this case, clinical)
environment. To operate this system safely, follow all the procedures in accordance with
this User Guide and all other documentation distributed with this system.
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
iii

Explanation of Symbols
Some symbols on the USB Interface label identify the Wireless CDR System as having
met the requirements for sale within the United States and for export internationally. The
“CE” symbol is an example of this type of mark. The remaining symbols provide either
technical or directive information, as described below
Symbol Description
Indicates that CDR Wireless is Class II equipment.
Indicates that CDR Wireless is Type BF equipment.
Indicates an attention to users to consult accompanying documents (the
CDR Wireless System User Guide) for more information on CDR hardware.
iv B1051301 Rev. - (DRAFT) CDR Wireless User Guide

Label Locations
Sensor Label
Refer to the following figure for labels and / markings found on the CDR Wireless
Sensor.
Label Description
Regulatory Markings and Manufacturer Label
(located on back of Sensor)
Battery Package Label
Refer to the following figure for labels and / markings found on CDR Wireless Sensor
Battery Packages.
Label Description
Regulatory Markings and Manufacturer Label
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
v

Antenna / Receiver Module Label
Refer to the following figure for labels and / markings found on the Antenna / Receiver
Module.
Label Description
Regulatory Markings and Manufacturer
Label (located on bottom)
USB Interface Module Label Antenna / Receiver:Picture of Label
Refer to the following figure for labels and / markings found on the USB Interface
Module.
Label Description
Regulatory Markings and Manufacturer
Label (located on bottom)
vi B1051301 Rev. - (DRAFT) CDR Wireless User Guide

1.Overview
1.1. Purpose
The CDR Wireless Sensor, Base Station, and application software are elements of an
electronic imaging system that transmits X-ray dental exams over a wireless RF link. The
Wireless Sensor is powered by a single battery, enclosed in protective packaging. The
Base Station is powered from the computer’s USB port.
1.2. Indications for Use
The CDR Wireless Sensor system is intended for any dental practice that uses X-ray
equipment for intraoral diagnostic purposes. It is indicated for patients receiving intraoral
dental X-ray examinations and produces digital images that can be displayed, enhanced,
printed, and saved. Because of the Sensor's higher sensitivity to X-rays in comparison to
film, the radiation dose to the patient is reduced. For diagnostic purposes, digital images
compare favorably with images acquired with X-ray film media.
1.3. Important Setup Reminders
1. Images acquired with your Wireless Sensor are transmitted to the Antenna / Receiver
over RF link. If active during image transmission, other devices that use radio
frequency or microwave technology (wireless Local Area Networks, wireless
telecommunication devices, microwave ovens) may interfere with the optimal
performance of your CDR Wireless System. For best results, turn off other wireless
or microwave devices when using your Wireless Sensor.
2. Correct placement of the Antenna / Receiver with respect to the Wireless Sensor is
essential. Be sure to follow the positioning information found in this document when
establishing the optimal location for the Antenna / Receiver. As a general rule, place
the Antenna / Receiver as close as practically possible to the patient chair where the
Sensor will be used. The distance between the Sensor and the Antenna / Receiver
should not exceed 6 feet (1.8 meters).
3. As with any X-ray procedure, stabilizing the Sensor in the correct intraoral position is
critical for diagnostic quality images. Equally important is for the patient to remain
completely still as X-ray images are acquired. Wireless Sensors are more sensitive to
motion during the imaging process, so be sure to remind your patients as you take X-
ray images.
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
1

1.4. General Description
Hardware in the CDR Wireless Sensor system performs the following actions.
• Wireless Sensor -- Captures the image created when the Sensor is exposed
to radiation from an X-ray source.
• Base Station Antenna / Receiver -- Receives, via wireless RF link, the
image acquired from the Wireless Sensor and sends it to the USB
Interface Unit. The unit is powered from the computer’s USB port.
• Base Station USB Interface -- Communicates, via wired USB link, with
attached computer hardware, enabling acquired images to be displayed on
a computer monitor or other display system. The unit is powered from the
computer’s USB port.
Software used with the CDR Wireless system performs the following actions.
• Wireless Sensor Driver, supplied with your system, acquires images
captured by the Wireless Sensor. It also optimizes image quality for
display on a computer monitor.
• Wireless Tools, Wireless Monitor, and Diagnostic utilities, supplied with
your system, monitor, configure, and diagnose the system.
• CDR Application Software (version 2.6 or DICOM for Windows),
optional and available separately, provides the user with advanced features
for image review, manipulation, printing, and storage.
2B1051301 Rev. - (DRAFT) CDR Wireless User Guide

1.5. Explanation of Terms
Terms used in this document are defined below.
CDR-W (Wireless CDR) Wireless implementation of the Computed Dental
Radiology imaging system manufactured by Schick
Technologies, Inc.
RF (Radio Frequency) Alternating current suitable for wireless transmission
RJ (Registered Jack) RJ-45 is the connector type at each end of the
Category 5 cable used in the CDR Wireless system to
convey data between the Antenna / Receiver and USB
units when they are not connected directly ("docked")
with each other.
USB (Universal Serial Bus) Plug and play interface between host computer and
connected USB-compatible devices
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
3

2.System Description
2.1. Hardware
The hardware elements of the Wireless CDR system consist of the Wireless Sensor (with
battery pack); Antenna / Receiver and USB Interface units (known collectively as the
Base Station), a compatible PC workstation, and interconnecting cables.
The following block diagram shows the functional relationships between modules and
devices within the CDR Wireless system. The Antenna / Receiver unit can be located
remotely from the USB Interface unit via Category 5 cable (RJ-45 connectors); however,
in the following illustration, they are shown in their default ("docked") configuration.
Wireless Sensor
2.4 GHz RF Link
(wireless)
Base Station
Antenna / Receiver
USB Interface
USB Link
(wired)
Figure 1. CDR Wireless System
PC
W
o
rk
stat
i
o
n
4B1051301 Rev. - (DRAFT) CDR Wireless User Guide

2.1.1. Wireless Sensor
The Wireless Sensor provides FM digital data to the Antenna / Receiver over the 2.4 GHz
frequency band. Three, user-selectable channels are available to minimize interference in
practices where multiple Wireless Sensors are in use.
Power for the Wireless Sensor is provided by a water resistant, non-rechargeable battery
package located on the back (non-active pixel area) of the Sensor. Battery status is
displayed on the Sensor using a single window, dual LED display. (For more information
about the Wireless Sensor LEDs and their indications, refer to Error! Reference source
not found..) Battery level information is also available in the Wireless Monitor dialog box
(Figure 6), where RF channel, signal strength, and Sensor information can be found.
PLEASE NOTE: When detached from the Sensor, place the battery pack on its back
with the terminals facing upwards. Ensure that no conductive object contacts the battery
terminals to eliminate accidental discharge.
The Sensor ON / OFF switch is part of the battery package. Turn the Sensor on and off
by pressing lightly on the button shown below. The Wireless Sensor must be turned ON
to capture X-ray images. The Sensor will turn itself OFF automatically if no X-ray
exposures are detected for approximately 15 minutes.
For steps on attaching the battery pack to the Sensor, refer to Error! Reference source not
found..
Battery
Contacts
ON / OFF
Switch
Figure 2. Wireless Sensor with Battery Pack Removed
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
5

2.1.2. Base Station Antenna / Receiver
The Base Station is composed of the Antenna / Receiver and USB Interface. The Antenna
/ Receiver receives the radio frequency status and image data signals from the Wireless
Sensor, demodulates the signals and transfers the information to the USB Interface. When
the Antenna / Receiver is receiving data, the LED located near the base of the Antenna
illuminates.
The Antenna / Receiver can be positioned separately from the USB Interface to enhance
signal reception. Nominally, the Antenna / Receiver should be within 6 feet (1.8 meters)
of the Wireless Sensor and facing the patient for best results. The Antenna can be pivoted
forward-and-back and rotated from left-to-right to achieve optimum reception.
The Antenna / Receiver and USB Interface are shipped connected directly to each other
("docked"). Two screws are used to secure the units. Remote mounting of the Antenna /
Receiver from the USB Interface is optional, and may be prompted by a number of
factors (including physical layout of the office and / or RF reception). The base of the
Antenna contains molded areas to allow for wall- and ceiling-mounted options.
When the Antenna / Receiver is mounted remotely, the two screws securing the Antenna
/ Receiver to the USB Interface are removed allowing the two units to be unplugged from
each other. A standard computer network modular Category 5 cable with RJ-45
connectors is then used to connect the Antenna / Receiver to the USB Interface.
Figure 3. Antenna / Receiver
6B1051301 Rev. - (DRAFT) CDR Wireless User Guide

2.1.3. Base Station USB Interface
The USB Interface connects the CDR hardware to the computer via a standard USB 1.1
port. It also provides channel selection for Wireless Sensors, performs Sensor
diagnostics, and supports field upgrades of the firmware for the unit itself, the Antenna /
Receiver, and Wireless Sensors. When opened, the translucent compartment lid permits
access to the Sensor cradle (used for RF channel configuration and diagnostics) and a
storage slot for a battery pack. When closed, the compartment lid serves to protect the
Sensor and battery pack when not in use.
Dual LEDs are located on the exterior of the USB Interface and supply power and status
information about the unit and the Wireless Sensor currently in use. LED indications
have several states (On / Off / Blinking) to reflect various states of operation. For more
information about the USB Interface LEDs and their indications, refer to Error!
Reference source not found..
The USB Interface can be wall-mounted, either "docked" with the Antenna / Receiver
itself, or located some distance from the Antenna, via Category 5 cable with RJ-45
connectors.
Figure 4. USB Interface
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
7

2.1.4. PC Workstation
The PC workstation connects to the USB Interface via compatible USB cable and serves
as host for CDR software and CDR utilities. In addition, the workstation provides the
capabilities to display, manipulate, store, and print images acquired with CDR Wireless
hardware. The recommended system requirements for PC workstations are listed below:
• Compatible operating system (Windows 98, 2000, or XP)
• Minimum of 64 MB RAM
• Minimum of 20 MB free disk space (to install CDR software)
• Minimum of 20 GB free disk space (to store X-ray images you acquire or
convert to DICOM format)
• Available USB port
When connecting the USB Interface to the PC workstation, verify that the USB cable has
a “/2c” designation marked along the cable, typically at either end and close to the
connector. The “/2c” designation is the USB spec designation for power connectors
inside the cable, and is a requirement for this system.
Figure 5. USB Connector and Cable Marking
Different lengths of USB cables will be marked differently. Refer to Table 1 for a list of
compatible USB cables and their designations.
Table 1. USB Cable Markings
Length of Cable Proper Gauge for CDR USB Cables
0.81 meters (32 inches) 28AWG/1PR and 28AWG/2c
1.31 meters (4.3 feet) 28AWG/1PR and 26AWG/2c
2.08 meters (6.8 feet) 28AWG/1PR and 24AWG/2c
3.33 meters (10.9 feet) 28AWG/1PR and 22AWG/2c
5.00 meters (16.4 feet) 28AWG/1PR and 20AWG/2c
8B1051301 Rev. - (DRAFT) CDR Wireless User Guide

2.2. Software
In normal use the CDR software provides the interface and control between the Wireless
System hardware and the computer. It provides the user with advanced features for
display, manipulation, storage, and printing of acquired X-ray images. Please refer to the
CDR software User Guide for more details.
Functions specific to the Wireless System have been added to CDR software to provide
configuration, monitoring, and diagnosis of system components.
The Wireless Monitor, located in the Windows ® System Tray, provides real-time
reporting of the Wireless Sensor and shows the current status of several elements
required for proper operation (Figure 6). The Wireless Monitor is especially useful when
positioning the Base Station with respect to the Sensor (Section 3).
Figure 6. Wireless Monitor
The Wireless Tools utility (wstools.exe), accessible by either desktop shortcut or by name
under the program group for CDR Wireless Sensor software, is intended to identify,
diagnose, and resolve configuration and communication issues in or between the Sensor
and Receiver. The selection screen for the Wireless Utility is shown in Figure 7.
Figure 7. Wireless Tools
In the event of partial image corruption due to RF interference, CDR software will
identify those areas on the displayed image so that the dental professional can evaluate
whether another exposure is required.
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
9

3. Installation and Operation
3.1. Wireless Sensor Software Installation
For this procedure you will need the CDR Wireless Sensor disk provided with your
system. This disk contains the driver for the Wireless Sensor, the Wireless Monitor, and
Wireless Tools utility.
1. Insert the CDR Wireless Sensor Software disk into the floppy drive of your computer.
2. Click Start, Run, and then enter a :\ setup.exe.
3. Click Next when the Welcome Screen for the setup program is displayed.
4. Click Yes after reading and agreeing to the license agreement.
5. If you are CDR program user (version 2.6 or DICOM), select the software version
you intend to use with the Wireless Sensor. This screen does not appear for non-CDR
users.
6. Click Next after selecting the location where the software will be installed.
7. Click Finish after the software is installed.
3.2. USB Interface Positioning
The Antenna / Receiver and USB Interface can be surface-, wall-, or ceiling-mounted as
one unit (docked) or separately (undocked) to achieve the best performance. To locate the
units in their shipped (docked) position, follow the steps below. To locate them
separately, refer to Section Error! Reference source not found..
1. Choose a convenient location for the USB Interface, keeping in mind that you may
need to periodically access the Sensor cradle for channel configuration.
2. Using the USB cable provided with your system, connect the cable from the USB
Interface to the PC workstation. If you need a different USB cable from the one
supplied with your system, refer to Table 1 for compatible cable lengths and
markings.
10 B1051301 Rev. - (DRAFT) CDR Wireless User Guide

3.3. Antenna / Receiver Positioning
IMPORTANT! Signal strength between the Wireless Sensor and the Antenna / Receiver
is affected by several factors, including the distance between them. Locate the Antenna /
Receiver as close as possible to where the Wireless Sensor will be used (within 6 feet or
1.8 meters), facing the patient.
1. Choose a convenient location for the Antenna / Receiver, selecting an area that will
most likely face the front of the patient and be within 5 (1.52 meters) of the area
where the Wireless Sensor will be used.
2. At your PC workstation, click Start > Programs > CDR > CDR Diagnostic Utility.
3. At the Welcome Screen, click the Check Wireless CDR USB System button.
4. Review the information on the Computer Resources screen. If all settings are correct,
(all checkmarks are green), click Next.
5. On the CDR Hardware screen:
• Click the Test USB Interface button to test the Sensor's ability to send an image
for display. When the gray test pattern appears, review it for clarity and
contrast. A good test pattern will have different shades of gray that are easy to
distinguish.
• Click the Test RF Environment button to test the amount of RF noise in the area
where the Sensor will be used. Be sure that the Wireless Sensor is turned off
since this will affect test results. Acceptable test results will appear as green
dots under the threshold (marked by a heavy line). Red dots appearing above the
threshold indicate RF noise occurring in the same range as the channel the
Antenna / Receiver is currently set. Relocating the Antenna / Receiver or
changing the Receiver RF channel are recommended in this case.
6. Click Next to advance to the Report screen. Click Finish to close the utility.
CDR Wireless User Guide B1051301 Rev. - (DRAFT)
11

12 B1051301 Rev. - (DRAFT) CDR Wireless User Guide
3.4. Wireless Sensor Setup, Turn On, and Positioning
Before using the Wireless Sensor, it must be configured to transmit on one of three RF
channels.
3.4.1. RF Channel Setup
To configure the Wireless Sensor, perform the following steps. You need to perform this
procedure before the Sensor is used the very first time and when you want to change the
Sensor’s channel to avoid interference.
1. Remove the battery pack from the Sensor by sliding and lifting it away from Sensor.
2. Place the Sensor with contacts side down into Sensor cradle located under the lid of
the USB Interface (Error! Reference source not found.).
3. Run the CDR Wireless Tools utility to select the channel for the Sensor (default
channel is 1.)
4. Once the Sensor is configured, it is ready for use.
