Schlosser KB55-EB75KS EU-SG 333 User manual

Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
1/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.001
Safety Module lk
Progressive safety gear - upward/downward acting = payload + weight of lift car in FREE fall
Braking device = 1/2 payload + masses UPWARDS upon tripping the overspeed governor incl. UCM/A3
General instructions 5360.800.002
Mounting/adjustment 5360.800.003
Mounting/adjustment/check 5360.800.004
Mounting/information 5360.800.005
Check 5360.800.006
Test instructions/information 5360.800.007
Kingpin, can be pulled out
Brake shoe retainer
Brake shoe
Brake pads
Release slider
Lockwash
Double eccentric
Kingpin, can be pulled out
Spring steel strip, inside
Releasing bolt
Brake shoe
Tension shoe
Operating Instructions
Safety Module Combination KB55-EB75KS
EU-SG 333 / EU-SG 313
General
drawn: safety gear right
left mirrored
Normal position drawn

!Maintenance!
1. It must be possible to turn the actuating shaft manually until the gripping eccentric engages and the
safety gear switch must be actuated. When pulled out from the braking position, the actuating shaft
(gripping eccentric) must turn back into neutral position.
2. The guide rails must only be oiled with specified lubricants. (Observe EC-type examination certificate). No
greases, oils which become resinous etc.
3. Maintenance at least once annually (or operating hours or
contamination).
4. Avoid rust by cleaning and lubricating the moving parts.
5.
6.
7. Check the tractive force of the overspeed governor with required tractive force of the safety gear/safety
module (at least statically).
Lubricate all joints, in particular the
spring and the gripping eccentric (if
they are not moving smoothly).
Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
2/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.002
Combination KB55-EB75KS
General instructions
Front
Back
Lubricate between eccentric
and spring steel strip
Kingpin, can be pulled out
Kingpin, can be pulled out
It must be easy to move
the safety gear smoothly
on the kingpin.
6.
!Important!
Prior to commissioning:
1. Before commissioning and testing the guide rails must be cleaned thoroughly prior to installation!
Whether „old“ or „new“, (due to dirt, old lubricant or protective agents in case of new rails!), they must
be kept clean both before and after commissioning!!!
2. Should this not take place, negative changes in the braking force etc. can/will occur: In this case, any
potential claim will be rejected.
3. Should „old“ guide rails show very long skid marks or many and deep marks (e.g. from safety gear), they
have to be replaced by new guide rails – of the same type.
4. After recommended test check (only functional test - low speed/empty lift car) a safety test (engagement
test) must be carried out according to the applicable guidelines (e.g. EN 81-20/50), also for „SRMs“
(conveyors), or according to the manufacturer‘s specifications.
Should none of the above provisions apply, the test must be executed in the „downward“ direction at
least with nominal speed and nominal load without any braking of the drive unit (e.g. keep operational
brake open!), otherwise no performance record! In the event of uncertainties, please contact us - as
manufacturer - immediately.
Periodical tests (engagement tests) must also be carried out
at regular intervals.
5. The brake power is assessed by persons with professional
expertise (e.g. inspection bodies etc.).
It must be possible to move the safety gear/safety module
smoothly on the kingpin (floating system).

Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
3/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.003

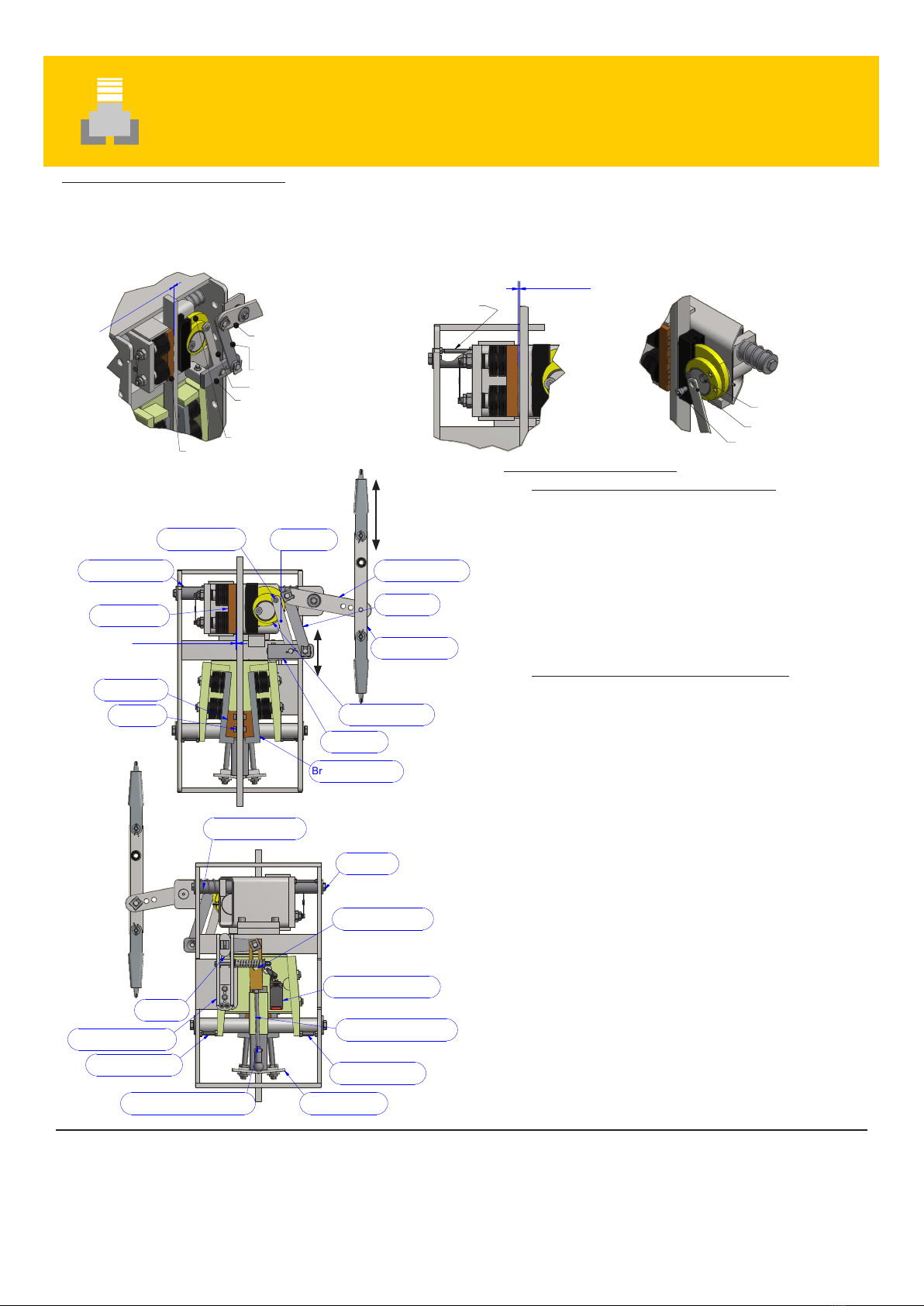

Combination KB55-EB75KS
Mounting / Adjustment
A ( 0,20 : 1 )
A
Winkelgelenk (14)
Gleichstellstange M10 (15)
Freilaufgabel (16)
Rückstellnocke (19)
Umlenkerhebel (17)
Angle joint (14)
Spindle for adjusting M10 (15)
Freewheel yoke (16)
Reset cam (19)
Reversing lever (17)
no backlash in neutral
position of brake wedges
Release clip
"installation tip"
A ( 0,20 : 1 )
B ( 0,60 : 1 )
A
B
Press up the
release slider (5)
until the brake shoes (1) clamp
ca.0,5-1,0mm Spiel
Stellschrauben kontern
A ( 0,20 : 1 )
B ( 0,40 : 1 )
A
B
Press up the
release slider (5)
until the brake shoes (1) clamp
approx.0,5-1,0mm clearance
Lock set screw
B ( 0,30 : 1 )
C ( 0,20 : 1 )
B
C
Actuation lever (22)
Release lever (24)
Actuation tab (23)
Release bar (25)
Brake shoe (1)
Release slider (5)
Brake shoe (10)
Double eccentric (8)
c
a
.
1
,
0
0
-
2
,
00
m
m
min.0,50 - max.1,00mm
Betätigungshebel (22)
Betätigungslasche (23)
Auslöselasche (25)
Auslösehebel (24)
Bremsbacke (10)
Doppelexzenter (8)
Spiel min.0,5 - max.1,0mm
je Seite im verbohrten
Auslösehebel
Verschraubung von
oben
Angle joint (14)
Spindle for adjusting M10 (15)
Freewheel yoke (16)
Reset cam (19)
Reversing lever (17)
opt. double reset clamp
High speed
Adjustment:
Turn the thread M10 (15) with the angle joint (14) until
the length to the release slider (5) in adjusted in the open
position (both sides)
Safety gear KB 55 Adjustment of the set screws (M8)
a) Press the release slider (5) up until the brake
shoes (1) are clamped on the guide rail
(centering the safety gear on the guide rail)
b) Then lock the set screws with approx. 0.5 - 1.0
mm clearance (the bolt heads must never
be resting on the external housing)
c) release either by hand or by briefly lifting the
brake shoes (1)
Setting type: KB 55 - working downwards
1. Adjust and set connection between the reversing
lever (17) and the release slider (5) with free-
wheel yoke (16) and spindle for adjusting (15),
angle joint (14).
a)
b)
opt.Swivel bar
High speed
Attention!

Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
4/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.004
Combination KB55-EB75KS
Mounting / Adjustment / Check
C ( 0,20 : 1 )
B
C
Release lever (24)
Actuation tab (23)
Release bar (25)
Brake shoe (1)
Release slider (5)
Brake shoe (10)
Double eccentric (8)
c
a
.
1
,
0
0
-
2
,
00
m
m
min.0,50 - max.1,00mm
Actuation lever (22)
Actuation tab (23)
Release bar (25)
Release lever (24)
Brake shoe (10)
Double eccentric (8)
Spiel min.0,5 - max.1,0mm
je Seite im verbohrten
Auslösehebel
Verschraubung von
oben
Setting type: EB 75 KS - acting upwards
1. Adjust the braking device and guide rail using the adjusting screw (M6) until a clearance of 1 - 2 mm between the brake shoe (10) and
the rail is set, then lock.
2. Mount the release bar (25) with lockwasher on double eccentric (8) to the top borehole (thread M8) using the releasing bolt (M8)
B ( 0,30 : 1 )
C ( 0,30 : 1 )
Betätigungshebel (22)
Auslösehebel (24)
Betätigungslasche (23)
Auslöselasche (25)
Bremsbacke (1)
Auslöseschieber (5)
Bremsbacke (10)
Doppelexzenter (8)
0,5
Betätigungshebel (22)
Betätigungslasche (23)
Auslöselasche (25)
Auslösehebel (25)
Bremsbacke (10)
Doppelexzenter (8)
1,0 - 2,0mm
Adjusting screw M6
A ( 0,25 : 1 )
A
Lockwasher
Release bar (25)
Releasing bolt M8
Mounting / adjustment / check
1. Setting type KB 55 to synchronous running
k Push up (engagement downwards) the actuation lever
(22) until the brake shoes (1) clamp on the guide rail
(press).
Check:
The brake shoes (1) must clamp (press) in both safety gears. If
not, the spindles (15) must be adjusted (some lead of the brake
shoes (1) opposite the Actuation lever (22) is an advantage)!
2. Check type EB 75 KS for synchronous running
l Press down (brake upwards) the actuating lever (22)
until both double eccentrics (8) are pressed onto the guide
rails.
Check: If not: Change clearance 1-2 mm between brake
shoe (10) and guide rail slightly by adjusting the adjusting
screw (M6).
Note: A test run provides clarity! Slow raising of the system (test
run) with activation of the actuation lever (22) until the double
eccentrics (8) turn in automatically. Stop the system immediately
when the double eccentrics turn in!
Then check that both double eccentrics (8) have clamped. Lower
the system to release! Both brake mechanisms must reset auto-
matically via the reset spring (29) and the kingpin (12)!
3. Attachment of the release cable coupling (26) – „Long
side“ up!
4. Adjusting the reset clamping spring (18). Select the preten-
sion to ensure normal operation. Observe the pull-in forces
of the release components, e.g. overspeed governor! (The
pull-in force must be double that of the safety module at
the overspeed governor!)

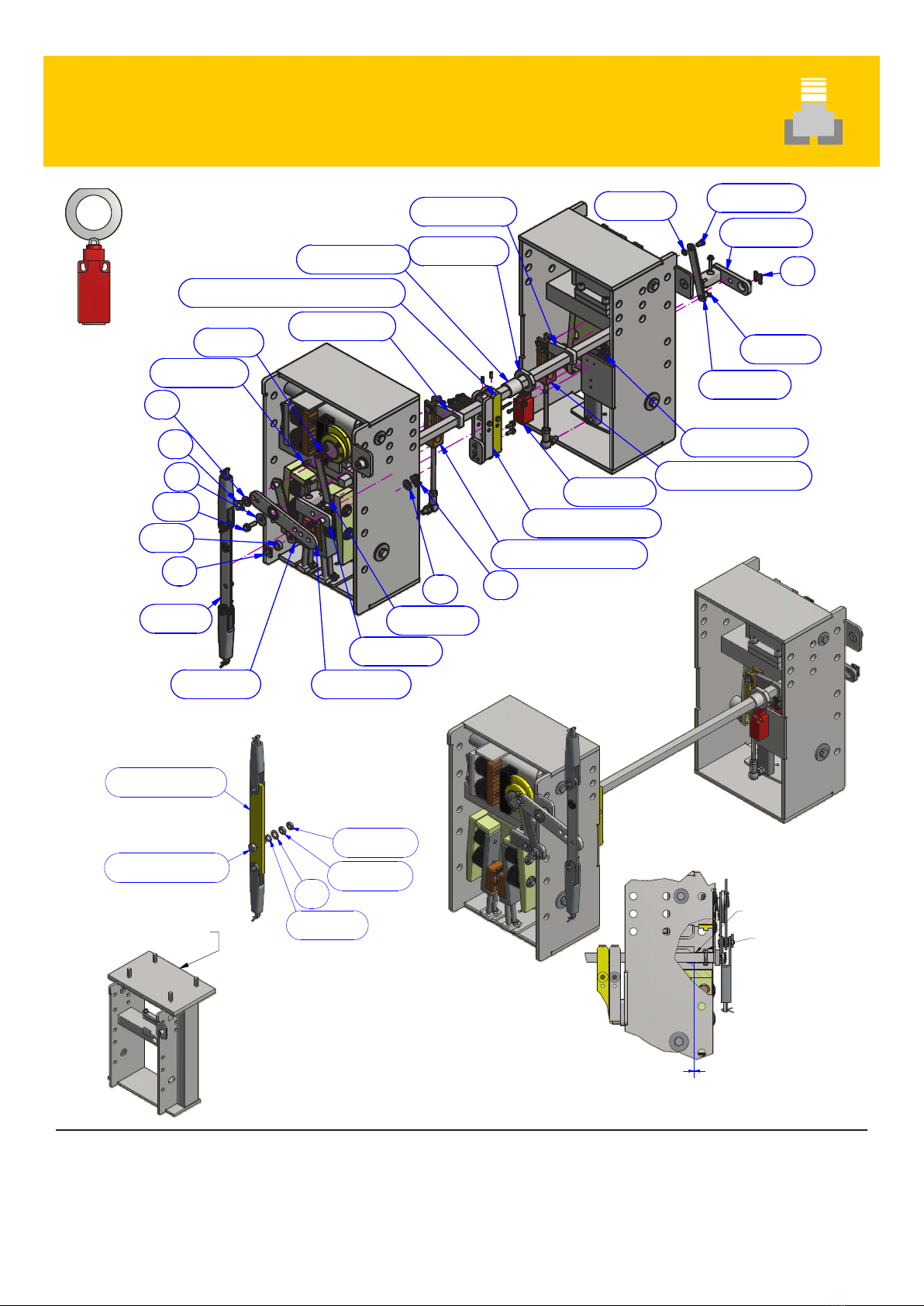

Brake shoe retainer
1-2mm
Actuation lever (22)
Actuation bar
Double eccenric (8)
Release lever
Brake shoe (1)
Brake pads
Brake shoe (10)
Adjusting screw M6
Releasing bolt M8 Actuating bar
Release wire (26)
Freewheel yoke (16)
Freewheel switcher (32)
Release slider (5)
Angle joint with spindle M10
Adjusting screw M8 Adjusting screw M8
Reset cam
Kingpin (12)
Spindle for adjusting (15)
Resetting spring (29)
Resetting bracket (18)
Front view
Back view
DOWNUP
DOWNUP

Combination KB55-EB75KS
Mounting / Information
Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
5/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.005

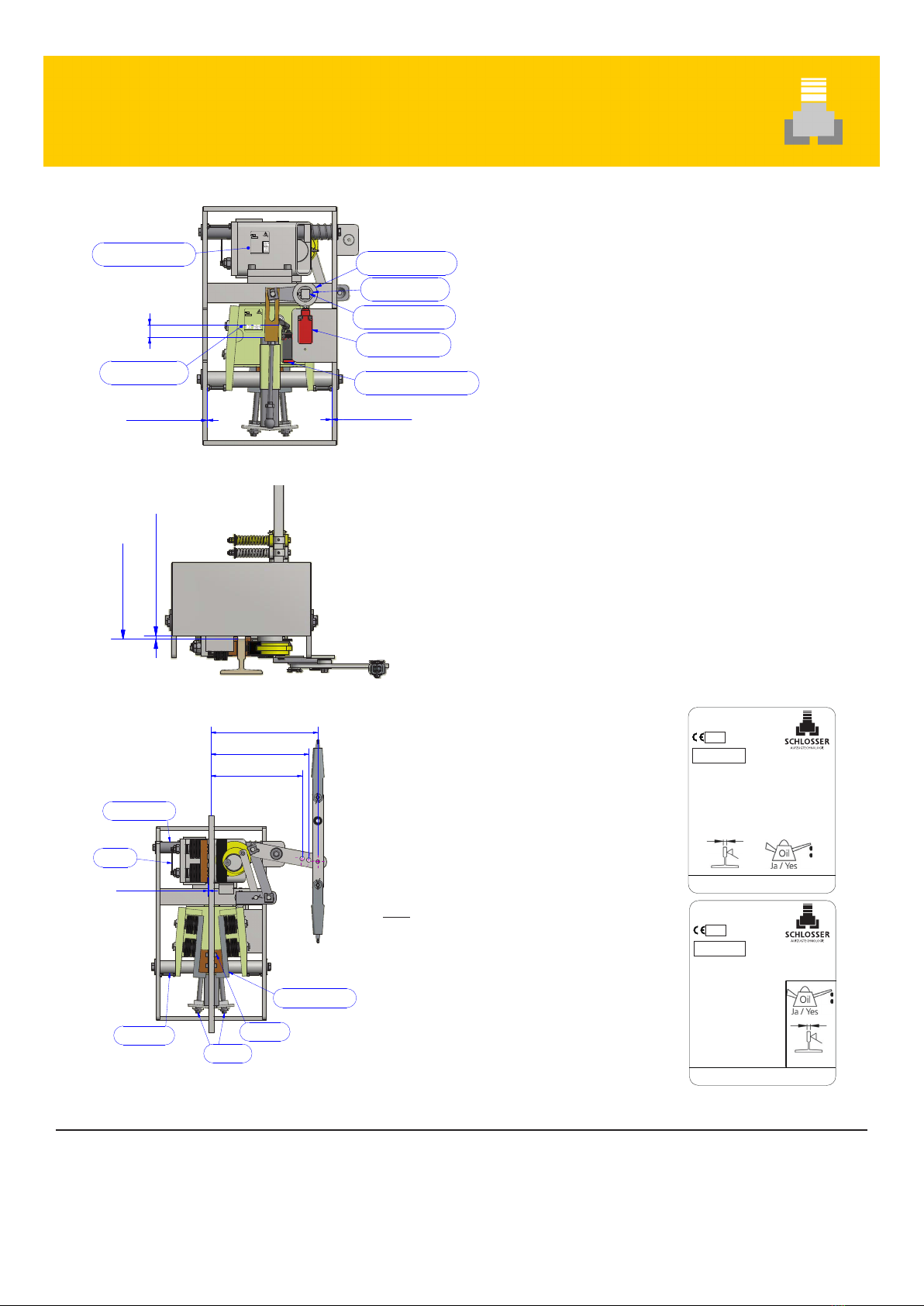

3 - max.7mm
STM/DBG
Make sure that the immersion depth of the rail is
correct.
• 3 - max. 7mm
Kingpin KB55
ca.250
ca.268
ca.292
Kingpin EB75KS
Brake shoe retainer
Brake shoe
1-2mm
Lead seals
Lead seal
The safety module lk may only be installed if the
values indicated on the type plate correspond to the
lift data. Check that the lead sealing is undamaged.
KB55
EU-SG 333
Date: -
UCM: NL12-400-1002-169-01 Rev.1
Serial-No.: -
Tripping spd. max: - m/s
Guide head: -
----
Aufzugtechnologie G.Schlosser GmbH
Felix-Wankel-Str.4, 85221 Dachau
Weight=: - kg
Attention: Strictly avoid any contact with the guide
rail in case of spring-loaded guiding elements!
(Observe spring deflections!, otherwise unintended
engagement etc!)
Note:
For larger lifts!/loads etc. (forklift operation!) make
sure that the guide rails and the load-bearing
components are stable. Safety gears etc. must not
be pressed onto the guide rail by loading activity or
one-sided loading of the lift! This is because the later
enlargement of the clearance is often not possible.
EB75KS 
EU-SG 313
Date: -
UCM: NL12-400-1002-169-04 Rev.1
Serial-No.: -
Tripping spd. max: - m/s
Brake force= 25490-29399N
Guide head: -
----
Aufzugtechnologie G.Schlosser GmbH
Felix-Wankel-Str.4, 85221 Dachau
Switching cam (21)
Positioner sleeve
Safety switch (27)
Freewheel switcher (32)
Type plate EB75KS
Type plate KB55
Air 0.5-1.0mm Air 0.5-1.0mm
Actuating shaft (28)
~5-10mm
Back view
of opposite
KB55
EU-SG333
Datum:
-
UCM: NL12-400-1002-169-01Rev.1
Fabrik-Nr.: -
V
auslösemax: - m/s
Schienenkopf: -
----
AufzugtechnologieG.Schlosser GmbH
Felix-Wankel-Str.4,85221Dachau
Masse
=: -kg
EB75KS
EU-SG313
Datum:
-
UCM: NL12-400-1002-169-04Rev.1
Fabrik-Nr.: -
V
auslösemax: - m/s
Bremskraft
=25490-29399N
Schienenkopf: -
----
AufzugtechnologieG.Schlosser GmbH
Felix-Wankel-Str.4,85221Dachau
5. Adjustment and setting of the safety switch (27)
Position the safety switch in such a way with respect to the
switching cam (21) that slight vertical movements of the
actuating shaft (28) do not cause the system to switch, but
only when the release shaft turns!
Note: Make sure that the free wheel switcher (32) switch before
the brake shoe (1) is clamped/pressed onto the guide rail!
Tip: Gap between the switching part and release slider (5)
approx. 5 – 10 mm!

Clearance between
the spring wires
when fully opened
Attention:
Adjust the resetting spring in such a way that
the pull-in forces are not too high and to
ensure sufficient spring deflections.
Test in detail
DOWNWARDS:
a) 1,25 times nominal load and nominal speed
b) or nominal load and with tripping speed
c) Keep brake open!
Note:
To make it easier to draw the car out of the engagement, it is recommended to
carry out the test near a door so that the load from the car can be discharged
there.
UPWARDS:
a) Empty car with min. nominal speed without any braking aid
(operational brake open, drive system switched off
After the test, make sure that no damage has occurred that could impair the
normal operation of the lift. If necessary, brake shoes can be replaced. Visual
examination is considered sufficient.
The objective of the test prior to commissioning is to determine the proper as-
sembly, the correct adjustment and the strength of the functional unit, comprising
the car - safety gear - guide rails - rail mountings.
Tripping/engagement forces:
At least double the required pull-in force lk of the safety gear/safety module
but at least 300N in both directions lk.
Combination KB55-EB75KS
Check
Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
6/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.006

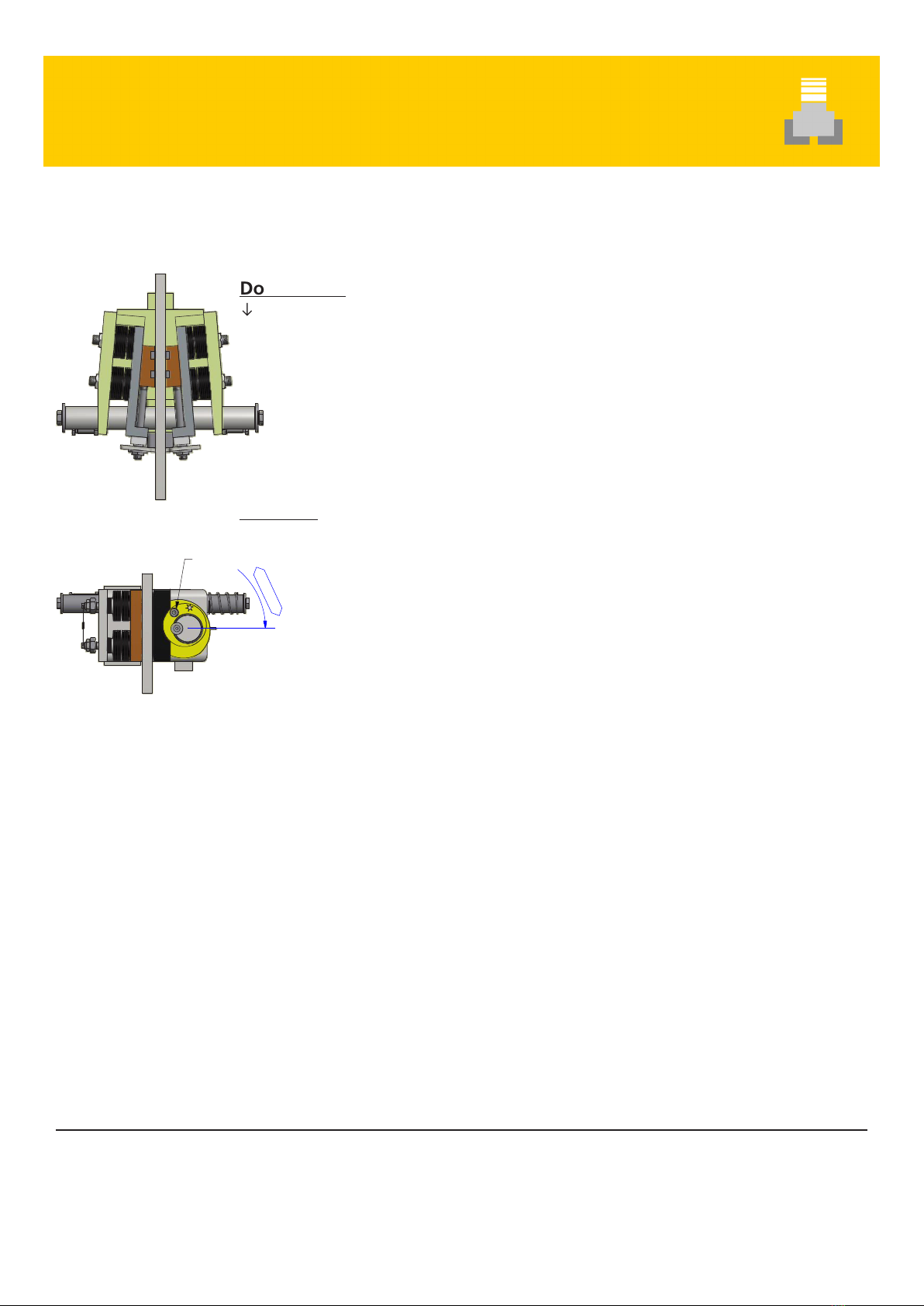

Reading
of marks
Threshold distance
Braking distance
Threshold distance Braking distance
S c o r i n g
Knurling marks
Downwards
Upwards
(Hard metals)
(Double eccentric)

Pulling out of the lengagement kbrake position.
Downwards
lEngagement position: the brake shoes are pulled in upwards!
Pull off the lengagement position in steps:
- Start quickly in upward direction using the re-levelling control.
- Several repetitions = in principle: loosen and tighten ropes
- Handwheel aid
- Empty the car
- Traction sheave clamp, lifting etc.
Upwards
kBrake position: The M8 bore hole of the double eccentric shows approx. 11 o‘clock.
Pull off the kbrake position in steps:
- Start quickly in downward position using the re-levelling control.
- Several repetitions = in principle: loosen and tighten ropes.
- Handwheel aid
- Load the car
- Traction sheave clamp, car hanging freely etc.
Combination KB55-EB75KS
Test instructions / information
Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
7/7
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.007
Note:
1. In the case of weightless testing downwards (electronic test device), the bouncing of the cabin can cause the
brake to fall back or be pulled into the upwards braking position! (Bouncing counterweight!).
2. Also, a release from the upwards braking position can cause the brake to fall back or be pulled into the down-
wards direction! (Jerky release from above!).
Note:
The release of the cabin from the downwards braking position tends to be more difficult, the „lighter“ the cabin is
in relation to the nominal load. (Heavy counterweight to light cabin!).
Liability and guarantee:
The company Aufzugtechnologie Schlosser does not accept any liability or provide any guarantee for damages
resulting from incorrect handling or inappropriate use of our products contrary to these instructions.
Release
11 o´clock

Actuation leverActuation bar
Release lever
Actuating bar
Releasing bolt
Lockwash
Swivel bar
Screw
Disk
Clip
Disk
Disk Clip
Freewheel yoke system
Reversing lever
Reset bracket strong
Safety switch
Freewheel yoke system
Reversing lever
Spacer
Clip
opt. douple reset clamp high speed
Freewheel switcher
Actuating bar
Locking pin
Releasing bolt
Lockwasher
Positioner sleeve Switching cam
Clip
Release lever
Assembly of actuating gear
KB55-EB75KS
Schlosser
Aufzugtechnologie GmbH
Felix-Wankel-Straße 4
85221 Dachau
T +49 8131 / 5186-0
www.schlosser.de
Ausgabe
edition
06.09.2018
Seiten
pages
1
Bearbeiter
person in charge
Kepplinger
Zeichnung Nr.
drawing nr.
5360.800.010
• Starting condition
• Final
Detail release lever/
actuating bar
Half nut M12
Half nut M12
Disk
Rubber ring
6KT screw M12x40
Option high speed
Alternativ detachable
outer housing
B
C
Release lever (24)
Actuation tab (23)
Release bar (25)
Brake shoe (1)
Release slider (5)
Brake shoe (10)
Double eccentric (8)
min.0,50 - max.1,00mm
Clearance with min.0,5 -
max.1,0mm on each side
in drilled release lever
Screw connection
from above
