Schroeder America PEPSI 959 User manual

Please refer to the Schroeder America website (www.schroederamerica.com)
for information relating to Schroeder America installation and Service
Manuals, Instruction Sheets, Technical Bulletins, Service Bulletins, etc.
NOTICE:
The information contained in this document is subject to change without notice.
SCHROEDER AMERICA MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SCHROEDER AMERICA shall not be liable for errors contained herein or for incidental consequential
damages in connection with the finishings, performance, or use of this material.
This document contains proprietary information which is protected by copyright. All right reserved.
© Copyright 2015 by Schroeder America, all rights reserved.
THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
This manual must be read and understood before the installation and operation of this dispenser.
Schroeder America
5620 Business Park • San Antonio, TX 78218
210.662.8200 • Fax: [phone] • www.schroederamerica.com
Toll-Free 877.404.2488
PATENT NUMBERS: PATENT PENDING US & FOREIGN Rev: 8/16
PN: 805-0028
INSTALLATION INSTRUCTION, PARTS LIST
AND CONFIGURATION GUIDE
FOR THE
PEPSI®4 FLAVOR ELECTRIC DISPENSER
Dispenser Model No. 959
3158001

2
1. DISPENSER DIMENSIONS AND WEIGHT
A. Four Flavor Electric Dispenser weight is 13.5 lb.
B. Four Flavor Electric Dispenser shipping weight is 15 lb.
C. Four Flavor Electric Dispenser shipping dimensions 9” x 22 3/8” x 24 5/8”
2. WATER, SYRUP AND ELECTRICAL REQUIREMENTS
Minimum Maximum
Water/Soda 40 PSIG (2.81 kg/cm2) (275.8 kPa) 70 PSIG (4.92 kg/cm2) (482.6 kPa)
Syrup (Sugar) 20 PSIG (1.41 kg/cm2) (137.9 kPa) 70 PSIG (4.92 kg/cm2) (482.6 kPa)
AC Input DC Output
Electrical 100-240 VAC, 50-60 Hz, 1.8 A 24 VDC, 2.5 A
3. INSTALLATION
A. RECEIVING
Each unit is completely tested under operating conditions and thoroughly inspected before
shipment. At the time of shipment, the carrier accepts the unit and any claim for damage must
be made with the carrier. Upon receiving unit(s) from the delivering carrier, carefully inspect
carton for visible indication of damage. If damage exists, have carrier note same on bill of lading
and le a claim with the carrier.
IMPORTANT
THIS APPLIANCE IS NOT TO BE USED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND
KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DO NOT PLAY WITH APPLIANCE.
B. (OPTIONAL) ATTACHING DISPENSER TO COUNTERTOP
The 4 Flavor Electric Dispenser can be installed loose on the
countertop or mounted to the countertop.
1. If the dispenser will be installed loose, bumper foot pads
(P.N. 670-0027) should be used to alleviate sliding of
dispenser.
a. Remove cellophane from adhesive side of bumper pad
and place on bottom of each foot.
5.750
13.823
15.014
1.25
7.924
17.696
3.276
15.443
16.259
6.250
Bottom of Unit

3
2. If the dispenser will be mounted to the countertop, use fastener kit (P.N. 670-0013) containing
the following parts:
• (4 each) Bolt, 10-24
• (4 each) Spacer
• (8 each) Nut, Hex, 10-24
• (4 each) Washer, Flat
a. Attach the bolts to the inner support bracket using
a washer and nut. Tighten the nut to keep the bolt
rmly attached to the inner bracket.
b. Using the template, locate the desired position of the dispenser and mark the center of the
holes on the counter. Drill holes using 13/64 drill bit.
c. Set dispenser on counter so that bolts protrude through holes in the countertop.
NOTE:
To comply with National Sanitation Foundation (NSF) requirements with the United States,
unit base must be sealed to the countertop if no cleaning under unit will occur.
d. Liberally apply Silastic®sealant (such as Dow Corning RTV 730 or equivalent) on base
bottom edge.
e. Apply additional sealant around bottom of base. Seal must have a minimum 1/2” radius to
prevent crevices and to ensure a complete seal.
f. Allow sealant to dry to MFG recommendations.
g. Assemble washers and nuts to bolts from underneath the countertop. Tighten rmly.
DO NOT OVER TIGHTEN!
C. CONNECTION TO ELECTRICAL POWER
WARNING
THIS UNIT MUST BE PROPERLY ELECTRICALLY GROUNDED TO AVOID POSSIBLE FATAL
ELECTRICAL SHOCK OR SERIOUS INJURY TO THE OPERATOR. THE POWER CORD IS
PROVIDED WITH A THREE-PRONG GROUNDED PLUG.
IF A THREE-HOLE GROUNDED ELECTRICAL OUTLET IS NOT AVAILABLE, USE AN APPROVED
METHOD TO GROUND THE UNIT.
DO NOT USE EXTENSION CORDS WITH THIS UNIT. DO NOT “GANG” TOGETHER WITH OTHER
ELECTRICAL DEVICES ON THE SAME OUTLET.
1. Connect power supply cord to back of unit (Fig. 3.1)
2. Check the unit serial number plate for correct electrical requirements.
Do not plug into electrical outlet unless unit electrical conguration,
located on serial plate, agrees with local available power supply.
3. Route the power supply cord to a grounded electrical outlet of the
proper voltage and amperage rating, and plug in the unit.
IMPORTANT
THIS EQUIPMENT TO BE INSTALLED WITH ADEQUATE BACKFLOW PROTECTION.
BOLT
SP
ACER
INNER BRACKET
WASHER
NUT
Fig. 3.1 (Rear of Unit)

4
NOTE:
Water Regulation is highly recommended. Set water regulator to 65 PSIG.
Water pipe connections and fixtures directly connected to a potable water supply shall be sized,
installed and maintained in accordance with federal, state and local codes.
D. CONNECTING SUPPLY LINES TO SOURCES
1. Use beverage barb ttings (1/4”) to attach inlet water and syrup concentrate to ex tubing
located at end of shut-off modules. Water and syrup concentrate lines are identied in Fig 3.2.
Tubing can be routed through a hole in the countertop. Ensure proper size hose clamps are
used to secure tubes.
OffOn
Fig. 3.3 (Top View of
Shut off Module)
Fig. 3.2 (Rear of Unit with Back Panel Removed)
2. Turn water and syrup concentrate on at the source.
3. Turn water and syrup concentrate on at the shut-off modules by rotating yellow shut-off knobs
clockwise (See Fig. 3.3). Verify the water is set to the target pressure of 65 PSIG and the
syrup is set to the target pressure.
4. Check for leaks.
4. RATIO/BRIX
The Schroeder America Dispenser has been thoroughly tested and sanitized prior to shipment. The
installer will be required to ratio/brix the dispenser.
NOTE:
Water valve has been pre-set and capped to ow at 2.0 oz/s (nished drink).
DO NOT ADJUST WATER VALVE, ONLY ADJUST SYRUP VALVES.
A. Remove nozzle by twisting clockwise and pull down.
B. Install Schroeder America Syrup Separator (P.N.: 316-0004) in place of nozzle.
C. Membrane Switch (Fig. 4.1) is used to actuate the syrup and water solenoid valves. The
PCB Assembly (Fig. 4.2), in the unit, indicates the locations of corresponding valves.

5
Solenoid Valves
1 2 3 4 5 (Water)
Button Valves Activated
1 1 & 5
2 2 & 5
3 3 & 5
4 4 & 5
1
3
2
4
Fig. 4.1 (Front of Unit) Fig. 4.2 (Rear of Unit)
D. Activate dispensing valve to ll the separator that was previously attached in-place of nozzle.
E. Hold a 5.0 to 1 brix cup under the syrup separator and dispense water and syrup into cup to the
targeted band widths of the cup.
NOTE:
Only adjust the syrup solenoid valves. The water solenoid valve has been pre-set to 2.0 oz/s.
F. To adjust proper ratio, use a screw driver to adjust the ow
control (see Fig. 4.3).
G. Repeat process for each syrup valve.
H. Remove syrup separator when adjustments are completed.
Replace with dispenser nozzle.
5. CLEANING AND SANITIZING
The Schroeder America Dispenser is shipped from the factory cleaned and sanitized in accordance
with NSF guidelines. The dispenser must also be cleaned and sanitized after installation is
complete. It is recommended that the operator provide continuous maintenance as required by the
manual and/or state and local guidelines to ensure proper operation.
A. External/Internal Cleaning Solutions:
Cleaners (ivory liquid, calgon, etc.) should be mixed with clean potable water at a temperature
of 90 to 110 degrees F. The acceptable mixture ratio is one ounce of cleanser to two gallons
of water. Any NSF approved equivalent cleaner may be used. Rinsing must be thorough using
clean potable water.
B. Internal Cleaning:
1. Remove top cover.
2. Wipe inside of the dispenser with a clean cloth.
3. Inspect to make sure any product residue has been removed.
4. Wipe with a clean soft cloth.
SYRUP VALVE
Flow Control Adjustment
Increase ow turn clockwise
Decrease ow turn counterclockwise
Fig. 4.3 (Front of Valve)

6
IMPORTANT
ONLY USE INTERNAL CLEANING SOLUTIONS THAT ARE APPROVED FOR BEVERAGE
DISPENSER APPLICATIONS, SUCH AS BevClean™. (NO CAUSTIC CHEMICALS SUCH AS
INDUSTRIAL KITCHEN CLEANING CHEMICALS SHOULD EVER BE USED)
C. External Cleaning:
The stainless steel dispenser can be cleaned by wiping with a cloth soaked with warm cleansing
detergent. Abrasive cleaning or scouring pads should not be used as they will scratch the
dispenser nish.
NOTE:
Nozzle and diffuser must be cleaned daily.
D. Daily Cleaning - Nozzle and Diffuser
1. Remove nozzle by twisting clockwise and pull down. Diffuser is not removable.
2. Wash nozzle and diffuser with warm water. Ensure cleaning solution is rinsed off. Residual
Solution will cause product off taste.
3. Reinstall nozzle by twisting counterclockwise while pushing up.
NOTE:
Nozzle and diffuser must be sanitized biweekly. Ensure sanitary gloves are used for this procedure.
E. Biweekly Sanitizing - Nozzle and Diffuser
1. Prepare sanitizing solution:
Prepare with a food grade non-ammonia, non-chlorine based sanitizing solution with clean
potable water at a temperature of 90 to 110 degrees F.
Any chlorine/ammonia free sanitizing solution may be used and must be prepared according
to manufacturer recommendations and safety guidelines.
2. Remove nozzle by twisting clockwise and pull down. Diffuser is not removable.
WARNING
DIFFUSER IS NOT REMOVABLE. ATTEMPTING TO REMOVE IT WILL DAMAGE DISPENSER.
3. Inspect nozzle for cracks or breakage.
4. Wash nozzle and immerse in a container of sanitizing solution for 15 minutes.
5. Wash diffuser with warm cleaning solution and inspect.
6. Wash diffuser and sanitize
a. (OPTION 1) Use Nozzle Sanitizing Assy. (P.N. 631-0187) accessory: Fill nozzle with
sanitizing solution and install onto diffuser by twisting counterclockwise while pushing up
onto diffuser. Leave on for 15 minutes.
b. (OPTION 2) If Sanitizing Nozzle Assy. is not utilized, wash diffuser, rinse and immerse in a
food grade non-ammonia, non-chlorine based sanitizing solution for 15 minutes.
7. While the parts are soaking, visually inspect around the nozzle mounting area for syrup
residue and wash area with cleaning solution.
8. Remove sanitizing nozzle from diffuser. Air Dry.
9. Remove nozzle from bath; air dry before re-installing onto diffuser.

7
F. Sanitizing Water Circuits:
Cleaning and Sanitizing are not required for potable water circuits. The potable water lines
should remain connected during the cleaning procedures for the concentrate circuits to avoid
contamination.
1. Disconnect concentrate container from product line.
2. Attach product line to container containing sanitizing solution mixed to mfg. recommendations
(100 ppm is recommended)
a. Using yellow Shut-off, turn incoming water off.
NOTE:
Sanitizing solution temperature should be between 90˚ to 110˚ F (max).
3. Prepare enough solution to sanitize from the concentrate source to the dispenser.
NOTE:
OPTIONAL - using a tment removed from a bag in box container. Attach tment to concentrate
tting. Prepare sanitizing solution in a container and set tment/tting assembly in solution.
4. Press appropriate switch position, solution will begin to ow towards dispensing valve.
5. When color turns clear, concentrate line is full of sanitizer solution.
6. Wait 15 minutes.
a. Reconnect concentrate product line.
7. Purge sanitizer from line with concentrate product.
8. Purge until concentrate is owing from dispensing valve.
9. Using yellow Shut-off, turn incoming water on.
10. Taste the beverage to verify that there is no off taste.
11. Repeat for every product or as needed.
WARNING
FLUSH SANITIZING SOLUTION FROM CONCENTRATE LINE AS INSTRUCTED. RESIDUAL
SANITIZING SOLUTION LEFT IN SYSTEM COULD DAMAGE LINES AND DISPENSER PARTS.
IT MAY ALSO CREATE A HEALTH HAZARD.

8
6. TROUBLE SHOOTING
A. No water dispensed
• Check water supply
• Check Shut-off module knob (is it open)
• Check ratio/brix adjustment
• Line plugged
B. No syrup dispensed
• Check C02pressure
• Check for product (BIB)
• Check Shut-off module knob
• Check ratio/brix adjustment
• Line plugged
C. Weak product taste
• Check ratio/brix adjustment
• Check for plugged line
• Check Shut-off module knob - completely open
• Check syrup supply
• Check target water pressure setting is 65 PSIG
D. Strong product taste
• Check ratio/brix adjustment
• Check syrup C02
• Check water supply
• Check target water pressure setting is 65 PSIG
E. Membrane switch LEDs do not activate when buttons are pressed
• Check membrane switch ribbon is connected to control board
• Check power lead is connected to control board
• Check power connection to unit base, power supply-cord and receptacle at wall

9
7. TO REMOVE AND REPLACE THE MEMBRANE SWITCH ASSEMBLY (P.N. 602-0035)
A. Remove the lid and back panel from unit.
B. Disconnect the membrane switch from the PCB. (Fig. 7.1)
C. Turn off Syrup and Water modules by rotating the yellow shut-off knobs counterclockwise. (Fig.
7.2)
D. Thread ribbon cable out from behind valve bracket assembly. (Fig. 7.3)
E. Remove Tube assemblies from valves by sliding clip retainer towards coil assembly. (Fig. 7.4)
F. Thread tube assemblies under “D” shape support before removing screws. (Fig. 7.5)
G. Remove (3) screws from nozzle adapter assembly and remove assembly. (Fig. 7.6)
H. Remove screws from upper and lower bezel support bars and remove support bars. (Fig. 7.7)
I. Slide ribbon cable through slot to remove membrane switch assembly. (Fig. 7.8)
J. Replacing the membrane switch
1. Install in reverse order of removal.
Fig. 7.1 (Rear of Unit) Fig. 7.2 (Rear of Unit)
OFF ON
Fig. 7.3 (Top of Unit)
Valve Bracket Assy.
Ribbon
Cable
Fig. 7.4 (Top of Unit)
Slide Red Clip Retainer
Fig. 7.5 (Top of Unit) Fig. 7.6 (Top of Unit)
Fig. 7.7 (Removing support bars, view from top of unit) Fig. 7.8 (Remove Membrane Switch)

10
8. TO REMOVE AND REPLACE THE PCB (PRINTED CIRCUIT BOARD) (P.N. 600-0013)
A. Remove the lid and back panel from unit.
B. Disconnect the membrane switch and solenoid valves from the PCB. (Fig. 8.1 & 8.2)
C. Insert at head screw driver at outside edge of PCB and stand-off. (Fig. 8.3)
WARNING
DO NOT USE MAGNETIZED TOOLS. CONTACT WITH MAGNETIZED TOOLS WILL DAMAGE PCB.
D. Slowly pry off PCB using the sheet metal bracket as leverage at each corner. (Fig. 8.4)
E. Complete removal of board by inserting screw driver to lower stand off location and slowly pry off
PCB. (Fig. 8.5)
F. PCB is now removed. (Fig. 8.6)
G. At this time, the PCB protective cover can be replaced if required. (Fig. 8.7)
H. Replacing PCB
1. Position wires between protective cover and PCB; line up holes on PCB with stand offs and
gently press in place. (Fig. 8.8)
2. Connect solenoid valves into the correlating position of the PCB. (Fig. 8.9)
3. Connect the membrane switch to PCB.
4. Replace unit back panel and lid.
Fig. 8.1 (Rear of Unit) Fig. 8.2 (Rear of Unit) Fig. 8.3 (Rear of Unit)
Fig. 8.4 (Rear of Unit) Fig. 8.5 (Rear of Unit) Fig. 8.6 (Rear of Unit)
Fig. 8.7 (Rear of Unit) Fig. 8.8 (Rear of Unit) Fig. 8.9 (Rear of Unit)
1 2 3 4 5(water)

11
NOTES

12

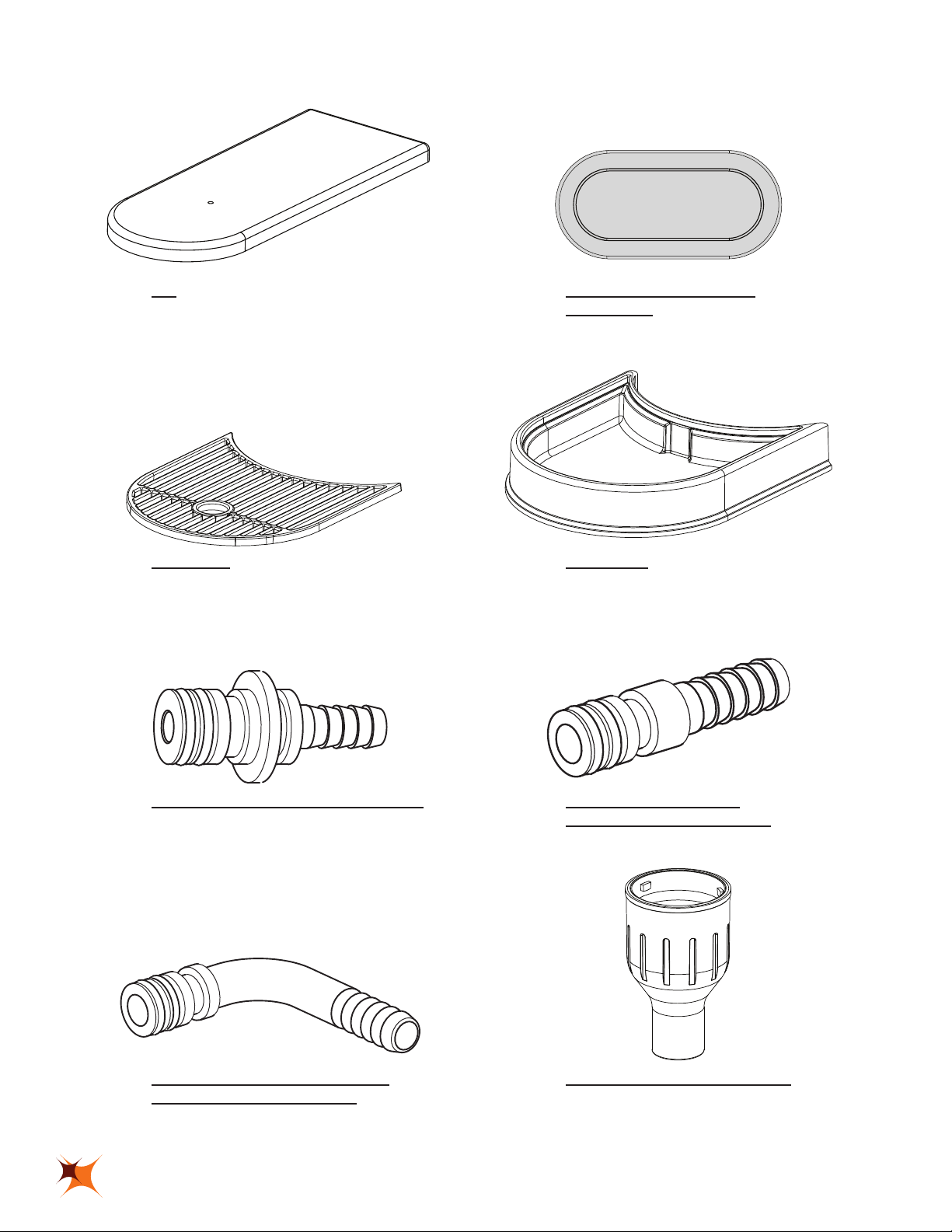

CUP REST
P.N. 265-0550
DRIP TRAY
P.N. 631-0132
INCLUDED ACCESSORIES
1/4 90 DEG, BARB, W/ O-RINGS,
STAINLESS STEEL FITTING
P.N. 625-0013
FLOW CONDITIONER NOZZLE
P.N. 265-0718
GROMMET, CAN, BLACK,
BLIND, TEA
P.N. 210-0045
FITTING ASSY. 1/2 DOLE X 1/4 BARB
P.N. 625-0059
1/4 BARB, W/ O-RINGS,
STAINLESS STEEL FITTING
P.N. 625-0004
LID
P.N. 265-0696

13
OPTIONAL ACCESSORIES
SHUT-OFF TOOL
P.N. 316-0005
SEPARATOR
P.N. 316-0004
NOZZLE ASSY, PLUGGED,
SANITIZING, 4FLVR TWR
P.N. 631-0187
KIT, COUNTER MOUNT INSTALL, SCREWS
P.N. 670-0013
FLOW CONTROL TOOL
P.N. 316-0006
Nuts
Spacer
Bolt
Mounting Template
Washer

14
SYRUP & WATER VALVES
Syrup 4
Syrup 3
Syrup 2
Syrup 1
Water

15

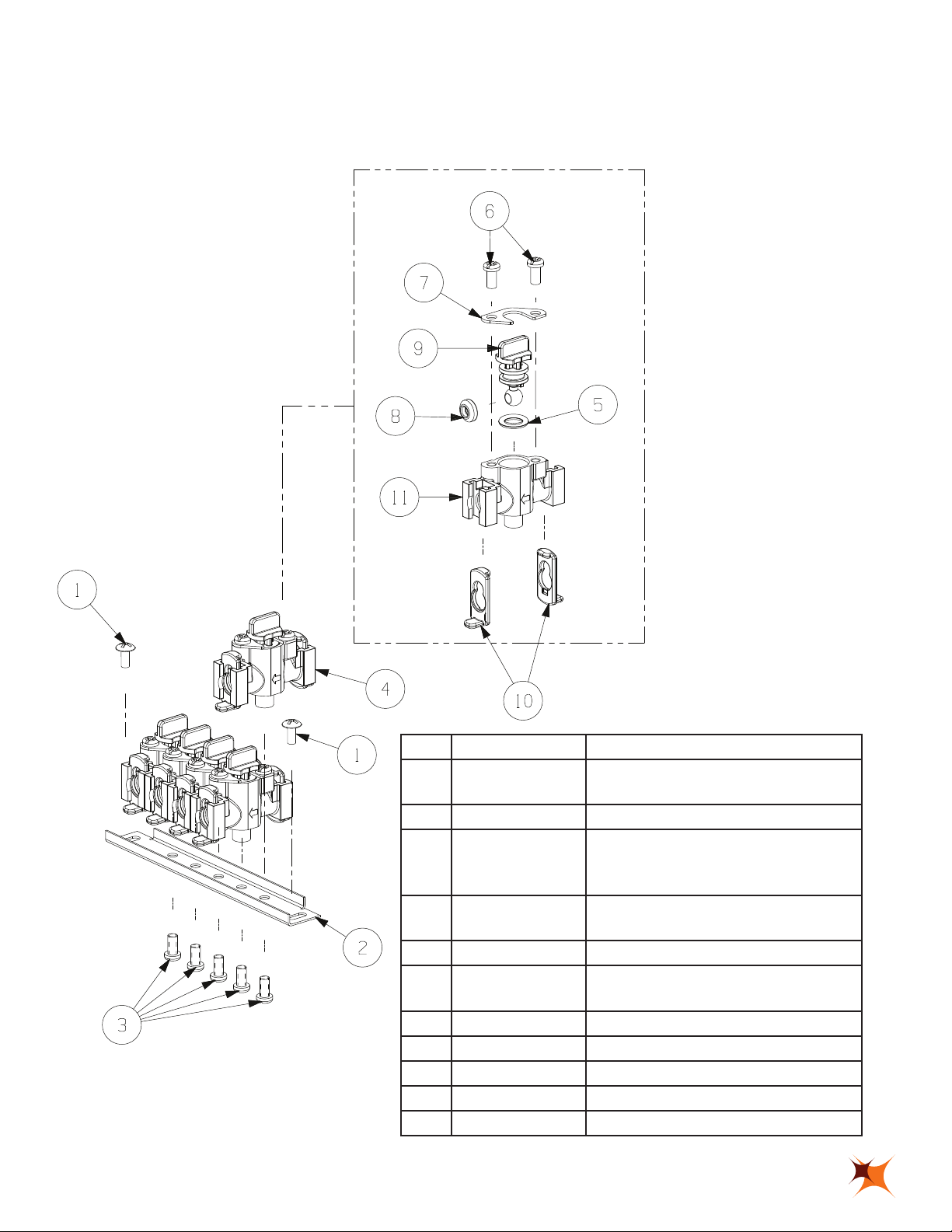

SHUT-OFF ASSEMBLY
Item Schroeder PN Description
1 224-0002 SCREW,8-16x.375,
PLASTITE,PHSL,PHD
2 BRACKET,SHUTOFF,4FL,ELECT
3
SCREW,8-32 X 3/8”,
PHILLIPS,TRUSS HEAD,
SS,BLACK OXIDE
4 637-0014 ASSY,SHUTOFF,
DOUBLE 3/8 DOLE,BLACK
5 Assy 637-0014 O-RING,2-110
6 Assy 637-0014 SCREW,8-16x.375,
PLASTITE,PHSL,PHD
7 Assy 637-0014 RETAINER,STEM
8 Assy 637-0014 WASHER,STEM
9 Assy 637-0014 STEM,BODY,BG
10 265-0063 RETAINER,CLIP,FITTING
11 Assy 637-0014 BODY,SHUT-OFF,BG/VLV,BLACK

16

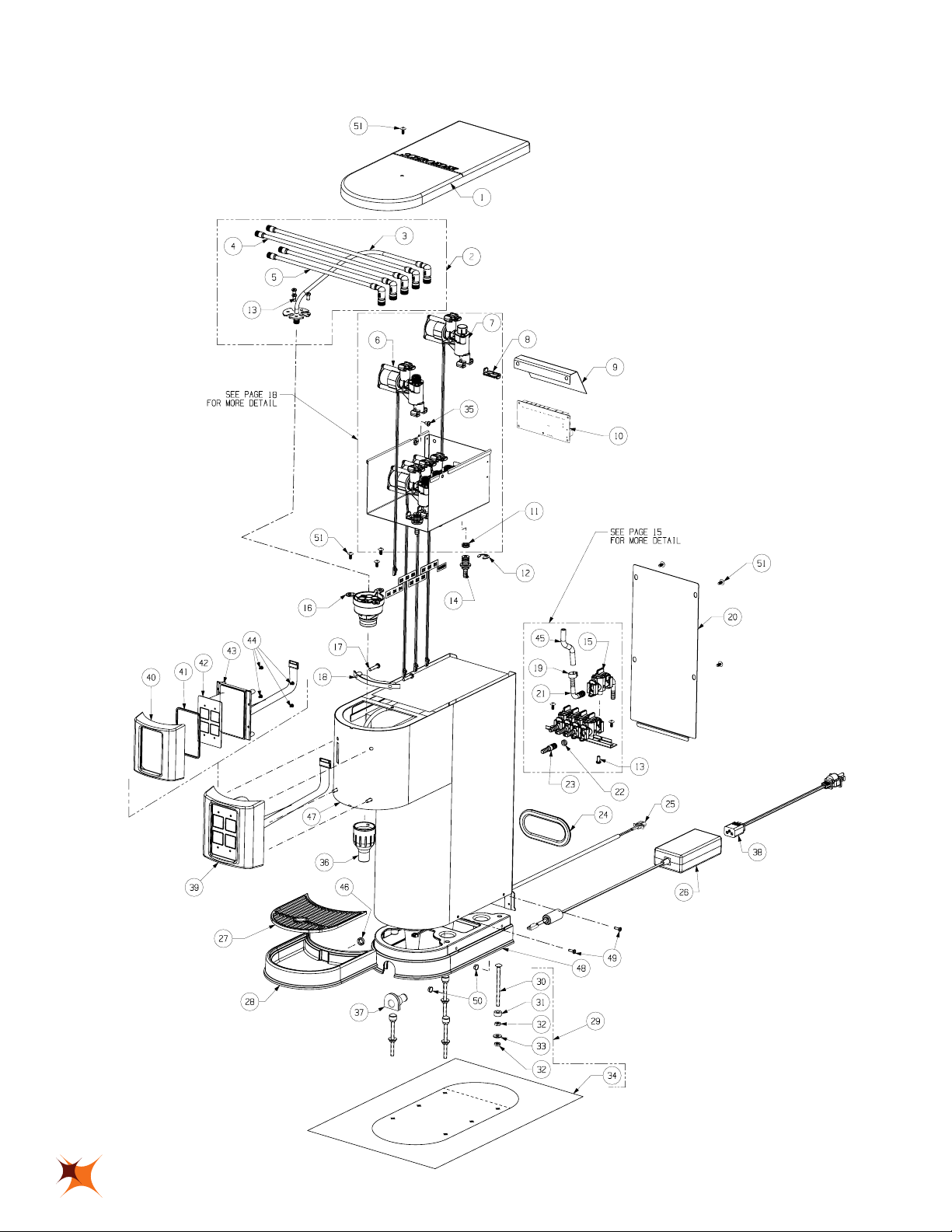

ASSEMBLY
*
** *Item 24 (P.N. 210-0045 )
can be cut to route syrup &
water inlet tubing through
rear of unit
** Kit Assembly Item 29
Not Included
(optional accessory)

17
ASSEMBLY
Item Schroeder PN Description
1 265-0696 COVER,TOP,4F,ELECTRIC TOWER
2 675-0162 KIT, TUBE ASSYS, VALVE TO NOZZLE, DIFFUSER PLATE, W/SCREWS
3 Assy 675-0162 TUBE ASSY, VALVE TO NOZZLE, WATER,4FE, 13.5” LONG, W/NOZZLE
ADAPTER RETAINER
4 Assy 675-0162 TUBE ASSY, VALVE TO NOZZLE,SYRUP,4FE, 12.0” LONG
5 Assy 675-0162 TUBE ASSY, VALVE TO NOZZLE,9” LONG,SYRUP,4FE
6 638-0008 VALVE ASSY, SFCV,SYRUP, 1.5 OZ/S
7 638-0019 VALVE ASSY, SFCV, SODA/WATER, 2.0 OZ/S
8 265-0431 CLIP,RETAINER,SOLENOID, VLV
9 315-0043 COVER, PLASTIC SHEET,PC BOARD,4FE
10 600-0013 PCB ASSY, 4 BUTTON DISPENSER
11 208-0012 O-RING,2-012
12 E-CLIP,FOR .500 SHAFT
13 224-0002 SCREW,8-16x.375,PLASTITE,PHSL,PHD
14 279-0171 FITTING,.500 O-RING X .250 BARB
15 637-0014 ASSY,SHUTOFF,DOUBLE 3/8 DOLE,BLACK
16 631-0180 ASSY, ADAPTER NOZZLE,4FE/DIFFUSER
17 224-0003 SCREW,8-16x.875,PLASTITE,PHSL,PHD
18 SUPPORT BAR,BEZEL TO CAN,4F ETT
19 CLAMP, OETIKER, 16700009
20 PANEL,BACK REMOVABLE,4F,ELECT
21 FITTING,90 DEG,.375 O-RING X .250 BARB
22 O-RING,2-010
23 279-0016 FITTING,.375 O-RING X .250 BARB
24*GROMMET,BLIND,CAN,BACK,TF
25 601-0134 HARNESS ASSY,POWER SWITCH, 4FE, DIFFUSER
26 606-0002 POWER SUPPLY,100-240VAC C14 INPUT-24 VDC OUTPUT,TERMINATED
27 265-0550 CUPREST,DRIP TRAY,TEA,SINGLE
28 631-0132 DRIPTRAY ASSY,1V,W/DRAIN,REMOVABLE CUPREST
29** 670-0013 KIT, COUNTER MOUNT INSTALL, SCREWS (NOT INCLUDED)
30 Assy 670-0013 BOLT,#10-24 X 3.0,RD HD,SN NECK
31 Assy 670-0013 SPACER,NYLON,.50 OD X .265 ID X .25
32 Assy 670-0013 NUT,HEX,10-24,ZP
33 Assy 670-0013 WASHER,FLAT,1/4 ID X 9/16 OD X 3/16 THK,ST,ZP
34 Assy 670-0013 TEMPLATE,MOUNTING SCREWS,TEA URN
35 SCREW, 8-32 X .250, PH, PHD, SS
36 265-0718 BODY,NOZZLE WITH FLOW CONDITIONER
37 265-0512 ADAPTOR,DRAIN,DRIPTRAY
38 502-0022 POWER CORD, 6’, 125V, 18AWG/3C
39 602-0035 SWITCH ASSY,TOUCH,4 FLAVOR
40 Assy 602-0035 BEZEL,TOUCH,SWITCH,4F,ELECTRIC
41 Assy 602-0035 SEAL,BEZEL,4F ELECTRIC
42 Assy 602-0035 SWITCH,MEMBRANE,4FE
43 Assy 602-0035 BACKER,PLATE MEMBRANE SWITCH,4F ELECTRIC
44 224-0010 SCREW,6-19X.250,PLASTITE,PHILLIPS,PAN HEAD
45 HOSE,BRAIDED,CLEAR,1/4” ID X .438, KURI TEC K3150-04
46 208-0012 O-RING,2-012
47 WELDMENT TOWER BODY,4F,ELECTRIC
48 265-0695 BASE,4F,MODIFIED,TOWER
49 SCREW,6-20X.375,PHILLIPS,PAN HEAD,SS
50 243-0042 NUT,HEX,6-32 KEPS,SS
51 220-0101 SCREW,8-32 X 3/8”,PHILLIPS,TRUSS HEAD,SS,BLACK OXIDE

18

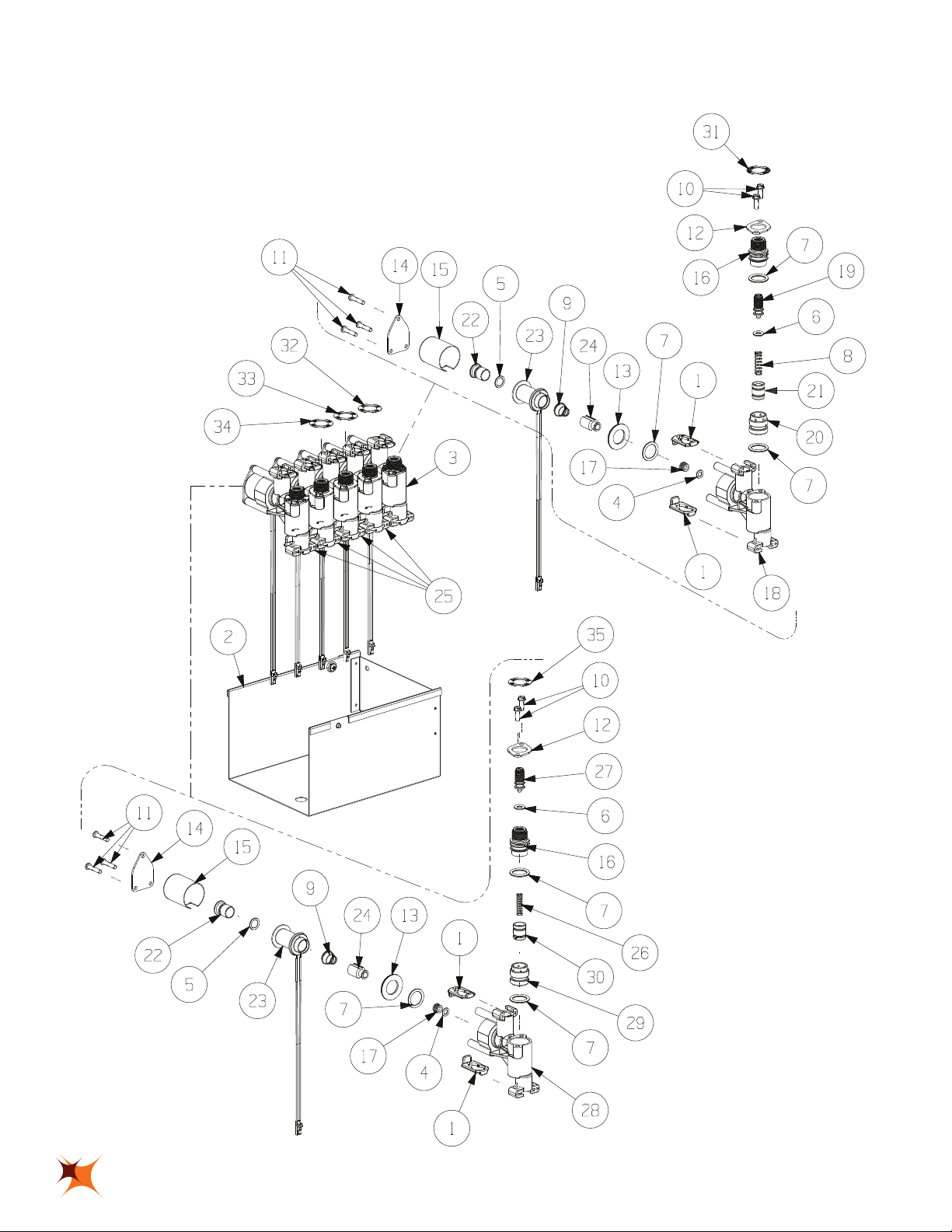

SYRUP & WATER VALVE ASSEMBLY

19
SYRUP & WATER VALVE ASSEMBLY
Item Schroeder PN Description
1 Both Assys 638-0019 & 638-0008 CLIP,RETAINER,SOLENOID, VLV
2 VALVE BRACKET, BOARD MOUNT ASSY
3 638-0019 VALVE ASSY, SFCV, SODA/WATER, 2.0 OZ/S
4 Both Assys 638-0019 & 638-0008 O-RING,2-009
5 Both Assys 638-0019 & 638-0008 O-RING,2-012
6 Both Assys 638-0019 & 638-0008 O-RING,2-108
7 Both Assys 638-0019 & 638-0008 O-RING,2-114
8 Assy 638-0019 SPRING,SODA
9 Both Assys 638-0019 & 638-0008 SPRING,CORE
10 Both Assys 638-0019 & 638-0008 SCREW,8-16x.500,PLASTITE,SL,HHD
11 Both Assys 638-0019 & 638-0008 SCREW,6-19 x.750,PLASTITE,PH,PHD
12 Both Assys 638-0019 & 638-0008 RETAINER,BONNET
13 Both Assys 638-0019 & 638-0008 WASHER,SOLENOID,VALVE
14 Both Assys 638-0019 & 638-0008 RETAINER, SOLENOID
15 Both Assys 638-0019 & 638-0008 BONNET,SOLENOID,VALVE
16 Both Assys 638-0019 & 638-0008 BONNET,BLACK
17 Both Assys 638-0019 & 638-0008 VALVE SEAT, POSTMIX VALVE
18 Assy 638-0019 BODY, VALVE, SFCV, NATURAL
19 Assy 638-0019 PLUG,ADJUST,FC,WHITE
20 Assy 638-0019 SLEEVE,WATER/SYRUP, 4.5 OZ/S
21 Assy 638-0019 PISTON,WATER,4.5 OZ/S
22 Both Assys 638-0019 & 638-0008 PLUG, NUT, SOLENOID
23 Both Assys 638-0019 & 638-0008 COIL,SFCV
24 Both Assys 638-0019 & 638-0008 CORE ASSY, SOLENOID
25 638-0008 VALVE ASSY, SFCV,SYRUP, 1.5 OZ/S
26 Assy 638-0008 SPRING,SYRUP
27 PLUG,ADJUST,FC,RED
28 Assy 638-0008 BODY, VALVE,SFCV,BLACK
29 Assy 638-0008 SLEEVE,WATER/SYRUP
30 Assy 638-0008 PISTON,SYRUP
31 LABEL,WATER,VALVE
32 LABEL,S1,VALVE
33 LABEL,S2,VALVE
34 LABEL,S3,VALVE
35 LABEL,S4,VALVE
