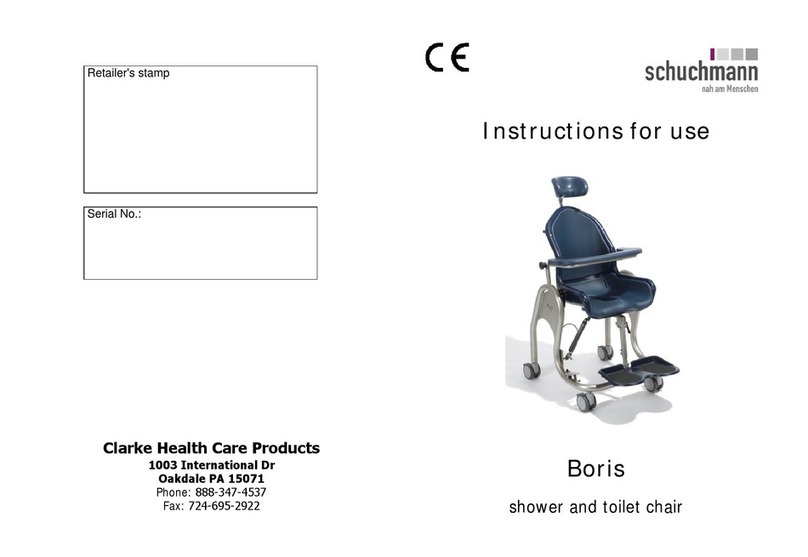

Schuchmann Boris User manual

Instructions for use.
boris. The comfortable toilet and shower chair.
boris.

Many thanks.
Dear Customer
At this point we would like to thank you for placing your trust in our company and
for purchasing our product. We ask you to read through the Instructions for use carefully
prior to initial commissioning of the product, and to observe them. Please note that
guidelines and representations in these Instructions for use may deviate from your
product due to diering equipment. We reserve the right to make technical modifications.
Important information!
Ensure that these Instructions for use remain with the product.
Your schuchmann Team

03 Contents.
1. Preparation. .................................................................................. 05
1.1 Delivery............................................................................................................................05
1.2 Safety measures prior to use ..............................................................................05
1.3 Safe disposal...............................................................................................................05
1.3.1 Packaging...........................................................................................................05
1.3.2 Product................................................................................................................05
1.4 Where to store the Instructions for use..........................................................05
2. Product description. ...................................................................... 06
2.1 General information.................................................................................................06
2.2 Handling/transport................................................................................................06
2.3 Application areas, use according to the intended purpose .............06
2.3.1 Indications ......................................................................................................... 07
2.3.2 Contraindications .........................................................................................07
2.4 Use not in accordance with the intended purpose / warning gui-
delines............................................................................................................................07
2.5 Equipment for basic model.................................................................................08
2.6 List of accessories....................................................................................................08
2.7 Product overview......................................................................................................08
3. Settings. ....................................................................................... 09
3.1 Seat angle adjustment..........................................................................................09
3.2 Castors ..........................................................................................................................09
3.3 Seat height adjustment.........................................................................................10
4. Accessories. .................................................................................. 10
4.1 Assembly and disassembly of accessories...................................................10
4.2 Toilet bucket ................................................................................................................10
4.3 Headrest.........................................................................................................................11
4.4 Footrest........................................................................................................................... 11
4.5 Table with padded armrest, pivotable.......................................................... 12
4.6 Abduction block with integrated spray protection................................. 12
4.6 PU insertion pad, two-piece............................................................................... 13
4.8 PU calf board.............................................................................................................. 13
5. Cleaning and servicing. ................................................................. 14
5.1 Cleaning and disinfecting .....................................................................................14
5.1.1 Cleaning ...............................................................................................................14
5.1.2 Disinfection.........................................................................................................14
5.2 Servicing ........................................................................................................................14
5.3 Maintenance ...............................................................................................................14
5.3.1 Maintenance specifications ...................................................................... 15
5.3.2 Maintenance plan.......................................................................................... 15
5.4 Spare parts .................................................................................................................. 16

04 Contents.
5.5 Duration of use and re-use.................................................................................. 16
6. Technical data. .............................................................................. 17
7. Guarantee. .................................................................................... 17
8. Identication. ............................................................................... 18
8.1 EU Declaration of Conformity.............................................................................. 18
8.2 Serial number / date of manufacture............................................................ 19
8.3 Product version .......................................................................................................... 19
8.4 Issue of the document ........................................................................................... 19
8.5 Name and address of the manufacturer, specialist dealer sup-
plying the product.................................................................................................... 19

05 1. Preparation.
1.1 Delivery
On receiving the product, please check it for completeness, lack of faults
and any transport damage. Inspect the goods in the presence of your
forwarder. Should transport damage have occurred, please arrange for
an inventory (determination of the faults) to be made in the presence of
the forwarder. Please send a complaint in writing to the specialist dealer
responsible.
1.2 Safety measures prior to use
The correct use of the product requires a detailed and careful instruction
of the user or the accompanying person. We ask you to read through the
Instructions for use carefully prior to initial commissioning of the product,
and to observe them. It is possible that product parts that get in contact
with the skin may heat up in the sun. Cover these areas or protect the de-
vice from direct sunlight.
1.3 Safe disposal
In order to preserve and protect the environment, to prevent environmental
pollution and to improve the recycling of raw materials, please note the
disposal instructions in points 1.3.1 and 1.3.2.
1.3.1 Packaging
The packaging of the product should be kept for any future transport that
might be required. Should you have to return the product for repairs or in
case of a guarantee claim, please if possible use the original box so that
the product is optimally packaged. Otherwise, separate the packaging
materials for recycling according to their classification.
Do not leave packaging materials unattended, as they are a possible source of
danger.
1.3.2 Product
Attheendoftheproductlifecycle,recycletherawmaterialsusedintheproduct
according to their nature (see material information under point 2.1).
1.4 Where to store the Instructions for use
Please store these Instructions for use carefully and ensure that these Inst-
ructions for use remain with the product in case of re-use. Should you lose
the instructions, you can always download an updated version at www.
schuchmann.de .

06
2.1 General information
The seat pan is made of a UV-resistant, deep-drawn PE plastic. All metal
parts are produced from rustproof steel and in part are powder-coated.
The PU foam meets the requirements for low ignitability of DIN EN 1021-1
and 2. boris. is a stable toilet and shower chair for wet areas for the home
and institutions. Its anatomically-shaped seat pan gives children and
teenagers special support. It can be used as a toilet chair and a shower
chair, and is provided in 5 sizes. As a toilet chair, it can used with the toilet
or as a standalone device with a toilet bucket.
2.2 Handling / transport
The boris. toilet and shower chair is equipped with 4 double castors (with
lock). Thanks to this, it can be pushed for transfer and turned on the spot. At
the back of the seat pan there is a push bar for pushing and turning. boris. is
not intended to be carried. Should you have to carry the equipment due to
obstacles, ensure that all moving parts are tightened. Subsequently, stand
next to the toilet and shower chair, get a hold from the front and rear under-
neath the seat pan and carry it to the desired location.
In order to transport the toilet and shower chair, reduce all adjustments to
their most compact size (fold up foot support, set lowest seat height etc.).
2.3 Application areas, use according to the intended purpose
The boris. shower and toilet chair is a medical product of risk class 1 and is
suitedexclusivelyforuseasshowerchairintheshowerorastoiletchairoverthe
toilet or freestanding. It supports users with significant diculties in the use of
standardtoiletsandchildtoiletseats.Anyotheruseoruseoverandabovethis
purpose shall be considered not in accordance with the intended purpose.
Please pay attention to the following information when using the chair:
Over the toilet
Open the toilet lid and the seat. Adjust the height of the seat pan to the
toilet height. Remove toilet bucket (if available). Move the toilet chair back-
wards over the toilet and lock the rollers.
Free-standing
Free-standing, boris. can only be used with toilet bucket.
As a shower chair
boris. consists of water-resistant material and can thus be used as a sho-
wer chair without any problems.
2. Product description.

07 2. Product description.
2.3.1 Indications
The boris. toilet and shower chair is suited for users with significant dicul-
ties in using standard toilets and child toilet seats due to:
• Damage to the muscular function with limited or failed seating control
as well as being of short body height (children, youths and adults of
small stature)
• Damage to the nervous system, damage to neuromusculoskeletal and
movement-related functions
2.3.2 Contraindications
In general, the indication should be accompanied by a doctor/orthopae-
dist. It should therefore be clarified prior to procurement whether cont-
raindications exist for the patient. In general, any type of pain represents
a contraindication.
2.4 Use not in accordance with the intended purpose / warning guidelines
• Correct usage of the product requires precise and careful training of the
attending caregiver.
• The toilet and shower chair may only be used on stable and flat ground.
• Please observe the "Technical data" in these instructions for use for the
maximum permitted patient weight.
• The toilet and shower chair may not be used without supervision.
• The toilet and shower chair may not be used to transport people.
• During adjustment, the patient should not be able to touch the moving
parts.
• Hanging on heavy bags or other items can have a negative impact on
stability.
• Use only accessories and spare parts made by Schuchmann, otherwise
you will compromise the safety of the user.
• Please ensure that none of the user's extremities are in the respective
area when making adjustments of any kind to minimise the risk of injury.
• Users who have diculty reading must have someone read these In-
structions for use aloud so that they understand how to use the product.

08 2. Product description.
2.5 Equipment for basic model
• Anatomically-shaped seat pan made of PE, colour steel blue
• Sub-frame made of stainless steel
• Seat angle adjustment via gas pressure spring 200N
• Mechanical height adjustment
• 4 dual castors (100 mm) with locking devices
2.6 List of accessories
• PU headrest
• PU insertion pad
• Table
2.7 Product overview
The Fig. below is intended to show you the designation of the most im-
portant components as well as the terms which you will find in these Inst-
ructions for use.
PU headrest
PU insertion pad (back)
Abduction wedgeToilet bucket
Base frame
Foot pedal
Table
PU insertion pad (seat)
Footrest
Double castor
(100mm, with brake)

09
Settings and adjustments to the product or
accessories may only be made by people
who have been given the necessary instruc-
tions by a medical product advisor. Please
ensure that none of the user's extremities are
in the respective area when making adjust-
ments of any kind to minimise the risk of injury.
When setting and adjusting (e.g. seat angle,
seat height...), the centre of gravity shifts and
thus also influences the stability. The stability
is also guaranteed with maximum settings.
3.1 Seat angle adjustment
You can steplessly adjust the seat pan from
(-) 5° active to 30° passive. To do this, press
the foot pedal (A) at the front right in travel
direction on the base frame, so that the seat
pan angle can be adjusted under slight pres-
sure or tension. After adjustment, simply let
go of the foot pedal again.
The foot pedal (A) can be secured against unintentional operation with
the spring pin on the inside of the foot pedal. To do this, turn the spring pin
until it engages. If necessary, assist engagement by moving the foot pedal
gently. The locking eect is cancelled by pulling out the spring pin and
turning it a quarter turn.
3.2 Castors
In general, the toilet and shower chair should be secured against uninten-
tional rolling away by braking the 4 castors. The castors are equipped with
a total stop with direction lock that prevents
unintentional rolling and twisting. To do this,
press down the locking device (B) on each
castor using the tip of your foot (C). To relea-
se the castors, push the locking devices up
again with the tip of your foot (D).
The brakes only work reliably on an even surface!
3. Settings.
09
A
A
B
C
D

10
3.3 Seat height adjustment
You can adjust the height of the seat pan in
2.5 cm steps. To do this, first loosen the two
cap nuts (A) on the brackets between the
pan and base frame on both sides. Now the
height of the seat pan can be adjusted via
the row of holes. Then please firmly re-tighten
the nuts again. Now please re-adjust the gas
pressure spring so that the seat angle is ad-
justed correctly again. To do this, unscrew the
gas pressure spring bracket (B) screw com-
pletely out of the thread plate and reinsert it
at the appropriate height.
The setting may only may made with the
seat unoccupied.
4.1 Assembly and disassembly of accessories
Any accessories can be assembled to and disassembled from the speci-
fied position using the supplied original mounting materials. This must only
be done by qualified personnel. Further details on assembly and disas-
sembly can be found in our spare parts lists and the included exploded
drawings (see www.schuchmann.de/infothek).
4.2 Toilet bucket
The toilet bucket is pushed from the rear under the seat pan up to the stop.
The narrow guide prevents the bucket from
slipping out.
After using the toilet bucket, please clean and
disinfect it and the seat pan thoroughly. Only
use standard commercial disinfectants.
3. Settings.
4. Accessories.
A
B

11
4.3 Headrest
The angle and height-adjustable
headrest can be adapted to the
respective patient.
Height adjustment:
To do this, loosen the screw (A) and
adjust the height.
Angle adjustment:
To do this, loosen the screws (B) and
the headrest can be adjusted.
4.4 Footrest
The footrest can be adjusted in terms
of the knee angle, foot angle and
height, and can simply be folded up
for easier access.
Height adjustment:
To do this, loosen the two grub screws
(C) and adjust to the required height.
Knee angle adjustment
To do this, loosen the clamping lever (D).
Foot angle adjustment:
First loosen the counter nut (E) under
the footrest, then screw the adjusting
screw (F) in or out for adjustment of the
foot angle, and re-tighten the counter
nut again.
After all adjustment work, rmly re-tigh-
ten the screw connections you have loo-
sened!
4. Accessories.
B
A
D
C
E
F

12
4.5 Table with padded armrest, pivotable
In order to pivot the table, for example to make
getting in and out easier, the pull catch (A)
is pulled and the table can be pivoted away
around the bracket on the left-hand side of
the pan frame, or removed completely. When
pivoting back, ensure that the table is cor-
rectly engaged again. The height of the ta-
ble can be adjusted. To do this, loosen the
screw connections (B) on both sides, adjust
the height via the perforated plate and firmly
re-tighten the screw connections. It is ad-
vantageous if you remove the support table
first, and then adjust the brackets individually.
Attention risk of entrapment! When the table is
mounted it must be ensured that neither textiles nor body parts (ngers) are in
the area when opening and closing the table. Between table holder and frame
there is an area to be avoided by ngers!
4.6 Abduction block with integrated spray protection
The abduction block is inserted with the pin (C)
into the round opening at the centre front of
the seat pan, and pushed downwards until it
audibly clicks into place.
To remove the spray protection, simply pull it
upwards using light pressure.
4. Accessories.
A
C
B

13
4.7 PU insertion pad, two-piece
For persons sensitive to pressure, a two-
piece PU insertion pad is oered that can be
removed from the chair without any problems
i.e. for cleaning (with a mild soapy solution).
To remove the pads, simply press the pad
knobs (A) from the outside through the seat
pan holes.
On insertion of the pad knobs, press the pad
back into the seat pan holes.
Do not pull on the pads to remove them
since the knobs to x the pads can get damaged!
4.8 PU calf board
For better guidance of the calves, a
height-adjustable PU calf board can be
used in connection with the footrest.
The calf board can only be used in connection
with the footrest!
4. Accessories.
A

14 5. Cleaning and servicing.
5.1 Cleaning and disinfecting
5.1.1 Cleaning
Please clean all frame elements regularly with a spon-
ge or damp cloth; making sure that water droplets are
removed. Please clean with a mild household deter-
gent for severer dirt. Thorough drying of the cleaned
areas is important.
All fabrics that cannot be removed can be wiped with
a moist cloth. For all removable fabrics please pay at-
tention to the sewn-in care labels (such as A+ B) on the
respective element.
Please also pay attention to our general
cleaning and hygiene advice. This can be found at
www.schuchmann.de/mediathek.
5.1.2 Disinfection
Various products can be used for surface disinfection of metal and plastic
parts.
Liquid disinfectants are available as ready-to-use solutions that are spray-
ed on and evenly applied with a soft cloth. Alternatively, wipes pre-soaked
with disinfectant can be used to wipe the products over the entire surface.
In both cases, care must be taken to ensure complete wetting. Disinfection
in fully automatic disinfection systems is also possible and recommended.
The exposure times may vary and can be found in the manufacturer's ins-
tructions for the products used.
5.2 Servicing
Please carry out a visual inspection on a daily basis and regularly check
the product for cracks, breaks, missing parts and malfunctions. In case of a
defect or malfunction, please contact the specialist dealer who supplied
you with the product (see Point 8.5).
5.3 Maintenance
For reasons of user safety and to retain product liability, the product must
be subjected to maintenance by a specialist dealer at least once a year
(see Point 8.5). The maintenance work carried out must be documented in
the maintenance plan (see Point 5.3.2).
7190045
A
Obermaterial/
top cloth/dessus:
100% Polyester
b

15 5. Cleaning and maintaining.
5.3.1 Maintenance specications
• Basic cleaning according to the manufacturer's specifications
• Disinfect according to the manufacturer's specifications as required
• Damages to the frame, mounting parts and accessories (cracks, breaks,
corrosion, bent or missing parts)
• Strength of the connections (tighten loose screws, replace missing
screws)
• Functionality of the adjustment elements (screws, release lever, foot
pedal)
• Functionality of other adjustment elements (backrest, headrest, footrest,
table and abduction wedge)
• Functionality of the gas pressure springs (if necessary readjustment of
the bowden cables)
• Functionality of the castors (concentricity, ease of operation, brake)
• Check the harness for damage (clamping device, closures, seams)
• Check the pads for damage
• Legibility of the type label
• Final complete functional check of the aid
• Check that all mounting parts and associated accessories are correctly
fastened
5.3.2 Maintenance plan
Maintenance specifications of the manufacturer (see Point 5.3.1) were car-
ried out:
Date Company Name Signature
Any defects or damage found must be repaired by the specialist dealer or the
manufacturer before reuse.

16 5. Cleaning and maintaining.
5.4 Spare parts
Use only original accessories and original spare parts from Schuchmann,
as otherwise the safety of the user is endangered and the warranty
expires.
To order spare parts, please contact the supplying specialist dealer (see
point 8.5) stating the serial number of the product. Necessary spare parts
and accessories must only be installed by trained personnel.
5.5 Duration of use and re-use
The expected duration of use of our product, dependent on the usage in-
tensity and amount of re-use, totals up to "8" years if the usage takes place
in accordance with the information in these Instructions for use. It may be
possible to use the product over and above this time period if it is in a
safe condition. The expected duration of use does not refer to wear parts,
such as for example wheels, gas pressure springs,... . The maintenance and
evaluation of the condition, and if applicable the potential for re-use, must
be decided by the specialist dealer.
The product is suited for re-use. Prior to forwarding, please follow the clea-
ning and disinfection instructions stated in Point 5.1. Accompanying docu-
ments such as these Instructions for use are part of the product and must
be passed on to the new user. No disassembly is required prior to re-use. In
the case of storage, it is recommended to fold the product to the smallest
dimension to save space.
Should a serious incident occur during the service life of the product despite
being used as intended
, this must be reported immediately to the manufactu-
rer and the competent authority.

17 6. Technical data.
Dimensions
The two-year statutory guarantee period shall apply for all products. This
begins with the delivery or handover of the goods. Should a verifiable ma-
terial or manufacturing fault occur within this time period, we shall, after
carriage paid return to us, view the indicated damage and, if applicable,
either repair or deliver a new product at our discretion.
C
A
D
E
F
H
B
G
I
J
L
K
M
K
Size 0 Size 1 Size 2 Size 3 Size 4
ASeat with (rear) 26cm 31cm 36 cm 41cm 46cm
BSeat depth 31cm 36 cm 41cm 46 cm 48 cm
CPan width (front) 31cm 36 cm 41 cm 46 cm 51 cm
EBack height 49cm 51 cm 56 cm 61cm 65cm
ESeat angle (-)5°-30° (-)5°-30° (-)5°-30° (-)5°-30° (-)5°-30°
FToilet height for positioning 47-57cm 45-55cm 42-52cm 42-52cm 42-52cm
GTotal width 56cm 61cm 63 cm 71.5 cm 74 cm
HTotal length 65cm 65 cm 65 cm 70cm 70cm
Imax. lower leg length 38cm 38cm 48 cm 48 cm 48 cm
J
Front edge hygiene
opening to rear edge
sub-frame
47cm 49 cm 51cm 54cm 57cm
KFront opening width 10cm 10 cm 10 cm 10 cm 10 cm
LRear opening width 12cm 12cm 13.5cm 13.5 cm 13.5cm
M* Rear opening width - - 18.5cm 18.5 cm 18.5 cm
max. load 60kg 80kg 100kg 100 kg 150 kg
Weight 28 kg 30kg 33 kg 35 kg 38 kg
* Only applies to sizes 2b, 3b and 4b
7. Guarantee.

18 8. Identication.
8.1 EU Declaration of Conformity
EU Konformitätserklärung
EU Declaration of Conformity
Firma / Company Schuchmann GmbH & Co. KG
Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany
Tel. [phone] / 40 71 00 · Fax [phone]
erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1
declares under our sole responsibility that the following product(s) of Class 1 Medical Devices
Datei: Konformitätserklärung boris Stand: Rev. 2.0 Seite: 1
„boris.“Toilettenstuhl / toilet chair
Art.-Nr. / Item-No.: 52 00 100, 52 01 100, 52 02 100, 52 02 200, 52 03 100, 52 03 200, 52 04 100,
52 04 200
Basis UDI-DI /
Basic UDI-DI: 4251040200004000520XXXXA9
den einschlägigen Bestimmungen der im folgenden aufgeführten Richtlinien und Standards entspricht:
is / are in conformity with the requirements of the below listed directives and standards:
Verordnung (EU) 2017/745 über Medizinprodukte vom 05. April 2017
Regulation (EU) 2017/745 on medical devices of 5 April 2017
DIN EN 12182:2012 Technische Hilfen für behinderte Menschen
T
echnical aids for disabled persons
DIN EN ISO 14971:2013 Medizinprodukte - Anwendung des Risikomanagements auf Medizinprodukte
Medical devices - Application of risk management to medical devices
ISO 7176-8:2014 Rollstühle – Anforderungen und Prüfverfahren für Statik-, Schlag- und
Dauerfestigkeiten
Wheelchairs – Requirements and test methods for static, impact and fatigue
strength
Diese Konformitätserklärung gilt nur für Produkte mit den oben genannten Artikelnummern und
ist gültig bis zum 31.12.2023.
This declaration of conformity applies only for products with above-named Item-numbers
and is valid until 31.12.2023.
Datum / Date: 01.04.2020
Unterschrift /
Sign:
Name /
Name: Torsten Schuchmann
Funktion /
Function: Sicherheitsbeauftragter für Medizinprodukte / Safety officer for medical devices

19 8. Identication.
8.2 Serial number / date of manufacture
The serial number, the date of manufacture as well as other details can
be found on the type plate that can be found on each of our products (A).
8.3 Product version
The boris. toilet and shower chair is available in five sizes and can be sup-
plemented through a diverse range of accessories (see Point 4).
8.4 Issue of the document
Instructions for use boris. - Change status H; issue 09.2020
8.5 Name and address of the manufacturer, specialist dealer supplying
the product
This product was manufactured by:
This product has been delivered by the following specialist dealer:
Schuchmann GmbH & Co. KG
Rudolf-Runge-Str. 3 · 49143 Bissendorf · Germany
Phone [phone] / 40 71 00 · Fax [phone]
[e-mail] · www.schuchmann.de
A
Product name
Item number
Serial number
schuchmann.de • [e-mail] • Fon +49 (0) 5402 / 40 71 00
Rudolf-Runge-Str. 3 • 49143 Bissendorf • Germany
Barcode UDI-DI Barcode UDI-PI
UDI-DI
SN / UDI-PI
Type
Product
Max. load
Size
MD
Size
max. load
Date of manufacture
Product labelling in accordance with MDR

schuchmann.de GA 52 - EN_1.0
