schulink SC1344 User manual

0099001862-00
SC1344
3A Wireless Charger/
Maintainer
3A Cargador /
Mantenedor Inalámbrico
OWNERS MANUAL
MANUAL DEL USUARIO
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the charger safely and effectively. Please
read and follow these instructions and precautions carefully.
POR FAVOR CONSERVE ESTE MANUAL DEL USUARIO Y LEALO ANTES DE
CADA USO. En este manual le explica cómo utilizar el cargador de manera segura
y confiable. Por favor, lea y siga las siguientes instrucciones y precauciones.
All manuals and user guides at all-guides.com

CONTENTS
IMPORTANT SAFETY INSTRUCTIONS..........................................................................................4
PERSONAL SAFETY PRECAUTIONS ............................................................................................4
PREPARING TO CHARGE ..............................................................................................................5
CHARGER LOCATION ....................................................................................................................5
DC CONNECTION PRECAUTIONS................................................................................................5
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE......................................5
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE .............................................6
GROUNDING AND AC POWER CORD CONNECTIONS ...............................................................6
ASSEMBLY INSTRUCTIONS ..........................................................................................................6
FEATURES.......................................................................................................................................6
CONTROL PANEL............................................................................................................................7
INSTALLING THE APP AND REGISTERING YOUR CHARGER ....................................................7
USING THE APP TO CONTROL THE CHARGER ..........................................................................8
OPERATING THE CHARGER .........................................................................................................9
DISPLAY MESSAGES ...................................................................................................................12
MAINTENANCE AND CARE..........................................................................................................12
TROUBLESHOOTING ...................................................................................................................12
BEFORE RETURNING FOR REPAIRS .........................................................................................13
SPECIFICATIONS..........................................................................................................................13
REPLACEMENT PARTS ...............................................................................................................13
LIMITED WARRANTY....................................................................................................................14
WARRANTY CARD........................................................................................................................27
All manuals and user guides at all-guides.com

CONTENIDOS
INSTRUCCIONES IMPORTANTES DE SEGURIDAD...................................................................15
PRECAUCIONES DE SEGURIDAD PERSONAL..........................................................................15
PREPARACIÓN PARA LA CARGA ...............................................................................................16
UBICACIÓN DEL CARGADOR......................................................................................................16
PRECAUCIONES DE CONEXIÓN EN CC ....................................................................................16
SIGA ESTOS PASOS CUANDO LA BATERÍA ESTÉ COLOCADA EN EL VEHÍCULO................. 17
SIGA ESTOS PASOS CUANDO LA BATERÍA SE ENCUENTRE FUERA DEL VEHÍCULO..........17
CONEXIONES A TIERRA Y ENERGÍA DE CA ..............................................................................17
INSTRUCCIONES DE MONTAJE..................................................................................................18
CARACTERÍSTICAS......................................................................................................................18
PANEL DE CONTROL....................................................................................................................18
INSTALACIÓN DE LA APLICACIÓN Y REGISTRO DEL CARGADOR ......................................... 19
USO DE LA APLICACIÓN PARA CONTROLAR EL CARGADOR.................................................19
FUNCIONAMIENTO DEL CARGADOR .........................................................................................21
MUESTRA DE MENSAJES............................................................................................................24
MANTENIMIENTO Y CUIDADO ....................................................................................................24
LOCALIZACIÓN Y SOLUCIÓN DE PROBLEMAS.........................................................................24
ANTES DE DEVOLVER A REPARACIONES.................................................................................25
ESPECIFICACIONES ....................................................................................................................25
REPUESTOS .................................................................................................................................25
GARANTÍA LIMITADA....................................................................................................................26
TARJETA DE GARANTÍA...............................................................................................................27
All manuals and user guides at all-guides.com

• 4 •
1. IMPORTANT SAFETY INSTRUCTIONS
PLEASE SAVE THIS OWNERS MANUAL
AND READ BEFORE EACH USE.
This manual will explain how to use the
charger safely and effectively. Please
read and follow these instructions and
precautions carefully.
NOTE: The charger itself is a stand-alone
device and will function as a battery charger/
maintainer without an internet connection.
However, without a Cloud connection, the
App will not reect the charging progress.
1.1 SAVE THESE INSTRUCTIONS –
This manual contains important safety
and operating instructions.
1.2 Keep out of reach of children.
1.3 Do not expose the charger to rain or snow.
1.4 Use of an attachment not recommended or
sold by Schumacher®Electric Corporation
may result in a risk of re, electric shock or
injury to persons.
1.5 To reduce the risk of damage to electric
plug and cord, pull by the plug rather than
the cord when disconnecting charger.
1.6 An extension cord should not be used
unless absolutely necessary. Use of
improper extension cord could result
in a risk of re and electric shock. If an
extension cord must be used, make sure:
• The pins on plug of extension cord are
the same number, size and shape as
those of plug on charger.
• The extension cord is properly wired and
in good electrical condition
• The wire size is large enough for AC
ampere rating of charger, as specied in
section 8.
1.7 Do not operate charger with damaged
cord or plug – replace the cord or plug
immediately.
1.8 Do not operate charger if it has received
a sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualied
serviceman.
1.9 Do not disassemble charger; take it to
a qualied serviceman when service or
repair is required. Incorrect reassembly
may result in a risk of electric shock or re.
1.10 To reduce risk of electric shock, unplug
charger from outlet before attempting
any maintenance or cleaning. Turning off
controls will not reduce this risk.
1.11 WARNING: RISK OF EXPLOSIVE GASES.
a. WORKING IN VICINITY OF A LEAD-
ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE
GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS
OF UTMOST IMPORTANCE THAT YOU
FOLLOW THE INSTRUCTIONS EACH
TIME YOU USE THE CHARGER.
b. To reduce risk of battery explosion, follow
these instructions and those published by
battery manufacturer and manufacturer of
any equipment you intend to use in vicinity
of battery. Review cautionary markings on
these products and on the engine.
2. PERSONAL SAFETY PRECAUTIONS
2.1 Consider having someone close enough
by to come to your aid when you work
near a lead-acid battery.
2.2 Have plenty of fresh water and soap
nearby in case battery acid contacts skin,
clothing, or eyes.
2.3 Wear complete eye protection and
clothing protection. Avoid touching eyes
while working near battery.
2.4 If battery acid contacts skin or clothing,
wash immediately with soap and water. If
acid enters eye, immediately ood eye with
running cold water for at least 10 minutes
and get medical attention immediately.
2.5 NEVER smoke or allow a spark or ame
in vicinity of battery or engine.
2.6 Be extra cautious to reduce risk of
dropping a metal tool onto battery. It might
spark or short-circuit battery or other
electrical part that may cause explosion.
2.7 Remove personal metal items such as
rings, bracelets, necklaces, and watches
when working with a lead-acid battery. A
lead-acid battery can produce a short-
circuit current high enough to weld a ring
or the like to metal, causing a severe burn.
2.8 Use the charger for charging only 6V and
12V LEAD-ACID (STD, GEL or AGM)
rechargeable batteries with recommended
rated capacities of 24Ah (6V) and 12-59Ah
(12V). It is not intended to supply power to a
low voltage electrical system other than in a
starter-motor application. Do not use battery
charger for charging dry-cell batteries that
are commonly used with home appliances.
These batteries may burst and cause injury
to persons and damage to property.
2.9 NEVER charge a frozen battery.
2.10 WARNING: This product contains one
or more chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm.
All manuals and user guides at all-guides.com

• 5 •
3. PREPARING TO CHARGE
3.1 If necessary to remove battery from
vehicle to charge, always remove
grounded terminal from battery rst. Make
sure all accessories in the vehicle are off,
so as not to cause an arc.
3.2 Be sure area around battery is well
ventilated while battery is being charged.
3.3 Clean battery terminals. Be careful to keep
corrosion from coming in contact with eyes.
3.4 Add distilled water in each cell until battery
acid reaches level specied by battery
manufacturer. Do not overll. For a battery
without removable cell caps, such as valve
regulated lead acid batteries, carefully follow
manufacturer’s recharging instructions.
3.5 Study all battery manufacturer’s
specic precautions while charging and
recommended rates of charge.
3.6 Determine voltage of battery by referring
to car owner’s manual and make sure
that output voltage selector switch is
set at correct voltage. If charger has
adjustable charge rate, charge battery
initially at lowest rate. For a charger not
having an output voltage selector switch,
determine voltage of battery by referring
to car owner’s manual and make sure it
matches output rating of battery charger.
4. CHARGER LOCATION
4.1 Locate charger as far away from battery
as DC cables permit.
4.2 Never place charger directly above
battery being charged; gases from battery
will corrode and damage charger.
4.3 Never allow battery acid to drip on
charger when reading electrolyte specic
gravity or lling battery.
4.4 Do not operate charger in a closed-in
area or restrict ventilation in any way.
4.5 Do not set a battery on top of charger.
5. DC CONNECTION PRECAUTIONS
5.1 Connect and disconnect DC output clips
only after setting any charger switches to
“off” position and removing AC cord from
electric outlet. Never allow clips to touch
each other.
5.2 Attach clips to battery and chassis, as
indicated in sections 6 and 7.
6. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE
WARNING! A SPARK NEAR THE
BATTERY MAY CAUSE A BATTERY
EXPLOSION. TO REDUCE THE RISK
OF A SPARK NEAR THE BATTERY:
6.1 Position AC and DC cords to reduce risk
of damage by hood, door, or moving
engine part.
6.2 Stay clear of fan blades, belts, pulleys,
and other parts that can cause injury to
persons.
6.3 Check polarity of battery posts. POSITIVE
(POS, P, +) battery post usually has larger
diameter than NEGATIVE (NEG, N,–) post.
6.4 Determine which post of battery is
grounded (connected) to the chassis. If
negative post is grounded to chassis (as
in most vehicles), see (6.5). If positive
post is grounded to the chassis, see (6.6).
6.5 For negative-grounded vehicle, connect
POSITIVE (RED) clip from battery
charger to POSITIVE (POS, P, +)
ungrounded post of battery. Connect
NEGATIVE (BLACK) clip to vehicle
chassis or engine block away from
battery. Do not connect clip to carburetor,
fuel lines, or sheet-metal body parts.
Connect to a heavy gauge metal part of
the frame or engine block.
6.6 For positive-grounded vehicle, connect
NEGATIVE (BLACK) clip from battery
charger to NEGATIVE (NEG, N, –)
ungrounded post of battery. Connect
POSITIVE (RED) clip to vehicle chassis
or engine block away from battery. Do
not connect clip to carburetor, fuel lines,
or sheet-metal body parts. Connect to a
heavy gauge metal part of the frame or
engine block.
6.7 When disconnecting charger, turn
switches to off, disconnect AC cord,
remove clip from vehicle chassis, and
then remove clip from battery terminal.
6.8 See Operating Instructions for length of
charge information.
All manuals and user guides at all-guides.com

• 6 •
7. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE
WARNING! A SPARK NEAR THE
BATTERY MAY CAUSE A BATTERY
EXPLOSION. TO REDUCE THE RISK
OF A SPARK NEAR THE BATTERY:
7.1 Check polarity of battery posts. POSITIVE
(POS, P, +) battery post usually has a larger
diameter than NEGATIVE (NEG, N, –) post.
7.2 Attach at least a 24-inch-long 6-gauge
(AWG) insulated battery cable to
NEGATIVE (NEG, N, –) battery post.
7.3 Connect POSITIVE (RED) charger clip to
POSITIVE (POS, P, +) post of battery.
7.4 Position yourself and free end of cable as
far away from battery as possible – then
connect NEGATIVE (BLACK) charger clip
to free end of cable.
7.5 Do not face battery when making nal
connection.
7.6 When disconnecting charger, always do
so in reverse sequence of connecting
procedure and break rst connection
while as far away from battery as
practical.
7.7 A marine (boat) battery must be removed
and charged on shore. To charge it on
board requires equipment specially
designed for marine use.
8. GROUNDING AND AC POWER CORD CONNECTIONS
8.1 This battery charger is for use on a
nominal 120 volt AC circuit. The plug must
be plugged into an outlet that is properly
installed and grounded in accordance
with all local codes and ordinances. The
plug pins must t the receptacle (outlet).
Do not use with an ungrounded system.
8.2 DANGER: Never alter the AC cord or
plug provided – if it does not t the outlet,
have a proper grounded outlet installed
by a qualied electrician. An improper
connection can result in a risk of an
electric shock or electrocution.
NOTE: Pursuant to Canadian
Regulations, use of an adapter plug
is not allowed in Canada. Use of an
adapter plug in the United States is not
recommended and should not be used.
8.3 USING AN EXTENSION CORD
The use of an extension cord is not
recommended. If you must use an
extension cord, follow these guidelines:
• Pins on plug of extension cord must be
the same number, size, and shape as
those of plug on charger.
• Ensure that the extension cord is
properly wired and in good electrical
condition.
• Wire size must be large enough for
the AC ampere rating of charger, as
specied below:
Length of cord (feet) 25 50 100 150
AWG* size of cord 18 18 18 16
*AWG-American Wire Gauge
9. ASSEMBLY INSTRUCTIONS
9.1 Remove all cord wraps and uncoil the cables prior to using the battery charger.
10. FEATURES
8
35
47
6
2
1
9
10
1. AC Power cord
2. Digital display
3. Connected (blue) LED
4. Trouble (red) LED
5. Charging/Charged (green) LED
6. Display/ON button
7. Hook attachment
8. Ring terminal quick-connect
with 7.5A fuse
9. 12V accessory plug
quick-connect with 5A fuse
10. Battery clamp quick-connect
All manuals and user guides at all-guides.com

• 7 •
11. CONTROL PANEL
DIGITAL DISPLAY
The digital display indicates the
status of the battery and charger. See

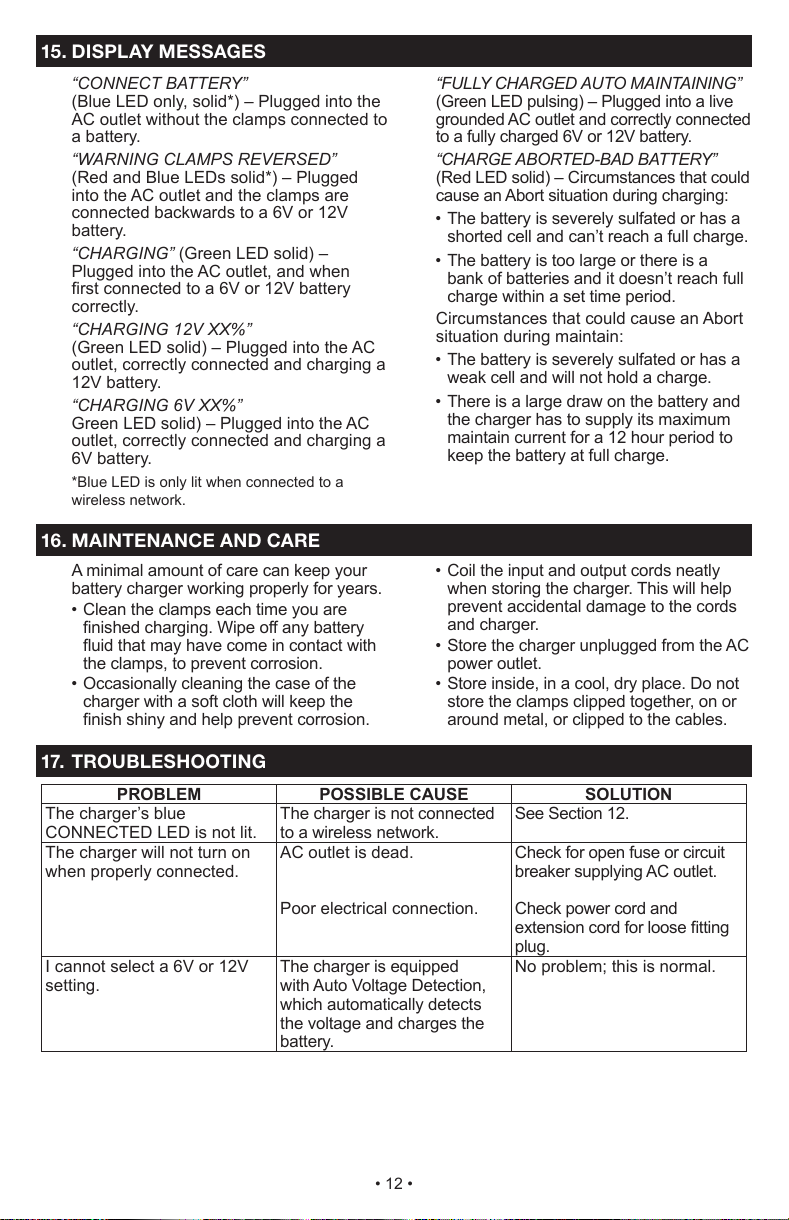

Display Messages for a complete list of
messages.
NOTE: For energy efciency during
charging, the display will go into sleep
mode and will not display any messages.
To turn the display back on, press the
display/ON button.
LED INDICATORS
BLUE (CONNECTED) LED solid –
The charger is connected to a wireless
network.
GREEN (CHARGING/CHARGED) LED
solid – The charger is charging the battery.
GREEN (CHARGING/CHARGED) LED
pulsing – The battery is fully charged and
the charger is in maintain mode.
RED (TROUBLE) LED solid – The battery
is bad (or clamps are reversed).
See Aborted Charge section.
12. INSTALLING THE APP AND REGISTERING YOUR CHARGER
• Before you begin, have your charger ID
card on hand.
• Download and install the SchuLink+
App (Apple store or Google Play).
NOTE: For Apple devices, requires iOS 9.0
or later; Android devices, OS 5.0 or later.
SETTING UP THE CHARGER’S
CONNECTION TO A WIRELESS
NETWORK
1. Open the App on your mobile device.
2. Press the Home icon.
3. Tap the three short horizontal bars
to bring up a menu.
4. Choose SETUP.
5. Swipe screens and follow directions for
setup to a wireless network.
REGISTERING A CHARGER
When using the App for the rst time with
a new charger, you must register your
charger(s) to the App.
1. Open the App on your mobile device.
2. Press the Home icon.
3. Tap the three short horizontal bars
to bring up a menu.
4. Choose ADD CHARGER.
5. Enter the Charger ID number and
password (SC20xxxxx-yy) located on
the Charger ID card included with the
unit. This information is also found on a
label on the side of the charger.
6. Swipe screens and follow directions to
nish charger registration.
All manuals and user guides at all-guides.com

• 8 •
13. USING THE APP TO CONTROL THE CHARGER
1. Connect your charger, following
the precautions listed in Sections 6
and 7. Plug the charger into a live
grounded 120V AC outlet. The blue
CONNECTED LED on the charger will
turn solid. If the blue LED is not lit, refer
to Troubleshooting.
2. Open the SchuLink+ App.
3. Log in, using the email address and
password that you provided when
you registered. If you forget your
password, select Forgot Password.
4. The HOME screen shows all connected
chargers. Swipe left on a charger
to bring up the screen to delete the
charger or edit the charger information.
To add additional chargers, select Add
Charger. The App can accommodate
up to 12 different chargers. Use one
of the arrows on the right to select the
charger you want to monitor.
THE STATUS SCREEN
NOTE: Tap any icon to bring up more
information.
A.Charge Indicator Ring – The color
of this ring and the amount of the
circle that is lled indicates the
charge level. A completely green ring
indicates the battery is fully charged.
This corresponds to the percentage
displayed in the center.
B.Charge Time – The amount of time
needed to charge the battery when it
was rst connected.
C.Charge Pause Switch – Tap the sliding
switch to start or pause the charging
process. The current status is shown
above the switch. You can pause the
charge while watching the voltage drop
to see if there is a power draw from the
battery. The charging process will not be
reset unless the charger is unplugged and
plugged in again. NOTE: This charger is
also a maintainer and it is not necessary
to stop the charging process; the charger
will automatically switch to maintenance
mode when the battery is fully charged.
D. Connected to a wireless network –
When the icon is green, this indicates
the charger is connected to a wireless
network. When the charger is not
connected to a wireless network, the
icon turns gray. Tap the to check the
signal strength.
E. Connected to AC – When green, this
indicates the charger is plugged into
a live 120V AC outlet. If the charger is
unplugged from the AC, the charger
will power itself off of the battery for ve
minutes, sending out a loss of power
signal to the app. When no AC power is
detected, the icon turns gray.
F. Connected to Battery – When green,
indicates that the battery is properly
connected to the charger. When clamps
are reversed or not connected, the icon
turns gray.
G.Battery Voltage – Shows battery
voltage. This voltage varies throughout
the charging cycle, but gives an
indication of the health of the battery.
If the value goes below 12.5V during
Float or Maintain modes, this could
indicate excessive draw on the
battery by the vehicle or the battery
approaching the end of its life.
H.Charge Amps – Shows the current the
charger is putting into the battery.
I. Charger Temperature – Shows the
charger’s temperature status. The
charger will automatically lower
the charge current if it detects the
temperature is higher than normal.
Use the icon to return to the HOME screen.
AB
D
G
E
H
F
I
C
All manuals and user guides at all-guides.com

• 9 •
CHARGING MODE
Charging mode lets you follow the
progress through the 8 stages of charging:
1. Auto Voltage Detection – In this mode,
a battery is connected to the charger
and the charger is determining
whether it is a 6V or 12V battery.
2. Desulfation – The charger has
detected an unhealthy, sulfated battery
and has begun a special process to try
to remove the sulfation and possibly
restore the battery.
3. Soft Start – The charger has
determined the battery voltage and
gently starts to charge the battery by
slowly increasing the charging current.
4. Bulk Mode – The majority of the
energy delivered to the battery is
done in this mode. When the charger
exits this mode, the battery will be at
approximately 80% recharged.
5. Absorption Mode – This mode nishes
the charge of the battery by holding
the battery voltage constant until the
current tapers off.
6. Monitoring Mode – The battery is
allowed to rest for 24 hours before
checking for a loss of charge.
7. Float Mode – The charger is replacing
energy the battery has lost through
self-discharge or idle draw of the
attached vehicle.
8. Maintain – The charger checks the
battery every 12 hours and puts the
charger into oat mode to replenish
lost energy from the battery.
RESETTING YOUR PASSWORD
1. In the log in screen, press Forgot
Password. A password reset link will
be sent to the email address
you provided during registration.
2. Enter your new password.
3. Reenter the new password.
4. Click Reset Password to complete the
process.
14. OPERATING THE CHARGER
USING THE CHARGER
WITHOUT THE INTERNET
The charger itself is a stand-alone device
and will function as a battery charger/
maintainer without an internet connection.
However, without an internet connection,
the App will not reect the charging
progress.
IMPORTANT: Do not start the vehicle with
the charger connected to the AC outlet, or it
may damage the charger and your vehicle.
WARNING: This charger is equipped with
an auto-start feature. Current is supplied
to the battery clamps before a battery is
connected, and the clamps will spark if
touched together.
NOTE: This charger is also a maintainer,
and can be left on the battery of vehicles
that are being stored.

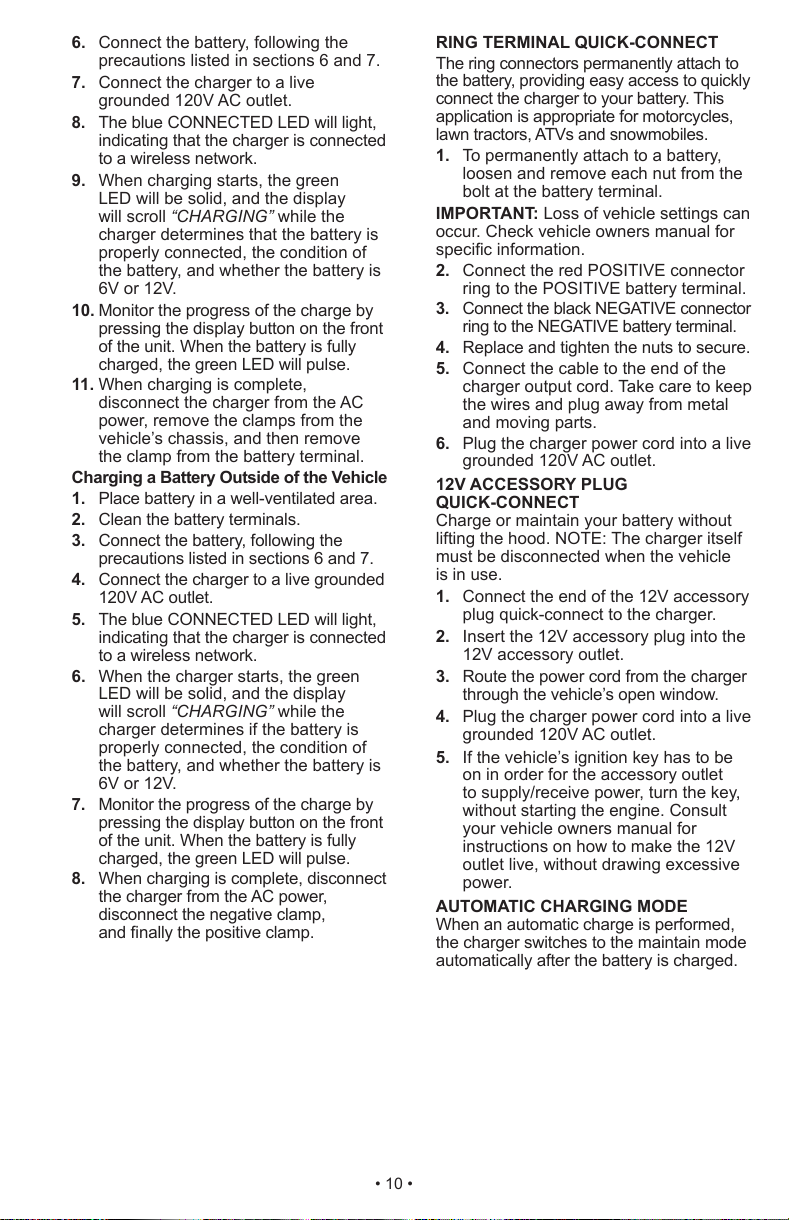

USING THE QUICK-CONNECT
CABLE CONNECTORS
Connect any of the three output cable
assemblies to the charger in a matter of
seconds.
IMPORTANT: Use the charger with only
one connector at a time. Do not connect
accessory cables together. This will cause
reverse polarity and damage the charger
and battery.
BATTERY CLAMP QUICK-CONNECT
Charging a Battery in the Vehicle
1. Turn off all the vehicle’s accessories.
2. Do not close the hood, battery
compartment, etc.
3. Clean the battery terminals.
4. Place the charger on a dry, non-
ammable surface, or use the
convenient hook attachment to hang
the unit safely outside the work area.
5. Lay the AC/DC cables away from any
fan blades, belts, pulleys and other
moving parts.
All manuals and user guides at all-guides.com

• 10 •
6. Connect the battery, following the
precautions listed in sections 6 and 7.
7. Connect the charger to a live
grounded 120V AC outlet.
8. The blue CONNECTED LED will light,
indicating that the charger is connected
to a wireless network.
9. When charging starts, the green
LED will be solid, and the display
will scroll “CHARGING” while the
charger determines that the battery is
properly connected, the condition of
the battery, and whether the battery is
6V or 12V.
10. Monitor the progress of the charge by
pressing the display button on the front
of the unit. When the battery is fully
charged, the green LED will pulse.
11. When charging is complete,
disconnect the charger from the AC
power, remove the clamps from the
vehicle’s chassis, and then remove
the clamp from the battery terminal.
Charging a Battery Outside of the Vehicle
1. Place battery in a well-ventilated area.
2. Clean the battery terminals.
3. Connect the battery, following the
precautions listed in sections 6 and 7.
4. Connect the charger to a live grounded
120V AC outlet.
5. The blue CONNECTED LED will light,
indicating that the charger is connected
to a wireless network.
6. When the charger starts, the green
LED will be solid, and the display
will scroll “CHARGING” while the
charger determines if the battery is
properly connected, the condition of
the battery, and whether the battery is
6V or 12V.
7. Monitor the progress of the charge by
pressing the display button on the front
of the unit. When the battery is fully
charged, the green LED will pulse.
8. When charging is complete, disconnect
the charger from the AC power,
disconnect the negative clamp,
and nally the positive clamp.
RING TERMINAL QUICK-CONNECT
The ring connectors permanently attach to
the battery, providing easy access to quickly
connect the charger to your battery. This
application is appropriate for motorcycles,
lawn tractors, ATVs and snowmobiles.
1. To permanently attach to a battery,
loosen and remove each nut from the
bolt at the battery terminal.
IMPORTANT: Loss of vehicle settings can
occur. Check vehicle owners manual for
specic information.
2. Connect the red POSITIVE connector
ring to the POSITIVE battery terminal.
3. Connect the black NEGATIVE connector
ring to the NEGATIVE battery terminal.
4. Replace and tighten the nuts to secure.
5. Connect the cable to the end of the
charger output cord. Take care to keep
the wires and plug away from metal
and moving parts.
6. Plug the charger power cord into a live
grounded 120V AC outlet.
12V ACCESSORY PLUG
QUICK-CONNECT
Charge or maintain your battery without
lifting the hood. NOTE: The charger itself
must be disconnected when the vehicle
is in use.
1. Connect the end of the 12V accessory
plug quick-connect to the charger.
2. Insert the 12V accessory plug into the
12V accessory outlet.
3. Route the power cord from the charger
through the vehicle’s open window.
4. Plug the charger power cord into a live
grounded 120V AC outlet.
5. If the vehicle’s ignition key has to be
on in order for the accessory outlet
to supply/receive power, turn the key,
without starting the engine. Consult
your vehicle owners manual for
instructions on how to make the 12V
outlet live, without drawing excessive
power.
AUTOMATIC CHARGING MODE
When an automatic charge is performed,
the charger switches to the maintain mode
automatically after the battery is charged.
All manuals and user guides at all-guides.com

• 11 •
BATTERY CONNECTION INDICATOR
If the charger does not detect a properly
connected battery, charging will not start
and the digital display will show one
of two messages. If the display shows
“CONNECT BATTERY”, make sure the
charger is connected to the battery and the
connection points are clean and making
a good connection. If the display shows
“WARNING CLAMPS REVERSED”,
unplug the charger from the AC outlet,
reverse the connections at the battery,
and then plug the charger back in.
CHARGE COMPLETION AND MAINTAIN
MODE (Float Mode Monitoring)
Charge completion is indicated by the green
LED pulsing and the digital display scrolling
“FULLY CHARGED AUTO MAINTAINING”.
This means that the charger has stopped
charging and has switched to the Maintain
Mode of operation. NOTE: If the charger
has to provide its maximum maintain
current (1.8A) for a continuous 12 hour
period, it will go into Abort Mode (see
Aborted Charge section). This is usually
caused by a load on the battery, or the
battery could be bad. Make sure there are
no loads on the battery. If there are, remove
them. If there are none, have the battery
checked or replaced.
MAINTAINING A BATTERY
This unit maintains both 6 and 12 volt
batteries, keeping them at full charge. It
can charge small batteries and maintain
both small and large batteries. If you are
maintaining a fully charged large battery,
you are properly utilizing the battery
charger. However, if you use this battery
charger to charge a large battery, such
as a marine deep-cycle battery that was
not fully charged, you may not get the
battery’s full capacity. Therefore, we do
not recommend charging a large battery
with this unit.
NOTE: The maintain mode technology
allows you to safely charge and maintain
a healthy battery for extended periods
of time. However, problems with the
battery, electrical problems in the
vehicle, improper connections or other
unanticipated conditions could cause
excessive current draws. As such,
occasionally monitoring your battery and
the charging process is required
BATTERY CHARGING TIMES
APPLICATION BATTERY
SIZE
CHARGING TIME (hours)
2A 6A 8A 10A
POWERSPORTS 6 Ah
32Ah
6 2 1.75 1.5
15 5 4.5 4
AUTOMOTIVE 300 CCA
1000 CCA
12 4 3.5 3
30 10 8.5 7
MARINE 50 Ah
105 Ah
15 5 4.25 3.5
33 11 9.5 8
Times are based on a 50% discharged
battery and may change, depending on
age and condition of battery.
DESULFATION MODE
If the battery is left discharged for an
extended period of time, it could become
sulfated and not accept a normal charge.
If the charger detects a sulfated battery,
the charger will switch to a special mode
of operation designed for such batteries.
If successful, normal charging will resume
after the battery is desulfated. Desulfation
could take up to 8 hours. If desulfation
fails, charging will abort, the red LED will
light, and the display will scroll “CHARGE
ABORTED-BAD BATTERY”.
ABORTED CHARGE
If charging cannot be completed normally,
charging will abort. When charging aborts,
the charger’s output is shut off, the red
LED will light, and the display will scroll
“CHARGE ABORTED-BAD BATTERY”.
Do not continue attempting to charge this
battery. Have it checked or replaced.
All manuals and user guides at all-guides.com

• 12 •
15. DISPLAY MESSAGES
“CONNECT BATTERY”
(Blue LED only, solid*) – Plugged into the
AC outlet without the clamps connected to
a battery.
“WARNING CLAMPS REVERSED”
(Red and Blue LEDs solid*) – Plugged
into the AC outlet and the clamps are
connected backwards to a 6V or 12V
battery.
“CHARGING” (Green LED solid) –
Plugged into the AC outlet, and when
rst connected to a 6V or 12V battery
correctly.
“CHARGING 12V XX%”
(Green LED solid) – Plugged into the AC
outlet, correctly connected and charging a
12V battery.
“CHARGING 6V XX%”
Green LED solid) – Plugged into the AC
outlet, correctly connected and charging a
6V battery.
*Blue LED is only lit when connected to a
wireless network.
“FULLY CHARGED AUTO MAINTAINING”
(Green LED pulsing) – Plugged into a live
grounded AC outlet and correctly connected
to a fully charged 6V or 12V battery.
“CHARGE ABORTED-BAD BATTERY”
(Red LED solid) – Circumstances that could
cause an Abort situation during charging:
• The battery is severely sulfated or has a
shorted cell and can’t reach a full charge.
• The battery is too large or there is a
bank of batteries and it doesn’t reach full
charge within a set time period.
Circumstances that could cause an Abort
situation during maintain:
• The battery is severely sulfated or has a
weak cell and will not hold a charge.
• There is a large draw on the battery and
the charger has to supply its maximum
maintain current for a 12 hour period to
keep the battery at full charge.
16. MAINTENANCE AND CARE
A minimal amount of care can keep your
battery charger working properly for years.
• Clean the clamps each time you are
nished charging. Wipe off any battery
uid that may have come in contact with
the clamps, to prevent corrosion.
• Occasionally cleaning the case of the
charger with a soft cloth will keep the
nish shiny and help prevent corrosion.
• Coil the input and output cords neatly
when storing the charger. This will help
prevent accidental damage to the cords
and charger.
• Store the charger unplugged from the AC
power outlet.
• Store inside, in a cool, dry place. Do not
store the clamps clipped together, on or
around metal, or clipped to the cables.
17. TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The charger’s blue
CONNECTED LED is not lit.
The charger is not connected
to a wireless network.
See Section 12.
The charger will not turn on
when properly connected.
AC outlet is dead.
Poor electrical connection.
Check for open fuse or circuit
breaker supplying AC outlet.
Check power cord and
extension cord for loose tting
plug.
I cannot select a 6V or 12V
setting.
The charger is equipped
with Auto Voltage Detection,
which automatically detects
the voltage and charges the
battery.
No problem; this is normal.
All manuals and user guides at all-guides.com

• 13 •

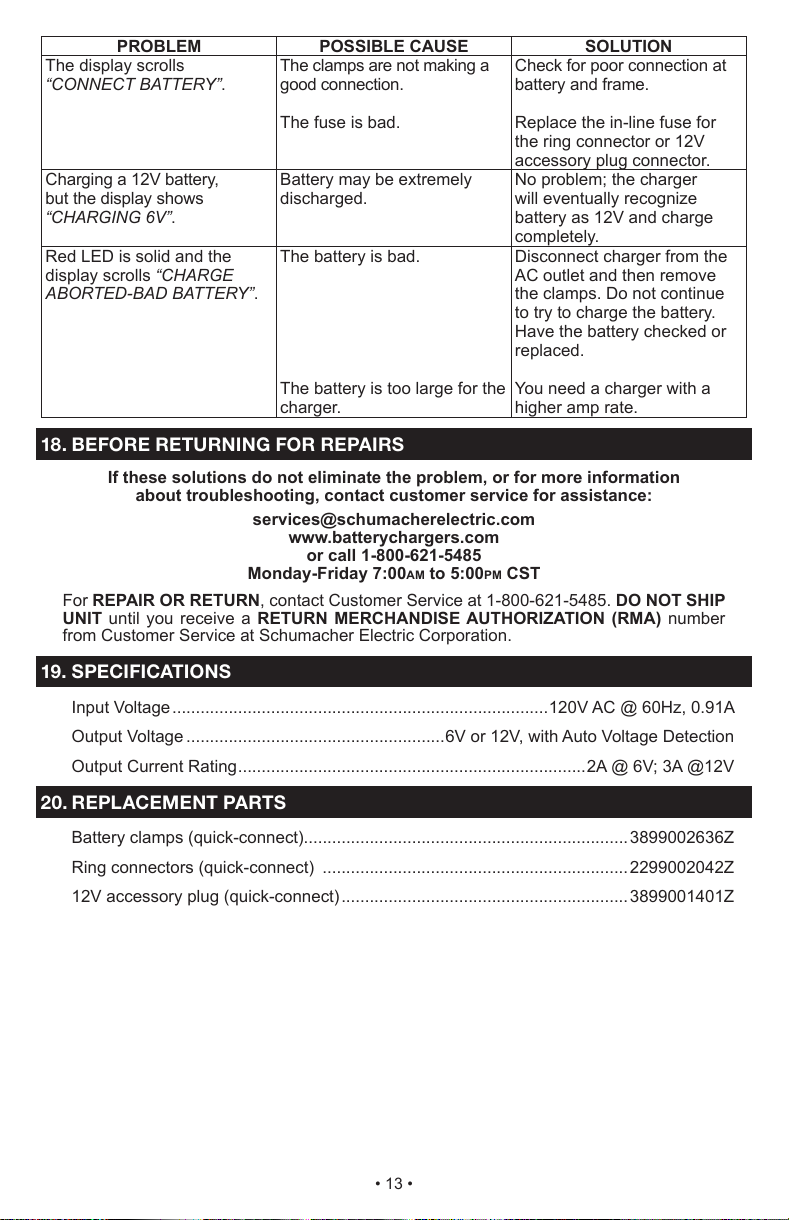

PROBLEM POSSIBLE CAUSE SOLUTION
The display scrolls
“CONNECT BATTERY”.
The clamps are not making a
good connection.
The fuse is bad.
Check for poor connection at
battery and frame.
Replace the in-line fuse for
the ring connector or 12V
accessory plug connector.
Charging a 12V battery,
but the display shows
“CHARGING 6V”.
Battery may be extremely
discharged.
No problem; the charger
will eventually recognize
battery as 12V and charge
completely.
Red LED is solid and the
display scrolls “CHARGE
ABORTED-BAD BATTERY”.
The battery is bad.
The battery is too large for the
charger.
Disconnect charger from the
AC outlet and then remove
the clamps. Do not continue
to try to charge the battery.
Have the battery checked or
replaced.
You need a charger with a
higher amp rate.
18. BEFORE RETURNING FOR REPAIRS
If these solutions do not eliminate the problem, or for more information
about troubleshooting, contact customer service for assistance:
[email protected]
www.batterychargers.com
or call 1-800-621-5485
Monday-Friday 7:00am to 5:00pm CST
For REPAIR OR RETURN, contact Customer Service at 1-800-621-5485. DO NOT SHIP
UNIT until you receive a RETURN MERCHANDISE AUTHORIZATION (RMA) number
from Customer Service at Schumacher Electric Corporation.
19. SPECIFICATIONS
Input Voltage................................................................................120V AC @ 60Hz, 0.91A
Output Voltage .......................................................6V or 12V, with Auto Voltage Detection
Output Current Rating..........................................................................2A @ 6V; 3A @12V
20. REPLACEMENT PARTS
Battery clamps (quick-connect).....................................................................3899002636Z
Ring connectors (quick-connect) .................................................................2299002042Z
12V accessory plug (quick-connect).............................................................3899001401Z
All manuals and user guides at all-guides.com

• 14 •

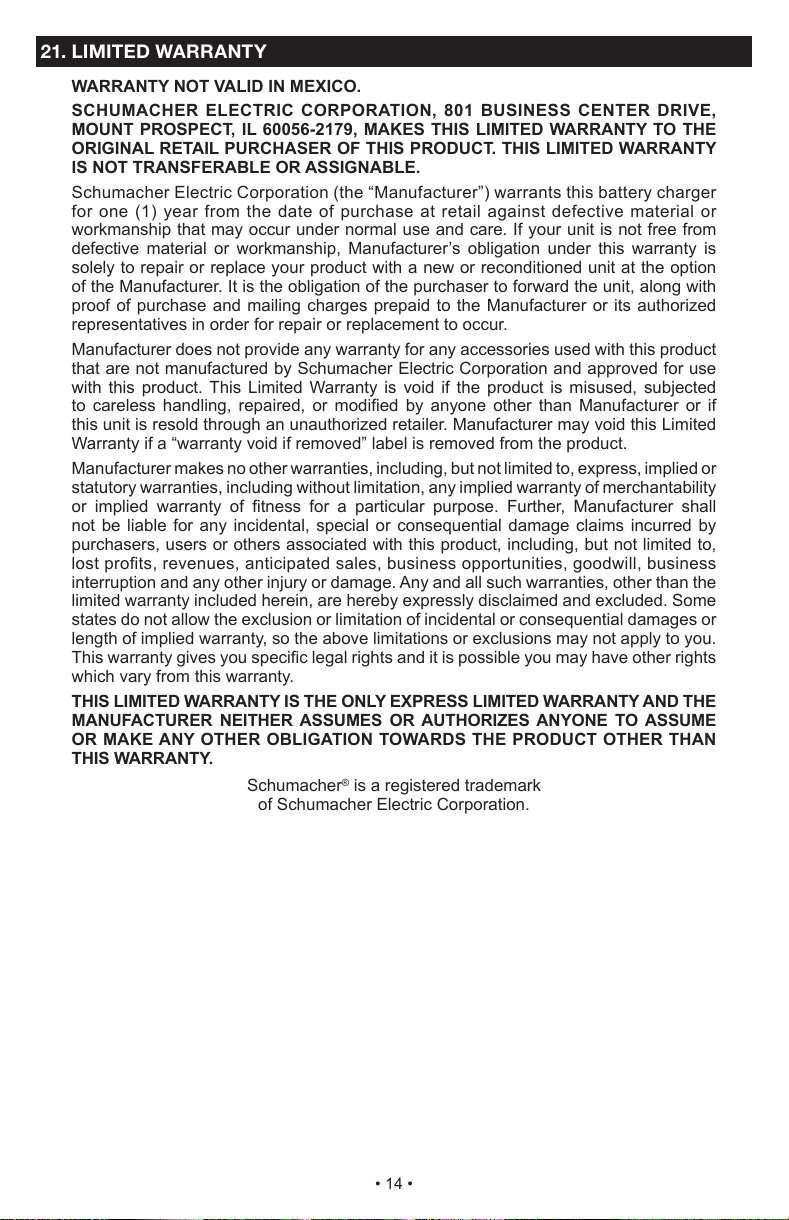

21. LIMITED WARRANTY
WARRANTY NOT VALID IN MEXICO.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE,
MOUNT PROSPECT, IL 60056-2179, MAKES THIS LIMITED WARRANTY TO THE
ORIGINAL RETAIL PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY
IS NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants this battery charger
for one (1) year from the date of purchase at retail against defective material or
workmanship that may occur under normal use and care. If your unit is not free from
defective material or workmanship, Manufacturer’s obligation under this warranty is
solely to repair or replace your product with a new or reconditioned unit at the option
of the Manufacturer. It is the obligation of the purchaser to forward the unit, along with
proof of purchase and mailing charges prepaid to the Manufacturer or its authorized
representatives in order for repair or replacement to occur.
Manufacturer does not provide any warranty for any accessories used with this product
that are not manufactured by Schumacher Electric Corporation and approved for use
with this product. This Limited Warranty is void if the product is misused, subjected
to careless handling, repaired, or modied by anyone other than Manufacturer or if
this unit is resold through an unauthorized retailer. Manufacturer may void this Limited
Warranty if a “warranty void if removed” label is removed from the product.
Manufacturer makes no other warranties, including, but not limited to, express, implied or
statutory warranties, including without limitation, any implied warranty of merchantability
or implied warranty of tness for a particular purpose. Further, Manufacturer shall
not be liable for any incidental, special or consequential damage claims incurred by
purchasers, users or others associated with this product, including, but not limited to,
lost prots, revenues, anticipated sales, business opportunities, goodwill, business
interruption and any other injury or damage. Any and all such warranties, other than the
limited warranty included herein, are hereby expressly disclaimed and excluded. Some
states do not allow the exclusion or limitation of incidental or consequential damages or
length of implied warranty, so the above limitations or exclusions may not apply to you.
This warranty gives you specic legal rights and it is possible you may have other rights
which vary from this warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED WARRANTY AND THE
MANUFACTURER NEITHER ASSUMES OR AUTHORIZES ANYONE TO ASSUME
OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT OTHER THAN
THIS WARRANTY.
Schumacher®is a registered trademark
of Schumacher Electric Corporation.
All manuals and user guides at all-guides.com

• 15 •
1. INSTRUCCIONES IMPORTANTES DE SEGURIDAD
POR FAVOR CONSERVE ESTE
MANUAL DEL USUARIO Y LEALO
ANTES DE CADA USO. En este manual
le explica cómo utilizar el cargador de
manera segura y conable. Por favor,
lea y siga las siguientes instrucciones y
precauciones.
NOTA: El cargador en sí es un dispositivo
autónomo y funcionará como un cargador/
mantenedor de batería sin conexión a
Internet. Sin embargo, sin una conexión
a la nube, la aplicación no reejará el
progreso de la carga.
1.1 GUARDE ESTAS INSTRUCCIONES –
Este manual contiene instrucciones
operativas y de seguridad de importancia.
1.2 Manténgase fuera del alcance de los niños.
1.3 No exponga el cargador a la lluvia o a la
nieve.
1.4 El uso de un accesorio no recomendado
o suministrado por Schumacher®Electric
Corporation puede provocar riesgo de
incendio, descarga eléctrica o lesiones a
personas.
1.5 Para reducir el riesgo de daños al
enchufe o cable eléctrico, jale del enchufe
en lugar de jalar del cable al desconectar
el cargador.
1.6 No se debe utilizar un alargador a menos
que resulte absolutamente necesario. El
uso de un alargador inadecuado puede
provocar riesgo de incendio o descarga
eléctrica. En caso de que deba utilizarse
un alargador, asegúrese de que:
• Los pasadores en el enchufe del
alargador posean el mismo número,
tamaño y forma que aquellos presentes
en el enchufe del cargador.
• El alargador se encuentre correctamente
conectado y en buenas condiciones
eléctricas
• El tamaño del cable sea lo
sucientemente extenso para el
amperaje en CA del cargador como se
especica en sección 8.
1.7 No utilice el cargador si el mismo posee
un enchufe o cable dañado; substituya el
cable o el enchufe inmediatamente por
una persona calicada en el ramo.
1.8 No utilice el cargador si el mismo recibió
un golpe fuerte, si se cayó o si sufrió
daños de cualquier otra forma; hágalo
revisar por una persona capacitada que
efectúe reparaciones.
1.9 No desarme el cargador; hágalo revisar
por una persona capacitada que efectúe
reparaciones cuando necesite servicio
de mantenimiento o una reparación.
Volver a ensamblar el cargador en forma
incorrecta puede provocar riesgo de
incendio o descarga eléctrica.
1.10 Para reducir el riesgo de descarga
eléctrica, desenchufe el cargador del
tomacorriente antes de intentar llevar a
cabo cualquier actividad de mantenimiento
o limpieza. El simple apagado de los
controles no reducirá este riesgo.
1.11 ADVERTENCIA:
RIESGO DE GASES EXPLOSIVOS.
a. RESULTA PELIGROSO TRABAJAR EN
FORMA CERCANA A UNA BATERÍA DE
PLOMO. LAS BATERÍAS GENERAN
GASES EXPLOSIVOS DURANTE
SU NORMAL FUNCIONAMIENTO.
POR ESTE MOTIVO, RESULTA DE
SUMA IMPORTANCIA QUE SIGA LAS
INSTRUCCIONES CADA VEZ QUE
UTILIZA EL CARGADOR.
b. Para reducir el riesgo de explosión de
una batería, siga estas instrucciones y
aquellas publicadas por el fabricante
de la batería y por el fabricante de
cualquier equipo que intente utilizar
en la proximidad de la batería. Revise
las pautas de precaución en estos
productos y en el motor.
2. PRECAUCIONES DE SEGURIDAD PERSONAL
2.1 Considere la idea de que alguna persona
se encuentre cerca suyo para poder
ayudarlo cuando trabaje en forma
cercana a una batería de plomo-ácido.
2.2 Cuente con una gran cantidad de agua
potable y jabón a mano en caso de que el
ácido de la batería tenga contacto con su
piel, ropa u ojos.
2.3 Utilice protección visual y corporal completa,
incluyendo gafas de seguridad y prendas
de protección. Evite tocar sus ojos mientras
trabaje en forma cercana a la batería.
2.4 Si el ácido de la batería tiene contacto con
su piel o su ropa, lave de inmediato el área
afectada con agua y jabón. En caso de que
ingrese ácido en un ojo, sumerja el mismo
de inmediato bajo agua potable corriente
por al menos 10 minutos y obtenga
atención médica en forma inmediata.
2.5 NUNCA fume o permita la presencia de
chispas o llamas en la proximidad de una
batería o motor.
2.6 Tenga especial cuidado para reducir el
riesgo de dejar caer una herramienta
All manuals and user guides at all-guides.com

• 16 •
de metal sobre la batería. Esto podría
provocar chispas o un cortocircuito en la
batería o en cualquier otra pieza eléctrica
que podría provocar una explosión.
2.7 No utilice elementos personales de metal
tales como anillos, pulseras, collares y
relojes al trabajar con una batería de
plomo-ácido. Una batería de plomo-
ácido puede producir una corriente de
cortocircuito lo sucientemente elevada
como para soldar un anillo o provocar
efectos similares sobre el metal,
causando una quemadura de gravedad.
2.8 Utilice el cargador de la batería, en baterías
recargables de 6 y 12V de PLOMO-ÁCIDO
(estándar, GELo AGM) con recomienda
usar capacidad de la batería de 24Ah (6V)
y 12-59Ah (12V). Este cargador no está
destinado a suministrar energía a sistemas
eléctricos de baja tensión más que en una
aplicación de un motor de arranque. No
utilice este cargador de batería para cargar
baterías de pila seca que por lo general
se utilizan con artefactos domésticos.
Estas baterías podrían explotar y provocar
lesiones a personas o daño a la propiedad.
2.9 NUNCA cargue una batería congelada.
2.10 ADVERTENCIA: Este producto
contiene una o más sustancias químicas
conocidas en el Estado de California
como causantes de cáncer y defectos de
nacimiento u otros daños reproductivos.
3. PREPARACIÓN PARA LA CARGA
3.1 Si resulta necesario extraer la batería
del vehículo para cargarla, siempre retire
el terminal con descarga a tierra en
primer lugar. Asegúrese de que todos los
accesorios en el vehículo se encuentren
apagados para evitar la formación de
arcos eléctricos.
3.2 Asegúrese de que el área que rodea a
la batería se encuentre bien ventilada
mientras se carga la batería.
3.3 Limpie los terminales de la batería antes
de cargar la batería. Durante la limpieza,
evite que la corrosión producida por aire
tenga contacto con sus ojos.
3.4 Agregue agua destilada a cada pila
hasta que el ácido de la batería alcance
el nivel especicado por el fabricante de
la batería. No provoque derrames. En lo
que concierne a baterías que no cuentan
con tapas extraíbles para pilas, tales
como baterías de plomo-ácido reguladas
por válvulas (VRLA, por sus siglas
en inglés), siga cuidadosamente las
instrucciones de recarga del fabricante.
3.5 Controle todas las precauciones
especícas establecidas por el fabricante
de la batería al realizar la carga, así
también como los índices de carga
recomendados.
3.6 Determine la tensión de la batería
al consultar el manual del usuario
del vehículo y asegúrese de que el
interruptor de selección de la tensión de
salida se encuentre establecido en la
tensión correcta. Si el cargador posee
un índice de carga ajustable, cargue
la batería en el menor índice en primer
lugar. Para un cargador sin un interruptor
selector para voltaje de salida, determinar
el voltaje de la batería al referirse al
manual del propietario del vehículo y
asegurarse de que coincide nominal de
salida del cargador de batería.
4. UBICACIÓN DEL CARGADOR
4.1 Ubique el cargador a la mayor distancia
posible de la batería como lo permitan los
cables de CC.
4.2 Nunca ubique el cargador directamente
por encima de la batería que se carga;
los gases de la batería corroerán y
dañarán el cargador.
4.3 Nunca permita que el ácido de la batería
gotee sobre el cargador al leer el peso
especíco del electrolito o al cargar la
batería.
4.4 No utilice el cargador en un área cerrada o
restrinja la ventilación en cualquier forma.
4.5 No ubique la batería encima del cargador.
5. PRECAUCIONES DE CONEXIÓN EN CC
5.1 Conecte y desconecte las pinzas de
salida CC. sólo después de haber
establecido todos los interruptores del
cargador a la posición de “apagado” (si
es aplicable) y de haber desconectado
el enchufe de C.A. del tomacorriente
eléctrico. Nunca permita que las pinzas
tengan contacto entre sí.
5.2 Sujete las pinzas a la batería y al chasis,
como se indica en en las secciones 6 y 7.
All manuals and user guides at all-guides.com

• 17 •
6. SIGA ESTOS PASOS CUANDO LA BATERÍA ESTÉ COLOCADA EN EL VEHÍCULO
ADVERTENCIA: UNA CHISPA
PROVOCADA CERCA DE LA BATERÍA
PUEDE CAUSAR LA EXPLOSIÓN
DE LA BATERÍA. PARA REDUCIR EL
RIESGO DE PROVOCAR CHISPAS
CERCA DE LA BATERÍA:
6.1 Ubique los cables de CA y CC
adecuadamente para reducir el riesgo
de daños por la cubierta, la puerta y las
piezas móviles o calientes del motor.
6.2 Manténgase alejado de las paletas del
ventilador, correas, poleas y otras piezas
que podrían provocar lesiones.
6.3 Verique la polaridad de los bornes de
la batería. El borne POSITIVO (POS,
P, +) de la batería generalmente posee
un diámetro mayor al borne NEGATIVO
(NEG, N, -).
6.4 Determine qué borne de la batería
hace descarga a tierra (se encuentra
conectado) con el chasis. Si el borne
negativo hace descarga a tierra con el
chasis (como en la mayor parte de los
vehículos), ver el paso (6.5) Si el borne
positivo hace descarga a tierra con el
chasis, ver el paso (6.6).
6.5 En un vehículo con descarga a tierra
por borne negativo, conecte el gancho
POSITIVO (ROJO) del cargador de
batería al borne POSITIVO (POS, P, +)
sin descarga a tierra de la batería.
Conecte el gancho NEGATIVO
(NEGRO) al chasis del vehículo o al
bloque motor alejado de la batería. No
conecte el gancho al carburador, líneas
de combustible o cuerpos metálicos.
Conecte a una pieza metálica de calibre
grueso del marco o del bloque motor.
6.6 En un vehículo con descarga a tierra
por borne positivo, conecte el gancho
NEGATIVO (NEGRO) del cargador de
batería al borne NEGATIVO (NEG, N, -)
sin descarga a tierra de la batería.
Conecte el gancho POSITIVO (ROJO)
al chasis del vehículo o al bloque motor
alejado de la batería. No conecte al
carburador, líneas de combustible o
cuerpos metálicos. Conecte a una pieza
metálica de calibre grueso del marco o
del bloque motor.
6.7 Al desconectar el cargador, apague todos
los interruptores (en su caso), desconecte
el cable de C.A., retire el gancho del
chasis del vehículo y luego retire el
gancho del terminal perteneciente a la
batería.
6.8 Vea Instrucciones de Operación para
duración de la carga.
7. SIGA ESTOS PASOS CUANDO LA BATERÍA SE ENCUENTRE FUERA DEL VEHÍCULO
ADVERTENCIA: UNA CHISPA
PROVOCADA CERCA DE LA BATERÍA
PUEDE CAUSAR LA EXPLOSIÓN
DE LA BATERÍA. PARA REDUCIR EL
RIESGO DE PROVOCAR CHISPAS
CERCA DE LA BATERÍA:
7.1 Verique la polaridad de los bornes de
la batería. El borne POSITIVO (POS,
P, +) de la batería generalmente posee
un diámetro mayor al borne NEGATIVO
(NEG, N, -).
7.2 Sujete al menos un cable aislado de batería
de 24 pulgadas (61 cm) de largo con
calibre 6 según el Calibre americano de
cables (AWG, por sus siglas en inglés) al
borne NEGATIVO (NEG, N, -) de la batería.
7.3 Conecte el gancho POSITIVO (ROJO) del
cargador al borne POSITIVO (POS, P, +)
de la batería.
7.4 Ubíquese junto con el extremo libre del
cable que previamente sujetó al borne
NEGATIVO (NEG, N, -) de la batería a
la mayor distancia posible de la batería.
Luego conecte el gancho NEGATIVO
(NEGRO) del cargador al extremo libre
del cable.
7.5 No se ubique en posición frontal a la
batería al realizar la conexión nal.
7.6 Al desconectar el cargador, siempre
hágalo en forma inversa al procedimiento
de conexión y realice la primera conexión
tan lejos de la batería como sea posible.
7.7 Una batería marina (para barcos) se
debe retirar y cargar en tierra. Para
realizar una carga a bordo se necesitan
equipamientos especialmente diseñados
para uso marino.
8. CONEXIONES A TIERRA Y ENERGÍA DE CA
8.1 Este cargador de batería está destinado a
un uso en un circuito con tensión nominal
de 120 V CA. El enchufe se debe conectar
a un tomacorriente adecuadamente
instalado y que cuente con descarga
a tierra de acuerdo con todas las
ordenanzas y códigos. Los pasadores del
enchufe deben adaptarse al receptáculo
(tomacorriente). No utilizar con un sistema
que no posea descarga a tierra.
All manuals and user guides at all-guides.com

• 18 •
8.2 PELIGRO: Nunca altere el cable o
enchufe de C.A. suministrado, si no se
ajusta al tomacorriente, haga instalar un
tomacorriente adecuado con descarga
a tierra por medio de un electricista
capacitado. Una conexión inadecuada
puede provocar un riesgo de descarga
eléctrica o electrocución.
NOTA: De acuerdo a las Leyes
Canadienses, el uso de un enchufe
adaptador no es permitido en el Canada.
El uso de un enchufe como adaptador
no se recomienda y no debe ser utilizado
Estados Unidos.
8.3 USO DE UN CABLE DE EXTENSIÓN
El uso de una extensión no se
recomienda. Si debe usar una extensión,
siga estas pautas:
• Las clavijas del enchufe del cable de
extensión debe ser el mismo número,
tamaño y forma que las del enchufe del
cargador.
• Asegúrese de que el cable de extensión
esté conectado correctamente y en
buenas condiciones eléctricas.
• El tamaño del cable debe ser lo
sucientemente extenso para el calibre
de amperios del cargador de CA, como
se especica a continuación:
Longitud del cable (pies)
25 50 100 150
Calibre del cable AWG*
18 18 18 16
9. INSTRUCCIONES DE MONTAJE
9.1 Desenrede todos los cordones y extienda los cables antes de usar el cargador de baterías.
10. CARACTERÍSTICAS
8
35
47
6
2
1
9
10
1. Cable de alimentación de CA
2. Pantalla digital
3. LED Conectado (azul)
4. LED Problema (rojo)
5. LED Carga / Cargado (verde)
6. Botón de pantalla digital / ON
7. Accesorio de gancho
8. Conectores de argolla
(conexión rápida) con fusible 7,5A
9. Conector de 12V (conexión rápida)
con fusible 5A
10. Pinzas de batería (conexión rápida)
11. PANEL DE CONTROL
PANTALLA DIGITAL
La pantalla digital indica la condición de
la batería y el cargador. Vea la sección de
Muestra de Mensajes para obtener una
lista completa de los mensajes.
NOTA: Para la eciencia energética
durante la carga, la pantalla entra en el
modo de suspensión y no se mostrará
cualquiera mensaje. Para activar la
pantalla, pulse el botón de pantalla / ON.
INDICADORES LED
LED AZUL (CONECTADO) sólido –
El cargador está conectado a la red
inalámbrica de internet
LED VERDE (CARGA / CARGADA)
sólido – El cargador está cargando la
batería.
LED VERDE (CARGADA /
MANTENIMIENTO) pulsante – La carga
de la batería está completa y que el
cargador cambió a modo mantener.
LED ROJO (PROBLEMA) sólido –
La batería es malo (o las pinzas se
invierten). Ver sección de Carga Anulada.
All manuals and user guides at all-guides.com

• 19 •
12. INSTALACIÓN DE LA APLICACIÓN Y REGISTRO DEL CARGADOR
• Antes de comenzar, tenga su tarjeta de
identicación del cargador a la mano.
• Descargue e instale la aplicación
SchuLink+ (tienda de Apple o
Google Play).
NOTA: Para los dispositivos de Apple,
requiere iOS 9.0 o posterior; dispositivos
Android, OS 5.0 o posterior.
CONFIGURACIÓN DE LA CONEXIÓN
DEL CARGADOR A LA RED
INALÁMBRICA DE INTERNET
1. Abra la aplicación en su dispositivo
móvil.
2. Presiona el ícono Home.
3. Toque las tres barras horizontales
cortas para abrir un menú.
4. Elige SETUP.
5. Deslice las pantallas y siga las
instrucciones para congurar la
conexión a la red
inalámbrica de internet.
REGISTRAR UN CARGADOR
Cuando utilice la aplicación por primera
vez con un nuevo cargador, debe registrar
su (s) cargador (es) a la aplicación.
1. Abra la aplicación en su dispositivo
móvil.
2. Presiona el ícono Home.
3. Toque las tres barras horizontales
cortas para abrir un menú.
4. Elige ADD CHARGER.
5. Introduzca el número de identicación
del cargador y la contraseña
(SC20xxxxx-yy), que se encuentran
en la tarjeta de identicación del
cargador incluida con la unidad. Esta
información también se encuentra en
una etiqueta en un lateral del cargador.
6. Deslizar pantallas y siga las
instrucciones para nalizar el registro
cargador.
13. USO DE LA APLICACIÓN PARA CONTROLAR EL CARGADOR
1. Conecte su cargador, siguiendo
las precauciones señaladas en las
secciones 6 y 7. Conecte el cargador
en una toma de CA de 120 V con
conexión a tierra activa. El LED azul
CONNECTED del cargador se pondrá
sólido. Si el LED azul no se enciende,
consulte Localización y Solución de
Problemas.
2. Abra la aplicación SchuLink+ .
3. Inicie sesión, utilizando la dirección de
correo electrónico y la contraseña que
proporcionó cuando se registró.
Si olvida su contraseña, consulte
Forgot Password.
4. La pantalla de HOME muestra
todos los cargadores conectados.
Deslice a la izquierda en un cargador
para mostrar la pantalla con el n
de eliminar el cargador o editar la
información del cargador. Para añadir
cargadores adicionales, seleccione
ADD CHARGER. La aplicación puede
acomodar hasta 12 cargadores
diferentes. Utilice la echa de la derecha
para seleccionar el cargador que desea
supervisar.
All manuals and user guides at all-guides.com

• 20 •
LA PANTALLA DE ESTADO
NOTA: Toque cualquier ícono para que
aparezca más información.
A.Anillo indicador de carga: el color de
este anillo y la cantidad del círculo que
está lleno indica el nivel de carga. Un
anillo completamente verde indica que
la batería está totalmente cargada.
Esto corresponde al porcentaje que
aparece en el centro.
B.Tiempo de carga: la cantidad de
tiempo necesario para cargar la batería
cuando se conecta por primera vez.
C.Interruptor de pausa de carga: Toque
el interruptor deslizante para iniciar
o detener el proceso de carga. El
estado actual se muestra encima del
interruptor. Puede detener la carga
mientras ve la caída de tensión para
comprobar si hay un consumo de
energía de la batería. El proceso de
carga no se restablecerá a menos
que el cargador sea desconectado
y conectado de nuevo. NOTA: Este
cargador es también un mantenedor
y no es necesario detener el proceso
de carga; el cargador cambiará
automáticamente a modo de
mantenimiento cuando la batería esté
completamente cargada.
D. Conectado a la red local
inalámbrica de internet: Cuando el
ícono es de color verde, indica que
el cargador está conectado a la red
local inalámbrica de internet. Cuando
el cargador no está conectado a la red
local inalámbrica de internet, el ícono
se pone gris. Toque para comprobar
la intensidad de la señal.
E. Conectado a la CA: Cuando está
verde, indica que el cargador está
conectado a una toma de CA de 120 V
activa. Si el cargador está desconectado
de la CA, el cargador se apagará
automáticamente de la batería durante
cinco minutos, y enviará una pérdida
de la señal de potencia a la aplicación.
Cuando no se detecta la alimentación de
CA, el ícono se pone gris.
F. Conectado a la batería: cuando
está verde, indica que la batería está
conectada correctamente al cargador.
Cuando las abrazaderas se invierten o
no se conectan, el ícono se pone gris.
G.Voltaje de la batería: muestra el voltaje
de la batería. Este voltaje varía en todo
el ciclo de carga, pero proporciona una
indicación del estado de la batería.
Si el valor cae por debajo de 12.5 V
durante los modos de otación o
mantenimiento, esto podría indicar un
excesivo consumo en la batería por el
vehículo o la batería que se aproxima
al nal de su vida.
H.Amperios de carga: muestra la
corriente que el cargador está
poniendo en la batería.
I. Temperatura del cargador: muestra el
estado de la temperatura del cargador.
El cargador bajará automáticamente
la corriente de carga si detecta que la
temperatura es más alta de lo normal.
Utilice el ícono de la casa para volver a
la pantalla de INICIO.
AB
D
G
E
H
F
I
C
All manuals and user guides at all-guides.com
