Schwinn S6767 User manual

Keep instrucons for future reference.
OWNER’S MANUAL
The owner’s manual contains assembly, use and maintenance
instrucons. The tricycle must be assembled by an adult who
has read and understands the instrucons in this manual.
Keep the packaging away from children and dispose of all
packaging before use.
4-in-1
Model Number: S6767, S6769
Easy Steer Tricycle

2
WARNING!
1Safety
• Always wear shoes when using the tricycle.
• Never allow more than one rider.
• Never leave child unaended.
• Children under 12 months of age cannot use this tricycle.
• Not to be used by children over 4 years due to size limitaons.
• Children should always wear a properly ed helmet that
complies with US Consumer Product Safety Commission (CPSC)
standard 16CFR 1203.
• Always wear pads when riding the tricycle.
• Keep hands, hair and clothes away from moving parts.
SAFE RIDING WARNINGS
Before using the tricycle the child should understand the controls
and safety issues. They must also demonstrate the capability to
handle the tricycle and operate its controls. It is the responsibility
of the adult to educate the child and supervise the tricycle use.
Read the following safety warnings to any child using the tricycle
before riding.
• Only ride on level ground.
• Do not ride the tricycle on streets or near motor vehicles.
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW
MAY RESULT IN SERIOUS INJURY OR DEATH. Always read and
understand the informaon and warnings in this manual before
using the tricycle.
If you are unsure of any informaon in this manual or have a
queson regarding assembly or use please call customer service.
Always keep this manual for reference and include it with resale of
the tricycle.
ASSEMBLY WARNINGS
• Choking hazard to children under the age of 3 years This product
contains small parts that are for adult assembly only. Keep small
children away when assembling.
• Remove and dispose of all protecve material and poly bags
before assembly.
• Never allow children to assemble, fold, or disassemble the
tricycle.
CHILD WARNINGS
TO AVOID SERIOUS INJURY:
• Connuous adult supervision required.
• Never use near motor vehicles.
• Never use near streets, swimming pools, hills, steps, or sloped
driveways.

3
WARNING!
Age Range 12 months - 4 years
Weight Range No more than 55 lbs. (25 kgs)
Front Basket Maximum Load 4.5 lbs. (2 kgs)
Rear Basket Maximum Load 8.5 lbs (3.6 kgs)
USER REQUIREMENTS
• Never use the tricycle in an unsafe manner. Examples include but
are not limited to:
a. Pulling the tricycle with another vehicle or similar device
b. Allowing more than one rider
c. Traveling at an unsafe speed
• Do not ride in wet condions such as rain and snow, may result in
unexpected acon such as p over and skidding.
• Do not ride near bodies of water.
• Do not ride at night, in alleys or dark areas.
• Do not ride near drop-os such as; steps, sloped surfaces, hills.
• Do not ride into loose dirt, mud, sand, ne gravel, loose gravel
and rough surfaces.
• Avoid trac and pedestrians. Always use the vehicle in a safe,
secure environment with connuous adult supervision.
USE WARNINGS
Always use common sense and safe pracces when using the
tricycle.
• Always sit in the seat when using the tricycle.
• Always engage the foot brakes when parked to prevent rolling.
• Always make sure tricycle is completely stopped before engaging
the foot brakes.
• Transporng a child in the tricycle up or down stairs may lead to
serious injury. Child must be removed from tricycle before
transporng up or down stairs.
• Push handle is not intended to support weight of tricycle and
rider.
• Excessive weight may cause hazardous or unstable condions.
• Do not li tricycle by the armrests. Make sure armrests are
locked in place before use.

4
10mm
2Parts, Hardware, Tools Required

5
Hardware
Rear Axle Hardware x2
Bucket and Seat Hardware x3
Headrest Hardware x1
All hardware shown at exact size. During assembly place the nut
or screw required over the diagram to ensure the correct
hardware is being used.
�
�
Rear Axle Assembly
2
1
2
1
3Assembly

6
�
�
�
�
� �
Bucket Assembly
32
2
3
1

7
❶
❷
❶
❷
Front Wheel Assembly Handlebar Assembly

8
❹
❸

9
Seat Assembly
Furthest
seat posion
❺
❶
❷
❶ ❷
Tighten these 2 bolts ONLY enough to stop the seat from moving.
Over ghtening these bolts will eventually crush the seat, and may
cause damage.
Note: Seat is adjustable. Choose the appropriate seat posion and
install the bolts.
Note: The armrests cannot be locked into place when the seat is
installed in the furthest seat posion.

10
Headrest Assembly
❶
❷❸
❷
❸

11
WARNING!
Safety Rail Assembly
Do not li tricycle by the armrests. Make sure armrests are locked
in place before use.
❶ ❶
❷
❷
❶
❷
Note: The armrests cannot be locked into place, as shown in step 2,
when the seat is installed to the furthest back posion.

12
Sun Canopy Assembly
❶
❶❷

13
WARNING!
WARNING!
Parent Push Bar Assembly
❶
❹
Transporng a child in a tricycle up or down stairs may lead to
serious injury. Push handle is not intended to support weight of
tricycle and rider. Child must be removed from tricycle before
transporng up or down stairs.
❸

14
❷

15
WARNING!
4Use
❷
• Avoid injury. Always engage the foot brakes when parked to
prevent rolling away. Always make sure tricycle is completely
stopped before engaging the foot brakes.
• Always engage the foot brakes when stopping, or loading or
unloading child.
❶ To set the foot brake, use your foot or hand to push down on
the brake tabs located next to each back wheel.
❷ To release the foot brake, use your foot or hand to pull up on
each brake tab.
❶
Using the Foot Brake

16
Using the Seatbelt
❶
Foot Rests
Be sure the foot rest securely "snaps" into the up or down posion.
Note: Foot rest is designed to give children a place to rest their feet
if they are not pedaling. Be careful not to push the tricycle too
quickly with child's feet on the pedals, or they may come o the
pedals and cause the pedals to scrape their feet or legs.
❶
❷
❸

17

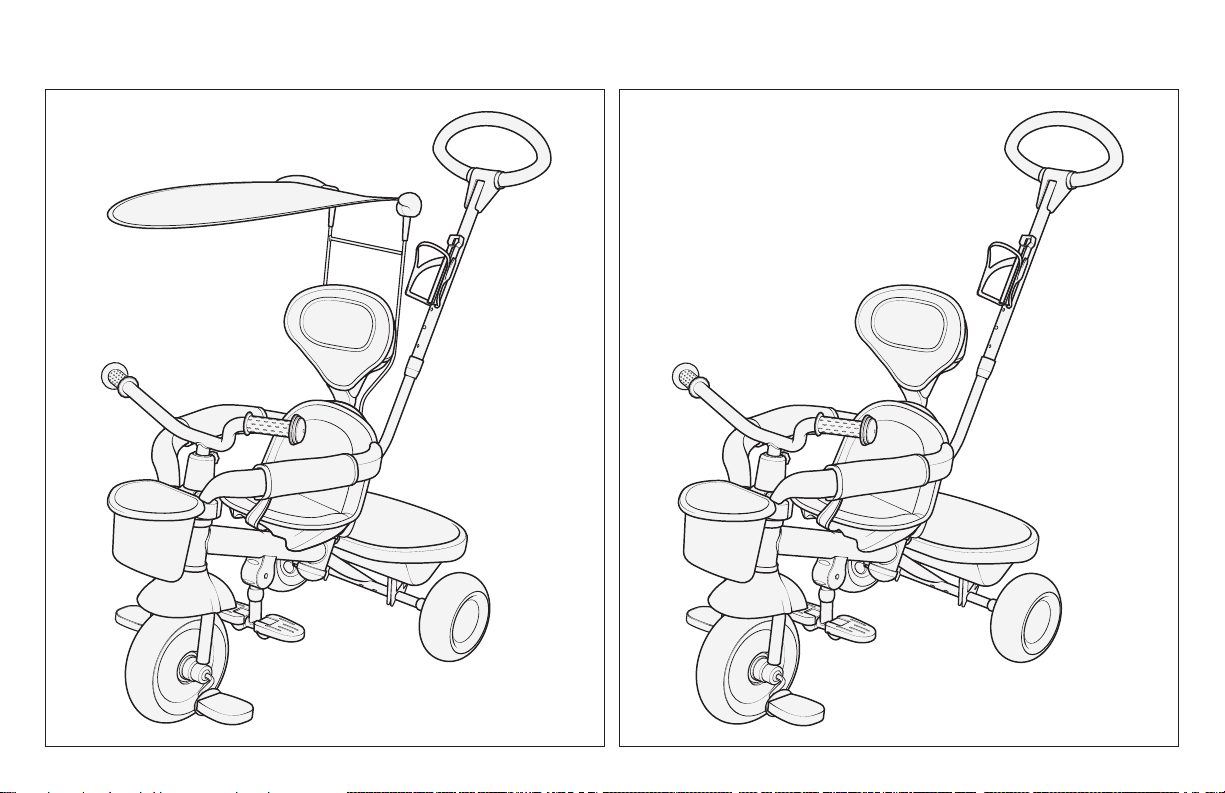

Stroll Push

18
Peddle Ride
Note: The boom part of the
harness needs to be removed
with screwdriver. Keep the
harness with the rest of the
unused padding.

19
5Maintenance
CARING FOR YOUR TRICYCLE
The tricycle comes with a durable nish. While this coat will
withstand years of use it is suscepble to rust if the coat is
damaged. We recommend touching up any scratches or gouges in
the nish with a similar paint color or clear protecve coang. Do
not return this product to the place of purchase. If your tricycle
needs service, repairs or replacement parts, call:
Pacic Cycle Consumer Relaons
Hours: 8:00 am – 5:00 pm (CST) Monday - Friday
Phone: [phone]
Email: customerservice@pacic-cycle.com
Web: www.pacic-cycle.com
To order replacement parts have the model number available. It is
found underneath the main frame.
