SCI 260 Series User manual

260 Series
GROUND BOND TESTERS
QUICK START GUIDE
Models: 264, 266
SAFETY CHECKLIST
Survey the test station. Make sure it is safe & orderly.
Always keep unqualied/unauthorized personnel away from the test area.
Familiarize yourself with safety protocols in the event of a problem.
Exercise caution and never touch products or connections during a test.
Train operators. Connect the return lead rst and never touch clips directly.
You should always know when a test is being performed.
WARNING: THIS GUIDE WAS CREATED FOR OPERATORS HAVING SOME FAMILIARITY WITH
ELECTRICAL SAFETY TESTING. AN ELECTRICAL SAFETY TESTER PRODUCES VOLTAGES AND
CURRENTS THAT CAN CAUSE HARMFUL OR FATAL ELECTRIC SHOCK. TO PREVENT ACCIDENTAL
INJURY OR DEATH,THESE SAFETY PROCEDURES MUST BE STRICTLY OBSERVEDWHEN HANDLING
AND USING A TEST INSTRUMENT.
See How Simple
Using Your Tester
Can Be
Watch the Quick
Start Video

Connect the female end of the standard
NEMA style line power cord into the
input power receptacle on the rear panel
of the tester. Plug the male end of the
cord into a grounded power source.
Connect the Interlock Disable Key into
the Signal Input connector on the rear
panel of the tester.
This is required to run a test.
Turn the POWER switch ON.
Upon start up an initial screen will
appear briey. After two seconds the
Home screen will appear as shown
below. Tests are performed from the
Home screen.
Grounded
Power
Source
Model 266 Model 264
Home Screen
1
2
3
TESTER SETUP
2SAFETY MADE SIMPLE®
264 Rear
264 Rear
264 Front
266 Rear
266 Rear
266 Front
WARNING: LOCATE A SUITABLE TESTING
AREA WITH A THREE-PRONG, GROUNDED
OUTLET. BE SURE THAT YOUR THREE-PRONG
OUTLET HAS BEEN TESTED FOR PROPER
WIRING. READ THE SAFETY CHECKLIST OF
THIS GUIDE BEFORE STARTING TO TEST.

If you wish to have multiple test setups, you will need to begin by choosing a Memory Location
(M1 - M5) for each test.
3
hipot.com
SETTING TEST MEMORIES
EDIT TEST PARAMETERS
START
PROGRAM A MEMORY
Turn the yellow rotary knob to
scroll to M1 to edit Memory 1.
(M2 = Memory 2, etc.)
Home screen.
When M1 is selected. Press the
rotary knob to recall Memory 1.
EDIT TEST PARAMETERS
When the parameter is selected,
Press the rotary knob to edit the
parameter. The options will blink.
From the Home screen, begin by
pressing the yellow rotary knob.
Turn the rotary knob to scroll to
desired parameter to edit:
CURRENT, HIGH-LIMIT, LOW-LIMIT,
DWELL, FREQUENCY, OFFSET,
CONNECT.
Turn the rotary knob to change
the options for the parameter.
Turn the rotary knob to BACK, and
press the rotary knob to return to the
Home screen. You may also press the
red RESET button to return Home.
Conrm each value by pressing the
rotary knob. Continue this process
for each parameter.
START

Hook the black return test lead (P/N 99-10724-01) to the black RETURN terminal on the
front panel of the tester. You may need to unscrew the terminal slightly to make room for
the hook.
Clip the other end of the black return test lead to the chassis of the DUT.
Hook one end of the red high current test lead (P/N 99-10725-01) to the red CURRENT
terminal on the front panel of the tester.
Clip the other end of the red high current test lead to the ground pin of the DUT’s
power cord.
TEST CONNECTION
Setting up a test connection on the 260 Series is simple. Follow the instructions below
to connect your DUT to a tester.
1
2
3
4
4SAFETY MADE SIMPLE®
RESET
POWER
TEST
RETURN
TEST
CURRENT
Model 264
GROUND BOND TESTER
2
3
4
1
WARNING: DO NOT TOUCH THE DEVICE
UNDER TEST ONCE YOU START THE TEST.

5
hipot.com
Connect the Interlock Disable Key (P/N 99-10040-01)
to the Signal Input connector on the rear panel of
the tester. If you’re not utilizing a DUT enclosure (P/N
99-10715-01 or P/N 99-10599-01) or other safety
device, the Interlock Disable Key is required in
order to run a test.
With the tester set to the desired parameter and
your DUT correctly connected to the tester, you are
now ready to start testing.
Push the green TEST button on the front panel.
The DUT is tested for a duration equal to the
Ramp and Dwell settings.
CONDUCT A TEST
1
2
3
PASS:
FAIL:
If the DUT passes the test, you will hear a short audible beep and the display
will indicate the test results.
If a failure occurs, you will hear a long audible alarm and the red ashing
indicator will light up. To stop the alarm press the red RESET button.
Pass/Fail Indication Screen
TEST RESULTS
If a failure occurs, a failure code will appear on the screen. Consult your
product manual to determine the meaning of your failure code.
WARNING: DO NOT TOUCH THE DEVICE
UNDER TEST ONCE YOU START THE TEST.

6SAFETY MADE SIMPLE®
DO NOT set up electrical safety testing stations and ESD (electrostatic discharge) stations in the same area. ESD protocols are designed to protect a
component or device from static discharge (not the operator from high voltage hazards). DO NOT use anti-static robes, benches or oor mats during
electrical safety testing. All of these items are used to intentionally ground the tester operator which can cause injury or death to a high voltage test
operator. Such stations are not designed for voltages above 250 VAC.
WARNING

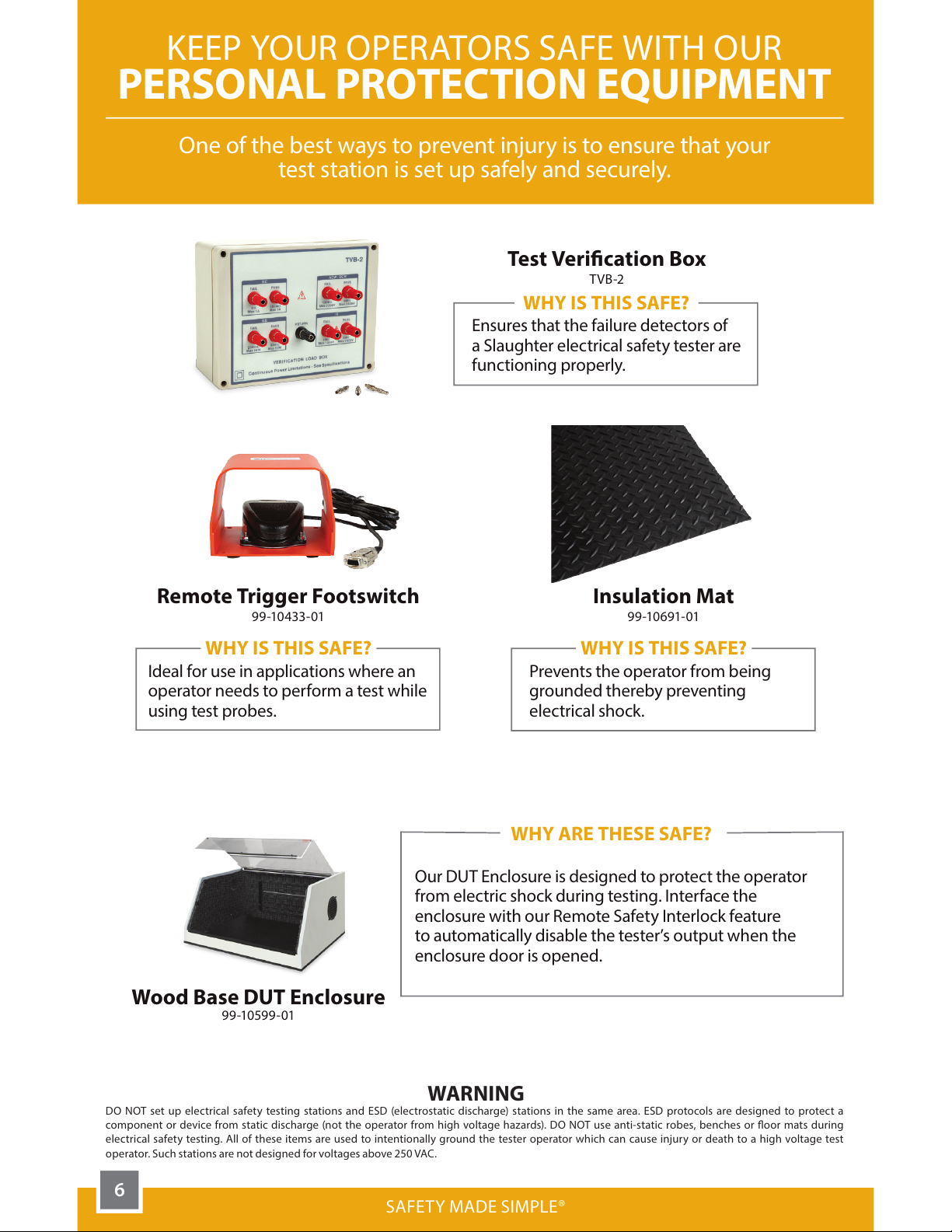

KEEP YOUR OPERATORS SAFE WITH OUR
PERSONAL PROTECTION EQUIPMENT
One of the best ways to prevent injury is to ensure that your
test station is set up safely and securely.
Wood Base DUT Enclosure
99-10599-01
Our DUT Enclosure is designed to protect the operator
from electric shock during testing. Interface the
enclosure with our Remote Safety Interlock feature
to automatically disable the tester’s output when the
enclosure door is opened.
WHY ARE THESE SAFE?
Remote Trigger Footswitch
99-10433-01
Ideal for use in applications where an
operator needs to perform a test while
using test probes.
WHY IS THIS SAFE?
Insulation Mat
99-10691-01
Prevents the operator from being
grounded thereby preventing
electrical shock.
WHY IS THIS SAFE?
Test Verication Box
TVB-2
Ensures that the failure detectors of
a Slaughter electrical safety tester are
functioning properly.
WHY IS THIS SAFE?

hipot.com

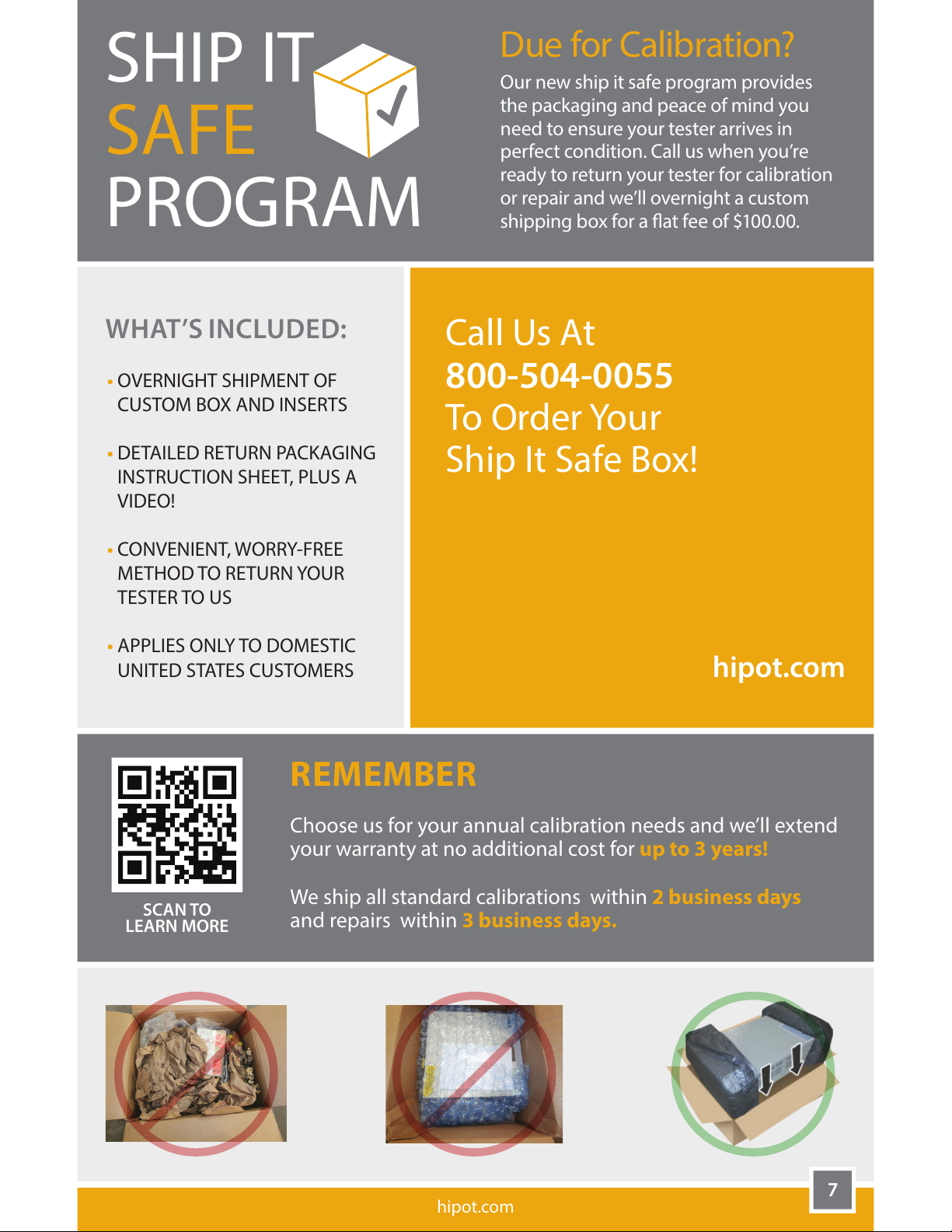

SHIP IT
SAFE
PROGRAM
Due for Calibration?
Our new ship it safe program provides
the packaging and peace of mind you
need to ensure your tester arrives in
perfect condition. Call us when you’re
ready to return your tester for calibration
or repair and we’ll overnight a custom
shipping box for a at fee of $100.00.
Call Us At
800-504-0055
To Order Your
Ship It Safe Box!
hipot.com
WHAT’S INCLUDED:
• OVERNIGHT SHIPMENT OF
CUSTOM BOX AND INSERTS
• DETAILED RETURN PACKAGING
INSTRUCTION SHEET, PLUS A
VIDEO!
• CONVENIENT, WORRY-FREE
METHOD TO RETURN YOUR
TESTER TO US
• APPLIES ONLY TO DOMESTIC
UNITED STATES CUSTOMERS
SCAN TO
LEARN MORE
REMEMBER
Choose us for your annual calibration needs and we’ll extend
your warranty at no additional cost for up to 3 years!
We ship all standard calibrations within 2 business days
and repairs within 3 business days.
7
