SCI TVB-1 User manual

Instruction
Sheet
TVB-1
Test Verication Box
Item 99-10721-01
Printed February 9, 2016
Version 1.01

hipot.com 2
TVB-1 Technical Specications
Symbol Explanation
Please refer to the instruction manual for specic warning or caution information to avoid personal injury or damage to
the product.
S’il vous plaît se référer au manuel d’instructions de mise en garde ou information sur la prudence pour éviter des
blessures ou des dommages au produit
To indicate hazardous voltages may be present.
Avertissement des tensions dangereuses qui peuvent être présentes
Model TVB-1
Components Resistor Specication
120kΩ 2.5 KVAC / 50W / 1% +/- 50ppm
2MΩ 3K VDC / 3W / 1% +/- 50ppm
GENERAL
Test Points Test Condition Specication
PASS
ACW / DCW 2MΩ / 6W
1. ACW: 1240V, 10mA or DCW: 2121V, 5000uA
2. Maximum Voltage 2500V
3. Test duty cycle, OFF time = ON time x 2
4. Maximum ON time limit 30 seconds
5. Recommended 2s ramp time
2% of resistor value
FAIL
ACW / DCW 120kΩ / 50W
1. ACW: 1240V, 10mA or DCW: 2121V, 5000uA
2. Maximum Voltage 2300V
3. Test duty cycle, OFF time = ON time x 8
4. Maximum ON time limit 5 seconds
5. Recommended 2s ramp time
2% of resistor value
Environment 32° F - 104° F (0° - 40° C)
Dimension 7.3” (W) x 5.75” (L) x 2.95” (H) , 186mm x 146mm x 75 mm
Weight 0.70 Kg, 1.55 lbs.

hipot.com 3
General Information
The TVB-1 is a go/no-go load box for verifying that the failure detectors of your Slaughter electrical safety compliance tester are
functioning properly. Use the TVB-1 daily before you begin performing Hipot tests. The TVB-1 is not intended to comply with
any specic safety agency standard.
Note: the trip setting may vary up to 10% of the set value based on the combined tolerances of the instrument and the
components used in the TVB-1.
Using the TVB-1
The TVB-1 load box consists of resistors of varying types that induce a PASS or FAIL condition depending on the test parameters
that are set in your electrical safety tester. The two Red and one Black banana jacks located at the top of the TVB-1 box can be
used to apply the corresponding load to the output of your tester. Each banana jack should be used for a particular type of test,
which is outlined on the layout of the load box.
Ensure that the settings on your electrical safety tester are less than or equal to the maximum recommended voltage, current
and duty cycle settings of the TVB-1. When all connections have been made, press the TEST button to begin the test. With the
correct settings entered into the electrical safety tester, connecting the output leads to a PASS terminal should result in a PASS.
RETURN
POWER
RESET
TEST
H.V.
5KVAC MAX.
6KVAC MAX.
CAUTION
HIGH VOLTAGE
CONT.
CHECK
AC/DC/IR HIPOT TESTER
TVB-1
VERIFICATION LOAD BOX
120 kΩ
Max 2300V
RETURN PASSFAIL
120 kΩ
Max 2300V
Continuous Power Limitations - See Specifications
12

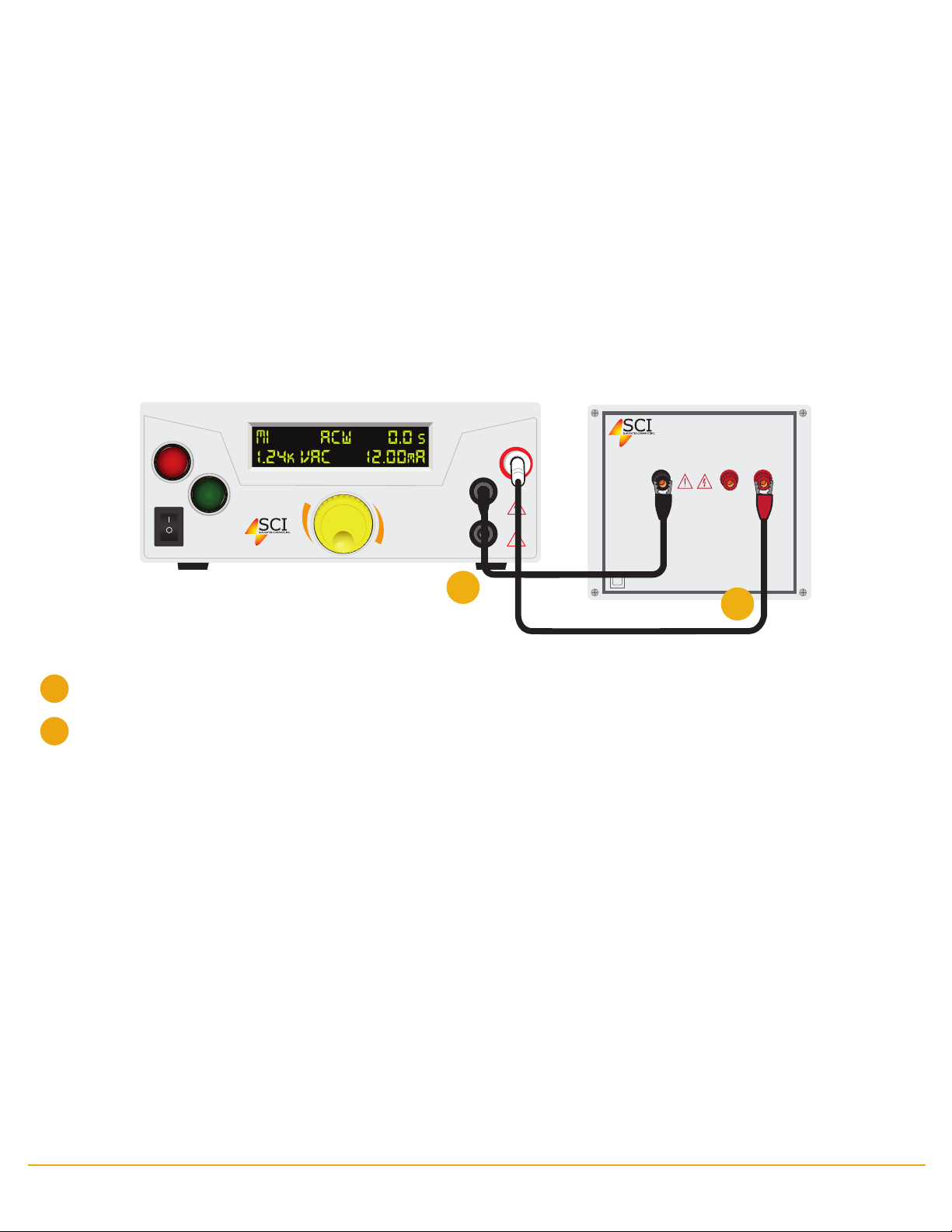

Connect the return lead from the RETURN point of your electrical safety tester to black RETURN point TVB-1.
To setup a test, connect the high voltage lead of your electrical safety tester to the red PASS point.
1
2

hipot.com 4
Ensure that the settings on your electrical safety tester are less than or equal to the maximum recommended voltage, current
and duty cycle settings of the TVB-1. When all connections have been made, press the TEST button to begin the test. With the
correct settings entered into the electrical safety tester, connecting the output leads to a FAIL terminal should result in a FAIL.
Note: pay close attention to the maximum voltage and duty cycle limitations of each resistor. Applying voltages that
are higher than the recommended maximum setting or duty cycles greater than indicated can cause damage to the
TVB-1.
Note: attention à la tension maximale et les limites du cycle de travail de chaque résistance. L’application de tensions plus
élevées que le réglage maximum recommandé ou cycles de travail supérieures à celles indiquées peut causer des dommages à
la TVB-1

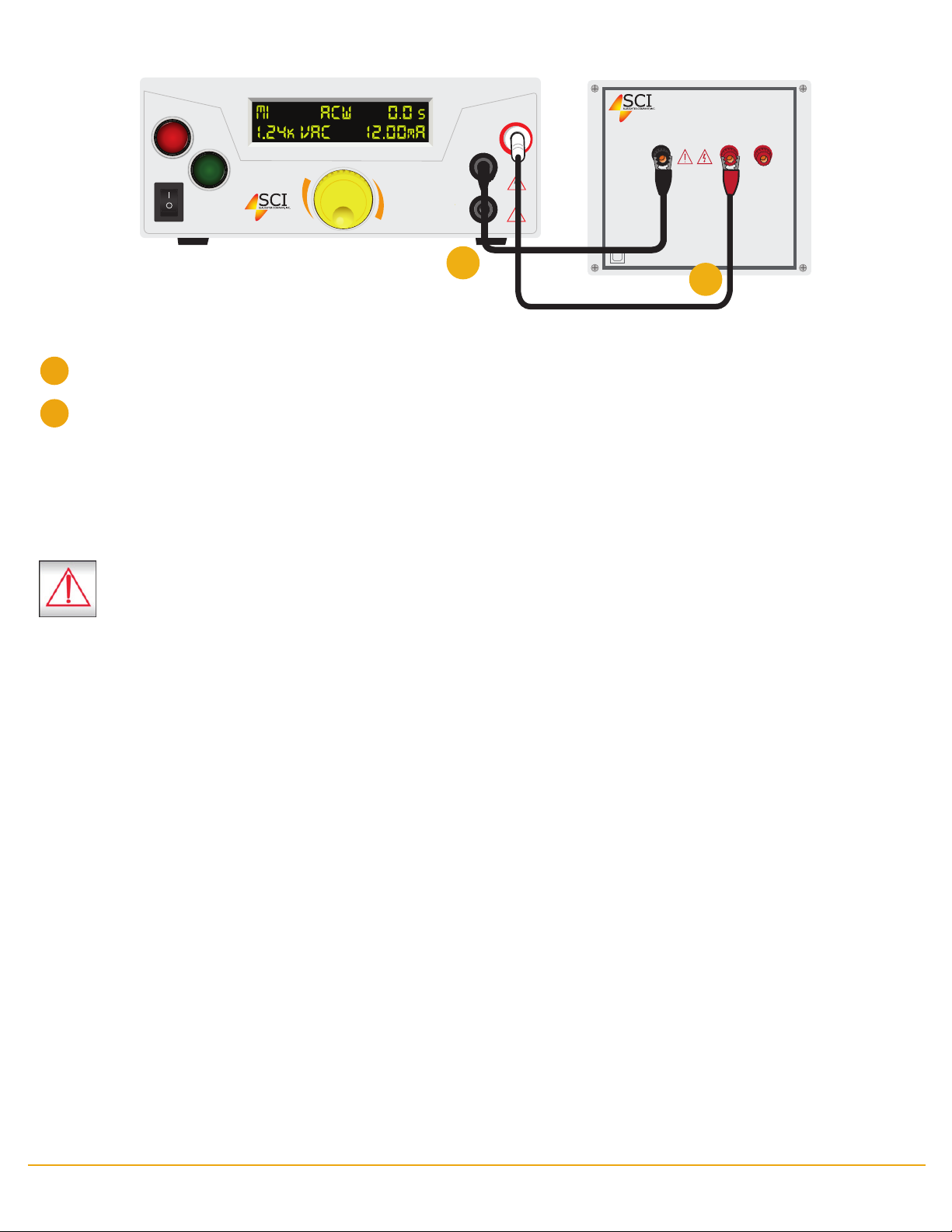

Connect the return lead from the RETURN point of your electrical safety tester to the black RETURN point on TVB-1.
To setup a test, connect the high voltage lead of your electrical safety tester to the red FAIL point.
1
2
RETURN
POWER
RESET
TEST
H.V.
5KVAC MAX.
6KVAC MAX.
CAUTION
HIGH VOLTAGE
CONT.
CHECK
AC/DC/IR HIPOT TESTER
TVB-1
VERIFICATION LOAD BOX
120 kΩ
Max 2300V
RETURN PASSFAIL
120 kΩ
Max 2300V
Continuous Power Limitations - See Specifications
12

hipot.com 5
Recommended Test Parameter Conditions
The following table illustrates the resistor values and recommended test parameter settings for each type of test. Pay close
attention to the duty cycle limitations in the specications in order to avoid damaging the TVB-1 load box.
WARNING:
The test voltages and currents which can cause harmful or fatal electric shock. To prevent accidental injury or death,
these safety procedures must be strictly observed when handling and using the test instrument.
Les tensions et les courants qui peuvent causer des chocs électriques dangereux ou fatal. Pour éviter les blessures accidentelles
ou la mort, ces procédures de sécurité doivent être strictement observées lors de la manipulation et l’utilisation de l’instrument
de test
Not rated for measurements within MEASUREMENT CATEGORIES II, III, or IV
N’est pas classé pour les catégories de surtension II, III ou IV
DO NOT TOUCH WHEN TESTING OR AFTER A MALFUNCTION HAS OCCURRED.
NE TOUCHEZ PAS LORS DE L’ESSAI OU APRÈS UN DYSFONCTIONNEMENT DU PRODUIT
CAUTION: Never connect TVB-1 to any mains circuit directly
ATTENTION: Ne jamais connecter directement le TVB-1 à un circuit d’alimentation.
ACW DCW
PASS 2MΩ 2MΩ
FAIL 120kΩ 120kΩ
Instrument Settings 1240V
10mA
2121V
5000uA
Ramp 2s 2s

hipot.com 6
Maintenance
To prevent electric shock do not remove the instrument cover. There are no user serviceable parts inside. Routine maintenance
or cleaning of internal parts is not necessary. Any external cleaning should be done with a clean dry or slightly damp cloth. Avoid
the use of cleaning agents or chemicals to prevent damage plastic parts or lettering.
Entretien
Pour éviter les chocs électriques ne pas enlever le couvercle de l’instrument. Il n’y a aucune pièce reparable par l’utilisateur.
L’entretien de routine ou le nettoyage des pièces internes ne sont pas nécessaires. Tout nettoyage externe doit être fait avec un
chion sec ou légèrement humide. Éviter l’utilisation de produits de nettoyage ou des produits chimiques pour éviter d’eacer
les lettres ou d’abimer les pièces en plastique.
Operating Environment
This instrument may be operated in environments with the following limits:
- Indoor Use Only
- Altitude: 2000 m
- Temperature: 32º F to 104º F (0ºC to 40ºC)
- Humidity: Maximum 80% RH at 31ºC decreasing to 50% RH at 40ºC
- Pollution Degree: 2
