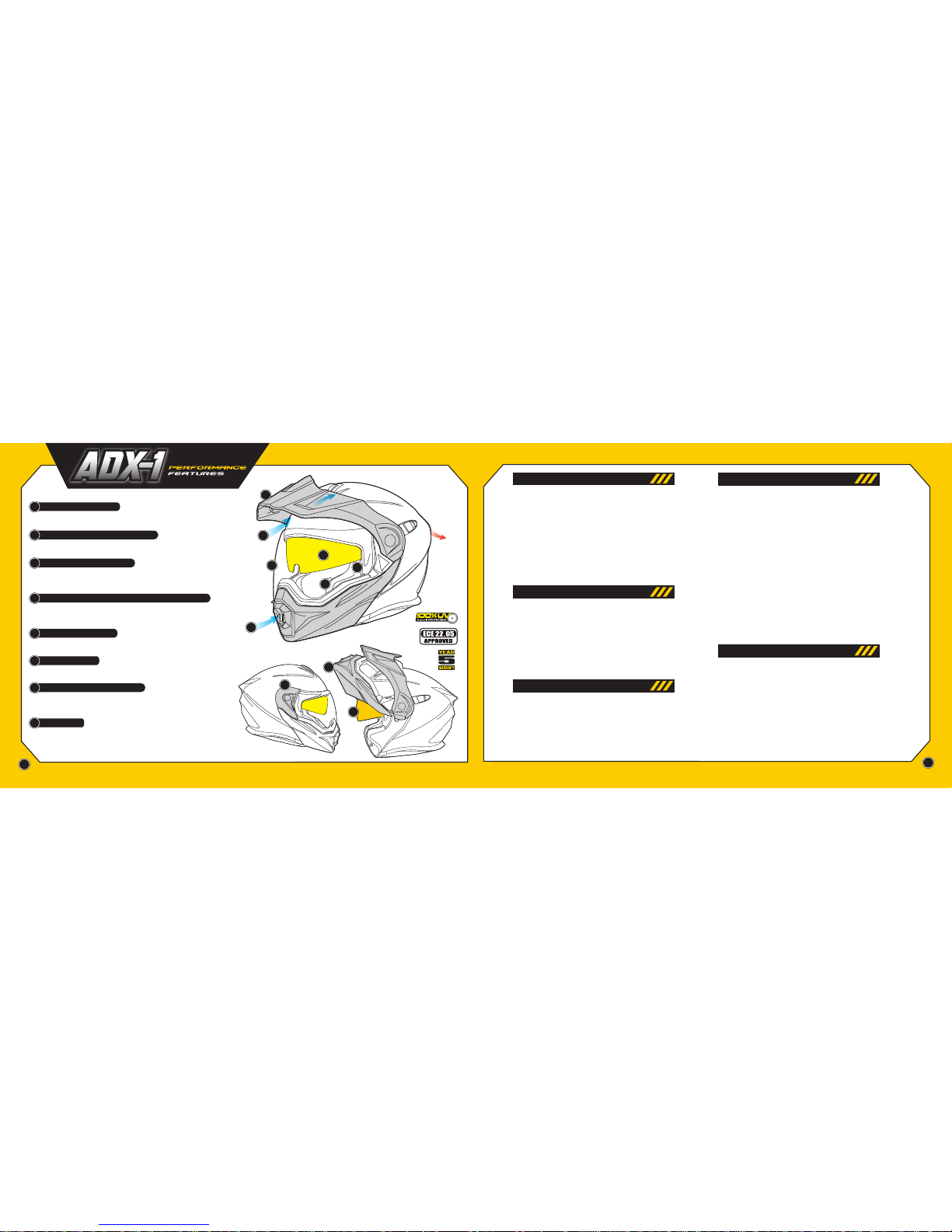

Removable aero-tuned peak visor. Designed and optimized for maximum
airflow and mobility.
2
Aero-Tuned Peak Visor
Retractable internal sun visor changes positions with a simple
slide of a switch.
3
SpeedView® Retractable Sun-Visor
The shield is with Anti-Scratch hardened coating, and is ready for
Pinlock® MaxVision® system, the world’s best fog free resistant
system.
4
Pinlock® Ready Faceshield
Scorpion’s moisture-wicking lining material feels cool to the
touch in warm weather and warm in cool weather while
maintaining anti-microbial and hypo-allergenic properties
5
KwikWick® II Washable Anti-Microbial Comfort Liner
6
Kwikfit™ cheek pads allow easy on and off of the most
common styles of eye glasses.
7
KwikFit® Cheek Pads
A single button release allows the chin bar to be raised or
lowered with ease for either hand.
Flip-up Chin Bar
Intake ports across the front of the helmet force cool air into the
helmet interior while exhaust vents maximize movement of hot air
out of the helmet.
Aero-Tuned Ventilation System
2
2
4
6
1
35
7
7
8
8
Side covers are bundled to provide a perfect full-face look.
It is pre-installed to the helmet, and can be replaced with the peak visor.
Side Covers
Introduction
Function
Fit
FaceShields
Ventilation Systems
Congratulations for acquiring a premium ScorpionExo®helmet.
This helmet embodies the latest, state-of-the-art design,
engineering and technology available in the market today
and is an excellent investment for your comfort and protection.
Please remember that no helmet can protect you against
all possible or foreseeable impacts even when built with
the latest and best materials and technology.
The following information will help you to enjoy and properly
care for your helmet.
A helmet’s main function is to protect your head from impact
in case of an accident. To accomplish this, a helmets surrounds
your head with a matrix of materials designed to absorb and
cushion impact energy in some accidents. A helmet is also
designed to provide you with comfort while riding at speed
and in various weather conditions. Yet, there is a trade-off:
A helmet decreases hearing sensitivity, peripheral vision and
physical movement to a certain extent while providing
protection and comfort.
It is important for maximum safety that your ScorpionExo®
helmet fit snugly and comfortably on your head with the
retention strap (chinstrap) properly and snugly fastened. With
the chinstrap firmly fastened, grab the back of the helmet with
both hands and try to roll the helmet forward. If you can roll the
helmet over the eyes, it is too loose and you should try another
size of helmet.
The faceshield on your ScorpionExo®helmet provides
protection from weather, small flying objects and wind.
Tinted shields are available to protect your eyes from excessive
sunlight. The ScorpionExo®SpeedView®internal sunvisor
system allows you to instantly tint the sunlight.
!WARNING!
NEVER USE A DARK OR TINTED FACESHIELD OR SPEEDVIEW
VISOR IN DARK OR POOR VISIBILITY RIDING CONDITIONS.
This is not only unsafe, but also illegal in most countries.
NEVER WEAR A FACESHIELD THAT HAS BECOME SCRATCHED OR
WORN OUT, OR RIDE WITH A FACESHIELD THAT IS FOGGED BY
CONDENSATION. SCORPIONEXO®FACESHIELDS (CLEAR AND
SMOKE ONLY) COME WITH A SCRATCH-RESISTANT COATING.
The faceshields and sun visors are provided with an anti-fog
coating, which also loses their capacity in about 2 years. For this
reason, we recommend that you change your visor at least every
two years with a new one.
Ventilation systems are designed and engineered to maximize
your comfort in a wide range of temperatures. Familiarize
yourself with the vents on your street helmet. Some vents
have detents allowing partial opening and closing, thereby
controlling intake and exhaust airflow.Your helmet ventilation
systems should be kept clear of any obstructions including
dirt, insects or other items which could interfere with proper
flow of air. The ventilation systems play an important role,
especially during physical exertion or hot-weather riding.
Ventilation helps decrease the possibility of fogging
on the faceshield.

34
EN EN
Aero-Tuned Peak Visor
Speedview®Sunvisor
Retraction-lever
Speedview®
Internal Sunvisor
Faceshield
Lift/lock tab
Mouth Intake Vent
Single button Face Bar
release
Crown Liner
Crown Liner
(Exterior View)
Cheek Pads
(Side View)
!WARNING! Always check to make sure the crown liner, neckroll and cheek pad are installed
before using the helmet.A helmet without the crown liner and/or cheekpad may increase your
risk of serious injury or death.

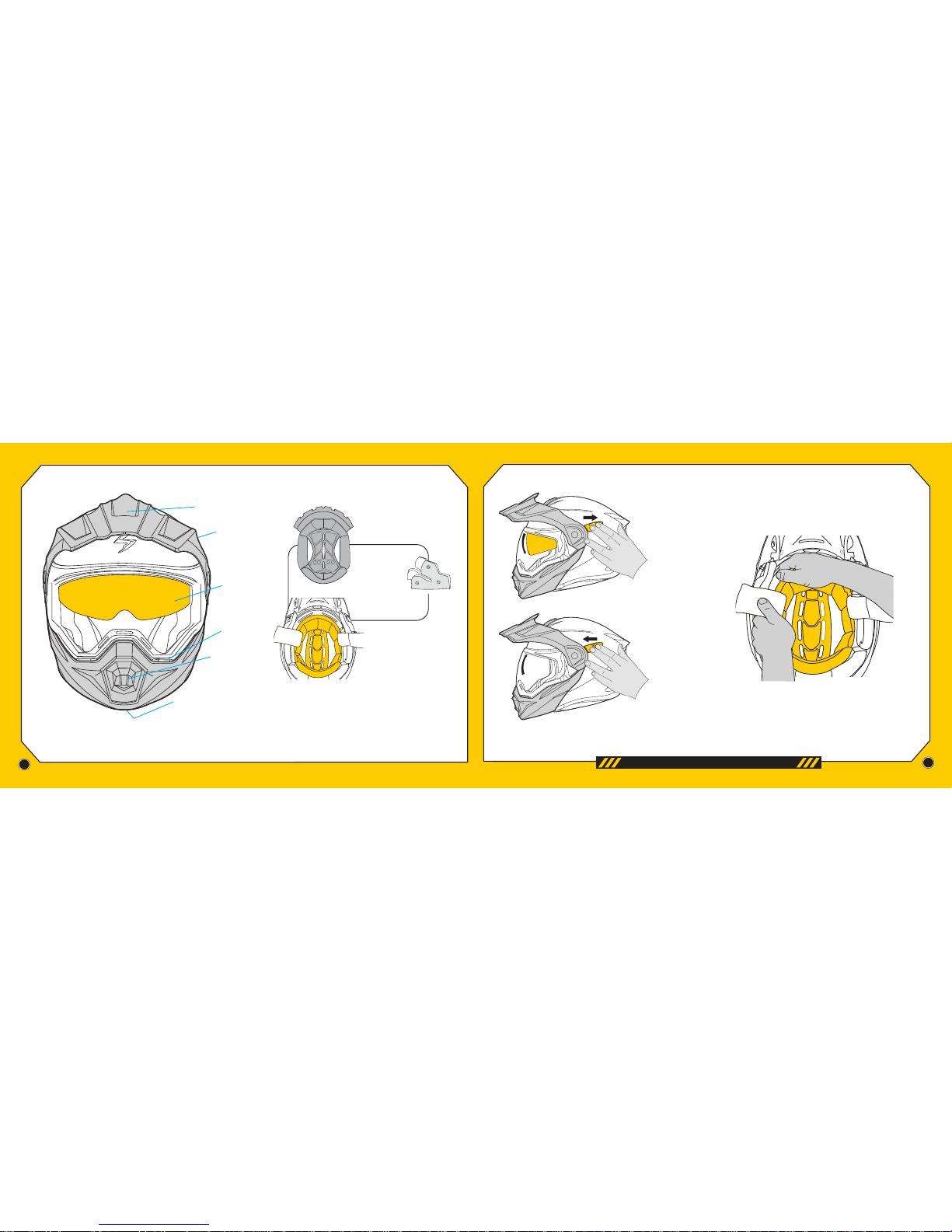

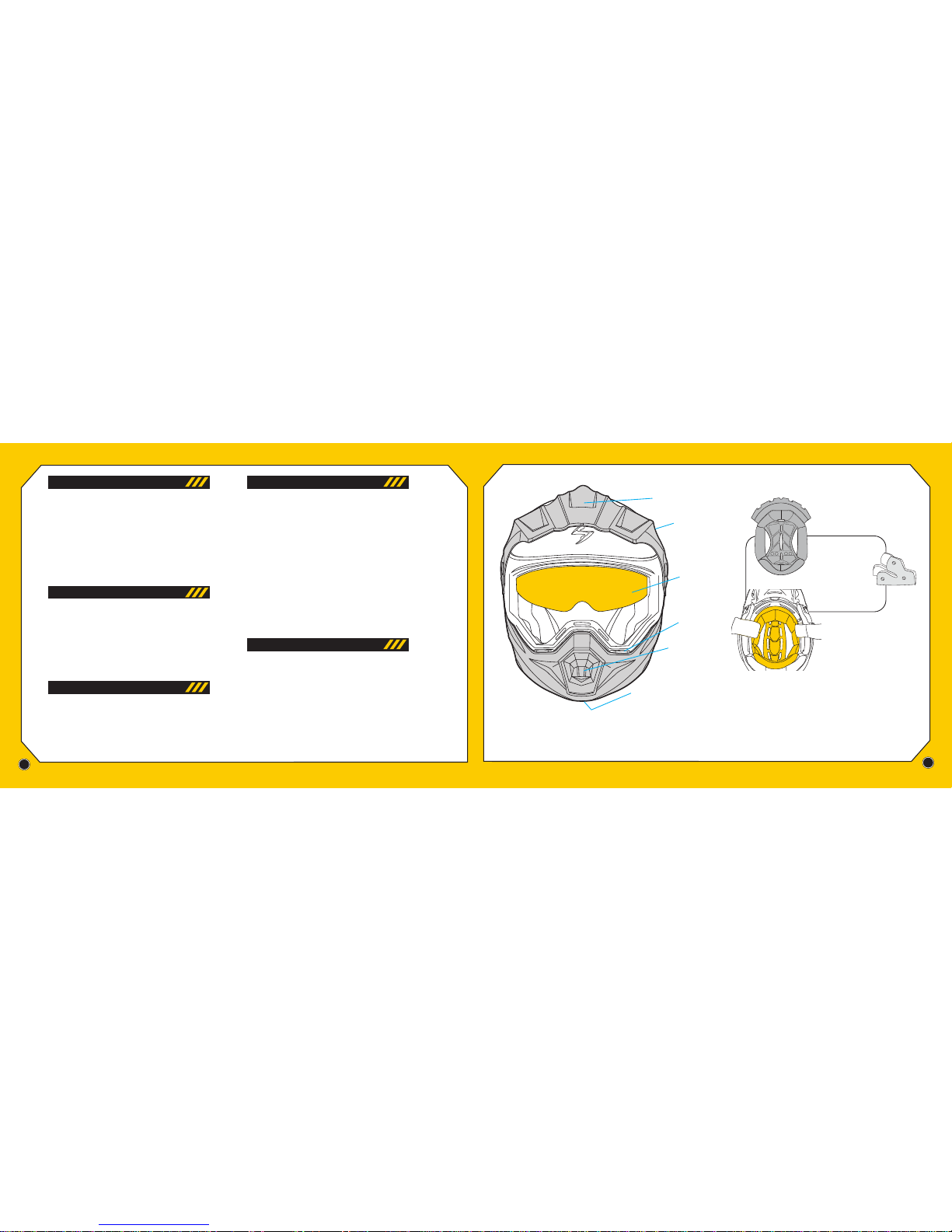

FRONT VIEW OF THE HELMET
DO NOT ATTEMPT TO ADJUST WHILE RIDING
USING THE RETRACTABLE
SPEEDVIEW® SUNVISOR
NOTE:THE RETRACTABLE INTERNAL SUNVISOR CAN
BE LOWERED AND RETRACTED, REGARDLESS OF
WHETHER OR NOT THE FACESHIELD IS UP OR DOWN.
To raise the sunvisor, just
slide the SpeedView®Sunvisor
Retraction-lever towards the front
of the helmet.
To lower the sunvisor, simply
slide the SpeedView®Sunvisor
Retraction-lever towards the back
of the helmet.
REMOVING THE CHEEKPADS
Gently pull cheek pads away from the interior wall of helmet
to unsnap the plastic clips on each side. Next, gently
tug away the cheek pads from helmet.

56
EN EN
REMOVING THE CROWN LINER
After removing the cheek pads, reach into the helmet and pull
out the crown liner shown below. The front part of the liner is
snapped to the helmet liner frame. Gently detach it from the
forehead channel and pull away from interior of helmet.
REMOVAL OF SPEEDVIEW®
SUNVISOR FOR CLEANING
OR REPLACEMENT
NOTE: FIRST, OPEN OUTER SHIELD TO THE HIGHEST POSITION.
THEN LOWER THE SUNVISOR TO LOWEST POSSIBLE POSITION.
Firmly hold the sunvisor with your hand and gently
pull one side out away from the helmet to release.
Repeat to release the opposite side.
Reverse process for installation.

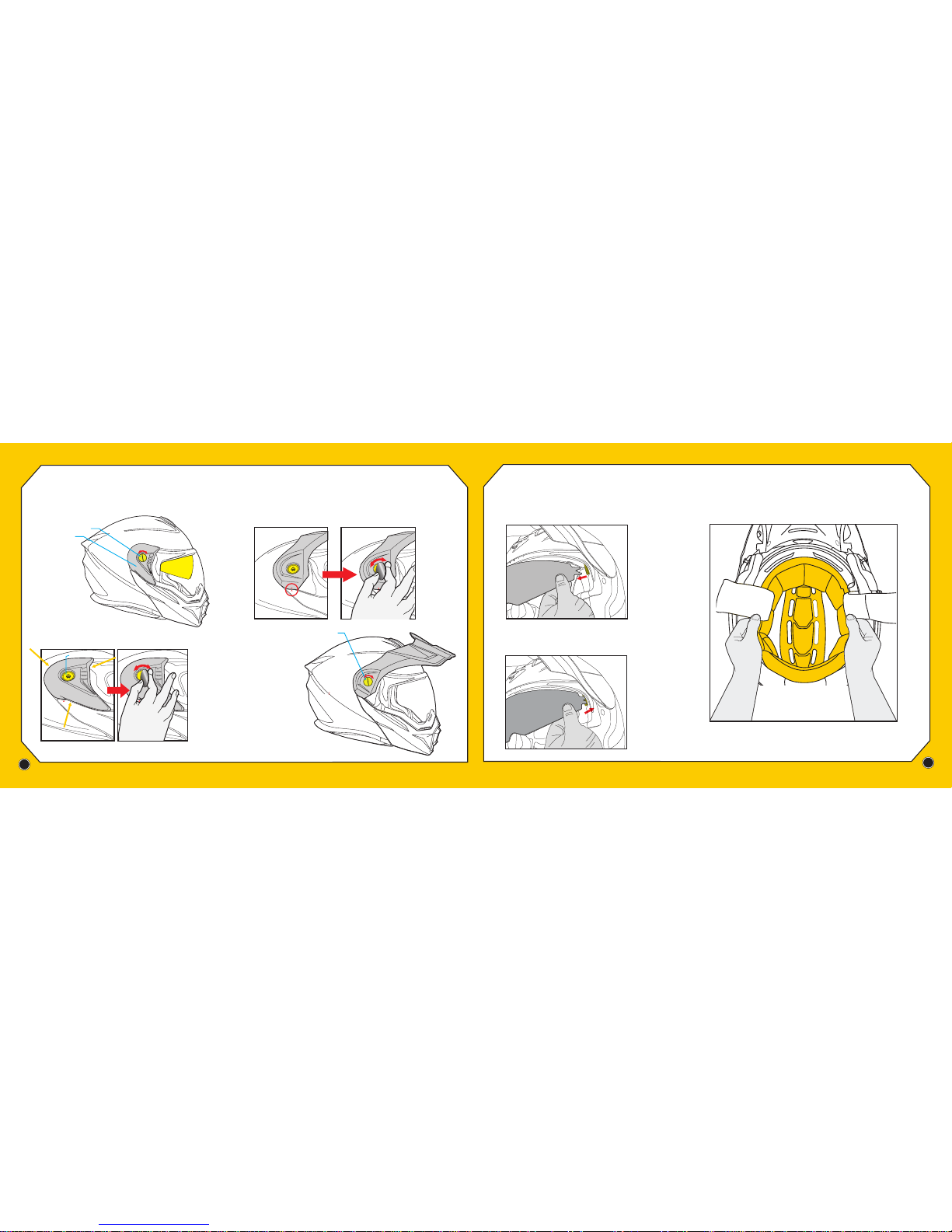

REMOVING THE SIDE COVERS
INSTALL SIDE COVERS
To remove the side covers, first make sure chin bar is closed.
Then twist off each of the 2 peak visor screws from both sides.
Gently lift off helmet.
To install the side covers,
first remove the peak visor.
Then align each side cover
over the faceshield side
(see yellow arrows) and with
the peak visor screw hole.
Insert peak visor screws into
each side and firmly tighten
both sides by a tool like a coin.

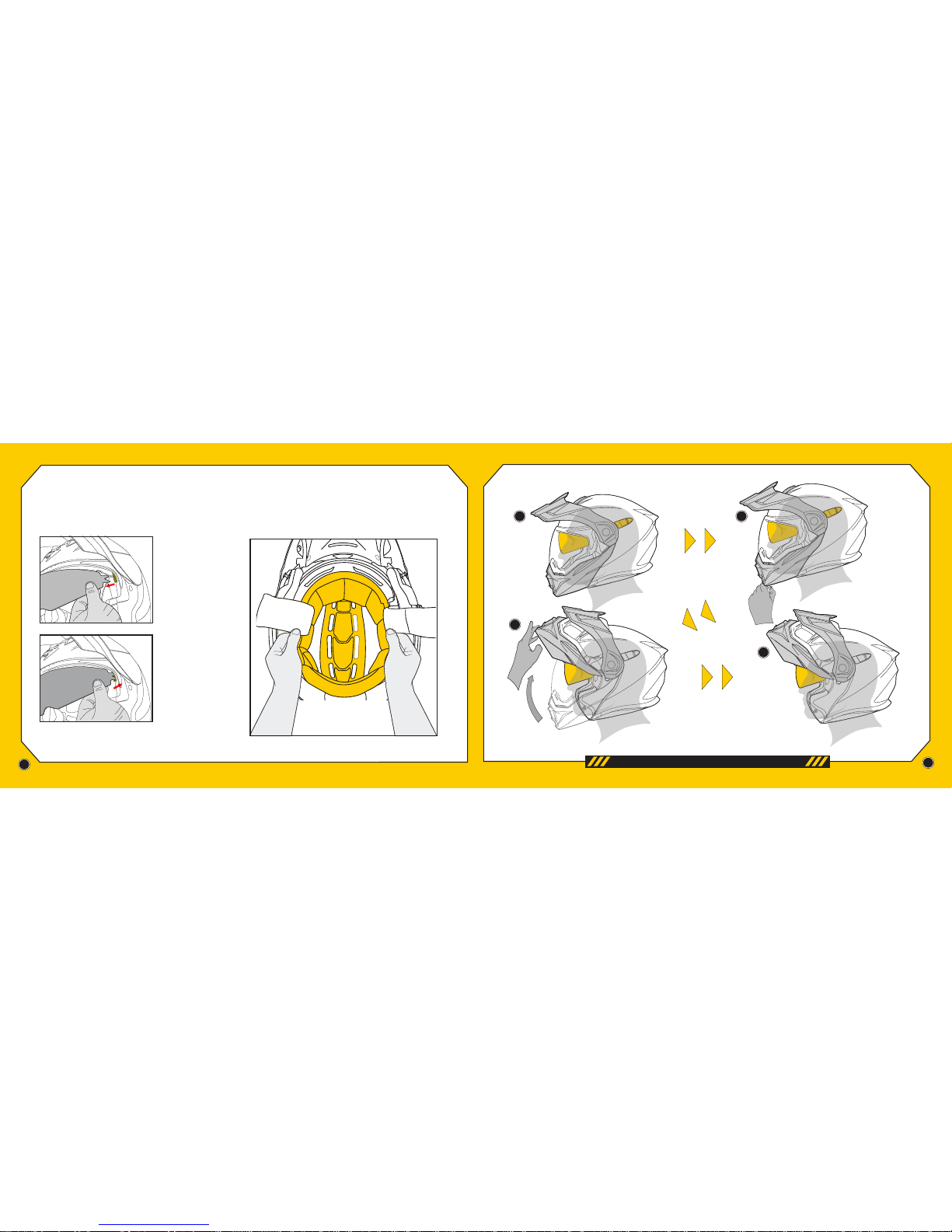

INSTALL PEAK VISOR
To install the peak visor, align the visor in the upright position and
line-up the arrows on the chin bar and peak visor (circled in red).
Insert peak visor screws into each side and firmly tighten both sides
by a tool like a coin.
Peak Visor Screw
Peak Visor Screw
Side Cover
Peak Visor
Screw Hole
Use a tool
(like a coin)
to tighten
the screw.

78
EN EN
12
3
4
OPERATION OF FLIP UP CHIN BAR
!WARNING! BE SURE THAT CHIN BAR IS CLOSED SECURELY!
DO NOT OPERATE MOTORCYCLE WITH CHIN BAR IN OPEN POSITION!
DO NOT ATTEMPT TO ADJUST WHILE RIDING
PULL LEVER DOWN AND AWAY FROM FACE
To remove your faceshield, first you will need to remove the peak
visor. Once the peak visor is off. Remove the faceshield one side at a
time. Replace with new one.
Once the new faceshield is in position, re-install the peak visor
or side covers.
FACESHIELD REPLACEMENT SECURING AND WEARING
YOUR HELMET
To remove the peak visor (or side covers), first make sure chin bar
is closed. Then twist off each of the 2 peak visor screws from
both sides. Gently lift off helmet.
Peak Visor Screw
Cleaning Your Helmet System
FIRMLY AND SECURELY FASTEN YOUR CHINSTRAP
Check your chinstrap for tightness occasionally as vibration or wind may
loosen it.
®
None of the components of your ScorpionExo™ helmet can be damaged
by water. All headliners and sweat-wicking cheek pads are machine
washable. Wash them with a mild detergent in warm water and allow to
air dry. Hand washing is recommended, but machine washing is also
permitted. Use the “delicate” cycle to prevent the agitator
from damaging the sweat-wicking material covering the liner parts,
HOW TO USE CHINSTRAP
While you are wearing your helmet,
grasp the notched arm of the
chinstrap with your right hand, and
the locking mechanism with your
left hand. Pull the nylon tab with
your thumb and forefinger to open
the locking brace. Insert the
notched arm into the slot. Release
the nylon tab to lock the arm in
place. Adjust as needed.
Nylon tab
Locking brace
Open slot
Notched arm
Do not simply pull your helmet down onto your head like a hat. Your
ScorpionExo®helmet should be worn as follows: Using both hands grab
the helmet’s bottom rim while holding the chin straps with your thumbs.
Then “roll” the helmet onto your head starting at the forehead. Continue
rolling the helmet on towards the back of the head until it comes to rest
with your head fully in contact with the inner lining and cheek pads.
