ScorpionExo EXO-2000 Air User manual

Performance Features
Developed exclusively by Scorpion, the revolutionary TCT®
(Thermodynamic Composite Technology) process consists of a
proprietary 5 layer blend of interlaced and specially formulated
fiberglass, Aramid and organic poly-resin fibers.
KDF-14-2 shield is with Anti-Scratch hardened coating, and is ready for
Pinlock®max vision system, the world’s best fog free resistant system.
KwikWick II®anti-microbial fabric keeps you cool and dry
in warm weather, warm in cool weather Liner is easily
removable and washable. (See page 5-6 for details)
Inflatable cheek pad system for superior personalized fit.
(See page 8 for details)
Easy, Secure, tool-less faceshield changes in seconds.
Pulls the shield back against the eyeport gasket during
closing to ensure a proper seal. (See page 9 for details)
Pump Here
Lock
Vent
Down
Retract
Six intake ports across the front of helmet force cool air in
while Ten exhaust vents maximize movement of hot air out.
TCT®Composite Shell
Pinlock Ready
®FaceShield
AirFit®Liner Inflation System
KwikWick II®Liner Fabric
Ellip-Tec™Ratchet System
Aero-Tuned Ventilation
3
To optimize weight, fitment, and comfort.
4 Shell Sizes
2
Kwikfit® cheekpads allow easy on and off of the most
common styles of eye glasses
KwikFit®
6
Designed to reduce noise and excess wind within the helmet
Quiet Neck Roll
7
2
1
1
1
1
4
4
3
5
8
5
9
6
7
9
Tabs located under the neck roll allow easy removal of the cheek
pads by emergency medical personnel thus allowing easier removal
of the helmet. (See page 4 for details and warning)
Emergency Release System
11
11
10
10
8
9
9
Shield securely locks in place. Or turn down for a light air
flow when riding at low speeds. (See page 3 for details)
Face Shield Lock / Vent System
EN

2
Introduction
Function
Fit
FaceShields
Ventilation Systems
Ventilation helps decrease the possibility of fogging
and condensation.
Ellip-Tec
EN

Face Shield Lock/Vent Lever
3
Note: First, Close Shield to the
lowest position to Lock/Unlock.
To lock the faceshield, turn Locking-lever counter
clockwise to the 2 o’clock position approximately.
Check face shield if it’s securely locked.
To unlock the faceshield, and provide air flow at
low speeds, turn Locking-lever clockwise to the 5
o’clock position. Test faceshield to check if it is
unlocked.
Note: When the lever is positioned at 3 o’clock, the shield
is closed, but it is also unlocked.
EN

4
Emergency Release System
Locate the emergency labeling on the
neck roll. Simply reach under the
neck roll and grab the release strap,
pull at a 45 degree angle towards
front of helmet. The cheek liner will
easily release from the helmet. This
system should only be used by
trained medical personnel.
Emergency Safety Release System
DO NOT ATTEMPT TO RELEASE WHILE RIDING
IN CASE OF ACCIDENT DO NOT ATTEMPT REMOVAL ON YOUR OWN
SNAP
PUSH
SNAP&Slot
PULL
Cheek&Pad
SNAP
PUSH
SNAP&Hole
PRECAUTION
1. SNAP may come off from the Cheek Pad
during Cheek Pad removal.
2. Locate the separated SNAP and reassemble
on to the Cheek Pad by pushing the SNAP into
the SNAP Slot on the Cheek Pad.
3. Align SNAP on the Cheek Pad to the SNAP
Hole and push the snap in until sound is heard.
12
3
!
EN

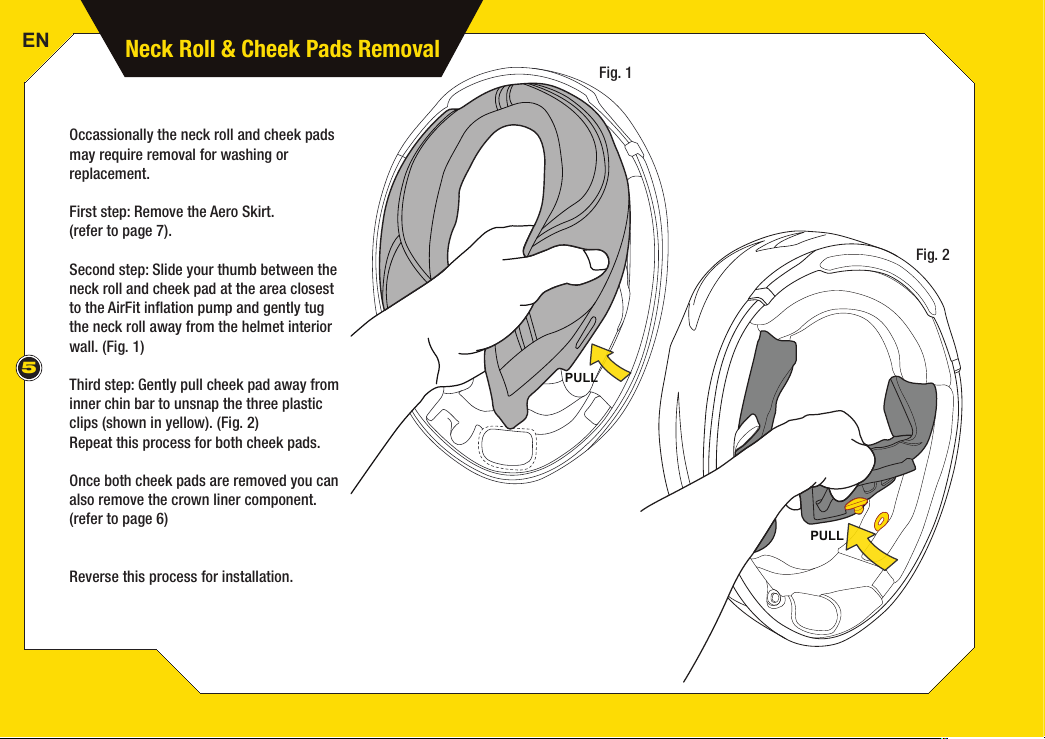

Neck Roll & Cheek Pads Removal
5
Occassionally the neck roll and cheek pads
may require removal for washing or
replacement.
First step: Remove the Aero Skirt.
(refer to page 7).
Second step: Slide your thumb between the
neck roll and cheek pad at the area closest
to the AirFit inflation pump and gently tug
the neck roll away from the helmet interior
wall. (Fig. 1)
Third step: Gently pull cheek pad away from
inner chin bar to unsnap the three plastic
clips (shown in yellow). (Fig. 2)
Repeat this process for both cheek pads.
Once both cheek pads are removed you can
also remove the crown liner component.
(refer to page 6)
Reverse this process for installation.
Fig. 1
Fig. 2
PULL
PULL
EN

Occassionally the crown liner may require
removal for washing, replacement or to
change sizes.
First step is to remove the cheek pads.
(refer to page 5).
At the back of the helmet pull the crown
liner away from the shell unsnapping the
two snaps (shown in yellow).
Pull the crown liner out of the helmet while
gently detaching it from the forehead
channel.
Reverse this process for installation.
6
Crown Liner Removal
PULL
EN

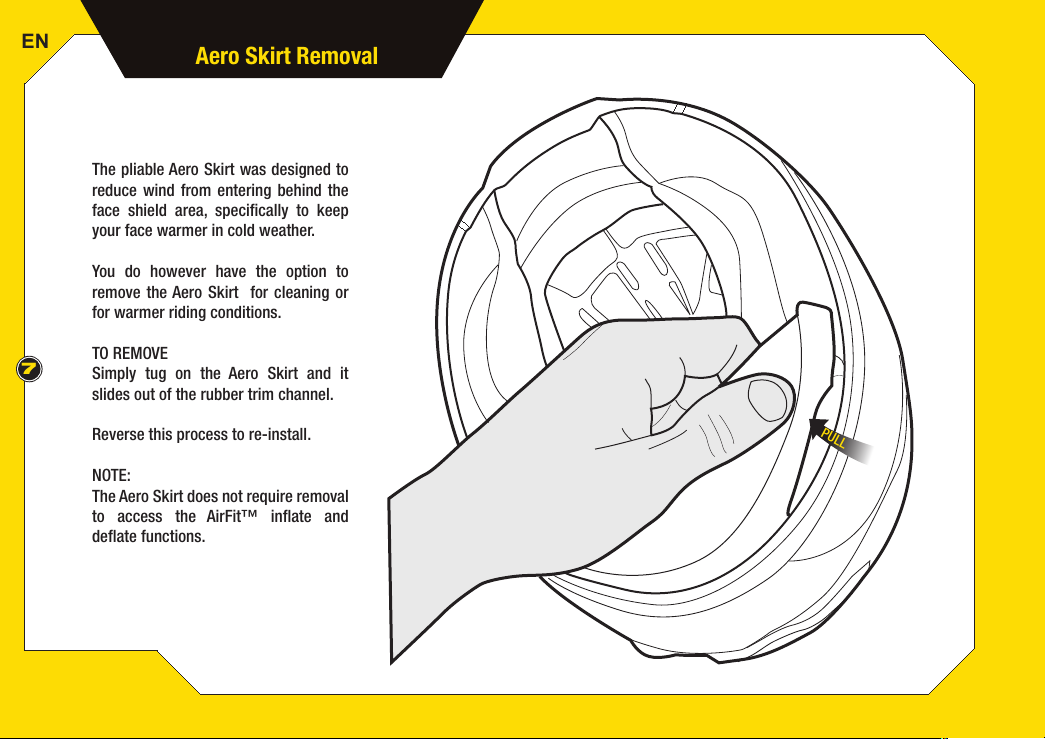

The pliable Aero Skirt was designed to
reduce wind from entering behind the
face shield area, specifically to keep
your face warmer in cold weather.
You do however have the option to
remove the Aero Skirt for cleaning or
for warmer riding conditions.
TO REMOVE
Simply tug on the Aero Skirt and it
slides out of the rubber trim channel.
Reverse this process to re-install.
NOTE:
The Aero Skirt does not require removal
to access the AirFit™ inflate and
deflate functions.
Aero Skirt Removal
7
PULL
EN

8
Inflatable Liner
INFLATION
While wearing the helmet press the large
ball until you reach the desired fitment.
DEFLATION
Press the small button to release the air. DO NOT
remove the helmet without first deflating the liner.
DO NOT modify, puncture, or damage the air bladders in any way. If the air bladders, or any other part of the inflation/deflation
system becomes damaged or faulty, please contact Scorpion Sports Europe at [phone].
DO NOT ATTEMPT TO ADJUST THE FIT WHILE RIDING
DEFLATE
INFLATE
EN

9
Cleaning Your Helmet System
FaceShield Replacement Securing and Wearing your Helmet
RATCHETING SYSTEM
To remove your faceshield, place the helmet in front of you with the eye
port facing away. Ratchet the faceshield up to the fully open position.
Using both hands, push up the Y shape release latchet upward and the
shield is able to release out of locking mechanism. Than, with both of your
thumbs pushing squarely on the center of the Ellip-Tec™, gently pull or
“peel” the faceshield away from the helmet.
IMPORT NOTE:
Be sure to latch up the
“Y” release latchet
while removing the
faceshield! FIRMLY AND SECURELY FASTEN YOUR CHINSTRAP.
Check your chinstrap for tightness occasionally as vibration or wind may
loosen it.
Do not simply pull your helmet down onto your head like a hat. Your Scorpion-
Exo™ helmet should be worn as follows: Using both hands grab the helmet’s
bottom rim while holding the chin straps with your thumbs. Then “roll” the
helmet onto your head starting at the forehead. Continue rolling the helmet on
towards the back of the head until it comes to rest with your head fully in
contact with the inner lining and cheek pads.
HOW TO USE CHINSTRAP
EN

10
Warning
DO NOT
Warranty
For your safety, it is important that you completely read the
owner’s manual and all warning labels.
DO NOT ride without snugly fastening your chinstrap.
DO NOT clean your helmet with petroleum products, solvents,
benzene, thinner or cleaning agents.
DO NOT paint over your helmet’s finish without totally protecting
and isolating the shock-absorbing liner and plastic parts.
Your warranty will otherwise be invalidated.
DO NOT drop your helmet from any height onto a hard surface.
This could cause damage to your helmet’s finished and/or
decrease its ability to protect you.
DO NOT place your helmet on your motorcycle’s rearview mirror:
The sharp pressure from the mirror’s edge will compress and
damage the helmet’s shock-absorbing liner.
DO NOT place your helmet on the motorcycle’s seat or fuel tank.
It can easily roll off and hit the ground causing damage to the
helmet. It is best to place your helmet on the ground so it cannot
fall in any direction.
DO NOT ride with a scratched faceshield. This can impair your
vision, especially at night.
DO NOT modify any part of your helmet, e.g., drilling the shell or
cutting and pressing the shock absorbing liner. Installation of
sound systems, speakers and microphones reduces your
helmet’s ability to protect you and is not recommended.
DO NOT use the helmet again if it has either been dropped or
involved in an accident. Replace it even if the damage is not
visible to the naked eye.
DO NOT wear a dark or tinted faceshield (including the
retractable SpeedViewTM Sunvisor) in dark or poor visibility
riding conditions.
DO NOT place your headliners and cheek pads in the dryer after
washing. Allow them to air dry.
DO NOT attempt to remove, change or replace your faceshield
while riding your motorcycle or ATV.
DO NOT use paint which requires heat curing.
For on-line registration of your new ScorpionExo helmet, please
log onto www.scorpionsports.eu and click on “Support”.
Should you have a warranty claim please call Scorpion Sports
Europe at [phone] during business hours and ask for
the warranty department. You may also take your helmet
to your local delear for evaluation.
