INSTALLATION INSTRUCTIONS LR100ARK
ADAMS RITE ELECTRIC LATCH RETRACTION DEVICE KIT
RIM EXIT DEVICE
MODELS: 3700 & 8800
801 Avenida Acaso, Camarillo, Ca. 93012 • [phone] •
www.sdcsecurity.com • E-mail: [email protected]
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [e-mail]
ELECTRICAL DATA
24VDC @ 700/200mA
RED (+) BLK (-)
PATENT #8,851,530

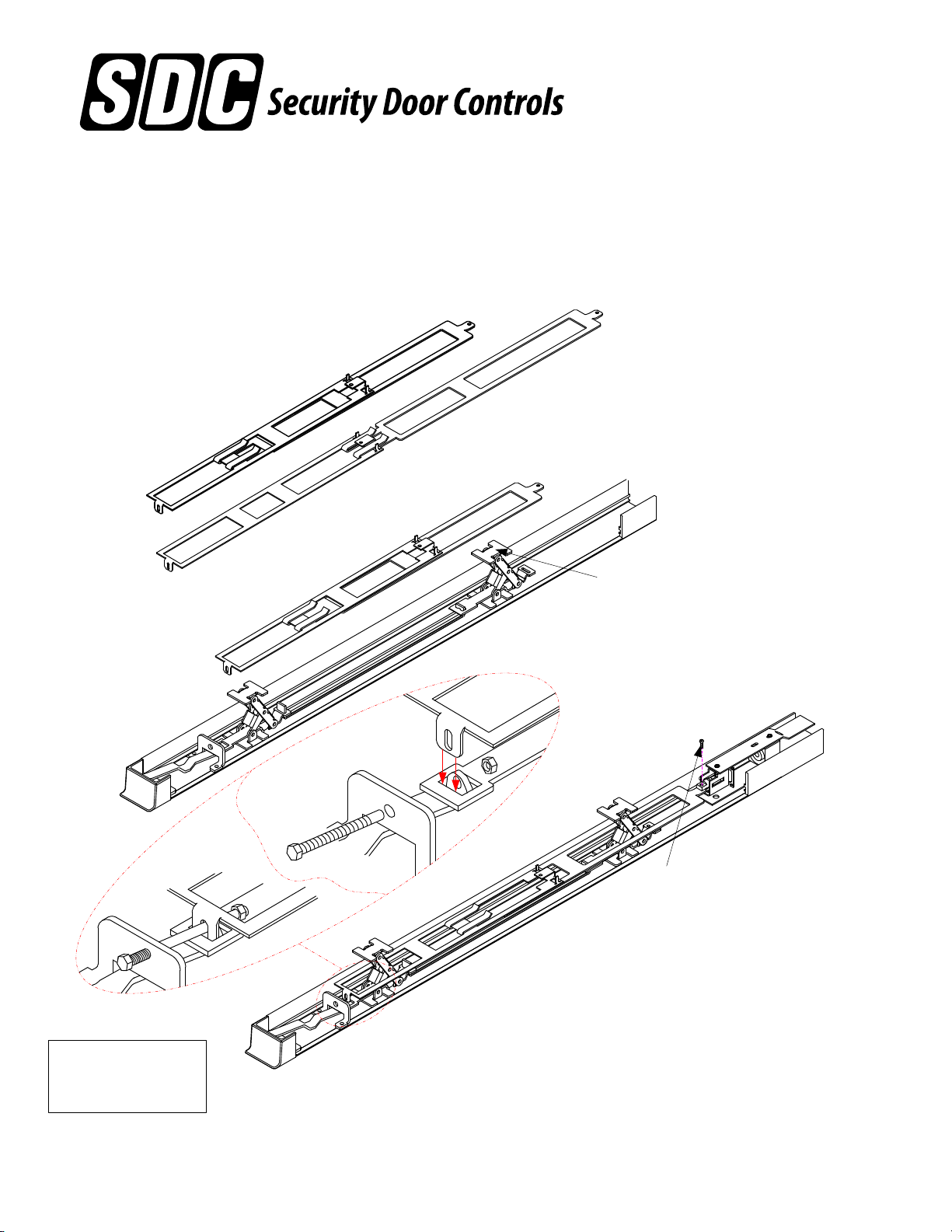

Assemble brackets
as shown for different
size Exit Devices.
Attach the Bracket assembly to
the existing Device linkage as
shown. Once the Bracket is in
place, bend out the tabs so the
Bracket assembly will slide easily,
without falling out or binding.
Install the ELR bracket
assembly into device
extrusion, over the Push
Bar support brackets.
Apply power to the ELR unit to make it draw the
sliding latch bracket back to the open position.
Secure in position by tightening the set screws in the
ELR assembly.
48"
36" or 42"
Slide ELR into back of
device and attach to
bracket assembly with
supplied screw.
Bend tabs out
Push Bar
support bracket
Remove
End Cap
Retrofit Installation Note: 42" or
48" exit devices that have been
modified to fit a 36" or smaller
opening, may not have the
required space to fit the standard
E. L. R. assembly. Always verify
the distance from the end of the
touchpad to the end rail, and if
necessary, consult with the
factory for appropriate selection.
* Visit: sdcsec.com/adamsrite
For Installation video

P:\INSTALLATION INST\SWITCH KITS\INST-LR100ARK.vsd REV - 12-19 Page 1
801 Avenida Acaso, Camarillo, Ca. 93012 • [phone] •
www.sdcsecurity.com • E-mail: [e-mail]
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [e-mail]
ELECTRICAL DATA
24VDC @ 700/200mA
RED (+) BLK (-)
PATENT #8,851,530
Assemble brackets
as shown for different
size Exit Devices.
Push Bar
support bracket
Disconnect the spring-bolt latching
assembly and use it to connect the
ELR bracket assembly to the existing
components as shown.
Install the ELR bracket
assembly into device
extrusion, over the Push
Bar support brackets.
Apply power to the ELR unit to
make it draw the sliding latch
bracket back to the open position.
Secure in position by tightening the
set screws in the ELR assembly.
48"
36" or 42"
Slide ELR into back of device
and attach to bracket assembly
with supplied screw.
Remove End Cap
INSTALLATION INSTRUCTIONS LR100ARK
ADAMS RITE ELECTRIC LATCH RETRACTION DEVICE KIT
VERTICAL ROD EXIT DEVICE
MODELS: 3100, 3600, 8100, 8200, 8500 & 8600
When retrofitting to existing
vertical rod devices, adjustment
of the rods is required for proper
operation of the Electric Latch
Retractor. Once the unit is
properly installed, energize it so
the latch is dogged down, then
reconnect the vertical rods to the
device and make the proper
adjustments.
Retrofit Installation Note: 42"
or 48" exit devices that have
been modified to fit a 36" or
smaller opening, may not have
the required space to fit the
standard E. L. R. assembly.
Always verify the distance from
the end of the touchpad to the
end rail, and if necessary,
consult with the factory for
appropriate selection.
For Installation video
* Visit: sdcsec.com/adamsrite
