Introduction
The Relio R5100 dual-core industrial computer is designed for CPU-intensive applications in industrial
environments. Available with a fanless 2.16GHz Intel® Core™2 Duo processor and up to 4GB RAM, the R5100
offers first-class performance and reliability. The system offers a wealth of standard I/O features including dual
Gigabit Ethernet, six USB 2.0 ports, four serial ports, and VGA video. Expansion options include one PCI slot and
one PCI Express X4 slot. The R5100 includes an external power supply and US power cord that accepts 100-240V
AC input and outputs 19VDC @ 90W. A pair of removable brackets allow for versatile mounting to walls, under
counters, and on tabletops.
An optional 2.5" solid-state SATA hard drive can be integrated and preloaded with Windows XP. An internally
accessible CompactFlash™ socket can be used for running Windows Embedded or Linux operating systems.
Fanless operation is possible to 45°C. With your operating system and application running from solid-state disk
or CompactFlash, the R5100 provides the ultimate in reliability —no moving parts.

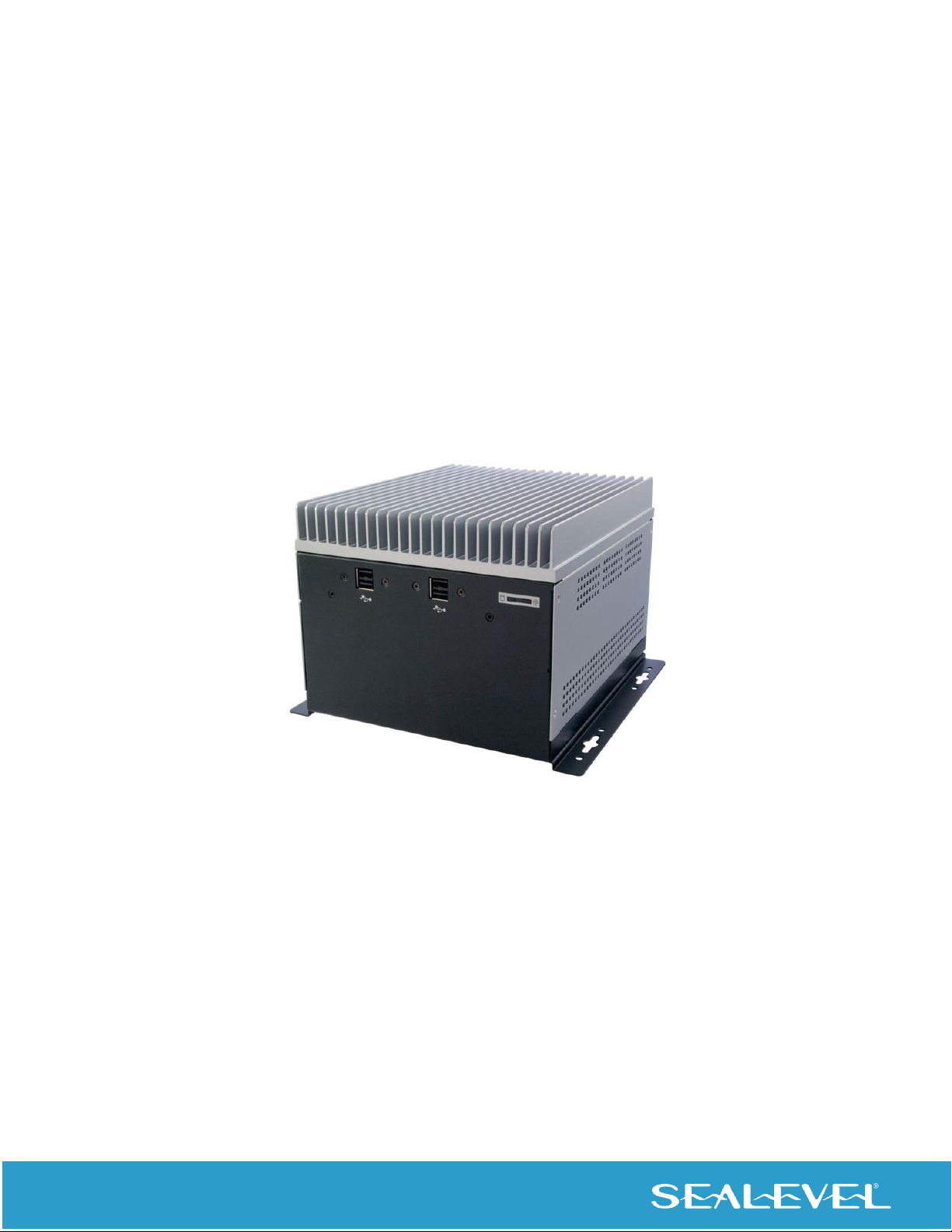

Relio R5100 Fanless Core™2 Duo Solid-State Computer

4
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
General Features
Relio R5100 systems are designed for CPU-intensive applications in industrial environments and include the
following features:
Standard System Features:
▪Compact, rugged enclosure with silver-colored finish
▪Large heat sink enables reliable, fanless operation
▪Solid-state operation with no fans or other moving parts
▪Includes 2.16GHz Intel® Core™2 Duo processor and 2GB RAM
▪PICMG CPU board with Intel® 945GME, VGA, and dual Gigabit LAN
▪Up to 4GB RAM (DDR2 533/667MHz 200-Pin SODIMM, Non-ECC, CL5) via two SODIMM
slots
▪Hardware (945GME GMCH GMA950) integrated graphics supports QXGA resolution up
to 2048x1536 @ 75Hz and 32-bit color
▪2.5" internal hard drive bay is perfect for optional solid-state disk applications
▪Internally accessible CompactFlash™ Type-II memory socket
System Monitoring and Management
▪Battery backed RTC/CMOS
▪Watchdog Timer with 255 levels (1-255 Seconds)
▪Supports CPU thermal/voltage monitoring and management
▪Supports Wake on Ring and Wake on Alarm functions
▪System power management (OS dependent)

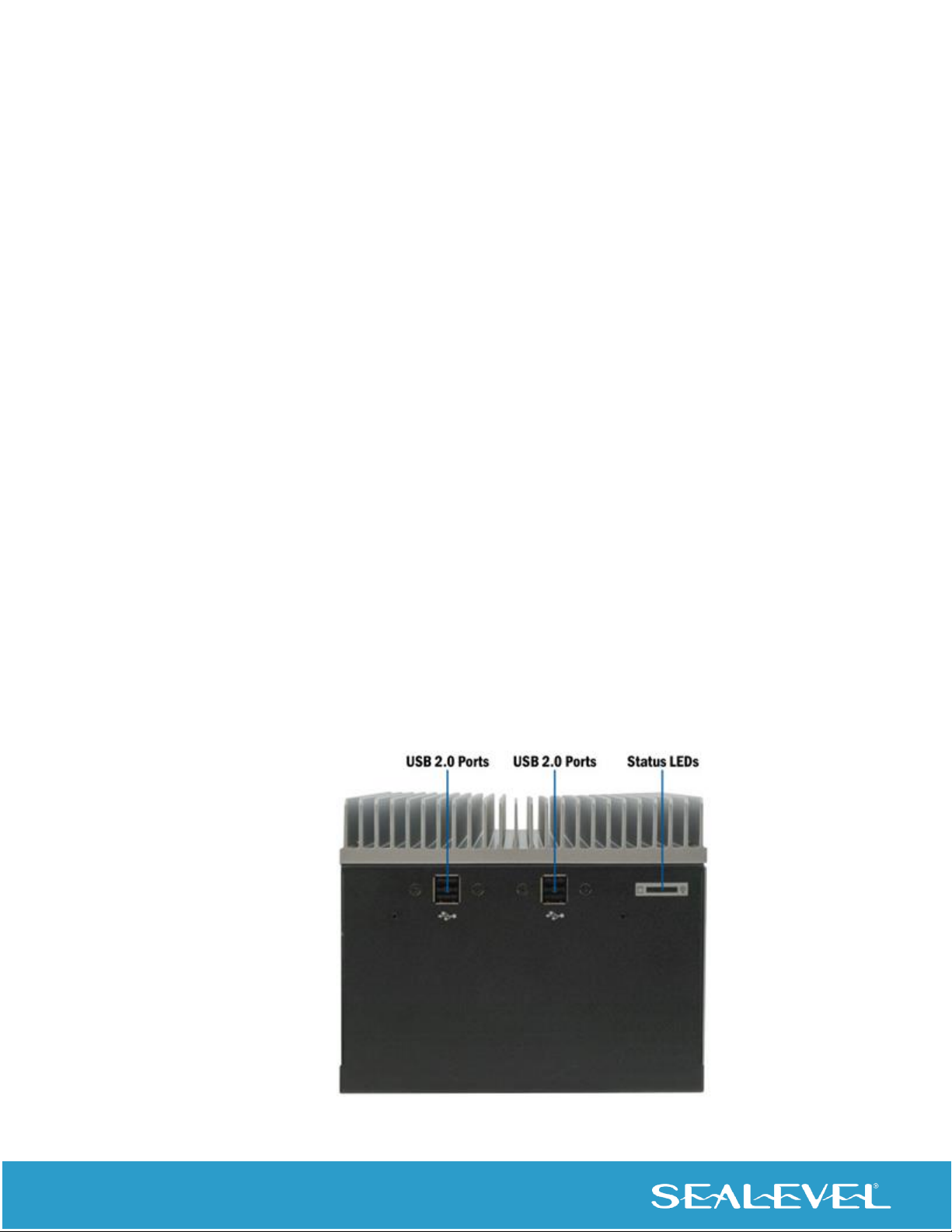

Enclosure Front
▪Four USB 2.0 ports (More on rear)
▪LED status indicators for power and disk activity

5
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
General Features, Continued
Enclosure Rear
▪Two expansion slots support one PCIe X4 and one PCI card
▪Two 10/100/1000BaseT RJ45 (Realtek RTL8111B) Gigabit Ethernet jacks with status
LEDs
▪Four DB9M serial ports (COM1 = RS-232/422/485, COM2,3,4 = RS-232)
▪Two USB 2.0 ports (More on front)
▪One analog VGA DB15 connector
▪One PS/2 mouse/keyboard port
▪Supports remote power on/off via 2-pin connector
▪On/Off power switch

6
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Before You Get Started
What’s Included
The Relio is shipped with the following items. If any of these items is missing or damaged, please contact
Sealevel for replacement.
Relio R5100 Series Fanless Core 2 Duo Computer
oR5120 includes 2GB RAM
oR5140 includes 4GB RAM
100-240V AC to 19VDC Desktop Power Supply
US Power Cord for Desktop Power Supply
Mounting Brackets with Enclosure Mounting Hardware
PS/2 ‘Y’-cable for PS/2 Mouse/Keyboard
Remote Power On/Off Cable
Advisory Conventions
Warning
The highest level of importance used to stress a condition where damage could result to the product, or
the user could suffer serious injury.
Important
The middle level of importance used to highlight information that might not seem obvious or a situation
that could cause the product to fail.
Note
The lowest level of importance used to provide background information, additional tips, or other non-
critical facts that will not affect the use of the product.

7
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
OPTIONAL ITEMS
Depending upon your application, you are likely to find one or more of the following items useful with the Relio
R5100 to real-world signals. All items can be purchased from our website (www.sealevel.com) or by calling our
sales team at [phone].
Memory Options/Upgrades
Relio R5100 systems have two 200-pin SODIMM slots. The first slot includes 2GB RAM and
ordering options allow for a maximum of 4GB. It is recommended to order the R5100 system with
memory already integrated. The following memory is recommended for field replacement or
upgrades.
1GB DDR2 200-Pin SODIMM (Item# RAM1GB-667X200)
1GB DDR2 200-pin SODIMM (667MHz Non-ECC
CL5) module.
2GB DDR2 200-Pin SODIMM (Item# RAM2GB-667X200)
2GB DDR2 200-pin SODIMM (667MHz Non-
ECC CL5) module (one included in Relio
R5120 and two included in Relio R5140).

8
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021

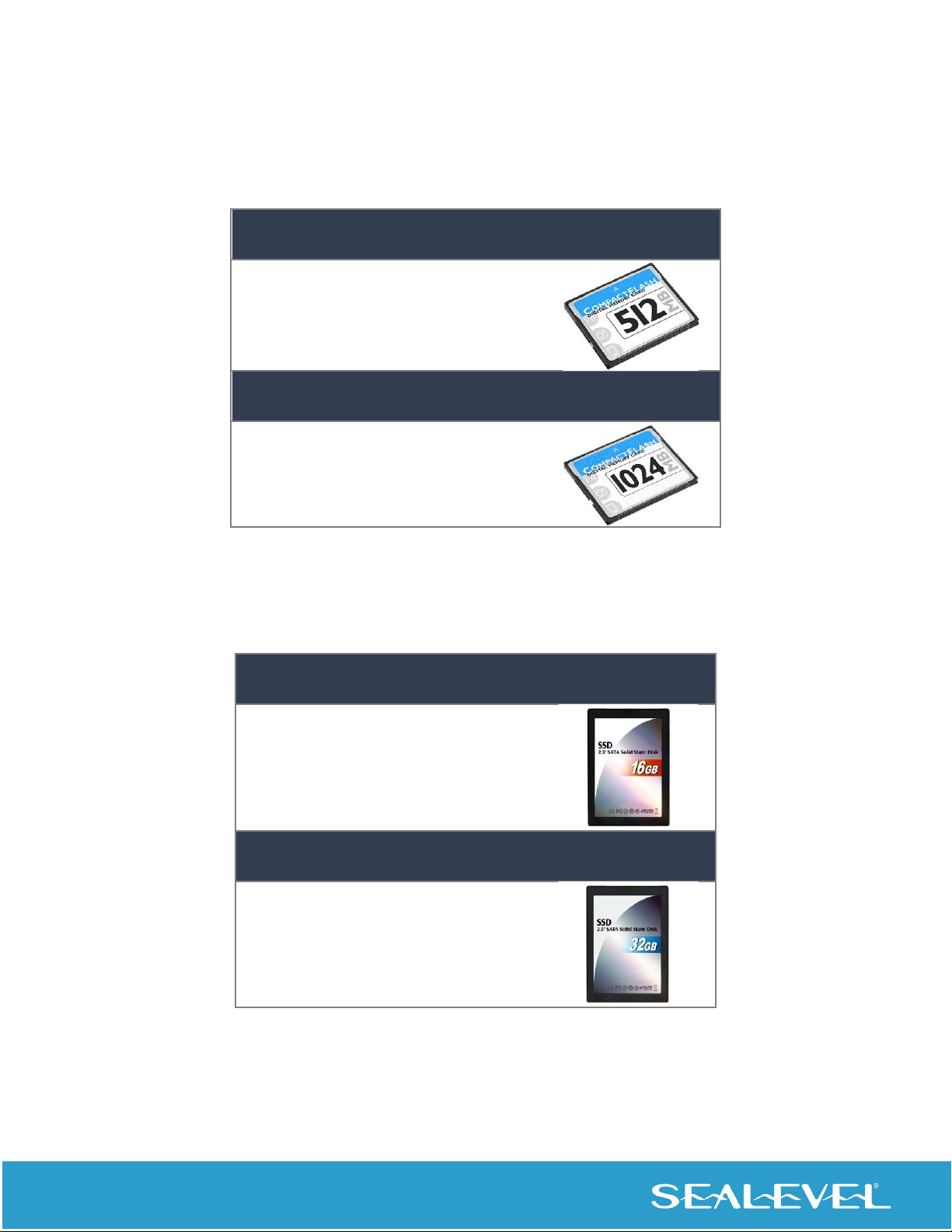

CompactFlash™ Memory
Install your embedded operating system and application on CompactFlash memory for true solid-
state operation resulting in the highest reliability. Integration options are available. Contact your
sales representative for details.
512MB CompactFlash Module (Item# CF-512)
CompactFlash memory module.
1GB CompactFlash Module (Item# CF-1GB)
1GB CompactFlash memory module.
SATA Solid-State Disk (SSD) Drives
Install your embedded operating system and application on CompactFlash memory for true solid-
state operation resulting in the highest reliability. Integration options are available. Contact your
sales representative for details.
16GB SATA Solid-State Disk (Item# SSD-16GSS)
16GB 2.5” SATA SSD with SLC memory.
32GB SATA Solid-State Disk (Item# SSD-32GMS)
32 GB 2.5” SATA SSD with MLC memory.

9
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
OPTIONAL ITEMS
SATA Solid-State Disk (SSD) Drives, Continued
64GB SATA Solid-State Disk (Item# SSD-64GMS)
64GB 2.5” SATA SSD with MLC memory.

10
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation
Follow proper ESD procedures by grounding yourself and the computer chassis before opening the enclosure.
This will help avoid system damage resulting from static electricity discharge.
Installing System Memory
The R5100 supports a maximum of 4GB RAM via two 200-Pin SODIMM slots. The memory slots
accept either 533MHz or 667MHz (CL5) Non-ECC DDR2 memory.
The base system (R5120) includes 2GB 667 MHz RAM in the slot located on the top of the
motherboard under the heat sink. The system can be ordered with 4GB 667 MHz RAM (R5140)
installed at the factory, or an additional 1GB or 2GB can be installed in the field.
To install memory into the second slot, follow these instructions.
1. Turn off the system and disconnect from power source.

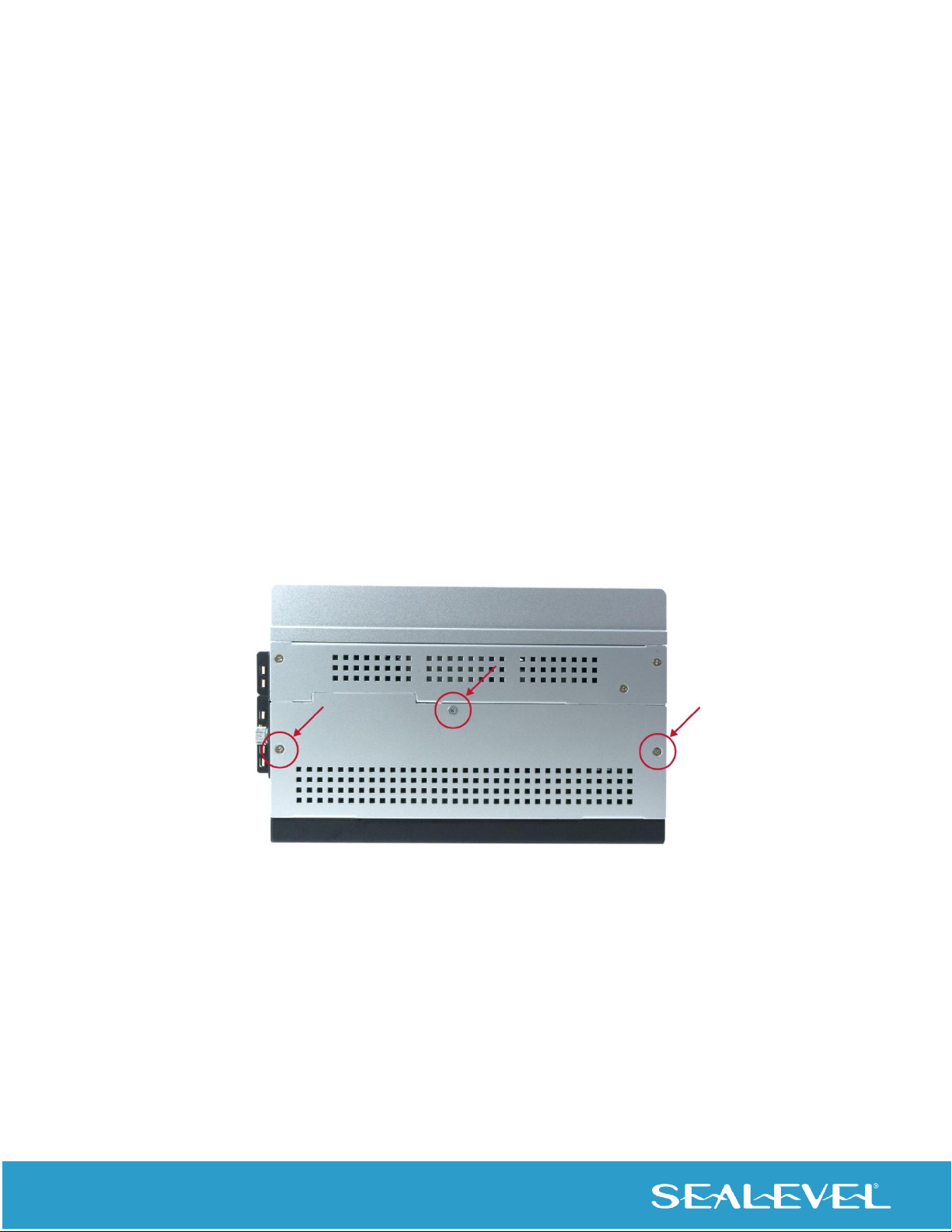

2. Remove the three screws from the side of the enclosure

11
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
3. Remove the side panel and locate the SODIMM slot as shown in the image below.
The heat sink and both side panels have been removed to show detail.
4. Align the memory module with the socket. The socket is keyed so that memory can only be installed
one way.
5. Firmly insert the memory module into the socket and at a slight angle until seated.
6. Push the memory module down flat (parallel to the motherboard) until the side latches engage the
memory module.
7. Replace the side cover and install the three screws.
8. Plug the system into the power source and power up the system.

12
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
Installing a Solid-State Disk Drive
The R5100 offers a convenient drive tray that supports a single 2.5” solid-state disk (SSD) or hard drive. The drive
tray is located in the bottom of the enclosure. A SATA cable and power cable are already installed inside the
system.
To install a 2.5” drive, follow these instructions:
1. Turn off the system and disconnect from power source.
2. Remove the three screws from the side of the enclosure.
3. Remove the side panel and locate the drive tray in the bottom of the enclosure.

13
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
Installing a Solid State Drive, Continued

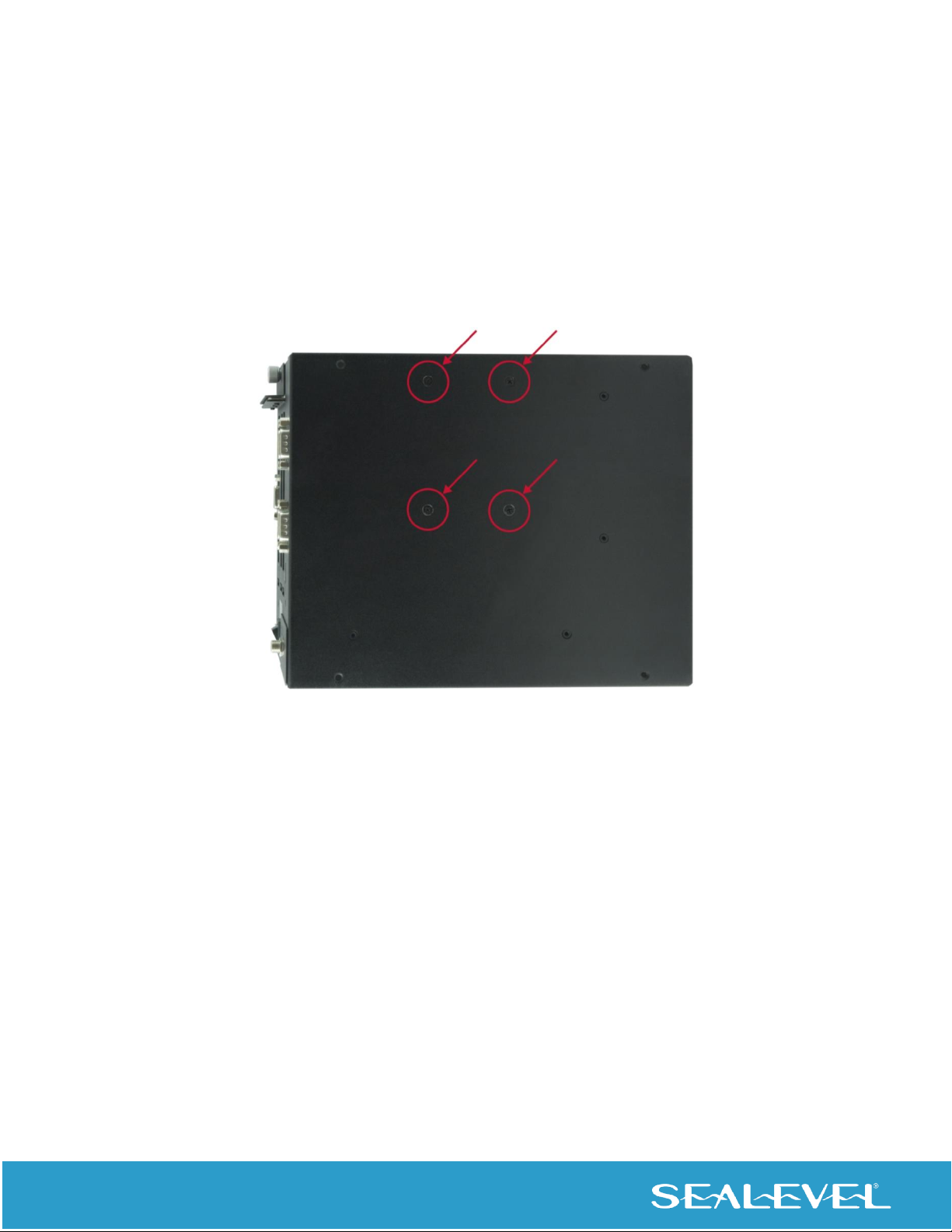

4. Turn the system on its side and locate the four screws holding the drive tray.
5. Hold the drive tray with one hand to prevent it from falling and damaging components inside the
enclosure.
6. Remove the four screws from the bottom of the enclosure with the other hand.
7. Remove the drive tray from the enclosure.
8. Install the 2.5” drive in the tray using the screws supplied with the drive by the manufacturer.
9. Install the drive tray into the enclosure with the connectors on the drive facing towards the
cables.
10. Connect the SATA and power cables to the drive as shown. The SATA and power cables are
located towards the front of the enclosure as shown below.

14
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
Installing a Solid State Drive, Continued
11. Replace the side cover and install the three screws.
12. Plug the system into the power source and power up the system.
Installing Expansion Cards
The R5100 offers two expansion slots that support one PCI Express X4 and one 32-bit PCI cards. The cards are
held securely in place by a single thumbscrew.
To install an expansion card into the R5100, follow these instructions.
1. Turn off the system and disconnect from power source.
2. Remove the three screws from the side of the enclosure.

15
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
Installing Expansion Cards
3. Remove the side panel and locate either the PCI Express or the PCI slot as shown in the
image below.
4. Loosen the thumbscrew on the back of the enclosure and remove the bracket holding the PC
brackets in place. The bracket is keyed and may have to be rocked back and forth to remove.
5. If installing multiple expansion cards, install the PCI Express card first due to the tight
confines of the enclosure.
6. Align the expansion card with the proper slot and press the card into the slot until firmly
seated.
7. On the outside of the enclosure, replace the bracket with thumbscrew and tighten securely
by hand. The image shows two expansion cards properly installed.

16
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
Installing Expansion Cards, Continued
8. Replace the side cover and install the three screws.
9. Plug the system into the power source and power up the system.

17
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Hardware Installation, Continued
Installing CompactFlash
The Relio R5100 can run an embedded operating system and execute applications from CompactFlash memory,
resulting in true solid-state operation. The system includes a single internally-accessible CompactFlash socket.
Use the following installation instructions for accessing the internal CompactFlash socket.
1. Turn off the system and disconnect from power source.
2. Remove the three screws from the side of the enclosure.

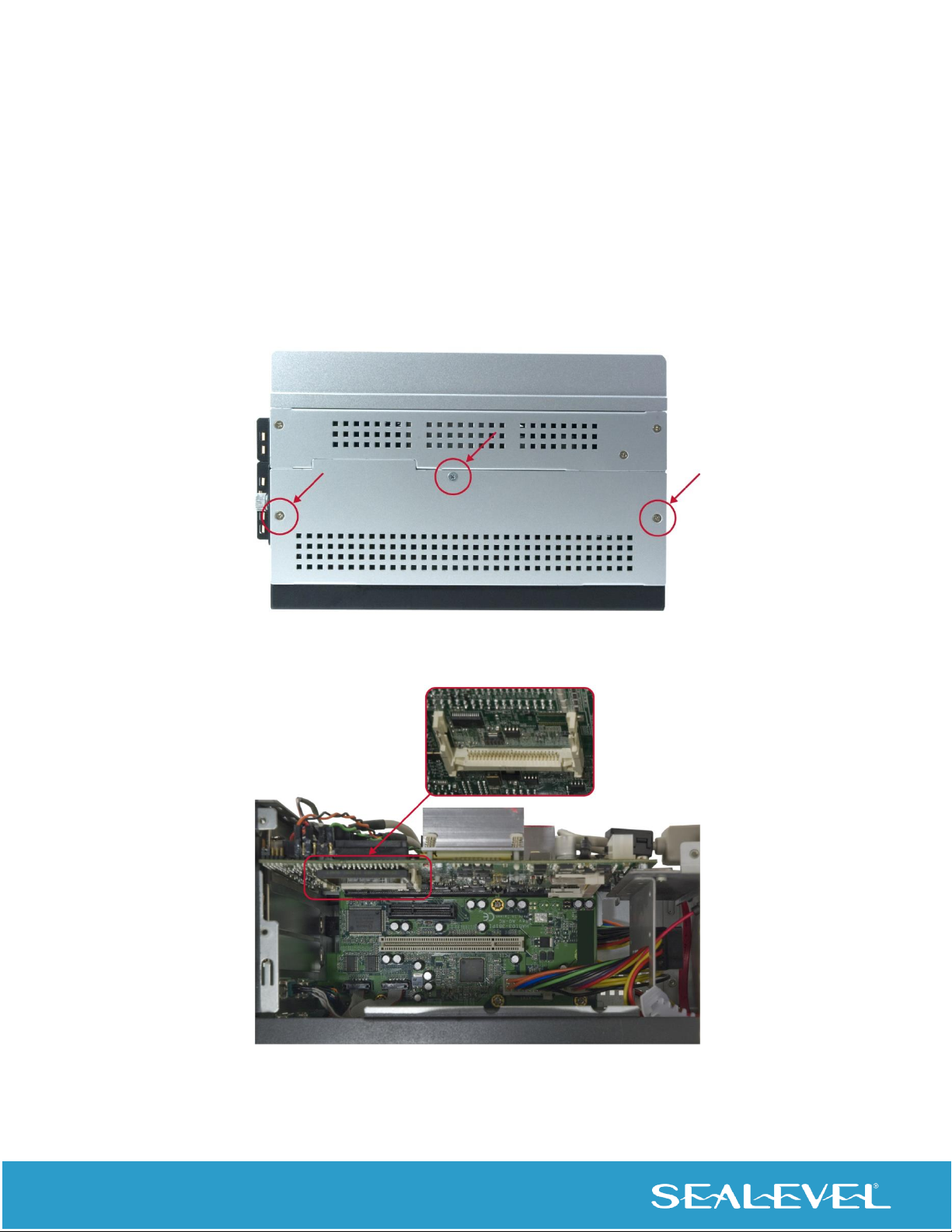

3. Remove the side panel and locate the CompactFlash socket as shown in the image
below.
4. Firmly insert the CompactFlash card into the socket until seated.
5. Replace the side cover and install the three screws.
6. Plug the system into the power source and power up the system.

18
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Technical Description
Motherboard Layout - Top
The board map below shows the components that are located on the top of the motherboard, underneath the
heat sink.
Motherboard Layout –Bottom
The board map below shows the locations of the SODIMM memory and CompactFlash sockets on the bottom of
the motherboard. These sockets are accessible through the side panel.

19
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Technical Description, Continued
Component & Connector Locations
The connectors on the motherboard are used to interface to various other parts of the system. All interfaces
available on the motherboard are not brought out to real world connections. If you need access to a specific
interface, please contact your sales rep or technical support for assistance. The following table details the
components and connectors shown in the board maps on the previous page.
Label
Description
BU1
Internal Buzzer
BT1
Internal Battery
CN1
General Output Connector
CN2
Parallel Port Connector
CN3
IDE Connector
CN4
EPIC Power Connector
CN5
Ethernet Connector 2
CN6
FDD Connector
CN7
Ethernet Connector 1
CN8
200-Pin DDR2 Memory Channel B
CN9
External Mouse Connector
CN10
USB Port 5, 6 Connector
CN11
USB Port 3, 4 Connector
CN12
Audio Connector
CN13
External Keyboard Connector
CN14
CRT Connector
CN15
SATA Port 1 Connector
CN16
LVDX LCD Interface
CN19
SATA Port 2 Connector
CN21
LCD Power Connector
CN22
Ethernet 1 External Link/ACT LED
CN23
Ethernet 1 External Speed LED
CN24
Ethernet 2 External Link/ACT LED
CN25
Ethernet 2 External Speed LED
COM1
COM1
COM2
COM2
FAN1
System Fan 1 Connector
FAN2
System Fan 2 Connector
FAN3
System Fan 3 Connector
SCF1
CompactFlash Connector (Bottom)
SCN1
200-Pin DDR2 Memory Channel A (Bottom)
U5
Socket M CPU Socket
U10
System BIOS
USB1
USB Port 1 Connector
USB2
USB Port 2 Connector

20
© Sealevel Systems, Inc. R5120 & R5140 Manual | SL9212 10/2021
Technical Description, Continued
Jumper Descriptions & Locations
The R5100 has jumpers on the motherboard for configuring the COM1 serial port and CompactFlash settings. In
rare instances where an incorrect setting is saved in the Setup Utility, you can use a jumper to clear the CMOS
memory.
The jumpers are located on the top side of the motherboard, under the large heat sink on top of the enclosure.
The PCI Express backplane jumper is located on the backplane, which can be accessed under the heat sink.
To access the jumpers, remove the eight (8) screws from the top of the heat sink. Remove the heat sink by lifting
straight up (it may seem hard to remove due to the thermal pads connecting internal heat sinks to external heat
sink). For the COM jumpers located at the corner of the motherboard, removing the side panels and the heat sink
will make access to these jumpers easier.
The jumpers can be found in the following locations.
Jumper Descriptions
Label
Description
J1
COM1 DCD and RI Voltage Selection
J2
COM1 RS-232/422/485 Configuration
J3
COM1 RS-232/422/485 Configuration
J4
COM1 RS-232/422/485 Configuration
J6
CompactFlash Master/Slave Setting
J7
Clear CMOS
J8
CompactFlash Voltage Setting
J1 (Backplane)
PCI Express Backplane Setting
(J1) COM1 DCD and RI Voltage Selection
Use the jumper (J1) to configure the voltage for DCD and RI.
