Sealey MAC01 User manual

TYRE INFLATOR/MINI AIR COMPRESSOR WITH
WORKLIGHT 12V
MODEL NO: MAC01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9Keep the compressor clean and in good condition.
9Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
warranty.
9Keep children and non-essential persons away from the work area.
WARNING! This compressor is capable of producing a high pressure. DO NOT inflate any item beyond it’s maximum specified
pressure.
9The 12volt cigarette lighter plug must not be replaced with any other type of plug or electrical supply.
8DO NOT use near flammable solids, liquids or gases.
8DO NOT direct inflation hose connector head at yourself, others or animals.
8DO NOT leave the compressor operating unattended. Always monitor it and the inflation pressure.
8DO NOT carry by the hose, or yank the hose from an inflation valve.
8DO NOT pull the plug from the cigarette lighter socket using the lead.
8DO NOT get the compressor wet or use in the rain.
8DO NOT use the compressor for a task that it is not designed for.
8DO NOT operate the compressor when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8DO NOT operate the compressor if any parts are missing or the compressor is damaged, as this may cause failure and/or personal
injury.
8DO NOT open the unit.
2. INTRODUCTION
12V Mini air compressor with delivery of 25lt/min. Integral storage for supply lead and air output hose. features work light for use in low light
areas. Light can also be set to ash for emergency use. Pressure gauge reads up to 8bar/120psi. Suitable for inating tyres on cars, vans and
4x4s.
3. SPECIFICATION
Model no .................................................................... MAC01
Hose length................................................................ 600mm
Power cord length .......................................................... 3.3m
Max. current ......................................................8.5A @ 40psi
Operating voltage.............................................................12V
Weight......................................................................... 1.05kg
Typical ination time............. 0-30psi in 178sec (175/70/R13)
4. OPERATION
WARNING! Ensure you have read and understood the safety instructions.
4.1. Position compressor on a rm, at surface and so that the air hose reaches the tyre valve.
4.2. Check that the compressor On/Off switch is in the OFF position and plug the 12V plug into the vehicle’s cigarette lighter socket.
4.3. Remove the valve dust cap and lift the connector locking lever into the upright position (g.1).
4.4. Push connector fully onto the valve and lock in place by pressing down the locking lever (g.2).
IMPORTANT: Ination will only be effective if the connector is fully tted and locked onto the valve.
4.5. Press the compressor On/Off switch to the ON position and the compressor will begin to operate.
4.6. Inate the tyre to the desired pressure and turn off the compressor by pressing the switch to the OFF position.
NOTE: The gauge may be subject to uctuation whilst pumping.
4.7. Remove the air hose from the tyre valve by releasing the locking lever and gently twisting and pulling the connector from the tyre
valve, taking care not to lose any air in the process. Replace the dust cap.
4.8. Disconnect the 12V plug from the vehicle’s cigarette lighter socket.
WARNING! The compressor must be switched off for fteen minutes after each sixty minute period of continuous operation to prevent
excessive heat build-up.
Refer to
instruction
manual
Keep away
from rain
Original Language Version
© Jack Sealey Limited

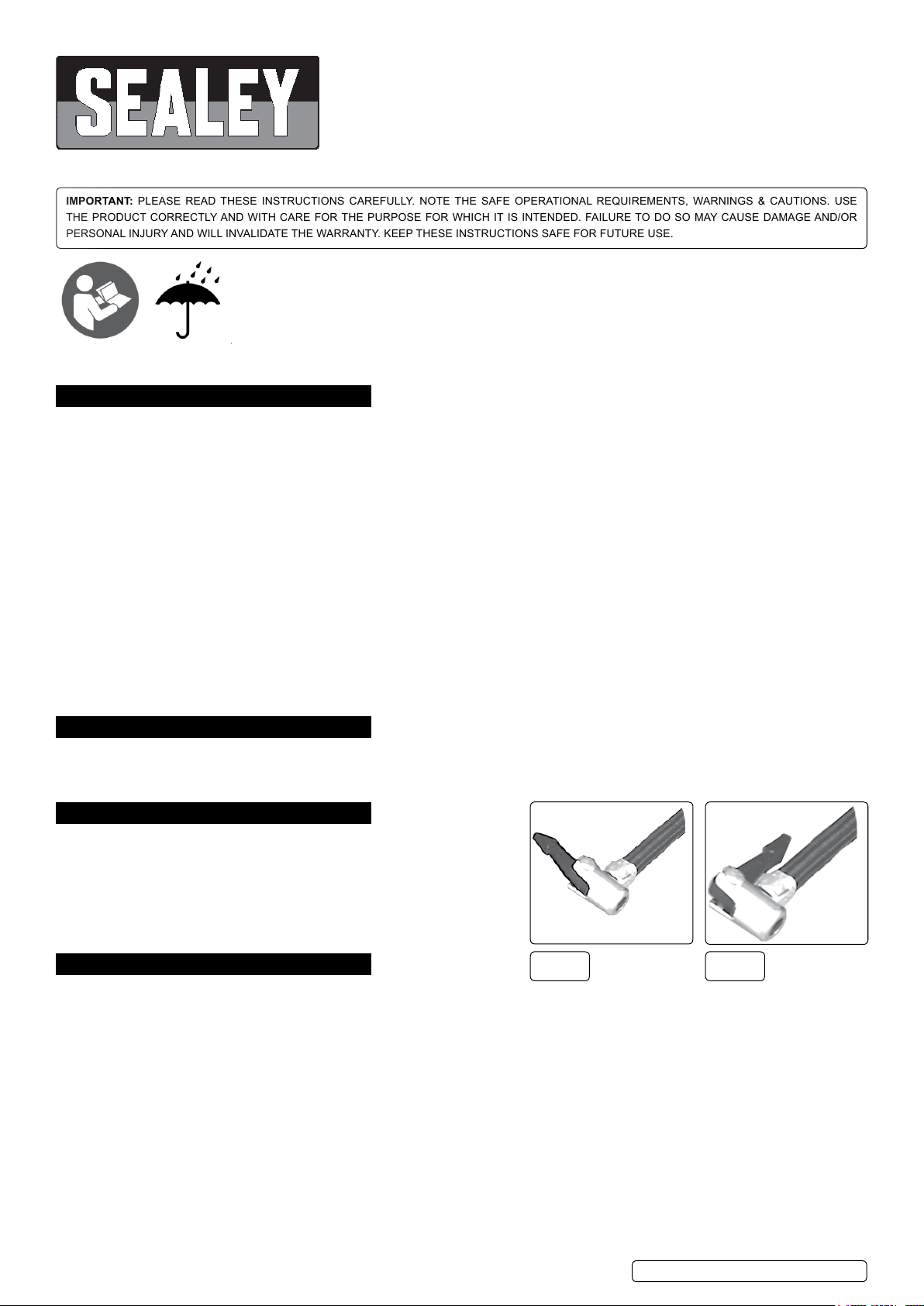

fig.1fig.2
MAC01 | Issue:3 (H,2,F) 08/03/19

Original Language Version
© Jack Sealey Limited
4.9. The LED lights have two selectable functions - white LEDs for illumination or red ashing LEDs for emergency warning. The light
switch cycles through: OFF - White LED - Red ashing LED - OFF.
4.10. GENERAL INFORMATION:
a) When inating a totally at tyre still tted on a vehicle, there should not be any weight on it. The vehicle must, therefore, be jacked
up to take the weight off the tyre.
b) The time taken to inate a tyre will depend upon the volume of air and pressure required.
c) If the compressor does not work when it is plugged in, check the operation of the lighter socket, it may require the ignition switch to
be in the ‘ON’ position for it to work.
NOTE: The compressor may also be used on items such as inatable dinghies, sports balls, air beds etc. using one of the two
adaptors supplied.
NOTE: The pressure gauge is not a calibrated instrument. It is recommended to use a calibrated tyre pressure gauge for an accurate
nal reading.
CAUTION: Some items may not indicate the pressure required or the safe maximum pressure. Be very careful not to over-inate.
4.11.
4.12.
.
MAC01 | Issue:3 (H,2,F) 08/03/19
