Sealey VS01W User manual

RECHARGEABLE Ø5.5MM PROBE VIDEO
BORESCOPE FOR SMARTPHONE
MODEL NO: VS01W
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9Always perform automotive testing in a safe environment.
9Keep your work area clean and well lit.
9Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.
9Operate the tool in a well-ventilated work area.
8DO NOT operate the tool in explosive atmospheres, such as in the presence of ammable liquids, gases, or heavy dust.
8DO NOT use the tool around corrosive chemicals which can damage the tool.
8DO NOT abuse the exible cable. Never use the exible cable to carry the tool.
8DO NOT drop the borescope, it is not shock proof.
9 Keep bystanders and children away while operating the tool.
9Keep the tool dry, clean, free from oil, water and grease. Use a small amount of mild detergent on a clean cloth to clean the outside
of the tool when necessary and store in a dry, childproof area.
9 Turn the borescope off when not in use.
9 Remove the batteries when cleaning the unit or before storing the unit for a long period of time.
9 When necessary replace all four batteries. Use only the size and type of battery specied.
2. INTRODUCTION
New compact design allows you to connect to a smartphone or tablet via WiFi technology which supports IOS and Android. Fitted with a six
LED adjustable light for precise illumination. Images can be stored on App or phone and easily forwarded on to the customer via email or
preferred messenger Apps by one click of a button. High resolution 1 megapixel camera gives a clear image. Includes a case which features
a phone holder with an adjustable wrist strap giving you easy viewing and both hands free to work. Waterproof probe pod with IP67 rating.
Features on/off, battery level, battery charging and WiFi signal indicators. Powered by a rechargeable 3.7V 3.2Ah Li-ion battery. Supplied with
a probe pod dust cap and screw on 45° mirror pod.
3. SPECIFICATION
Model No:............................................................................................................................................. VS01W
Accessories:...................................... 45° Mirror, Wrist strap with case, Smartphone holder, Camera protector
Camera Probe Length:........................................................................................................................ 1000mm
Camera: .......................................................................................................................... Ø5.5mm 1 Megapixel
Charging Time:..........................................................................................................................................6-8hr
Focus Distance: ......................................................................................................................... 30mm - 80mm
Imaging Sensor:......................................................................................................................... CMOS Sensor
Mirror Flip/Rotate Function:......................................................................................................................... Yes
Operating Time: ........................................................................................................................................... 6hr
Pod Length:............................................................................................................................................. 30mm
Power Source: .................................................................................................................................3.7V 3.2Ah
Record Function (Video + Still): .................................................................................................................. Yes
Viewing Angle:..............................................................................................................................................60°
VS01W Issue 1 04/09/19
Original Language Version
© Jack Sealey Limited
Refer to
instructions

4. CONTENTS
g.1
g.2
g.3
Original Language Version
© Jack Sealey Limited VS01W Issue 1 04/09/19

5. ASSEMBLY
5.1. The Host is wrist mountable by means of a separate wristband. Your phone can be mounted to the host by means of the mobile phone
holder.
6. OPERATION
8DO NOT use excessive force to insert or retrieve probe from the equipment or areas under inspection.
8DO NOT use the probe to push against objects or to clear a path. This instrument is for remote viewing only.
8DO NOT bend any part of the shaft tighter than a 130mm diameter.
8DO NOT insert the probe and tip into locations where the temperature is greater than 55°C.
8DO NOT vibrate, bang, or drop your bore scope. It is not shock resistant.
6.1. TURNING THE HOST ON AND OFF

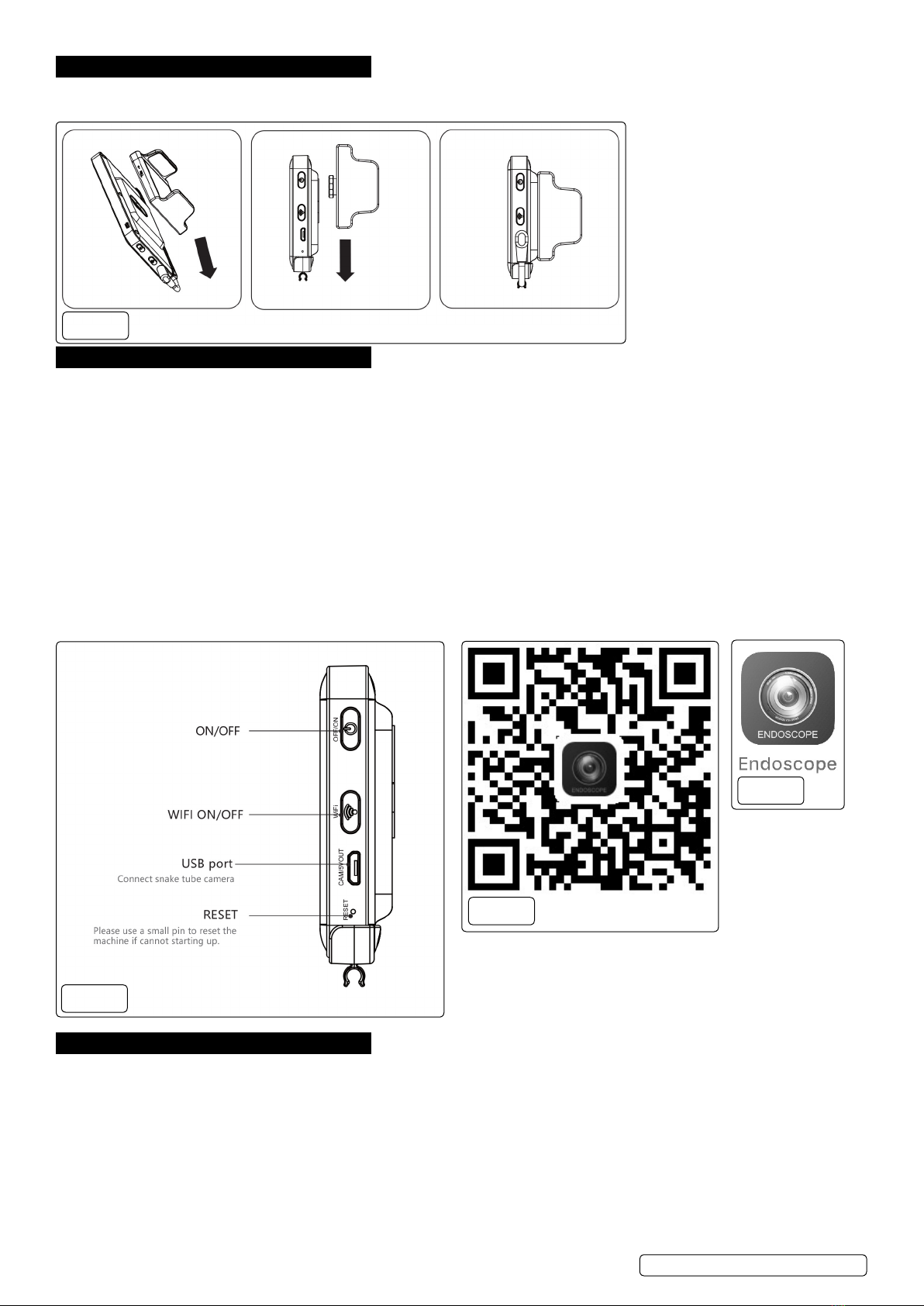

6.1.1. To turn on, hold in on/off button (g.5) until on/off indicator illuminates red (g.2).
