Sealey CH28110V User manual

1.1 ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also
recommend that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are
plugged into a supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual
Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1 and 1.1.2
end use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for wear or damage and check all connections
to ensure that none are loose.
1.1.6 Important: Ensure that the voltage marked on the appliance matches the power supply to be
used (110volt 32amp).
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item
repaired or replaced by a qualified electrician. When a BS EN 60309 plug is damaged, cut the
cable just above the plug and dispose of the plug safely.

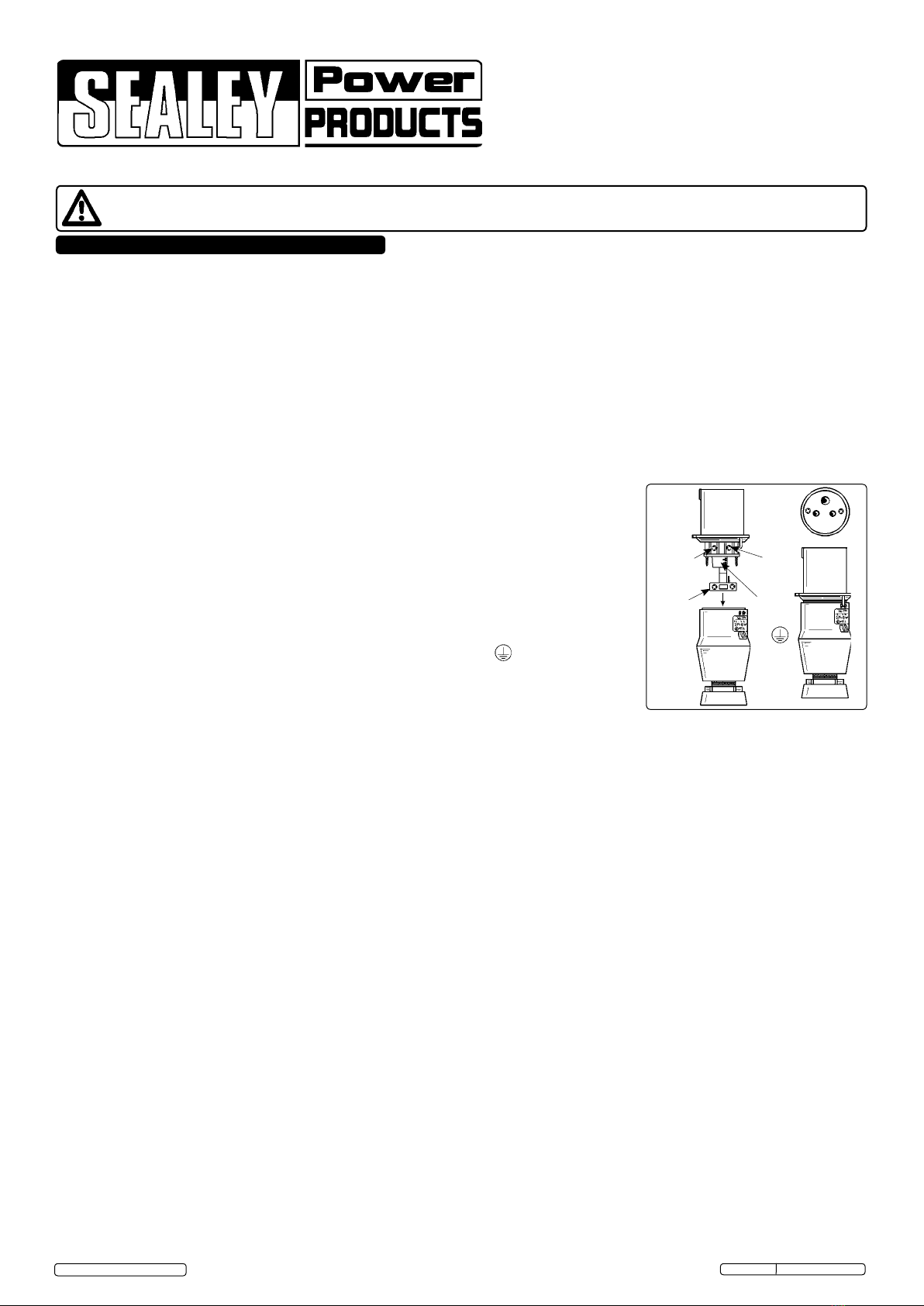

Fit a new plug according to the following instructions:
a) Connect the GREEN/YELLOW earth wire to the earth terminal.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly
connected, that the cable outer insulation extends beyond the cable restraint and that
the restraint is tight.
1.2 GENERAL SAFETY INSTRUCTIONS
Familiarise yourself with the applications and limitations of the heater.
Ensure 
 Keep away 
(particularly by children) is unlikely.
Ensure ‘off’ before connecting power cord to power supply.
Ensure the heater is in good order and condition before use. If in any doubt do not use the unit and contact an electrician.
Only use recommended attachments and parts. To use unauthorised parts may be dangerous and will invalidate your warranty.
Check that element guard is in place, undamaged and firmly attached.
Keep tools and other items away from the heater when it is in use.
Keep the work area clean and clear of unnecessary items.
Keep children and unauthorised persons away from the heater, as it gets very hot.
 Disconnect from mains and allow to cool before moving or attempting any cleaning or maintenance.
 DO NOT get the heater wet or use in damp or wet locations or areas where there is condensation.
 DO NOT locate the heater below the power outlet.
DO NOT remove plug from mains supply by pulling on power cord.
 DO NOT move the heater whilst in operation or even when still warm.
DO NOT touch the heater elements, even when cold.
Always switch off heater, disconnect from power supply and allow cooling for at least one hour before attempting to touch heater cassette.
DO NOT remove safety guard whilst heater is switched on. Turn off and allow cooling (as above) before servicing.
DO NOT disassemble the heater for any reason. The heater must be checked by qualified personnel only.
DO NOT use this product to perform a task for which it has not been designed.
 DO NOT operate heater without safety guard or elements installed.
 WARNING! If supply trips at consumer unit, ensure the correct rating of supply and appliance. If further tripping occurs consult
a qualified electrician.
DO NOT place any object on the safety guard of the heater cassette at any time.
WARNING! Ensure the heater is at least 2m from any object.
DO NOT leave unattended.
When not in use, store the heater carefully in a safe, dry, childproof location.
1. SAFETY INSTRUCTIONS

CERAMIC HEATER 1.4/2.8KW 110V
MODEL NO: CH28110V
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS.
USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
Original Language Version
© Jack Sealey Limited 2013 
Blue
(N)
Brown
(L)

Green
(E)
Cable
restraint

3. CERAMIC ELEMENTS
DO NOT touch an element just after switching ‘off’ power supply. Allow to cool.
Ensure that the heating elements are:
 
 
WARNING! There are no user serviceable components inside this heater, if an element requires replacing please return to an authorised
Sealey dealer.
2. INTRODUCTION & SPECIFICATION
Portable powder coated metal construction with two ceramic heating ele-

heat emission. Output is controlled by rocker switches fitted to the frame.
Carry handle allows for safe movement whilst in use. Sturdy legs provide a

rated plug.
Min. Power: 1400W
 
Input supply: 110V 32A
 
Weight: 6.5kg
4. OPERATION
Fig.1
Heater Identification Fig.1
1) Heater Element 5) Power on Neon
 
3) Heater Body 7) Stand
4) Handle
Original Language Version 
4
1
2
6
5
7
3
© Jack Sealey Limited 2013
 WARNING! Ensure you read, understand and apply the safety instructions in Section 1 before
using the heater.
NOTE!The ceramic element is fragile and therefore it is important that it is not subjected to any unnecessary
shocks or vibration and is not moved when it is on or until cooled down.
4.1 Ensure the heater is at least 2m from any object.
4.2 Plug in the heater and switch it on.
4.3 The heater has the following settings: See (Fig.2).
Position 0:0 Off position.
  
Position 0:I Lower element only.
Position I:I Both elements.
4.4 When the heater is no longer required, switch off and unplug the unit.


In the event of the heater being knocked over, a safety cut-out switch, which activates at an angle of 35º ±10º,
will disable the heater.
Follow these steps to re-start the heater.
 
b) Disconnect the power cord from the power supply.
c) Return the heater to a standing position.
d) If no damage has occurred to elements, replace safety guard if applicable, re-connect power cord to the
power supply and switch the heater back on.
Should the power cord require replacement, a complete wiring loom should be purchased and fitted by a
suitably qualified person.
Off
Off
On
On
Fig.2

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
FAULT DESCRIPTION SUGGESTED SOLUTION
HEATER DOES NOT OPERATE 


OTHERS Sealey authorised dealer.
5. TROUBLE SHOOTING
6. MAINTENANCE
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email [e-mail] or telephone [phone].
Environmental Protection.
Recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted,
taken to a recycle centre and disposed of in a manner which
is compatible with the environment.
WEEE Regulations.
Dispose of this product at the end of its working life in compliance
  
When the product is no longer required, it must be disposed of in an
environmentally protective way. Contact your local solid waste
authority for recycling information.
Original Language Version 
© Jack Sealey Limited 2013
ELECTRICAL TEST, MAINTENANCE & STORAGE WARNING: THIS IS A CLASS 1 TESTED APPLIANCE
 
 Disconnect from the mains and allow to cool before moving or attempting any cleaning or maintenance.
Clean the heater and guard with a damp cloth and some mild detergent.
When not in use, store the heater carefully in a safe, dry, childproof location.
To replace any of the elements, contact your authorised Sealey dealer.
 
DO NOT touch the elements unless essential to do so.
DO NOT 
DO NOT use abrasive cleaners or polishes on casing or guard.
