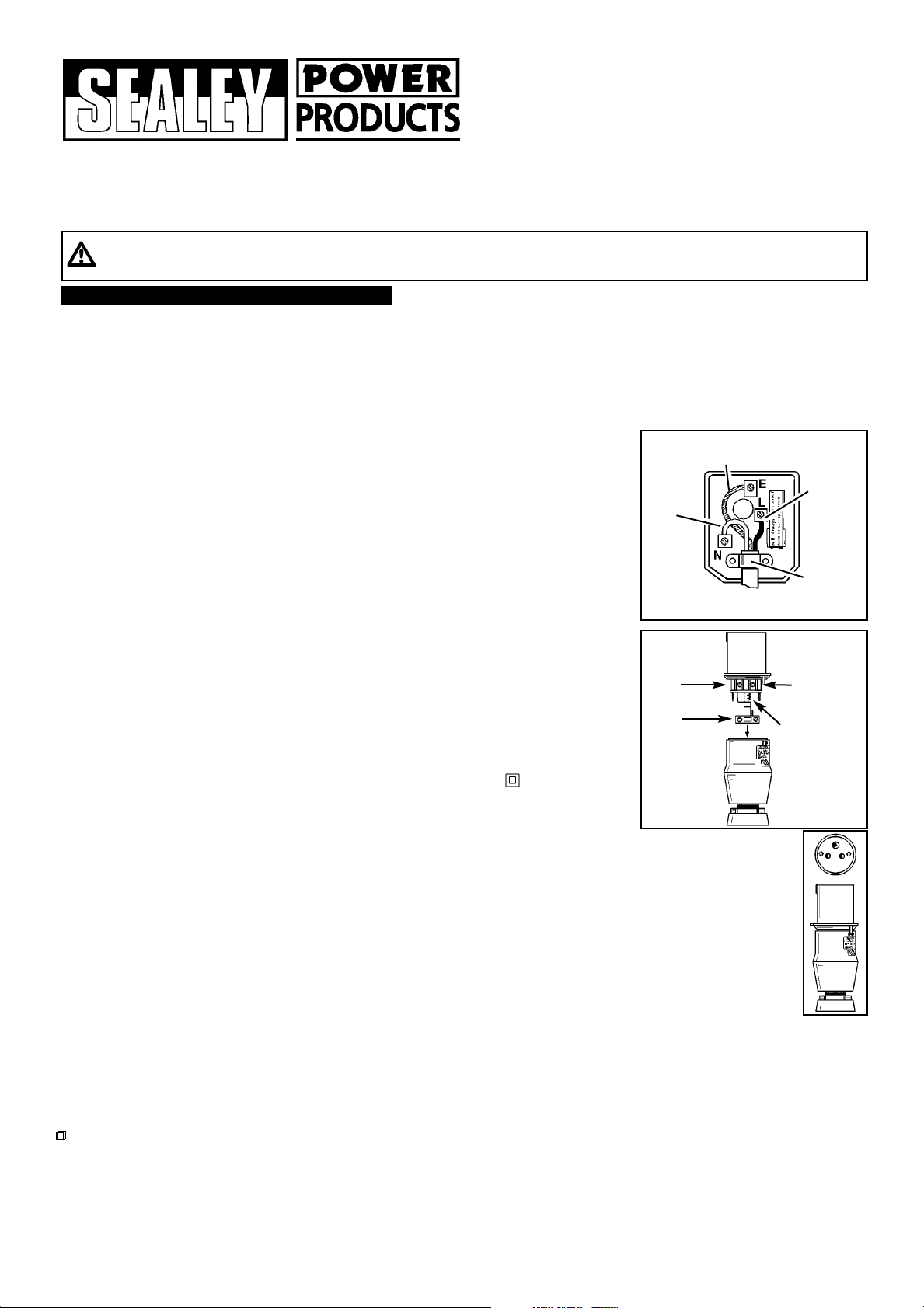

INSTRUCTIONS FOR:

PROPANE HEATERS

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions

and properly maintained, give you years of trouble free performance.

1. SAFETY INSTRUCTIONS

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAU-

TIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE

DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.

Models: LP35, LP45, LP60, LP80X, LP100, LP145, LP200, & LP300.

1.1. PLUG & MAINS POWER SUPPLY p WARNING! It is the responsibility of the owner and the operator to read, understand and

comply with the following:

You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other

connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices.

A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current

Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected

by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.

You must also read and understand the following instructions concerning electrical safety.

NOTE: 110 volt heaters are usually operated by connecting to a transformer or a generator. Check to ensure all supply equipment is compatible

with the rating of the cleaner.

1.1.1. The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business

premises, to be tested by a qualified electrician, using a Portable Appliance Tester (PAT), at least

once a year.

1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances

responsible for the safe condition of those appliances and the safety of the appliance

operators. If in any doubt about electrical safety, contact a qualified electrician.

1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the

power supply. See 1.1.1. and 1.1.2. and use a Portable Appliance Tester.

1.1.4. Ensure that cables are always protected against short circuit and overload.

1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all c o n n e c t i o n s t o

ensure that none is loose.

1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply to be

used and that the plug is fitted with the correct fuse - see fuse rating listed in Fig.1.

1.1.7. Important: For use from a 110 volt supply - ensure that the 110 volt transformer or generator

is adequately rated.

1.1.8. DO NOT pull or carry the appliance by the power cable.

1.1.9. DO NOT pull the plug from the socket by the cable.

1.1.10. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item

repaired or replaced by a qualified electrician. When an ASTA/BS approved UK 3 pin 13 amp

plug or 110 volt plug is damaged, cut the cable just above the plug and dispose of the plug safely.

Fit a new plug according to the following instructions (UK only - see diagrams opposite).

a) Connect the GREEN/YELLOW earth wire to the earth terminal E.

b) Connect the BROWN live wire to the live terminal L.

c) Connect the BLUE neutral wire to the neutral terminal N.

d) After wiring, check that there are no bare wires, that all wires have been correctly

connected, that the cable outer insulation extends beyond the cable restraint and that

the restraint is tight.

Double insulated products, which are always marked with this symbol , are fitted with live

(brown) and neutral (blue) wires only. To rewire, connect the wires as indicated above DO NOT

connect either wire to the earth terminal.

1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an RCD

fitted is preferred since any appliance plugged into it will be protected. The cable core section is

important and should be at least 1.5mm2, but to be absolutely sure that the capacity of the reel is

suitable for this product and for others which may be used in the other output sockets, we recommend

the use of 2.5mm2section cable.

1.2 GENERAL SAFETY

pWARNING! Disconnect heater from mains supply before servicing or performing maintenance. Replace or repair damaged parts.

Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

4Store gas cylinders in accordance with regulations applicable to such appliances.

4Ensure nothing is standing or passing in front of the heater. Mandatory minimum distance from the heater is 1m.

4Use the supplied pressure regulator only.

4Ensure continuous ventilation is provided to the heater operating area. A ventilation opening must run to the outside of the premises

where the heater is to be operated. The opening must be 25cm2for every kW and must also be set at an equal distance from the

upper and lower parts of the heater operating area.

4Ensure the heater is correctly turned off when not in use.

8DO NOT use the heater if damaged. Take immediate action to repair or replace damaged parts. Use authorised service agent only.

8DO NOT allow untrained persons to ignite the heater.

8DO NOT operate the heater without its cover.

8DO NOT exceed the 100W/m3limit considering the volume of the empty operating area.

8DO NOT use a naked flame to try and ignite the heater.

8DO NOT use the heater near flammable material, liquids, solids, or gases.

8DO NOT obstruct the air inlet and outlet sections of the heater.

8DO NOT point the heater at the gas cylinders.

4Keep the heater clean and in good working order, and store the heater in a safe area, out of reach of children.

WARNING! If the heater is used for prolonged periods at its maximum power, ice may form on the propane cylinder. This is due to excessive

evaporation. In such a case DO NOT use the heater to de-ice the cylinders.

Blue

Neutral

Wire

Yellow & Green

Earth Wire

Cable

Restraint

Brown

Live

Wire

Brown

Live

Connection

Blue

Neutral

Connection

Cable

Restraint

Yellow &

Green

Earth Wire

Connection

FUSE RATING 3 AMP

LP35, LP45, LP60, LP80X, LP100, LP145, LP200, & LP300. - (3) - 300402

3. INSTALLATION

Note: If you use a small gas cylinder the heater may not operate at its maximum

efficiency. We recommend the use of two or more cylinders linked in parallel to achieve

maximum continuous efficiency (fig 1).

3.1. Setting heater supply voltage. (LP100, LP145, LP200 & LP300 only)

3.1.1. Locate the supply voltage selector panel (fig 2), on the side of the base.

3.1.2. If the correct supply voltage is NOT shown, remove the two securing screws.

3.1.3. Remove the cover panel and select the required switch position as shown in fig.3.

Note: The moulded design of the cover panel ensures that the selected voltage is visible.

3.1.4. Refit the cover panel using the two securing screws.

3.2. Connections

3.2.1. Check heater and gas cylinders to ensure they are in good order and condition. If not stop and contact your supplier immediately.

3.2.2. Site the heater and gas cylinders in the operational area.

3.2.3. Connect heater to an electric socket ensuring that the machine is correctly earthed. See safety instructions.

3.2.4. Connect the gas supply hose to the pressure regulator and connect the regulator to the gas cylinder.

3.2.5. Gradually open the tap of the gas cylinder. Check hose and fittings for gas leaks.

pWARNING! DO NOT USE A NAKED FLAME! To check for leaks, we recommend the use of a foamy soap.

fig 1.

2. TECHNICAL SPECIFICATIONS

fig 2. fig 3. 110V 230V

230

4. IGNITION

IMPORTANT: To ensure continuous ventilation to the heater area, a ventilation opening must run to the outside of the premises where heater

is to operate.The opening must be 25cm2 for every kW, and must be set at an equal distance from upper and lower parts of heater operating area.

4.1 Switch Heater On.

4.1.1. Turn the fan switch to position I and check that the fan starts running (fig 4).

4.1.2. Push the gas valve button in and hold, then press repeatedly on the ignition lighter switch until the flame ignites (fig 5).

4.1.3. As flame lights, and the heater starts, keep the gas valve button pushed in for about 10 seconds (fig 6).

4.1.4. If the heater stops when the gas valve button is released, leave the fan on but wait for one minute and repeat at the starting operation

steps 4.1 to 4.3. after which hold the gas valve in for longer than 10 seconds before releasing (fig 7).

4.1.5. Desired heat output is controlled by regulating the gas flow pressure. Turn regulator anticlockwise to reduce the pressure and heat,

and clockwise to increase the pressure and heat.

4.2. Switch Heater Off.

4.2.1. Shut off the gas cylinder tap. Allow the fan to continue running until the flame shuts down, then turn the fan switch to position O.

LP35, LP45, LP60, LP80X, LP100, LP145, LP200, & LP300. - 3 -300402

Model: LP35 LP45 LP60 LP80X

Output (Propane): 10kW 12kW 15kW 13.4 - 25.4kW

Output (EN1596): 10.8kW 14.6kW 16.2kW 14.8 - 27.5kW

Output (Propane): 35,000Btu/h 43,018Btu/h 52,000Btu/h 45,853 - 86,721Btu/h

Output (EN1596): 36,880Btu/h 49,487Btu/h 55,320Btu/h 50,667 - 93,822Btu/h

Air Flow: 300m³/h 350m³/h 300m³/h 560m³/h

Fuel Consumption: 0.8kg/h 0.8kg/h 1.17kg/h 1.0 -1.8kg/h

Electrical Input: 230V - 0.3A 230V - 0.5A 230V - 0.3A 230V - 1.5A

Length: 390mm 450mm 490mm 500mm

Width: 180mm 220mm 220mm 280mm

Height: 270mm 355mm 285mm 410mm

Fuel: Propane Propane Propane Propane

Heated Volume: 8,750ft³ 11,000ft³ 15,000ft³ 20,000ft³

Model: LP100 LP145 LP200 LP300

Output (Propane): 12.5 - 31.2kW 26.6 - 43.5kW 34.9 - 58.5kW 50.1 - 82.2kW

Output (EN1596): 15 - 39kW 33.24 - 54.53kW 43.41 - 77kW 68.4 - 102.2kW

Output (Propane): 42,000 - 106,400Btu/h 90,000 - 148,500Btu/h 119,000 - 200,000Btu/h 171,000 - 280,500Btu/h

Output (EN1596): 51,000 - 131,793Btu/h 113,000 - 186,000Btu/h 148,000 - 263,000Btu/h 234,000 - 348,900Btu/h

Air Flow: 750m³/h 850m³/h 1800m³/h 2450m³/h

Fuel Consumption: 1.0 - 2.46kg/h 2.09 - 3.41kg/h 2.8 - 4.64kg/h 3.9 - 6.5kg/h

Electrical Input: 110/230V - 1.5/0.72A 110/230V - 1.5/0.72A 110/230V - 1.3/0.65A 110/230V - 1.3/0.65A

Length: 530mm 690mm 780mm 925mm

Width: 280mm 280mm 370mm 370mm

Height: 400mm 400mm 520mm 520mm

Fuel: Propane Propane Propane Propane

Heated Volume: 26,000ft³ 37,000ft³ 50,000ft³ 70,000ft³

WARNING! if the flame shuts down during operation, before repeating the ignition operations make sure the fan is not jammed, and the air

inlet and outlets are completely free of obstructions. If the flame shuts off during normal operation due to overheating the cause of the problem

must be determined and corrected before repeating the ignition procedure.

The Propane Space Heater may also be used as a cool air fan, to do so:

5.1. Remove the gas supply hose and plug the heater into the mains electrical power supply.

5.2. Switch fan position I on. The unit will now blow out cool air only.

5. COOL AIR FAN

6. MAINTENANCE

WARNING! Before commencing service or maintenance disconnect the unit from the electrical power, and the gas supply. Use authorised

parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

6.1. Check the gas supply hose condition, and change if necessary.

6.2. Check the starting electrode to ensure the gap is 5mm (fig 8).

6.3. Check the ignition unit, safety thermostat, and thermocouple condition

and ensure they are clean.

Caution: Wear safety goggles to perform this operation.

6.4. Clean inside the heater unit and the fan blade with compressed air.

fig.8. 5mm

PROBLEM POSSIBLE CAUSE SOLUTION

The fan motor 1. There is no electrical supply 1. Check mains power supply, wire, plug, and fuse.

does not work 2. The motor has locked. 2. Unlock the motor with appropriate tool.

The ignitor does 1. Electrode has the wrong gap. 1. Check and reset the electrode to the correct position (fig 7).

not spark 2. Faulty connection 2. Check and connect correctly the ignitor and the electrode.

No gas flow 1. The cylinder gas tap is closed 1. Open the gas tap

to the burner 2. The cylinder is empty 2. Replace the cylinder

3. Gas leaks from the supply. 3. Remove and clean the nozzle, check leaks by using a foamy

soap only. Stop the leak accordingly.

(DO NOT USE FLAME to find leak).

The burner starts, but it 1. The thermocouple is not 1. Repeat the starting operation keeping the button

stops as the gas valve warm enough pushed for a longer time

is released. 2. The safety override has 2. See above Motor does not work

activated because the fan

does not work.

The heater stops 1. Excessive gas supply 1. Check the pressure reducer, and replace if necessary.

during operation 2. Insufficient gas supply line. 2. Check that the motor is working correctly.

3. Insufficient air flow due to 3. Check and if necessary use a larger gas cylinder, or

formation on the cylinder.multiple cylinders connected parallel.

7. TROUBLESHOOTING

Declaration of Conformity We, the sole importer into the UK, declare that the products listed here are in conformity with the following EEC standards and directives

For Jack Sealey Ltd.

Sole importer into the UK

of Sealey Power Products

6th June 2000

Propane Heaters Models:

LP35, LP60, LP80, LP100, LP125, LP200, & LP300.

73.23/EEC Low Voltage Directive.

89/336/EEC EMC Directive.

Gas Appliances (Safety) Regulations 1992

LP35, LP45, LP60, LP80X, LP100, LP145, LP200, & LP300. - 3 -300402
