INSTRUCTIONS FOR:
STAPLE & NAIL GUN 6-14mm
MODEL No: AK7061.V2
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
Original Language Version AK7061.V2 Issue: 1 - 04/01/11
 WARNING! Ensure health & safety, local
authority, & general workshop practice
regulations are adhered to when using this
staple/nail gun.
 Maintain the staple/nail gun in good condition.
(use an authorised service agent).
Use this product in an adequate working area for
its function, keep area clean, tidy and free from
unrelated materials. Ensure there is adequate
lighting.
WARNING! Always wear approved eye or face
protection when operating the staple/nail gun.
Remove ill fitting clothing, ties, watches, rings, other
loose jewellery, and contain and/ or tie back long hair.
 Wear appropriate protective clothing.
 Maintain correct balance and footing. Ensure the
floor is not slippery and wear non slip shoes.
Keep children and unauthorised persons away
from the working area.
 DO NOT force this product to achieve a task it
was not designed to perform.
 DO NOT operate if any parts are damaged or
missing. This may cause failure or possible injury.
 DO NOT get the Stapler/Nailer wet or use in
damp or wet locations.
 DO NOT point at other persons or animals.
 DO NOT operate if you are tired, under the
influence of alcohol, drugs or intoxicating
medication.
 When not in use store in a safe, dry, child proof
area.
Specification:
Model No:........................................................AK7061
Crown Size:.......................................................9.5mm
Standard Staple Sizes:..................6, 8, 10, 12, 14mm
Hoop Staples:.....................................................12mm
Nail sizes:.............................................. 10, 12, 14mm
Three in one staple and nail gun fitted with an
adjustable power control and staple remover.
Features a removable sole plate for easy
clearance of blockages and is supplied with a
starter pack of nails and staples. Supplied in a
storage case, this staple and nail gun is suitable
for a wide range of applications.
2. INTRODUCTION
3. SPECIFICATION
4. OPERATING INSTRUCTIONS
4.2 Prior to stapling, ensure that the stapler is correctly
positioned and the sole plate is in firm contact with
the surfaced to be stapled. Firmly depress the
trigger until the gun fires (fig.2).
4.3 How to clear blockages. Remove the feed bar
(fig.1) and any loose staples remaining in the
guidance track. Using the tabs on the sole plate,
pull the sole plate back and downwards to hinge it
away from the main body. Clear any damaged
staples away from the staple exit path. Hinge up the
sole plate. Pull back on the tabs and move it back
into position within the main body. (fig.3)

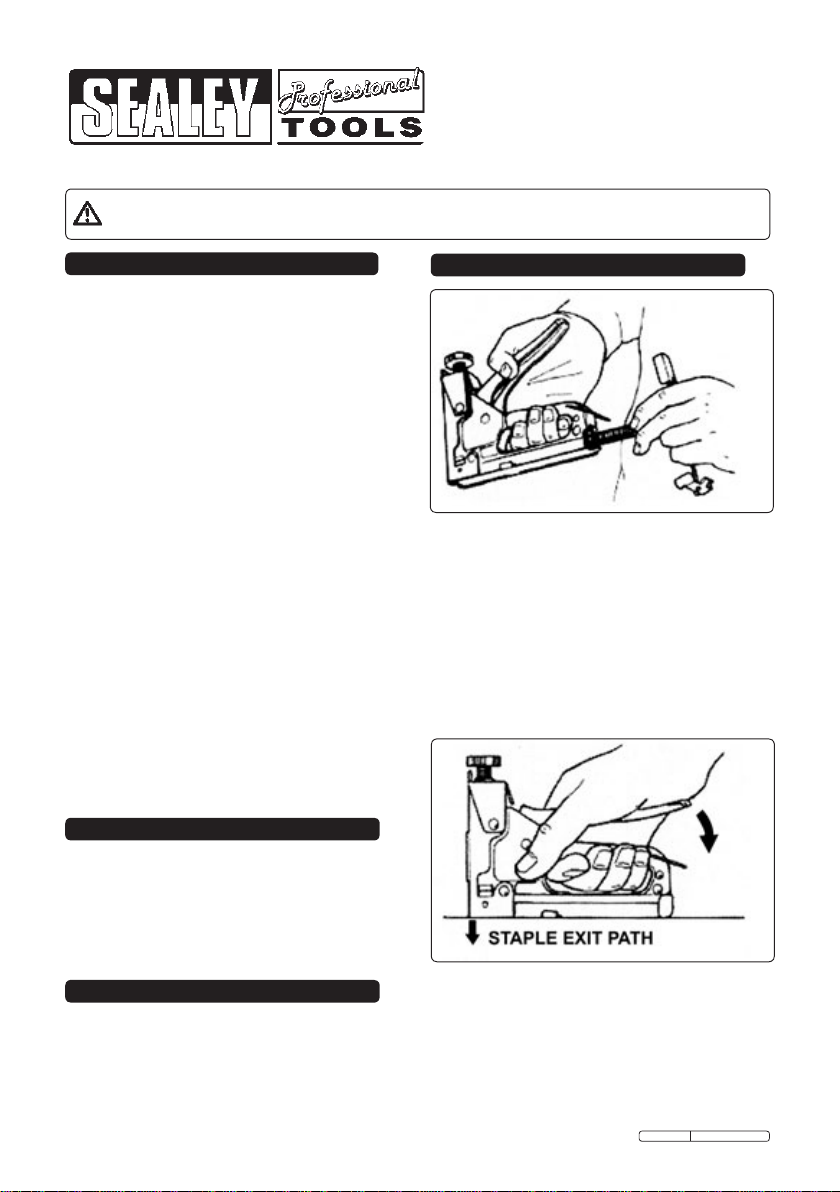

4.1 Hold the stapler in one hand and point away from
your body. Push in and down on the stapler feed
bar and withdraw it from the stapler. Insert new
staples (fig.1) or nails into the guidance track.
See (fig.5) for staple placement within the track.
Reinsert the feed bar and hook upwards to retain it.
g.1
g.2

AK7061.V2 Issue: 1 - 04/01/11
4.4 The stapling force can be adjusted using the
knurled knob in front of the trigger (fig.3X). Turn the
knob clockwise to increase the stapling force and
anti-clockwise to decrease the stapling force.
4.5 Staple removal. At the rear end of the sole plate is
a semicircular protrusion that can be used to lever
out driven staples. See fig.4.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
